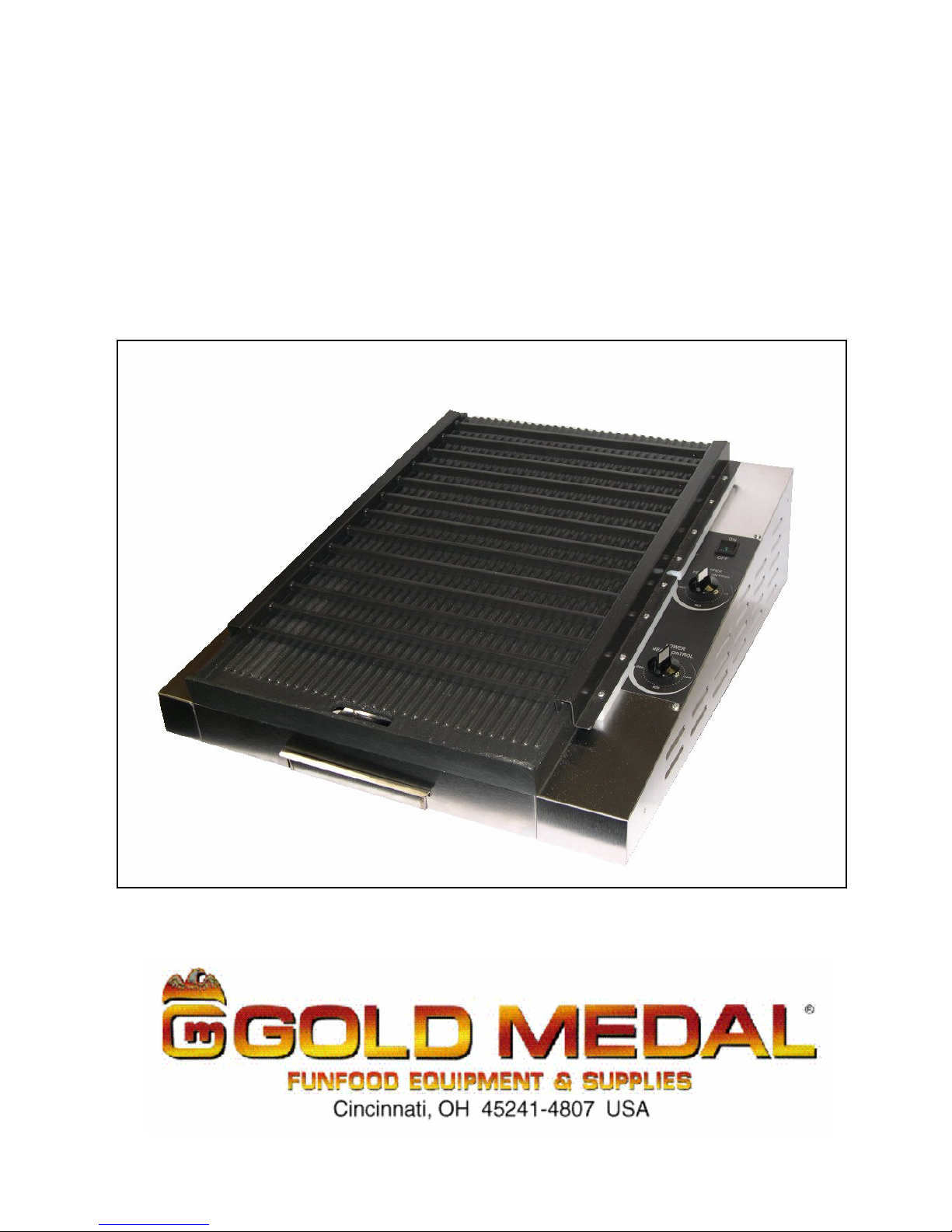

FENCE GRILLS
Instruction Manual
Models #8160 AND #8161
__________________________________________________________________________________Fence Grills
Model # 8160 & # 8161
2

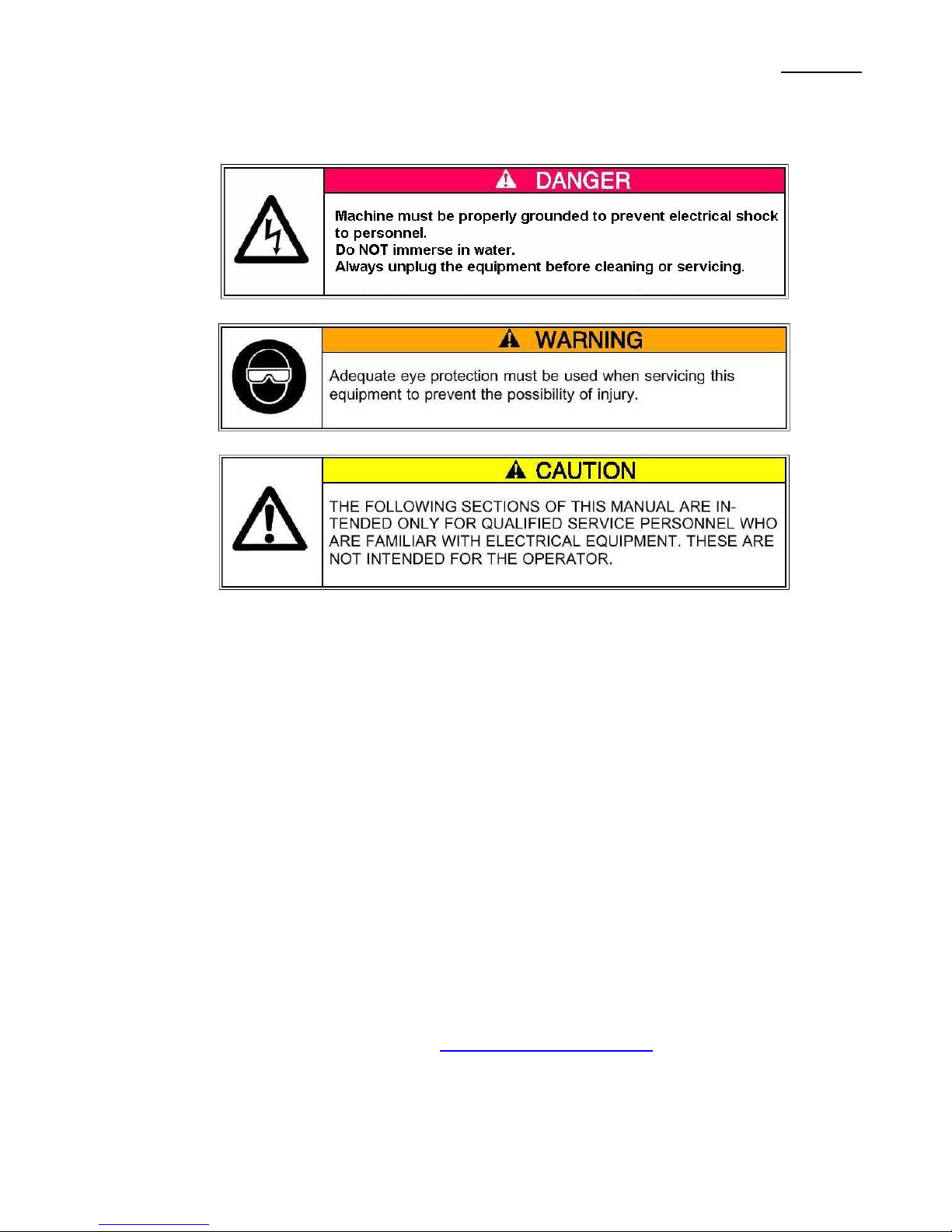

SAFETY PRECAUTIONS
__________________________________________________________________________________Fence Grills
Model # 8160 & # 8161
3
FENCE GRILL INSTALLATION
CHECKING SHIPMENT
Unpack the shipping crate and check thoroughly for any damage which may have occurred in
transit. Any claims should be filed immediately with the transportation company.
ELECTRICAL REQUIREMENTS
Voltage for your grill is 120 Volt, 60 Cycle, single phase. The 8160 will draw a maximum of 12.6
amps and the 8161 a maximum of 14.6 amps. Your electrician must furnish sufficient current
for the proper operation of your machine. We recommend that this machine be installed on a
dedicated line.
NOTE: These instructions apply to all machines manufactured after 3/20/2004.
__________________________________________________________________________________Fence Grills
Model # 8160 & # 8161
4
OPERATING INSTRUCTIONS
CONTROLS AND THEIR FUNCTIONS
HEAT CONTROLS
(2) Heat controls to cover the upper and lower zones. These controls have a positive OFF and
are variable from low to high.
ON/OFF SWITCH
Provides power to the motor and the heat controls with a built in pilot light to indicate that there
is power to the unit.
EASY STEPS FOR USING UNIT
1. Wipe grill clean prior to operation by using a damp washcloth.
2. Place fence on grill by aligning the pins on the grill with the slots in the fence.
3. Turn the on / off switch on. Turn heat controls fully clock-wise to high position.
4. Pre-heat grill for15 minutes.
5. Place pre-cooked product on grill between the fence rails.
6. Cook for 20-30 minutes and check product temperature with thermometer provided.
(Should be 150 Degrees F.) Adjust heat as necessary to raise the temperature of the
food to 150 degrees Fahrenheit.
7. Carefully remove and serve product.
__________________________________________________________________________________Fence Grills
Model # 8160 & # 8161
5
CARE AND CLEANING
The stainless steel body of the Fence Grill is easy to keep clean. Usually a damp cloth will
remove all dirt and grease spots. NEVER USE ABRASIVES on the stainless steel body,
cooking surface, or fence.
Cleaning Procedure:
Turn Fence Grill off and allow to cool for at least 2 hours before starting the cleaning procedure.
1. Unplug grill
2. Take fence off of cooking surface. Clean fence with soap and water.
3. Empty drip pan.
4. Wash drip pan as necessary with soap and water.
5. Clean stainless steel portion of unit with damp cloth and dry.
6. Clean cook top and fence with Watchdog Concession Equipment Cleaner. (Gold Medal
Item #2580)
__________________________________________________________________________________Fence Grills
Model # 8160 & # 8161
6
MAINTENANCE INSTRUCTIONS
ORDERING SPARE PARTS
1. Identify the desired part by checking it against the photos, illustrations, and/or the parts list.
2. When ordering, please include part number, part name, and quantity desired.
3. Please include your model name and machine serial number (located on the machine
nameplate) with your order.
Address all parts orders to:
Parts Department
Gold Medal Products Co.
10700 Medallion Drive
Cincinnati, Ohio 45241-4807
or, place orders at:
(513) 769-7676
(800) 543-0862
Fax: (513) 769-8500
__________________________________________________________________________________Fence Grills
Model # 8160 & # 8161
7

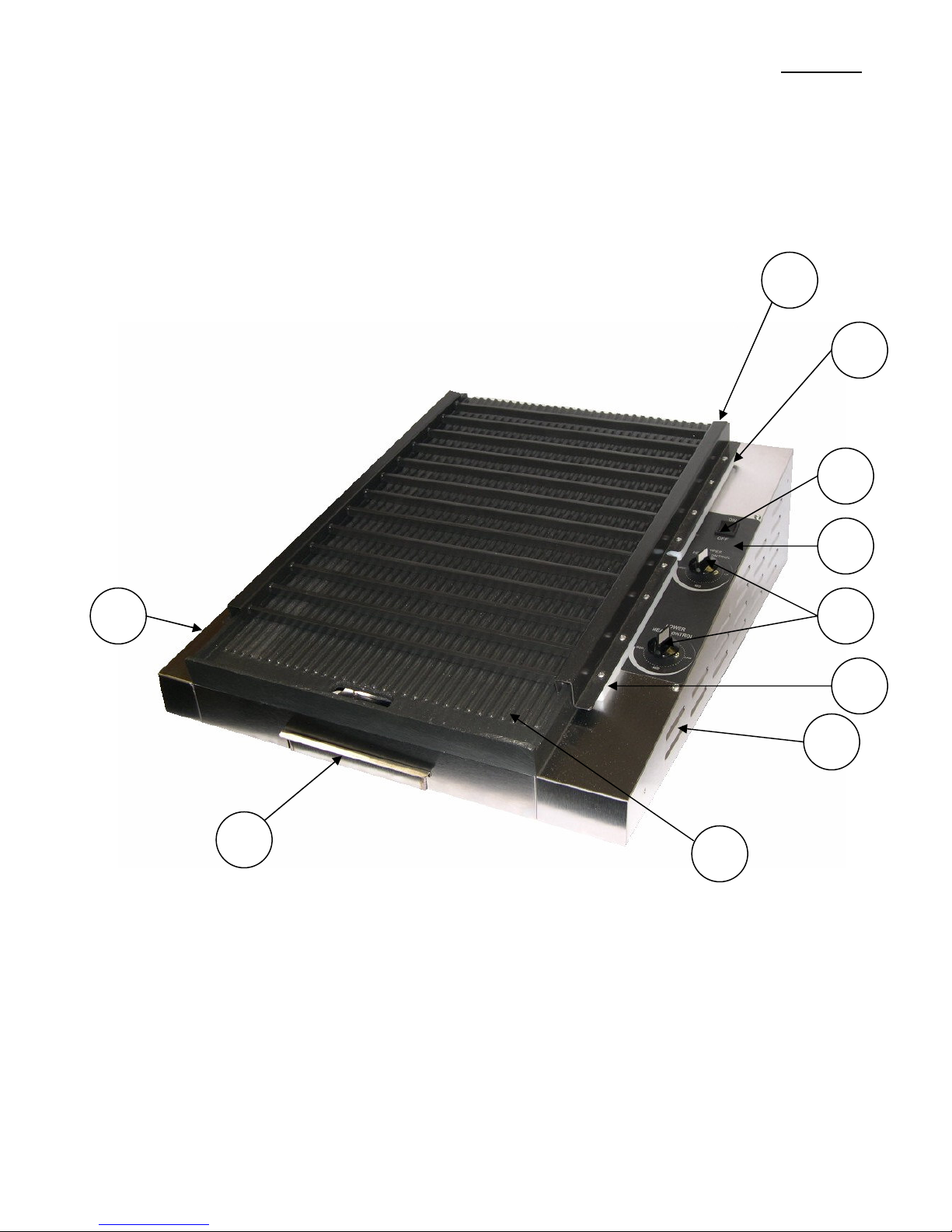

Parts Breakdown – Top View
2
5
8
4
3
1
6
7
25
24
__________________________________________________________________________________Fence Grills
Model # 8160 & # 8161
8

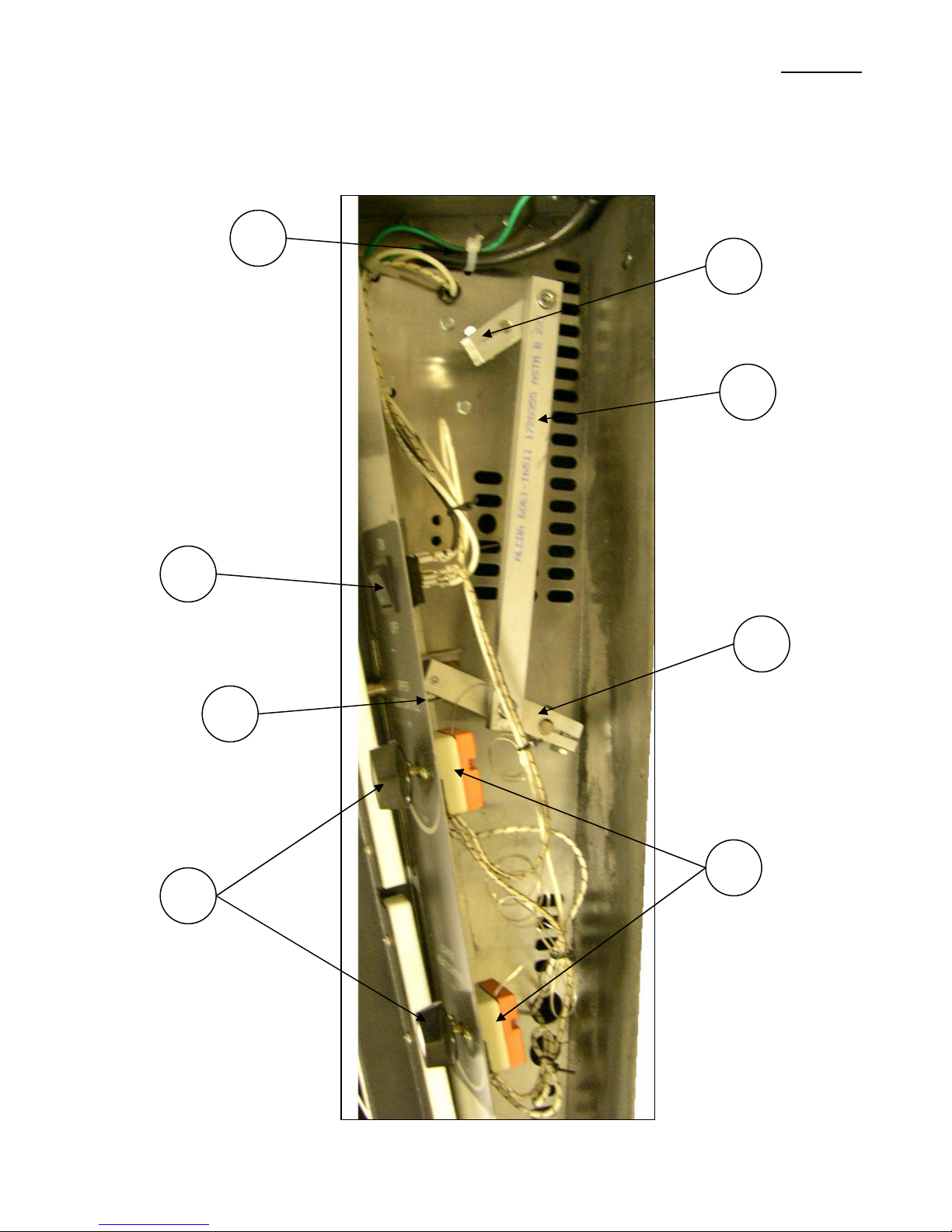

Parts Breakdown – Side View
9
11
10
12
4
13
2
25
__________________________________________________________________________________Fence Grills
Model # 8160 & # 8161
9

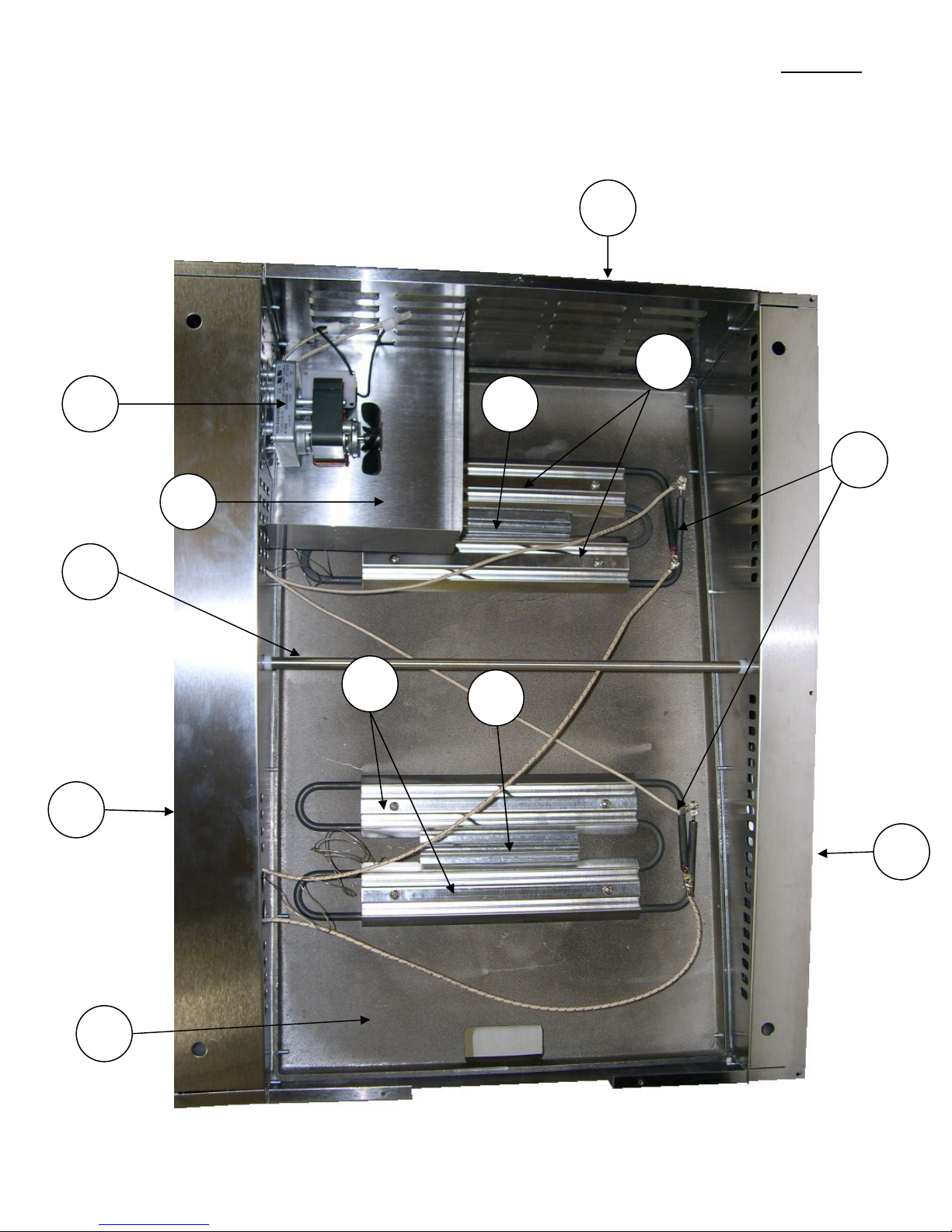

Parts Breakdown – Bottom View
19
18
17
19
15
6
20
18
16
14
7
10
__________________________________________________________________________________Fence Grills
Model # 8160 & # 8161
10

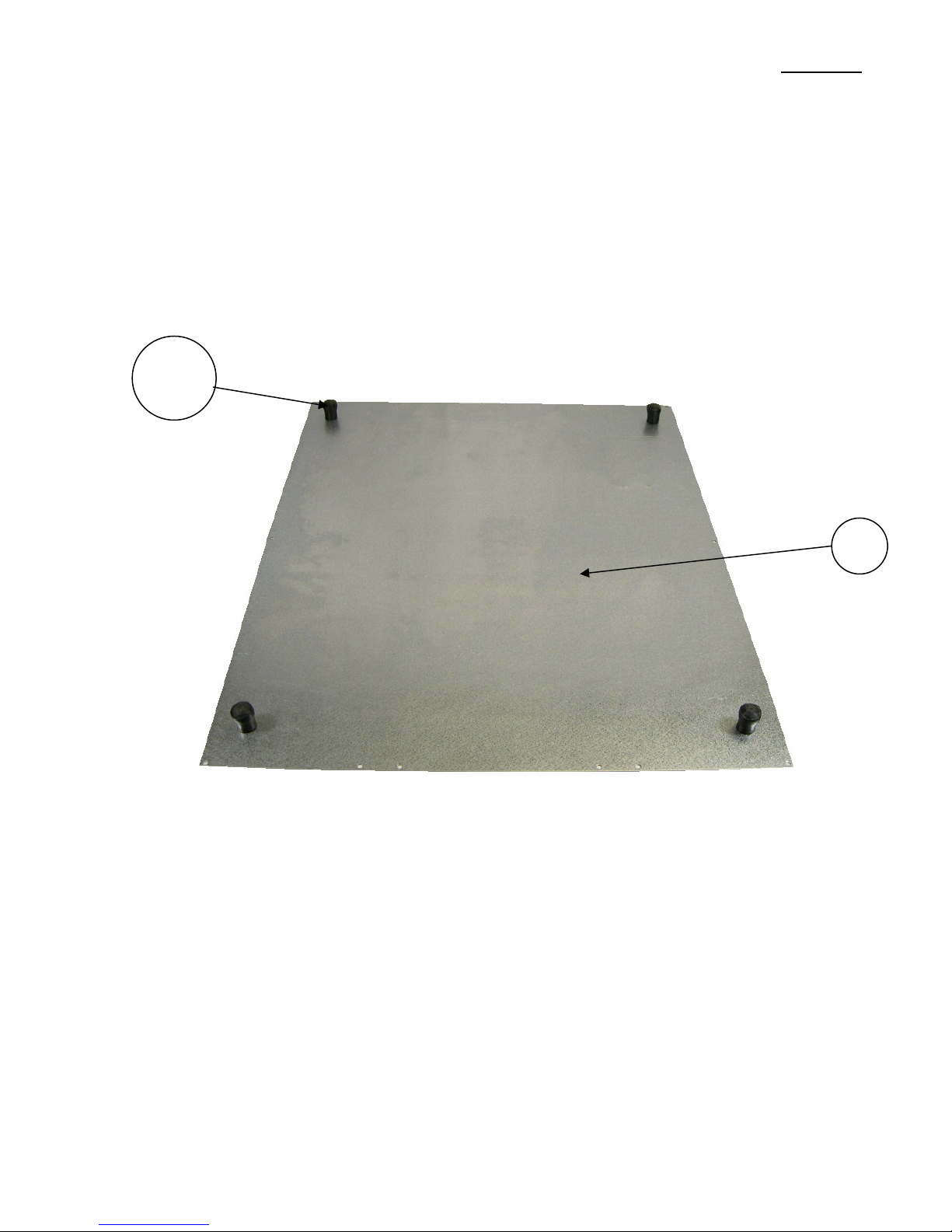

Bottom Plate Assembly
21,22
23
