DEHUMIDIFIER

OWNER'S MANUAL

http://www.LGEservice.com

e-mail http://www.LGEservice.com/techsup.html

As an ENERGY STAR¤Partner,

LG Electronics Inc. has Determined

that this product meets the ENERGYSTAR

guidelines for energy efficiency.

(DH40/DH50)

Please read the operating instructions and safety precautions

carefully and thoroughly before operating your dehumidifier.

You can refer to the Energy Star program in detail

at "www.energystar.gov"

MODEL: DH30, DH40, DH50

Inside you will find many helpful hints on how to use and

maintain your dehumidifier properly. Just a little preventive

care on your part can save you a great deal of time and

money over the life of your dehumidifier.

You'll find many answers to common problems in the chart of

Troubleshooting Tips. If you review our chart of

Troubleshooting Tips first, you may not need to call for

service at all.

READ THIS MANUAL

PRECAUTION

Safety Precautions.....3

Operating

Instructions.................5

Installation

Instructions.................8

Care and

Maintenance ..............9

Troubleshooting

Tips............................10

Warranty.....Back cover

Customer Assistance

Numbers ....Back cover

FOR YOUR RECORDS

Write the model and serial numbers here:

You can find them on a label on the back of the dehumidifier

behind the bucket.

Model #

Serial #

Dealer's Name

Date Purchased

Staple your receipt here.

• Contact an Authorized Service Center for repair or

maintenance of this unit.

• The dehumidifier is not intended for use by young children

or invalids without supervision.

• Young children should be supervised to ensure that they do

not play with the dehumidifier.

WARNING

Safety Precautions

Read all instruction before using.

■To prevent injury to the user or other people and property damage, the following instructions must be followed.

■Incorrect operation due to ignoring instructions will cause harm or damage; the seriousness is classified by the

following indications.

■Meanings of symbols used in this manual are as shown below.

WARNING This symbol indicates the possibility of death or serious injury.

CAUTION This symbol indicates the possibility of injury or damage to properties only.

Be sure not to do.

Be sure to follow the instruction.

Complete all grounding and

installation requirements as

described on page 5.

•Otherwise, it could cause

electrical shock or fire.

Disconnect power cord from

receptacle before servicing or

cleaning.

•It could cause electrical shock

or fire.

Do not use flammable fluids, solvents,

abrasive cleaners, or strong detergents

to clean the dehumidifier.

•It could cause fire or product

damage hazard.

Do not plug the dehumidifier

in until the outside of unit is

completely dry.

•It could cause electrical shock

and personal injury hazard.

Do not use the water collected

in the bucket for drinking

purposes.

•It is not sanitary and could

cause illness or personal injury

hazard.

Do not clean the dehumidifier

while it is plugged in,

especially if it is wet.

•It may cause electrical shock.

CAUTION

Be sure to block the wheels to

prevent unit from falling when

installed on a table or shelf.

•It may damage the dehumidifier

or cause other damage or

injury.

Be sure to replace bucket

properly after emptying to

prevent water from collecting

on the floor.

Make sure the dehumidifier is

the correct size for the area

you want to dehumidify.

Do not operate switches with

wet hands.

•It may cause electrical shock.

Install the dehumidifier properly on

a floor, table, or shelf that is level

and strong enough to support it

with a full bucket of water.

•It should withstand around

90 lbs (40kg) weight.

Do not install dehumidifier in

an area where temperatures

will fall below 65°F (18°C.)

•Low temperatures could cause

coils to frost and unit may not

start.

Close all doors, windows and

other outside openings to the

room.

•The dehumidifier must be

operated in an enclosed area to

be most effective.

When the unit is to be cleaned,

switch it off.

•It will cause electrical shock or

fire.

Do not put a pet or house plant

where it will be exposed to

direct air flow.

•This may injure the pet or plant.

OffMax

Low

High

Humidity Control

Fan Speed

Auto

Shut-Off

Grille

3-prong

grounding

plug

Ground

prong

Power

supply

cord

3-prong

grounding

type wall

receptacle

OffMaxLow

High

HumidityControl

FanSpeed

Auto

Shut-Off

Auto

Shut-Off

Light Fan Speed

Humidity

Control

Cabinet

Bucket

Air Filter

456

Operating Instructions

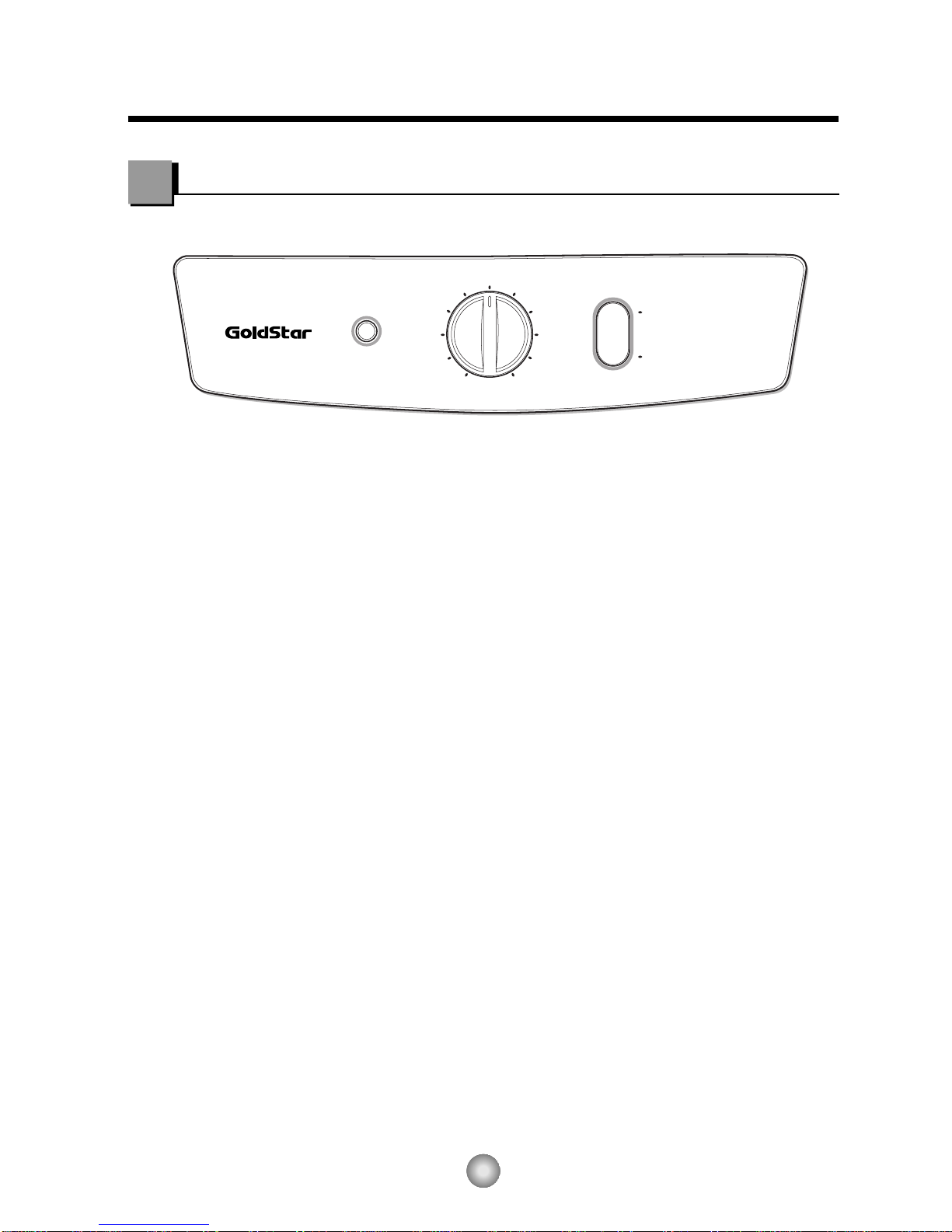

Features

This section contains captioned illustrations of your appliance. Use the drawings to become familiar with

all parts and features and what they look like.

Electrical requirements

OBSERVE ALL LOCAL CODES AND ORDINANCES.

DO NOT, UNDER ANY CIRCUMSTANCES, REMOVE

THE POWER SUPPLY CORD GROUND PRONG.

Electrical ground is required on this appliance.

A 115-volt 60 Hz, AC only, 15A fused and properly

grounded electrical supply is required. A time delay

fuse or time delay circuit breaker is recommended.

Use a dedicated circuit, serving only this appliance.

Do not use an extension cord.

Recommended grounding method

For your personal safety, this appliance must be grounded. This appliance has a power supply cord

with a 3-prong grounding plug. To minimize possible shock hazard, the cord must be plugged into a

mating grounding type wall receptacle, grounded in accordance with the National Electrical Code

(ANSI/NFPA 70) latest edition and all local codes and ordinances. If a mating wall receptacle is not

available, it is the personal responsibility and obligation of the customer to have a properly grounded

3-prong wall receptacle installed by a qualified electrician.

456

Off

Max

High

Low

Fan Speed

Humidity Control

Auto

Shut-Off

Operating your dehumidifier

Control

Your dehumidifier has a control panel containing an indicator and two controls —

Auto Shut-Off, Fan Speed, and Humidity Control.

Auto Shut-Off ---This lamp glows when the bucket is full or missing.

Fan Speed --- This controls the speed of the airflow.

Humidity Control--- This controls the moisture in the room.

Unit operation

1.Turn the Humidity Control to Off. Plug the power supply cord into an electrical outlet.

2.The Humidity Control can be set anywhere between Off and Max for normal operation.

If you need more dehumidification, turn the Humidity Control toward Max. If you need less

dehumidification, turn the Humidity Control toward Off.

3.Turn the Humidity Control to Off to stop the unit manually.

4.If you want to control the speed of air flow, turn the Fan Speed toward Low or High.

NOTE: The compressor will not operate for about two minutes to protect the compressor when

you turn the unit off and immediately back on.

De-icer control (invisible)

The Defrost Control senses frost build-up on the evaporator coil and automatically shuts off the

compressor. The fan continues to run, drawing air across the coil, and melting the frost. When the coil is

defrosted, the compressor automatically restarts, and dehumidifying resumes.

NOTE: Do not operate the dehumidifier at temperature below 65°F (18°C.) If your dehumidifier runs when

the temperature and humidity conditions of room are low, frost can form on its evaporator coil. This

interferes with proper operation. Therefore, dehumidifying performance may be reduced.

OffMaxLow

High

HumidityControl

FanSpeed

Auto

Shut-Off

456

Off Max

Low

High

HumidityControl

Fan Speed

Auto

Shut-Off

456

Off Max

Low

High

HumidityControl

Fan Speed

Auto

Shut-Off

456

Drill

Water level

control switch

Water level

control switch

Automatic shut off

The dehumidifier will turn off automatically when the bucket is

full, or when the bucket is removed or not replaced in the

proper position.

The bucket must be replaced in the proper position for the

dehumidifier to work. The light will be on and the dehumidifier

will not run if the bucket is not in the proper position.

Disposing of collected water

1.Empty the bucket manually.

When the bucket is full, pull out and

empty it into a large sink or tub and

then replace it properly.

NOTE: Do not overtighten the

hose when connecting it to the

bucket. Use a rubber washer and

tighten by hand firmly without

stripping the plastic threads.

NOTE:Be careful while taking out

the bucket as it can cause

damage.

NOTE:Please do not shake

strongly when you carry the

bucket. It can cause to breakage

of the handle orbucket cover.

It is advisable to carry the bucket

by supporting it from the bottom.

The bucket has a threaded hose

connection which can be left open.

Drill a 1/4" (6.4 mm) hole in the

center of the hose connection.

Once opened, the hose connection

will continually drain water from the

bucket.

NOTE: The nozzle cannot be fixed

after puncture. Use an ordinary

garden hose cap to reclose if

necessary.

NOTE:When inserting the bucket

into the unit. lifting up the bottom

tip of the bucket lightly makes

insertion easily.

When being attached to the bucket

drain hose connection, be sure the

hose doesn’t kink or bend. It should

lie flat from the dehumidifier to the

drain.

NOTE: The hose attachment will

accept a standard garden hose

filling. You can attach a screw-on

cap to use the bucket without a

hose.

Attach a length of garden hose to the threaded bucket drain hose

connection to carry water to the drain.

OffMax

Low

High

HumidityControl

FanSpeed

Auto

Shut-Off

456

12"

OffMaxLow

High

HumidityControl

FanSpeed

Auto

Shut-Off

456

Brush etc. UpsideUpside Upside

Upside

OffMaxLow

High

HumidityControl

FanSpeed

Auto

Shut-Off

OffMaxLow

High

HumidityControl

FanSpeed

Auto

Shut-Off

OffMaxLow

High

HumidityControl

FanSpeed

Auto

Shut-Off

456

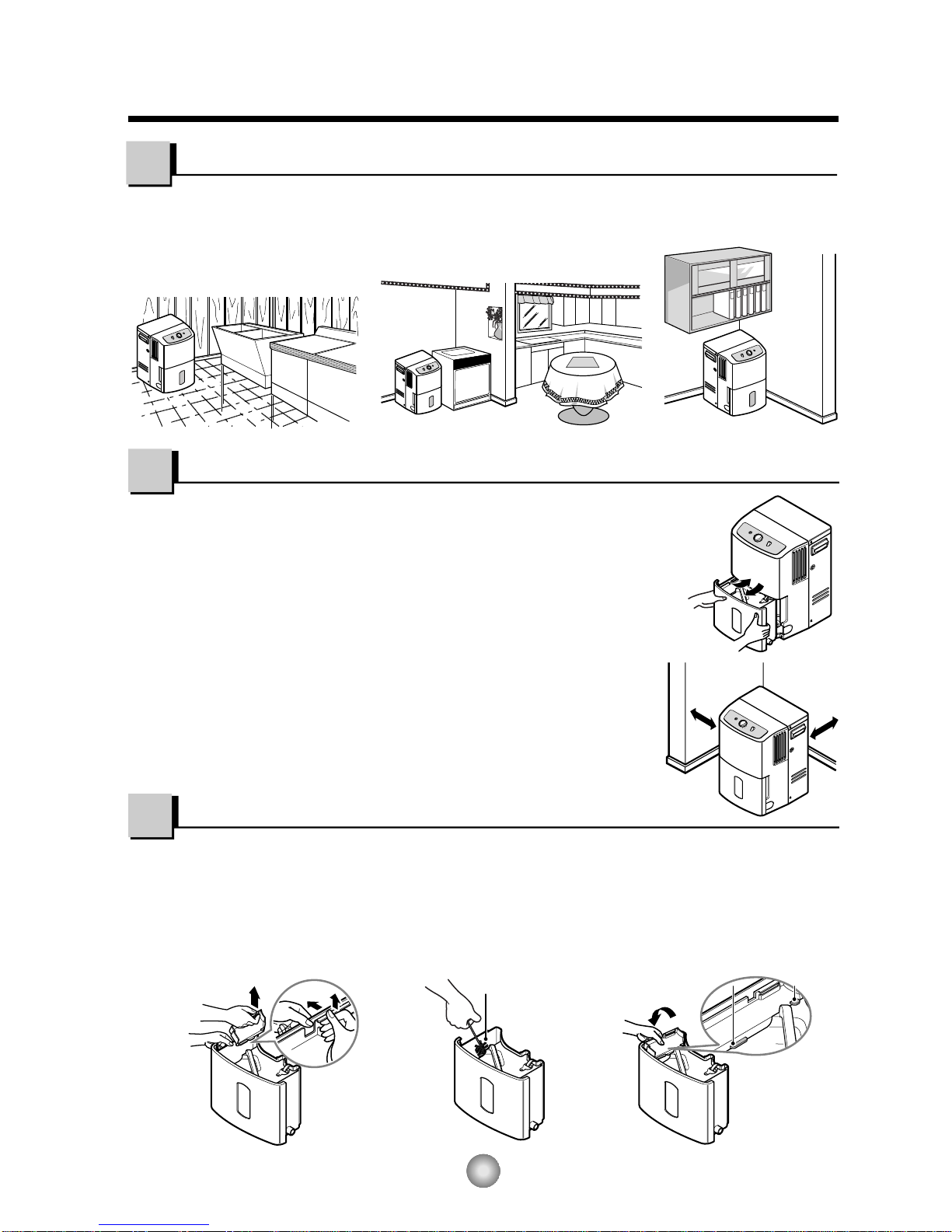

Installation Instructions

Installing the dehumidifier properly

1.Allow at least 12 inches of space on all sides of the unit for good

air circulation.

2.Install your dehumidifier on a floor, table, or shelf. When installing

the dehumidifier on a table or shelf, make sure the table or shelf is

strong enough to support the weight of the dehumidifier with a full

bucket. Do not sit or stand on the dehumidifier.

NOTE: The height of a table or shelf might provide a better position

from which to handle the bucket and help prevent icing of the

coils due to colder air near the floor (such as in a basement.)

3.Lift the bucket and place it in the dehumidifier, making sure the

slots on the bottom side of the bucket are positioned correctly.

4.Rollers let you move the dehumidifier easily.

The cleaning of bucket

1.Pull out the bucket cover. 2. Brush off the filth in the

bucket.

NOTE: Please push the leftside

of the cover after the two

Upsides are upward completely

when closing the cover.

3. Close the cover.

NOTE: Clean the bucket by

wiping with brush and cloth

dampened in a mild detergent

solution.

Choosing the proper location for your dehumidifier

•Use the dehumidifier in a

basement to help prevent

moisture damage.

•Use the dehumidifier in

laundry drying, bathing, and

dishwashing areas which have

excessive moisture.

•Use the dehumidifier to

prevent moisture damage

anywhere books are stored.

Off Max Low

High

HumidityControl

Fan Speed

Auto

Shut-Off

Off Max

Low

High

Humidity Control

Fan Speed

Auto

Shut-Off

456

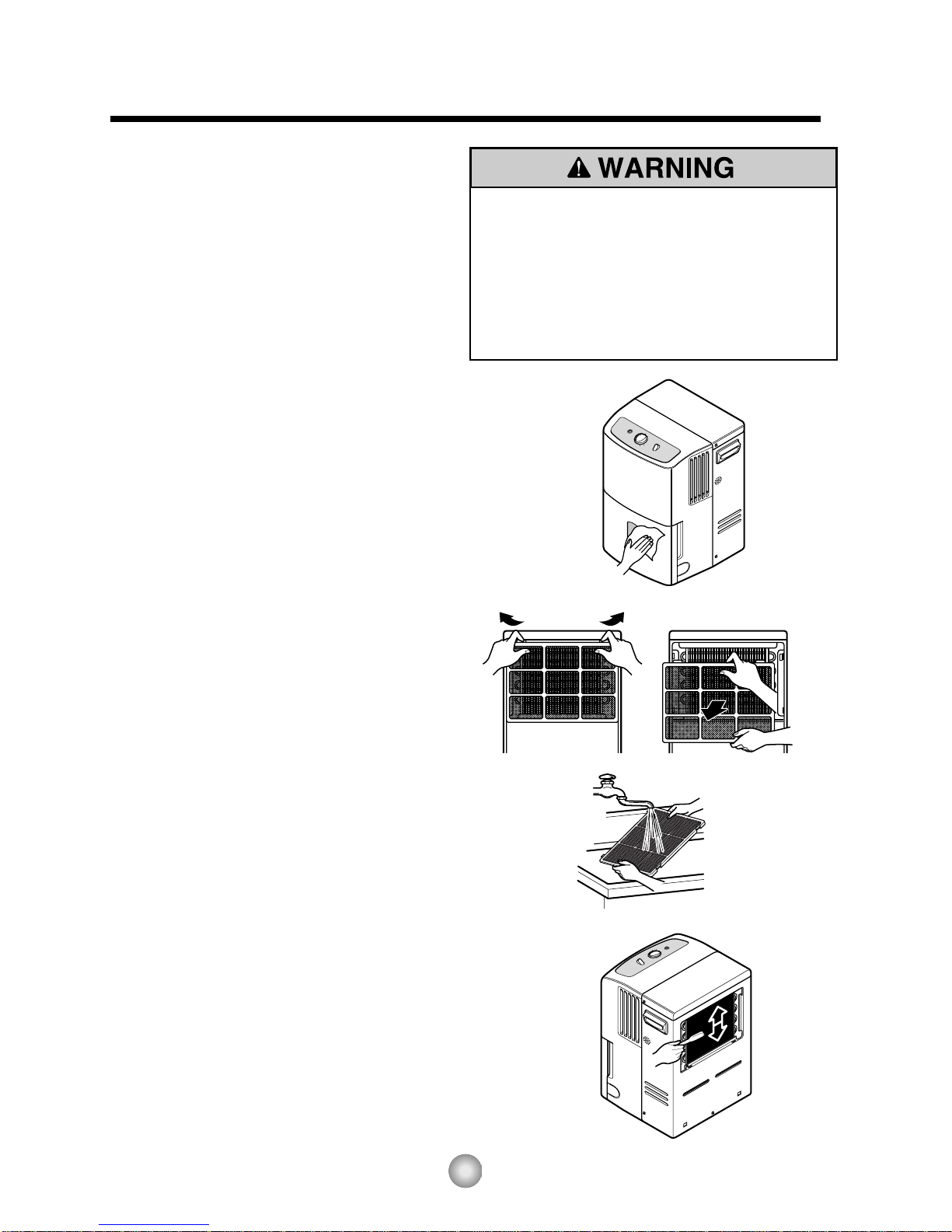

Care and Maintenance

Your dehumidifier is designed to serve you year-

round. It needs practically no attention. However,

you should check your dehumidifier and inspect the

coils annually.

You may want an Authorized Service Center to

perform this annual checkup. (Cost of the inspection

is the owner’s responsibility.)

If you are familiar with electrical appliances and their

functions, listed below are instructions which would

allow you to perform the inspection and

maintenance for yourself.

Cleaning the front case bucket and

cabinet

Clean the front case and the cabinet with a soft

cloth, warm water, and a mild detergent.

Do not use bleach or abrasives.

Cleaning the air filter

1-1.First pull out the air filter by pressing the filter

hooks lightly.

Then release two tabs at the bottom side of

the filter.

1-2.Wash air filter with warm water and a mild

detergent. Rinse and dry it.

Replace it in place.

Cleaning the coil

2-1.Remove air filter from the cabinet regarding to

the above.

2-2.Brush the coil gently like arrow in the figure,

if necessary, with warm water and a mild

detergent. Rinse and dry them thoroughly.

Be careful not to spray the coil with a

water hose.

Be careful! Sharp edges!

Electrical Shock Hazard

•Disconnect power supply cord from receptacle before

performing any maintenance.

•Be careful when cleaning the coils.

Fins are sharp.

Failure to follow the above precautions could result in

electrical shock or personal injury.

Troubleshooting Tips

Before you call for service, review this list. It may save time and money.

The list includes common occurrences that are not the result of defective workmanship or materials in this

appliance.

FIND YOUR PROBLEM HERE

DEHUMIDIFIER DOES NOT

OPERATE

DEHUMIDIFIER RUNS TOO

MUCH

FROST APPEARS ON

COILS

FAN NOISE

Plug is disconnected from outlet.

The fuse is blown/circuit breaker is

tripped.

The dryness level you selected has

been reached.

The Auto Shut-Off light is on.

Dehumidifier is not turned on.

Humidity Control is set too high.

Windows or doors near dehumidifier

are open to outdoors.

Area to be dehumidified is too large.

Air movement through dehumidifier

is blocked.

Humidity Control is set at Max.

Room temperature is too low.

(Room temperature is below 65°F

(18°C.)

Air is moving through the

dehumidifier.

Push plug firmly into wall outlet.

Check the house fuse/circuit breaker

box and replace fuse or reset the

breaker.

Dehumidifier automatically shuts off

when the selected amount of

moisture has been removed from

the air. If you want to remove more

moisture, turn the humidity Control

to Max. After the dehumidifier starts,

reset the control to the desired

setting.

Dehumidifier automatically shuts off

when the bucket is full. Empty the

bucket and replace it.

Turn on the Humidity Control.

Turn the Humidity Control to a lower

setting.

Close all windows or doors to

outside.

Check with your dealer to see if

capacity is adequate.

Front grille may be dirty.

Use a brush to clean the grille.

Dehumidifier's coils on the back of

unit may be dirty. Clean the soil on

the coils of the back of the unit.

Dehumidifier must be placed in a

space that does not restrict air

flowing into the rear coil or out of the

front grille.

Dehumidifier will not turn off if

Humidity Control is at Max.

Frost will usually disappear within 60

minutes.

This is a normal sound.

POSSIBLE CAUSES WHAT TO DO

Andere Handbücher für DH30

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Goldstar Luftentfeuchter Handbücher

Goldstar

Goldstar DH504ELY6 Bedienungsanleitung

Goldstar

Goldstar DH30E, DH40E, DH50E, DH50EL, D Bedienungsanleitung

Goldstar

Goldstar DH300E Bedienungsanleitung

Goldstar

Goldstar DH300E Bedienungsanleitung

Goldstar

Goldstar DH305Y7 Bedienungsanleitung

Goldstar

Goldstar DH300E Bedienungsanleitung

Goldstar

Goldstar DH404E Bedienungsanleitung

Goldstar

Goldstar DH65EL Bedienungsanleitung

Goldstar

Goldstar DH300E Bedienungsanleitung

Goldstar

Goldstar DH300M Bedienungsanleitung

Goldstar

Goldstar DH3010B Bedienungsanleitung

Goldstar

Goldstar DH300EY6 Bedienungsanleitung

Goldstar

Goldstar DH30 Bedienungsanleitung

Goldstar

Goldstar DH2510A Bedienungsanleitung

Goldstar

Goldstar GD300S Bedienungsanleitung

Goldstar

Goldstar DH30 Bedienungsanleitung

Goldstar

Goldstar DH3010A Bedienungsanleitung

Goldstar

Goldstar DH305 Bedienungsanleitung

Beliebte Luftentfeuchter Handbücher anderer Marken

Daitsu

Daitsu CD031IU-DFA Bedienungsanleitung

Fehom

Fehom PDGT701BE Bedienungsanleitung

Hitachi

Hitachi RD-190GX Bedienungsanleitung

Westpoint

Westpoint MDF1-30AE Bedienungsanleitung

SOLIS

SOLIS easy dry compact Bedienungsanleitung

ENVIROBOSS

ENVIROBOSS EB240 Bedienungsanleitung

Sinclair

Sinclair R-9112 Bedienungsanleitung

Kenmore

Kenmore 580.54701 Bedienungsanleitung

Demargo

Demargo DM828NF Bedienungsanleitung

Altrad Lescha

Altrad Lescha LDH 600 Bedienungsanleitung

BOMANN

BOMANN LE 1150 CB Bedienungsanleitung

SPT

SPT SD-46 Bedienungsanleitung

REMKO

REMKO SLN 40 Bedienungsanleitung

Haier

Haier HD458 Bedienungsanleitung

Logik

Logik L20DHW12 Bedienungsanleitung

Frigidaire

Frigidaire FDR30S1 - 30 Pint Capacity Dehumidifier Kurzanleitung

Blitz

Blitz HHD Series Bedienungsanleitung

Prem-I-Air

Prem-I-Air PD14DEN Bedienungsanleitung
