ADELINE 52 IN. LED CEILING FAN

USE AND CARE GUIDE

Model# 63173

continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your

home improvement needs. Thank you for choosing Good Housekeeping!

THANK YOU

We appreciate the trust and condence you have placed in Good Housekeeping through the purchase of this ceiling fan. We strive to

WARNING To reduce the risk of ﬁre or electric shock, this

Before servicing or cleaning unit, switch power

fan should only be used with fan speed control model no.

FAN61T-3SP1 WHT

CAUTION To reduce the risk of injury to persons, the fan

must be mounted with a minimum of 7 feet clearance from the

off at service panel and lock service disconnecting means to

prevent power from being switched on accidentally. When the

service disconnecting means cannot be locked, securely fasten

a prominent warning device, such as a tag, to the service panel.

trailing edge of the blades to the ﬂoor

63173

RM1B

Table of Contents

Table of Contents 2

Safety Information 2

Warranty 3

Operation 10

Care and Cleaning 11

Troubleshooting 11

Speciﬁcation 3

Pre-Installation 3

................................... ............................................................................ ........................................

.................................

................................

Technical support 11

...............................

.......................................Installation 5

........................................ .....................................Tools & Accessories Required 3

.........................

Hardware Included

Package Contents

........................................

Do not operate the reverse switch while the fan blades are in

motion. The fan must be turned off and blades stopped before

reversing the blade direction.

Do not use water or detergents when cleaning the fan or fan

blades. A dry dust cloth or lightly dampened cloth is suitable

for most cleaning.

IMPORTANT:

personal injury,mount to an outlet box marked acceptable for

To reduce the risk of ﬁre,electric shock or

fan support of 15.9 Kg (35 lbs) or less. Use mounting screws

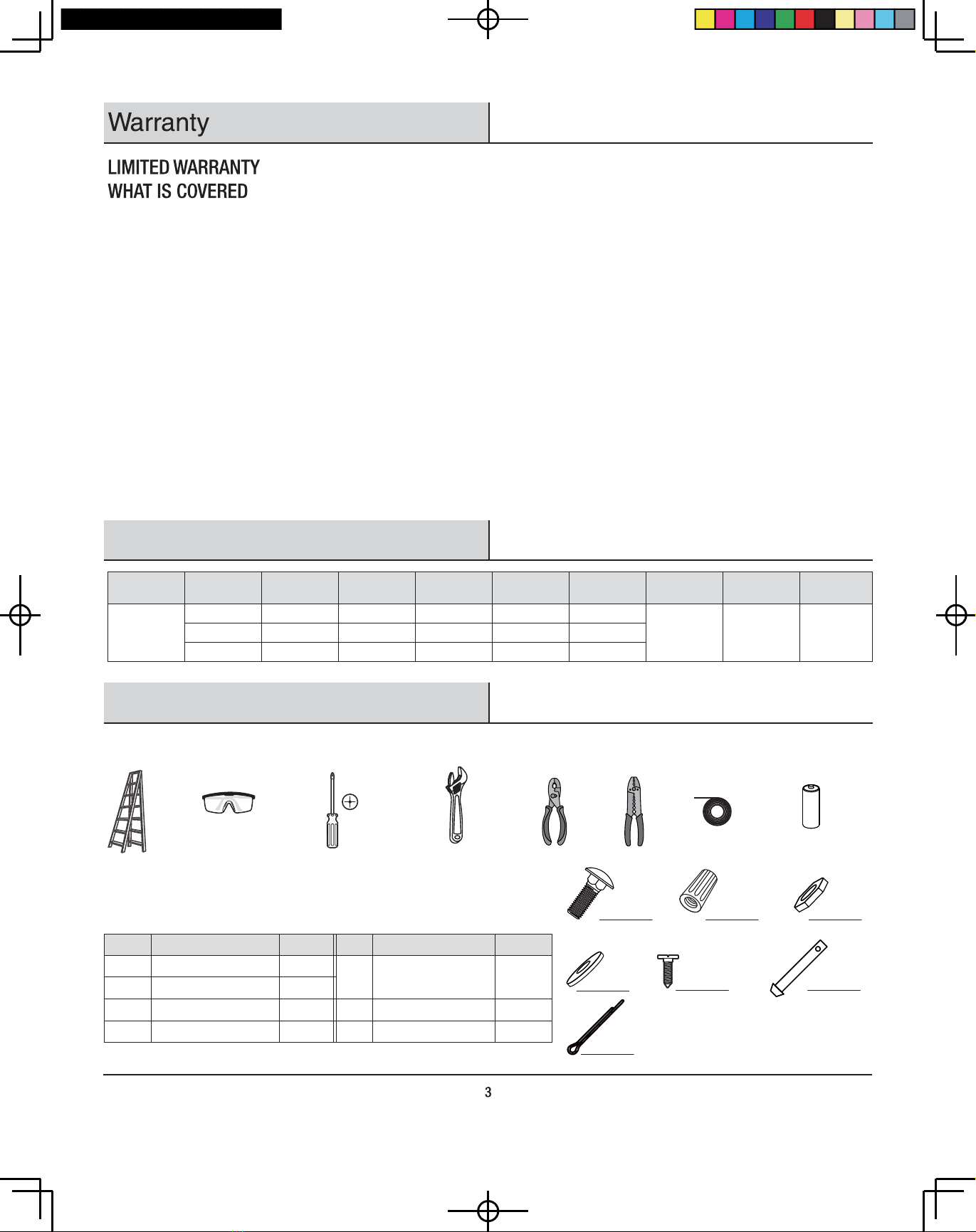

Specifications

52 in.

Low 120

Med 120

High 120

1697

3011

4325

0.30

0.43

0.60

115 7.7 kg 8.8 kg 1.87 cu. ft.

160

Fan Size Speed Volts Amps Watts RPM CFM N.W. G.W. C.F.

Pre-installation

TOOLS & ACCESSORIES REQUIRED

Safety

goggles

Phillips

screwdriver

Adjustable

wrench

Step

ladder

Pliers Wire

cutter

Electrical (2) AAA

battery

tape

HARDWARE INCLUDED

Part Description Quantity

AA Carriage bolts

Pivot pin

Split pin

Remote control holder

mounting screws

BB Wire nuts

Quantity

Part

DescriptionPart

Hex nuts

Flat washers

AA BB CC

EE FF

The manufacturer warrants the fan motor to be free from defects in workmanship and material present at time of shipment from the factory

for the lifetime of the fan motor for the original purchaser. This warranty is voided if the ceiling fan is not purchased and used in the

contiguous USA. The manufacturer also warrants that all other fan parts, excluding any glass or acrylic blades, to be free from defects in

workmanship and material at the time of shipment from the factory for a period of two years after the date of purchase by the original

purchaser. We agree to correct such defects without charge or at our option replace with a comparable or superior model if the product is

returned to the manufacturer. To obtain warranty service, you must present a copy of the receipt as proof of purchase. All costs of removing

and reinstalling the product are your responsibility. Damage to any part such as by accident or misuse or improper installation or by afﬁxing

any accessories, is not covered by this warranty. Because of varying climatic conditions this warranty does not cover any changes in ﬁnish,

including rusting, pitting, corroding, tarnishing or peeling. A certain amount of "wobble" is normal and should not be considered a defect.

Servicing performed by unauthorized persons shall render the warranty invalid. There is no other express warranty. The manufacturer

hereby disclaims any and all warranties, including but not limited to those of merchantability and ﬁtness for a particular purpose to the

extent permitted by law. The duration of any implied warranty which cannot be disclaimed is limited to the time period as speciﬁed in the

express warranty. Some states do not allow limitation on how long an implied warranty lasts, so the above limitation may not apply to you.

The retailer shall not be liable for incidental, consequential, or special damages arising out of or in connection with product use or

performance except as may otherwise be accorded by law. Some states do not allow the exclusion of incidental or consequential damages,

so the above exclusion or limitation may not apply to you. This warranty gives speciﬁc legal rights, and you may also have other rights which

vary from state to state. This warranty supersedes all prior warranties. Shipping costs for any return of product as part of a claim on the

warranty must be paid by the customer.

Pre-installation (continued)

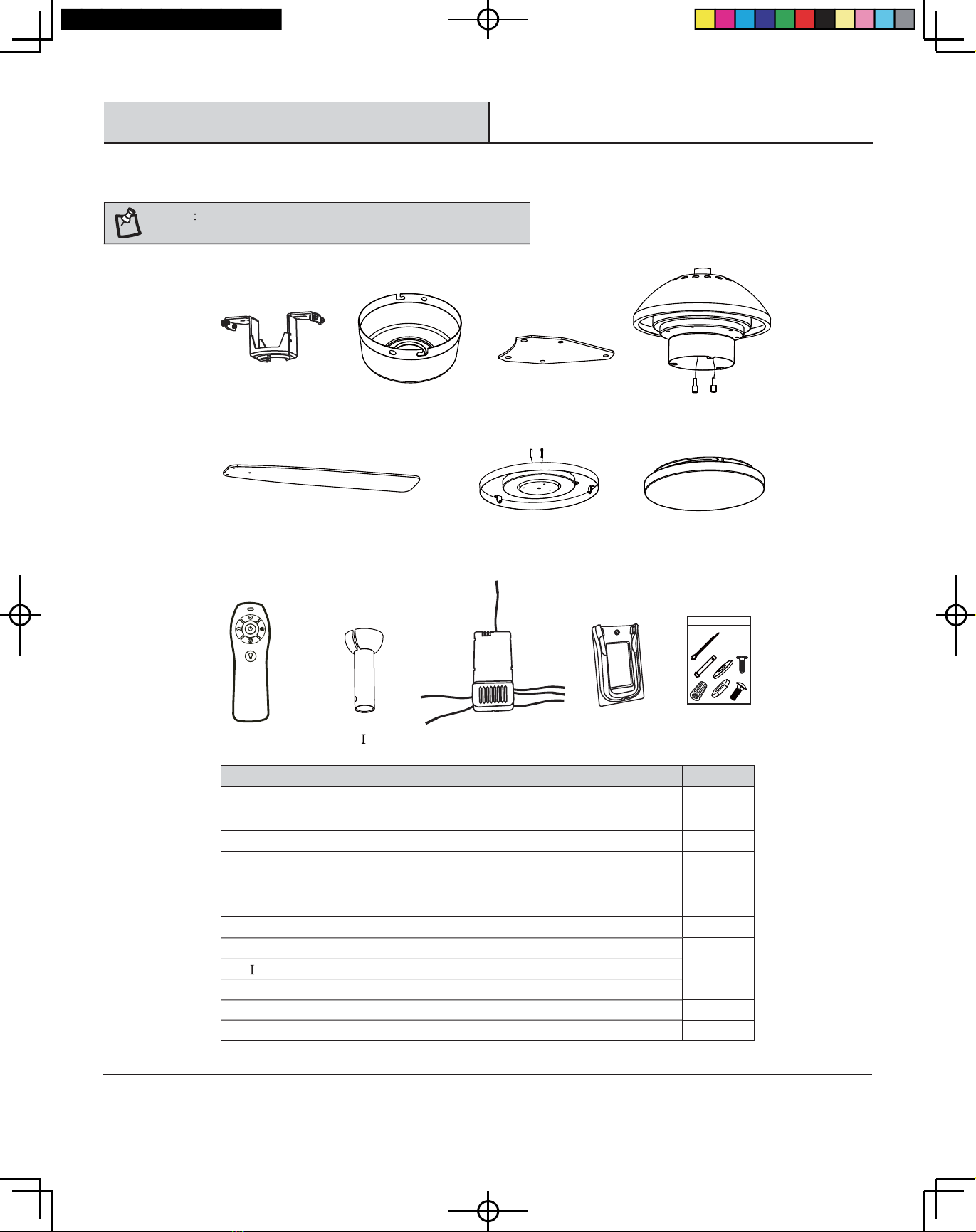

PACKAGE CONTENTS

NOTE Unpack your fan and check the contents. You should have the

following items listed below.

CBA

KLJH

63173

Part Description Quantity

A Mounting bracket 1

B Ceiling canop 1y

C Set of blade holders 5

D Fan motor with switch housing (with blade holder screws pre-installed)

E Set of blades

Lamp shade

Light kit with 25W integrated LED

H Remote control 1

6" downrod assembly 1

ReceiverJ

Remote control holder

Loose parts bag

Installation

WARNING: To reduce the risk of ﬁre, electric shock, or

personal injury, mount to outlet box marked acceptable for

fan support of 15.9 Kg (35 lbs) or less and use mounting

screws provided with the outlet box.

If there is not an existing UL Listed ceiling fan rated metal

mounting box, then read the following instructions. If there

is, proceed to step 2.

Disconnect the power by removing fuses or turning off

circuit breakers. Remove old box and use updated ceiling

fan rated box.

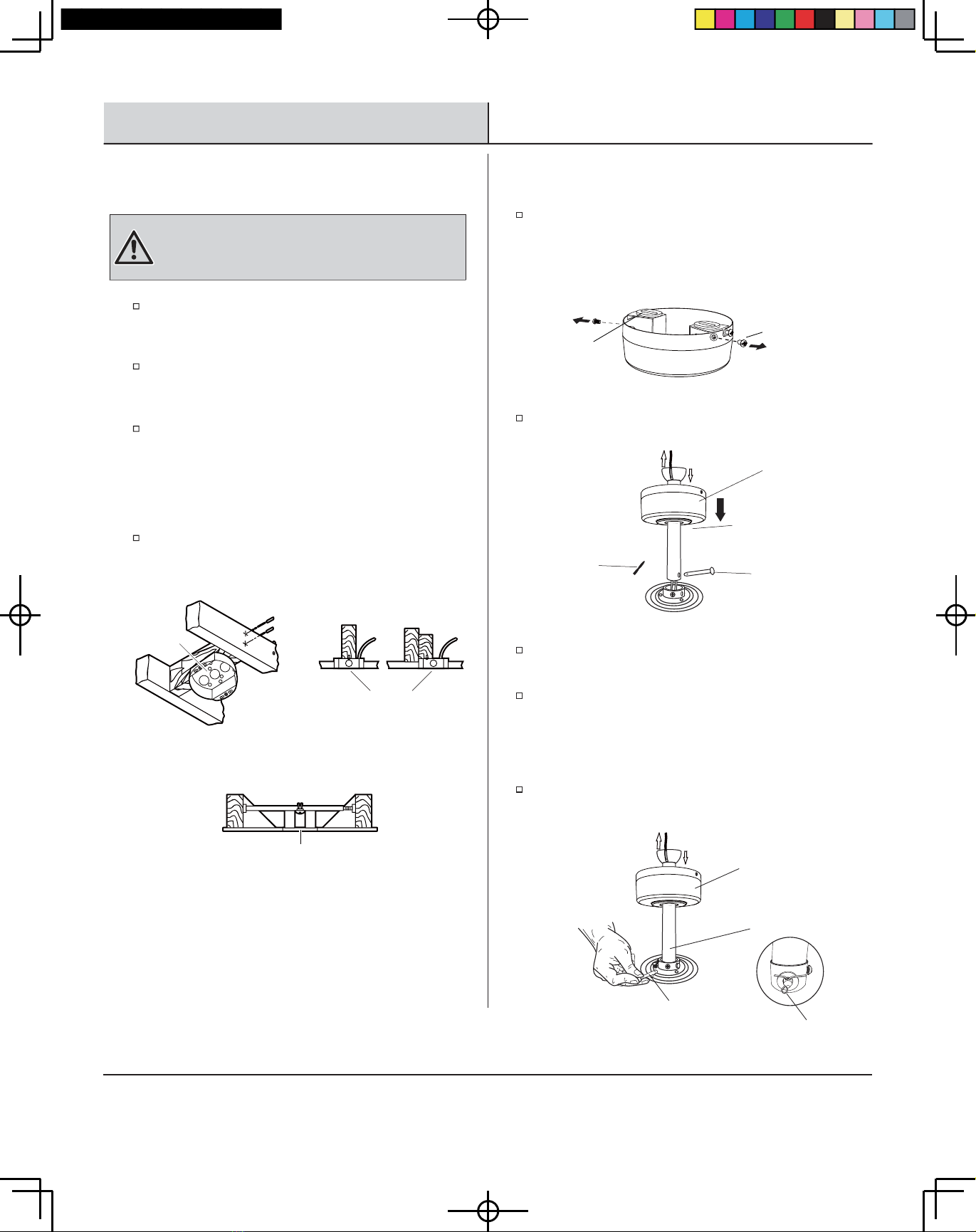

To hang your fan where there is an existing ﬁxture but no

ceiling joist, you may need an installation hanger bar as

shown in Figure 3 (available at your Retailer).

Secure the outlet box directly to the building structure. Use

appropriate fasteners and building materials. The outlet

box and its support must be able to fully support the moving

weight of the fan (at least 35 lbs.). Do not use plastic outlet

boxes. Figures 1 and 2 are examples of different ways to

mount the outlet box.

Figure 1 Figure 2

Figure 3

Outlet Box

Determining mounting method

Installing the fan body

Remove the mounting bracket (A) from the canopy (B) by

loosening the two canopy screws and star washers located

in the L-shaped slots. Remove the two canopy screws and star

washers in the round holes and save them for later use. This

will enable you to remove the mounting bracket (A). (Figure 4)

Push the pivot pin (FF) through the hanger and downrod holes

(Figure 6). The pivot pin's cone end is designed so that it will

not push away nor harm the wires inside the downrod. Secure

the pivot pin (FF) by inserting the split pin (GG) and bending

the ends to prevent it from falling out of the holes (Figure 6).

Figure 5

Place the downrod assembly (I) through the ceiling canopy (B).

Insert the motor wires through the downrod assembly (I)

(Figure 5).

Loosen the screws ﬁrst and then insert the downrod assembly

(I) into the hanger at the top of the fan motor assembly.

Secure the hanger and downrod by tightening the screws

pre-installed on the hanger (Figure 6).

Figure 6

Figure 4

Canopy screw

Aand star washer

Installation (continued)

NOTE: You may need a longer downrod to maintain proper

blade clearance when installing on a steep, sloped ceiling.

The maximum angle allowable is 18° away from the pitch of

the ceiling.

the fan properly.

Secure the mounting bracket (A) to the ceiling outlet box as

shown in Figure 7 by using two screws and washers provided

with the outlet box. Make sure the mounting bracket is ﬂush

with the ceiling. You may need to insert additional washers

(not provided) between the outlet box and the mounting

bracket to make it ﬂush with the ceiling.

Figure 7

Outlet Box

Before making the electrical connections, carefully lift the fan

assembly up to the mounting bracket (A). Seat the hanger ball

in the mounting bracket socket. Make sure the tab on the

mounting bracket socket is properly seated in the groove in

the hanger ball (Figure 8).

Figure 8

Installing the mounting bracket

REMEMBER to turn off the power. Follow the steps below to hang

Groove

Tab

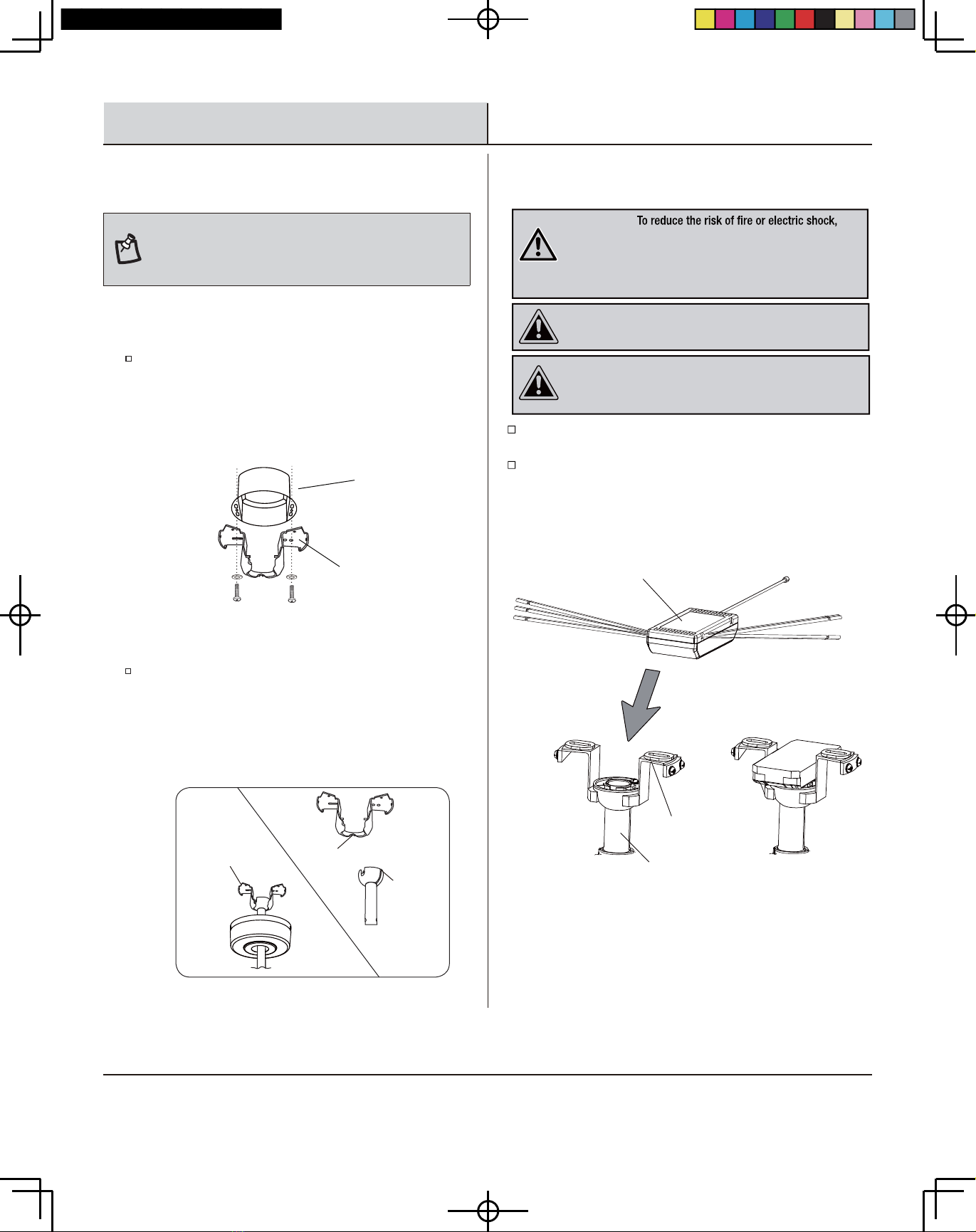

4Installing the receiver

Position the house supply wires to one side of the mounting

bracket (A); position the fan wires to the opposite side.

towards the ceiling) into the mounting bracket (A) until it rests

on top of the ball/downrod assembly (I).

WARNING:

remember to disconnect power. The electrical wiring must

meet all local and national electrical code requirements.

The electrical source and fan must be 110/120 volt, 60Hz.

Do not use this product in conjunction with any variable wall

control. Incorrect wire connection can damage this receiver.

CAUTION: If other fan wires are a different color, have

this unit installed by a licensed electrician.

CAUTION: Do not install the receiver in a damp location

or immerse in water (For indoor use only). Do not pull on or

cut the receiver leads shorter. Do not drop or bump the unit.

Figure 9

Insert the narrow end of the receiver (J) (Figure 9, ﬂat side

63173

Installation (continued)

Wiring the receiver to the household

wiring and the fan

IMPORTANT: If after this step, you decide to check that the

electrical connections have been successful, it is critical to attach

the light kit using the quick connector prior to testing. The fan will

not operate unless the light kit is connected to the fan.

IMPORTANT: After the connections have been made, the wires

should be turned upward and pushed carefully up into the outlet

box EXCEPT the antenna, which should remain outside the outlet

box. Place the black and white wire connections on opposite sides

of the outlet box.

IMPORTANT: Use the wire nuts (BB) supplied with

your fan. Secure the connectors with electrical tape and

ensure there are no loose strands or connections.

WARNING: Each wire nut supplied with this fan is

designed to accept up to one 12-gauge house wire and

two wires from the fan. If you have larger than 12-gauge

house wiring or more than one house wire to connect to

the fan wiring, consult an electrician for the proper size

wire nuts to use.

WARNING: To avoid possible electrical shock, turn

the electricity off at the main fuse box before wiring. If

you feel you do not have enough electrical wiring

knowledge or experience, contact a licensed electrician.

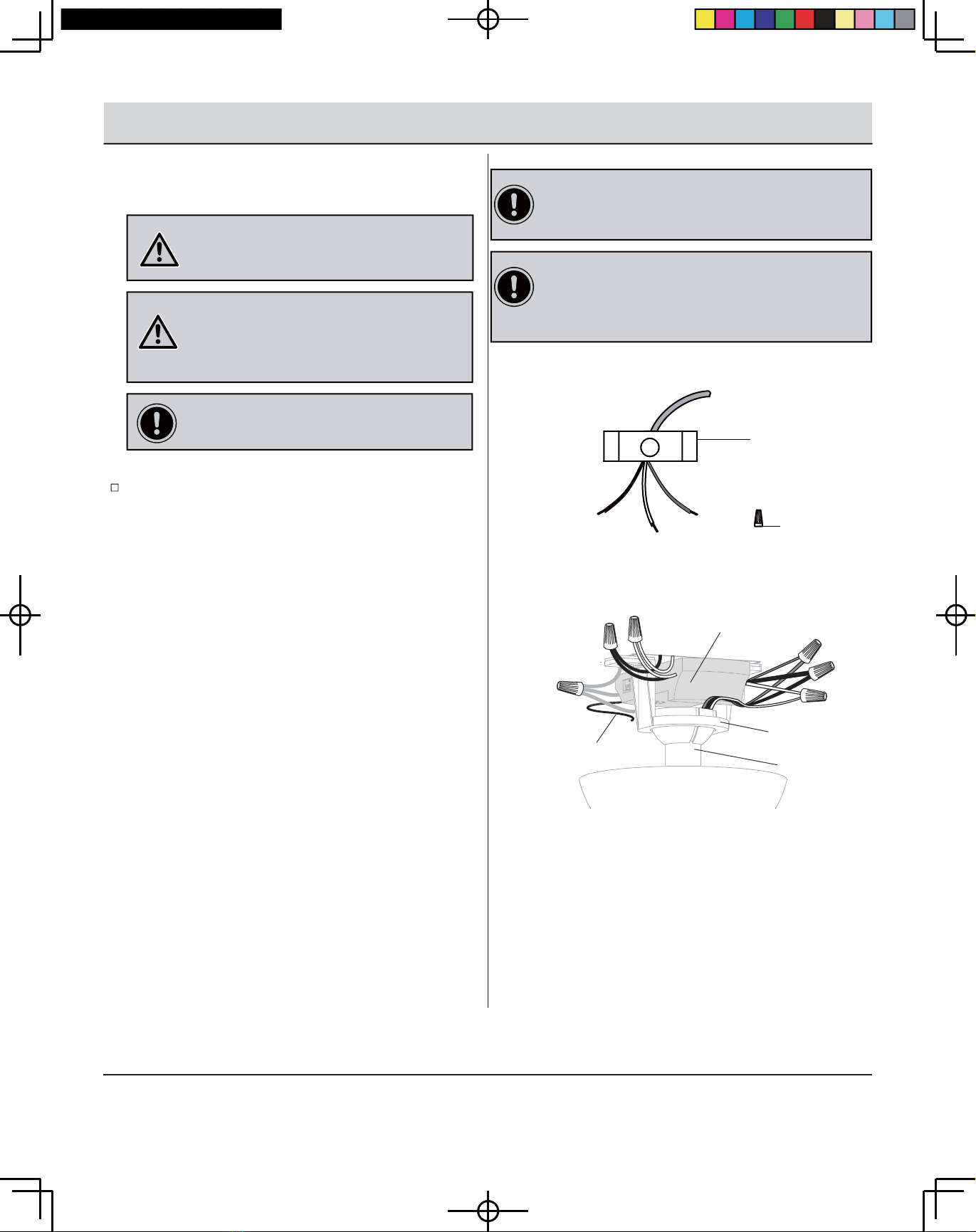

Use wire connectors (BB) to connect the receiver (J) and fan wires to

the supply wires from outlet box according to the wiring diagram

and the following instructions:

1) Connect the white (neutral) wire from motor to the white (neutral)

“To Motor N” wire from receiver with a wire nut.

2) Connect the black (hot) wire from motor to the black (hot) “To

Motor L” wire from receiver with a wire nut.

3) Connect the blue wire from motor to the blue “For Light” wire

from receiver with a wire nut.

4) Connect the white (neutral) wire from outlet box to the white “AC

in N" wire from receiver with a wire nut.

5) Connect the black (hot) wire from outlet box to the black “AC in L”

wire from receiver with a wire nut.

6) Connect the ground wire from outlet box to the green ground wire

from the downrod and the green ground wire from the mounting

bracket with a wire nut. Make sure all wire nuts are connected

ﬁrmly.

White

Antenna:

DO NOT CUT

OR SPLICE

Figure 10

Black

Green (or Bare)

Outlet Box

in the ceiling

BB (x6)

Installation (continued)

NOTE:

ﬁnish which best accentuates your decor. Failure to follow

below procedure could result in fan wobble.

Figure 12

Figure 13

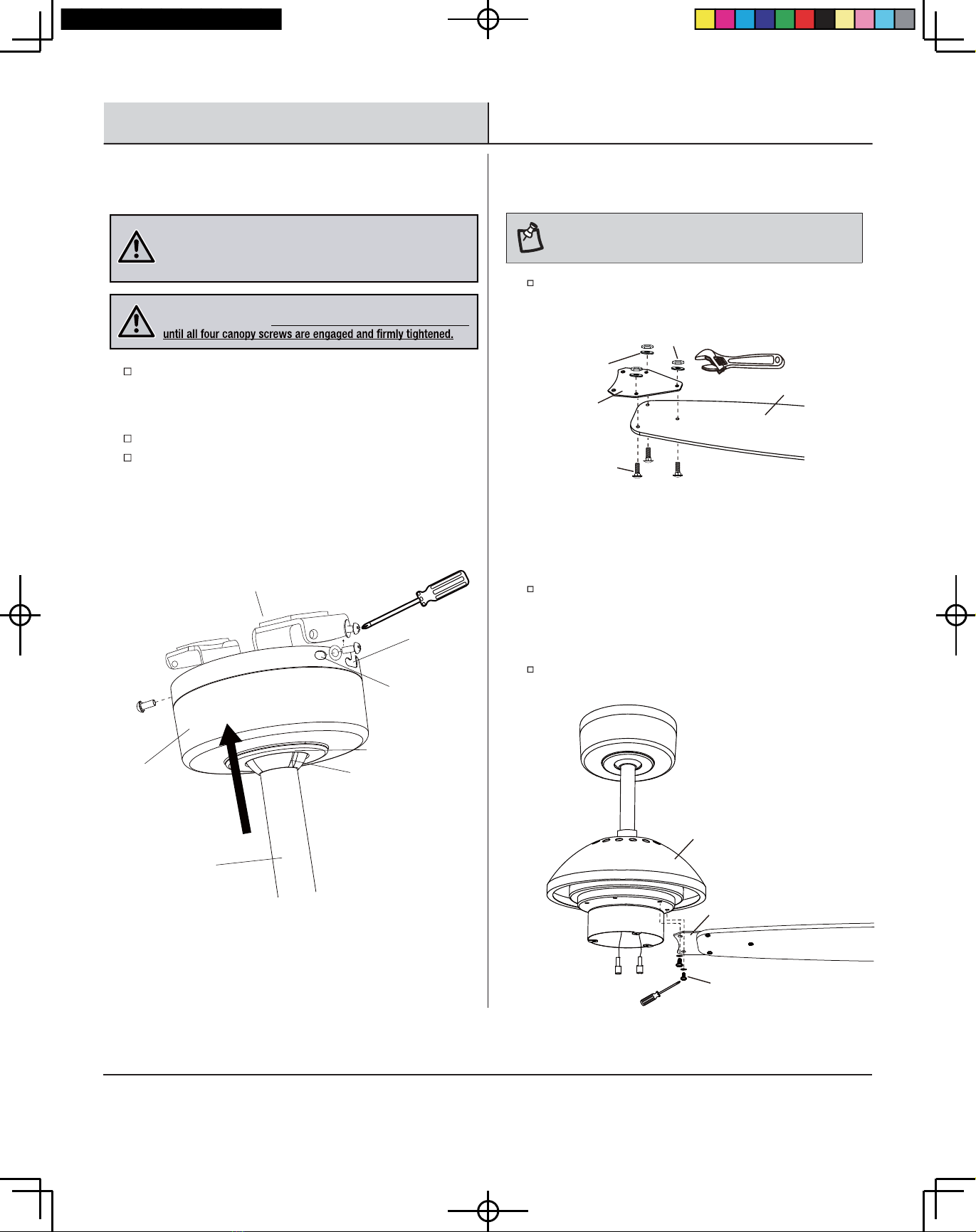

Attaching the fan blades

Mount the blade holders (C) to the fan blades (E) using the

carriage bolts (AA), hex nuts (CC) and ﬂat washers (DD)

provided - 3 each per blade (Figure 12).

Remove two blade holder screws on the bottom of motor,

position the blade holder (C) below the motor such that

the holes aligned (Figure 13). Tighten with the two blade

holder screws.

Repeat these steps to install the remaining blade

assemblies.

The fan blade assemblies are to be attached to the motor

using the blade holder screws (1) that are pre-installed into

the fan motor (D). The procedure to attach blade assemblies

is as follows:

Finishing the installation

Figure 11

L-shaped slot

Screw

hole

Groove

Tab

Raise the canopy (B) to ensure the two canopy screws and star

washers are aligned with the L-shaped slots in the canopy (B).

Then turn the canopy clockwise until the canopy screws are

completely engaged in the L-shaped slots.

Firmly tighten the two canopy screws.

Install the two canopy screws and star washers (saved from

Step 2 “Installing the fan body”) into the holes in the canopy

(B) and tighten ﬁrmly.

WARNING: When using the standard ball/downrod mounting,

the tab in the ring at the bottom of the mounting bracket must rest

in the groove of the hanger ball. Failure to properly seat the tab in

the groove could cause damage to the wiring.

WARNING: The locking slots of ceiling canopy are provided only

as an aid to mounting. Do not leave the fan assembly unattended

Your fan blades are reversible. Select the blade side

63173

Installation (continued)

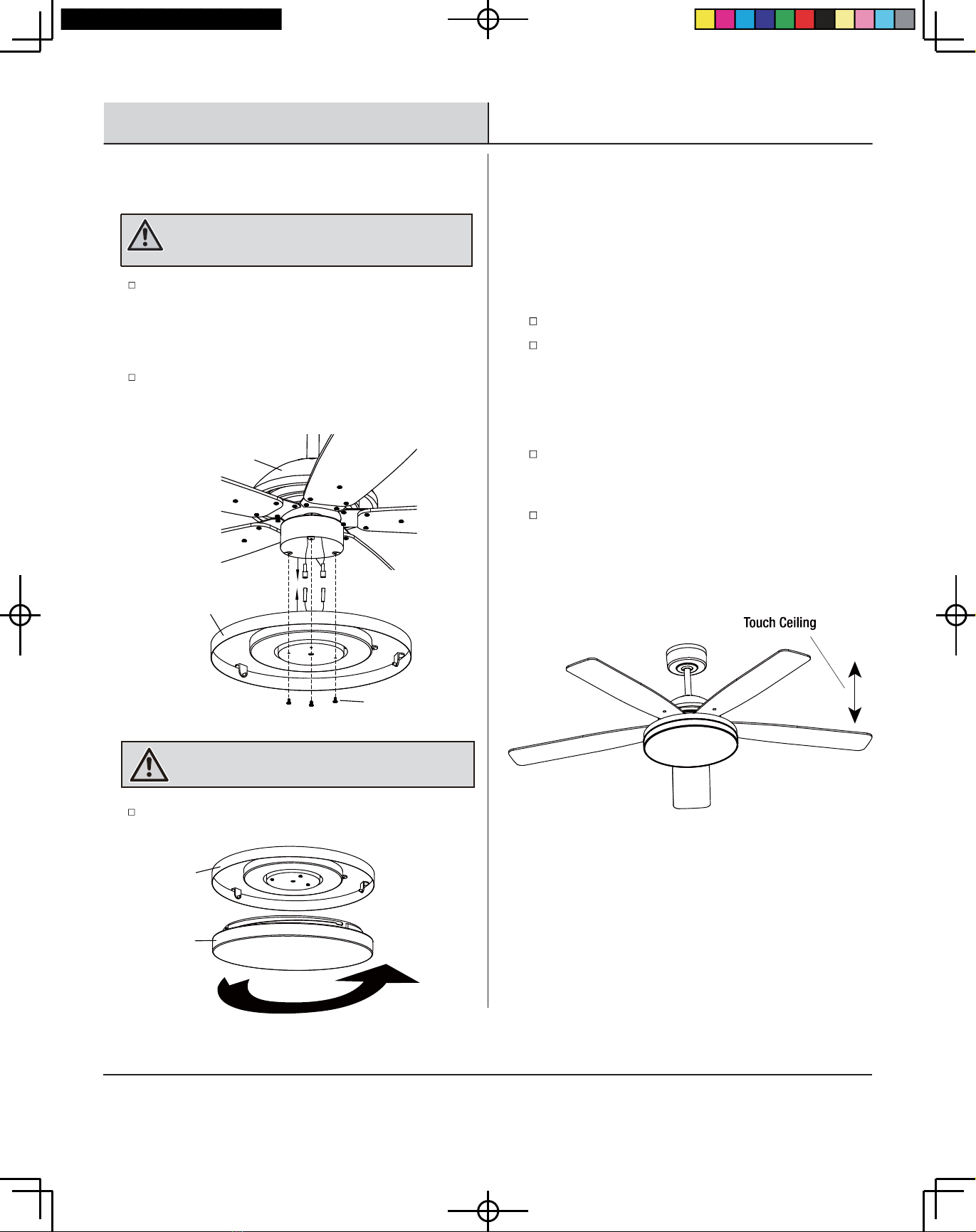

9Balancing the blades

Figure 16

density, the fan may wobble even though the blades match in weight.

The following procedure should correct most fan wobble. Check for

wobble after each step.

All blades are grouped by weight. Because natural wood varies in

Check all blade and blade holder screws are secure.

Most fan wobble problems are caused when blade levels are

unequal. Check this level by measuring the distance from the

tip of one blade to the ceiling as shown in Figure 16.

Rotate the fan until the next blade is positioned in the same

place as the previous blade and measure again. Repeat for

each blade. Measurements should be within 1/8 in.

If blade wobble is still noticeable, interchanging two adjacent

(side by side) blades can redistribute the weight and possibly

result in smoother operation.

If the fan continues to wobble, please contact Customer

Service and a balancing kit will be sent to you at no charge.

Installing the light kit

WARNING: To reduce the risk of electric shock,

disconnect the electrical supply circuit to the fan before

installing light kit.

Remove the three light kit screws (2) from the switch housing.

Connect the blue wire from the fan to the blue wire from the

light kit and the white wire from the fan to the white wire from

the light kit by securely inserting the connectors together.

(Figure 14)

Carefully tuck all wires into the switch housing, and attach the

light kit (F) to the switch housing using the three screws

pre-installed in the switch housing. (Figure 14)

Install the lamp shade (G) onto the light kit plate (F) by

gently twisting and locking into position. (Figure 15)

WARNING: Allow the lamp shade to cool completely

before removing.

Figure 14

Figure 15

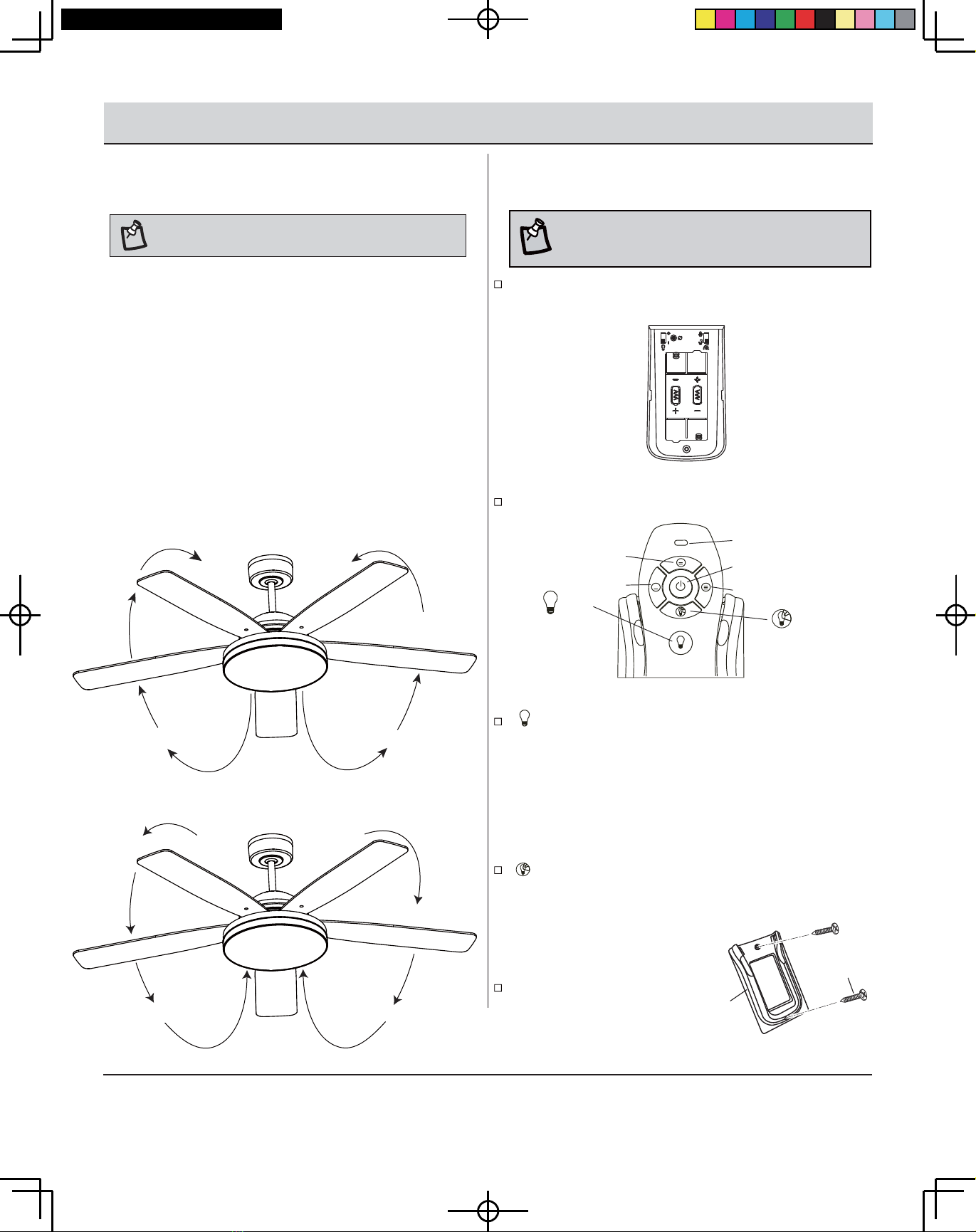

Operation

Operating Using the remote control

Installing the remote control

holder

*NOTE: Wait for the fan to stop before changing the setting

of the reverse switch.

Speed settings for warm or cool weather depend on factors such

as the room size, ceiling height, number of fans, and so on.

Figure 17

Figure 19

Figure 20

Figure 21

The reverse switch, located at the switch housing, controls

direction: forward (switch left) or reverse (switch right).*

* Warm weather - (Forward) A downward air ﬂow creates a cooling

effect as shown in Figure 17. This allows you to set your air

conditioner on a higher setting without affecting your comfort.

* Cool weather - (Reverse) An upward air ﬂow moves warm air off

the ceiling area as shown in Figure 18. This allows you to set your

heating unit on a lower setting without affecting your comfort.

Figure 18

Your fan is equipped with a remote control to operate the fan

speed and lights. Remove the battery cover from the remote control (H). Install

2 AAA batteries (not included). Replace the battery cover.

(Figure 19)

NOTE: Follow the instruction manual of the remote control to

change the transmitter code of this fan's remote control and

receiver if you have interference with other fans or appliances.

Press the desired button on the remote control (H) to operate

Attach the remote control holder (K)

with the two remote control holder

mounting screws (EE).

the fan:

button: This button delays the light turning off for approximately

5 seconds, enabling you to exit your room before the light turns

completely off.

button: This button controls the light and brightness settings.

Press and release the button to turn the light ON or OFF. Press

and hold the button to set the desired brightness: the light will

slowly illuminate to maximum light output and then stop when

holding the button. Release the button and hold it again until it

reaches minimal illumination where it will automatically stop

again. The light button has an auto-resume, it will stay at the

same brightness as the last time it was turned off.

This button turns the

fan ON or OFF.

button

Low speed

Medium speed

High speed

Operation indicator

63173

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere GOOD HOUSEKEEPING Lüfter Handbücher

GOOD HOUSEKEEPING

GOOD HOUSEKEEPING 92654-BWG Bedienungsanleitung

Beliebte Lüfter Handbücher anderer Marken

ELTA FANS

ELTA FANS H03VV-F Bedienungsanleitung

Hunter

Hunter 20714 Gebrauchsanweisung

Emerson

Emerson CARRERA VERANDA CF542ORB00 Bedienungsanleitung

Hunter

Hunter Caraway Gebrauchsanweisung

Panasonic

Panasonic FV-15NLFS1 Bedienungsanleitung

Kompernass

Kompernass KH 1150 Bedienungsanleitung

VES

VES FALA100/12V/TR Bedienungsanleitung

Vertiv

Vertiv Liebert DCD Bedienungsanleitung

Westinghouse

Westinghouse GFP Series Bedienungsanleitung

Venmar

Venmar KUBIX HRV PLUS Series Bedienungsanleitung

Maico

Maico ECR 31 Bedienungsanleitung

Sonnenkonig

Sonnenkonig Dinky Bedienungsanleitung

S&P

S&P ECOWATT HXBR Bedienungsanleitung

Wider

Wider IMP03369BH Bedienungsanleitung

Panasonic

Panasonic F-60DHN Bedienungsanleitung

Hinkley

Hinkley HIGHLAND Bedienungsanleitung

Broan

Broan 766BN Bedienungsanleitung

Premium

Premium PFS16022 Montageanleitung
