Rechargeable Li-ion Battery System
Lynx C Series
V 1.0 2022-10-15
User Manual
I
Copyright Statement
User Manual V1.0-2022-10-15
The information in this user manual is subject to change due to product updates or other rea-
sons. This guide cannot replace the product labels or the safety precautions in the user manual
unless otherwise specied. All descriptions in the manual are for guidance only.
and other GOODWE trademarks are trademarks of GoodWe Technologies
Co.,Ltd. All other trademarks or registered trademarks mentioned in this manual are owned by
GoodWe Technologies Co.,Ltd.
Trademarks
NOTICE
No part of this manual can be reproduced or transmitted to the public platform in any form or
by any means without the prior written authorization of GoodWe Technologies Co., Ltd.
Copyright ©GoodWe Technologies Co., Ltd., 2022. All rights reserved
II
CONTENT User Manual V1.0-2022-10-15
Content
01 About This Manual .................................................................IV
1.1 Applicable Model ................................................................................................IV
1.2 Target Audience ..................................................................................................IV
1.3 Symbol Denition ...............................................................................................IV
1.4 Updates ...............................................................................................................IV
02 Safety Precaution ................................................................. 01
2.1 General Safety ....................................................................................................01
2.2 Installation Precaution ......................................................................................01
2.3 Maintenance Precaution ..................................................................................03
2.4 Battery Safety ....................................................................................................03
2.5 Emergency Measures ........................................................................................03
2.6 EU Declaration of Conformity ...........................................................................03
03 Product Introduction ............................................................ 04
3.1 Product Overview ..............................................................................................04
3.2 Battery Cabinet .................................................................................................05
3.3 PCU .....................................................................................................................06
3.4 Indicator ............................................................................................................07
3.5 Battery Module .................................................................................................07
3.6 Nameplate .........................................................................................................08
04 Storage and Package ............................................................ 09
4.1 Storage Environment ........................................................................................ 09
4.2 Packing List ........................................................................................................09
05 System Installation ............................................................... 11
5.1 Installation Environment ..................................................................................11
5.2 Space Requirements .........................................................................................11
5.3 Angle Requirements ..........................................................................................12
5.4 Moving the BS ....................................................................................................12
5.5 Installing the BS .................................................................................................12
06 Electrical Connection ........................................................... 15
6.1 Connecting PE Cable .........................................................................................15
6.2 Connecting Battery Communication Cable ....................................................16
6.3 Connecting Inverter Communication Cable ....................................................17
6.4 Connecting Power Connecting Bar ..................................................................17
6.5 Connecting Inverter Power Cable ....................................................................18
6.6 (Optional) Connecting Single Phase AC Power Cable ....................................19
III
CONTENT
User Manual V1.0-2022-10-15
07 System Operation ................................................................. 20
7.1 Check before Power ON ....................................................................................20
7.2 Power ON ...........................................................................................................20
7.3 Indicator ............................................................................................................. 21
7.4 Parameter Setting ..............................................................................................21
7.5 Power OFF .........................................................................................................22
08 Maintenance ........................................................................ 23
09 Parameters .......................................................................... 24
IV
01 About This Manual User Manual V1.0-2022-10-15
01 About This Manual
1.1 Applicable Model
1.2 Target Audience
This manual describes the product information, installation, electrical connection, commissioning,
troubleshooting and maintenance of Lynx C Series Rechargeable Li-ion Battery System for
Commercials and Industries (hereinafter referred to as the Lynx C BS in short). Read through this
manual before installing and operating the product. All the installers and users have to be familiar
with the product features, functions, and safety precautions. This manual is subject to update
without notice. For more product details and latest documents, visit https://en.goodwe.com.
This manual applies to trained and knowledgeable technical professionals. The technical
personnel has to be familiar with the product, local standards, and electric systems.
This manual applies to the listed Lynx C BS below:
Model Usable Energy (kWh)
LX C101-10 101.38
LX C120-10 119.81
LX C138-10 138.24
LX C156-10 156.67
Dierent levels of warning messages in this manual are dened as follows:
DANGER
Indicates a high-level hazard that, if not avoided, will result in death or serious injury.
Indicates a medium-level hazard that, if not avoided, could result in death or serious injury.
CAUTION
Indicates a low-level hazard that, if not avoided, could result in minor or moderate injury.
NOTICE
Highlight and supplement the texts. Or some skills and methods to solve product-related
problems to save time.
1.4 Updates
The latest document contains all the updates made in earlier issues.
V1.0 2022-10-15
First Issue
1.3 Symbol Denition
02 Safety PrecautionUser Manual V1.0-2022-10-15
01
02 Safety Precaution
NOTICE
The Lynx C BS are designed and tested strictly in compliance with related safety rules. Read and
follow all the safety instructions and cautions before any operations. Improper operation might
cause personal injury or property damage as the products are electrical equipment.
2.1 General Safety
NOTICE
• The information in this user manual is subject to change due to product updates or other
reasons. This guide cannot replace the product labels or the safety precautions in the user
manual unless otherwise specied. All descriptions here are for guidance only.
• Read through this document before installation to learn about the product and the
precautions.
• All operations should be performed by trained and knowledgeable technicians who are
familiar with local standards and safety regulations.
• Use insulating tools and wear personal protective equipment (PPE) when operating the
Lynx C BS products to ensure personal safety.
• Strictly follow the installation, operation, and conguration instructions in this manual. The
manufacturer shall not be liable for equipment damage or personal injury if you do not
follow the instructions. For more warranty details, visit:https://en.goodwe.com/warranty.
2.2 Installation Precaution
WARNING
• Please keep Power O before any operations to avoid danger. Strictly follow all safety
precautions outlined in this manual and safety labels on the equipment.
• The Lynx C BS is a high voltage system. Do not touch or operate it. Keep away from it. Only
professionals are allowed!
• Please use appropriate tools and take protective measures when installing and maintaining
heavy equipment. Improper operations will cause personal injuries.
• Do not use the battery module or Power Control Unit (hereinafter referred to as PCU in
short) if it is defective, broken, or damaged.
• Do not disassemble, modify, or replace any part of the battery module or PCU without
ocial authorization from the manufacturer.
• Pay attention to the negative and positive during installation to avoid reverse polarity
connection. Otherwise the short circuit may cause personal injuries and damage to the
equipment.
User Manual V1.0-2022-10-15
02
02 Safety Precaution
Symbol Description Symbol Description
Potential risks exist. Wear proper
personnel protectives before any
operations.
Install the equipment away from
re sources.
HIGH VOLTAGE HAZARD. High
voltage exists during the
equipment's running.
Ensure the equipment is power o
before any operations.
Keep the equipment away from
children.
Operate the equipment properly to
avoid explosion. No extinguishing with water.
The equipment contains corrosive
electrolytes. In case of a leak in
the equipment, avoid contact the
leaked liquid or gas.
Do not dispose of the equipment
with household garbage at its end
of life. Dispose it according to local
laws and regulations. Or send it to
the manufacturer.
Batteries contain ammable
materials. Beware of re.
Put the battery in the right place
and recycle it in compliance with
local environmental regulations.
Read through the user manual
before any operations.
Pay attention to safety protection
during installation, operation and
maintenance.
No stepping. Grounding. To indicate PE cable
connection position.
CE Marking. TUV Marking.
RCM Marking. --

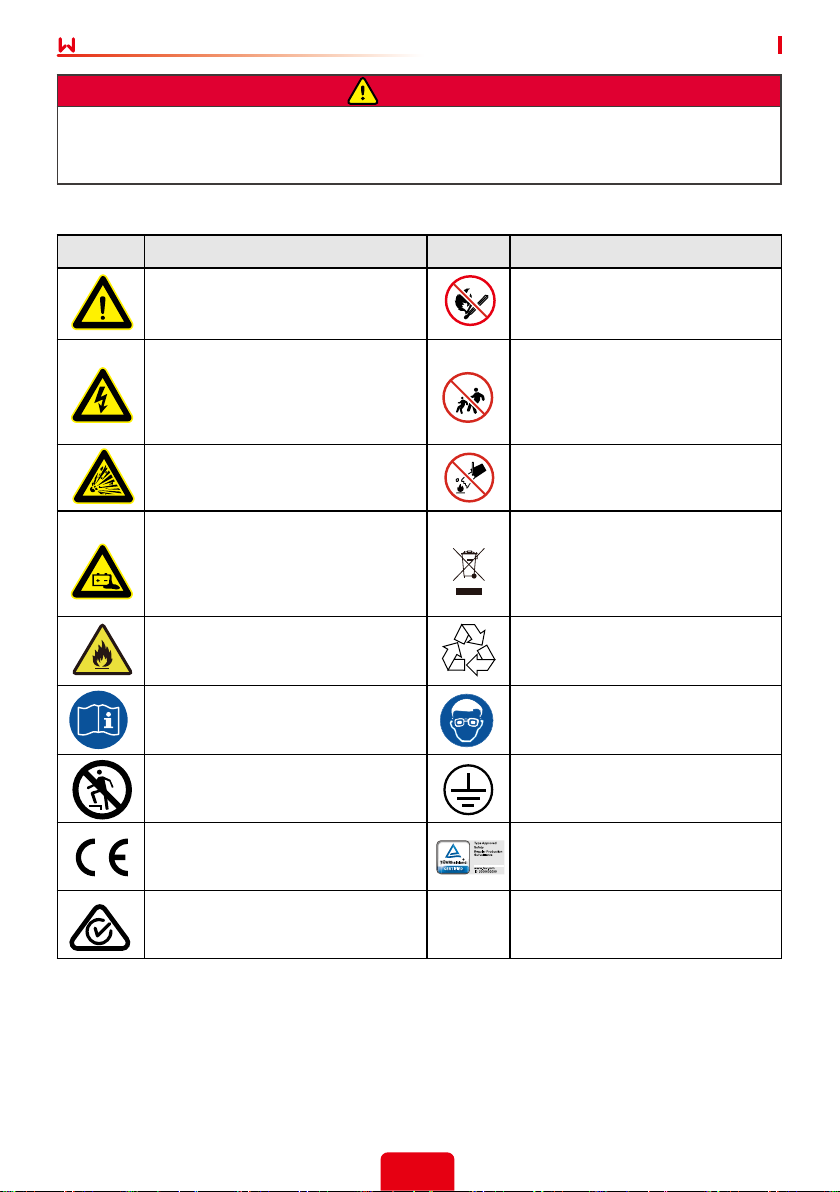

Symbol Description
DANGER
• All labels and warning marks should be visible after the installation. Do not scrawl,
damage, or cover any label on the device.
• Warning labels on the BS are as follows.
02 Safety PrecautionUser Manual V1.0-2022-10-15
03
The Lynx C BS sold in the European market meets the following directives and requirements:
• Electromagnetic compatibility Directive 2014/30/EU (EMC)
• Electrical Apparatus Low Voltage Directive 2014/35/EU (LVD)
• Restrictions of Hazardous Substances Directive 2011/65/EU and (EU) 2015/863 (RoHS)
• Waste Electrical and Electronic Equipment 2012/19/EU
• Registration, Evaluation, Authorization and Restriction of Chemicals (EC) No 1907/2006
(REACH)
You can download the EU Declaration of Conformity on the ocial website: https://en.goodwe.
com.
WARNING
Damaged battery modules may leak electrolyte. Do not contact the electrolyte or volatile gas
once there is leakage. Please ask After-sales Service for help immediately.
Anyone contact the leakage accidentally has to do as the following:
• Inhalation:
Evacuate from the contaminated area, and seek immediate medical assistance.
• Eye contact:
Rinse your eyes for at least 15 minutes with clean water and seek immediate medical
assistance.
• Skin contact:
Thoroughly wash the touch area with soap and clean water, and seek immediate medical
assistance.
• Ingestion:
Induce vomiting, and seek immediate medical assistance.
2.5 Emergency Measures
2.4 Battery Safety
WARNING
• Do not charge the battery at lower temperature. Otherwise it may decrease the capacity of
the BS.
• Do not dis-/charge the battery exceeding the nominal dis-/charge current.
• It is strictly forbidden to reverse the polarity connection. Otherwise the strong current or
high temperature generated from the battery may cause personal injury or re risk.
2.3 Maintenance Precaution
WARNING
• Do not pull or plug the terminals and connecting cables during the running of the BS.
Otherwise it may cause dangers to the safety.
• Contact After-sales Service if the battery module shall be replaced or added.
• Power o the BS the moment there is abnormality happening during the running. Contact
the related personnel as soon as possible.
• Do not hit, pull, drag, or step on the equipment, or stab into the cover of the equipment
with sharp objects, or put unrelated items into any part of the battery cabinet.
2.6 EU Declaration of Conformity
03 Product Introduction User Manual V1.0-2022-10-15
04
• This manual is mainly about product introduction, application scenarios, installation,
commissioning, maintaining and technical parameters of the Lynx C BS.
• The Lynx C BS is mainly composed of Lynx C series battery modules, PCU and battery cabinet.
• Below are the inverters applicable in the Lynx C BS:
03 Product Introduction
3.1 Product Overview
BS Model PCU Quantity Battery Cabinet Quantity Battery Module Quantity
LX C101-10 1 1 11
LX C120-10 1 1 13
LX C138-10 1 1 15
LX C156-10 1 1 17
Below are the congurations about dierent BS:
GoodWe Inverter
User Manual V1.0-2022-10-15 03 Product Introduction
05

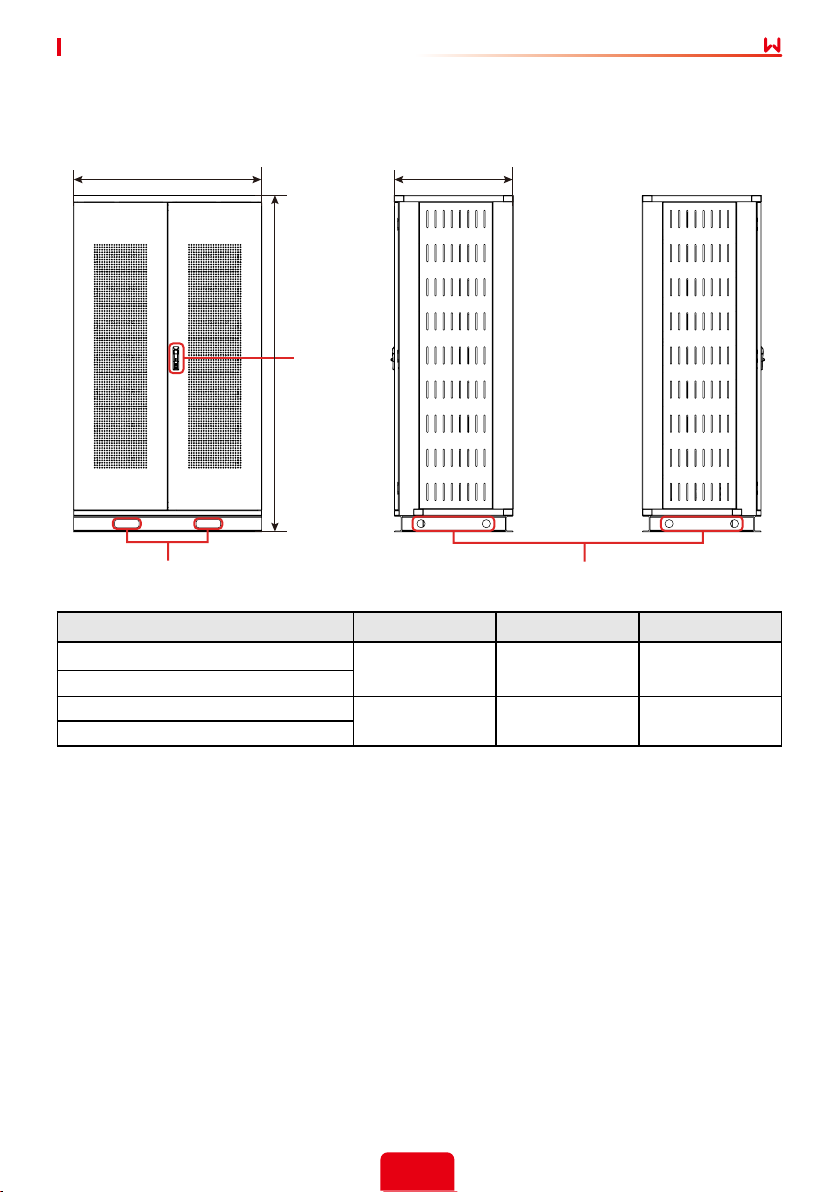

3.2 Battery Cabinet
Length Width
Height
Front View Right View Left View
Model Length (mm) Width (mm) Height (mm)
LX C101-10 1155 730 1650
LX C120-10
LX C138-10 1155 730 2065
LX C156-10
Handle
BS Routing Hole
Slot
Andere Handbücher für Lynx C Series
4
Dieses Handbuch passt für folgende Modelle
4
Inhaltsverzeichnis
Andere Goodwe Kamerazubehör Handbücher
Goodwe
Goodwe ET Series Bedienungsanleitung
Goodwe
Goodwe Lynx C Series Bedienungsanleitung
Goodwe
Goodwe Lynx Home FH US Series Bedienungsanleitung
Goodwe
Goodwe Lynx C Series Bedienungsanleitung
Goodwe
Goodwe SECU-A Series Bedienungsanleitung
Goodwe
Goodwe Lynx Home F Series Bedienungsanleitung
Goodwe
Goodwe Lynx Home U Series Bedienungsanleitung
Goodwe
Goodwe Lynx Home F Series Bedienungsanleitung
Goodwe
Goodwe Lynx C Series Bedienungsanleitung
Goodwe
Goodwe Lynx Home U Series Bedienungsanleitung
