Bar Support
Rack
Assembly Instruction
Version 151216
SP35516
2

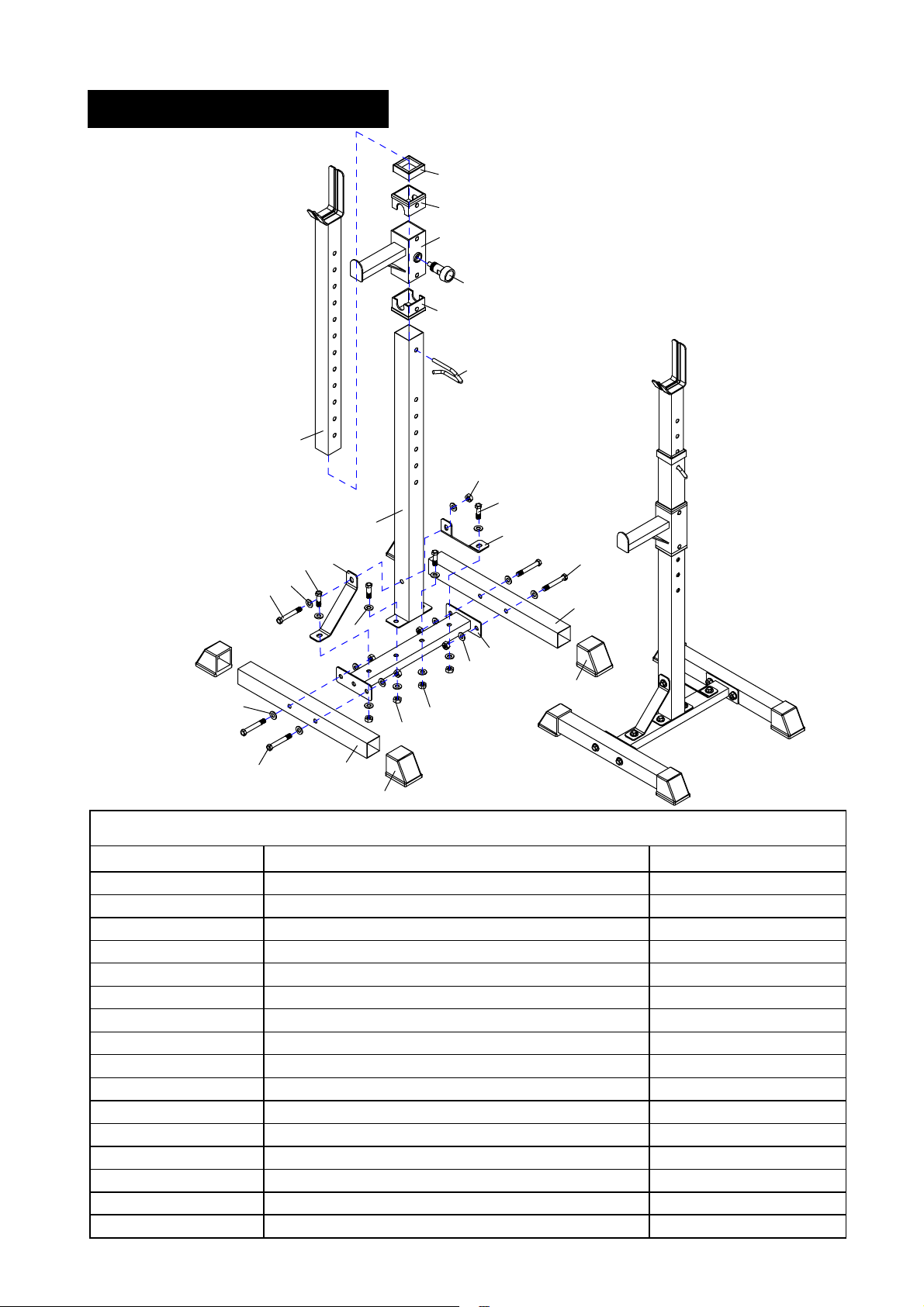

EXPLODED DRAWING
PART LIST
PART NO. DESCRIPTION QTY
1.
Base Tube
4
2.
Connect Tube
2
3.
Stand Tube
2
4. Adjustable Tube
2
5. Support Tube
2
6. Support Plate
4
7. Safety Pin
2
8.
Quick Pin
2
9.
Foot Cap
8
10.
60x50 Mid-empty Plug
4
11.
50x45 Mid-empty Plug
2
12.
M10x65 Hex Bolt
8
13.
M10x40 Hex Bolt
8
14.
M10x70 Hex Bolt
2
15.
M10 Washer
36
16.
M10
Nylon Nut
18
1
1
2
3
4
5
6
6
7
8
9
10
10
11
12
12
13
13
14 15
15
15
15
16
16
9
16
3
ASSEMBLY DRAWING

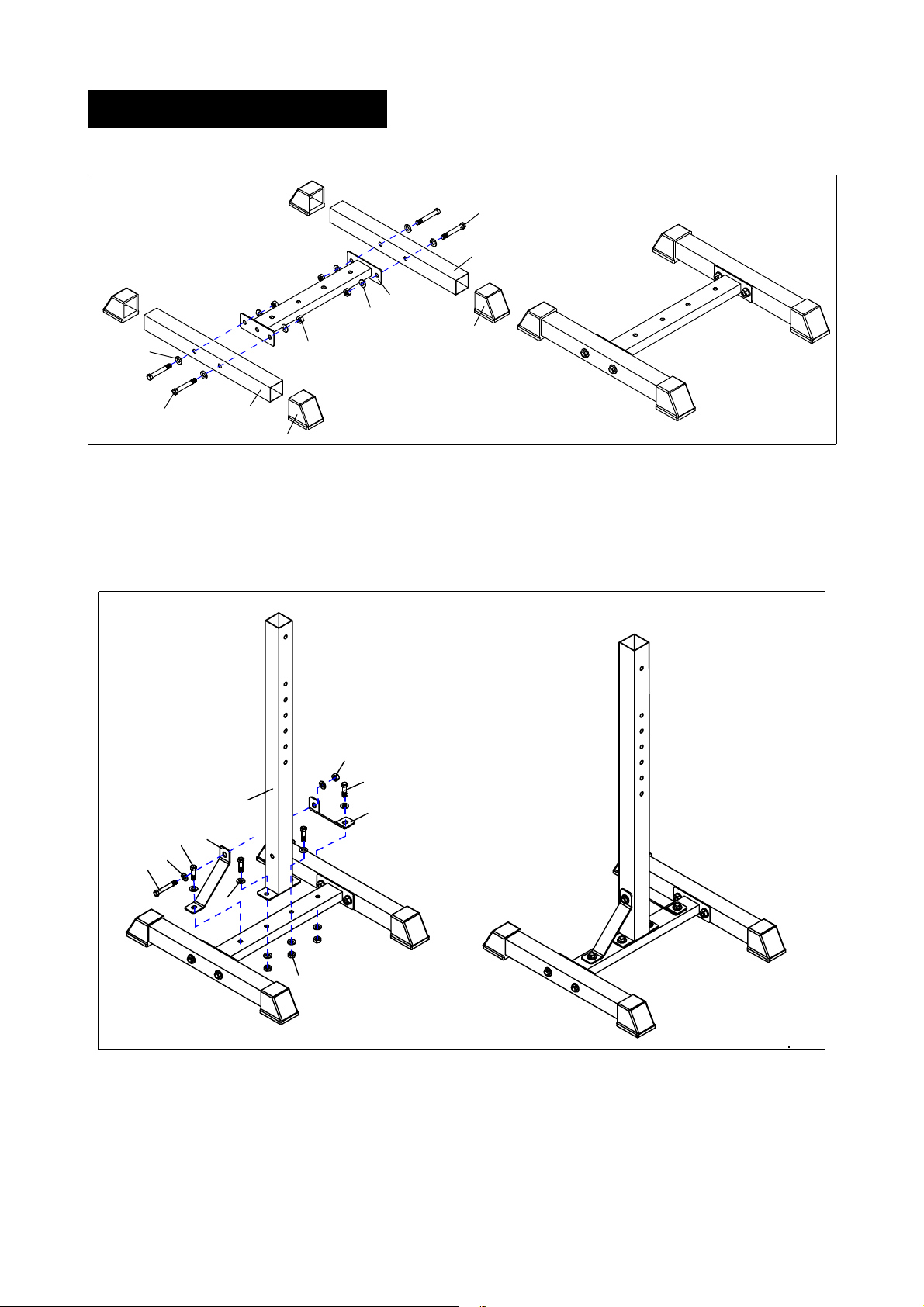

Step 1
Assembly of the base frame
1) Assemble the foot cap (9) to the base tube (1).
2) Screw together the base tube (1) to the connect tube (2), secured with hex bolt
(12-4pcs), washer (15-8pcs) and nylon nut (16-4pcs).
Step 2
Assembly of the stand tube
1) Screw together the stand tube (3) to the connect tube (2), secured with hex bolt
(13-2pcs), washer (15-4pcs) and nylon nut (16-2pcs).
2) Screw together the support plate (6) to the connect tube (2), secured with hex bolt
(13-2pcs), washer (15-4pcs) and nylon nut (16-2pcs).
3) Screw together the support plate (6) to the stand tube (3), secured with hex bolt
(14-1pc), washer (15-2pcs) and nylon nut (16-1pc).
1
1
2
9
12
12
15
15
9
16
3
6
6
13
13
14 15
15
16
16
4

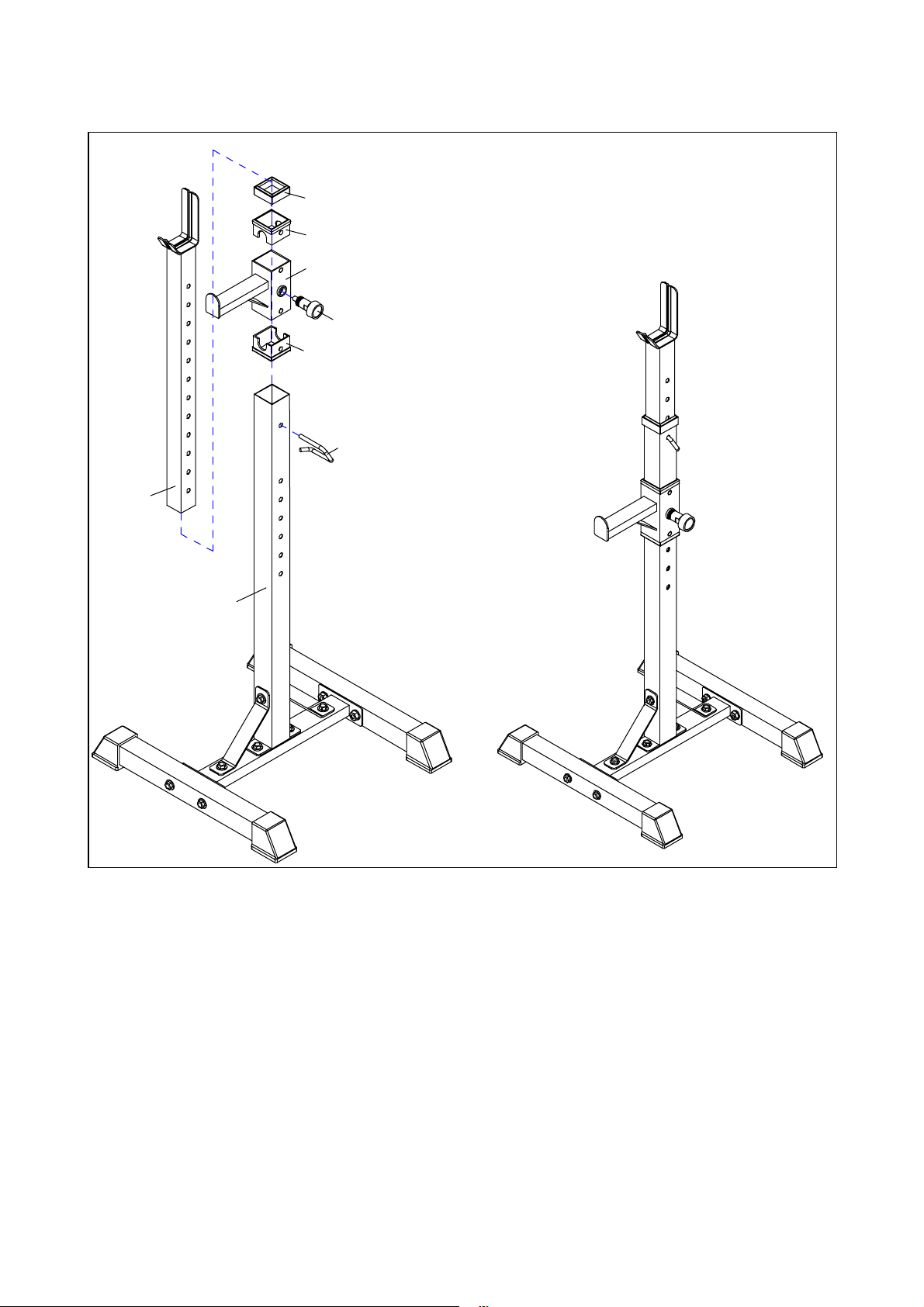

Step 3
Assembly of the support tube
1) Insert the adjustable tube(4) into the stand tube(3), locked with quick pin(8).then
put the 60x50 mid-empty plug(11) onto the stand tube(3).
2) Insert the support tube(5) into the stand tube(3), locked with safety pin(7).
4
5
7
8
10
10
11
3
