Gorenje DP7C Bedienungsanleitung
DP7C
24” 7kg WaveActive - Air Refresh Front Load Vented Dryer
Drying Modes
AirRefresh
Sport Programme
Bedding
Baby
Start Delay
Anti Crease
StableTech
Vacuum Feet
DRYER FEATURES
• Drying capacity: 1-8 kg
• Drum volume: 117L
• Door diameter: 35 cm
• Door opening angle: 180 ° / Right Hinge
• Personal settings for all programmes
• LED display
• Start/Pause
• 3 Cotton levels
• 16 Programmes: Bedding, Wool, Shirts, Sportswear, AirRe-
fresh, Mix dry, Mix iron dry, Baby
• Step setting drying time selection
• Dryness level setting
• Low temperature option
• Anticrease
• Start delay
• Audio signal SoftSound
• Easy filter clean (*Improved filter on 2022 models)
• Remaining time on display
• Vacuum feet
• Humidity sensor
• Lockable control panel
• Galvanized drum
TECHNICAL SPECIFICATIONS
• Electrical Requirements: 208/240 V / 60 Hz / 15 Amp
• ENERGY Star Rated
• Noise Level Drying: 65 dB(A)
• Connected Load: 2600 W
• Product Dimensions (W/H/D): 23 5/8” x 33 7/16” x 24 5/8”
• Depth with door open: 441/2”
• Net Weight: 34kg
• Gross Weight: 38.4kg
• *Supplied with suction cups for stacking
GORENJE - DP7C - Specifications are subject to change without notice.
DP7C
Specifications
TECHNICAL SPECIFICATIONS
• Electrical Requirements: 208/240 V / 60 Hz / 15 Amp
• ENERGY Star Rated
• Noise Level Drying: 65 dB(A)
• Connected Load: 2600 W
• Product Dimensions (W/H/D): 23 5/8” x 33 7/16” x 24 5/8”
• Depth with door open: 441/2”
• Net Weight: 34kg
• Gross Weight: 38.4kg
• *Supplied with suction cups for stacking
SELECTING THE ROOM
• The dryer may not be in contact with a wall or adjacent fur-
niture. For optimum dryer operation, we recommend observ-
ing the clearance from the walls as indicated in the figure. In
case of failure to heed the required minimum clearance, the
dryer may overheat.
• Vents on the appliance back wall, and humid air exhaust
opening on the side or back wall may not be obstructed.
• Place the appliance in a thoroughly ventilated room with a
window or ventilation fan.
• Connect the exhaust duct to the air exhaust opening. Do not
connect the exhaust to a duct that is also used for evacu-
ation of combustion gases from other appliances or gases
from appliances that use other combustible substances for
their operation.
• The dryer emits heat. Therefore, do not place it in a very
small room, as the drying process may take longer due to
limited amount of available air.
• Lighting in the room should be sucient to allow reading
the information on the display unit on the control panel.
GORENJE - DP7C - Specifications are subject to change without notice.
DP7C
Specifications

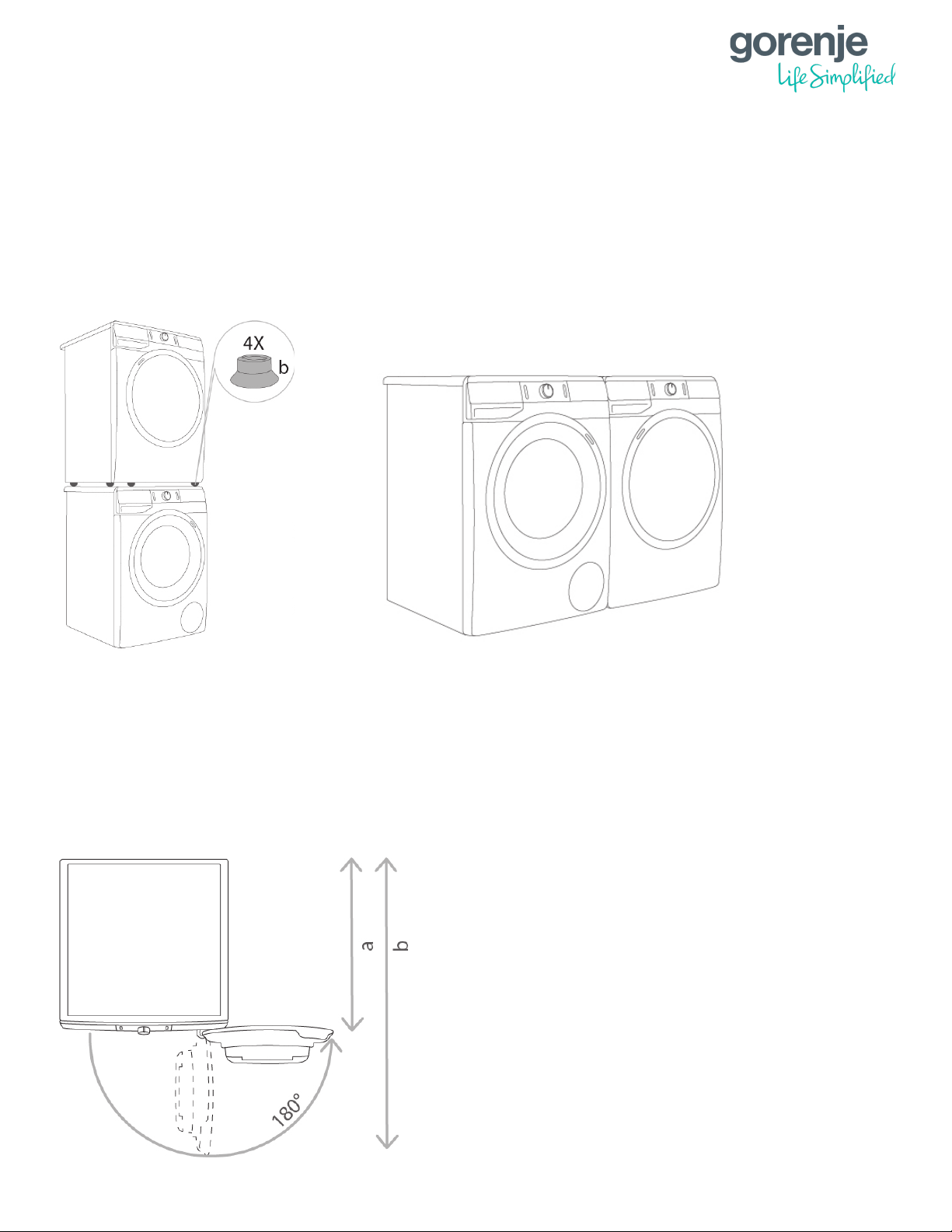

DRYER PLACEMENT
• If you also have a Gorenje dryer of corresponding (same) dimensions, it can be placed on top of the
Gorenje washing machine; in this case, vacuum feet must be used. Alternatively, the dryer can be placed
next to the washing machine (figures 1 and 2).
• The unit is supplied with vacuum feet for stacking.
• The surface on which the appliance is placed should be clean and level.
OPENING THE DRYER DOOR BIRDSEYE VIEW
A. = 24½” (625 mm)
B. = 44½” (1134 mm)
1 2
GORENJE - DP7C - Specifications are subject to change without notice.
DP7C
Specifications
EVACUATION OF HUMID AIR
• The dryer has two humid air exhaust openings on the front and rear side (options a/b). Close one of them with a cap and
connect the air exhaust duct to the other one.
• The distance between the dryer and the air evacuation opening (ventilation opening, window) may not exceed 2 metres.
Otherwise, moisture could accumulate in the air exhaust duct.
• Do not evacuate the air from the dryer through channels used for appliances or devices that use natural gas or other fuels
for their operation.
GORENJE - DP7C - Specifications are subject to change without notice.
DP7C
Drying Technology Explained
VENTED DRYER
• Air is warmed up through a heater and is blown through the clothes.
• Humidity is taken away in the process.
• Hot humid air is then vented outside of the home.
CONDENSER DRYER
• Hot, humid air is blown through a condenser, where it is cooled by
using air from the surrounding area.
• Condensate vapour from hot air takes place
on the ribs of the condenser.
• Water is then pumped from the bottom of the dryer to a reservoir.
• Condensation dryer does not release
moisture back into your home and does not require any extra external
venting.
HEAT PUMP DRYER
• Heat pump dryers uses the same condensation principal as a con-
denser dryer to remove water from your clothes.
• Instead uses a heat pump instead of an electric heater to heat the air.
• Heat pump dryers do not require any outdoor venting all while boast-
ing very high energy eciency results.
• Heat pump dryers are the most cost eective in terms of energy
consumption.
GORENJE - DP7C - Specifications are subject to change without notice.
WARRANTY INFORMATION
GORENJEAppliances aredesignedandmanufactured to thehigheststandards.Each appliance
is covered by a comprehensive 2-year parts and labour warranty.
Refer to product warranty policy for complete terms and conditions.
FOR PARTS & SERVICE
Euro-Parts & Service
39822 Belgrave Road, Belgrave, ON. N0G 1E0 1 866 722 2262
Gorenje appliances are imported and distributed in North America by Euro-Line Appliances Inc.
For more information, please visit one of our showrooms or www.ela.ca / www.elawest.ca
871 Cranberry Court, Oakville, ON
L6L 6J7 Canada
905 829 3980
1 800 421 6332
101-1014 Homer Street, Vancouver, BC
V6B 2W9 Canada
604 235 3980
1 855 ELA WEST (352 9378)
