GORMAN-RUPP PUMPS 03B31-B Anwendungshandbuch

OM‐01182‐01

May 26, 1981

Rev. B 06‐14‐2013

THE GORMAN‐RUPP COMPANY MANSFIELD, OHIO

www.grpumps.com

GORMAN‐RUPP OF CANADA LIMITED ST. THOMAS, ONTARIO, CANADA Printed in U.S.A.

2009 The Gorman‐Rupp Company

INSTALLATION, OPERATION,

AND MAINTENANCE MANUAL

WITH PARTS LIST

0 SERIES PUMP

03B31-B

MODEL

Gorman‐Rupp pump online at

www.grpumps.com

Valid serial number and e‐mail address required.

RECORD YOUR PUMP MODEL AND SERIAL NUMBER

Please record your pump model and serial number in the

spaces provided below. Your Gorman‐Rupp distributor

needs this information when you require parts or service.

Pump Model:

Serial Number:

TABLE OF CONTENTS

INTRODUCTION PAGE I - 1.................................................

SAFETY ‐ SECTION A PAGE A - 1............................................

INSTALLATION - SECTION B PAGE B - 1....................................

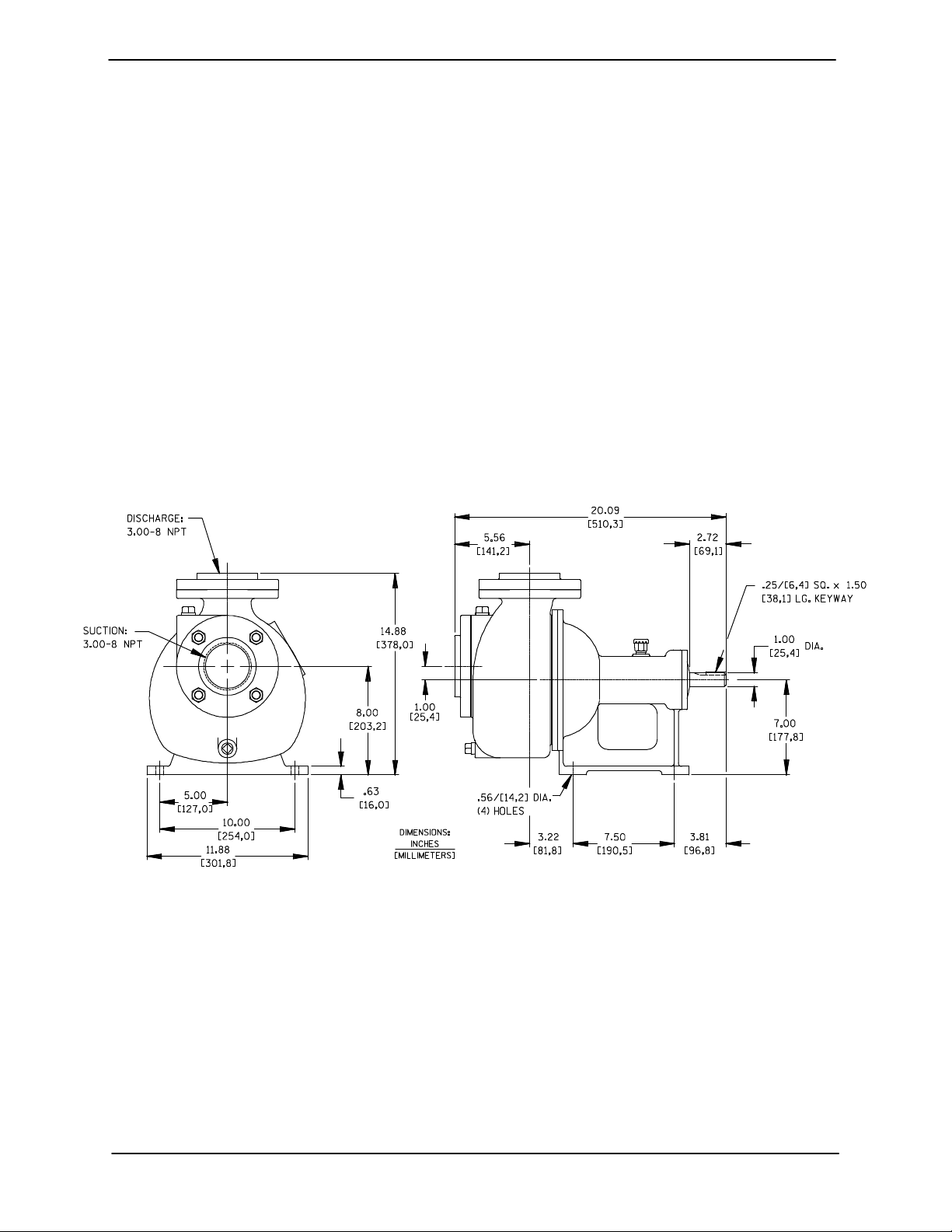

Pump Dimensions PAGE B - 1.....................................................

PREINSTALLATION INSPECTION PAGE B - 1............................................

POSITIONING PUMP PAGE B - 2.......................................................

Lifting PAGE B - 2.................................................................

Mounting PAGE B - 2.............................................................

SUCTION AND DISCHARGE PIPING PAGE B - 2.........................................

Materials PAGE B - 2..............................................................

Line Configuration PAGE B - 2......................................................

Connections to Pump PAGE B - 2..................................................

Gauges PAGE B - 2...............................................................

SUCTION LINES PAGE B - 3...........................................................

Fittings PAGE B - 3...............................................................

Strainers PAGE B - 3..............................................................

Sealing PAGE B - 3...............................................................

Suction Line Positioning PAGE B - 3................................................

DISCHARGE LINES PAGE B - 4........................................................

Siphoning PAGE B - 4.............................................................

Valves PAGE B - 4................................................................

ALIGNMENT PAGE B - 4..............................................................

Coupled Drives PAGE B - 5........................................................

V‐Belt Drives PAGE B - 5...........................................................

DRIVE BELT TENSIONING PAGE B - 6..................................................

General Rules of Tensioning PAGE B - 6.............................................

GROUNDING PAGE B - 6.............................................................

OPERATION - SECTION C PAGE C - 1......................................

PRIMING PAGE C - 1.................................................................

STARTING PAGE C - 1................................................................

Rotation PAGE C - 1..............................................................

OPERATION PAGE C - 2..............................................................

Lines With a Bypass PAGE C - 2....................................................

Lines Without a Bypass PAGE C - 2.................................................

Leakage PAGE C - 2..............................................................

Liquid Temperature And Overheating PAGE C - 2.....................................

Strainer Check PAGE C - 2.........................................................

Pump Vacuum Check PAGE C - 2..................................................

STOPPING PAGE C - 3................................................................

BEARING TEMPERATURE CHECK PAGE C - 3..........................................

Cold Weather Preservation PAGE C - 3..............................................

TROUBLESHOOTING - SECTION D PAGE D - 1..............................

PREVENTIVE MAINTENANCE PAGE D - 3...............................................

TABLE OF CONTENTS

(continued)

PUMP MAINTENANCE AND REPAIR ‐ SECTION E PAGE E - 1.................

STANDARD PERFORMANCE CURVE PAGE E - 1........................................

PARTS LIST:

Pump Model PAGE E - 3..........................................................

PUMP AND SEAL DISASSEMBLY AND REASSEMBLY PAGE E - 4.........................

Pump Disassembly PAGE E - 4.....................................................

Impeller Removal PAGE E - 4......................................................

Seal Removal and Disassembly PAGE E - 5..........................................

Shaft and Bearing Removal and Disassembly PAGE E - 5.............................

Shaft and Bearing Reassembly and Installation PAGE E - 6............................

Seal Reassembly and Installation PAGE E - 7........................................

Impeller Installation PAGE E - 8.....................................................

Pump Reassembly PAGE E - 9.....................................................

Final Pump Assembly PAGE E - 9..................................................

LUBRICATION PAGE E - 9.............................................................

Seal Assembly PAGE E - 9.........................................................

Bearings PAGE E - 9..............................................................

Power Source PAGE E - 9.........................................................

0 SERIES OM-01182

PAGE I - 1INTRODUCTION

INTRODUCTION

Thank You for purchasing a Gorman‐Rupp pump.

Read this manual carefully to learn how to safely

install and operate your pump. Failure to do so

could result in personal injury or damage to the

pump.

This pump is an 0 Series, closed impeller, self‐prim

ing centrifugal model, with straight‐in suction, with

out a suction check valve. It is designed to handle

petroleum products or other clean liquids that do

not contain large entrained solids. The basic mate

rial of construction for wetted parts is ductile iron,

with bronze impeller and steel shaft.

If there are any questions regarding the pump or

its application which are not covered in this man

ual or in other literature accompanying this unit,

please contact your Gorman‐Rupp distributor, or

write:

The Gorman‐Rupp Company

P.O. Box 1217

Mansfield, Ohio 44901-1217

Phone: (419) 755-1011

or:

Gorman‐Rupp of Canada Limited

70 Burwell Road

St. Thomas, Ontario N5P 3R7

Phone: (519) 631-2870

For information or technical assistance on the pow

er source, contact the power source manufactur

er's local dealer or representative.

Because pump installations are seldom identical,

this manual cannot possibly provide detailed in

structions and precautions for every aspect of

each specific application. Therefore, it is the re

sponsibility of the owner/installer of the pump to

ensure that applications not addressed in this

manual are performed only after establishing that

neither operator safety nor pump integrity are com

promised by the installation. Pumps and related

equipment must be installed and operated ac

cording to all national, local and industry stan

dards.

The following are used to alert maintenance per

sonnel to procedures which require special atten

tion, to those which could damage equipment, and

to those which could be dangerous to personnel:

Immediate hazards which WILL result in

severe personal injury or death. These

instructions describe the procedure re

quired and the injury which will result

from failure to follow the procedure.

Hazards or unsafe practices which

COULD result in severe personal injury

or death. These instructions describe

the procedure required and the injury

which could result from failure to follow

the procedure.

Hazards or unsafe practices which COULD

result in minor personal injury or product

or property damage. These instructions

describe the requirements and the possi

ble damage which could result from failure

to follow the procedure.

NOTE

Instructions to aid in installation, operation,and

maintenance, or which clarify a procedure.

0 SERIES OM-01182

PAGE A - 1SAFETY

SAFETY ‐ SECTION A

This information applies to 0 Series ba

sic pumps. Gorman‐Rupp has no con

trol over or particular knowledge of the

power source which will be used. Refer

to the manual accompanying the power

source before attempting to begin oper

ation.

This manual will alert personnel to

known procedures which require spe

cial attention, to those which could

damage equipment, and to those which

could be dangerous to personnel. How

ever, this manual cannot possibly antici

pate and provide detailed instructions

and precautions for every situation that

might occur during maintenance of the

unit. Therefore, it is the responsibility of

the owner/maintenance personnel to

ensure that only safe, established main

tenance procedures are used, and that

any procedures not addressed in this

manual are performed only after estab

lishing that neither personal safety nor

pump integrity are compromised by

such practices.

Before attempting to open or service the

pump:

1. Familiarize yourself with this man

ual.

2. Disconnect or lock out the power

source to ensure that the pump will

remain inoperative.

3. Allow the pump to completely cool

if overheated.

4. Check the temperature before

opening any covers, plates, or

plugs.

5. Close the suction and discharge

valves.

6. Vent the pump slowly and cau

tiously.

7. Drain the pump.

This pump is designed to handle petro

leum products or other clean liquids

that do not contain large entrained sol

ids. Do not attempt to pump liquids

which may damage the pump or endan

ger personnel as a result of pump fail

ure.

This pump is designed to handle petro

leum products or other clean liquids

that do not contain large entrained sol

ids. If the pump is used for handling vol

atile, flammable liquids, all drivers and/

or controls must meet industry stan

dards and codes for use in an explosive

atmosphere. Do not attempt to pump liq

uids for which the pump, driver and/or

controls have not been approved, or

which may damage the pump or endan

ger personnel as a result of pump fail

ure.

If this pump is used for volatile and/or

flammable liquids, be certain proper

safety practices are followed before op

erating or servicing the pump. Provide

adequate ventilation, prohibit smoking,

wear static‐resistant clothing and

shoes. Clean up all fuel spills immedi

ately after occurrence.

Do not install and operate a non‐explo

sion proof motor in an explosive atmo

sphere. Install, connect, and operate

the motor in accordance with the

0 SERIESOM-01182

PAGE A - 2 SAFETY

National Electric Code and all local

codes. If there is a conflict between the

instructions in the manual accompany

ing the unit and the National Electric

Code or the applicable local code, the

National or local code shall take

precedence.

If this pump is used with volatile and/or

flammable liquids, overheating may

produce dangerous fumes. Take pre

cautions to ensure the area surrounding

the pump is adequately ventilated. Al

low the pump to cool and use extreme

caution when venting the pump, or

when removing covers, plates, plugs, or

fittings.

Use lifting and moving equipment in

good repair and with adequate capacity

to prevent injuries to personnel or dam

age to equipment. Suction and dis

charge hoses and piping must be re

moved from the pump before lifting.

After the pump has been installed, make

certain that the pump and all piping or

hose connections are tight, properly

supported and secure before operation.

Do not operate the pump without the

shields and/or guards in place over the

drive shaft, belts, and/or couplings, or

other rotating parts. Exposed rotating

parts can catch clothing, fingers, or

tools, causing severe injury to person

nel.

Do not operate the pump against a

closed discharge valve for long periods

of time. If operated against a closed dis

charge valve, pump components will

deteriorate, and the liquid could come

to a boil, build pressure, and cause the

pump casing to rupture or explode.

Overheated pumps can cause severe

burns and injuries. If overheating of the

pump occurs:

1. Stop the pump immediately.

2. Ventilate the area.

3. Allow the pump to completely cool.

4. Check the temperature before

opening any covers, plates,

gauges, or plugs.

5. Vent the pump slowly and cau

tiously.

6. Refer to instructions in this manual

before restarting the pump.

Do not remove plates, covers, gauges,

pipe plugs, or fittings from an over

heated pump. Vapor pressure within the

pump can cause parts being disen

gaged to be ejected with great force.

Allow the pump to cool before servicing.

Never run this pump backwards. Be

certain that rotation is correct before

fully engaging the pump.

0 SERIES OM-01182

PAGE A - 3SAFETY

Pumps and related equipment must be

installed and operated according to all

national, local and industry standards.

0 SERIES OM-01182

PAGE B - 1INSTALLATION

INSTALLATION - SECTION B

Review all SAFETY information in Section A.

Since pump installations are seldom identical, this

section offers only general recommendations and

practices required to inspect, position, and ar

range the pump and piping.

Most of the information pertains to a standard

static lift application where the pump is positioned

above the free level of liquid to be pumped.

If installed in a flooded suction application where

the liquid is supplied to the pump under pressure,

some of the information such as mounting, line

configuration, and priming must be tailored to the

specific application. Since the pressure supplied

to the pump is critical to performance and safety,

be sure to limit the incoming pressure to 50% of the

maximum permissible operating pressure as

shown on the pump performance curve.

For further assistance, contact your Gorman‐Rupp

distributor or the Gorman‐Rupp Company.

Pump Dimensions

See Figure 1 for the approximate physical dimen

sions of this pump.

OUTLINE DRAWING

Figure 1. Pump Model 03B31-B

PREINSTALLATION INSPECTION

The pump assembly was inspected and tested be

fore shipment from the factory. Before installation,

inspect the pump for damage which may have oc

curred during shipment. Check as follows:

a. Inspect the pump and engine for cracks,

dents, damaged threads, and other obvious

damage.

b. Check for and tighten loose attaching hard

ware. Since gaskets tend to shrink after dry

ing, check for loose hardware at mating sur

faces.

c. Carefully read all tags, decals, and markings

on the pump assembly, and perform all duties

indicated.

d. Check levels and lubricate as necessary. Re

fer to LUBRICATION in the MAINTENANCE

OM-01182 0 SERIES

PAGE B - 2 INSTALLATION

AND REPAIR section of this manual and per

form duties as instructed.

e. If the pump and engine have been stored for

more than 12 months, some of the compo

nents or lubricants may have exceeded their

maximum shelf life. These must be inspected

or replaced to ensure maximum pump serv

ice.

If the maximum shelf life has been exceeded, or if

anything appears to be abnormal, contact your

Gorman‐Rupp distributor or the factory to deter

mine the repair or updating policy. Do not put the

pump into service until appropriate action has

been taken.

POSITIONING PUMP

Use lifting and moving equipment in

good repair and with adequate capacity

to prevent injuries to personnel or dam

age to equipment. Suction and dis

charge hoses and piping must be re

moved from the pump before lifting.

Lifting

Pump unit weights will vary depending on the

mounting and drive provided. Check the shipping

tag on the unit packaging for the actual weight, and

use lifting equipment with appropriate capacity.

Drain the pump and remove all customer‐installed

equipment such as suction and discharge hoses

or piping before attempting to lift existing, installed

units.

The pump assembly can be seriously

damaged if the cables or chains used to lift

and move the unit are improperly wrapped

around the pump.

Mounting

Locate the pump in an accessible place as close as

practical to the liquid being pumped. Level mount

ing is essential for proper operation.

The pump may have to be supported or shimmed

to provide for level operation or to eliminate vibra

tion.

SUCTION AND DISCHARGE PIPING

Pump performance is adversely effected by in

creased suction lift, discharge elevation, and fric

tion losses. Contact the factory to be sure your

overall application allows pump to operate within

the safe operation range.

Materials

Either pipe or hose maybe used for suction and

discharge lines; however, the materials must be

compatible with the liquid being pumped. If hose is

used in suction lines, it must be the rigid‐wall, rein

forced type to prevent collapse under suction. Us

ing piping couplings in suction lines is not recom

mended.

Line Configuration

Keep suction and discharge lines as straight as

possible to minimize friction losses. Make mini

mum use of elbows and fittings, which substan

tially increase friction loss. If elbows are necessary,

use the long‐radius type to minimize friction loss.

Connections to Pump

Before tightening a connecting flange, align it ex

actly with the pump port. Never pull a pipe line into

place by tightening the flange bolts and/or cou

plings.

Lines near the pump must be independently sup

ported to avoid strain on the pump which could

cause excessive vibration, decreased bearing life,

and increased shaft and seal wear. If hose‐type

lines are used, they should have adequate support

to secure them when filled with liquid and under

pressure.

Gauges

Most pumps are drilled and tapped for installing

discharge pressure and vacuum suction gauges.

If these gauges are desired for pumps that are not

tapped, drill and tap the suction and discharge

lines not less than 18 inches (457 mm) from the

suction and discharge ports and install the lines.

Installation closer to the pump may result in erratic

readings.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere GORMAN-RUPP PUMPS Wasserpumpe Handbücher

GORMAN-RUPP PUMPS

GORMAN-RUPP PUMPS 30 Series Anwendungshandbuch

GORMAN-RUPP PUMPS

GORMAN-RUPP PUMPS AMT 370C-97 Bedienungsanleitung

GORMAN-RUPP PUMPS

GORMAN-RUPP PUMPS 03F52-B Anwendungshandbuch

GORMAN-RUPP PUMPS

GORMAN-RUPP PUMPS T2A60 B Anwendungshandbuch

GORMAN-RUPP PUMPS

GORMAN-RUPP PUMPS S2D3 115V 1P Bedienungsanleitung

GORMAN-RUPP PUMPS

GORMAN-RUPP PUMPS ULTRA V3D60SC-B Anwendungshandbuch

GORMAN-RUPP PUMPS

GORMAN-RUPP PUMPS 0 Series Anwendungshandbuch

GORMAN-RUPP PUMPS

GORMAN-RUPP PUMPS U3B60-B Anwendungshandbuch

GORMAN-RUPP PUMPS

GORMAN-RUPP PUMPS SUPER T T4A60S-C2.2T FT4 Bedienungsanleitung

GORMAN-RUPP PUMPS

GORMAN-RUPP PUMPS 11 1/2A52-B Anwendungshandbuch

GORMAN-RUPP PUMPS

GORMAN-RUPP PUMPS 81 1/2E9-B Anwendungshandbuch

GORMAN-RUPP PUMPS

GORMAN-RUPP PUMPS 03H3-GL Anwendungshandbuch

GORMAN-RUPP PUMPS

GORMAN-RUPP PUMPS 81 1/2D3-X1 1P Bedienungsanleitung

GORMAN-RUPP PUMPS

GORMAN-RUPP PUMPS 88B2-B Anwendungshandbuch

GORMAN-RUPP PUMPS

GORMAN-RUPP PUMPS JSV3A60-E2.7 200/3 Anwendungshandbuch

GORMAN-RUPP PUMPS

GORMAN-RUPP PUMPS 11 1/2A22-B Anwendungshandbuch

GORMAN-RUPP PUMPS

GORMAN-RUPP PUMPS V6C60SC-B Bedienungsanleitung

GORMAN-RUPP PUMPS

GORMAN-RUPP PUMPS PA4A60-4045T Bedienungsanleitung

GORMAN-RUPP PUMPS

GORMAN-RUPP PUMPS CE Series Bedienungsanleitung

GORMAN-RUPP PUMPS

GORMAN-RUPP PUMPS PA4A60-4045T FT4 Anwendungshandbuch

GORMAN-RUPP PUMPS

GORMAN-RUPP PUMPS 03B51-B Anwendungshandbuch

GORMAN-RUPP PUMPS

GORMAN-RUPP PUMPS T10A60S-BF6L Anwendungshandbuch

GORMAN-RUPP PUMPS

GORMAN-RUPP PUMPS T10A65-B Bedienungsanleitung

GORMAN-RUPP PUMPS

GORMAN-RUPP PUMPS 10 Series Bedienungsanleitung

Beliebte Wasserpumpe Handbücher anderer Marken

Neptun

Neptun NPHW 5500 Bedienungsanleitung

Sensidyne

Sensidyne Gilian BDX-II Montage- und Bedienungsanleitung

Draper

Draper 47808 Bedienungsanleitung

Trolla

Trolla 12820 Bedienungsanleitung

Sunfab

Sunfab SVH Series Bedienungsanleitung

WilTec

WilTec 50740 Bedienungsanleitung

Fieldmann

Fieldmann FVC 5015 EK Bedienungsanleitung

Everbilt

Everbilt EFSUB5-122HD Bedienungsanleitung

Graco

Graco Husky 3300e Bedienungsanleitung

esotec

esotec 101018 Bedienungsanleitung

moyno

moyno 2000 CC Bedienungsanleitung

Becker

Becker BASIC VASF 2.80/1-0.AC230 Bedienungsanleitung

Sykes AmeriPumps

Sykes AmeriPumps GP100M Fehlerbehebungshandbuch

DUROMAX

DUROMAX XP WX Series Bedienungsanleitung

BRINKMANN PUMPS

BRINKMANN PUMPS SBF550 Bedienungsanleitung

Franklin Electric

Franklin Electric IPS Bedienungsanleitung

Xylem

Xylem e-1532 Series Bedienungsanleitung

Milton Roy

Milton Roy PRIMEROYAL Bedienungsanleitung
