GORMAN-RUPP PUMPS Super T T6B60S-B Bedienungsanleitung

OM-05604-01

April 28, 2004

Rev. H 08‐28‐17

GORMAN‐RUPP PUMPS

www.grpumps.com

2004 Gorman‐Rupp Pumps Printed in U.S.A.

INSTALLATION, OPERATION,

AND MAINTENANCE MANUAL

WITH PARTS LIST

SUPER T SERIESPUMPS

MODELS

T6B60S-B

INCLUDING: /F, /FM

Gorman‐Rupp pump online at

www.grpumps.com

Valid serial number and e‐mail address required.

RECORD YOUR PUMP MODEL AND SERIAL NUMBER

Please record your pump model and serial number in the

spaces provided below. Your Gorman‐Rupp distributor

needs this information when you require parts or service.

Pump Model:

Serial Number:

TABLE OF CONTENTS

INTRODUCTION PAGE I - 1.................................................

SAFETY - SECTION A PAGE A - 1...........................................

INSTALLATION - SECTION B PAGE B - 1....................................

Pump Dimensions PAGE B - 1.....................................................

PREINSTALLATION INSPECTION PAGE B - 2............................................

POSITIONING PUMP PAGE B - 2.......................................................

Lifting PAGE B - 2.................................................................

Mounting PAGE B - 2.............................................................

Clearance PAGE B - 2.............................................................

SUCTION AND DISCHARGE PIPING PAGE B - 3.........................................

Materials PAGE B - 3..............................................................

Line Configuration PAGE B - 3......................................................

Connections to Pump PAGE B - 3..................................................

Gauges PAGE B - 3...............................................................

SUCTION LINES PAGE B - 3...........................................................

Fittings PAGE B - 3...............................................................

Strainers PAGE B - 3..............................................................

Sealing PAGE B - 3...............................................................

Suction Lines In Sumps PAGE B - 4.................................................

Suction Line Positioning PAGE B - 4................................................

DISCHARGE LINES PAGE B - 5........................................................

Siphoning PAGE B - 5.............................................................

Valves PAGE B - 5................................................................

Bypass Lines PAGE B - 5..........................................................

AUTOMATIC AIR RELEASE VALVE PAGE B - 6...........................................

Air Release Valve Installation PAGE B - 6............................................

ALIGNMENT PAGE B - 7..............................................................

Coupled Drives PAGE B - 8........................................................

Drive Belts PAGE B - 8............................................................

DRIVE BELT TENSIONING PAGE B - 9..................................................

General Rules of Tensioning PAGE B - 9.............................................

OPERATION - SECTION C PAGE C - 1......................................

PRIMING PAGE C - 1.................................................................

STARTING PAGE C - 1................................................................

Rotation PAGE C - 1..............................................................

OPERATION PAGE C - 2..............................................................

Lines With a Bypass PAGE C - 2....................................................

Lines Without a Bypass PAGE C - 2.................................................

OPERATIONAL CHECKS PAGE C - 2...................................................

Leakage PAGE C - 2..............................................................

Liquid Temperature and Overheating PAGE C - 2.....................................

Strainer Check PAGE C - 3.........................................................

Clog Removal and Wear Plate Clearance PAGE C - 3.................................

Pump Vacuum Check PAGE C - 3..................................................

STOPPING PAGE C - 3................................................................

Cold Weather Preservation PAGE C - 4..............................................

TABLE OF CONTENTS

(continued)

BEARING TEMPERATURE CHECK PAGE C - 4..........................................

TROUBLESHOOTING - SECTION D PAGE D - 1..............................

PREVENTIVE MAINTENANCE PAGE D - 3...............................................

PUMP MAINTENANCE AND REPAIR - SECTION E PAGE E - 1................

PERFORMANCE CURVE PAGE E - 1...................................................

PARTS LISTS:

Pump Model PAGE E - 3..........................................................

Repair Rotating Assembly PAGE E - 5...............................................

PUMP AND SEAL DISASSEMBLY AND REASSEMBLY PAGE E - 6.........................

Back Cover and Wear Plate Removal PAGE E - 6.....................................

Suction Check Valve Removal PAGE E - 7...........................................

Rotating Assembly Removal PAGE E - 7.............................................

Impeller Removal PAGE E - 8......................................................

Seal Removal PAGE E - 8..........................................................

Shaft and Bearing Removal and Disassembly PAGE E - 8.............................

Shaft and Bearing Reassembly and Installation PAGE E - 9............................

Seal Installation PAGE E - 10........................................................

Impeller Installation and Adjustment PAGE E - 13......................................

Rotating Assembly Installation PAGE E - 13...........................................

Suction Check Valve Installation PAGE E - 13.........................................

Back Cover Installation and Adjustment PAGE E - 14...................................

PRESSURE RELIEF VALVE MAINTENANCE PAGE E - 15..................................

Final Pump Assembly PAGE E - 15..................................................

LUBRICATION PAGE E - 15.............................................................

Seal Assembly PAGE E - 15.........................................................

Bearings PAGE E - 15..............................................................

SUPER T SERIES OM-05604

PAGE I - 1INTRODUCTION

INTRODUCTION

Thank You for purchasing a Gorman‐Rupp pump.

Read this manual carefully to learn how to safely

install and operate your pump. Failure to do so

could result in personal injury or damage to the

pump.

Because pump installations are seldom identical,

this manual cannot possibly provide detailed in

structions and precautions for every aspect of

each specific application. Therefore, it is the re

sponsibility of the owner/installer of the pump to

ensure that applications not addressed in this

manual are performed only after establishing that

neither operator safety nor pump integrity are com

promised by the installation. Pumps and related

equipment must be installed and operated ac

cording to all national, local and industry stan

dards.

If there are any questions regarding the pump or

its application which are not covered in this man

ual or in other literature accompanying this unit,

please contact your Gorman‐Rupp distributor, or

The Gorman‐Rupp Company:

The Gorman‐Rupp Company

P.O. Box 1217

Mansfield, Ohio 44901-1217

Phone: (419) 755-1011

or:

Gorman‐Rupp of Canada Limited

70 Burwell Road

St. Thomas, Ontario N5P 3R7

Phone: (519) 631-2870

For information or technical assistance on the

power source, contact the power source manufac

turer's local dealer or representative.

HAZARD AND INSTRUCTION

DEFINITIONS

The following are used to alert maintenance per

sonnel to procedures which require special atten

tion, to those which could damage equipment, and

to those which could be dangerous to personnel:

Immediate hazards which WILL result in

severe personal injury or death. These

instructions describe the procedure re

quired and the injury which will result

from failure to follow the procedure.

Hazards or unsafe practices which

COULD result in severe personal injury

or death. These instructions describe

the procedure required and the injury

which could result from failure to follow

the procedure.

Hazards or unsafe practices which COULD

result in minor personal injury or product

or property damage. These instructions

describe the requirements and the possi

ble damage which could result from failure

to follow the procedure.

NOTE

Instructions to aid in installation, operation, and

maintenance or which clarify a procedure.

SUPER T SERIES OM-05604

PAGE A - 1SAFETY

SAFETY - SECTION A

This information applies to Super T Se

riesbasic pumps. Gorman‐Rupp has

no control over or particular knowledge

of the power source which will be used.

Refer to the manual accompanying the

power source before attempting to be

gin operation.

This manual will alert personnel to

known procedures which require spe

cial attention, to those which could

damage equipment, and to those which

could be dangerous to personnel. How

ever, this manual cannot possibly pro

vide detailed instructions and precau

tions for each specific application or for

every situation that might occur during

maintenance of the unit. Therefore, it is

the responsibility of the owner, installer

and/or maintenance personnel to en

sure that applications and/or mainte

nance procedures not addressed in this

manual are performed only after estab

lishing that neither personal safety nor

pump integrity are compromised by

such applications or procedures.

Before attempting to open or service the

pump:

1. Familiarize yourself with this man

ual.

2. Disconnect or lock out the power

source to ensure that the pump will

remain inoperative.

3. Allow the pump to completely cool

if overheated.

4. Check the temperature before

opening any covers, plates, or

plugs.

5. Close the suction and discharge

valves.

6. Vent the pump slowly and cau

tiously.

7. Drain the pump.

This pump is designed to handle liquids

containing large entrained solids or

slurries. Do not attempt to pump vola

tile, corrosive, or flammable materials

which may damage the pump or endan

ger personnel as a result of pump fail

ure.

Death or serious personal injury and

damage to the pump or components

can occur if proper lifting procedures

are not observed. Make certain that

hoists, chains, slings or cables are in

good working condition and of suffi

cient capacity and that they are posi

tioned so that loads will be balanced

and the pump or components will not be

damaged when lifting. Suction and dis

charge hoses and piping must be re

moved from the pump before lifting. Lift

the pump or component only as high as

necessary and keep personnel away

from suspended objects.

After the pump has been positioned,

make certain that the pump and all pip

ing connections are tight, properly sup

ported and secure before operation.

Do not remove plates, covers, gauges,

pipe plugs, or fittings from an over

heated pump. Vapor pressure within the

pump can cause parts being disen

gaged to be ejected with great force. Al

low the pump to cool before servicing.

SUPER T SERIESOM-05604

PAGE A - 2 SAFETY

Do not operate the pump against a

closed discharge valve for long periods

of time. If operated against a closed dis

charge valve, pump components will

deteriorate, and the liquid could come

to a boil, build pressure, and cause the

pump casing to rupture or explode.

Overheated pumps can cause severe

burns and injuries. If overheating of the

pump occurs:

1. Stop the pump immediately.

2. Ventilate the area.

3. Allow the pump to completely cool.

4. Check the temperature before

opening any covers, plates,

gauges, or plugs.

5. Vent the pump slowly and cau

tiously.

6. Refer to instructions in this manual

before restarting the pump.

Do not operate the pump without the

guards in place over the rotating parts.

Exposed rotating parts can catch cloth

ing, fingers, or tools, causing severe in

jury to personnel.

Never run this pump backwards. Be cer

tain that rotation is correct before fully

engaging the pump.

Pumps and related equipment must be in

stalled and operated according to all na

tional, local and industry standards.

OM-05604SUPER T SERIES

PAGE B - 1INSTALLATION

INSTALLATION - SECTION B

Review all SAFETY information in Section A.

Since pump installations are seldom identical, this

section offers only general recommendations and

practices required to inspect, position, and ar

range the pump and piping.

Most of the information pertains to a standard

static lift application where the pump is posi

tioned above the free level of liquid to be pumped.

If installed in a flooded suction application where

the liquid is supplied to the pump under pressure,

some of the information such as mounting, line

configuration, and priming must be tailored to the

specific application. Since the pressure supplied

to the pump is critical to performance and safety,

be sure to limit the incoming pressure to 50% of

the maximum permissible operating pressure as

shown on the pump performance curve.

For further assistance, contact your Gorman‐Rupp

distributor or the Gorman‐Rupp Company.

Pump Dimensions

See Figure 1 for the approximate physical dimen

sions of this pump.

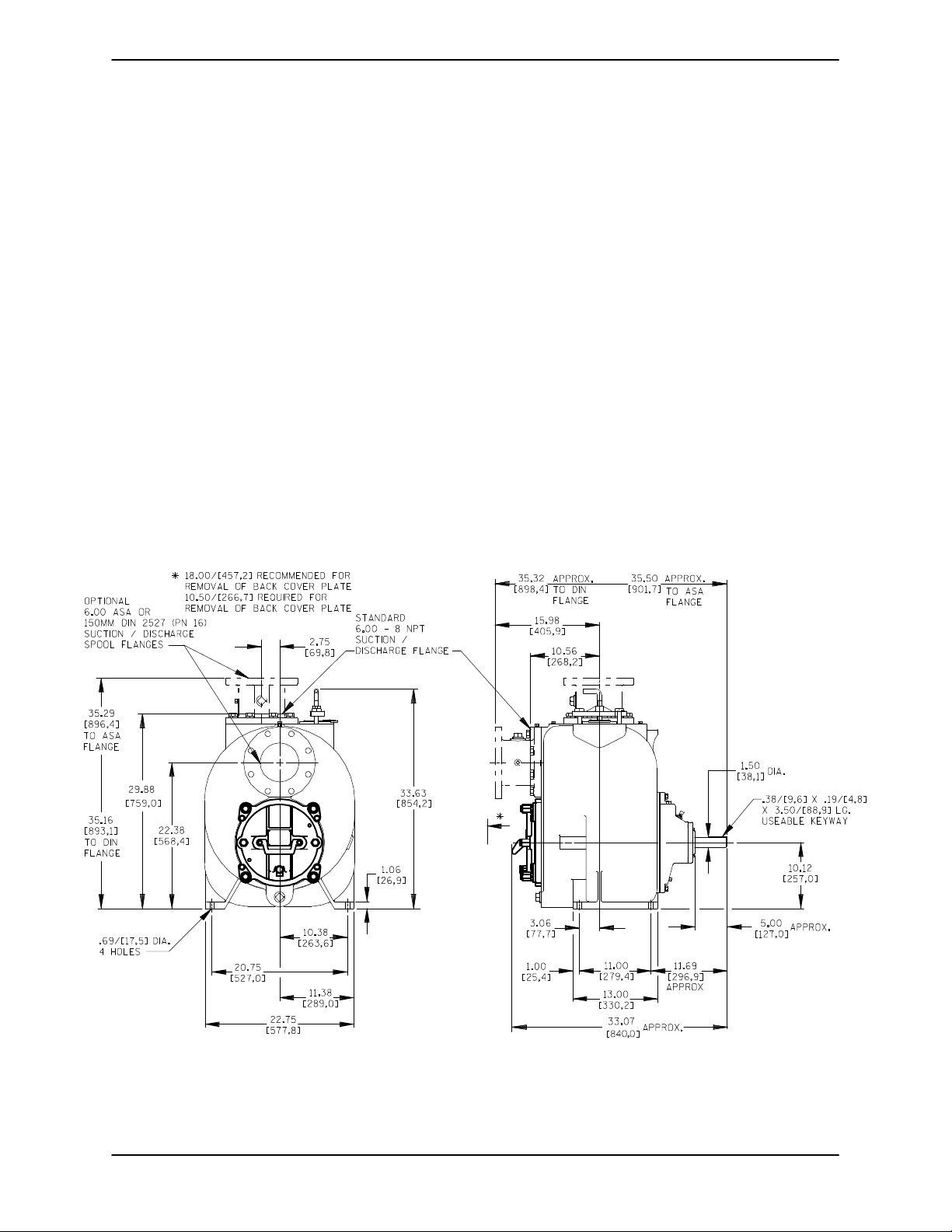

OUTLINE DRAWING

Figure 1. Pump Model T6B60S-B, Including /F, /FM

OM-05604 SUPER T SERIES

PAGE B - 2 INSTALLATION

PREINSTALLATION INSPECTION

The pump assembly was inspected and tested be

fore shipment from the factory. Before installation,

inspect the pump for damage which may have oc

curred during shipment. Check as follows:

a. Inspect the pump for cracks, dents, damaged

threads, and other obvious damage.

b. Check for and tighten loose attaching hard

ware. Since gaskets tend to shrink after dry

ing, check for loose hardware at mating sur

faces.

c. Carefully read all warnings and cautions con

tained in this manual or affixed to the pump,

and perform all duties indicated. Note the di

rection of rotation indicated on the pump.

Check that the pump shaft rotates counter

clockwise when facing the impeller.

Only operate this pump in the direction in

dicated by the arrow on the pump body

and on the accompanying decal. Refer to

ROTATION in OPERATION, Section C.

d. Check levels and lubricate as necessary. Re

fer to LUBRICATION in the MAINTENANCE

AND REPAIR section of this manual and per

form duties as instructed.

e. If the pump and power source have been

stored for more than 12 months, some of the

components or lubricants may have ex

ceeded their maximum shelf life. These must

be inspected or replaced to ensure maxi

mum pump service.

If the maximum shelf life has been exceeded, or if

anything appears to be abnormal, contact your

Gorman‐Rupp distributor or the factory to deter

mine the repair or updating policy. Do not put the

pump into service until appropriate action has

been taken.

POSITIONING PUMP

Death or serious personal injury and

damage to the pump or components

can occur if proper lifting procedures

are not observed. Make certain that

hoists, chains, slings or cables are in

good working condition and of suffi

cient capacity and that they are posi

tioned so that loads will be balanced

and the pump or components will not be

damaged when lifting. Suction and dis

charge hoses and piping must be re

moved from the pump before lifting. Lift

the pump or component only as high as

necessary and keep personnel away

from suspended objects.

Lifting

Pump unit weights will vary depending on the

mounting and drive provided. Check the shipping

tag on the unit packaging for the actual weight, and

use lifting equipment with appropriate capacity.

Drain the pump and remove all customer‐installed

equipment such as suction and discharge hoses

or piping before attempting to lift existing, installed

units.

Mounting

Locate the pump in an accessible place as close as

practical to the liquid being pumped. Level mount

ing is essential for proper operation.

The pump may have to be supported or shimmed

to provide for level operation or to eliminate vibra

tion.

Clearance

It is recommended that 18 inches (457 mm) of

clearance be provided in front of the back cover to

permit removal of the cover and easy access to the

pump interior. A minimum clearance of 9 inches

OM-05604SUPER T SERIES

PAGE B - 3INSTALLATION

(229 mm) must be maintained to permit removal of

the cover.

SUCTION AND DISCHARGE PIPING

Pump performance is adversely effected by in

creased suction lift, discharge elevation, and fric

tion losses. See the performance curve and oper

ating range shown on Page E‐1 to be sure your

overall application allows pump to operate within

the safe operation range.

Materials

Either pipe or hose maybe used for suction and

discharge lines; however, the materials must be

compatible with the liquid being pumped. If hose is

used in suction lines, it must be the rigid‐wall, rein

forced type to prevent collapse under suction. Us

ing piping couplings in suction lines is not recom

mended.

Line Configuration

Keep suction and discharge lines as straight as

possible to minimize friction losses. Make mini

mum use of elbows and fittings, which substan

tially increase friction loss. If elbows are necessary,

use the long‐radius type to minimize friction loss.

Connections to Pump

Before tightening a connecting flange, align it ex

actly with the pump port. Never pull a pipe line into

place by tightening the flange bolts and/or cou

plings.

Lines near the pump must be independently sup

ported to avoid strain on the pump which could

cause excessive vibration, decreased bearing life,

and increased shaft and seal wear. If hose‐type

lines are used, they should have adequate support

to secure them when filled with liquid and under

pressure.

Gauges

Most pumps are drilled and tapped for installing

discharge pressure and vacuum suction gauges. If

these gauges are desired for pumps that are not

tapped, drill and tap the suction and discharge

lines not less than 18 inches (457,2 mm) from the

suction and discharge ports and install the lines.

Installation closer to the pump may result in erratic

readings.

SUCTION LINES

To avoid air pockets which could affect pump prim

ing, the suction line must be as short and direct as

possible. When operation involves a suction lift, the

line must always slope upward to the pump from

the source of the liquid being pumped; if the line

slopes down to the pump at any point along the

suction run, air pockets will be created.

Fittings

Suction lines should be the same size as the pump

inlet. If reducers are used in suction lines, they

should be the eccentric type, and should be in

stalled with the flat part of the reducers uppermost

to avoid creating air pockets. Valves are not nor

mally used in suction lines, but if a valve is used,

install it with the stem horizontal to avoid air pock

ets.

Strainers

If a strainer is furnished with the pump, be certain

to use it; any spherical solids which pass through a

strainer furnished with the pump will also pass

through the pump itself.

If a strainer is not furnished with the pump, but is

installed by the pump user, make certain that the

total area of the openings in the strainer is at least

three or four times the cross section of the suction

line, and that the openings will not permit passage

of solids larger than the solids handling capability

of the pump.

Sealing

Since even a slight leak will affect priming, head,

and capacity, especially when operating with a

high suction lift, all connections in the suction line

should be sealed with pipe dope to ensure an air

tight seal. Follow the sealant manufacturer's rec

ommendations when selecting and applying the

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere GORMAN-RUPP PUMPS Wasserpumpe Handbücher

GORMAN-RUPP PUMPS

GORMAN-RUPP PUMPS 80 Series Anwendungshandbuch

GORMAN-RUPP PUMPS

GORMAN-RUPP PUMPS 02F1-GL Anwendungshandbuch

GORMAN-RUPP PUMPS

GORMAN-RUPP PUMPS SFV4B Bedienungsanleitung

GORMAN-RUPP PUMPS

GORMAN-RUPP PUMPS 10 Series Bedienungsanleitung

GORMAN-RUPP PUMPS

GORMAN-RUPP PUMPS 02D3-E1 1P Bedienungsanleitung

GORMAN-RUPP PUMPS

GORMAN-RUPP PUMPS S Series Anwendungshandbuch

GORMAN-RUPP PUMPS

GORMAN-RUPP PUMPS 02C3-X2 1P Bedienungsanleitung

GORMAN-RUPP PUMPS

GORMAN-RUPP PUMPS PA6D60-4045T FT4-ESP Anwendungshandbuch

GORMAN-RUPP PUMPS

GORMAN-RUPP PUMPS 02K3-X2 Anwendungshandbuch

GORMAN-RUPP PUMPS

GORMAN-RUPP PUMPS 83C52-B Anwendungshandbuch

GORMAN-RUPP PUMPS

GORMAN-RUPP PUMPS 84A2-B Bedienungsanleitung

GORMAN-RUPP PUMPS

GORMAN-RUPP PUMPS PA4A60-4045T Bedienungsanleitung

GORMAN-RUPP PUMPS

GORMAN-RUPP PUMPS PA4A60-4024T Bedienungsanleitung

GORMAN-RUPP PUMPS

GORMAN-RUPP PUMPS 06C1-GAR Anwendungshandbuch

GORMAN-RUPP PUMPS

GORMAN-RUPP PUMPS 03H3-GL Anwendungshandbuch

GORMAN-RUPP PUMPS

GORMAN-RUPP PUMPS PA6E60 6068H Anwendungshandbuch

GORMAN-RUPP PUMPS

GORMAN-RUPP PUMPS 10 Series Bedienungsanleitung

GORMAN-RUPP PUMPS

GORMAN-RUPP PUMPS 0 Series Anwendungshandbuch

GORMAN-RUPP PUMPS

GORMAN-RUPP PUMPS 03E1-B Anwendungshandbuch

GORMAN-RUPP PUMPS

GORMAN-RUPP PUMPS 30 Series Anwendungshandbuch

GORMAN-RUPP PUMPS

GORMAN-RUPP PUMPS 60 Series Installationsanleitung

GORMAN-RUPP PUMPS

GORMAN-RUPP PUMPS 13A65-B Anwendungshandbuch

GORMAN-RUPP PUMPS

GORMAN-RUPP PUMPS 10 Series Bedienungsanleitung

GORMAN-RUPP PUMPS

GORMAN-RUPP PUMPS 82D3-B Anwendungshandbuch

Beliebte Wasserpumpe Handbücher anderer Marken

Neptun

Neptun NPHW 5500 Bedienungsanleitung

Sensidyne

Sensidyne Gilian BDX-II Montage- und Bedienungsanleitung

Draper

Draper 47808 Bedienungsanleitung

Trolla

Trolla 12820 Bedienungsanleitung

Sunfab

Sunfab SVH Series Bedienungsanleitung

WilTec

WilTec 50740 Bedienungsanleitung

Fieldmann

Fieldmann FVC 5015 EK Bedienungsanleitung

Everbilt

Everbilt EFSUB5-122HD Bedienungsanleitung

Graco

Graco Husky 3300e Bedienungsanleitung

esotec

esotec 101018 Bedienungsanleitung

moyno

moyno 2000 CC Bedienungsanleitung

Becker

Becker BASIC VASF 2.80/1-0.AC230 Bedienungsanleitung

Sykes AmeriPumps

Sykes AmeriPumps GP100M Fehlerbehebungshandbuch

DUROMAX

DUROMAX XP WX Series Bedienungsanleitung

BRINKMANN PUMPS

BRINKMANN PUMPS SBF550 Bedienungsanleitung

Franklin Electric

Franklin Electric IPS Bedienungsanleitung

Xylem

Xylem e-1532 Series Bedienungsanleitung

Milton Roy

Milton Roy PRIMEROYAL Bedienungsanleitung
