Graco 16V689 Handbuch

For professional use only -

Model 16V689

Important Safety Instructions

Read all warnings and instructions in the

Operation manual. Save these instructions.

332913A

Kit Instructions

Camera Stand Kit for G-Flex 1500

Ref. Part Description Qty.

1 16W354 FRAME, lower, camera mount, paint 1

2 16W352 TUBE, upper, camera mount, paint 2

3 16W533 BRACKET, support, camera mt, paint 1

4 16W530 BRACKET, mount, camera, adj, paint 1

5 115087 PLUG, tubing 2

6 100132 WASHER, flat 8

7 101566 NUT, lock 8

8 121488 SCREW, hex hd, flanged 8

9 113796 SCREW, flanged, hex hd 4

10 110755 WASHER, plain 4

11 102040 NUT, lock, hex 4

12 112958 NUT, hex, flanged 4

13 108851 WASHER, plain 4

ti22438a

Installation

2332913A

Installation

NOTE: To reduce vibration transmitted to the camera,

the camera stand must not touch the G-Flex Floor

Mounting Plate (J).

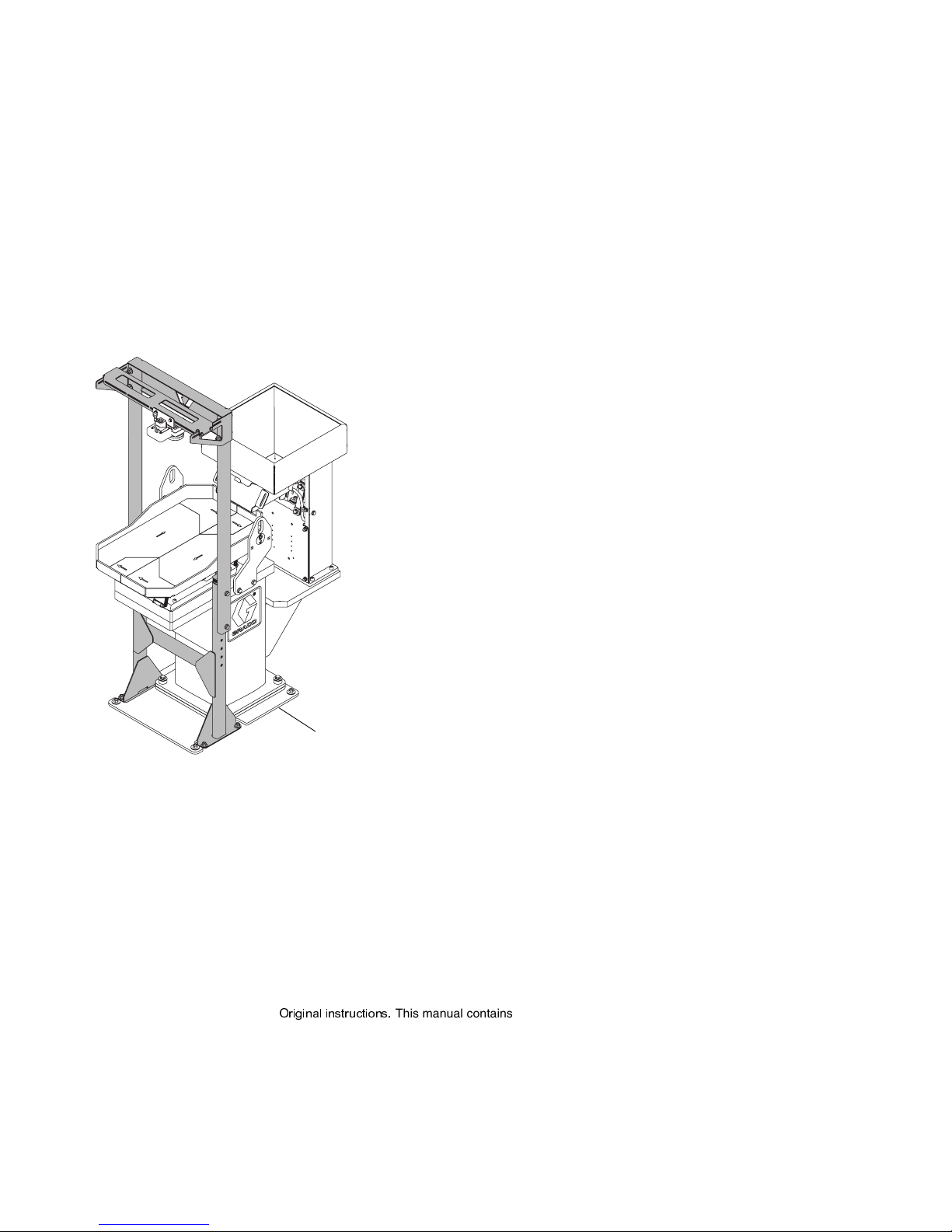

1. Assemble the camera stand per illustration.

2. To mount camera stand, position it in the cutouts in

the G-Flex 155 Floor Mounting Plate (J). The cam-

era stand is designed to be anchored using four 3/8

in. concrete anchor bolts.

3. Use a concrete drill bit of the size recommended by

the anchor bolt manufacturer. Drill four holes in the

concrete using the camera stand holes as a guide.

Install the anchor bolts per the manufacturer’s

instructions.

4. A minimum of 1 in. stud length must protrude from

the floor for proper installation.

5. Install four washers (13) and four nuts (12) provided

to secure the G-Flex 1500 to the concrete surface.

6. Torque to anchor bolt manufacturer recommenda-

tions.

All written and visual data contained in this document reflects the latest product information available at the time of publication.

Graco reserves the right to make changes at any time without notice.

Original instructions.

This manual contains English. MM 332913

Graco Headquarters: Minneapolis

International Offices: Belgium, China, Japan, Korea

GRACO INC. AND SUBSIDIARIES • P.O. BOX 1441 • MINNEAPOLIS MN 55440-1441 • USA

www.graco.com

Revision A - 2014
