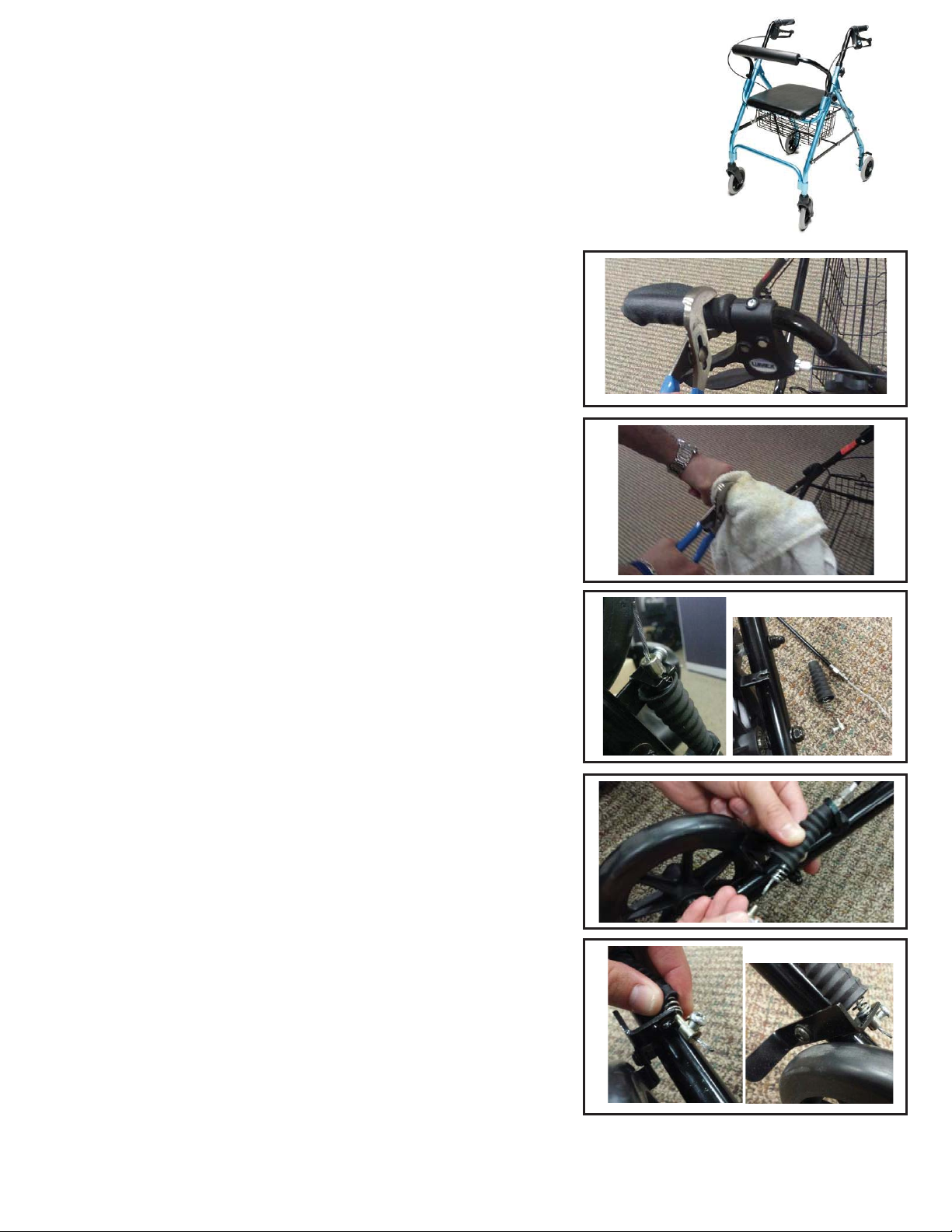

How To Replace Your

Lumex®Set N' Go Rollator Brakes

1. The following items are needed to replace

your handbrakes:

Channel Lock Pliers

Thick Towel or Rag

Replacement Handbrake

2. Wrap towel around handgrip for protection,

then use pliers to apply pressure and rotate

handgrip down as shown. You will hear a pop as

handgrip adhesive releases. Continue twisting to

slide handgrip off.

You can now remove the top screw shown

above, that secures the brake assembly onto the

handle tubing.

3. You will see a spring and cable mechanism on

the rear wheels. Identify the brass cable lock and

loosen the socket head cap screw several turns;

you can then remove the brass cable lock by

pulling straight downward. Pull firmly to

remove the end cable cap. You will have the

pieces shown in the right side picture.

4. Install the brake handle onto the rollator

handle tubing. Feed the cable through the leg

bracket, then feed the spring onto the cable as

shown. Next support the cable and slide the

brass cable stop onto the end of the cable while

trying to avoid bending any cable strands.

Once the brass cable stop is flush with the

spring, tighten the socket head cap screw.

5. Support the brake shoe, lift the spring, and

compress it enough so the shoe will fit between

the spring and the brass cable stop. The cable

stop must go completely below the brake shoe.

Notice, at this point the brake is not tensioned

properly and the brake shoe is far from the tire.

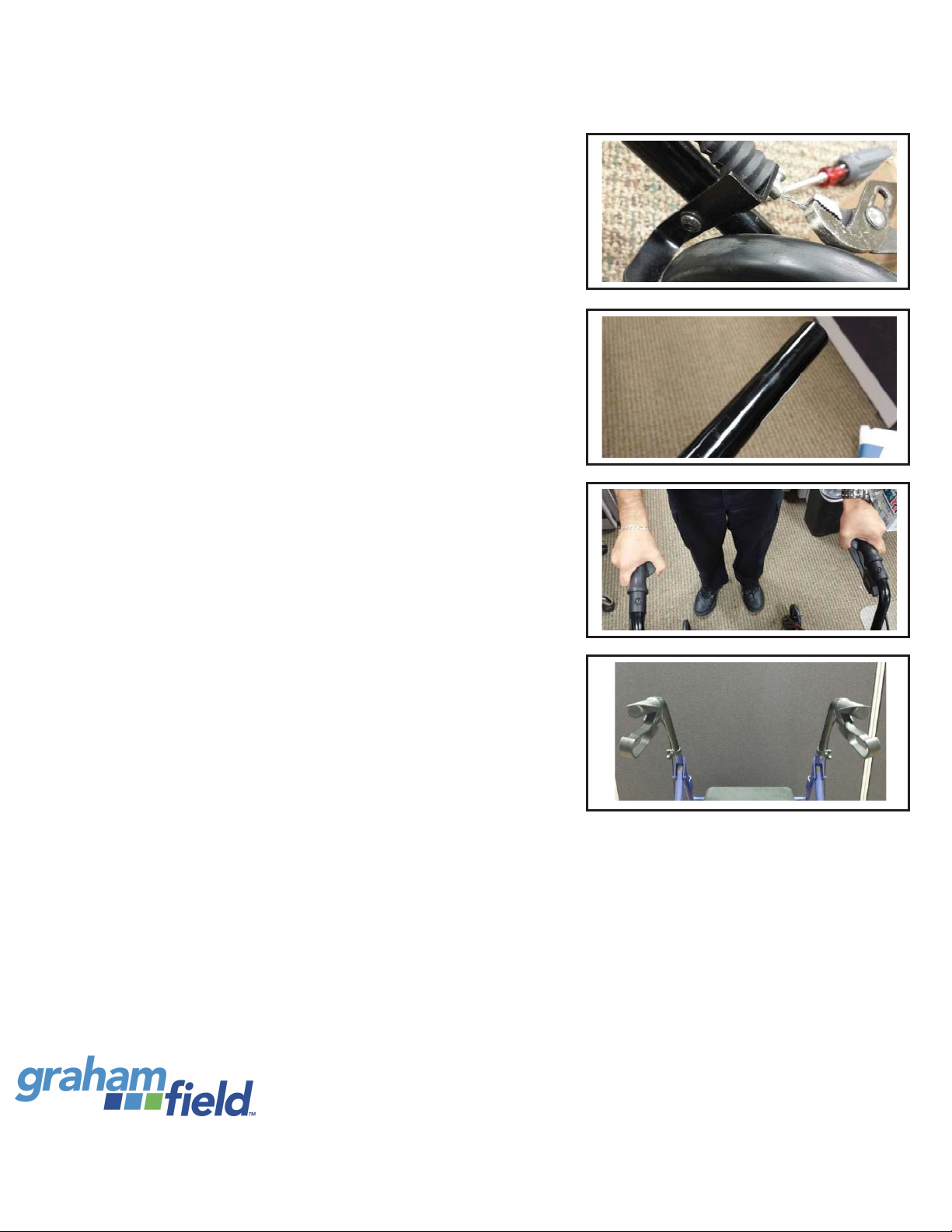

6. Make sure the brake lever is NOT in the

locked position. While supporting the cable with

the pliers, loosen the locking screw on the brass

cable stop.

Next lift the cable stop up while pulling down on

the cable with pliers. There should be about 2

millimeters of space between the brake shoe and

the tire. (Thickness of two pennies stacked).

Confirm the brake is functional and adjust if

needed.

7. You must use adhesive to reinstall the grip.

Spray is recommended but epoxy, gorilla glue

and rubber cement are suitable adhesives.

Apply a moderate amount of spray adhesive (or

a few drops of a recommended alternative glue)

to handle tubing.

8. Position the handles at the same height and

secure with knob and bolt. Slide the grip over

the adhesive completely to the brake assembly.

Before allowing the adhesive to set, grasp the

handles as if you are operating the rollator and

twist to ensure they are positioned correctly and

feel the same on both sides.

9. After following the recommended instructions

to apply the adhesive, allow adhesive to set

before using the rollator.

* It is recommended that you seek the assistance

of a local provider in replacing your rollator

handbrakes if and when possible.

GF1500064RevA15

Atlanta, GA 30360

www.grahamfield.com
