Grand Wi-Fi / IP CAMERA PLUS Bedienungsanleitung

Grand IP/ Wi-Fi Camera Plus

QUICK GUIDE

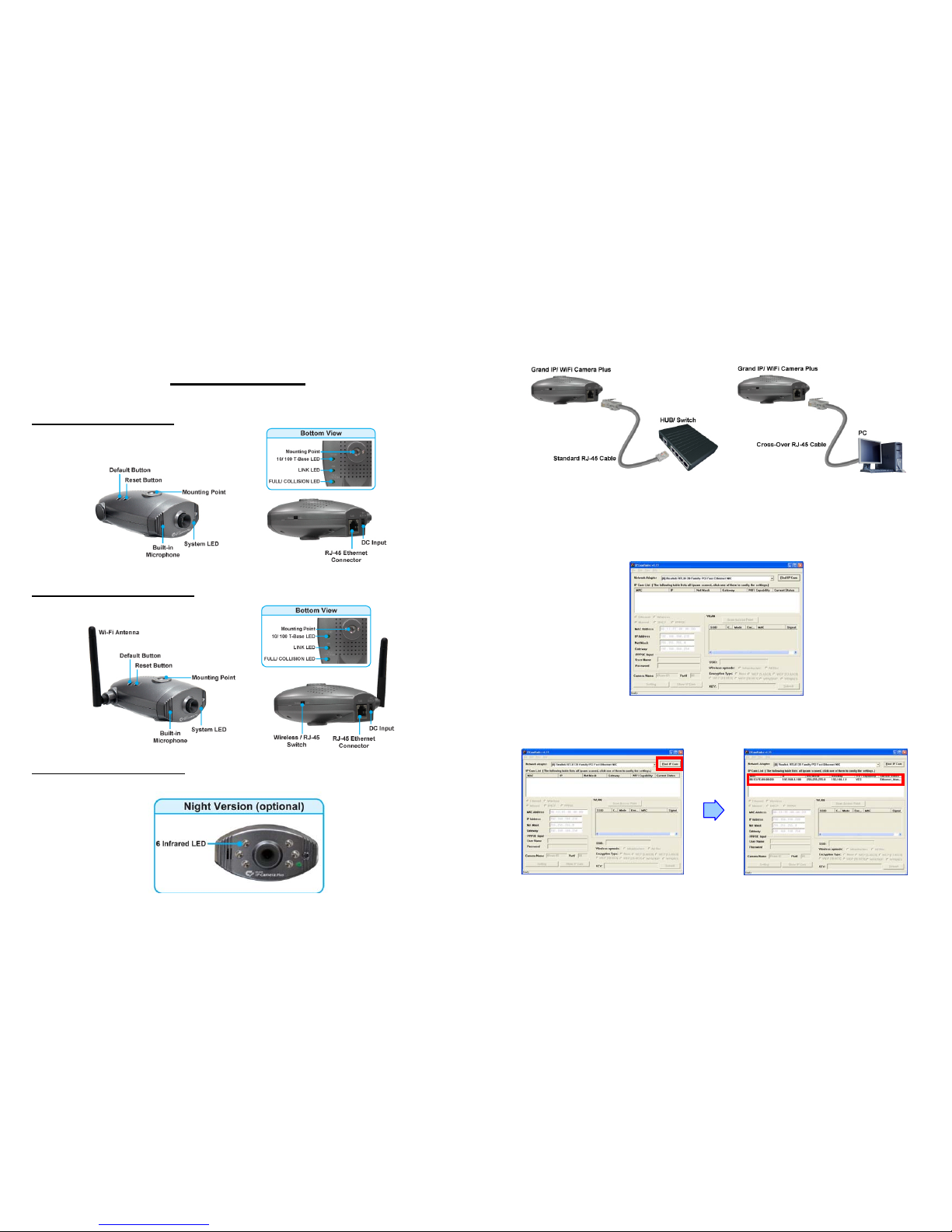

1. Hardware Overview

Grand IP Camera Plus

Grand Wi-Fi Camera Plus

Night Version (optional)

Supports 6-LED infrared for night vision.

Feb 24, 09

34457000

2. Connecting to a Network

Connect the Grand Wi-Fi / IP Camera Plus to an Ethernet hub or switch by using a standard

cable. You can also connect directly to a computer by using the cross-over provided.

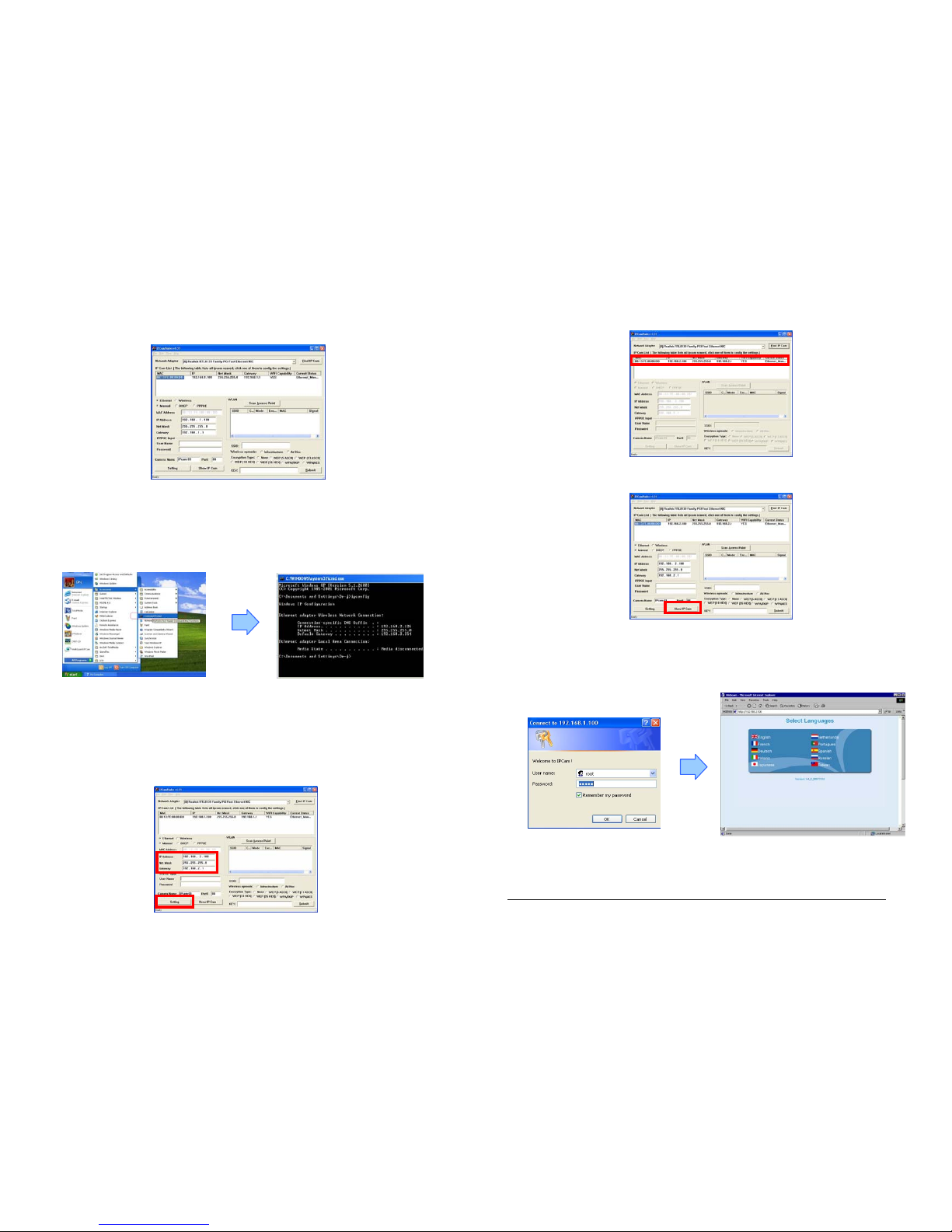

3. Network Installation

Confirm that the camera is already connected to the network.

Step 1: Execute the “Setup.exe” to install the “IPCamFinder” software in the CD driver.

Execute the “IPCam Setup” on the desktop, and the following screen is displayed.

Step 2: Click the “Find IP Cam” button, and your camera’s MAC, default IP Address, Net

Mask and Gateway will be listed.

Step 3: Click on the “MAC”, and the “IP Address”, “Net Mask” and “Gateway” will be

displayed below.

NOTE: The IP Address, Net Mask and Gateway must be corresponding with your network

settings for you to access the camera. You can follow the steps below to get your network

information.

-Click “Start” →“All Programs” →“Accessories” →“Command Prompt”. A MS-DOS

window will appear. Type “ipconfig” and them press “Enter” to get your network

information.

-Assign IP Address, Netmask (Subnet Mask) and Gateway (Default Gateway) for

the Grand Wi-Fi/ IP Camera Plus. (You must use the same Net Mask (ex.

255.255.255.0) and Gateway (192.168.2.254). You can use any IP address

between 192.168.2.1-254, but make sure that the IP Address has never been used

or is used by another IP addressable device.)

Step 4: Directly modify the “IP Address”, “Net Mask” and “Gateway”, and click “Setting” to

save.

Step 5: Click the “Find IP Cam” button again, and the new network information will be listed.

Step 6: Select the “MAC” and click the “Show IP Cam” button to connect the Grand Wi-Fi/ IP

Camera Plus.

Step 7: When the login screen appears, enter the user name and password (default user

name: root, default password: admin), and click the “OK” button to login your camera.

PS. Please consult the “User Manual.doc” in Driver CD for more detail.

User’s Manual

ISSUE：02/25/09

GRAND Wi-Fi / IP CAMERA PLUS

Video & Audio Transmission/ Low Lux Display/ Bundle DivX (model 2)

INDEX

1. Package Contents……………………....…………………….. 1

2. Introduction…………………………..……….……………... 1

3. System Requirement….……………..……..………………… 2

4. Product Features…….…………..……………….…………... 2

5. Hardware Overview……………..……………….…………... 3

5.1 Grand IP Camera Plus……...………………………..…. 3

5.2 Grand Wi-Fi Camera Plus…………….…………….…… 3

6. Hardware Installation……….…..……………..……..……… 4

6.1 Assembling the Stand…….....………………………..…. 4

6.2 Connecting to a Network..…….………………………… 4

6.3 Internet Browser Settings….….………………………… 5

7. Network Installation…….………..…………………….….… 6

8. Using the Configuration Menu..………………..……..…….. 9

8.1 Image Control……………..…………………………..…. 9

8.2 Basic Setup……………....…….………………………… 10

8.3 Advance Setup…….……..…….………………………… 13

8.4 Snapshot Function………………….……………………. 19

8.5 Image Recording…...………….………………………… 19

8.6 Zoom In (Out) Function……….………………………… 20

9. Connecting Multiple Cameras to a Router…………………... 21

10. Using UPnP to Connect the Camera………………………... 22

11. View the Camera from iPhone…..…………………………. 23

12. Troubleshooting………..………..…………………………. 24

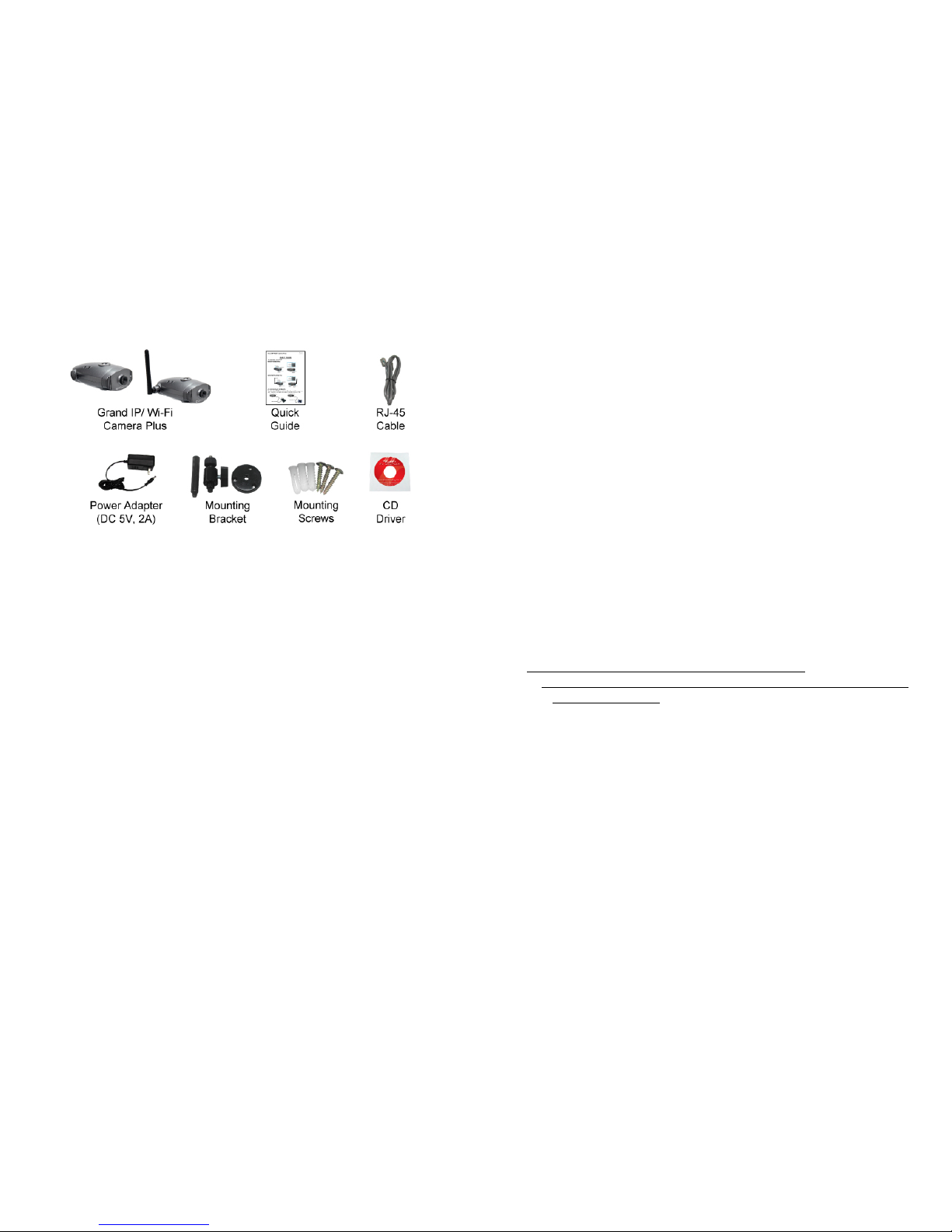

1. Package Contents

This package contains the following items：

Grand IP/ Wi-Fi Camera Plus

Quick Guide

RJ-45 Cable

Power Adapter (DC 5V, 2A)

Mounting bracket

Mounting Screws

CD-ROM with user manual/ software (IP Detect)/ Surveillance software (model 2)

2. Introduction

The Grand Wi-Fi / IP Camera Plus is a full featured network camera. You can use internet

explorer to remotely view and listen in your property or your children when away from home. By

using your internet explorer, you can even control the Grand Wi-Fi / IP Camera Plus to modify its

digital zoom (15level) to bring objects of interest into close view.

Choose the Grand Wi-Fi / IP Camera Plus to enhance safety and security at your home or office.

3. System Requirements

Router ( with DDNS or PPPoE function ) is required

10Base-T Ethernet or 100Base TX Fast Ethernet

Pentium 800 MHz or Equivalent or above.

64M RAM or above

VGA card with 8MB memory or above

Microsoft DirectX 9

4. Product Features

1/4” Low Lux CMOS VGA Sensor (Omni Vision)

Built-in microphone for remotely listen in.

Supports 15 level digital zoom in function.

Supports IE recording function (AVI format).

High Resolution Image Processor. (640 x 480、320 x 240、176 x 144 )

Supports up to 30 frames per second in QCIF or QVGA mode.

Supports IP Address Hidden Function.

Supports Motion Detected Mail Function.

Supports Multi-Language: English/ Spanish/ Portuguese/ Dutch/ German/ Italian/ Russian/

French/ Japanese/ Traditional Chinese.

Supports Multiple Network Protocol: NTP/ SMTP/ FTP/ DHCP/ PPPOE/ DDNS/ UPnP.

Compatible with Windows 2000/ ME/ XP/ Vista & Linux OS.

PS. 1.The IE Recording function is not available in Windows Vista.

2.TheRemote Listen In, IE Recording, Digital Zoom In (Out) and UPnP functions are

not available in Linux OS.

Supports iPhone Web Browser (supports remote view, snapshot and setting function).

Supports 6-LED infrared for night vision (optional).

Bundled Surveillance Software with the following functions (only for model 2)

Supports 4/ 9/ 16 cameras preview and record in DivX format (v6.5.1).

Video File Management: Video file database and playback control.

Storage Recyclable: When running out of disk space, files with the earliest date will be overwrite

automatically.

Motion Detection: Detect any movement in the mask area and invoke the alarm as soon as

movement is detected.

Multi-Languages OSD: English/ French/ German/ Italian/ Dutch/ Spanish/ Russian/ Japanese/

Traditional Chinese.

Compatible with Windows 2000, XP and Vista.

5. Hardware Overview

5.1 Grand IP Camera Plus

5.2 Grand Wi-Fi Camera Plus

Default Button: Reset all settings to the original (factory) setting.

(Default IP Address: 192.168.1.100, Default User Name: root, Default Password: admin)

Reset Button: Press the button to restart the camera.

Built-in Microphone: For remotely listen in.

System LED: Steady green indicates a proper connection to the power supply.

DC Input: Connects to the power adapter. (DC 5V, 2A)

RJ-45 Ethernet Connector: For connects to 10Base-T Ethernet cabling or 100Base-TX Fast

Ethernet cabling.

Wireless/ RJ-45 Switch: Select your network connection Wireless/ RJ-45.

10/ 100 T-Base LED: Steady green indicates the camera is connecting to 100Base-TX Fast

Ethernet.

LINK LED: Steady green indicates the camera is connecting to the LAN.

FULL/ COLLISION LED: Steady green indicates the camera is connecting to the LAN. The

will begin to flash to indicate that the camera is transmitting.

Night Version (optional): Supports 6-LED infrared for night vision.

6. Hardware Installation

6.1 Assembling the Stand

Use the three screws and plugs provided to fix the stand bracket to a wall.

The stand can be adjusted to allow the camera a full 360°of rotation and a pan and tilt action.

6.2 Connecting to a Network

Connect the Grand Wi-Fi / IP Camera Plus to an Ethernet hub or switch by using a standard

cable. You can also connect directly to a computer by using the cross-over cable provided.

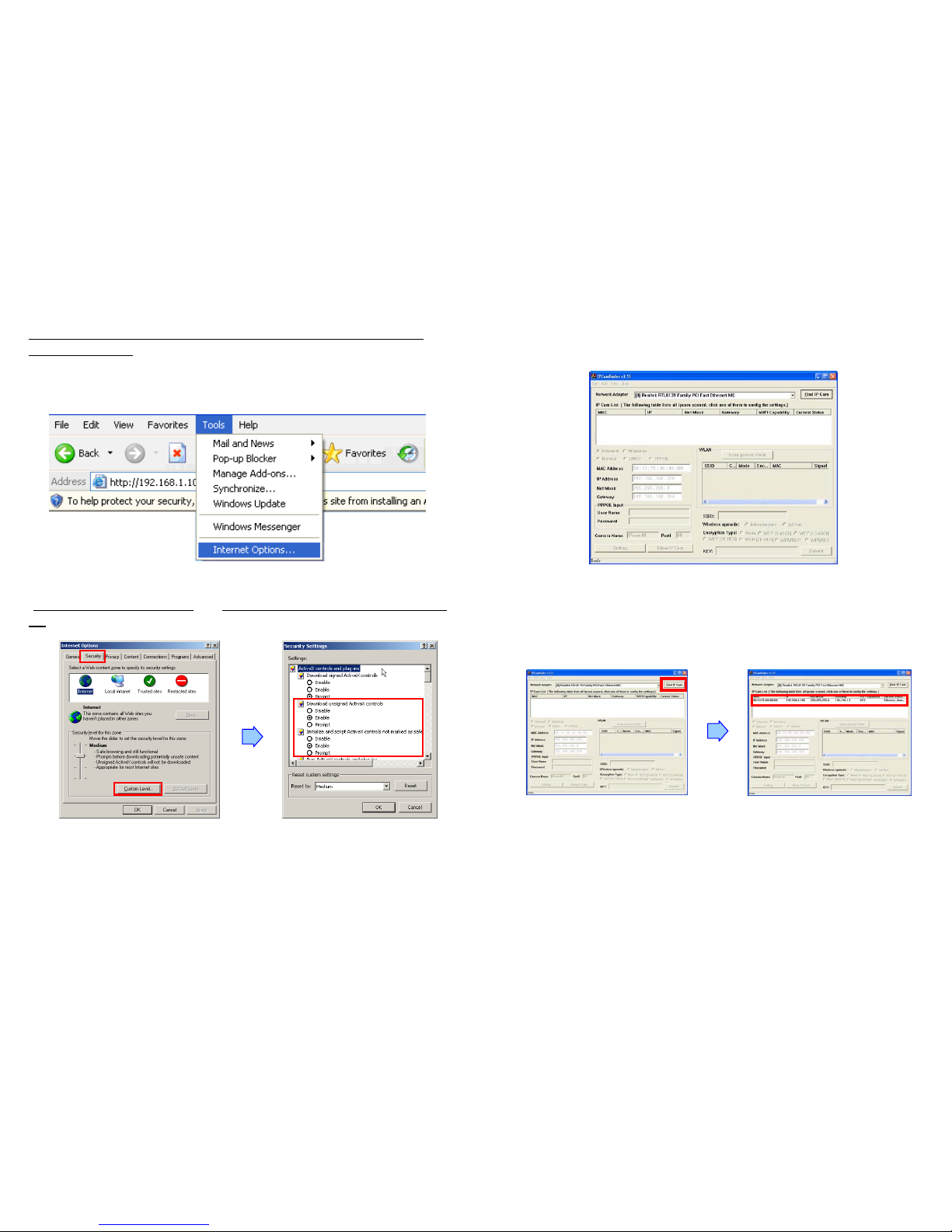

6.3 Internet Browser Settings

NOTE: Your browser must be enabled the ActiveX for connect to the Grand IP/ Wi-Fi

Camera Plus first time.

Step 1: Start the internet browser.

Step 2: Click the “Tools” at the top of the screen, and select “Internet Options…”.

Step 3: Select the “Security” tab, and click the “Custom Level”. Set to “Enable” or “Prompt” on the

“Download unsigned ActiveX controls” and “Initialize and script ActiveX controls not marked as

safe” items.

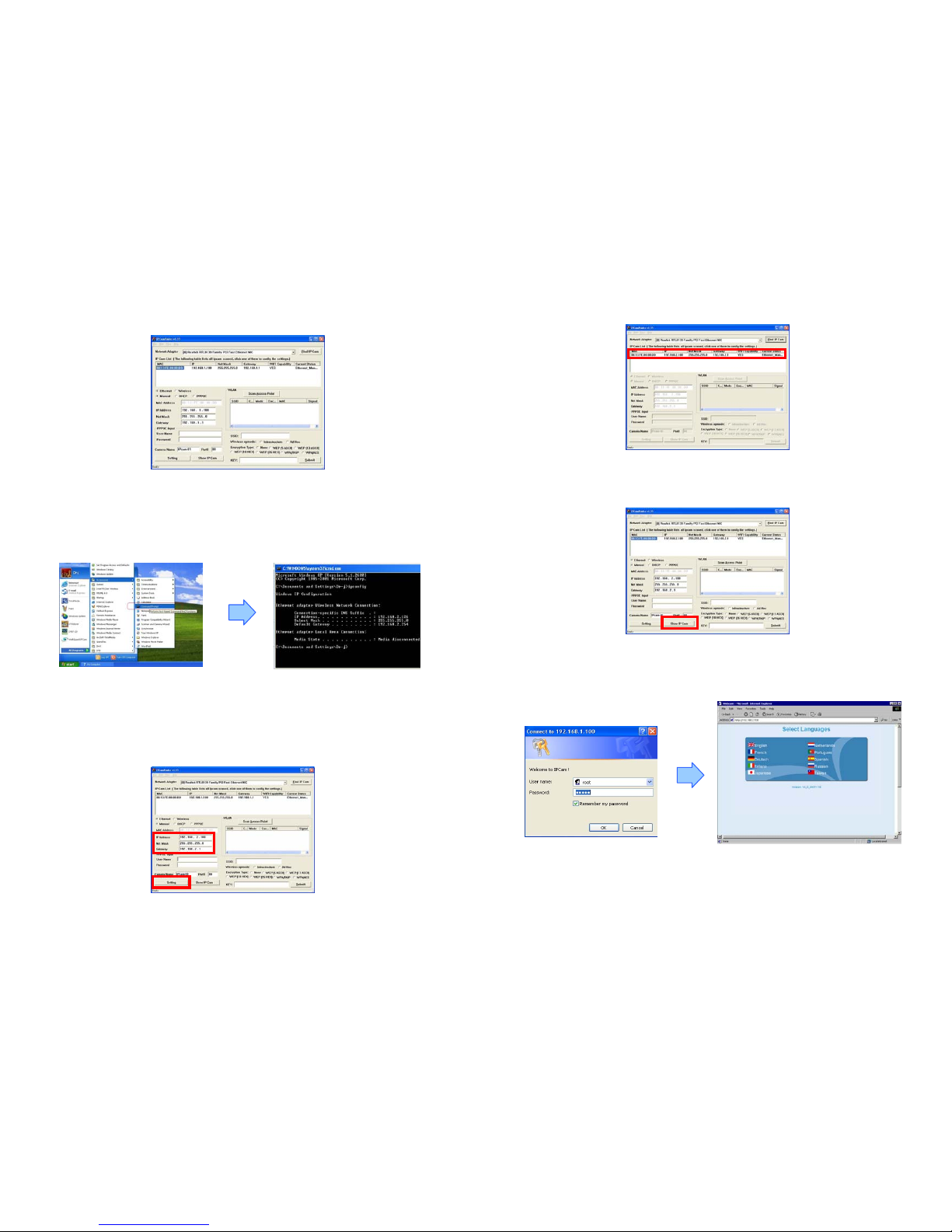

7. Network Installation

Step 1: Execute “Setup.exe” to install the “IPCamFinder” software in the CD driver. Execute the

“IPCam Setup” on the desktop, and the following screen is displayed:

Step 2: Click the “Find IP Cam” button, and your camera’s MAC, default IP Address, Net Mask and

Gateway will be listed.

Step 3: Click on the “MAC”, and the “IP Address”, “Net Mask” and “Gateway” will be displayed

below.

NOTE: The IP Address, Net Mask and Gateway must be corresponding with your network settings

for you to access the camera. You can follow the steps below to get your network information.

-Click “Start” →“All Programs” →“Accessories” →“Command Prompt”. A MS-DOS

window will appear. Type “ipconfig” and them press “Enter” to get your network

information.

-Assign IP Address, Netmask (Subnet Mask) and Gateway (Default Gateway) for the Grand

Wi-Fi/ IP Camera Plus. (You must use the same Net Mask (ex. 255.255.255.0) and Gateway

(192.168.2.254). You can use any IP address between 192.168.2.1-254, but make sure that

the IP Address has never been used or is used by another IP addressable device.)

Step 4: Directly modify the “IP Address”, “Net Mask” and “Gateway”, and click “Setting” to save.

Step 5: Click the “Find IP Cam” button again, and the new network information will be listed.

Step 6: Select the “MAC” and click the “Show IP Cam” button to connect the Grand Wi-Fi/ IP

Camera Plus.

Step 7: When the login screen appears, enter the user name and password (default user name: root,

default password: admin), and click the “OK” button to login your camera.

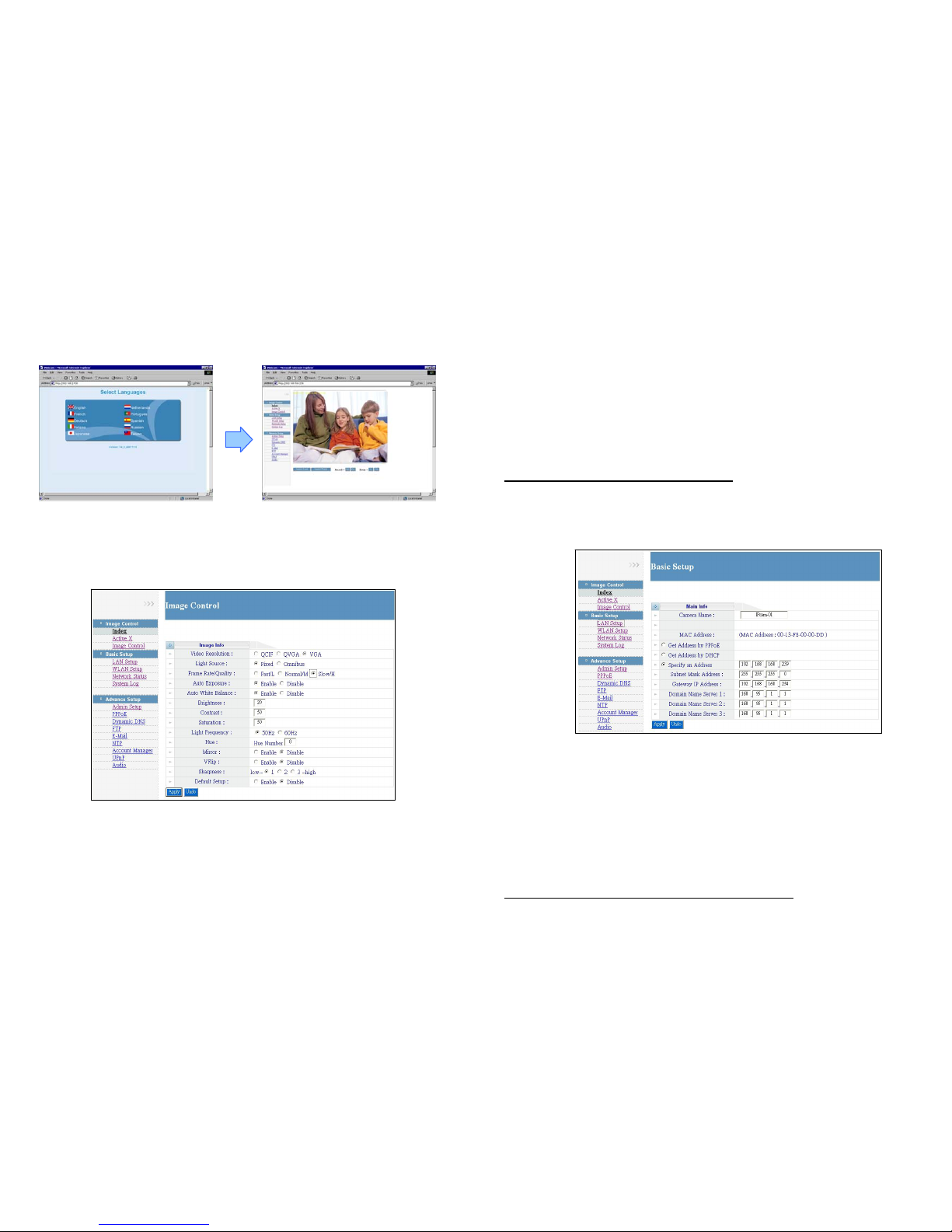

8. Using the Configuration Menu

After login the camera, the “Select Languages” window will appear. Select your language and open up

the main page.

8.1 Image Control

8.1.1 Index: Display a demo image (static image).

8.1.2 ActiveX: Click the “ActiveX” to display image (live video) from any menu.

8.1.3 Image Control

Video Resolution: Select the video resolution among QCIF (176x144)/ QVGA (320x240)/ VGA

(640x480).

Light Source: Set the light source to Fixed (for light environment) or Omnibus (for dim

environment).

Frame Rate/ Quality: Frame Rate/ Quality selection (If the frame rate more than network

bandwidth, the video will be lag or damage).

Auto Exposure: Enable/ disable the auto exposure function.

Auto White Balance: Enable/ disable the auto white balance function.

Brightness: Adjust the brightness of the image.

Contrast: Adjust the contrast of the image.

Saturation: Adjust the saturation of the image.

Light Frequency: Select your frequency (50Hz/ 60Hz).

Hue: Adjust the hue of the image.

Mirror: Horizontally rotate the video.

VFlip: Vertically rotate the video.

Sharpness: Sharpness selection.

Default Setup: Select “Enable” and click “Apply” to restore factory default settings.

NOTE: Click “Apply” to confirm your settings.

8.2 Basic Setup

8.2.1 LAN Setup

Camera Name: Display the camera name, you can rename directly in the field.

MAC Address: Display the MAC address of camera.

Get Address by PPPoE: If your camera via PPPoE dial up to internet, select the function and

complete the settings of PPPoE (refer to 8.3.2).

Get Address by DHCP: If you have a DHCP-enabled router, please select the function, then the

router will automatically assigns an IP address to the camera.

Specify an Address: If the camera is connected to a network without a DHCP server, type the

fixed IP Address, Subnet Mask Address, Gateway IP Address and Domain Mane Server for the

camera.

NOTE: Click “Apply” to confirm your settings after setting.

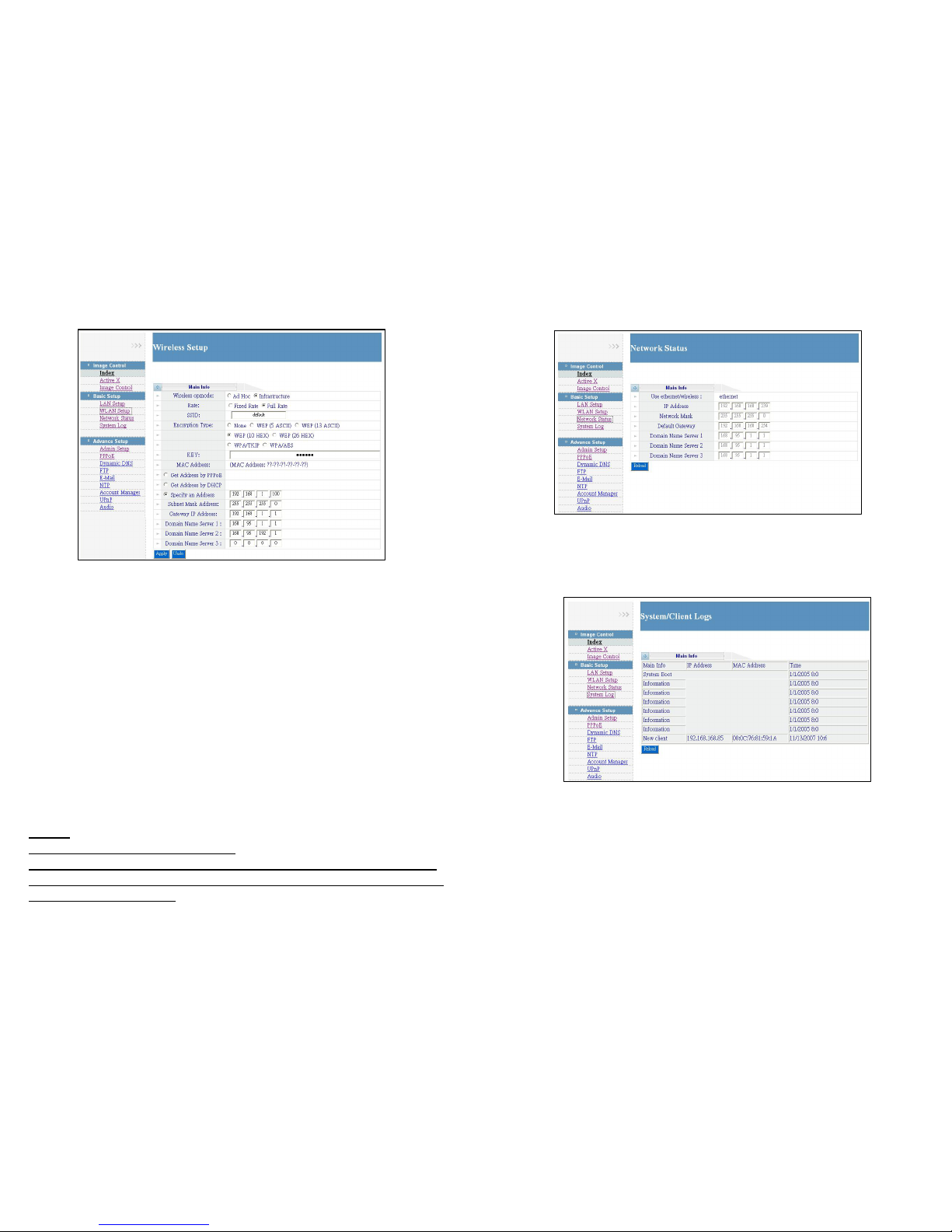

8.2.2 WLAN Setup (only for Grand Wi-Fi Camera Plus)

Wireless mode:

-Ad Hoc: Connect directly to a computer in a peer-to-peer environment.

-Infrastructure: By using an AP (Access Point) or a wireless router to connecting the

WLAN.

Rate: Select the wireless rate Fixed Rate/ Full Rate.

SSID: SSID is a name to identify a wireless network. You can enter SSID name manually.

Encryption Type: Select the Encryption Type.

Key: To connect to an encrypted wireless device, the password you enter here must match the

password of the device exactly.

MAC Address: Display the MAC address of camera.

Get Address by PPPoE: If your camera via PPPoE dial up to internet, select the function and

complete the settings of PPPoE (refer to 8.3.2).

Get Address by DHCP: If you have a DHCP-enabled router, please select the function, then the

router will automatically assigns an IP address to the camera.

Specify an Address: If the camera is connected to a network without a DHCP server, type the

fixed IP Address, Subnet Mask Address, Gateway IP Address and Domain Mane Server for the

camera.

NOTE:

1. Click “Apply” to confirm your settings.

2. If you want to use the wireless network connection, you must change the Wireless/

RJ-45 switch (on the right side of the Grand Wi-Fi Camera Plus) to the wireless mode

after setting the WLAN Setup.

8.2.3 Network Status: Display the current information of network.

8.2.4 System Log: List the information of connection logged (IP Address, MAC Address and Login

Time). Click the “Reload” to load the latest information.

8.3 Advance Setup

8.3.1 Admin Setup

Product Name: Display the camera’s name.

Version: Display the firmware version of camera.

Administrator Password:

-Password Change: Enter the new administrator password to access the camera.

-Password Confirm: Confirm the new password, enter it again.

MAC Address: Display the MAC address of camera.

Reset Device: Select “Yes” and click the “Apply” to restart the camera.

Factory Default: Select “Yes” and click the “Apply” to restore factory default settings.

Port Setting: You can change the port number if using multiple cameras (Port Number 1:

Defaulted as 80, Port Number 2: Defaulted as 8888).

NOTE: You must also set up your router to open the ports of cameras for remote

access the cameras via internet (refer to your router’s user manual for how to open up

ports).

Ping Service: Select “No” to hide the IP address. (prevent the ping command)

Video with password: Select “Enable”, and you can login the camera without password.

Firmware Update: Search the latest firmware and update automatically.

Step 1: Click on the LINK button to open the Firmware Upload page.

Step 2: Click on the Browser button, and there will pop up a dialogue box for you to choose the

firmware.

Step 3: After choosing the firmware, click the Upload button for uploading the file. When the

process is done, there will pop up a message to tell you that the update is completed and ask you

for rebooting the camera.

Notice: You should NOT power off or remove the cable from the camera before the process is

completed. For that will damage your camera and make some hardware errors on it.

Inhaltsverzeichnis

Andere Grand IP-Kamera Handbücher

Grand

Grand MEGA PIXEL IP CAMERA Bedienungsanleitung

Beliebte IP-Kamera Handbücher anderer Marken

FLIR

FLIR Exx series Bedienungsanleitung

Avigilon

Avigilon H4A-BO1-IR Bedienungsanleitung

Digital Watchdog

Digital Watchdog DWCA-C128-64 Bedienungsanleitung

ShareTech

ShareTech AV1 Bedienungsanleitung

Ezviz

Ezviz C6C Bedienungsanleitung

Melchioni

Melchioni UCAM 2015 Bedienungsanleitung

Geutebruck

Geutebruck G-Cam/ESD-4630 Bedienungsanleitung

Arecont Vision

Arecont Vision MegaBall AV3146DN-3310-D-LG Bedienungsanleitung

Mitel

Mitel 6800i Series Service-Handbuch

Vitek

Vitek VTC-IR403-212NP Bedienungsanleitung

THOMSON

THOMSON DSC - 323W Bedienungsanleitung

AVer

AVer FB2027 Bedienungsanleitung

ENFORCER

ENFORCER EV-T5105-N2SQ Bedienungsanleitung

Wansview

Wansview NC543 Bedienungsanleitung

Eneo

Eneo MCB-64A0003M0A Bedienungsanleitung

deView electronics

deView electronics CBDNI36F Bedienungsanleitung

Swann

Swann SwannEye Bedienungsanleitung

LevelOne

LevelOne IP CamSecure Bedienungsanleitung
