MX0404-330 Operating Instructions

GRANDBEING

® １

Grandbeing®

HDMI Matrix (Router Type)

Model No. MX0404-330（P/N of this Instructions is INSMX0404-330）

Instruction update date (version): 2009/9/10

Features

zEasy to use: install in seconds,.

zAllows up to four HDMI audio/video devices to be independently

switched to four HDMI monitors, HDTVs, or projectors.

zThe four outputs could show the same or different source

simultaneously no matter the source is HDCP or not.

zSupport high definition resolutions 1080p, 1080i, 720p and other

standard video formats.

zEach port supports HDMI or DVI inputs.

zWith extra infrared receiver extension.

zTwo switching modes: panel buttons, local IR,.

zHDCP compliant.

zHDMI 1.3 version.

MX0404-330 Operating Instructions

GRANDBEING

® ２

Dear customer:

Thank you for purchasing this product. For optimum performance and safety,

please read these instructions carefully before connecting, operating or adjusting

this product. Please keep this manual for future reference.

Notice

Grandbeing Inc. reserves the right to make changes in the hardware,

packaging and any accompanying documentation without prior written

notice.

WARNING:

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PRODUCT

DAMAGE:

1) DO NOT EXPOSE THIS APPARATUS TO RAIN, MOISTURE, DRIPPING

OR SPLASHING AND THAT NO OBJECTS FILLED WITH LIQUIDS, SUCH

AS VASES, SHALL BE PLACED ON THE APPARATUS.

2) DO NOT INSTALL OR PLACE THIS UNIT IN A BOOKCASE, BUILT-IN

CABINET OR IN ANOTHER CONFINED SPACE. ENSURE THE UNIT IS

WELL VENTILATED.

3) TO PREVENT RISK OF ELECTRIC SHOCK OR FIRE HAZARD DUE TO

OVERHEATING, DO NOT OBSTRUCT THE UNIT’S VENTILATION

OPENINGS WITH NEWSPAPERS, TABLECLOTHS, CURTAINS, AND

SIMILAR ITEMS.

4) DO NOT INSTALL NEAR ANY HEAT SOURCES SUCH AS RADIATORS,

HEAT REGISTERS, STOVES, OR OTHER APPARATUS (INCLUDING

AMPLIFIERS) THAT PRODUCE HEAT.

5) DO NOT PLACE SOURCES OF NAKED FLAMES, SUCH AS LIGHTED

CANDLES, ON THE UNIT.

6) CLEAN THIS APPARATUS ONLY WITH DRY CLOTH.

7) UNPLUG THIS APPARATUS DURING LIGHTNING STORMS OR WHEN

UNUSED FOR LONG PERIODS OF TIME.

8) PROTECT THE POWER CORD FROM BEING WALKED ON OR PINCHED

PARTICULARLY AT PLUGS.

9) ONLY USE ATTACHMENTS/ACCESSORIES SPECIFIED BY THE

MANUFACTURER.

10) REFER ALL SERVICING TO QUALIFIED SERVICE PERSONNEL.

MX0404-330 Operating Instructions

GRANDBEING

® ３

TABLE OF CONTENTS

Introduction·············································································3

Package Contents····································································3

Panel Descriptions ···································································4

Connect and Operation ·····························································5

Specification ···········································································6

Typical Application····································································7

Maintenance···········································································7

Product Service ·······································································7

Warranty ················································································8

Contact Information ································································ 10

INTRODUCTION

Grandbeing’s MX0404-330 is a 4-by-4 DVI/HDMI true matrix. It allows any source

(Blue-Ray player, HD DVD player, satellite receiver, game system, etc.) to be

shown on the any of the four displays simultaneously, no matter the source is

HDCP or not. Extra infrared receiver extension, IR emitter are supplied for the

control.

MX0404-330 has the ability of equalization and amplification to ensure HDMI

signal's transmission through long cable without quality loss.

MX0404-330 offers solutions for digital entertainment center, HDTV retail and

show site, HDTV, STB, DVD and projector factory, noise, space and security

concerns, data center control, information distribution, conference room

presentation, school and corporate training environments.

PACKAGE CONTENTS

1. Main unit. P/N_MX0404-330.

2. 5VDC Power Supply.P/N_VDC0504

3. 1x Remote.

4. 4x IR_RX (IR receiver) extension cable.

5. 4x IR_TX (IR emitter) extension cable.

6. 4x IR_RX cable extender jack pair.(refer to page 8)

7. Operating Instructions. P/N_INS MX0404-330.

8. 2x Mounting Ear

MX0404-330 Operating Instructions

GRANDBEING

® ４

*PART NUMBER (Abbreviation as P/N).

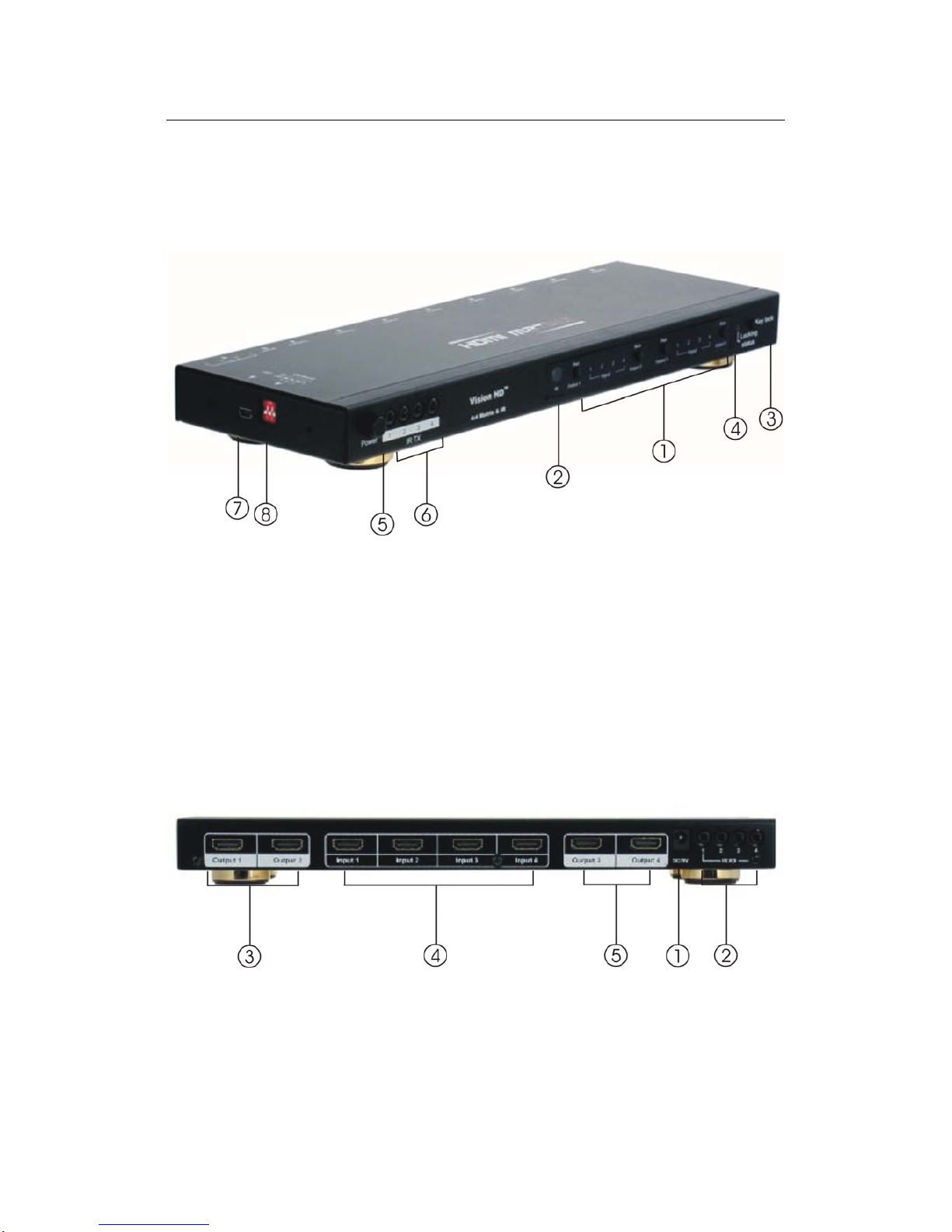

PANEL DESCRIPTIONS Front panel

1. Output selection and indicator of input for output port 1 to 4.

2. IR window.

3. Key lock button.

4. Indicator of locking status, when the output selection buttons are locked,

LED inside lit.

5. Power switch.

6. IR TX OUTPUT 1TO4.

7. USB port for ISP.

8. DIP switch.

Rear panel

1. Power input.

2. IR extension 1to 4.

3. Output 1 and 2 with HDMI.

4. Input ports 1 to 4 with HDMI.

MX0404-330 Operating Instructions

GRANDBEING

® ５

5. Output 3 and 4 with HDMI.

CONNECT AND OPERATION

1) Connect the HDMI input sources (such as HD-DVD, PS3, STB etc) into

MX0404-330.

2) Connect the HDMI outputs (such as HD-LCD, HD-DLP) into MX0404-330.

3) Connect the IR RX receiving cable into MX0404-330IR extension and connect

The IR TX cable into MX0404-330IR emitter.

4) Power on the input source you want to show. (Keep the unused input power

off, otherwise it may interfere the normal display.)

5) Connect the power supply into MX0404-330 and turn on the display you want

to watch.

6) Use remote or push the button to choose input source. Extra infrared receiver

extension, IR emitter, are supplied for remote control.

7) The IR signal of any IR extension will through "TX IR" port to send the signal

out.

8) SOURCE-SINK AUTOFIT Function

This function applies to the situation when the source's HDMI version exceeds the

sink's HDMI version. (This function can be used to fix the deepcolor, 1080P, 1080i,

2ch audio, multi channel audio issue.)

For example: When the TV is HDMI 1.2 version and PS3 source is HDMI 1.3

version, it will output HDMI 1.2 version.

(1)Under default mode, this machine will output 1.2 version HDMI signal(1080P

and stereo audio).

(2) Under button mode.

There are two mode to update the EDID data according to the DIP setting. When

the DIP is in default mode ( 0,0,0 ), the matrix will be in mix mode .

A、When the source is HDMI1.3, (e.g., HDMI output from PS3), OUTPUT1 to 4

both support HDMI1.3 displays, press "selection of OUTPUT1” and “lock key"

simultaneously, the machine will output HDMI1.3 signals.

B、When the source is HDMI1.3, (e.g., the HDMI output from PS3), OUTPUT 1 to

4 are connected to the displays that can only support HDMI 1.2 MAX, press

"selection of OUTPUT1” and "lock key" simultaneously (no matter whether HDMI

OUTPUT port is connected to the display that supports HDMI 1.3 or not), it will

output HDMI 1.2 signals.

When the DIP is in default mode ( 0,0,0 ), the matrix will be in copy mode .

Note: The method to reset the machine to default EDID setting: Disconnect the input

and output. Please press "selection of OUTPUT1” and “lock key" Simultaneouslyforat

least3seconds, and EDID of all the four input ports will be reset to the default setting.

The audio setting of the default EDID is stereo. It is suitable for TV sets.

MX0404-330 Operating Instructions

GRANDBEING

® ６

9）DIP switch setting

Position

1 2 3

0 0 0 Mix the low version EDID.(default) (note 1)

0 0 1 reserved

0 1 0 reserved

0 1 1 reserved

1 0 0 Copy the EDID of the display which connected the

OUTPUT1.(note 2)

1 0 1 reserved

1 1 0 reserved

1 1 1 reserved

Note1: The matrix will mix the EDID data of the sink devices. The mixed EDID

data will use the lowest resolution of the video and the least channel number of

the audio. For example, some sink device support 1080P, some sink device only

support 1080i, some support 5.1 audio, but some only support stereo. Then the

mixed EDID will be 1080i and stereo.

Note2: If user wants to just use one sink device’s EDID data, this DIP setting can

be used.

Attention:

Please insert or extract cables gently.

SPECIFICATIONS

MX0404-330 Operating Instructions

GRANDBEING

® ７

Operating Temperature Range -5 to +35°C (-41 to +95 °F)

Operating Humidity Range 5 to 90 % RH (no condensation)

Input Video Signal 0.5-1.0 volts p-p

Input DDC Signal 5 volts p-p (TTL)

Signaling Rate 2.25Gbit/s

Video Format Supported DTV/HDTV:1080P/1080i/720P/576P/480P/576i/

480i

Audio Format Supported DTS-HD、Dolby trueHD

Output Video HDMI1.2 and HDMI 1.3

Maximum Transmission Distance <15m (If needed, HDMI extender is optional)

Power Consumption 12wtts (Max)

Dimensions 290mmL×100mmW×26mmH

/17.3''L×7.9''W×1.7''H

Mass (Main Unit) 0.7kg/4.4lb

*Note: Specifications are subject to change without notice. Mass and

dimensions are approximate.

IR receiver cable extender jacks.

When the display device is not near to the matrix, the IR_RX cable will be too

short. There are a pair of jacks to extend the IR_RX cable. Customer or installer

can use the headphone cable or 4-line telephone cable to form the IR cable

extender.

MX0404-330 Operating Instructions

GRANDBEING

® ８

Use the male jack and female jack to extend the IR_RX cable like the picture below.

MX0404-330 Operating Instructions

GRANDBEING

® ９

TYPICAL APPLICATION

MAINTENANCE

Clean this unit with a soft, dry cloth. Never use alcohol, paint thinner or benzine to

clean this unit.

MX0404-330 Operating Instructions

GRANDBEING

® １０

PRODUCT SERVICE

1) Damage requiring service: The unit should be serviced by qualified service

personnel if:

(a) The DC power supply cord or AC adaptor has been damaged;

(b) Objects or liquids have gotten into the unit;

(d) The unit does not operate normally or exhibits a marked change in

performance;

(e) The unit has been dropped or the cabinet has been damaged.

2) Servicing Personnel: Do not attempt to service the unit beyond that

described in these operating instructions. Refer all other servicing to

authorized servicing personnel.

3) Replacement parts: When parts need replacing ensure the servicer uses

parts specified by the manufacturer or parts that have the same

characteristics as the original parts. Unauthorized substitutes may result in

fire, electric shock, or other hazards.

4) Safety Check: After repairs or service, ask the servicer to perform safety

checks to confirm that the unit is in proper working condition.

WARRANTY

If your product does not work properly because of a defect in materials or

workmanship, Grandbeing Company (referred to as “the warrantor”) will, for the

length of the period indicated as below, （Parts (1) Year，Labor(90) Days）which

starts with the date of original purchase (“Limited Warranty period”), at its option

either (a) repair your product with new or refurbished parts, or (b) replace it with a

new or a refurbished product. The decision to repair or replace will be made by

the warrantor.

During the “Labor” Limited Warranty period there will be no charge for labor.

During the “Parts” warranty period, there will be no charge for parts. You must

mail-in your product during the warranty period. This Limited Warranty is

extended only to the original purchaser and only covers product purchased as

new. A purchase receipt or other proof of original purchase date is required for

Limited Warranty service.

Mail-In Service

When shipping the unit, carefully pack and send it prepaid, adequately insured

and preferably in the original carton. Include a letter detailing the complaint and

provide a day time phone and/or email address where you can be reached.

IF REPAIR IS NEEDED DURING THE LIMITED WARRANTY PERIOD THE

PURCHASER WILL BE REQUIRED TO FURNISH A SALES RECEIPT/PROOF

OF PURCHASE INDICATING DATE OF PURCHASE, AMOUNT PAID AND

PLACE OF PURCHASE. CUSTOMER WILL BE CHARGED FOR THE REPAIR

OF ANY UNIT RECEIVED WITHOUT SUCH PROOF OF PURCHASE.

Andere Handbücher für MX0404-330

Inhaltsverzeichnis

Andere Grandbeing Netzwerk-Router Handbücher

Grandbeing

Grandbeing MX0404-330 Bedienungsanleitung

Beliebte Netzwerk-Router Handbücher anderer Marken

Allnet

Allnet ALL0333AU Bedienungsanleitung

HomeSeer

HomeSeer HT-SEL Bedienungsanleitung

Sercomm

Sercomm Genesis OC3505D Bedienungsanleitung

Billion

Billion BIPAC 5102 Series Bedienungsanleitung

TP-Link

TP-Link TD-8817 Bedienungsanleitung

Motorola

Motorola MR1900 Bedienungsanleitung

Digi

Digi IX14 Bedienungsanleitung

Cisco

Cisco NCS 540 Handbuch

XAVi

XAVi X8821e Bedienungsanleitung

BEC

BEC 6200WZL Bedienungsanleitung

MikroTik

MikroTik hAP ac3 Series Bedienungsanleitung

Korenix

Korenix JetNet 5428G Series Bedienungsanleitung

NETGEAR

NETGEAR FS526T - Switch Bedienungsanleitung

Korenix

Korenix JetNet 5710G Series Bedienungsanleitung

Automated Logic

Automated Logic ZN551 Betriebsanleitung

Cisco

Cisco ASR 1000 Series Bedienerhandbuch

EnGenius

EnGenius ESR-9710 Bedienungsanleitung

Cisco

Cisco 805 Series Bedienungs- und Sicherheitshinweise
