Grandhall IT1002 Bedienungsanleitung

gas barbec e

IT1001

Assembly instructions

Instructions d’assemblage

Montageanweisungen

Istruzioni per il montaggio

Montage-instructies

Montering

Kokoamisohjeet

Instrucciones de armado

Instruções para Montagem

Monteringsvejledning

Montering

IT1002

IT2002

IT1002 IT1001

Upute za uporabu

Navodila za uporabo

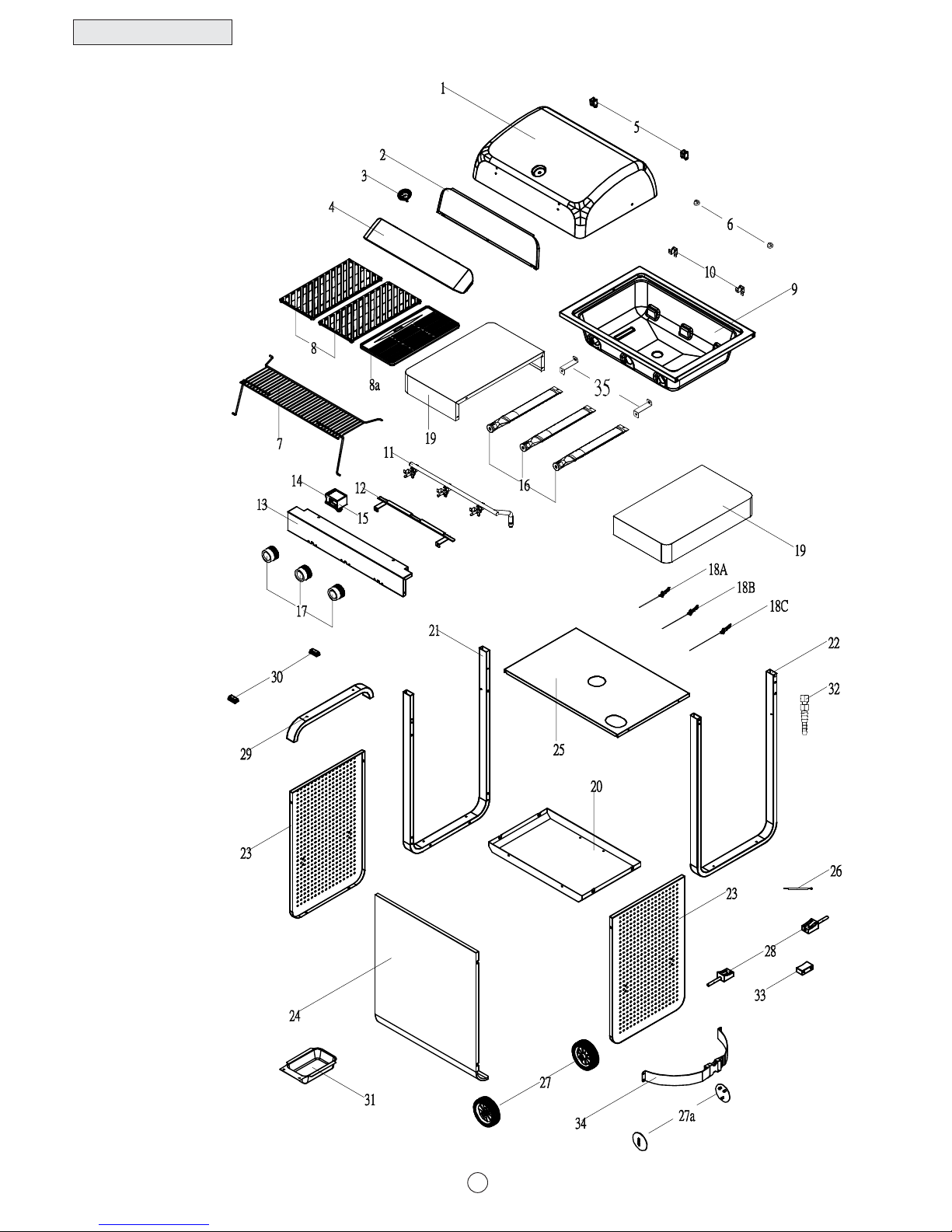

PART LIST - IT1001 Model

SEQDESCRIPTION P/No Qty SEQ DESCRIPTION P/No Qty

1Hood P00138198B 1 22 Trolleyframe, right P03303166D 1

2 Hoodhandleinsulate P03303161Q 1 23 Trolleyshelf, left/.right P07510037C 2

3Temperaturegauge P00601531B 1 24 Trolleyfront panel P07702129B 1

4 Hoodhandle P00202029A 1 25 Separationpanel P01001116D 1

26 Ground wire P02628003H 1

5 Hoodbracket, upper P033031624 2

27 Wheel P05123003A 2

6Protectivepad P05518002I 2

27a Wheelcover P05124001C 2

7 Cooking rack/secondary P01513017F 1

28 Wheelseat P03303169D 2

8 Cooking grid P01615057F 2

29 Trolley leg P03303167D 1

30 Legseat P04523004A 2

8a Hot plate P05701005H 1

31 Greasereceptacle P02701305G 1

9Bowl P00735019A 1

32 Universalhosebarb P03901024A 1

10 Hoodbracket, lower P033031634 2

33 Tank stop plate P03303168D 1

11 Gasvalve/manifold assembly30 mb

Y0060772 1

34 Tankstrap P05314016V 1

Gasvalve/manifold assembly50 mbar Y0060773

Gasvalve-main 30mbar P03234082B 3

Gasvalve-main 50mbar P03234083B 3

Manifold P05003324B 1

12 Gascollectortube-cross lighters P022034384 1

13 Controlpanelwithprinting 30mbar P02906542A 1

Controlpanelwithprinting 50mbar P02906552A 1

14 ElectricIgnitor, 4-port P02502164C 1

15 ElectricIgnitorprotector P03303164D 1

16 Burner P020030544 3

Burner-Isrealonly P020030534 3

17 Main knob P03426477C 3

18A Electricwireset, A P02618062C 1

18B Electricwireset, B P02618063C 1

18C Electricwireset, C P02618064C 1

19 Sideshelf, left/right P01105043E 2

20 Trolleybottomshelf P01001115D 1

21 Trolleyframe, left P03303165D 1

35 Control panel support bracket P03303177K 1



















IT1001 Model

ASSEMBLY -

Install side/bottom/front panels

Install separation panel

Note: Be sure the panel to be installed into

the hole with highlighted point at 2nd row.

3.Install wheels and trolley leg

IT1001 Model

#21/#23 #20

#22/#23

#24 #25

#29

#27

PhillipsHeadScrew3/16"x3/8"

Qty.8

PhillipsHeadScrew3/16"x3/8"

Qty.4

PhillipsHeadScrew3/16"x1-3/16"

Qty.6

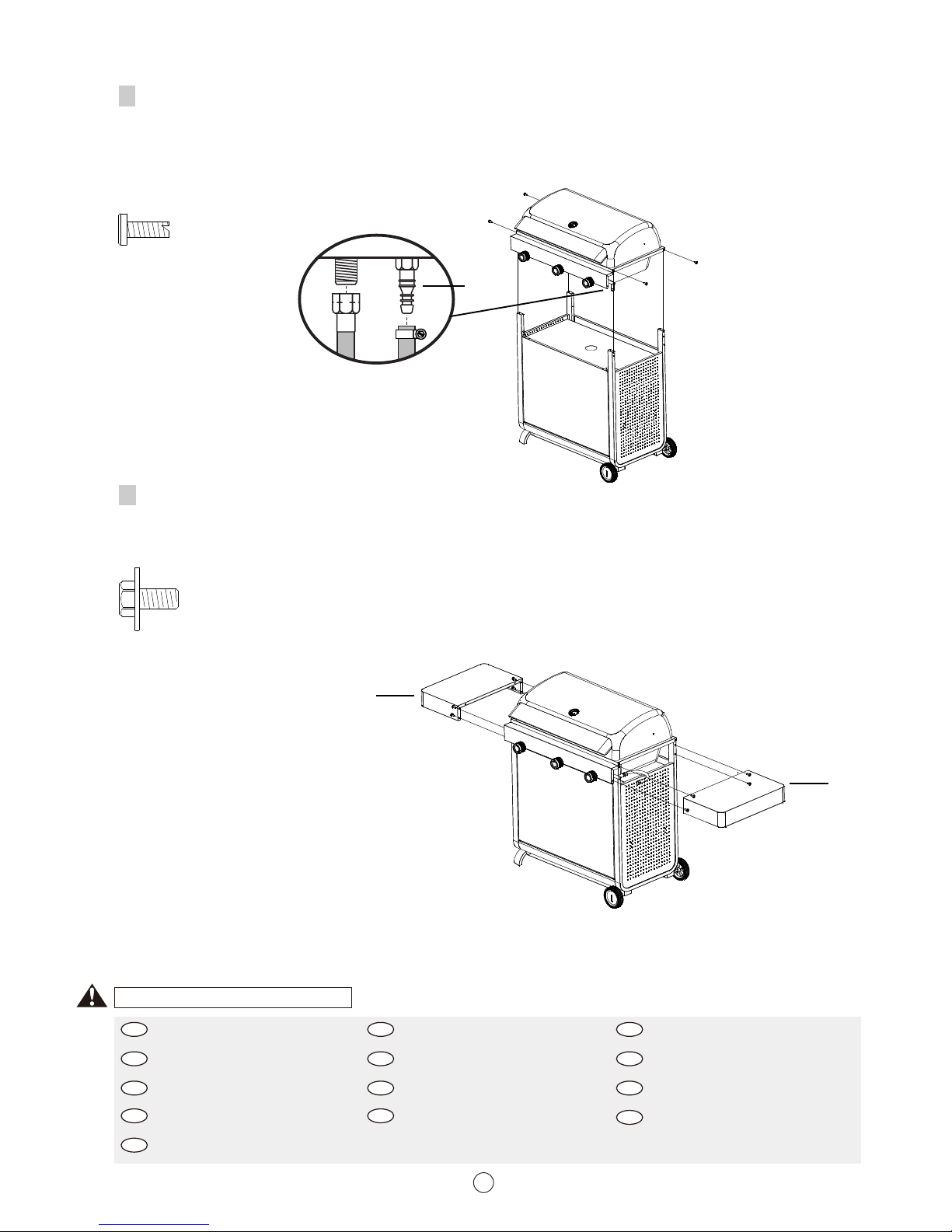

Install head/hose/hose barb

DO NOT OBSTRUCT THE VENTILATION

OPENINGS IN THE TROLLEY.

NE PAS BOUCHER LES OUVERTURES DE

VENTILATION DANS LE CHARIOT.

NICHT DIE VENTILATIONSÖFFNUNGEN IM

WAGEN BLOCKIEREN.

NON OSTRUIRE LE APERTURE DI

VENTILAZIONE DEL CARRELLO.

DE VENTILATIEOPENINGEN IN DE TROLLEY

NIET BLOKKEREN.

BLOCKERA EJ VENTILATIONSHÅLEN

I GRILLBAREN.

KÄRRYN TUULETUSAUKKOJA EI SAA

PEITTÄÄ.

NO OBSTRUYA LAS ABERTURAS DE

VENTILACIÓN DEL CARRITO.

NÃO OBSTRUA AS ABERTURAS DE

VENTILAÇÃO NO TRÓLEI.

VENTILATIONSÅBNINGEN I TROLLEYEN MÅ

IKKE SPÆRRES.

VENTILASJONSÅPNINGENE PÅ TRALLEN

MÅ IKKE TILDEKKES.

WARNINGS INFORMATION

NE OVIRAJTE PREZRAČEVALNE ODPRTINE

V VOZIČKU.

NE BLOKIRAJTE OTVORE VENTILACIJE U

KOLICIMA.

5.Install side shelf/side burner

#32

#19

FlatHeadSelf-tapping Screw

3/16"x3/8"

Qty.4

HexHeadScrew 3/16"x3/8"

Qty.8

Install grease receptacle and tank stop plate

Note:Be sure the tank stop plate

to be installed into the hole with

highlighted point between the four screws.

#33

PhillipsHeadScrew3/16"x3/8"

Qty.2

PART LIST - IT1002 Model

SEQDESCRIPTION P/No Qty SEQ DESCRIPTION P/No Qty

1Hood P00138198B 1 22 Sideburnerpot support P00805015H 1

2 Hoodhandleinsulate P03303161Q 1 23 Gasvalveforsideburner-30mbar P03234084I 1

3Temperaturegauge P00601531B 1 Gasvalveforsideburner-50mbar P03234085I 1

4 Hoodhandle P00202029A 1 24 Sideburnerelectrode P02618066C 1

25 Sideburnerconnectiontube P03711040F 1

5 Hoodbracket, upper P033031624 2

26 Sideburnerhood P001155781 1

6Protectivepad P05518002I 2

27 Protectivepad P05518002 I 2

7 Cooking rack/secondary P01513017F 1

28 Sideburnerknob P03426487C 1

8 Cooking grid P01615057F 2

29 Trolleybottomshelf P01001115D 1

8a Hot plate P05701005H 1

30 Trolleyframe, left P03303165D 1

9Bowl P00735019A 1

31 Trolleyframe, right P03303166D 1

10 Hoodbracket, lower P033031634 2

32 Trolleyshelf, left/right P07510037C 2

11 Gasvalve/manifold assembly30 mb

Y0060774 1

33 Trolleyfront panel P07702129B 1

Gasvalve/manifold assembly50 mbar Y0060775

34 Separationpanel P01001116D 1

Gasvalve-main 30mbar P03234082B 3

35 Ground wire P02628003H 1

Gasvalve-main 50mbar P03234083B 3

36 Wheel P05123003A 2

Manifold P05003334B 1

36a Wheelcover P05124001C 2

12 Gascollectortube-cross lighters P022034384 1

37 Wheelseat P03303169D 2

13 Controlpanelwithprinting 30mbar P02906582A 1

38 Trolley leg P03303167D 1

39 Legseat P04523004A 2

40 Greasereceptacle P02701305G 1

41 Universalhosebarb P03901024A 1

14 ElectricIgnitor, 4-port P02502164C 1

42 Tankstop plate P03303168D 1

15 ElectricIgnitorprotector P03306164D 1

43 Tankstrap P05314016V 1

16 Burner P020030544 3

Burner-Isrealonly P020030534 3

17 Main knob P03426477C 3

18A Electricwireset, A P02618062C 1

18B Electricwireset, B P02618063C 1

18C Electricwireset, C P02618064C 1

19 Sideshelf, left P01105043E 1

20 Sideshelf frame P02302015E 1

21 Sideburner-30mbar P020040444 1

Sideburner-50mbar P020040454 1

44 Control panel support bracket P03303177K 1



















IT1002 Model

ASSEMBLY -

Install side/bottom/front panels

Install separation panel

Note: Be sure the panel to be installed into

the hole with highlighted point at 2nd row.

3.Install wheels and trolley leg

IT1002 Model

#21/#23 #29

#31/#32

#33 #34

#38

#36

PhillipsHeadScrew3/16"x3/8"

Qty.8

PhillipsHeadScrew3/16"x3/8"

Qty.4

PhillipsHeadScrew3/16"x1-3/16"

Qty.6

Install head/hose/hose barb

Install side shelf/side burner

DO NOT OBSTRUCT THE VENTILATION

OPENINGS IN THE TROLLEY.

NE PAS BOUCHER LES OUVERTURES DE

VENTILATION DANS LE CHARIOT.

NICHT DIE VENTILATIONSÖFFNUNGEN IM

WAGEN BLOCKIEREN.

NON OSTRUIRE LE APERTURE DI

VENTILAZIONE DEL CARRELLO.

DE VENTILATIEOPENINGEN IN DE TROLLEY

NIET BLOKKEREN.

BLOCKERA EJ VENTILATIONSHÅLEN

I GRILLBAREN.

KÄRRYN TUULETUSAUKKOJA EI SAA

PEITTÄÄ.

NO OBSTRUYA LAS ABERTURAS DE

VENTILACIÓN DEL CARRITO.

NÃO OBSTRUA AS ABERTURAS DE

VENTILAÇÃO NO TRÓLEI.

VENTILATIONSÅBNINGEN I TROLLEYEN MÅ

IKKE SPÆRRES.

VENTILASJONSÅPNINGENE PÅ TRALLEN

MÅ IKKE TILDEKKES.

WARNINGS INFORMATION

NE OVIRAJTE PREZRAČEVALNE ODPRTINE

V VOZIČKU.

NE BLOKIRAJTE OTVORE VENTILACIJE U

KOLICIMA.

#19

Note: After tightening, please do a leak test, refer to Operation Manual.

#41

#20

FlatHeadSelf-tapping Screw

3/16"x3/8"

Qty.4

HexHeadScrew 3/16"x3/8"

Qty.8
