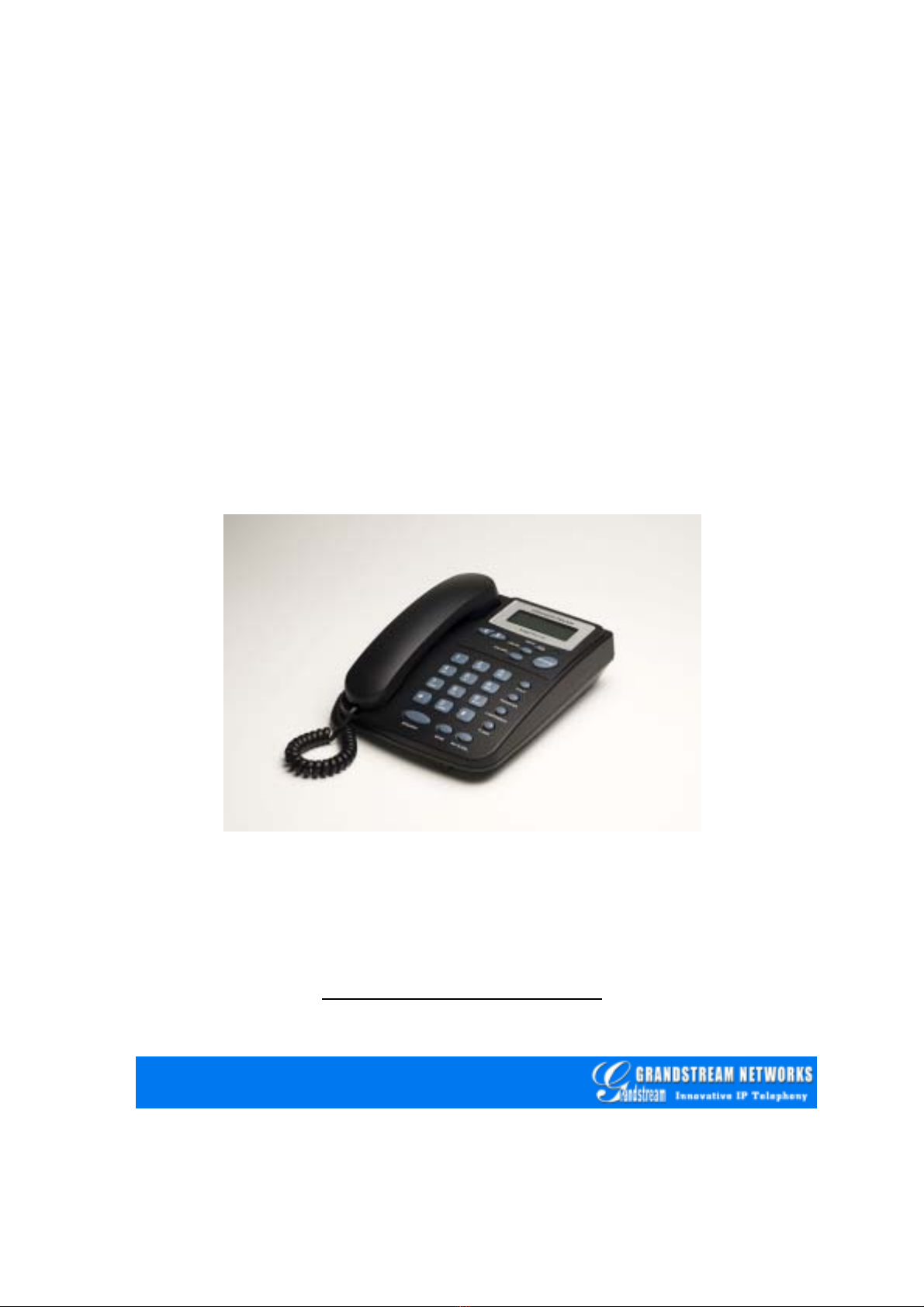

Grandstream Networks BudgeTone Bedienungsanleitung

User Manual

BudgeTone - 200 Series

IP Phone

For Firmware Version 1.1.0.13

Grandstream Networks, Inc.

www.grandstream.com

Table of Contents

1WELCOME……………………………………………………………. 4

2INSTALLATION……………………………………………………… 5

2.1 WHAT IS INCLUDED IN THE PACKAGE…………………………………5

2.2 CONNECTING YOUR PHONE…………………………………………...5

2.3 SAFETY COMPLIANCES………………………………………………..6

2.4 WARRANTY…………………………………………………………...6

3PRODUCT OVERVIEW………………………………………………8

3.1 KEY FEATURES………………………………………………………. 9

3.2 HARDWARE SPECIFICATION………………………………………….10

4USING BUDGETONE-200 IP PHONE……………………………... 12

4.1 GETTING FAMILIAR WITH LCD……………………………………... 12

4.2 GETTING FAMILIAR WITH KEYPAD…………………………………. 14

4.3 MAKING AND ANSWERING PHONE CALLS…………………………... 16

4.3.1 Handset, Speakerphone and Headset Mode……………………. 16

4.3.2 Multiple SIP Accounts and Lines………………………………... 16

4.3.3 Making Calls……………………………………………………….. 17

4.3.4 Making Calls using IP Address………………………………….. 18

4.3.5 Receiving Calls…………………………………………………….. 18

4.3.6 Call Hold…………………………………………………………… 18

4.3.7 Call Waiting and Switch between Calls………………………… 18

4.3.8 Call Transfer……………………………………………………….. 18

4.3.9 3-Way Conferencing………………………………………………. 19

4.3.10 Checking Message and Message Waiting Indication………… 19

4.3.11 Mute and Delete……………………………………………………. 20

4.4 CALL FEATURES……………………………………………………. 20

5CONFIGURATION GUIDE………………………………………... 22

5.1 CONFIGURATION WITH KEYPAD……………………………………. 22

5.2 CONFIGURATION WITH WEB BROWSER……………………………... 25

5.2.1 Access the Web Configuration Menu…………………………… 25

5.2.2 End User Configuration………………………………………….. 25

5.2.3 Advanced User Configuration…………………………………… 30

5.2.4 Saving the Configuration Changes……………………………… 43

5.2.5 Rebooting the Phone from Remote……………………………… 43

5.3 CONFIGURATION THROUGH CENTRAL PROVISIONING SERVER……... 44

6FIRMWARE UPGRADE……………………………………………. 45

6.1 UPGRADE THROUGH HTTP…………………………………………. 45

6.2 UPGRADE THROUGH TFTP………………………………………….. 45

7RESTORE FACTORY DEFAULT SETTING……………………47

APPENDIX I GLOSSARY OF TERMS………………………………...48

1 Welcome

Thank you for purchasing Grandstream BudgeTone-200 IP Phone. You

made an excellent choice and we hope you will enjoy all its capabilities.

Grandstream's BudgeTone-200 SIP IP phone is the innovative IP telephone

that offers a rich set of functionality and superb sound quality. They are

fully compatible with SIP industry standard and can interoperate with many

other SIP compliant devices and software on the market.

This document is subject to changes without notice. The latest electronic

version of this user manual is available for download from the following

location:

http://www.grandstream.com/user_manuals/BudgeTone200.pdf

2 Installation

2.1 What is Included in the Package

The BudgeTone-200 phone package contains:

1. One BudgeTone -200 Main Case

2. One Handset

3. One Phone Cord

4. One Universal Power Adapter

5. One Ethernet Cable

2.2 Connecting Your Phone

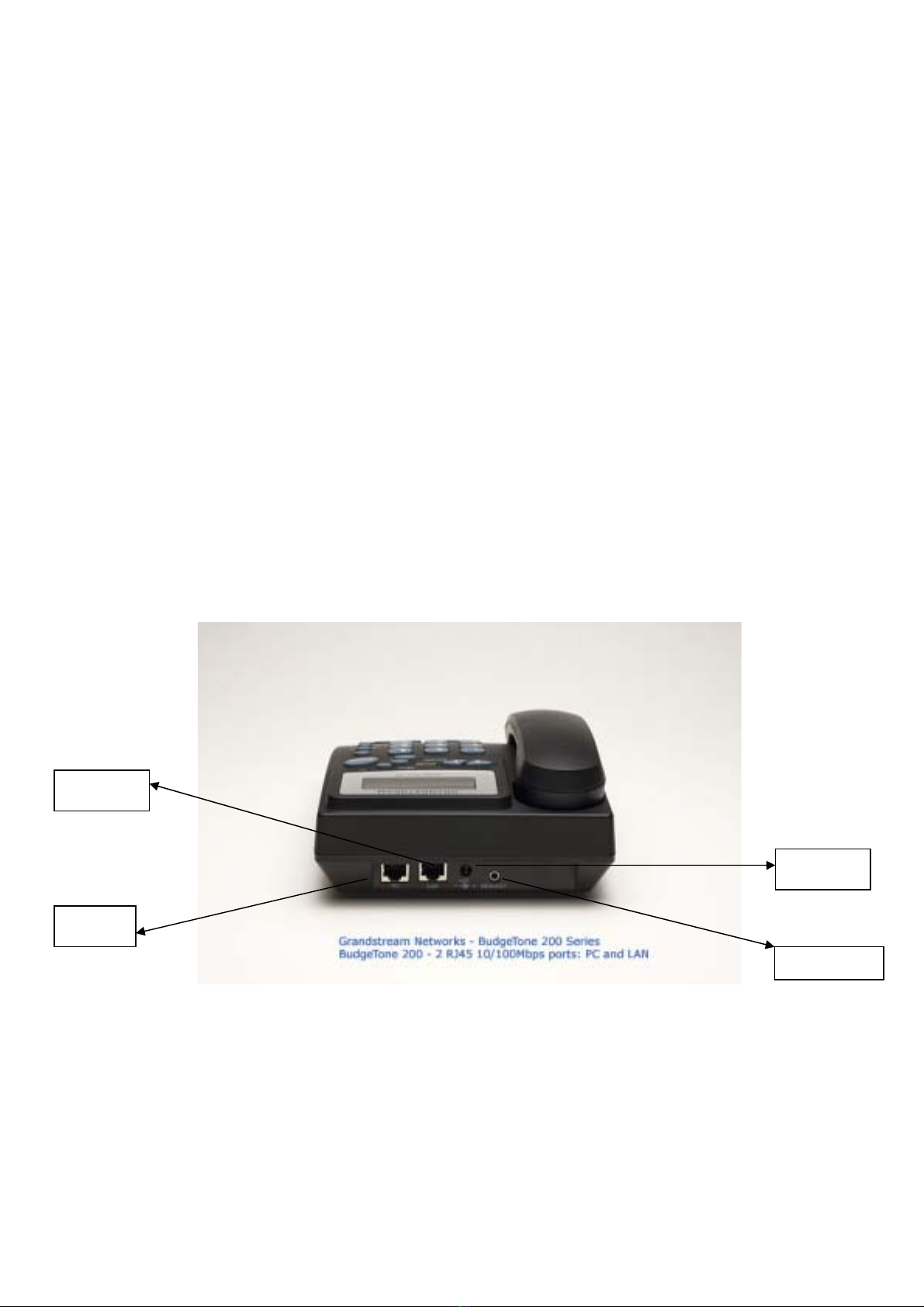

Following is a backside picture of BudgeTone-200, each connection port is

labeled with the name in the following table:-

PC Port

LAN port

POWER

HEADSET

The table below describes the connectors on the BudgeTone-200 phone:

LAN 10/100 Switch LAN port for connecting to

Ethernet.

PC 10/100 Switch port for connecting PC

POWER 5V power port

HEADSET 2.5mm Headset port

2.3 Safety Compliances

The BudgeTone-200 phone is compliant with various safety standards

including FCC/CE. Its power adaptor is compliant with UL standard. The

phone should only be operated with the universal power adaptor provided

with the package. Damages to the phone caused by using other unsupported

power adaptors are not covered by the manufacturer’s warranty.

2.4 Warranty

Grandstream has a reseller agreement with our reseller customer. End user

should contact the company from whom you purchased the product for

replacement, repair or refund.

If you purchased the product directly from Grandstream, contact your

Grandstream Sales and Service Representative for a RMA (Return Materials

Authorization) number.

Grandstream reserves the right to remedy warranty policy without prior

notification.

Warning: Please do not attempt to use a different power adaptor. Using other power

adaptor may damage the BudgeTone-200 and will void the manufacturer warranty.

Caution: Changes or modifications to this product not expressly approved

by Grandstream, or operation of this product in any way other than as

detailed by this User Manual, could void your manufacturer warranty.

Information in this document is subject to change without notice. No part of this document may be

reproduced or transmitted in any form or by any means, electronic or mechanical, for any purpose without

the express written permission of Grandstream Networks, Inc..

3 Product Overview

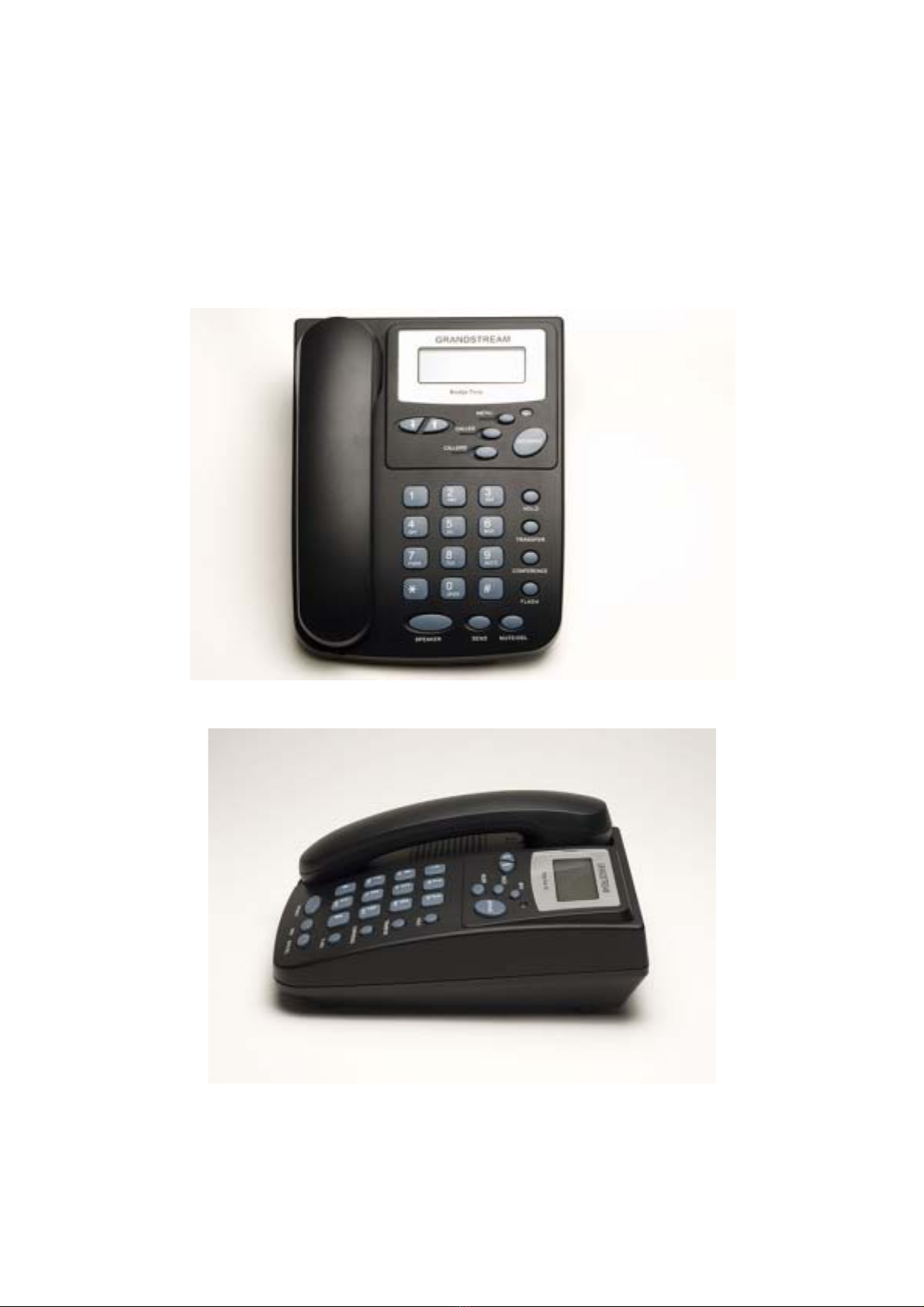

The following photo illustrates the appearance of a BudgeTone-200 IP

phone.

Front View

Side View

3.1 Key Features

Grandstream BudgeTone-200 IP Phone is a next generation IP telephone based on

industry open standard SIP (Session Initiation Protocol). Built on innovative technology,

Grandstream IP Phone features market leading superb sound quality and rich

functionalities at mass-affordable price.

Software Features:

•Support SIP 2.0, TCP/UDP/IP, PPPoE, RTP/RTCP, HTTP, ARP/RARP, ICMP,

DNS, DHCP, NTP/SNTP, TFTP.

•Support multiparty conferencing

•Supports Quick IP Call Mode.

•Support NAT traversal using IETF STUN and Symmetric RTP

•Advanced Digital Signal Processing (DSP) technology to ensure superior hi-

fidelity audio quality, interoperable with various 3rd party SIP end user device,

Proxy/Registrar/Server and Gateway products

•Advanced and patent pending adaptive jitter buffer control, packet delay and loss

concealment technology

•Support popular codecs including G711 (a-law and u-law), G.723.1 (6.3K),

G.729A/B and GSM. Dynamic negotiation of codec and voice payload length

•Support standard voice features such as Caller ID Display or Block, Call Waiting,

Call Waiting Caller ID, Call Hold, Call Transfer (attended/blind), Do-Not-Disturb,

Call Forwarding, in-band and out-of-band DTMF(RFC2833), SIP INFO, Dial

Plans, Off-Hook Auto Dial, Auto Answer, Early Dial and Speed Dial, etc.

•Full duplex hands-free speakerphone, redial, call log, volume control, voice mail

with indicator, downloadable ring tone, etc.

•Support Silence Suppression, VAD (Voice Activity Detection), CNG (Comfort

Noise Generation), Line Echo Cancellation (G.168) and AGC (Automatic Gain

Control)

•Support Acoustic Echo Cancellation (AEC) with Acoustic Gain Control (AGC)

for speakerphone mode

•Support sidetone

•Support DIGEST authentication and encryption using MD5 and MD5-sess

•Provide easy configuration through manual operation (phone keypad), Web

interface or automated provisioning by downloading encrypted configuration file

via HTTP/TFTP for mass deployment

•Support for Layer 2 (802.1Q VLAN, 802.1p) and Layer 3 QoS (ToS, DiffServ,

MPLS)

•Support firmware upgrade via TFTP or HTTP.

•Support DNS SRV Look up and SIP Server Fail Over

•Acoustic Echo Cancellation (AEC) with Acoustic Gain Control (AGC) for

speakerphone mode

•Support for Authenticating configuration file before accepting changes

•allow user to specify different URL for configuration file and firmware files

Hardware Features:

•Support Headset which will auto switch to Headset when plugged in

•Support 10/100 Full/Half Duplex Ethernet Switch with LAN and PC port,

Ethernet polarity can be auto detected, thus either straight through or twist cable

can be used.

•Support Message Waiting Indication LED
