Grandstream Networks GXP1620 Bedienungsanleitung

GXP1620 User Manual(Automatic Provisioning Version)Ver1.0.1 2017/08/22 created

Thank you or purchasing Grandstream GXP1620. Make sure and acknowledge that you have read this manual be ore

using GXP1620.

Disclaimer

•This document is subject to change without prior notice.

•A possibility o noise, broken voice, or disconnection may occur because o customers’ or our network

environment. We cannot guarantee the quality o voice.

•The company assumes no responsibility on the di erence o call or voice quality when the hearing acuity o

individuals is concern.

•The company assumes no responsibility when it was used outside Japan.

•As or GXP1620 regular server maintenance, you may experience temporarily service stops without prior notice.

•

The company assumes no responsibility or the damages o customer caused by the phone mal unction or

•

The company assumes no responsibility or the damages o customer caused by the phone mal unction or

breakdown.

Package Contents

•Main Case

•Handset

•Phone Cord

•

AC Power Adaptor

•

AC Power Adaptor

•Ethernet Cable

•Phone Stand

•Quick Start Guide

Product Care

•

Please use so t dry clothes to clean the device.

•

Please use so t dry clothes to clean the device.

•Don’t use wet clothes.

•Don’t use volatile chemicals like benzene, or thinner since they can damage the device. I you want to use a

chemical wipe, please read the cautionary notes be ore using it.

GXP1620 is a phone device that can be used with our service. It cannot be used as a typical phone. The customer

must subscribe to an Internet Service Provider to be able to use the device. Customer with no broadband router

eature must provide a separate broadband router.

GXP1620

Device Assembly

1. Attach the phone stand or wall mount to the back o the phone where there are slots;

2. Connect the handset and main phone case with the phone cord;

3. Connect the LAN port o the phone to the RJ-45 socket o a hub/switch or a router (LAN side o the router) using

the Ethernet cable;

Connect the 5V DC output plug to the power jack on the phone; plug the power adapter into an electrical outlet.

I PoE switch is used on GXP1620 in step 3, this step could be skipped;

5. The LCD will display provisioning or irmware upgrade in ormation. Be ore continuing, please wait or the

date/time display to show up;

6. Using the keypad con iguration menu or phone's embedded web server (Web GUI) by entering the IP address in

web browser, you can urther con igure the phone.

LCD

Display

LCD

Display

GXP1620 has a dynamic and customizable screen. The screen displays di erently dependingon whether the phone is

idle or in use (active).

NxtScr

Toggles between di erent idle screens. For example, or GXP1620, pressing most le t

so t key (switch screen) will toggle among de ault idle screen, weather in ormation, IP

address and Account in ormation.

FwdAll Unconditionally orwards the phone line to another phone.

Redial Redial the last dialed number when there is existed dialed call log.

Missed Shows unanswered calls to this phone.

Receive/Reject

You can choose whether to receive or reject a call.

Receive/Reject

You can choose whether to receive or reject a call.

EndCall Ends the active call.

eypad Buttons

GXP1620

Line1/Line2 Switch between LINE1 and LINE2

Page/Intercom

I the intercom number has set, call this number directly

I the intercom number has not set, press this key will have no e ect

Hold

Place active call on hold, resume the call on hold.

Record

Press to enable/disable record eature in an active call or an con erence.

Press the 4 navigation keys to move up/down/le t/right. Press the round button in the

center to enter Keypad Con iguration MENUwhen phone is in idle. The round button

"MENU" can also be used as ENTER key when in Keypad Con iguration

Mute Press to mute/unmute an active call.

Headset Used when you plugged a headset

Trans er Trans er an active call to another number.

Con erence Establish 3-way con erence with other 2 parties.

Send Enter the digits and then press Send to dial out the number.

Speaker Hands- ree unction. You can call without using handset. Loudspeaker unction

Volume Press "-" or "+" to adjust the volume.

Provisioning is a service that we provide to automatically con igure your device via HTTPS. Just make sure your

device’s network and provisioning settings are con igured correctly and it will etch the latest settings every time it is

rebooted. Advantages o provisioning include, but are not limited to, (1) Device can be easily con igured by simply

Automatic Provisioning

setting it to be provisioned through our server, and (2) I you own multiple devices, they can be simultaneously

provisioned as long as they properly connected to your network.

① Register the MAC address of your

device on the customer portal. Although

not necessary, you may also set the

Provisioning Server

② Set the provisioning configurations

on your devices. A device will request

for the configuration file every time it

is rebooted.

not necessary, you may also set the

provisioning settings for your circle.

Provisioning Server

is rebooted.

③ The provisioning server sends the configuration

file which is unique for each device. The server

identifies a requesting device by its MAC address.

④ After a successful provisioning, your

devices will register to the login server

and you can now start to make calls.

SIP Tra ic

①Obtain Device Mac Address.

Grandstream devices are assigned with a unique MAC address in the ormat o 000BXXXXXXXX where X is any digit

rom 0 to 9. MAC address will be used to identi y the device during the provisioning process. The MAC address can be

Provisioning Configuration

retrieved in various ways.

Via Device Sticker

A sticker is attached at the back side o the device containing its MAC address.

Via Device LCD

1. Press [MENU] [●] button

2. Press [▲] or [▼] button several times to navigate to [Status] then press [●] button

3. Search or [MAC: 00:0B:XX:XX:XX:XX] by pressing [▲] or [▼] button several times.

Via Web

Veri y device’s IP address. Press so t key [

NextScr

] twice to view device’s IP address.

Veri y device’s IP address. Press so t key [

NextScr

] twice to view device’s IP address.

2. Open a web browser and enter the device’s IP address on the URL ield. Format: [http://IP Address]

3. Type password and click [Login]. De ault password: admin

4. Hover over [Status] and click [Network Status].

②Register Device MAC Address.

1. Access the customer management page via web brower.

2. Click [Grandstream Provisioning] on le t menu or hover over [Settings] then click [Grandstream Provisioning].

Provisioning Configuration

3. Search the unique to which the device will be assigned to and enter the MAC address obtained rom Step 1 in

Grandstream Device MAC Address. Once done, click [Update].

③ Create provisioning settings for your circle. Continue with the next steps only if you want to create your own

provisioning settings. Otherwise, default provisioning settings will be automatically created upon the first

provisioning request from your circle. You can change these settings later if you wish to.

Click [

Provisioning Settings

Provisioning Configuration

Click [

Provisioning Settings

2. Provisioning Settings page is displayed.

Provisioning Server: URL o server to be used on your Grandstream devices is displayed here.

Call Waiting: Disable or enable call waiting.

Firmware Upgrade and Provisioning: Disable or enable automatic updating o irmware o your devices.

Timezone

: Choose the

timezone

or your location. * Setting might not be supported in all devices.

Timezone

: Choose the

timezone

or your location. * Setting might not be supported in all devices.

Once done, click [Create].

④ Device configuration.

1. Veri y device’s IP address. Press so t key [NextScr] twice to view device’s IP address.

2. Open a web browser and enter the device’s IP address on the URL ield. Format: [http://IP Address]

3. Type password and click [Login]. De ault password: admin

Provisioning Configuration

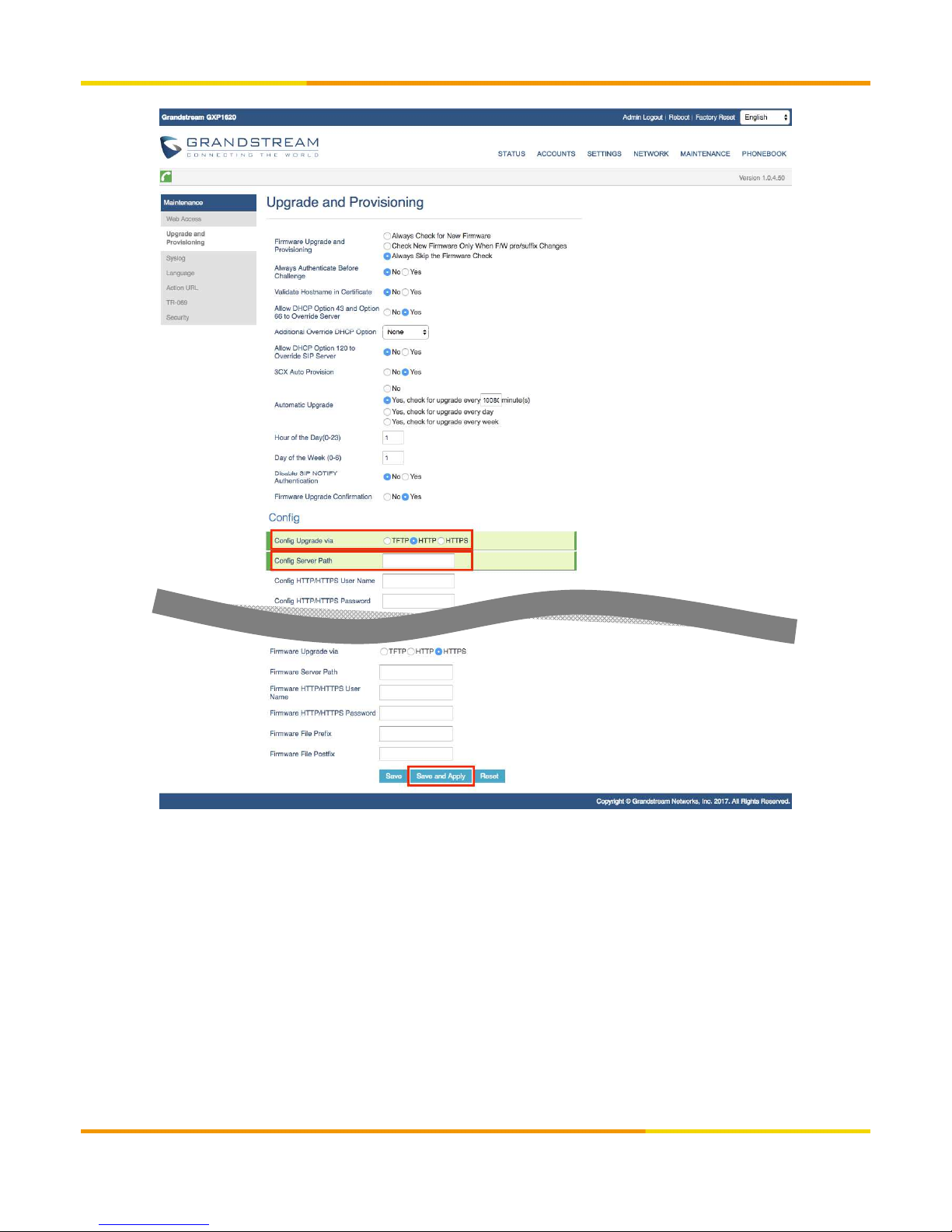

4. Hover cursor over [Maintenance] and click [Upgrade and Provisioning].

Provisioning Configuration

Upgrade via: Select HTTPS.

Config Server Path: Enter the URL of Provisioning Server as shown on Provisioning Settings page in Step 3.

Once done, click [Save and Apply] then click [Reboot].

※

Rebooting

o device may take a ew minutes and device might reboot more than once during the process. Please

※

Rebooting

o device may take a ew minutes and device might reboot more than once during the process. Please

take note also that the device will be provisioned every time it is rebooted.
