Grandview CN Series Bedienungsanleitung

GRANDVIEW REPRODUCING GENUINE COLORS

Thank you forpurchasing a Grandviewprojection screen.

Before use, pleaseread instructions carefully. Afterinstallation, store instructionsfor future reference.

Model CN-Sxx

Instruction Manual for

CN Series

Manual Pull-Down with Speed Control Mechanism

ISO9001:2000

International Certification

Grandview Crystal Screen Canada Ltd.

#11- 3751 North Fraser Way,

Marine Way Business Centre,

Burnaby, BC, Canada V5J 5G4

Tel: 1-604-412-9777 Fax: 1-604-412-9796

Website: www.grandviewscreen.ca

Guangzhou Grandview Crystal Screen Co., Ltd.

P.O. 511400 Federal Ind. Zone No. 363, Yushan West Road,

Shiqiao, Panyu District, Guangzhou, Guangdong, China

Tel: +8620-8489-9499 Fax: +8620-8480-3343

Website: www.grandviewscreen.com

Accessories

Metal Casing

Screen Fabric

Description

End Cap

Handle

Installation Manual (1pc)

10 x 40mmAnchor and bolts (8pcs)

Installation

This projection screen should be installed at the best possible viewing position for the audience. Take out all

the parts from the packaging and follow the accessories guideline to ensure you have all the parts. The parts

needed will vary depending on which installation you choose to use. For installation on a wood wall or ceiling,

use 10 x 40 anchors and screws.

Wall Mount

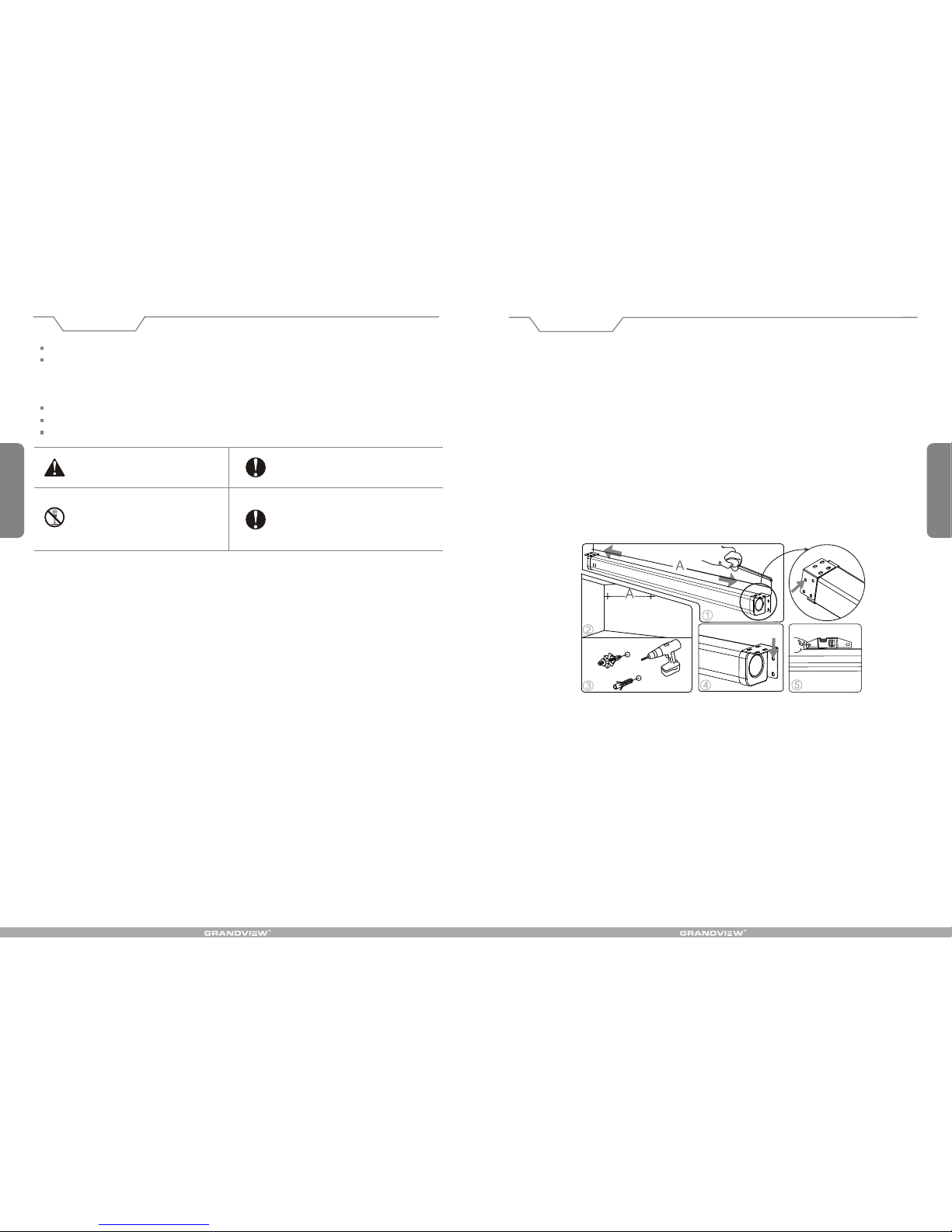

Using a tapemeasure, measure the distance between the two keyholes onthe casing (Figure 1).

According to themeasurement, use the drill to drill identical holes of the appropriate size on the wall

(use a smallerdrill bit than the actual screws) and ensure thatit is level (Figure 2 & 3). Screw inthe

appropriate screws, either10x40 by itself for wood walls or with anchors for drywalls, leaving enough

space at theend to hang the casing (Figure 4). To ensure thatthe screen islevel, use a level to check

(Figure 5).

The ceiling or wallused for fixture installation must be secure to prevent the screens from falling.

Please read the followingas any damage to the screen surface will affect the quality of the picture:

1.Avoid contact ortouching the screen surfaceas it may cause scratches or tears.

2.Do not writeor draw on the surface

3.Clean the screen witha soft cloth andlukewarm water. Donot use any detergentor cleaning products.

Roll up the screenafter every use.

Ensure that the screenis level when installing; do not pull on the sides or foldthe screen.

Toprevent unnecessary damage, theoperating and maintenance ofthe screen should bedone by adults.

Ignoring the safety warnings may lead to

inju ries and /or damagingthe product.

Fixtures should be installed in a secure place

to avoid accidents or the screen falling.

Roll up the screen after every use. Leaving

it hanging for a long period oftimemay cause

the fabric to loosen.

Please contact your local dealer for repairs

or maintenance . Please contact our compan y

if you have any further qu estion s . Avoid

taking apart the fixtures yourself . Loose

parts may cause the screen to fall.

Warnings

Do not take apart and replace with unknown parts. If there are any problems, please contact your local dealer.

Product specifications are subject to change.

Ceiling Mount

Using a tape measure, measure the distance between the two keyholes on the casing (Figure 1).

According to the measurement, use the drillto drill identical holes of the appropriate size on the ceiling

(use a smaller drill bit than the actual screws)and ensure that it is level (F igure 2 & 3). Screw in the hook

screws (not provided), and lift the screen into the hook screws to hang (Figure 4). To ensure that the

screen is level, use a level to check (Figure 5).

Wood material installation

Concrete material installation

Hidden installation

Ceiling mount

Wall mount

Wall/Ceiling Mounting Installation

Ceiling mount

Wall mount

Ceiling mount

Wall mount

Instructions

Pull down to the desired height; pause for 3 seconds, and the screen will self-lock.

1. Use rope to pull down bottom rod until with in hand reach distance.

2. Continue to pull down with hand to desired height, and then hold for 3 seconds.

3. To retract screen, pull down lightly to release locking system, let go and the screen will return to casing.
