Installaon Manual
Thanks for inving GreenliteTM into your home. The setup process
is easy. All you need to do is follow these simple steps and you’ll
be on your way to saving energy and making your home even more
comfortable.
Greenlite oers installaon and product videos
Please visit greenliteusa.com. To contact Greenlite Technical Support,
please call 267.417.3277.
[Drill]
greenliteusa.com | 3
Tools Needed Oponal Tools
Table of Contents
1. Start Here ......................................................................................2-6
2. Installing with a C-Wire................................................................7-10
3. Installing without a C-Wire ........................................................11-14
4. Connecng to the Network .......................................................15-19
5. Appendix....................................................................................20-23
6. Warranty ......................................................................................... 24
Greenlite G2 TM
Drill Oponal: Wire StripperSmartphonePhillips Screwdriver
1. START HERE
Power BridgeTM
Wiring Labels
What’s in the box?
Screws Wall Anchors
Trim Plate
4 | 267.417.3277
Behind Greenlite’s Décor-snap® cover you will see a small, removable
“quick guide” to installaon and an icon-key label. The icons represent
the display icons of your Greenlite Thermostat. You will also nd
important informaon for HomeKitTM and WiFi setup.
This manual is a comprehensive guide to installaon and wiring.
Press the knob when the thermostat is idle to
view the menu. Rotate the knob to select an
System Mode
Fan Mode Network
Run Schedule System
greenliteusa.com
greenliteusa.com | 5
If you wish to install this product in a manner not covered in this
Installaon Booklet you may violate the terms of the warranty. We
recommend you contact Greenlite Technical Support to conrm that
the installaon you wish to perform is compable with this product and
your heang and cooling system.
Step 1.1: Download the free Greenlite Thermostat App to your mobile
device and create an account.
Step 1.2: Set your phone aside and turn o the power
at the circuit breaker to both your heang and cooling
systems before performing any wiring.
Step 1.3: Conrm that your heang and cooling system is powered
down by changing the temperature on your thermostat.
Hint: Your system should not make any noise and you should not feel
any air exing your vents.
1. START HERE
6 | 267.417.3277
Step 1.4: Remove the front of your old thermostat
from its base. If you see thick black wires, wire
nuts, or any labels that say 120-240VAC or High
Voltage, your system is not compable with
Greenlite G2 TM. Please call Greenlite Technical
Support at 267.417.3277 before proceeding
with your installaon. If you do not see any high
voltage labels or wires, please connue with your installaon.

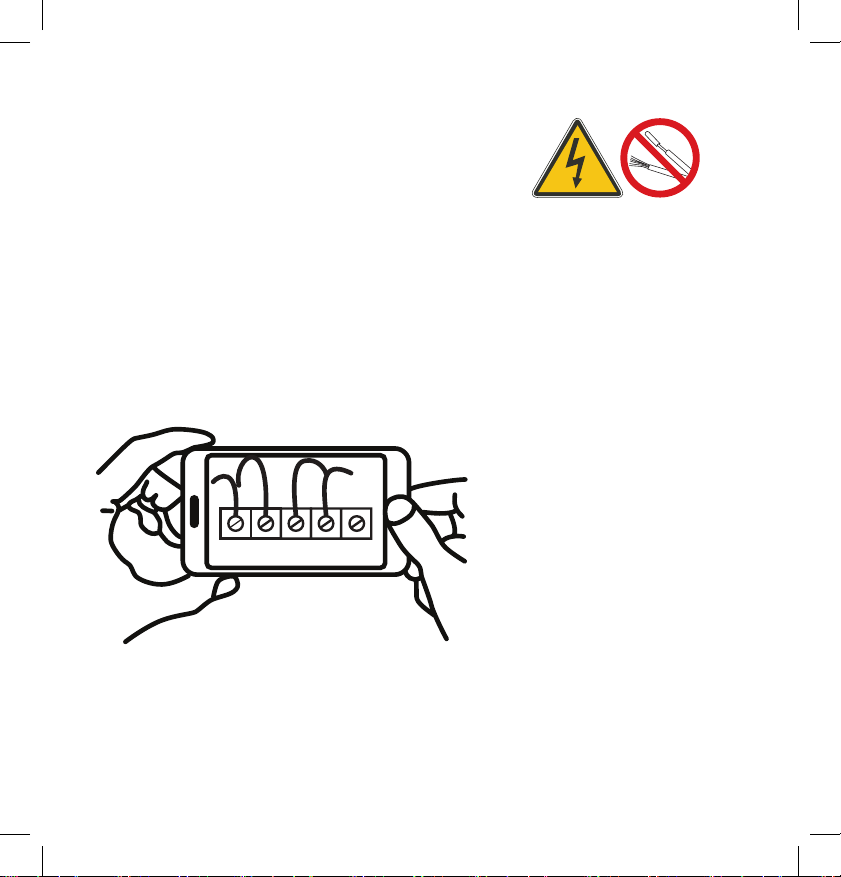

Step 1.5: Use the included wire labels to mark which wire is connected
to each terminal in your old thermostat. Take a picture of your current
wiring layout – it may be helpful to reference this picture later.
Step 1.6: Conrm if you have a C-Wire. If you have a wire connected to
a terminal labeled “C”, then you have a C-Wire. If you do not, please
skip ahead to page 11.
HIGH
VOLTAGE
greenliteusa.com | 7
INSTALLATION WITH
C-WIRE2.
Installing with a C-wire
Before starng
Turn o the power at the circuit breaker to
both your heang and cooling systems before
performing any wiring. You will not need the
included Power Bridge.
8 | 267.417.3277
Installaon with C-wire
Step 2.1: Idenfy your system conguraon (see wiring diagrams in
appendix). Potenal conguraons include:
• Convenonal 1H/1C (Y, G, W, R, C)
• Convenonal 2H/1C (Y, G, W, W2, R, C)
• Heat Pump Single-Stage (Y, G, R, O/B, C)
• Heat Pump with auxiliary heat or dual fuel (Y, G, R, O/B, W, C)
If you have only one R wire, please use the RH terminal. If you have
a dierent conguraon other than what is listed above, please call
Technical Support for help with your installaon.
Step 2.2: Remove each wire from its terminal – make sure that they do
not fall down back into the wall.
Step 2.3: Remove the mounng screws from the base of the old
thermostat. Remove the base from the wall.
Step 2.4: If you would like to use the trim plate or wall anchors,
you can install them now.

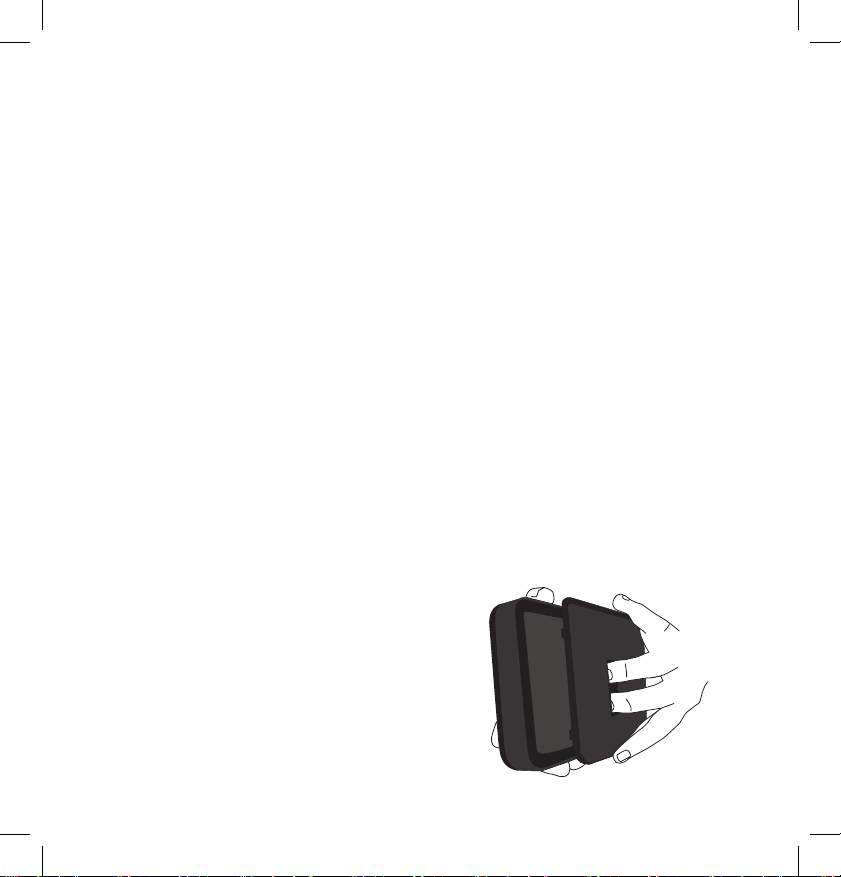

Step 2.5: Separate Greenlite G2 TM from its
base. Pull the wires from your wall through
the center hole of the Greenlite G2 TM base.
Secure the base to the wall using the
included mounng hardware.
greenliteusa.com | 9
Opon 1 - Convenonal (Furnace) Systems:
Step 2.6f: Following the terminal labels
marked “Convenonal” on the thermostat
base, press the lever and insert each
labeled wire into the top hole of the
corresponding terminal.
Step 2.7f: If you have both an RC and RH wire present, then remove the
red cap next to the reset buon. You can now skip ahead to step 2.8.
Opon 2 - Heat Pump Systems:
Step 2.6hp: Following the terminal labels
marked “Heat Pump” on the thermostat base
and referencing your wiring photo, press the
lever and insert each labeled wire into the top
hole of the corresponding terminal.
If your old thermostat did not have a W1 wire but did have a W2 wire,
please insert the W2 wire into the W1 terminal.
Step 2.7hp: If you have both an O wire and a B wire
(i.e. in a Trane system), please install the B wire to the “C” terminal.
For more detailed direcons, please see the wiring diagrams in the
appendix or call Technical Support.
INSTALLATION WITH
C-WIRE2.
CONVENTIONAL C W1 W2
HEAT PUMP C W1 OB
POWER BRIDGE 1 4 2
CONVENTIONAL C W1 W2
HEAT PUMP C W1 OB
POWER BRIDGE 1 4 2
10 | 267.417.3277
Installaon with C-wire
Step 2.8:
Securely fasten Greenlite G2 TM onto its base. Once it has
clicked into place, return power to your heang and cooling system.
Step 2.9: Aer your thermostat powers up, you are ready to congure
Greenlite G2 TM for your heang and cooling system and connect to a
wireless network.
Please skip ahead to the “Connecng to the Network” secon of this
manual on page 15.
