Greenwood Unity CV2GIP Montageanleitung

Unity CV2GIP / CV2SVGIP

Decentralised Mechanical Extract Ventilation (dMEV)

User / Homeowner Guide

Commissioning and Inspection Record:

Located on page 10 of this guide, should have been completed by the Commissioning Engineer.

User / Homeowner Information Page

1. Ventilation in Your Home 3

2. General Overview 4

3. Homeowner Controls 6

4. Servicing / Maintenance 10

5. Commissioning & Inspection Record 10

6. Guarantee / Warranty Information 16

Contents

WEEE Statement

This product may not be treated as household waste. Instead it

should be handed to an appropriate collection point for the

recycling of electrical and electronic equipment.

For more detailed information about the recycling of this product,

please contact your local council office or your household waste

disposal service.

Your home has continuously running ventilation Unity CV2GIP / CV2SVGIP (dMEV) fans

installed. This consists of locally sited extract fans that form part of a whole house

ventilation approach. These fans extract air on a continual basis from the following areas

(defined as wet rooms within Building Regulations) in residential dwellings –

•Kitchen

• Bathroom

• Utility Room

•WC/Cloakroom

• Ensuite Bath/Shower Room

1.0 Ventilation In Your Home

Time ‘Switch Live’ is Active

0 – 5 minutes

5 – 10 minutes

10 – 15 minutes

15+ minutes

Over-run Boost Period

No over-run

5 minutes

10 minutes

15 minutes

The specific operation of your fan may vary depending on the way it has been installed.

The options are –

Trickle Speed: Operating on a continual basis.

Boost Speed: Activated manually using our GS2 switch or via the room light switch.

GS2 switch markings - Trickle (I) & Boost (II) Operation

Note: Other manufacturers switches may show different markings.

To maintain a healthy indoor environment the Unity CV2GIP / CV2SVGIP includes SMART

technology for Over-run Timer (Greenwood TimerSMARTTM)and Humidity

(Greenwood HumidiSMARTTM).

Greenwood TimerSMARTTM monitors the length of time that there is an occupancy

presence within a wet room (via the ‘switch-live’) and provides a fixed over-run time

period to best match the length of time that the ‘switch live’ is active (as shown below):

Note: The first 5 minutes will not activate an over-run.

This removes nuisance running noise and unnecessary energy wastage typically

associated with traditional timers.

2.0 General Overview

2.1.1

2.1.2

2.1.3

Greenwood HumidiSMARTTM monitors the ambient humidity within the wet room

environment and looks for short peaks of humidity made by either showering or bathing.

This smart technology ensures that your Unity CV2GIP / CV2SVGIP is not on boost for

prolonged periods of time, removing nuisance running noise and unnecessary energy

wastage typically associated with increases to background humidity which naturally

occurs with the changing seasons.

To maintain good indoor air quality within the dwelling it is important that the fan

remains in operation at all times unless switched off for maintenance. (See section 4.0

Servicing / Maintenance).

Depending on when your home was built, background window trickle ventilators may be

provided in dry habitable rooms. Trickle vents should not be installed in the same rooms

as the fan, as overall ventilation effectiveness can be reduced.

Warning: This appliance can be used by children aged from 8 years and above

and persons with reduced physical, sensory or mental capabilities or lack of

experience and knowledge if they have been given supervision or instruction

concerning use of the appliance in a safe way and understand the hazards

involved. Children shall not play with the appliance. Cleaning and user

maintenance shall not be made by children without supervision.Always isolate

fan from mains supply before cleaning. Do not use solvents to clean this fan.

Siting Notes: Where an open-flued oil or gas-fuelled appliance is installed in the

kitchen,extract ventilation can cause the spillage of flue gases. Care must be

taken to ensure ventilation is reduced appropriately, as set out in the Building

Regulations. Kitchens with solid-fuel appliances should not have extract fans fitted.

The CV2SVGIP fan must only be supplied via Safety Extra Low Voltage (SELV)

corresponding to the markings on the appliance.

2.1.4

2.1.5

2.1.6

2.1.7

2.1.8

2.1.9

Controls

This section shows how to operate the Unity CV2GIP / CV2SVGIP control panel.

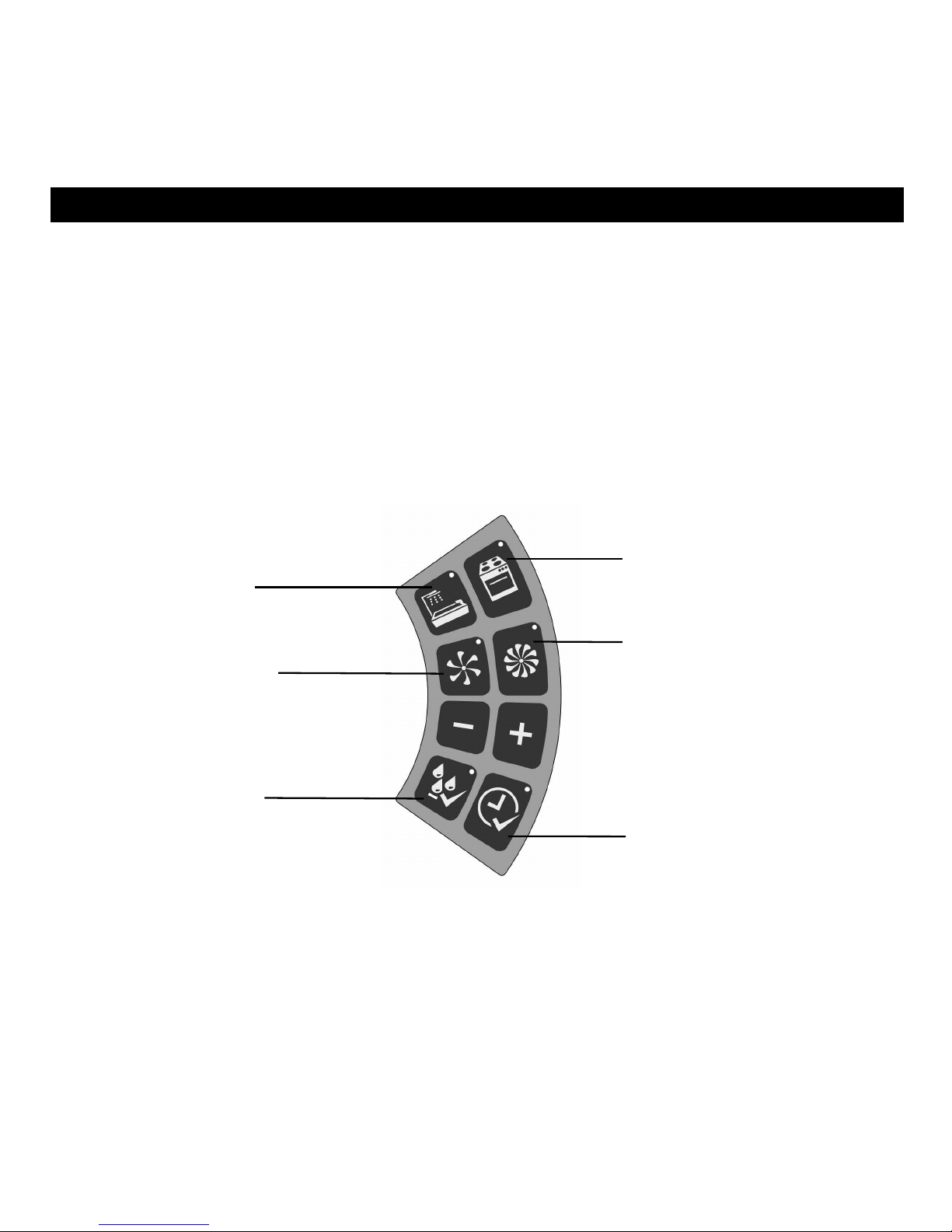

Control Panel

3.0 Homeowner Controls

3.1.1

Bathroom

Trickle Mode

Greenwood

HumidiSMARTTM

On / Off

Kitchen

Boost Mode

Greenwood

TimerSMARTTM

On / Off

3.1.2

3.1.3 To View Fan Set Up / Status

Press any button to activate the panel. The current fan set up / status will be shown via

the green lights.

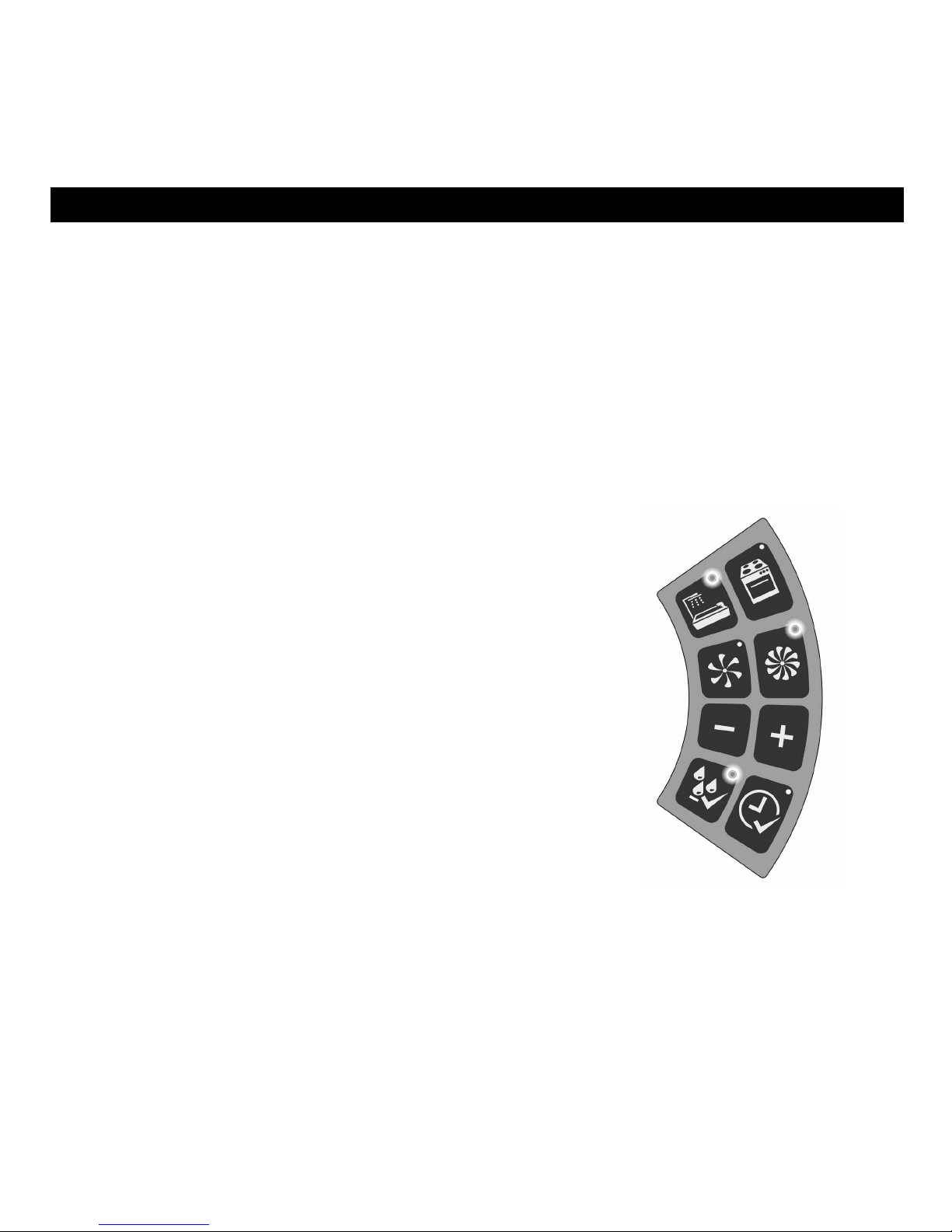

Example shows: Bathroom setting selected

Boost mode activated

Greenwood HumidiSMARTTMfeature selected

Note: The Unity CV2GIP / CV2SVGIP is

commissioned during installation to provide the

correct airflow requirements for your dwelling.

Post adjustment of the room setting or airflow

speeds is not available.

To Change the Greenwood HumidiSMARTTM Setting

The Greenwood HumidiSMARTTMmonitors the humidity of the extracted air at all times. A

rapid rise in humidity from a bath / shower, should be picked up by the sensor and should

cause the fan to automatically switch to Boost mode.

When humidity falls below a calculated threshold close to background levels, the fan

should return to trickle mode.

To identify current fan status, press any button to activate the panel. Upon

identification of control status, either press [ ] to activate or deactivate the Greenwood

HumidiSMARTTM.Please note the light should come on to indicate that the function is

active.

Factoryset to OFF

Option’s ON / OFF

Note: After approximately 10 seconds of

inactivity, the control panel lights should

turn off and save selection settings.

Note: This feature can be activated

at the same time as the Greenwood

TimerSMARTTM.

3.1.4

To Change the Greenwood TimerSMARTTM Setting

The Greenwood TimerSMARTTMmonitors the length of time the unit has been in boost mode

via the Switch Live. Once the Switch Live is deactivated the Greenwood TimerSMARTTM

over-run period should continue to run the unit for a calculated time if required.

Note: The first 5 minutes should not activate an over-run.

To identify current fan status, press any button to activate the

panel. Upon identification of control status, either press [ ] to

activate or deactivate the Greenwood TimerSMARTTM.Please

note the light should come on to indicate that the function is

active.

Factory set to OFF

Option’s ON / OFF

Note: After approximately 10 seconds of

inactivity, the control panel lights should turn

off and save selection settings.

Note: This feature can be activated

at the same time as the Greenwood

HumidiSMARTTM.

3.1.5

Time ‘Switch Live’ is Active

0 – 5 minutes

5 – 10 minutes

10 – 15 minutes

15+ minutes

Over-run Boost Period

No over-run

5 minutes

10 minutes

15 minutes

The Unity CV2GIP / CV2SVGIP contains a unique backward curved mixed flow impellor

that has been designed to reduce against any build up of dirt. The fan motor has sealed

for life bearings, which do not require lubrication.

Periodic cleaning of the fans front cover and casing can be carried out using a soft damp

cloth. Care must be taken when wiping around the control panel.

Warning: The Unity CV2GIP / CV2SVGIP must be isolated from the mains supply before

removing the electronics cover. Do not use solvents to clean this fan.

Cleaning and user maintenance shall not be made by children without supervision.

Please note that your stored fan settings will not be lost during any interruptions to

your fan’s power supply.

4.0 Servicing / Maintenance

4.1.1

4.1.2

4.1.3

4.1.4

4.1.5

This section should be used to record all installation details. The Commissioning Engineer

should use the following Parts 1 to 3, to record important information relating to the

installation, of which, should be incorporated into the Home Information Pack for the

homeowner to keep.

• Part 1 – System details and declarations

• Part 2a – Installation details

• Part 2b – Inspection of installation

• Part 3 – Air flow measurement test and commissioning details

5.0 Commissioning & Inspection Record

5.1.1
