GreenWorks 25012 Bedienungsanleitung

Read all safety rules and instructions carefully before operating this tool.

Owner’s Manual

TOLL-FREE HELPLINE: 1-888-90WORKS (888.909.6757)

18" Electric Lawn Mower

25012

Contents .............................................................................................................................. 2

Product specications.......................................................................................................... 2

Safety information.............................................................................................................3-7

Symbols ............................................................................................................................8-9

Electrical....................................................................................................................... 10-11

Know your lawn mower ...................................................................................................... 12

Assembly ...................................................................................................................... 13-16

Operation...................................................................................................................... 17-22

Maintenance ................................................................................................................. 23-24

Storage .............................................................................................................................. 25

Troubleshooting ................................................................................................................. 26

Warranty ............................................................................................................................ 27

Exploded View .............................................................................................................. 28-29

Parts List.......................................................................................................................30-31

Notes ............................................................................................................................ 32-33

PRODUCT SPECIFICATIONS

18" ELECTRIC LAWN MOWER

Motor ............................................................................................ 120 V AC, 60 Hz, 12 A

No-load speed ................................................................................................ 3600 RPM

Cutting path ................................................................................................ 18" (45.7 cm)

Height adjustments............................................................1 3/4—3 3/4" (4.4 cm-9.5 cm)

Functions......................................................................2-in-1: Mulch and side discharge

Weight ........................................................................................................46 lbs (21 kg)

CONTENTS

SAFETY INFORMATION

IMPORTANT SAFETY INSTRUCTIONS

IMPORTANT

READ AND UNDERSTAND ALL INSTRUCTIONS. Failure to follow all instructions listed below

may result in electric shock, re, and/or serious personal injury.

• Do not operate power tools in explosive atmospheres, such as in the presence of ammable

liquids, gases, or dust. Power tools create sparks which may ignite the dust or fumes.

• To reduce the risk of electric shock, this appliance has a polarized plug (one blade is wider

than the other). This plug will t in a polarized outlet only one way. If the plug does not t fully

in the outlet, reverse the plug. If it still does not t, contact a qualied electrician to install the

proper outlet. Do not change the plug in any way.

• Avoid body contact with grounded surfaces such as pipes, radiators, ranges, and refrigerators.

There is an increased risk of electric shock if your body is grounded.

• Don’t expose power tools to rain or wet conditions. Water entering a power tool will increase

the risk of electric shock.

• Do not handle plug or tool with wet hands.

• Use outdoor extension cords marked W-A, W, SW-A, SOW-A, STW-A, STOW-A, SJW-A,

SJTW-A, or SJTOW-A. These cords are rated for outdoor use and reduce the risk of electric

shock.

• Never allow children to operate the equipment. This is not a toy. Never allow adults to operate

the equipment without proper instruction.

• Keep all bystanders, children, and pets at least 50 ft. away.

• Always wear safety glasses with side shields. Everyday glasses have only impact resistant

lenses. They are NOT safety glasses. Following this rule will reduce the risk of eye injury. Use

face mask if operation is dusty.

• Wear eye protection which is marked to comply with ANSI Z87.1 when operating this product.

• Use extra care when cleaning on stairs.

• Do not leave appliance plugged in. Unplug from outlet when not in use and before servicing.

• Do not expose to rain; store indoors.

• Use only as described in this manual. Use only identical manufacturer’s replacement parts

and accessories. Use of any other parts may create a hazard or cause product damage.

• Secure long hair so it is above shoulder level to prevent entanglement in any moving parts.

• Wear heavy long pants, boots, and gloves. Avoid loose garments or jewelry that could get

caught in moving parts of the machine or its motor.

• Keep rm footing and balance. Do not overreach. Overreaching can result in loss of balance.

• Do not operate the equipment while barefoot or when wearing sandals or similar lightweight

footwear. Wear protective footwear that will protect your feet and improve your footing on

slippery surfaces.

• Do not force tool. Use the correct tool for your application. The correct tool will do the job

better and safer at the rate for which it is designed.

SAFETY INFORMATION

• Turn off all controls before unplugging.

• Avoid accidental starting. Be sure the power switch is not on before plugging in. Turn off

power switch before unplugging.

• Do not use tool if switch does not turn it on or off. Any tool that cannot be controlled with the

switch is dangerous and must be repaired.

• Do not use with damaged cord or plug. If appliance is not working as it should, has been

dropped, damaged, left outdoors, or dropped into water, return it to a service center.

• Do not leave the tool when plugged in. Unplug from the power outlet when not in use, before

servicing, and before storing the tool. Such preventative safety measures reduce the risk of

starting the tool accidentally.

• Do not operate this unit when you are tired, ill, or under the inuence of alcohol, drugs, or

medication.

• Do not operate in poor lighting.

• Keep all parts of your body away from any moving parts and all hot surfaces of the unit.

• Do not put any object into openings. Do not use with any opening blocked; keep openings free

of dust, lint, hair, and anything that may reduce air ow.

• Check the work area before each use. Remove all objects such as rocks, broken glass, nails,

wire, or string which can be thrown or become entangled in the machine.

• Do not pull or carry by cord, use cord as a handle, close a door on a cord, or pull cord around

sharp edges or corners. Do not run appliance over cord. Keep cord away from heated

surfaces.

• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.Do not put any object

into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything

that may reduce air ow.

• Do not handle plug or appliance with wet hands.

• In a double insulated appliance, two systems of insulation are provided instead of grounding.

No grounding means is provided on a double insulated appliance, nor should a means

for grounding be added to the appliance. Servicing a double insulated appliance requires

extreme care and knowledge of the system and should be done only by qualified service

personnel. Replacement parts for a double insulated appliance must be identical to the parts

they replace.

• Not intended for commercial use.

SPECIFIC SAFETY RULES FOR MOWER

WARNING

This symbol points out important safety instructions, which if not followed, could endanger the

personal safety and/or property of yourself and others. Read and follow all instructions in this

manual before attempting to operate this machine. Failure to comply with these instructions may

result in personal injury.

SAFETY INFORMATION

DANGER

This machine was built to be operated according to the rules for safe operation in this manual.

As with any type of power equipment, carelessness or error on the part of the operator can result

in serious injury. This machine is capable of amputating hands and feet and throwing objects.

Failure to observe the following safety instructions could result in serious injury or death.

WARNING

When using electric lawn mowers, basic safety precautions should always be followed to reduce

the risk of re, electric shock, and personal injury.

GENERAL OPERATION

Use of this mower should be restricted to individuals who have read and understoood and will

follow the warningsand instructions that are printed in this manual and on the mower.

• Carefully read all instructions on the mower and in the manual before attempting to assemble

and operate the mower. Keep this manual in a safe place for future reference, and consult it

regularly.

• Become familiar with all controls and their proper operation. Know how to stop the mower and

how to disengage the power in an emergency.

• In order to avoid contact with the blade or injury caused by a thrown object, stay in the

operating zone behind the handles, and keep children and bystanders at least 50 ft.(15 m)

away from the mower while it is in operation. Stop the motor immediately if someone enters

the mowing area.

• Thoroughly inspect the area where the mower is to be used. Remove all stones, sticks, wire,

toys, and other objects that could be tripped over or thrown by the blade. Thrown objects can

cause serious personal injury.

• Plan your mowing pattern in such a way as to avoid discharging material toward roads,

sidewalks, bystanders, etc. Do not discharge material against a wall or obstruction. Doing so

may cause the discharged material to ricochet back toward the operator.

• Always wear proper eye protection in order to protect your eyes while operating or performing

any adjustment or repair. Thrown objects that ricochet can cause serious eye injury.

• Always wear a face mask or a dust mask when operating the mower in a dusty environment.

• Dress properly. Do not wear loose clothing or jewelry that can get caught in moving parts. The

wearing of protective gloves and safety footwear is recommended.

• Ground Fault Circuit Interrupter (GFCI) protection should be provided on the circuit(s) or

outlet(s) to be used for the lawn mower. Receptacles are available having built-in GFCI

protection and may be used for this measure of safety.

• Many injuries occur as a result of the mower being pulled over the operator's foot during a

fall caused by slipping or tripping. Do not operate this mower in bare feet, or while wearing

sandals or lightweight (e.g.:canvas) shoes. Do not hold onto the mower if you are falling.

Release the handle immediately.

SAFETY INFORMATION

• Never pull the mower back toward you while you are walking. If you must back the mower

away from a wall or an obstruction, rst look down and behind in order to avoid tripping, and

then follow these steps:

• Step back from the mower in order to fully extend your arms.

• Be sure that you are well balanced.

• Pull the mower back slowly.

• Do not use the mower for any job except that for which it is intended. Do not force the mower.

• Do not put hands or feet near rotating parts or under the cutting deck. Contact with the blade

can amputate hands and feet.

• Do not attempt to adjust the wheels or the cutting height while the motor is running.

• Avoid dangerous environments. Do not operate the mower in the rain or in wet or damp grass.

• Mow only in daylight or in good articial light. Do not rush a mowing job.

• Stop the blade when crossing gravel driveways, walkways,or roads.

• If the mower starts to vibrate excessively, stop the motor and check for the cause immediately.

Vibrationis generally a warning of trouble.

• Stop the motor and wait until the blade comes to a complete stop before removing the grass

catcher or unclogging the chute. The cutting blade will continue to rotate for a few seconds

after the motor is shut off. Do not place any part of your body in the blade area until you are

sure that the blade has stopped rotating.

• Never operate mower without a proper trail shield, discharge cover, grass catcher, blade/

motor control, or other safety device in place and in working order. Do not operate the mower

with damaged safety devices. Doing so can result in injury.

• Stay behind the handle when the engine (motor) is running.

• Stop machine if anyone enters the area.

• Do not pull machine backward unless absolutely necessary. Always look down and behind

before and while moving backward.

• Never leave a running machine unattended.

• Operate machine only in daylight or good articial light.

WARNING(PROPOSITION 65)

Some dust created by power sanding, sawing, grinding, drilling and other construction activities

contains chemicals known to the state of California to cause cancer, birth defects or other

reproductive harm. Some examples of these chemicals are:

• Lead from lead-based paints,

• Crystalline silica from bricks and cement and other masonry products, and

• Arsenic and chromium from chemically-treated lumber.

Your risk from these exposures varies, depending on how often you do this type of work. To

reduce your exposure to these chemical: work in a well ventilated area, and work with approved

safety equipment, such as those dust masks that are specially designed to lter out microscopic

particles.

SAFETY INFORMATION

CHILD SAFETY

Tragic accidents can occur if the operator is not aware of the presence of children.

• Keep children out of the mowing area and under the watchful care of a responsible adult.

• Do not allow children under the age of 14 to operate this mower. Children who are 14 years

of age and older must read and understand the operating instructions and safety rules in this

manual and must be trained and supervised by a parent.

• Stay alert, and turn the mower off if a child or any other person enters the mowing area.

• Look behind and down for small children before and while moving backwards.

• Use extreme care when approaching blind corners, doorways, shrubs, trees, or other objects

that may obscure your view of a child who may run into the path of the mower.

SAVE THESE INSTRUCTIONS

Some of the following symbols may be used on this product. Please study them and learn their

meaning. Proper interpretation of these symbols will allow you to operate the product better and safer.

SYMBOLS

SYMBOL NAME DESIGNATION/EXPLANATION

V Volts Voltage

A Amperes Current

Hz Hertz Frequency (cycles per second)

W Watts Power

min Minutes Time

Alternating Current Type of current

Direct Current Type or a characteristic of current

No Load Speed Rational speed, at no load

Class II Construction Double-insulated construction

/min Per Minute Revolutions, strokes, surface speed, orbits etc.,

per minute

Wet Conditions Alert Do not expose to rain or use in damp locations

Read The Operator’s Manual To reduce the risk of injury user must read and

understand operator’s manual before using this

product.

Eye and Head Protection Wear eye and head protection when operating

this equipment.

Ricochet Thrown objects can ricochet and result in personal

injury or property damage.

Sharp Blade Danger – Keep hands and feet away from blade.

Operating on a slope Do not mow a slope that has an angle of greater

than 15°.

Keep Bystanders Away Keep all bystanders at least 50 ft. away.

The following signal words and meanings are intended to explain the levels of risk associated

with this product.

SERVICE

Servicing requires extreme care and knowledge and should be performed only by a qualied

service technician. For service we suggest you return the product to your nearest AUTHORIZED

SERVICE CENTER for repair. When servicing, use only identical replacement parts.

WARNING

To avoid serious personal injury, do not attempt to use this product until you have read this

Owner's Manual thoroughly and understand it completely. If you do not understand the warnings

and instructions in this Owner's Manual, do not use this product. Call the Toll-free Helpline (1-

888-909-6757) for assistance.

WARNING

The operation of any power tool can result in foreign objects being thrown into your

eyes, which can result in severe eye damage. Before beginning power tool operation,

always wear safety goggles or safety glasses with side shields and, when needed, a

full face shield. We recommend Wide Vision Safety Mask for use over eyeglasses or

standard safety glasses with side shields. Always use eye protection which is marked

to comply with ANSI Z87.1.

SYMBOL SIGNAL MEANING

DANGER Indicates an imminently hazardous situation, which, if not

avoided, will result in death or serious injury.

WARNING Indicates a potentially hazardous situation, which, if not avoided,

could result in death or serious injury.

CAUTION Indicates a potentially hazardous situation, which, if not avoided,

may result in minor or moderate injury.

CAUTION (Without Safety Alert Symbol) Indicates a situation that may

result in property damage.

SYMBOLS

SAVE THESE INSTRUCTIONS

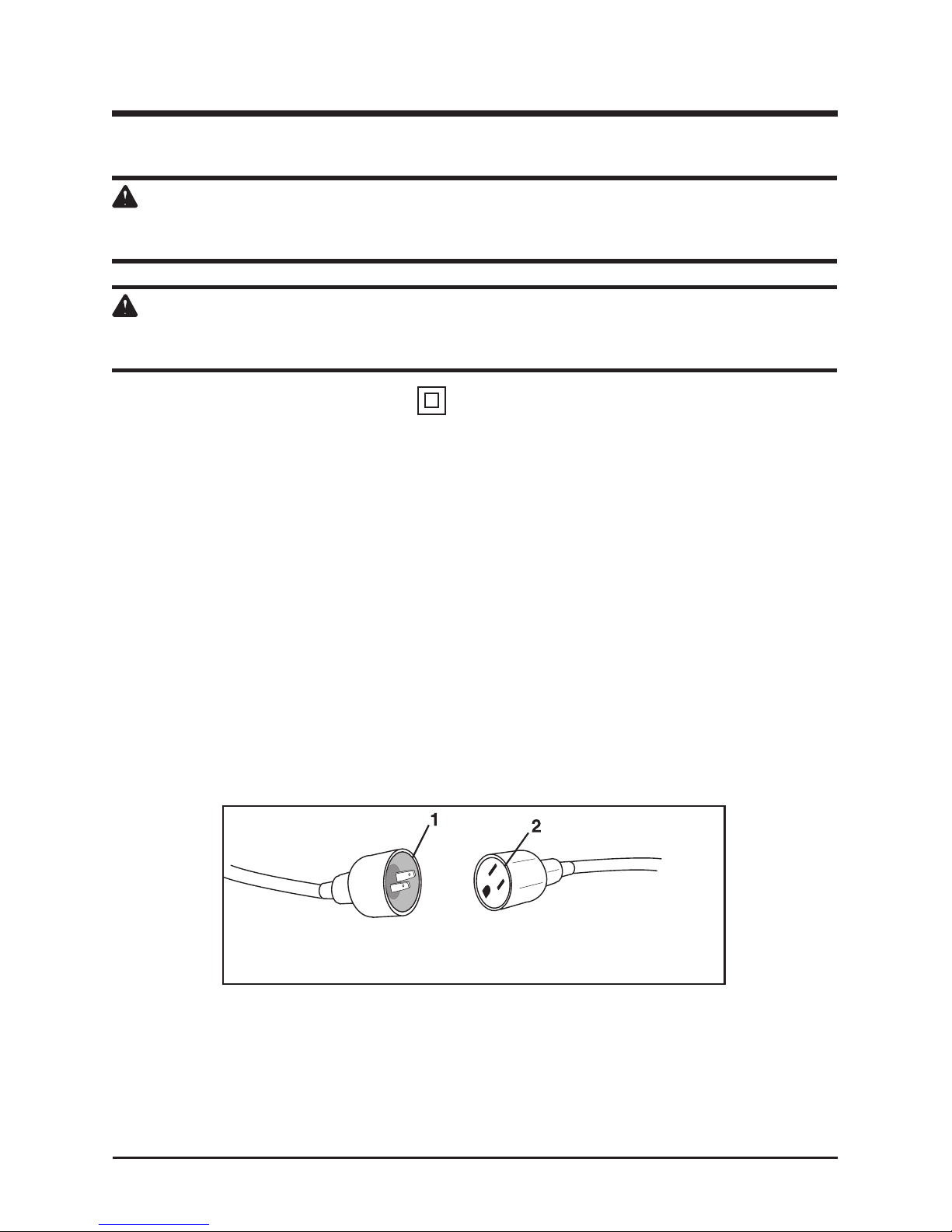

1) 2-prong plug

2) Properly grounded extension cord Fig. 1

ELECTRICAL

DOUBLE INSULATED LAWN MOWER (See Figure 1.)

CAUTION

IN ALL CASES, MAKE CERTAIN THE RECEPTACLE IN QUESTION IS PROPERLY GROUNDED.

IF YOU ARE NOT SURE, HAVE A CERTIFIED ELECTRICIAN CHECK THE RECEPTACLE.

WARNING

THIS MOWER IS FOR OUTDOOR USE ONLY. DO NOT EXPOSE TO RAIN OR USE IN DAMP

LOCATIONS.

This mower is “DOUBLE INSULATED”

• Replacement Parts: When servicing use only identical replacement parts.

• Polarized Appliance Connections: To reduce the risk of electric shock, this appliance has

a polarized plug (one blade is wider than the other) and will require the use of a polarized

extension cord. The appliance plug will fit into a polarized extension cord only one way. If

the plug does not t fully into the extension cord, reverse the plug. If the plug still does not

t, obtain a correct polarized extension cord. A polarized extension cord will require the use

of a polarized wall outlet. This plug will t into the polarized wall outlet only one way. If the

plug does not t fully into the wall outlet, reverse the plug. If the plug still does not t, contact

a qualified electrician to install the proper wall outlet. Do not change the equipment plug,

extension cord receptacle, or extension cord plug in any way.

GUIDELINES FOR USING EXTENSION CORDS

USE THE PROPER EXTENSION CORD. Make sure your extension cord is in good condition.

When using an extension cord, be sure to use one heavy enough to carry the current your

product will draw. An undersized cord will cause overheating. The table below shows the correct

size to use depending on cord length and nameplate ampere rating. If in doubt, use the next

heavier gauge. The smaller the gauge number, the heavier the cord.

Inhaltsverzeichnis

Andere GreenWorks Rasenmäher Handbücher

GreenWorks

GreenWorks 82E8 Bedienungsanleitung

GreenWorks

GreenWorks GD40LM45 Bedienungsanleitung

GreenWorks

GreenWorks GD60LM46SP Bedienungsanleitung

GreenWorks

GreenWorks 25052 Bedienungsanleitung

GreenWorks

GreenWorks 25297 Bedienungsanleitung

GreenWorks

GreenWorks 25222 Bedienungsanleitung

GreenWorks

GreenWorks MO48L2211 Bedienungsanleitung

GreenWorks

GreenWorks LME454 Bedienungsanleitung

GreenWorks

GreenWorks G40LM40 Bedienungsanleitung

GreenWorks

GreenWorks 2502202 Bedienungsanleitung

GreenWorks

GreenWorks G24X2LM36 Bedienungsanleitung

GreenWorks

GreenWorks MO40L01 Bedienungsanleitung

GreenWorks

GreenWorks MO12B00 Bedienungsanleitung

GreenWorks

GreenWorks GLM801602 Bedienungsanleitung

GreenWorks

GreenWorks MO48B01 Bedienungsanleitung

GreenWorks

GreenWorks LMF401 Bedienungsanleitung

GreenWorks

GreenWorks 25147 Bedienungsanleitung

GreenWorks

GreenWorks GST1246 Bedienungsanleitung

GreenWorks

GreenWorks LMF412 Bedienungsanleitung

GreenWorks

GreenWorks LMG401 Bedienungsanleitung

GreenWorks

GreenWorks LMF413 Bedienungsanleitung

GreenWorks

GreenWorks POWERALL MO48L4212 Bedienungsanleitung

GreenWorks

GreenWorks LMC403 Bedienungsanleitung

GreenWorks

GreenWorks LME455 Bedienungsanleitung

Beliebte Rasenmäher Handbücher anderer Marken

RHINO

RHINO 1958 Bedienungsanleitung

Wolf Garten

Wolf Garten Compact plus 40 B Bedienungsanleitung

Cub Cadet

Cub Cadet LTX 1045 Bedienungsanleitung

Craftsman

Craftsman 917.378461 Bedienungsanleitung

GGP ITALY SPA

GGP ITALY SPA CR/CS 434 SERIES Bedienungsanleitung

Challenge

Challenge CH18V2 Betriebsanleitung

TALEN TOOLS

TALEN TOOLS AVR HGM30 Bedienungsanleitung

DEWEZE

DEWEZE ATM-725 Bedienungsanleitung

Weed Eater

Weed Eater 180083 Bedienungsanleitung

Husqvarna

Husqvarna Poulan Pro PP185A42 Bedienungsanleitung

Better Outdoor Products

Better Outdoor Products Quick Series Bedienungsanleitung

Cub Cadet

Cub Cadet 23HP Z-Force 60 Betriebsanleitung

MTD

MTD 795, 792, 791, 790 Bedienungsanleitung

Toro

Toro Groundsmaster 3505-D Bedienungsanleitung

Dennis

Dennis FT 610 Bedienungsanleitung

AIRFORCE

AIRFORCE F-15 Gen 3 Bedienungsanleitung

MTD

MTD 126-220-000 Bedienungsanleitung

Toro

Toro 74806 Bedienungsanleitung
