Grill'D Step-Grill Bedienungsanleitung
Installaon and
Operaon Manual
Step-Grill
Congratulations
on making a right
choice!
Compliance with
the instructions
of this manual
are mandatory, it
guarantees safety,
excellent quality and
maximum service life
of the Grill’D brand
grill.
2

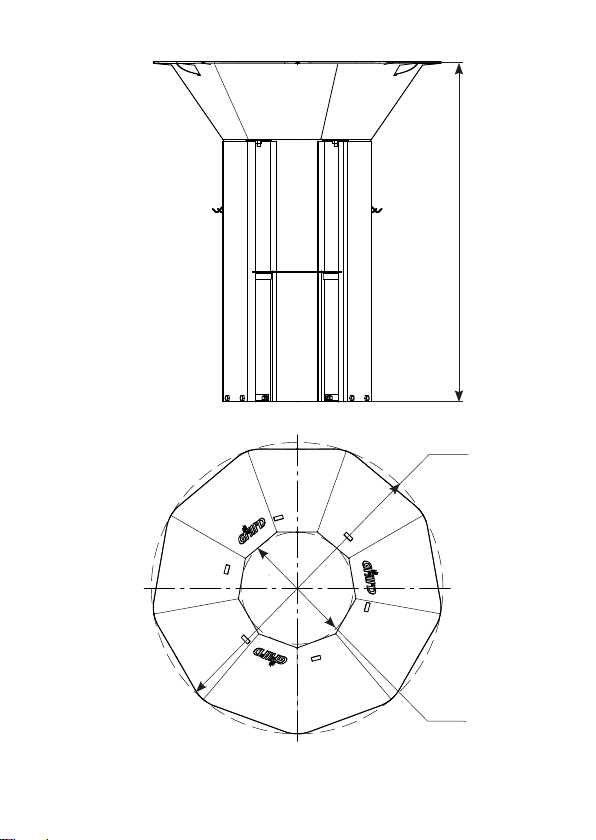

Fig. 1 Step-Grill dimensions
910
ɸ300
ɸ780
3
CONTENTS
№name page
GENERAL SAFETY RULES 3
1. APPLICATION 4
2. TECHNICAL DATA 5
3. DELIVERY PACKAGE, ASSEMBLY PROCEDURE 6
4. COMMISSIONING 13
5. WARRANTY 13
6. TRANSPORTATION AND STORAGE 14
7. DISPOSAL 14
GENERAL SAFETY RULES
IMPORTANT! PLEASE, OBEY FIRE SAFETY RULES!
IMPORTANT! Non-observance of safety measures when using the grill can
lead to serious consequences, even death.
IMPORTANT! Do not use the grill near flammable, volatile or explosive
substances. It is prohibited to use the grill in places where paints, paint
thinners, solvents, gasoline, dust particles or chemicals whose properties
are unknown are located or may be present.
IMPORTANT! It is allowed to use only solid combustible materials: firewood
(alder, birch), charcoal. Construction and other materials containing
chemicals, glue, etc., are strongly prohibited as fuel: wood chipboard, wood
fiber board, and others.
IMPORTANT! It is prohibited to use paints, solvents, plastic, gasoline,
explosive and toxic substances, and other inappropriate materials and
substances when lighting a fire.
IMPORTANT! It is prohibited to touch metal surfaces of the operating grill!
IMPORTANT! It is forbidden to carry out maintenance or moving operations,
or to carry out other operations with a grill in operation.
IMPORTANT! It is forbidden to make changes or install any additional
elements in the design of the grill that are not provided by the
manufacturer.
IMPORTANT! It is prohibited to dry clothes, items, objects, firewood, bath
brooms, etc., on the grill surface.
IMPORTANT! Combustible objects shall be at least 500 mm from the surface
of the grill, and highly inflammable ones - at least 1800 mm.
IMPORTANT! It is forbidden to leave children and animals unattended in the
immediate vicinity of the grill.
4
IMPORTANT! The grill shall be supervised all the time, even if only
smoldering coals or hot ashes are left. Do not entrust this responsible task
to children.
It is preferable to use natural materials such as birch bark, wood chips, etc. as
firelighters.
Keep firelighters and other materials for lighting a fire out of the reach of
children!
It is not recommended to use the grill in windy weather.
Make sure that you have the fire extinguishing equipment necessary for your
environment within easy reach. Persons authorized to use the grill shall be
trained in the use of this equipment.
It is forbidden to lean on or to recline
on the grill and its parts, to use it as a support for various structures.
Vegetable oils used for cooking shall be stored in closed containers and shall
not be placed on or near the grill.
1. APPLICATION
Grill’D brand Step-Grill
is designed for cooking
outdoors, in alcoves,
in verandas and one-
storey extensions, using
firewood or charcoal.
The food can be cooked
on the range (5), or using
additional devices, such
as: wok stand (8), grate
(9). Detailed delivery
package is specified in
Section 3. DELIVERY
PACKAGE, ASSEMBLY
PROCEDURE.
IMPORTANT! When
exploiting the product
commercially, in case
of daily, heavy duty
operating mode, the
work load increases
in 5-10 times. In
such circumstances,
the Manufacturer
disclaims any warranty
obligations.
5
2. TECHNICAL DATA
Grill dimensions are specied in Figure 1.
Grill range (5) and cooking grate (9) are fabricated of stainless steel. Other
elements are fabricated of quality structural-grade steel, painted with an-
corrosion heat-resistant enamel that can withstand temperatures up to 600 °C.
Paint burnout or cracking in the inner bowl (4) is normal and is due to ame
exposure.
No unhealthful substances are emied during heang.
6
3. DELIVERY PACKAGE, ASSEMBLY PROCEDURE
3.1 Delivery package
№Type Name Contents of
delivery
1
Base 1 pce
2
Shelf 1 pce
3
Outer bowl 1 pce
4
Inner bowl 1 pce
5
Range 1 pce
7
6
Support 2 pcs
7
Tongs 3 pcs
8 Wok stand 1 pce
9Grate 1 pce
10 M8 bolt 12 pcs
11 M8 nut 12 pcs
12 M8 spring washer 12 pcs
13 M8 washer 12 pcs
8
1) If necessary, the grill can be fixed
at the place of permanent operation:
there are four holes with a diameter
of 12 mm in the base (1) for fixing the
grill, for example, M10 anchor bolts
(not included into delivery package).
The installation site shall be properly
prepared to ensure the grill stability.
2) After the installation of the base
(1) one support to be attached to it
(6) using one of fastening elements
(10-13).
3.2 Assembly procedure:
IMPORTANT! Do not give mechanical impact to the grill surface prior to
complete heat-bodying of the paint and its cooldown, in order to avoid
damage of the coat of heat-resistant paint.
9

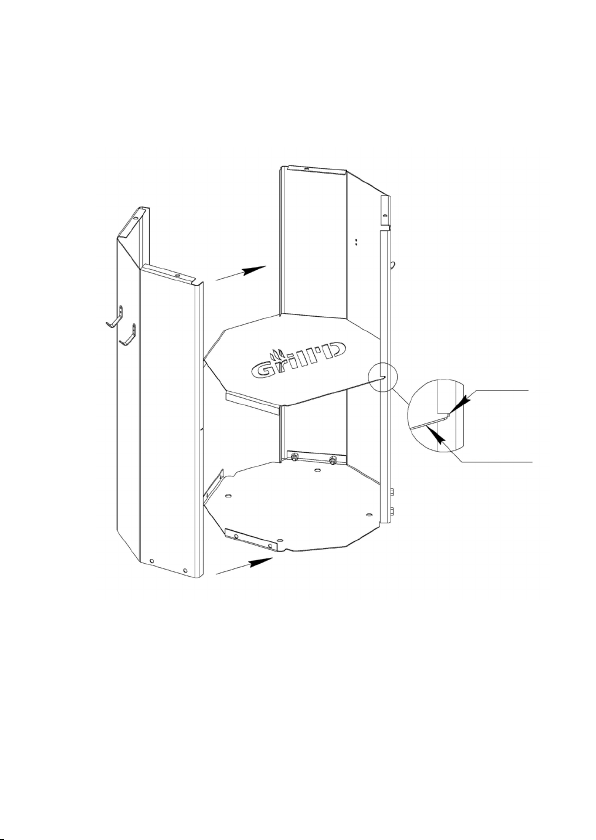

3) Shelf (2) to be installed into the grooves of the previously installed
support (6) and while holding it, install the second support (6)
simultaneously matching the grooves and the shelf. While holding the
structure, attach the support to the base (1) using fastening elements
(10-13).
groove
shelf
10
4) Install the outer bowl (3), attach it to the supports (6) in four places using
fastening elements (10-13).
