Grindmaster AM-344-04 Leitfaden

Shuttle®Brewer & Airpot/Shuttle®Brewers

Operation and Instruction Manual

For Models PB-330, PB-430, PBVSA-330, PBVSA-430, PBIC-330, PBIC-430,

PB330E 230V, PB-430E 230V, PBVSA-330E 230V,

PBVSA-430E 230V, PBIC-330E 230V, PBIC-430E 230V

Table of Contents

Warning Labels . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Installation and Start-up . . . . . . . . . . . . . . . . . . . 4

Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Adjustments . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Programming . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Precision Brew® Control Board . . . . . . . . . . . .15

Troubleshooting

Error Messages . . . . . . . . . . . . . . . . . . . . . 17

Filling Problems . . . . . . . . . . . . . . . . . . . . . 17

Heating Problems . . . . . . . . . . . . . . . . . . . . 19

Brewing Problems . . . . . . . . . . . . . . . . . . . . 21

Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Parts Photos . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

VS-1.5(S) Cleaning and Sanitizing . . . . . . . . . .29

Wiring Diagrams . . . . . . . . . . . . . . . . . . . . . . . . 30

PRINTED IN U.S.A.

Grindmaster Corporation

4003 Collins Lane

Louisville, KY 40245 USA

(502) 425-4776

(800) 695-4500 (USA & Canada only)

(800) 568-5715 (Technical Service Only)

FAX (502) 425-4664

www.grindmaster.com

0607 Form # AM-344-04

Part # A090-840

Prior authorization must be obtained from

Grindmaster Corporation for all warranty claims.

Models PB-330/PB-330E 230V Models PBIC-430/

PBIC-430E230V

Models PBVSA-430/

PBVSA-430E 230V

Warning Labels

The following warning labels were on your dispenser when it was shipped from the factory. They should remain on your dispenser

in good, readable condition at all times. If one of your labels is missing or damaged, order a replacement label immediately.

Part # A546-445

Located on front splash panel and lid of machine.

Located on PB-330, PB-330E 230V, PB-430, and PB-430E 230V lower front decal.

Order part # A546-434 for PB-330.

Order part # A546-435 for PB-430.

Part # A546-213

Located on front splash panel.

Part # A71949

Located on brew baskets.

Shuttle Brewers & Airpot/Shuttle Brewers Page 3

CAUTION

Remove with care.

Hot liquid in brew

basket could cause

burns.

Located on PBIC-330, PBIC-330E 230V, PBIC-430, and PBIC-430E 230V above faucet.

Order part # A546-428 for PBIC-330.

Order part # A546-427 for PBIC-430.

Page 4 Shuttle Brewers & Airpot/Shuttle Brewers

Installation

WARNING

ELECTRIC SHOCK HAZARD!

Installation of this appliance should be performed by qualified service personnel only. Improper

installation could result in electrocution.

Set-Up/Position

1) Remove the brewer from the packing material and attach its legs.

2) Position the brewer on a strong, stable table or counter. Check the level front to back and side to side. Adjust the

legs to the correct level.

IMPORTANT:

THE PERSON INSTALLING THIS APPLIANCE IS RESPONSIBLE FOR ENSURING THAT ELECTRIC AND WATER

CONNECTIONS MEET THE REQUIREMENTS OF THE NATIONAL ELECTRIC CODE, NATIONAL PLUMBING

CODE, AND ANY LOCAL ORDINANCES.

The electric and water hook-up locations are behind the front panel. Remove the four screws fastening this panel for

access to these connections.

Water Hook-up

1) The water line may enter through holes on the rear or the bottom of the brewer. Use the right hand opening for water.

2) Use 3/8” copper or flexible water line to prevent strain. Do not use low temperature plastic tubing. The connection

to the fill valve is 3/8” flare.

3) Water line pressure must be from 30 to 80 psi (207-2 KPA).

4) Hot (up to 160°F/71°C) or cold water may be used. Hot water offers faster recovery between brews.

5) Install a shut-off valve near the brewer.

6) Installing a filtering system can improve the taste of brewed coffee and extend the life of the brewer. If your water

has high calcium (lime), chlorine, or iron content, this is especially important. The filter should be the lime inhibiting

type if cold water is used.



Shuttle Brewers & Airpot/Shuttle Brewers Page 5

Installation (cont.)

Electric Hook-up

The brewer is designed to operate at the specified voltage on the nameplate with a tolerance of ± 10% for voltage

deviation. It is very important that the power line to the brewer be checked to make sure that the voltage is within

10% of the brewer’s rated voltage. Failure to provide adequate voltage, as defined above, will cause problems

with your brewer. If the power is too low, the solenoid valves may or may not work or longer recovery time will be

experienced. The brewer may be permanently damaged if the voltage is too high.

1) The electric ratings for your brewer are printed on its nameplate.

2) The brewer should be connected to its own circuit with a fused disconnect switch or a circuit breaker near the brewer.

Important: For CE units, means shall be provided to endure all pole disconnection from the supply. Such means shall be

one of the following: a supply cord fitted with plug, or a switch that is directly connected to the supply terminals and has a

contact separation of at least 3mm in each pole.

3) Attach the appropriately sized cord to the brewer with a cord grip for the 1 1/2” (3.8 cm) electric input opening.

The cord may enter through the rear or bottom on the left side of the brewer. Use an oil resistant cord such as

type SO, SOO, SAO, STOO, SEO, SJO, SJOO, SJTO, SJTOO, SJEO, HSO, HSOO, HSJO, or HSJOO.

Alternatively, flexible conduit and type THHN wires may be used. Use only copper conductors.

4) Standard connection is 1 phase 3 wire. Connect the two lines to L1 and L2 on the terminal block. If the brewer is

wired for three phase, a lug, L3, is provided on the terminal block. A neutral line must be connected to the N terminal.

Note: PB-xxxE 230V models are 1 phase, 2 wire or 3 phase, 3 wire and do not require a neutral.

5) The body of the brewer must be grounded. A ground lug is provided for this purpose.

Note: If supply cord is damaged, it must be replaced by a special cord or assembly from the manufacturer, ot it’s

service agent.

Note: This appliance is IP10 rated, and shall not be cleaned with a water jet.

WARNING

Never use the ground conductor as a neutral. This could cause electrocution.

Start-up

1) Flip power supply to machine “ON” at the branch supply disconnect and allow the water tank to fill. The machine

will make a subtle hissing sound while filling.

2) Once the brewer is full, it will take 15 to 35 minutes to heat. The ready lights will turn on when up to temperature.

3) Insert the brew baskets and place a Shuttle or airpot under the baskets. Brew at least one batch from each side.

Check the level in the container to be sure the brew volume is correct. Remember that when using coffee, the

level will be lower. Do this for all batch sizes. The water must be hot to check the levels. If adjustments are needed,

see the adjustments section of this manual.



Attention: A watchdog circuit also monitors the water level in the tank and will disable the machine

if the water level in the tank is not normal within (6) minutes of fill time. The machine will require

power to be reset to clear the watchdog timeout and “ER-1” message will appear.

Page 6 Shuttle Brewers & Airpot/Shuttle Brewers



Operation

CAUTION

HOT LIQUID HAZARD!

Water used for brewing coffee is very hot. Use caution when brewing, pouring, or transporting

coffee. Accidental spills may result in severe burns.

1) Place an empty, warm Shuttle on the shelf, under the brew head. Turn on the warmer if available.

2) If the Shuttle is not warm, allow the warmer to heat the Shuttle. Only a short brew of water will speed this.

A cold Shuttle will significantly lower the temperature of the brewed coffee.

3) Remove the filter basket and line with a filter paper. Paper size is 13 x 5 for the smaller basket, BB1.5, and

14 x 6 for the larger, BB2.0.

4) Place ground coffee in the filter basket. Follow corporate recommendations for amount of coffee and grind.

A full Shuttle is 1.5 gallons (5.7L). A full vacuum Shuttle is 1.6 (6.0L) gallons.

5) Slide the basket into the brewer making sure the spout lines up with the top of the Shuttle.

6) If ready lights are lit, press correct batch size button.

7) Brew spray time is about 4 minutes for a full Shuttle. After the brew, allow the coffee to drip for 1 to 2 minutes.

Ready light will flash during the entire brew spray and drip cycle. Brew basket will be locked in place until drip

cycle is finished.

CAUTION

Coffee basket contains very hot water until the drip is completed. Early removal of a dripping

basket could result in burns.

8) Dump the grounds from the basket and rinse for the next brew. Coffee is ready to serve.

9) The Shuttle may be placed on remote warming stations. Use caution when moving a full Shuttle.



Shuttle Brewers & Airpot/Shuttle Brewers Page 7

Adjustments

All adjustments to machine are accessible through the front display(s). Refer to specifics below and the

Programming Routine section. All values are preset at the factory and may vary brewer to brewer.

Temperature Adjustment

Tank temperature can be adjusted from 170°F – 205°F (77°C – 96°C) through the front display. See Programming

Routine section for procedure.

Brew Volume “br”

Brew time can be set for each size visually. See Setting Brew Volume Procedure below.

Brew time can also be adjusted through the display. See Programming Routine section.

Setting Brew Volume Visually

1. Remove brew basket and place container under brew head.

2. Press and hold desired brew button for 5 seconds. Display will read “Pro”.

3. Within 20 seconds, press and release desired brew button. Water will dispense from spray head and time

will count-up in display.

4. When volume is at desired amount, press and release brew button to stop flow. Time will flash in display.

5. Within 20 seconds, press and release desired brew button. Display will clear and brew time will be stored

into memory.

Note: During this routine, no pulsing or bypass will occur.

Note: If the On/Off button is pressed during procedure, time setting will default to previous time.

Pulse Brewing “P-b”

Within the Programming Routine, the number of pulses, pulse-on-time, and pulse-off-time for each size brew cycle

can be set. During the pulse-off cycle, water shuts off to the coffee grounds. During this period, the grounds in the

brew basket absorb water causing the coffee bed to rise. With a larger bed of coffee in the brew basket, remaining

water from spray head has more contact area with grounds causing greater extraction of finished coffee.

Note: Adjusting pulse values will not affect the finished brew volume. The brew time, however, will be automatically

extended by the amount of total pulse OFF time.

See Brew Routine Section for examples.

Ratio “rto”

The ratio of the bypass flow rate versus the spray head flow rate is factory set. This number, however, rarely needs

to be adjusted.

To find the proper value for the ratio:

1. Within the Programming Routine, set the bypass % to the maximum number allowable.

2. Remove the brew basket.

3. Prepare two containers to measure volume from both the spray head and bypass.

4. Press “Large” brew button to begin dispensing water.

5. After a minute or two, cancel the brew cycle by pressing the “Large” brew button or pressing the On/Off button.

6. Measure the volume of both containers.

7. Divide the bypass amount by the spray head amount. This number is to be entered as the new ratio (ex. “.45”).

8. Access the settings routine and adjust to the new ratio number.

Note: If the ratio number is accurate, changing the bypass percent will not require resetting brew time.

Note: Approximate ratio numbers:

.45 for standard spray head models

.64 for gourmet spray head models

Page 8 Shuttle Brewers & Airpot/Shuttle Brewers

Adjustments (cont.)

Bypass “b-P”

Brewer contains a bypass valve to control the amount of water to bypass coffee grounds and dilute the

final brew. Bypass is available on Large and Medium brew cycles.

Within the Programming Routine, the percent of the total brew volume to be bypassed can be set.

Note: Adjusting bypass percent will not affect the finished brew volume. The brew cycle time, however, will be

automatically reduced as bypass percent increases.

Brew Routine

No Pulse Brewing or Bypass

Assumptions: “br” = 4.00, “P-b” = OFF, “b-P” = OFF

11. Press “Brew” button.

12. 0:00, Brew Valve opens and Ready Light flashes.

13. 4:00, Brew Valve closes.

14. 5:30, Ready Light stops flashing

Pulse Brewing ON, Bypass OFF

Assumptions: “br” = 4.00; “P-b” = 3, 20, 15; “b-P” = OFF

11. Press “Brew” button.

12. 0:00, Brew Valve opens and Ready Light flashes.

13. 0:20, Brew Valve closes. (Pulse #1)

14. 0:35, Brew Valve opens.

15. 0:55, Brew Valve closes. (Pulse #2)

16. 1:10, Brew Valve opens.

17. 1:30, Brew Valve closes. (Pulse #3)

18. 1:45, Brew Valve opens.

19. 4:45, Brew Valve closes.

10. 6:15, Ready Light stops flashing.

Pulse Brewing OFF, Bypass ON

Assumptions: “br” = 4.00; “P-b” = OFF; “rto” = 0.45; “b-P” = 20 (max 31)

(Software calculates: Brew valve-on-time = 192 sec and Bypass Valve-on-time = 107 sec)

11. Press “Brew” button.

12. 0:00, Brew Valve opens and Ready Light flashes.

13. 1:25, Bypass Valve opens.

14. 3:12, both valves close.

15. 4:42, Ready Light stops flashing.

Pulse Brewing and Bypass ON

Assumptions: “br” = 4.00; “P-b” = 3, 28, 18; “rto” = 0.45; “b-P” = 30 (max 31)

(Software calculates: Brew valve-on-time = 168 sec and Bypass Valve-on-time = 160 sec)

11. Press “Brew” button.

12. 0:00, Brew Valve opens and Ready Light flashes.

3. 0:08, Bypass valve opens

14. 0:28, Both valves closes. (Pulse #1)

15. 0:46, Both valves opens.

16. 1:14, Both valves closes. (Pulse #2)

17. 1:32, Both valves opens.

18. 2:00, Both valves close. (Pulse #3)

19. 2:18, Both valves open.

10. 3:42, Both valves close.

11. 5:06, Ready light stops flashing.

Shuttle Brewers & Airpot/Shuttle Brewers Page 9

Programming

(All values are preset at the factory and may vary brewer to brewer.)

Settings Routine

Programming For All Brewer Settings and Large Portion (refer to Table 1)

11. Press and hold both “up” and “down” arrows for 5 seconds.

12. All three “brew” lights will flash.

13. Press “Large Brew” button.

Only “Large” ready light illuminates during remaining steps.

14. Display will indicate either “d F” or “d C” (Fahrenheit or Celsius). Default is “d F”.

15. Press “up” or “down” arrow to change from one to another.

16. Press “Large Brew” button to accept and go to next setting.

17. Display will read temp value in the selected scale (170°F-205°F). Default is “200”.

18. Press “up” or “down” arrow to change value. (1° increments)

19. Press “Large Brew” button to accept and go to next setting.

10. Display will read “Br”. (Brew Time)

11. Press “Large Brew” button to go to next setting.

12. Display will read set brew time in minutes and seconds (0.01-6.00). Default is “4.00”.

13. Press “up” or “down” arrow to change value (1 second increments). (Approximately 0.8 oz./second.)

14. Press “Large Brew” button to accept and go to next setting.

15. Display will read “P-b”. (Pulse Brewing)

16. Press “Large Brew” button to accept and go to next setting.

17. Display will read “OFF” or “1” – “6” (number of pulses). Default is “1”.

18. Press “up” or “down” arrow to change value. (increments of 1)

19. Press “Large Brew” button to accept and go to next setting.

Note: If “OFF” is selected, skip pulse timing steps to #26.

20. Display will read “0.05” – “0.60” (pulse ON time for each pulse). Default is “0.40”.

21. Press “up” or “down” arrow to change value. (increments of one second)

22. Press “Large Brew” button to accept and go to next setting.

23. Display will read “0.05” – “0.60” (pulse OFF time for each pulse). Default is “0.40”.

24. Press “up” or “down” arrow to change value. (increments of one second)

25. Press “Large Brew” button to accept and go to next setting.

26. Display will read “rto” (bypass flow rate/spray head flow rate).

27. Press “Large Brew” button to go to next setting.

28. Display will read “0.20 – “1.25” (bypass rate/spray rate). Value is set at factory. If standard spray head, use “0.45,

if gourmet or sealed use “0.64”.

29. Press “up” or “down” arrow to change value. (increments of 0.01)

30. Press “Large Brew” button to accept and go to next setting.

31. Display will read “b-P” (percent of brew volume to be bypassed).

32. Press “Large Brew” button to go to next setting.

33. Display will read “OFF” or “1” – “33” (bypass %). Default is 25.

34. Press “up” or “down” arrow to change value. (increments of one percent)

35. Press “Large Brew” button to accept and go to next setting.

36. Display will read “Ltn” (Low-Temp/No Brew).

37. Press “Large Brew” button to go to next setting.

38. Display will read “On” or “Off”. Default is “Off”.

39. Press “up” or “down” arrow to change value.

40. Press “Large Brew” button to accept and clear display.

Page 10 Shuttle Brewers & Airpot/Shuttle Brewers

Programming For All Brewer Settings and Large Portion (cont.)

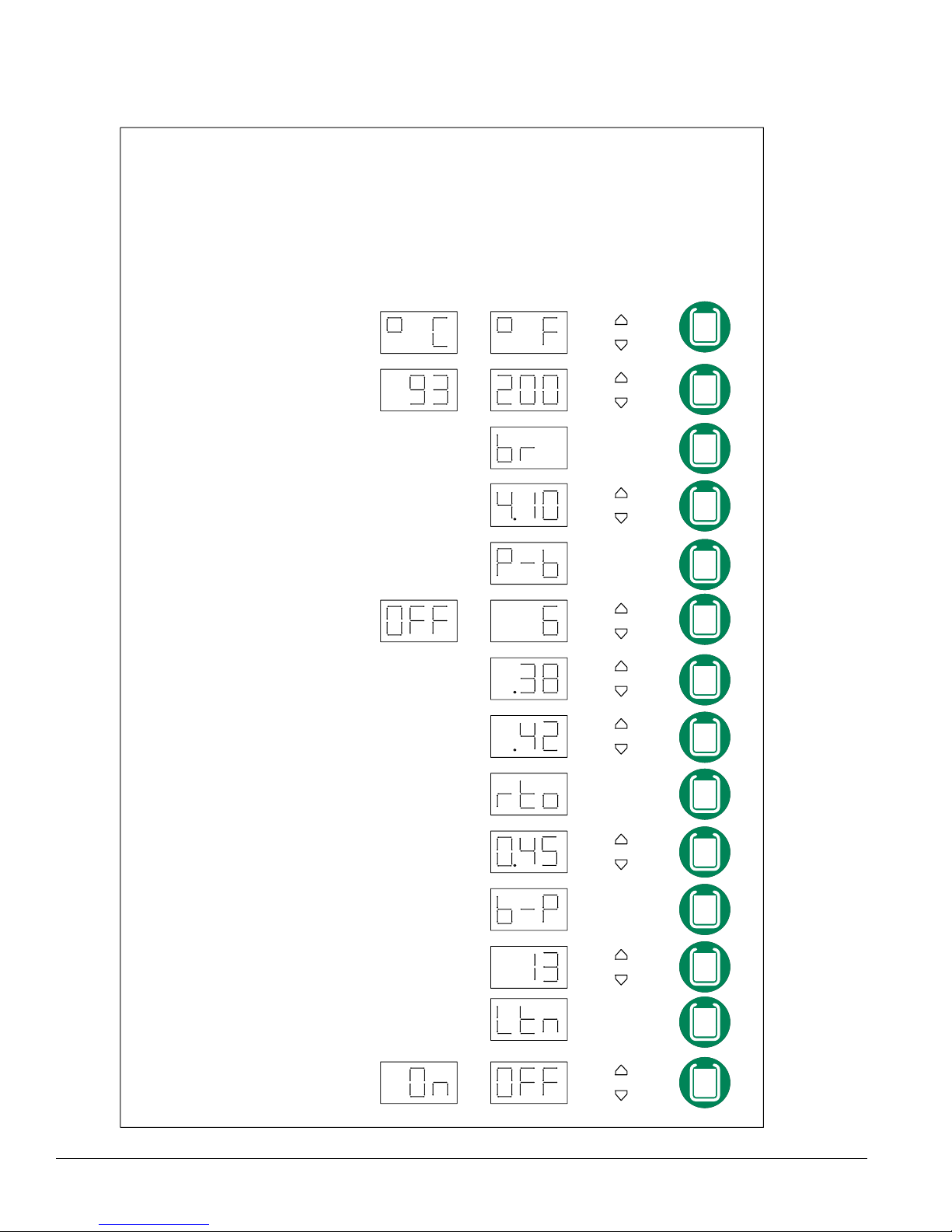

Table 1

ADJUST

LOW-TEMP/NO-BREW

NO-BREW

LOW-TEMP/

BYPASS RATIO

ADVANCE

)

BYPASS % (OFF, 1-33)

BYPASS RATIO (0.20-1.25)

BYPASS

(MAX CHANGE DEPENDING ON RATIO

# of seconds shown

PULSE ON TIME (0:05-0:60)

# of seconds shown

(OFF, 1 - 6)

# OF PULSES

TANK TEMP (170-205F)

PULSE OFF TIME (0:05-0:60)

4 minutes, 10 seconds shown

PULSE BREW

BREW TIME

READING

TEMP SCALE

DISPLAY

BREW TIME (0:01-6:00)

0.45 for Standard Spray Head, 0.64 for Gourmet Spray Head

1. PRESS-AND-HOLD UP & DOWN ARROWS FOR 5 SECONDS.

2. READY LIGHTS WILL FLASH.

3. PRESS BREW BUTTON FOR LARGE "L".

4. LARGE READY LIGHT FLASHES THROUGHOUT ROUTINE.

5. DISPLAY WILL READ AS FOLLOWS:

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Grindmaster Kaffeemaschine Handbücher

Grindmaster

Grindmaster OPOD Bedienungsanleitung

Grindmaster

Grindmaster PrecisionBrew B-3WL Bedienungsanleitung

Grindmaster

Grindmaster Grind'n Brew-10H Operation and Leitfaden

Grindmaster

Grindmaster B-DAP Bedienungsanleitung

Grindmaster

Grindmaster 11 Leitfaden

Grindmaster

Grindmaster AT-AP Bedienungsanleitung

Grindmaster

Grindmaster 10H Bedienungsanleitung

Grindmaster

Grindmaster PrecisionBrew PB-430 Bedienungsanleitung

Grindmaster

Grindmaster CPO-1P Bedienungsanleitung

Grindmaster

Grindmaster P300E Leitfaden

Grindmaster

Grindmaster Precision Brew Bedienungsanleitung

Grindmaster

Grindmaster Insulated Decanter Brewer AMW B-Series Bedienungsanleitung

Grindmaster

Grindmaster OPOD Bedienungsanleitung

Grindmaster

Grindmaster Grind'n Brew-10 Leitfaden

Grindmaster

Grindmaster RAPS300 Bedienungsanleitung

Grindmaster

Grindmaster BA-P Bedienungsanleitung

Grindmaster

Grindmaster B-SAP Bedienungsanleitung

Grindmaster

Grindmaster Espressimo 1750 Bedienungsanleitung

Grindmaster

Grindmaster PrecisionBrew B-3WL Bedienungsanleitung

Grindmaster

Grindmaster P200E Leitfaden

Grindmaster

Grindmaster PrecisionBrew PBIC-430 Bedienungsanleitung

Grindmaster

Grindmaster PrecisionBrew APB-330V2 Leitfaden

Grindmaster

Grindmaster Espressimo 1750 Handbuch

Grindmaster

Grindmaster Grind'n Brew Series Bedienungsanleitung

Beliebte Kaffeemaschine Handbücher anderer Marken

Taurus

Taurus Livorno 6 Bedienungsanleitung

Delta-q

Delta-q QUICK Bedienungsanleitung

Bunn

Bunn LCA-1 Fehlerbehebungshandbuch

Black & Decker

Black & Decker BLACK DECKER HOME DE790 Montageanleitung

Saeco

Saeco Vienna Plus Sup 018M Bedienungsanleitung

DeLonghi

DeLonghi DC300 Bedienungsanleitung

INCAPTO

INCAPTO BXCO1470E Bedienungsanleitung

Bosch

Bosch TASSIMO finesse TAS16B Series Bedienungsanleitung

Exido

Exido 245-072 Bedienungsanleitung

Animo

Animo OptiVend Choco Bedienungsanleitung

Siemens

Siemens TQ505DF Series Bedienungsanleitung

DeLonghi

DeLonghi ECI341 Bedienungsanleitung

Krups

Krups KT406511 Bedienungsanleitung

Cimbali

Cimbali M32 Classic Bedienungsanleitung

Philips

Philips HL3844N Bedienungsanleitung

Bosch

Bosch TES 515 SERIES Bedienungsanleitung

Tekmatix

Tekmatix TMFM - 65 Bedienungsanleitung

Scarlett

Scarlett SC-CM33005 Bedienungsanleitung
