Grizzl-E Mini GRM-14-24-PB Bedienungsanleitung
GRIZZL E
TM
EV Charger
MINI
User manual and installation guide
2
Grizzl-E Mini
User Manual
Manual Version 1.0
Model Numbers:
• GRM-14-24-PB
3

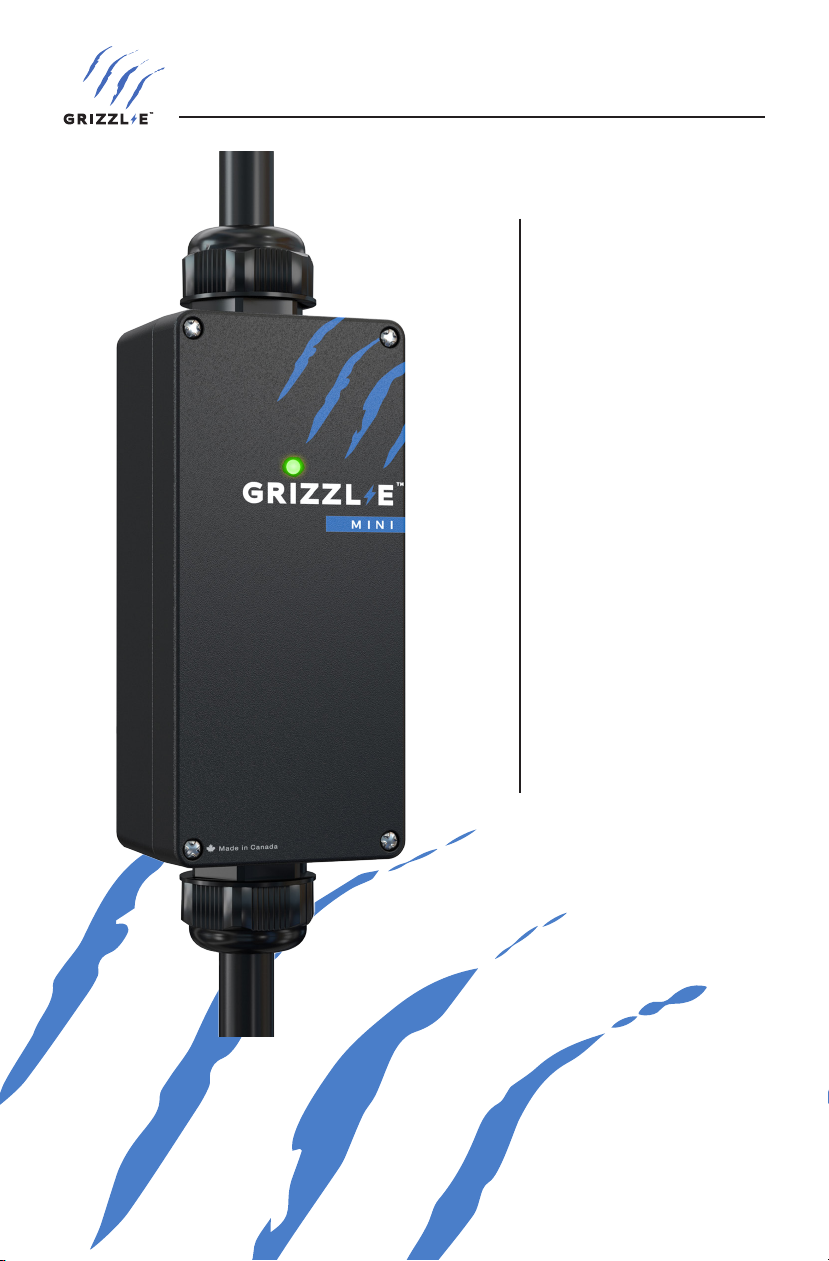

Grizzl-E EV Mini EV Charging Station
The Grizzl-E Mini Edition is the small, versatile, and portable EV charging station with a NEMA
4 Indoor/Outdoor aluminum cast enclosure. Made in Canada and built for any environment.
Grizzl-E Mini provides up to 10kW of power to your vehicle and can be set to multiple current
ratings for 240V and 120V outlets.
The Grizzl-E Mini Edition has easy-to-adjust smart features to change settings for different
charging locations, monitor the charger, and set charging schedules.
IMPORTANT SAFETY INSTRUCTIONS
This document contains instructions and warnings that must be followed when installing
and using the GRIZZL-E Mini Electric Vehicle Supply Equipment (EVSE). Before installing or
using the EVSE, read this document, including any WARNING and CAUTION symbols.
The symbols used have the following meaning:
Warning: risk of personal injury Warning: risk of fire
Warning: risk of electric shock Caution: risk of damage to equipment
• This document provides instructions for the charging station and should not be used for
any other product.
• Before installing or using this product, review this manual carefully and consult a licensed
contractor, licensed electrician, or trained installation expert to ensure compliance with
local building codes and safety standards.
• Consult a licensed electrician to ensure that you can safely install and use this product.
• Ensure that the materials and installation procedures follow local building codes and
safety standards.
• The information in this manual does not exempt the user from following all applicable
codes or safety standards.
4
Overall Warnings and Cautions
Basic precautions should always be followed when using electrical products, including the
following:
• Read all the instructions before using this product.
• Children should not use this device.
• Do not put fingers into the EV connector.
• Do not touch live electrical parts.
• Do not use this product if the flexible power cord or EV cable is ragged, has broken
insulation, or any other signs of damage.
• Improper connection of the equipment grounding conductor can result in a risk of electric
shock. Check with a licensed electrician if you are unsure whether the product is properly
connected and grounded.
Repair and Maintenance Clause
• All United Chargers products do not require routine maintenance. However, periodic
inspections should be conducted to ensure that all parts remain in good working order
and no damage exists.
• Do not attempt to open, disassemble, repair, tamper with, or modify any components of
the products. Contact United Chargers for any repairs.
WARNING: This equipment is intended only for charging vehicles
that do not require ventilation during charging. Please refer to your
vehicle’s owner’s manual to determine ventilation requirements.
CAUTION: The service wiring in this section are specific to North
America. Before installing the Charging Station, identify the type
of utility service connection onsite. If unsure about the connection
available at the service panel, contact a licensed electrician.
5
Product Specications
Description Specications
Model Numbers GRM-14-24-P
Connector EVSE Level SAE J1772; AC Level 2
Electrical Circuit / Input Power
Requirements
Dedicated Single Phase 208-240VAC 50/60 Hz. Branch
Breaker: Double pole
OR
Dedicated Single Phase 110-120VAC 50/60 Hz.
Maximum Output Rating 40A; 9.60kW with 50A Circuit Rating
Alternate Adjustable
Output Ratings
240V Outlet
39A; 9.36kW - 7A; 1.9kW
120V Outlet
12A; 1.44kW - 7A; 0.84kW
Input Power Connection Plug in NEMA 14-50
Installation Rating NEMA 4, Indoor/Outdoor Rated
Operational Ratings Temperature -22F to 122F (-30C to 50C)
Humidity: 95% non-condensing
Overall Dimensions Length: 175mm (6.9in)
Width: 80mm (3.1in)
Height: 60mm (2.4in)
Display and Indicators LED Charge Status Indicator
(Amperage Setting, Ready/Charging, Charging Fault)
Charge Cable Length 24ft (7.3m)
6
Contents
1. Introduction and Unpacking ............................................................................................7
1.1 Your Charger.......................................................................................................................... 7
1.2 Package Contents.................................................................................................................. 8
2. Installation Planning and Service Wiring ........................................................................9
2.1 Electrical Source Requirements .......................................................................................... 9
2.2 Grounding Instructions ..................................................................................................... 10
2.3 GFCI ...................................................................................................................................... 10
2.4 Grizzl-E Mini Adaptive Voltage ........................................................................................... 10
3. Maximum Current Output...............................................................................................11
3.1 Adjust Maximum Current by DIP Switches ...................................................................... 11
4. Mounting Bracket .............................................................................................................14
5. EasyEvPlug Holster and Cable Management System....................................................15
6. Charging Status Indicators and Buzzers ........................................................................16
6.1 Indicator Lights.................................................................................................................... 16
6.2 LED Fault Indicator.............................................................................................................. 16
6.3 Self-Monitoring and Recovery (Auto Restart) ................................................................. 17
6.4 Reset Charger ...................................................................................................................... 17
7. Grizzl-E Mini Smart Features ...........................................................................................18
7.1 Connect to Local Grizzl-E Mini Network ........................................................................... 18
7.2 Status .................................................................................................................................... 19
7.3 Timer..................................................................................................................................... 22
7.4 Setup..................................................................................................................................... 25
7.5 Advanced.............................................................................................................................. 29
8. Operation ..........................................................................................................................31
8.1 Connect and Charge .......................................................................................................... 31
8.2 Stop Charging ..................................................................................................................... 31
9. General Product Care and Use ........................................................................................32
10. Warranty and Return Policy .........................................................................................33
7
1. Introduction and Unpacking

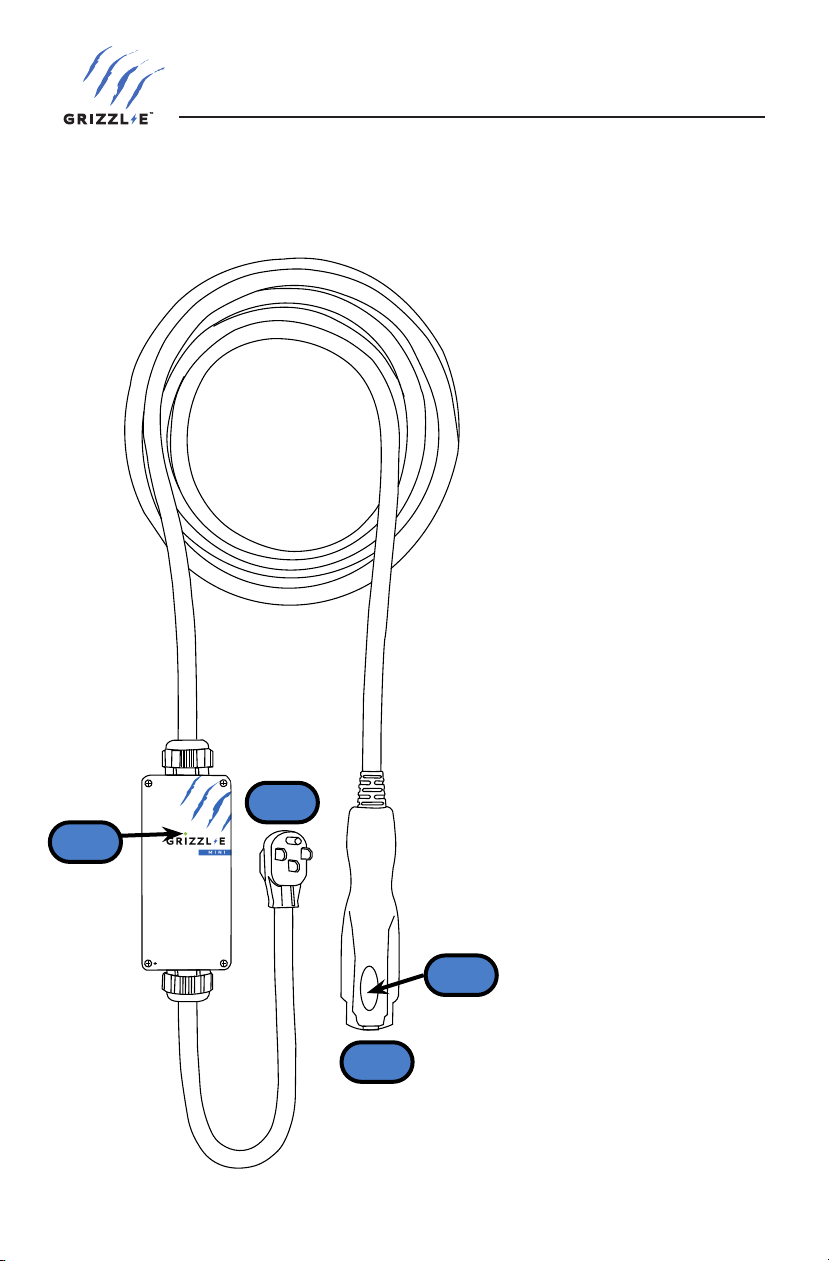

1.1 Your Charger
Made in Canada
1
2
3
4
Charger Components
1. Input Cable 14-50P
2. Output Cable J1772 Connector
3. Latch Release Button
4. Indicator Light
8

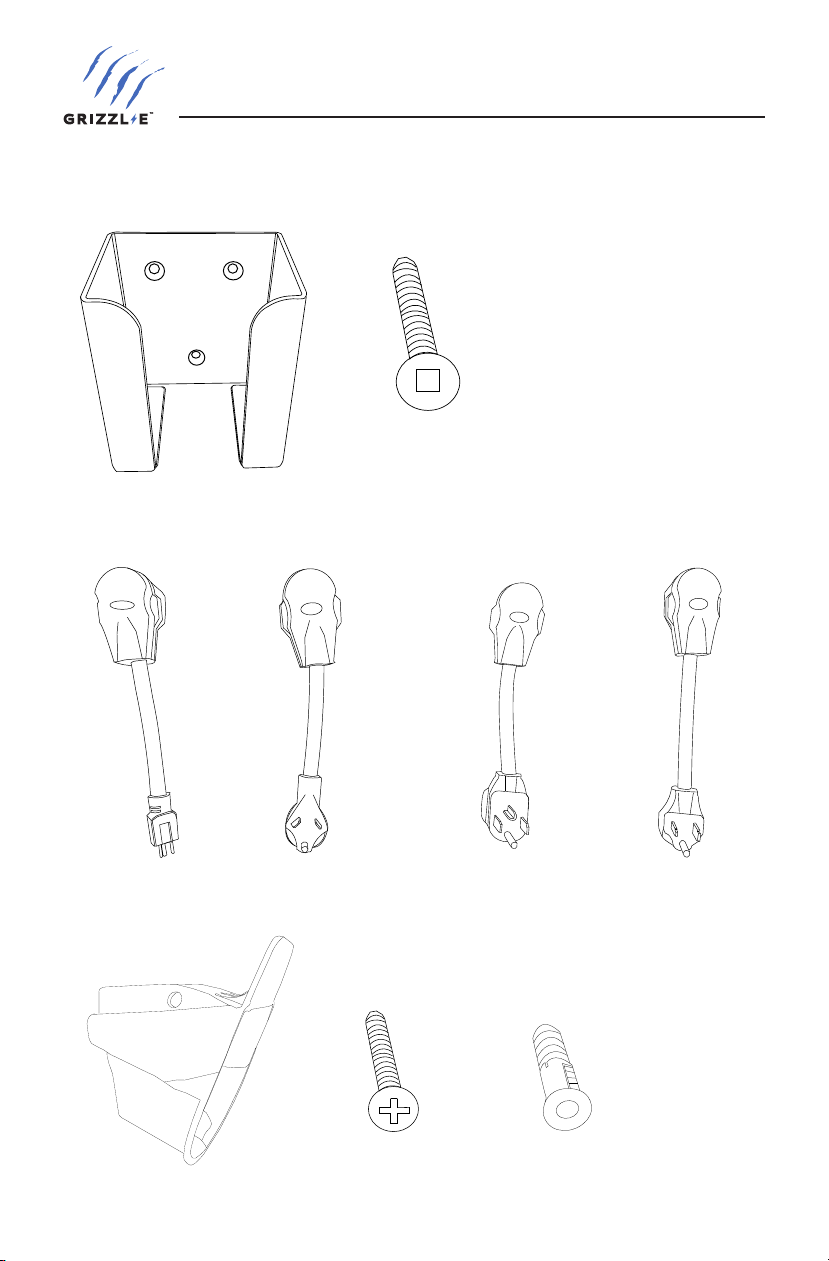

1.2 Package Contents
Mounting Kit
Mounting Bracket
Mounting Screw
Electrical Adapters
NEMA 14-50R to
NEMA 5-15P
NEMA 14-50R to
NEMA 7-30P
NEMA 14-50R to
NEMA 14-30P
NEMA 14-50R to
NEMA 6-50P
Holster Kit
EasyEVPlug
Holster
Phillips Head Screws
(x4)
Anchor (x4)
9
2. Installation Planning and Service Wiring
WARNING: Disconnect the power supply to the charging station
before installing or adjusting the charging station. Failure to do so may
result in physical injury or damage to the power supply system and the
charging station.
CAUTION: To reduce the risk of fire, connect only to a circuit provided
with the minimum branch circuit overcurrent protection requirements
in accordance with the National Electrical Code ANSI/NFPA 7- and the
Canadian Electrical Safety Code, Part 1, C22.1. If you are unsure if
your circuit meets these requirements consult a licensed electrician.
2.1 Electrical Source Requirements
Prior to using Grizzl-E Mini ensure the electrical source that can support the following Input
Requirements for the Charging Station Per local Electrical Safety Code requirements:
• 208-240VAC 16A-40A or 110-120VAC 7A-15A Dedicated Circuit
• A Double Pole Circuit Breaker of the circuit rating must be used.
• Requirements govern that only 80% of the circuit rated load may be utilized.
• The Charging Stations can connect a Standard NEMA 14-50 Receptacle, or the provided
adapters can be used.
Caution: Grizzl-E Mini must use the original NEMA 14-50 plug. Do not
attempt to disassemble unit to hardwire or change the plug. Doing so
will void the warranty.
10
2.2 Grounding Instructions
The charging station must be implemented equipment grounding through a permanent
wiring system or an equipment grounding conductor. Use a cable with a dedicated grounding
conductor connected to the equipment ground terminal block.
2.3 GFCI
• The Charger is equipped with GFCI. Additional downstream GFCI is not required.
• In locations where GFCI at the outlet is mandated by code, the charger will not experience
adverse effects.
2.4 Grizzl-E Mini Adaptive Voltage
Grizzl-E Mini can work with either a 208-240V or 110-120V dedicated circuit.
Grizzl-E Mini will automatically detect the outlet power and adjust settings when the input
cable is plugged into the outlet.
Grizzl-E Mini can work with the following adapters:
• NEMA 14-50R - NEMA 5-15P. 110-120V VAC. 15A.
• NEMA 14-50R - NEMA 7-30P. 208-240 VAC. 30A.
• NEMA 14-50R - NEMA 14-30P. 208-240 VAC 30A.
• NEMA 14-50R - NEMA 6-50P. 208-240 VAC. Max 50A.
