DESIGN + ENGINEERING

GROHE GERMANY

www.grohe.com

19 839

19 822

19 825

99.790.031/ÄM 219326/10.11

English .....1

Français .....8

Español ...15

S.v.p remettre cette instruction à l'utilisateur de la robinetterie!

Entregue estas instrucciones al usario final de la grifería!

Please pass these instructions on to the end user of the fitting!

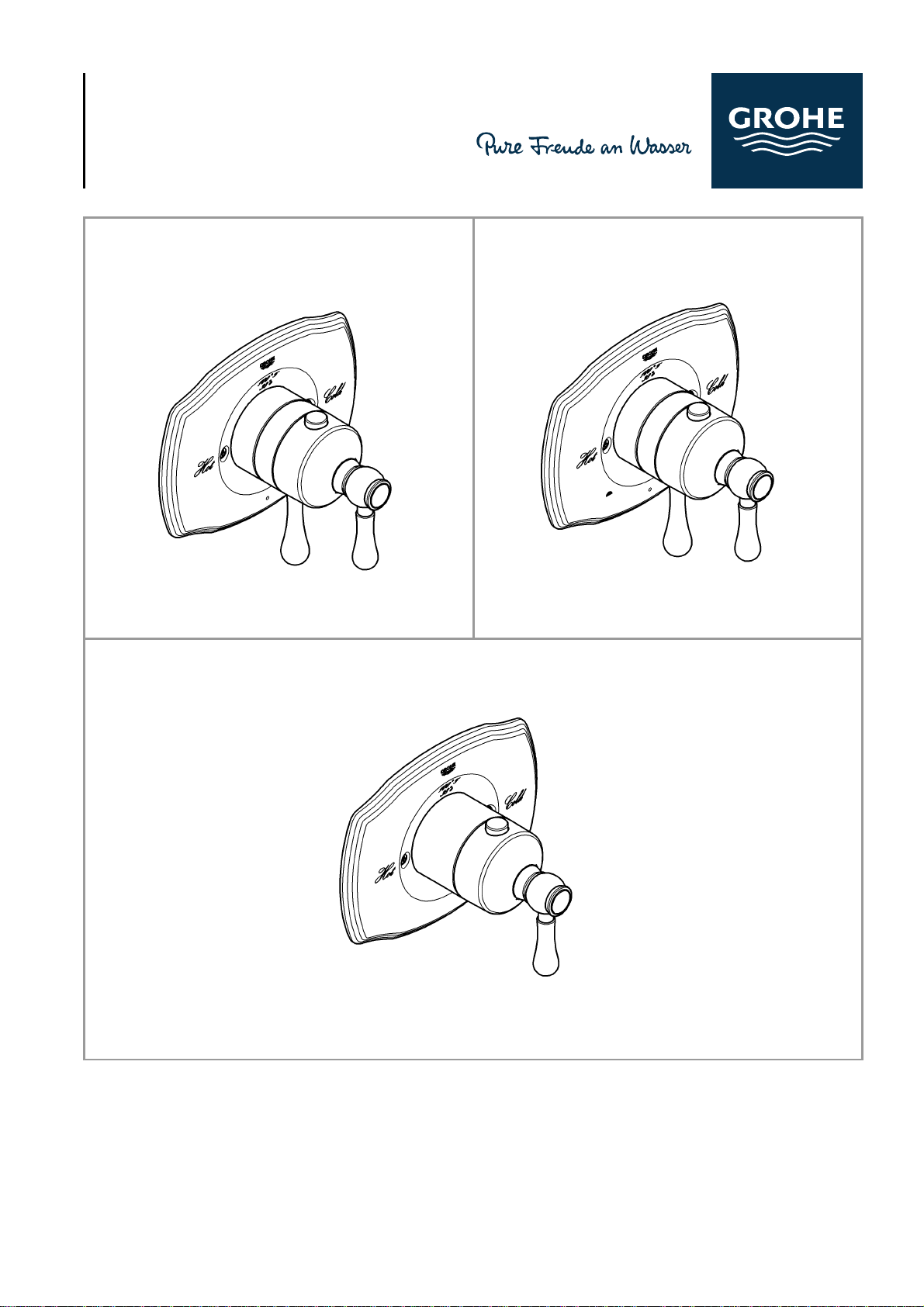

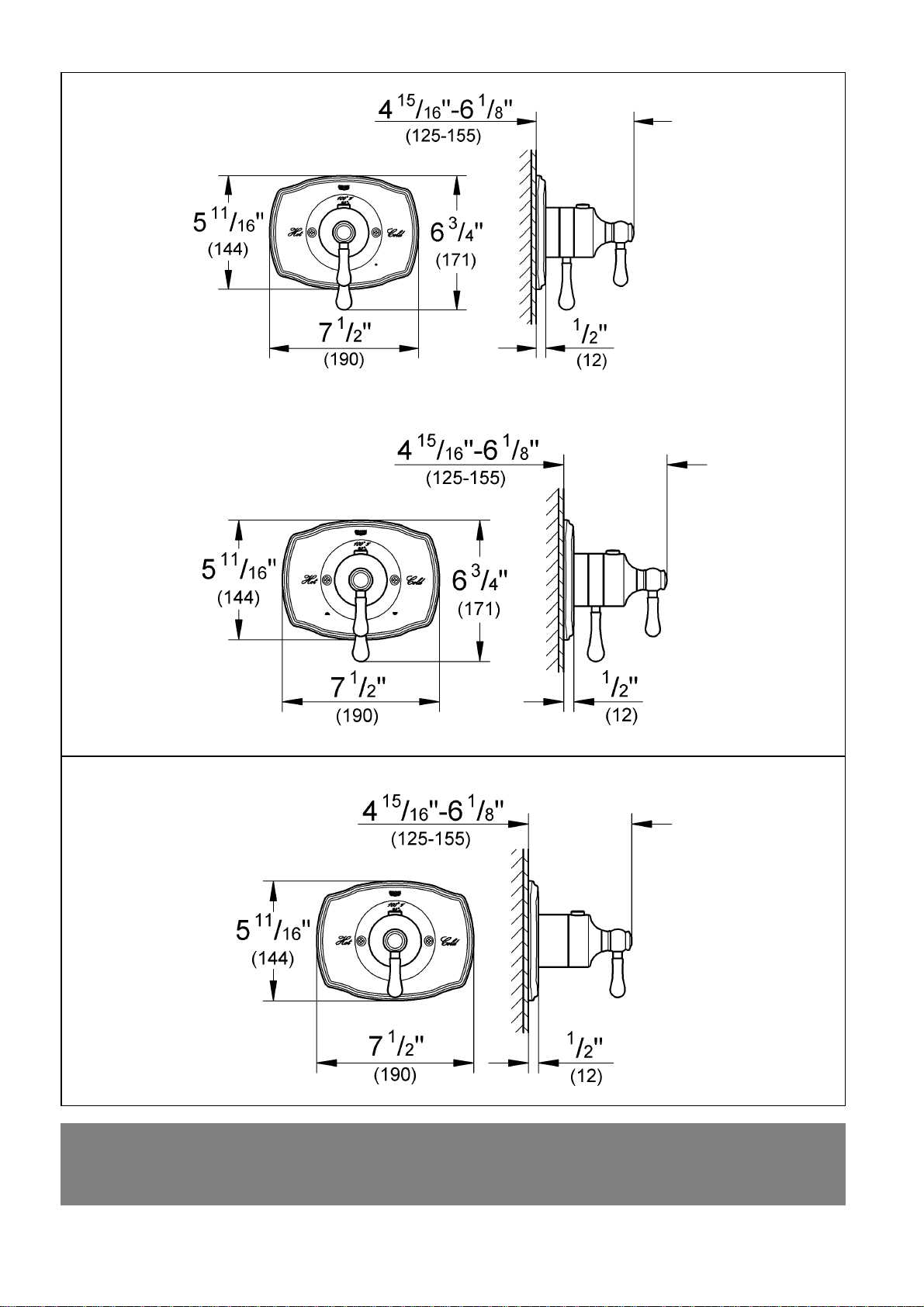

Type #1

19 822

Type #2

19 825

Type #3

19 839

II II

Type #1

19 822

Type #2

19 825

Please pass these instructions on to the end user of the faucet!

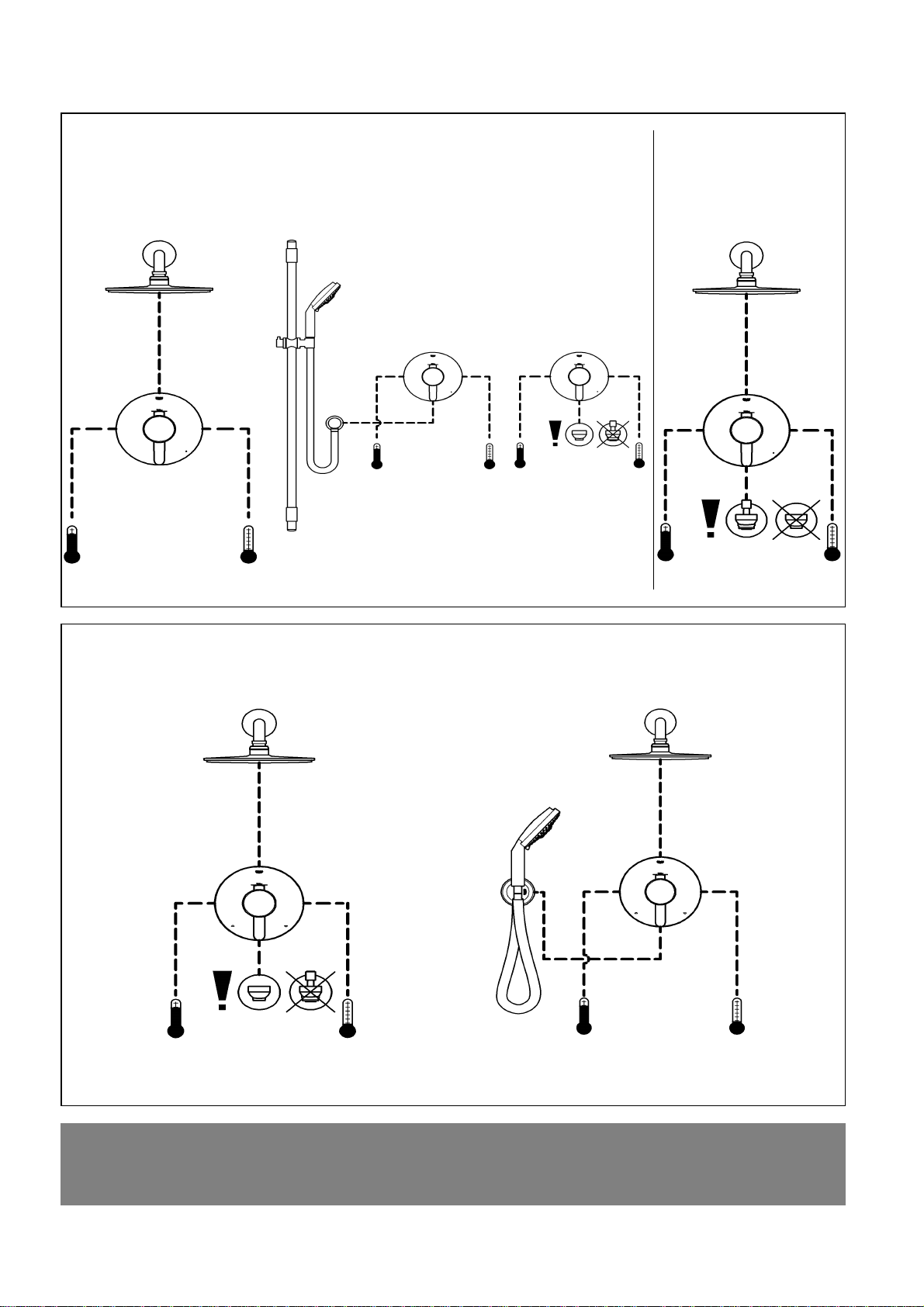

without bypass use with use of integrated

Thermostat trim type #1 (single use)

bypass

Thermostat trim type #2 (integrated two way diverter)

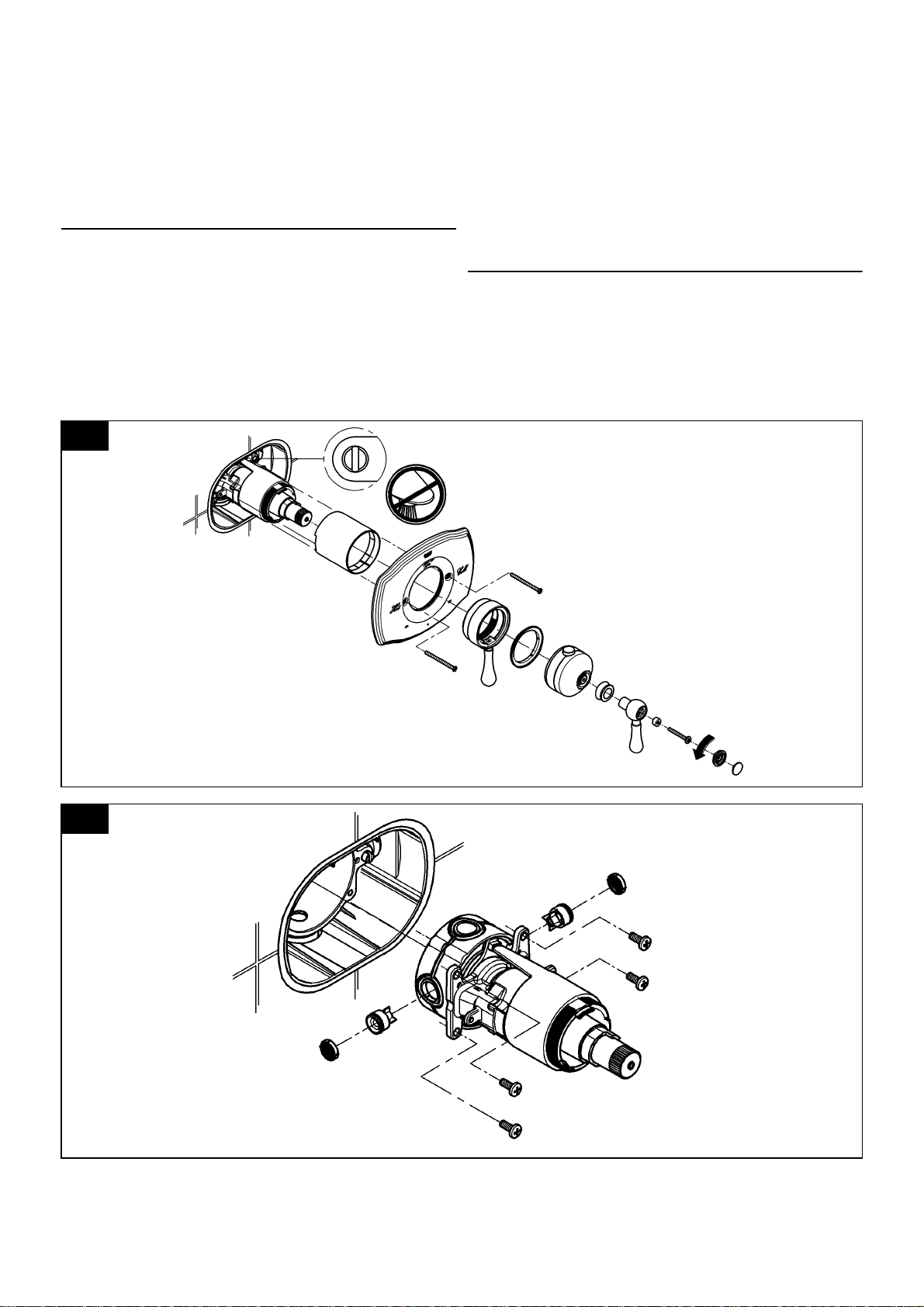

Installation options with different types of trims

separate volume controls required

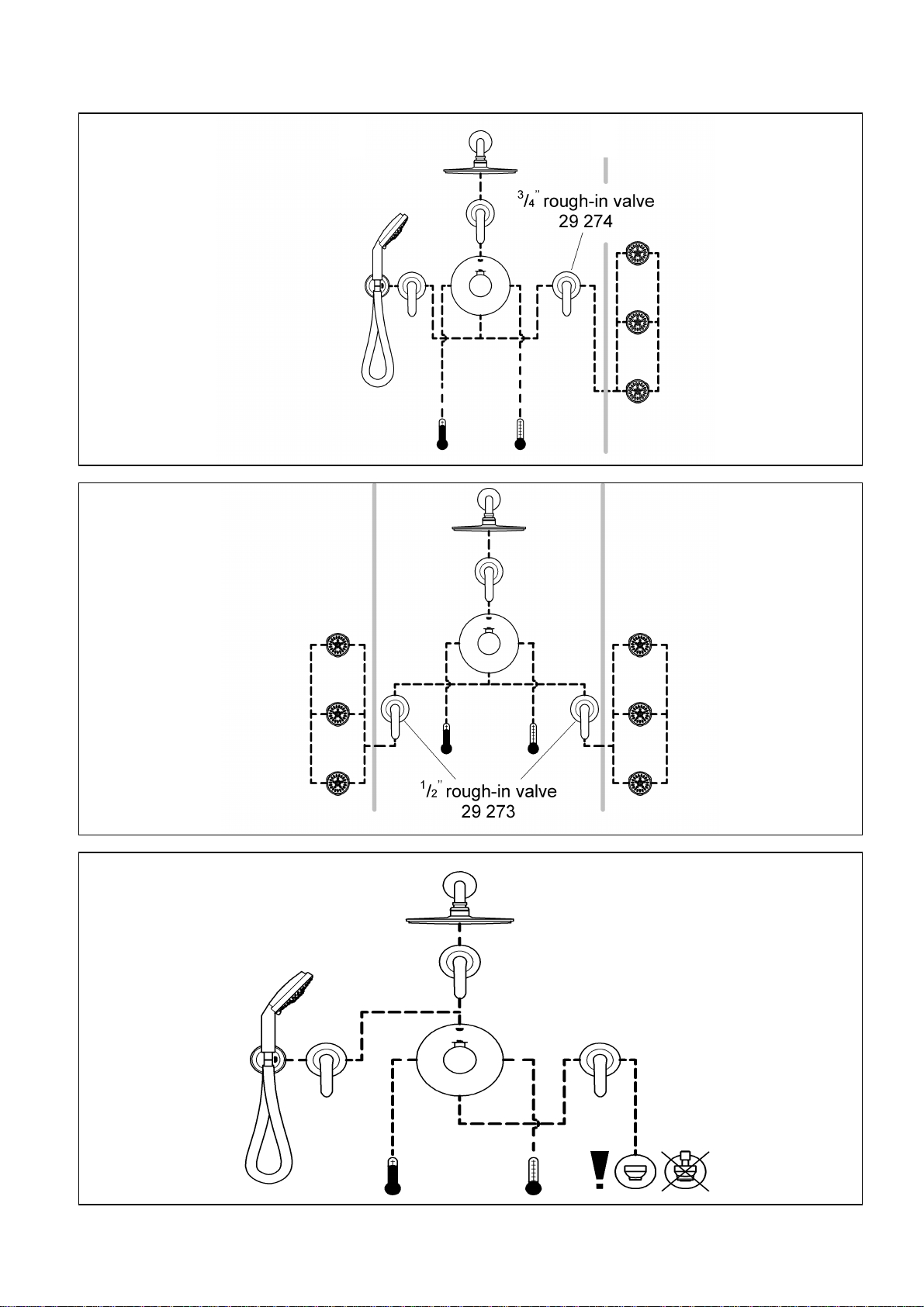

Thermostat trim type #3 (high flow)

Installation options with different types of trims

English

General Application

These trims are for use with the GrohFlexTM universal rough-in

valve.

Planning of piping is done at the time of the rough installation.

3 different types of thermostat mixers are possible.

Observe the possible combinations, see Pages 1 and 2.

Specification

• Integral service stops

• Flow pressure:

- min 1 bar or 14.5 psi

- recommended 1-5 bar or 14.5 – 72.5 psi

greater than 5 bar or 72.5 psi, fit pressure reducing valve

• Max. operating pressure 8.5 bar or 125 psi

• Max. test pressure 34.5 bar or 500 psi

• Flow rates at 3 bar or 45 psi

- Type #1 (19 822) and Type #2 (19 825)

bottom outlet 24 l/min or 6,3 gpm

top outlet 12 l/min or 3,2 gpm

- Type #3 (19 839) 51 l/min or 14 gpm

• Temperature

- max. (hot water inlet) 80 °C or 180 °F

• Water connection: cold - RH

hot - LH

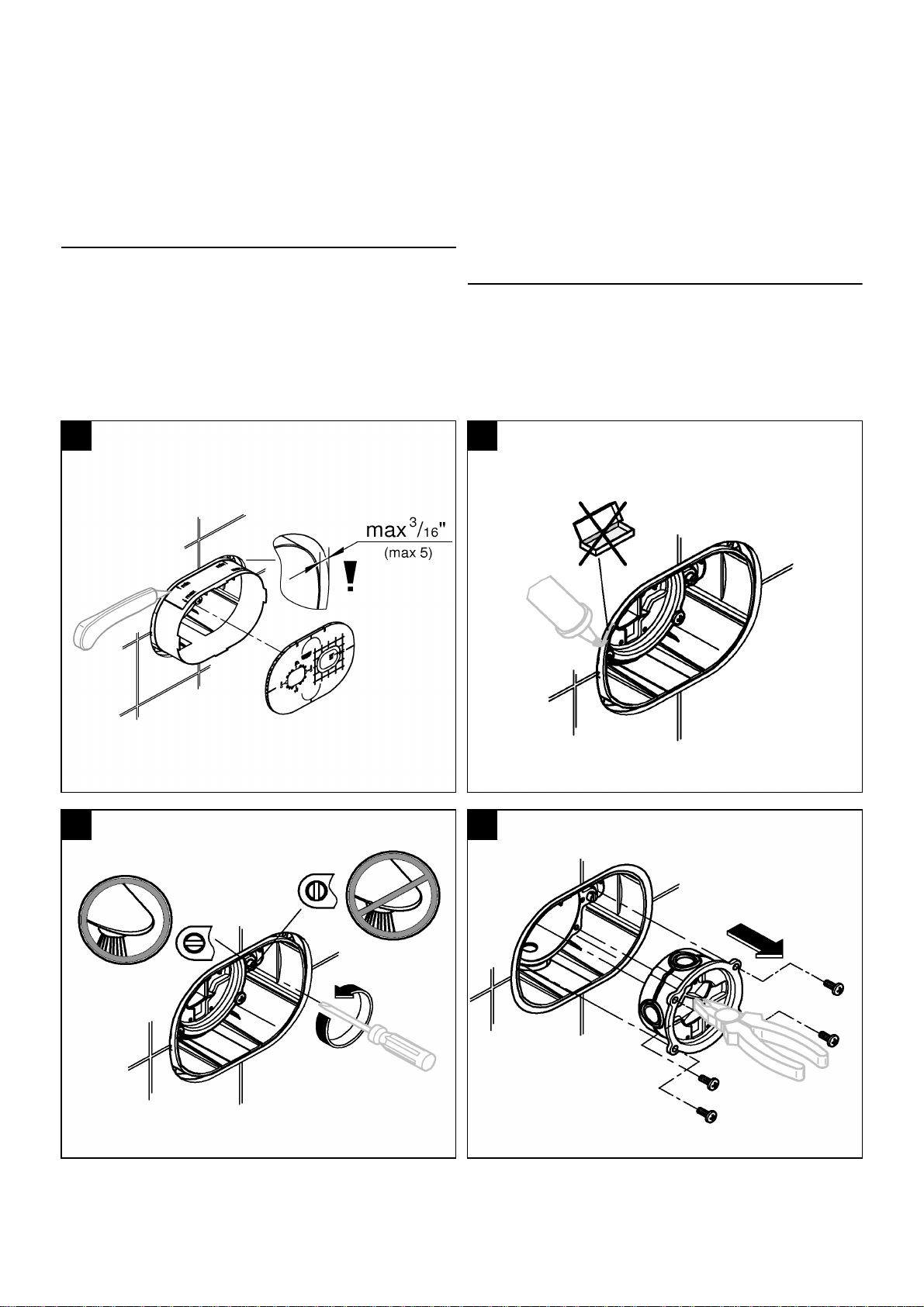

General preparation

1.Cut of the excess blue box material, see Fig. [1].

2.Seal the rough-in valve, see Fig. [2].

3.Close the integrated service stops, see Fig. [3].

4.Remove flush cap, see Fig. [4].

English

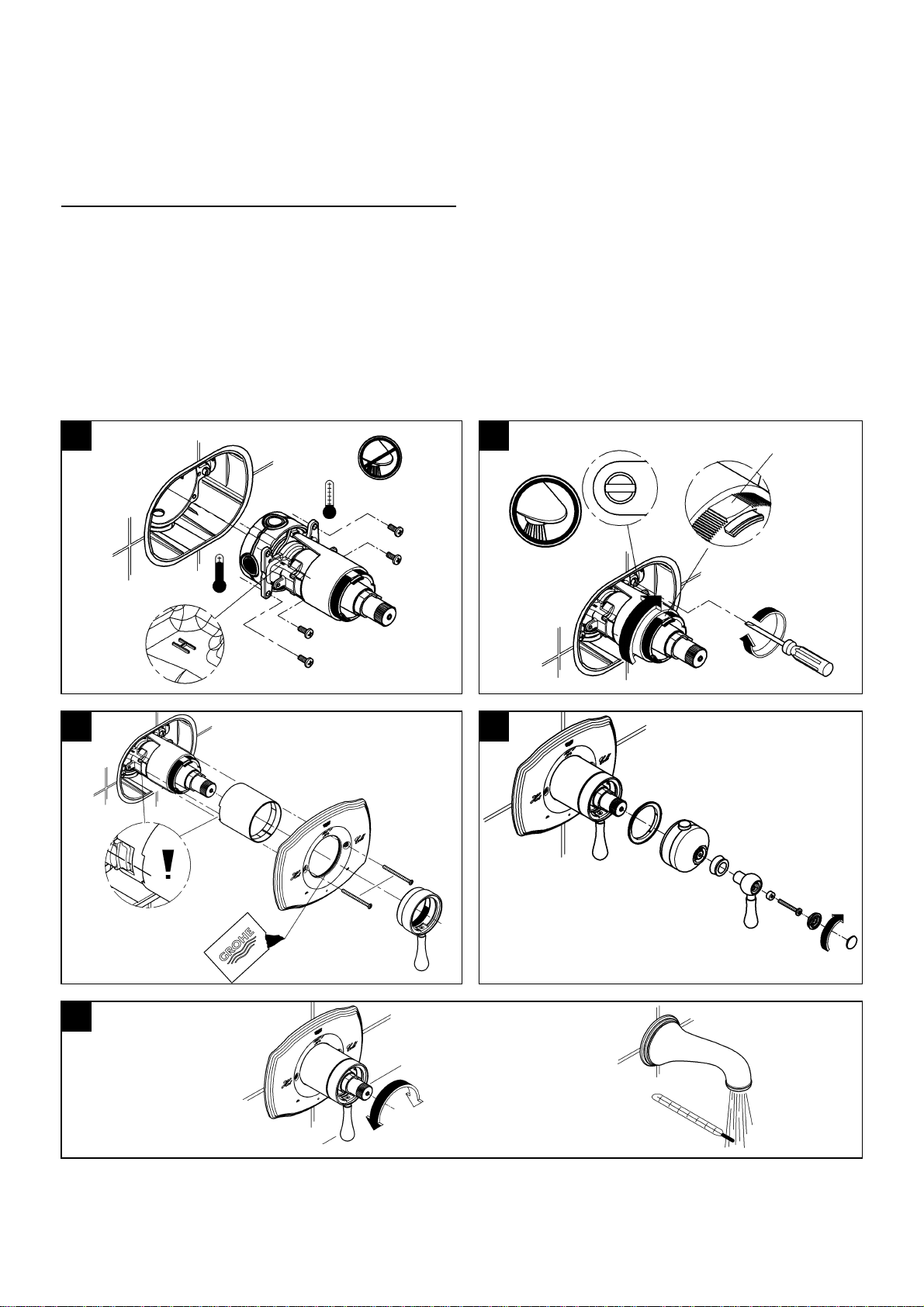

Installation Type #1 and Type #2

Attention for type #1

If both rough-in outlets are used, you have to install a spout

with diverter. If only the lower rough-in outlet is used, you

have to install a spout without diverter.

Installation

1.Install control unit and secure with screws, see Fig. [5].

2.Close water flow by turning the yoke. The mark (A) must be

on top, see Fig. [6].

3.Open the hot and cold integrated service stops, see Fig. [6].

4.While installation observe the right mounting position.

5.For installation of handle parts after adjustment, see Figs. [7]

and [8].

If the thermostat has been installed at too great a depth,

this can be adjusted by 27mm or 1 1/16“ with an extension set

(see Page II, ref. No. 47 822).

Adjustment

Temperature setting, see Fig. [9].

• Before the mixer is put into service, if the mixed water

temperature measured at the point of discharge varies from

the specified temperature set on the thermostat handle.

• After any maintenance operation on the thermostatic

cartridge.

Valve is closed with lever (B) in vertical position:

Open volume control by turning the lever (B).

1.Measure the temperature of the water emerging with a

thermometer.

2.Turn regulation nut (C) until the water emerging has reached

a temperature of 38 °C or 100 °F.

Reversed union (hot on right - cold on left). Replace

thermostatic cartridge, special cartridge for service is:

Ref. No.: 47 175 (1/2").

38 °C

100 °F

English

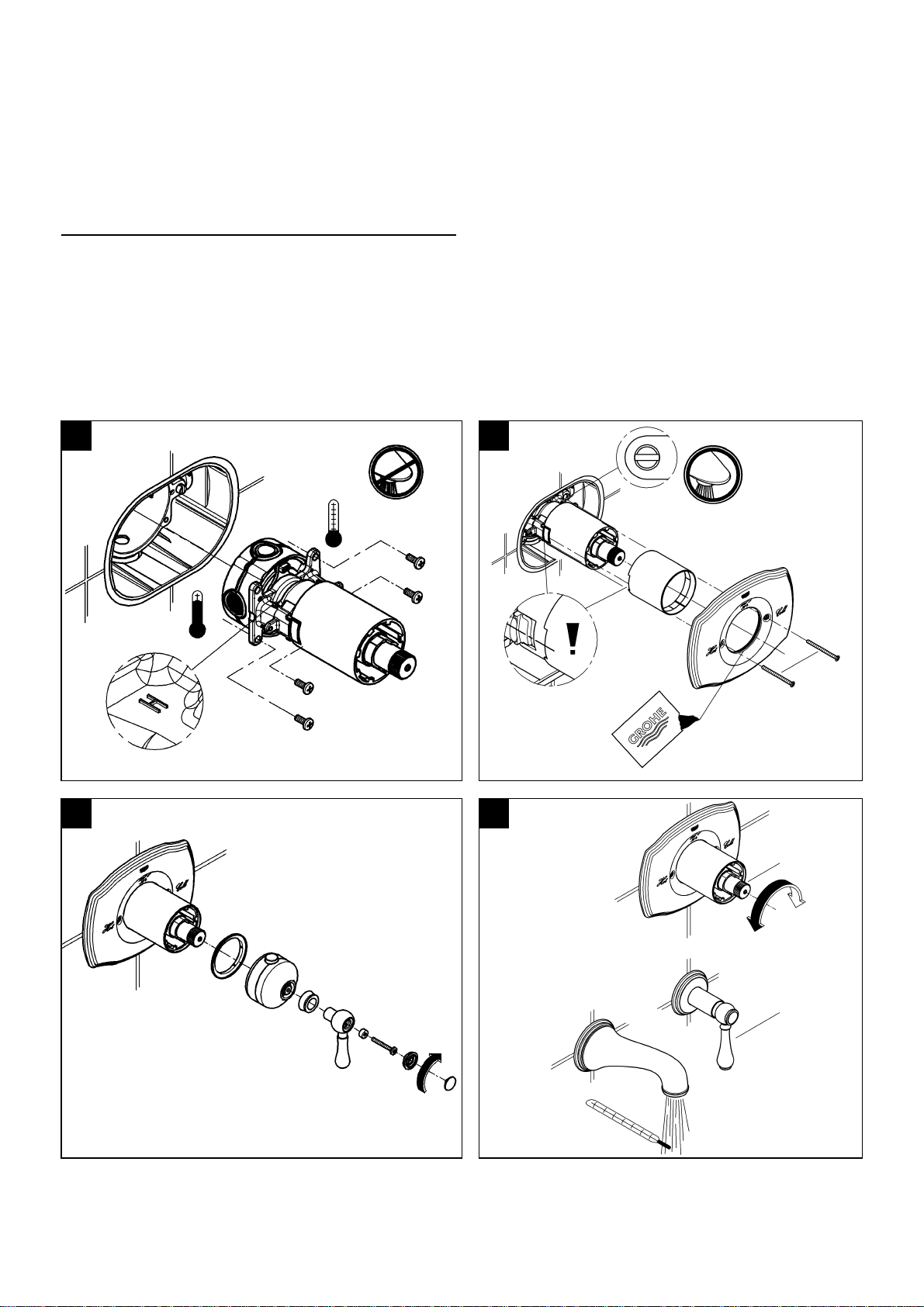

Installation Type #3

1.Install control unit and secure with screws, see Fig. [5].

2.Open the hot and cold integrated service stops, see Fig. [6].

3.While installation observe the right mounting position.

4.For installation of handle parts after adjustment, see Fig. [7].

Adjustment

Temperature setting, see Fig. [8].

• Before the mixer is put into service, if the mixed water

temperature measured at the point of discharge varies from

the specified temperature set on the thermostat handle.

• After any maintenance operation on the thermostatic

cartridge.

One or more separate volume controls (D) (not supplied) are

required to control the water flow, see Fig. [8].

Open volume control by turning the lever (D), see Fig. [8].

1.Measure the temperature of the water emerging with a

thermometer.

2.Turn regulation nut (C) until the water emerging has reached

a temperature of 38 °C or 100 °F.

Reversed union (hot on right - cold on left). Replace

thermostatic cartridge, special cartridge for service is:

Ref. No.: 47 186 (3/4”).

38 °C

100 °F

English

Type #2

19 825

10b

Temperature limitation

When in proper calibration, the temperature range is limited

to 43 °C or 110 °F. There is a first safety stop at 38 °C

or 100 °F. If a higher temperature is desired, one can

exceed 38 °C or 100 °F by overriding the safety stop. Press

the safety stop button (E).

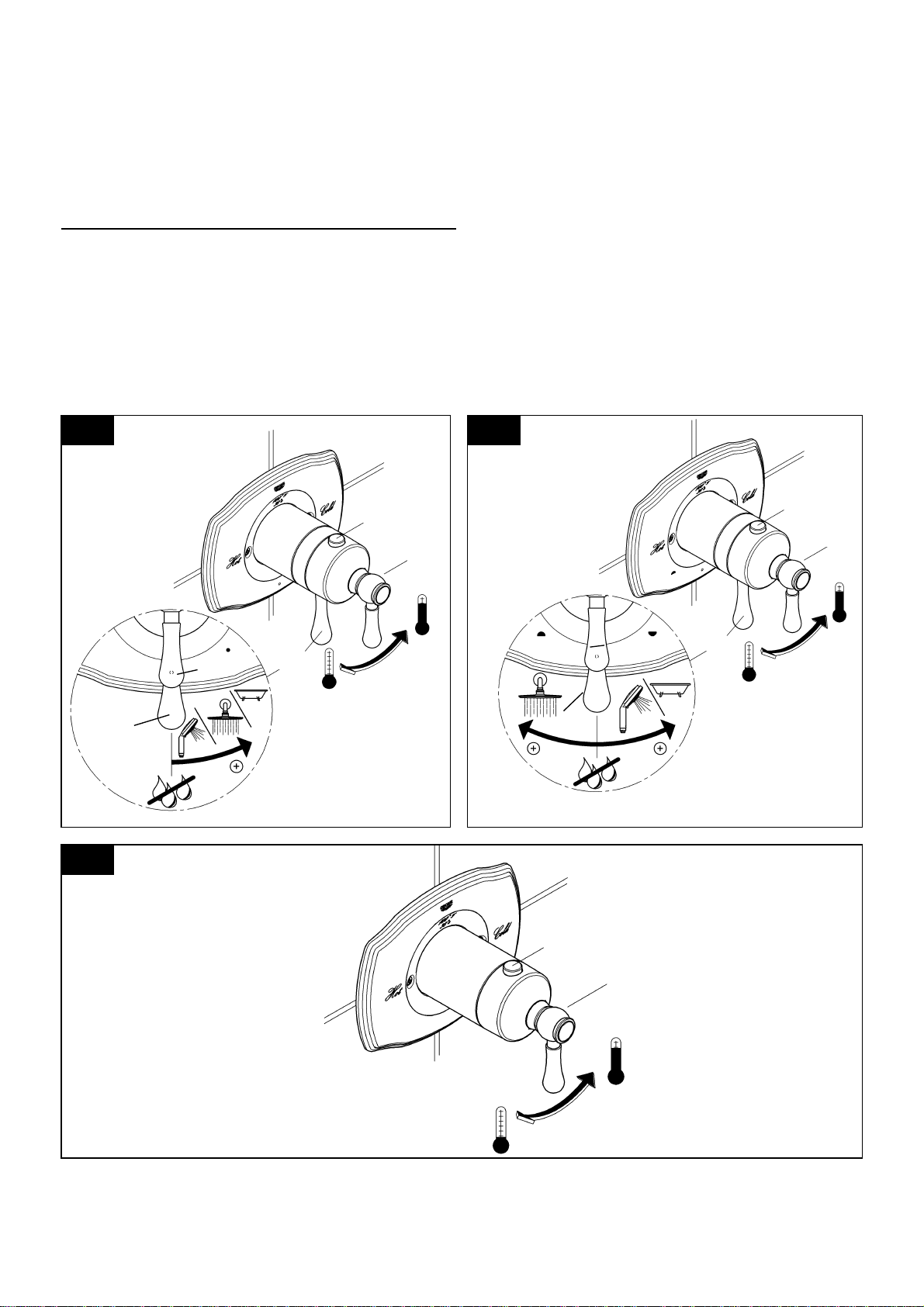

Operation

Type #1, see Fig. [10a].

Turn lever (F) left or right:

- Select hot or cold water flow.

Turn lever (B) to the right:

- Open water outlet as pipeline installation is prepared.

- If a spout with diverter is installed, outlet to bath and shower

is possible.

Type #2, see Fig. [10b].

Turn lever (F) left or right:

- Select hot or cold water flow.

Turn lever (B) left or right:

Open water outlet as pipeline installation is prepared.

- left open to top outlet

- right open to bottom outlet

Type #3, see Fig. [10c].

Turn lever (F) left or right:

- Select hot or cold water flow

Type #1

19 822

10a

Type #3

19 839

10c

English

Prevention of frost damage

When the domestic water system is drained, the thermostat

mixers must be drained separately, since non-return valves

are installed in the hot and cold water connections.

The complete thermostat assembly and non-return valves

must be disassembled and removed.

Maintenance

Important note: If the control unit is to be removed from

the rough-in for servicing, first close the inlet stops then

open the flow control to allow any internal pressure to be

released from within the unit.

Inspect and clean all parts, replace if necessary and grease

with special valve grease.

Close the integrated service stops!

I. Non return valves, see Figs. [11] and [12].

Install in reverse order.

Open the integrated service stops!

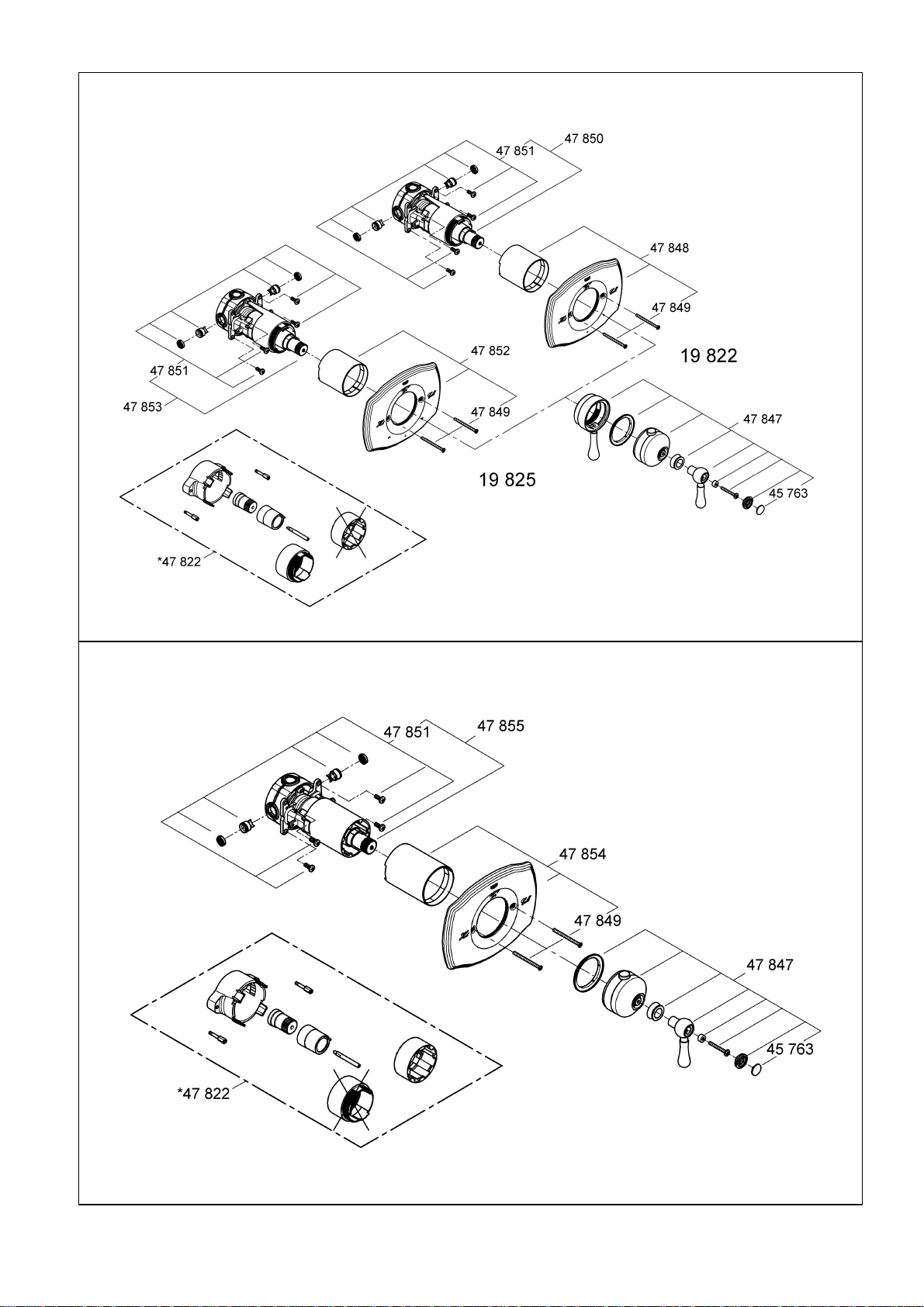

Replacement parts, see page II (* = special accessories).

Care

Instructions for care of this faucet will be found in the Limited

Warranty supplement.
