Grozone Control CY1 Bedienungsanleitung
www.grozonecontrol.com
USER GUIDE
CY1
Periodic mer
SAFETY NOTICE 3
INSTALLATION & OPERATION 4
OPTIONAL SETTINGS/24-HOUR CONTROL 5
OPTIONAL SETTINGS/DAY CONTROL ONLY 6
OPTIONAL SETTINGS/NIGHT CONTROL ONLY 7
QUICK TROUBLESHOOTING GUIDE 8-9
COMPLETE TROUBLESHOOTING GUIDE 10-11
WARRANTY & CUSTOMER SERVICE 12-13
PRODUCT DETAILS 14
TABLE OF CONTENTS
3
SAFETY NOTICE
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
DANGER
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,
CAREFULLY FOLLOW THESE INSTRUCTIONS.
To reduce the risk of electric shock, disconnect power to the 120V
electrical outlet before installing or removing the unit. When removing the
electrical wall plate, it may fall across plug pins or become displaced.
To reduce the risk of electric shock, this product has a grounding type plug
that has a third (grounding) pin. This plug will only fit into a grounding
type power outlet. If the plug does not fit into the outlet, contact a
qualified electrician to install the proper outlet. Do not change the plug in
any way.
4
INSTALLATION & OPERATION
Note: This unit has been set to perform in Day control only. For Night
control only or 24-hour control, refer to Oponal sengs.
Set Values
Plug into 120 VAC outlet (see security noce on page 1).
Connect your equipment into the front panel outlet (MAX 15A).
OFF Time: 1 min to
12 hours.
Duraon in between
ON cycles.
ON Time: 10 sec to 20
min.
Duraon for which
equipment will run.
Installaon is now complete
Light sensor (photocell)
5
A. Unplug the unit.
Set both values to minimum.
OPTIONAL SETTINGS/24-HOUR CONTROL
B. Within 5 seconds, plug in the unit
then set both values to maximum.
C. "Output On" light turns ON or
OFF according to actual seng.
CY1 is now in "24-hour control" mode
6

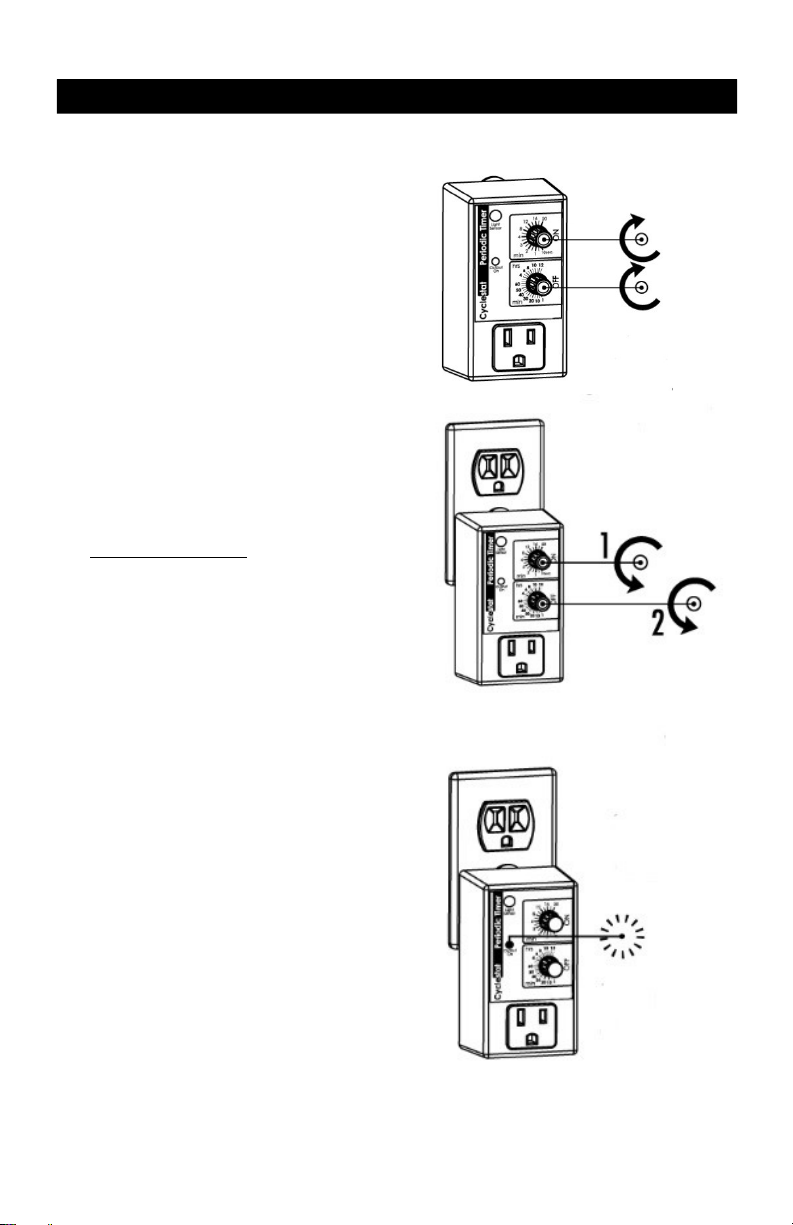

A. Unplug the unit.
Set both values to maximum.
B. Within 5 seconds, plug in the unit
then set top value to minimum
followed by boom value to
minimum.
C. "Output On" light turns ON or OFF
according to actual seng.
CY1 is now in "Day control only" mode
OPTIONAL SETTINGS/DAY CONTROL ONLY
7
OPTIONAL SETTINGS/NIGHT CONTROL ONLY
A. Unplug the unit.
Set both values to maximum.
B. Within 5 seconds, plug in the
unit then set boom value to
minimum followed by top value
to minimum.
C. "Output On" light turns ON or
OFF according to actual seng.
CY1 is now in "Night control only" mode
8
Aer 10 sec,
Indicator and
load remain On
QUICK TROUBLESHOOTING GUIDE
Relay has
clicked and
Indicator is ON
Power applied
to load
Plug load into UNIT*
Plug UNIT
Unplug UNIT
SET DAY CONTROL
A
Quick Troubleshoong Chart
Product Models : CY1
HOW TO SET DAY CONTROL
• Unplug UNIT
• Turn both knobs to MAX value
• Within 5 sec, plug UNIT and rotate
knobs in this order :
• Top knob to Min
• Boom knob to Min
DEFINITIONS
Min : knob rotated to minimum value (fully counter clockwise).
Max : knob rotated to maximum value (fully clockwise).
Indicator : Output ON light indicator
B
C
D
E
F G H
Both knobs to Max value
Product
Good
Product
Defecve
Hide photocell
with hand palm
& wait 10 sec.
Aer 10 sec,
Indicator and
load are Off
No Yes
No
Yes
9
QUICK TROUBLESHOOTING GUIDE
= Steps
Relay has
clicked and
indicator is
ON
Power
applied to
load
Hide photocell
with hand palm
& wait 10 sec.
Aer 10 sec,
Indicator and
load remain Off
Aer 10 sec,
Indicator and
load are On
Plug load into UNIT*
Plug UNIT
Both knobs to Max value
Unplug UNIT
SET NIGHT CONTROL
I HOW TO SET NIGHT CONTROL
•Unplug UNIT
•Turn both knobs to MAX value
•Within 5 sec, plug UNIT and rotate
knobs in this order :
•Boom knob to Min
•Top knob to Min
J
K
L
M
N O P
*Before test, check if load is working properly.
Product
Good
Product
Defecve
No Yes
No
Yes
10
COMPLETE TROUBLESHOOTING GUIDE
Periodic mer
CY1
1 – Before you start
2 – Test
*IMPORTANT: READ AND FOLLOW THESE INSTRUCTIONS BEFORE
STARTING THE TEST.
· DO NOT CONNECT UNIT BEFORE STEP 1 OF THE TEST.
· DO NOT CONNECT A LOAD INTO THE UNIT BEFORE STEP 4 OF THE TEST.
· LIGHTHING CONDITION: perform this test in a room with enough light
for the controller to detect a DAY condion.
· Definions : CW : Clockwise.
CCW : Counter clockwise.
· Turn BOTH knobs fully CW before going to STEP 1.
STEP HANDLING AND TEST DESCRIPTIONS EXPECTED RESULTS
1
Within 5 seconds:
· Plug the unit into the power outlet.
· Turn UPPER knob fully CCW.
· Turn LOWER knob fully CCW.
· Turn BOTH knobs fully CW (order
DOES NOT MATTER).
Output On indicator
will turn ON.
