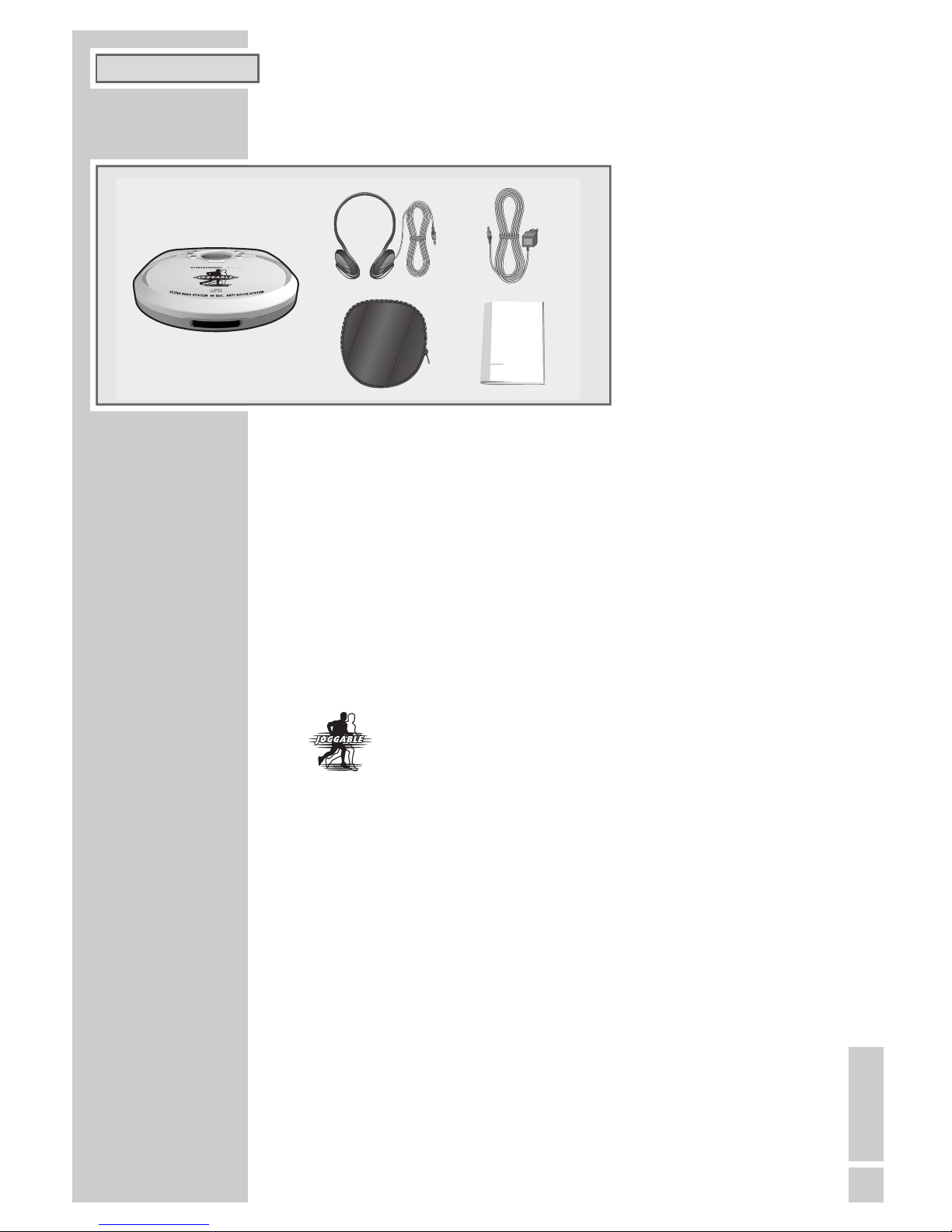

Package contents

1Squixx CDP 4200 AS 45

2Powerful sports headphones with neck strap for firm support

3Handy belt bag

44.5 Volt power supply/charger (for battery operation)

5Operating manual

Squixx CDP 4200 AS 45

The Squixx CDP 4200 AS 45 is a portable CD player with an extremely

robust anti-shock system which has been specially designed for outdoor

sports.

The anti-shock system ensures uninterrupted music playback

even during sporting activities and under extreme conditions.

To do this, the anti-shock system is equipped with:

– A signal processor which correctly detects the data even when the CD is

revolving unevenly

– A laser control system which permanently monitors the reading track of the

laser and immediately corrects even the most minor deviations

– A 45-second digital memory which cuts in immediately after unusually

hard shocks.

SPECIAL FEATURES _________________

PORTABLE CD-PLAYER

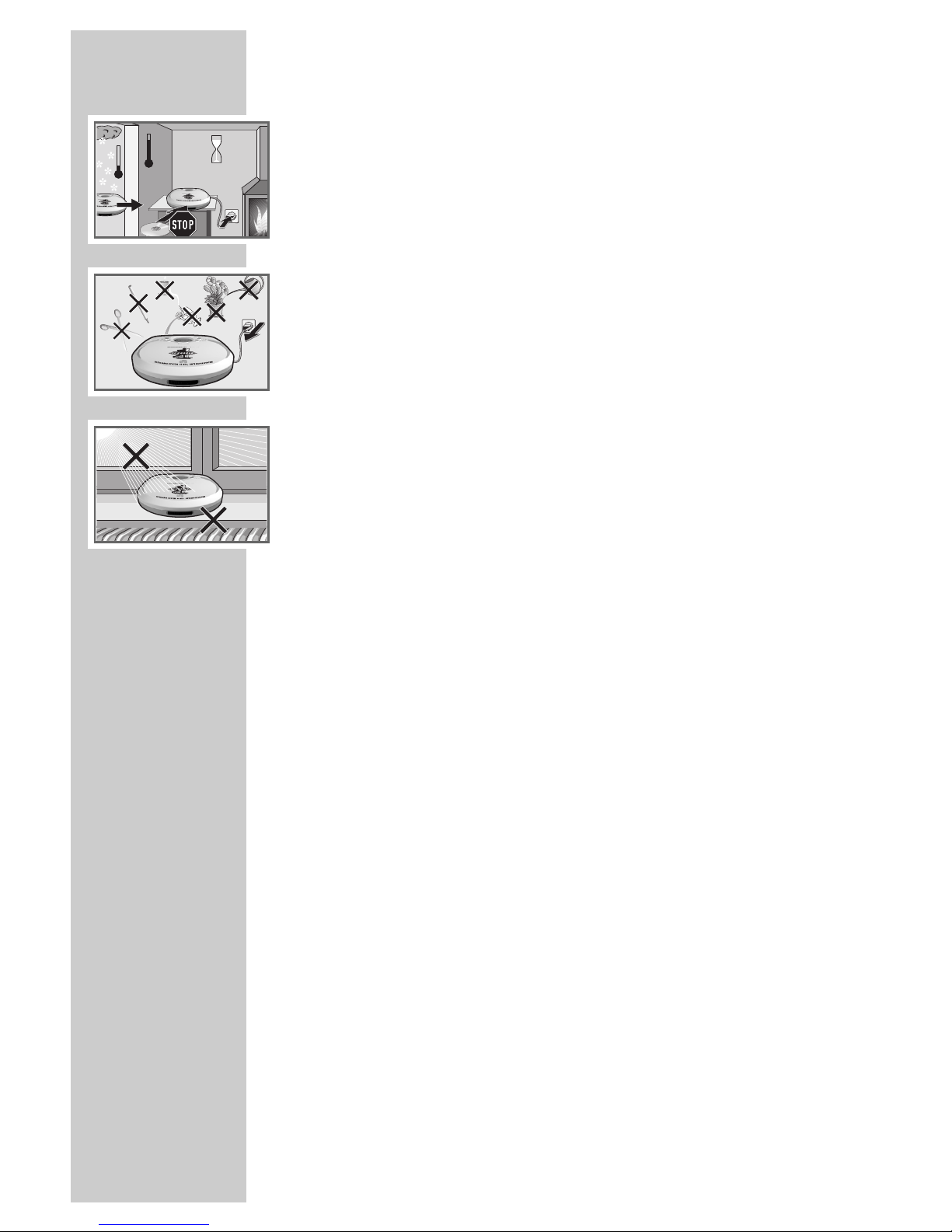

Safety

To ensure that this device provides you with long-term satisfaction and

enjoyment, please observe the following instructions:

This device is designed for the playback of audio signals.

Any other use is expressly prohibited.

You must make sure that the device is protected from moisture such as rain

or water splashes.

When deciding where to place the device, please note that furniture surfaces

are covered by various types of varnish and plastic, most of which contain

chemical additives. These additives can corrode the device supports, leaving

residues on the furniture surfaces which can be difficult or impossible to

remove.

Never touch the lens on the device.

The device contains self-lubricating bearings, which must not be oiled or

greased.

Condensation may form on the lens if the device is taken into a warm room

from the cold. This prevents it from playing a CD.

Always keep the disc compartment closed to prevent dust from collecting on

the lens.

Never open the device casing. The manufacturer accepts no liability for

damage resulting from improper handling.

Maintenance

If the device is unable to scan CDs perfectly, use a standard commercially

available cleaning CD to clean the laser optics. Other cleaning methods may

damage the laser optics.

To clean a CD, breathe on it and wipe it with a soft, lint-free cloth from the

middle towards the edge.

Clean the device with a clean, moist leather cloth. Do not use cleaning

agents, as these may damage the casing or the CD.

Environmental note

As little material as possible was used for packaging your device.

It can be divided into two separate materials: cardboard (box) and polyeth-

ylene (bag).

Please observe the local regulations for disposing of the packing material.

Batteries, including those which are heavy metal-free, may not be disposed of

with household waste. Please dispose of used batteries in an environmentally

sound manner. Find out about the legal regulations which apply in your area.

SAFETY___________________________________________________

°C

! SERVICE !! SERVICE !! SERVICE !

ENGLISH

Operating controls on the top of the device

DAS Switches the digital anti-shock system on and

off.

STOP 5Press once to end CD playback

Press twice to switch off the device

sss6F.SKIP Press briefly to select the next track

Hold down to search for a particular passage

ıPLAY/PAUSE II Switches the device on and starts CD playback;

Switches to pause.

5aaaR.SKIP Press briefly to select the previous track

Hold down to search for a particular passage

PROG. Calls up the track memory creation function

MODE Call up the Repeat 1, Repeat All, Intro and Ran-

dom functions in succession

OVERVIEW ___________________________________________

MODE DAS

STOP 5

F SKIP 9

RPLAY/PAUSE $

PROG

8R SKIP

Controls and connections on the side

DC IN 4.5 V +>- External power supply socket (4.5 V)

LINE OUT Audio signal output for CD playback via a

HiFi system

VOLUME gAdjusts the volume

PHONES Socket for the headphones supplied

(3.5 mm-jack)

ON UBS OFF Bass booster

OPEN Opens the CD compartment

OFF HOLD ON Disables and enables the buttons

The display

t1 Repeating a single track

tALL Repeating all tracks on the CD

HOLD The buttons are disabled

iFlashing means the batteries are becoming low

PROG Creating or playing a track memory

RAND The Random function has been selected

INTRO The Intro function has been selected

uThe anti-shock system in on.

01 Track number

00:02 Track playing time

OVERVIEW ____________________________________________

t1 ALL HOLD i

PROG RAND INTRO u

88 88

88 :

UBS IIIIIIIROPEN

ON OFF

LOCK

OFF ON

PHONES

VOLUME ß

LINE OUT

DC IN 4.5V

ENGLISH

Mains operation (with mains adapter)

Note:

Check if the mains voltage on the mains adapter type plate corresponds

to your local mains supply.

The only way to disconnect the device from the mains supply is to

unplug the adapter. Only unplug the mains adapter from the socket

when you are not using the device.

1Plug the mains adapter cable into the »DC IN 4.5V« socket on the

device.

2Plug the mains adapter into the mains socket.

Battery operation

1Pull out the mains adapter cable, open the cover of the battery compart-

ment on the bottom of the device.

2Insert two batteries, observing the polarity on the bottom of the battery

compartment (Mignon type, e.g. 2x1.5V, LR6, AM3; AA).

Note:

The device display tells you about the state of the batteries.

If » i« flashes in the display, the batteries are getting low.

Remove the batteries when they are flat or when you know that the

device will not be used for a long period of time. No liability is accepted

for damage resulting from leaking batteries.

The batteries are switched off during mains operation.

Using Nickel-Cadmium batteries

When using Nickel-Cadmium batteries (NiCd, size AA 1.2 V/600mA) use

the mains adapter as a charger.

1Open the cover of the battery compartment on the bottom of the device.

2Insert two batteries, observing the polarity marked on the bottom of the

battery compartment.

3Plug the mains adapter into the »DC IN 4.5V« socket on the device

and plug the mains adapter into the mains socket.

Note:

When buying NiCd batteries, always make sure that approximately 3

mm of the metal end at the negative pole is visible (see illustration). If

necessary, use a knife to remove the insulation.

Completely charge up the batteries before you first use them or if you

have not used them for a long time.

The charging time is approximately 12 hours.

Using the device while the batteries are charging increases the charging

time.

POWER SUPPLY___________________________________

DC IN 4.5V

3 mm

min

Connecting the headphones.

1Connect the headphones to the »PHONES« socket (ø 3.5 mm).

Note:

Excessive volume can be dangerous to yourself and other road users.

Listen at a volume which still allows you to hear outside noises such as

horns, emergency vehicles and police cars.

This portable CD player with headphones meets the requirements set out

in Articles LL44.5 and 6 of the German safety regulations.

The output of the device guarantees the best possible sound at medium

volume. Prolonged listening at loud volumes can damage your hearing.

Adjusting the volume

1Adjust the volume using » VOLUME g«.

Ultra Bass System

1Press » UBS« on the device to switch the Ultra Bass system on and off.

Inserting a CD

The device is suitable for music CDs displaying the logo shown here or for

CD-Rs with audio data. As well as standard 12 cm CDs, it can also play

cm CDs without an adapter.

Do not attach adhesive labels to CDs. Keep the

surfaces of CDs clean.

When burning audio files onto CD-Rs, various problems may arise which may

lead to interference in playback. Causes for this can be faulty software and

hardware settings or even the CD itself. Should you encounter such problems,

contact the customer services of your CD burner/software manufacturer or

search for information about this in the Internet.

When you make audio CDs observe all legal guidelines and ensure that the

copyrights of third parties are not violated.

1Push the »OPEN« slider to the right and open the CD compartment.

2Insert the CD with the label facing upwards and gently push the centre

of the CD to latch it into place.

3Close the CD compartment.

Removing the CD

Note:

Press »STOP ■« before you open the CD compartment.

1Push the »OPEN« slider to the right and open the CD compartment.

2Remove the CD.

3Close the CD compartment.

PREPARATION______________________________________

ENGLISH

Digital anti-shock system (DAS)

The anti-shock system reads the data on the CD 45 seconds in advance. This

prevents interruptions to playback due to shocks and vibrations.

1Press »DAS« to switch on the anti-shock system.

– Display: »z« and shortly afterwards »u«.

Note:

When you switch the anti-shock system on or off, playback is delayed or

briefly interrupted.

Since the anti-shock system requires more power, it is advisable to

switch off the function as long as there are no problems with playback,

in order to prolong the life of the batteries.

2Press »DAS« to switch off the anti-shock system.

CD playback

1Press » ıPLAY/PAUSE II« to start playback.

– Display: »45 SEC«, then the number of tracks and total CD playing

time (for example »15 57:i5«) followed by the first track and the play-

ing time of that track.

– Playback begins with the first track.

2To pause playback, press » ıPLAY/PAUSE II«.

– The track playing time flashes.

Press » ıPLAY/PAUSE II« to resume playback.

3Press »STOP ■« to end playback.

Note:

Playback stops automatically when the end of the CD is reached, if the

CD compartment is opened or if the batteries run out.

4To switch off the device, press »STOP ■« again.

Note:

The device switches off automatically after the end of playback if you do

not press a button within 30 seconds.

Selecting a different track

1During playback, keep pressing »5a R.SKIP« or »F.SKIPs6« until

the number of the track you want to hear appears in the display.

– Playback of the selected track starts automatically.

Searching for a passage within a track

1During playback, press »5a R.SKIP« or »F.SKIPs6« and hold it

down until you find the passage you want to hear.

– The volume is turned down during the search.

BASIC FUNCTIONS______________________________

SEC

00 I5

0I :

00 0 I

0I :

00 00

02 :

0I35

02 :

57 I5

I5 :

Repeating a track

1Press »MODE« once during playback.

– Display: »t1« and the track is repeated.

2To quit this function, press »STOP ■«.

Repeating the whole CD (

REPEAT

)

1Press »MODE« twice during playback.

– Display: »tALL«, and the CD is repeated from the beginning.

2To quit this function, press »STOP ■«.

Playing the introductions of tracks on the CD

1Press »MODE« three times during playback.

– Display: »INTRO« flashes.

2Press » ıPLAY/PAUSE II« to start the function.

– Display: »INTRO« and the first ten seconds of each track are played.

3To play back the whole of the current track, press » ıPLAY/

PAUSE II«.

– »INTRO« disappears from the display.

Playing back tracks in random order

1Press »MODE« four times during playback.

– Display: »RAND« flashes.

2Press » ıPLAY/PAUSE II« to start the function.

– Display: »RAND« and the titles on the CD are played back in random

order.

3Press »STOP ■« to quit the function.

– »RAND« disappears from the display

Note:

You cannot select this function if the tracks are being played back in a

set sequence from the memory.

Disabling the buttons on the device

You can use this function to prevent the buttons from being accidentally

pressed (for example when travelling).

1Push the »HOLD« slider to the »ON« position.

– Display: »HOLD«, all the buttons are disabled.

Note:

The device cannot be switched on. Display: »HOLD«.

2Push the »HOLD« slider to the »OFF« position to enable the buttons.

– Display: »HOLD« disappears.

ADDITIONAL FUNCTIONS _________________

00 0 I

0I :

tALL

00 0 I

0I :

INTRO u

00 0 I

0I :

RAND u

00 0 I

0I :

HOLD

00 I5

03 :

Inhaltsverzeichnis

Andere Grundig CD-Player Handbücher

Grundig

Grundig RRCD 3760 WEB Bedienungsanleitung

Grundig

Grundig CDP-S 250 Bedienungsanleitung

Grundig

Grundig K-CDP 65 Bedienungsanleitung

Grundig

Grundig Mystixx CDP 9400 SPCD Bedienungsanleitung

Grundig

Grundig FREEZZ 10 RRCD 4300 Bedienungsanleitung

Grundig

Grundig CDP 9100 SPCD Mystixx Bedienungsanleitung

Grundig

Grundig CD 23 Bedienungsanleitung

Grundig

Grundig CDC 477/00B Bedienungsanleitung

Grundig

Grundig RRCD 2700 MP3 Technisches Handbuch

Grundig

Grundig Planixx CDP 4103 AS10 Bedienungsanleitung

Grundig

Grundig FREAXX 30 RRCD 4203 PLL Bedienungsanleitung

Grundig

Grundig CDP 4104 AS40 PLL Planixx Bedienungsanleitung

Grundig

Grundig CDP 110 Bedienungsanleitung

Grundig

Grundig CDP 9100 SPCD Mystixx Bedienungsanleitung

Grundig

Grundig Mystixx CDP 9200 SPCD Bedienungsanleitung

Grundig

Grundig CDC 477 Bedienungsanleitung

Grundig

Grundig MPAXXMP-100 Bedienungsanleitung

Grundig

Grundig CDP 310 Bedienungsanleitung

Grundig

Grundig CDP 5100 SPCD Bedienungsanleitung

Grundig

Grundig CDP 110 Bedienungsanleitung

Grundig

Grundig RR 720 CD Bedienungsanleitung

Grundig

Grundig GDS0800 Technisches Handbuch

Grundig

Grundig RR 300 CD Bedienungsanleitung

Grundig

Grundig RR 440 CD Bedienungsanleitung

Beliebte CD-Player Handbücher anderer Marken

RCA

RCA RP-7923 Bedienungsanleitung

Pioneer

Pioneer DEH-P3550MP XM Bedienungsanleitung

Philips

Philips AZ1207 Bedienungsanleitung

Philips

Philips CD582 Bedienungsanleitung

Philips

Philips AZ 6821 Bedienungsanleitung

Lasonic

Lasonic MSU-2020 Bedienungsanleitung

THOMSON

THOMSON RCD150 Bedienungsanleitung

Denon

Denon DCD-1420 Bedienungsanleitung

Panasonic

Panasonic SJ-MR100 Bedienungsanleitung

Onkyo

Onkyo DX-7210 Bedienungsanleitung

Sony

Sony MZ-R3 Bedienungsanleitung

Denon

Denon DVM-4800 Bedienungsanleitung

JBL

JBL MR-32 Bedienungsanleitung

RCA

RCA RCD152 Bedienungsanleitung

Technics

Technics SL-PS770A Bedienungsanleitung

Clarion

Clarion compact disc Bedienungsanleitung

Sony

Sony MZ-M10 Bedienungsanleitung

Philips

Philips Expanium AZ 1538 Bedienungsanleitung
