GUSR91DAB

DAB Radio With PLL FM Tuner

User Guide

IMPORTANT: Please read all instructions carefully before use and keep for future use

Introduction

Thank you for choosing this Grundig DAB Radio with Touch Screen Control

Panel.

Safety is important

Use of any electrical equipment should be undertaken with care. Please read the safety section

Not only can it receive DAB radio stations, but you can also tune into FM radio stations or

connect an auxiliary device to it. Throughout this User Guide the DAB Radio with Touch Screen

Control Panel will be referred to as the DAB Radio

on page 17 and 18 before using your DAB Radio. This appliance is for household use only.

What’s in the box?

Contents

01 Your DAB Radio ........................3

Get going ..................................4

Daily use ...................................5

Trouble Shooting ....................15

Warnings .................................17

DAB Radio

This User Guide AC Power Cord

Guarantee ................................19

Specifications ..........................16

GUSR91DAB

DAB Radio With PLL FM Tuner

User Guide

IMPORTANT: Please read all instructions carefully before use and keep for future use

Standby BBS

Mute Scan

Display Preset

Mode Menu

10:00:00

23-7-2009

Select/Scroll up/

down

Volume

control knob

Standby button

BBS button

Mute button

Scan button

Preset button

Display button

Rod Antenna

LCD Display

AC Power Socket

ON/OFF switch

Mode button

Menu button

AUX In Socket

PHONE Socket

01 Your DAB Radio

2Turn the power switch on the rear of the unit to the ON position.

1Connect the small end of the mains lead to the AC input socket on the rear of the unit.

Connect the 3 pin plug to a suitable wall socket.

Using Headphones

A pair of headphones (not supplied) with a 3.5mm diameter stereo plug and 8-32 ohm

impedance is required. Plug the headphones into the Headphone Socket on the side of

the DAB Radio.

When headphones are connected, the sound to the speakers is automatically turned

off.

Insert 6 “C” type batteries into the battery compartment, following the polarity

diagram on the inside.

Replace the Battery Compartment Cover.

4Using the DAB Radio with Batteries

The DAB Radio can be powered by 6 “C” types Batteries. This allows the

DAB Radio to be used outside or away from wall sockets.

To remove the Battery Compartment Cover, press the 2 retaining clips firmly and pull

away from the DAB Radio.

Using AUX IN

Connect an audio cable (not supplied) to the AUX IN socket on the side of the DAB

Radio. Connect the other end to a suitable output socket on your auxiliary device.

02Get going

Switching On

To turn on the DAB Radio, ensure the power switch on the rear of the unit is set

to the ON position.

Press the STANDBY button on the touch panel.

To turn the DAB Radio off press the STANDBY button again.

Progress bar

Number of stations found

03 Daily Use

Adjusting the Volume

To increase the volume, turn the volume control knob clockwise.

To decrease the volume, turn the volume control knob anti-clockwise.

You can also press the MUTE button to turn the sound off. To turn the sound

back on, press the MUTE button again.

BBS function

The bass sounds can be enhanced by selecting the bass boost system.

Press the BBS button to enhance the bass frequencies

To turn off the bass boost system, press the BBS button again.

Listening to Radio

Press the STANDBY button to turn the DAB Radio on.

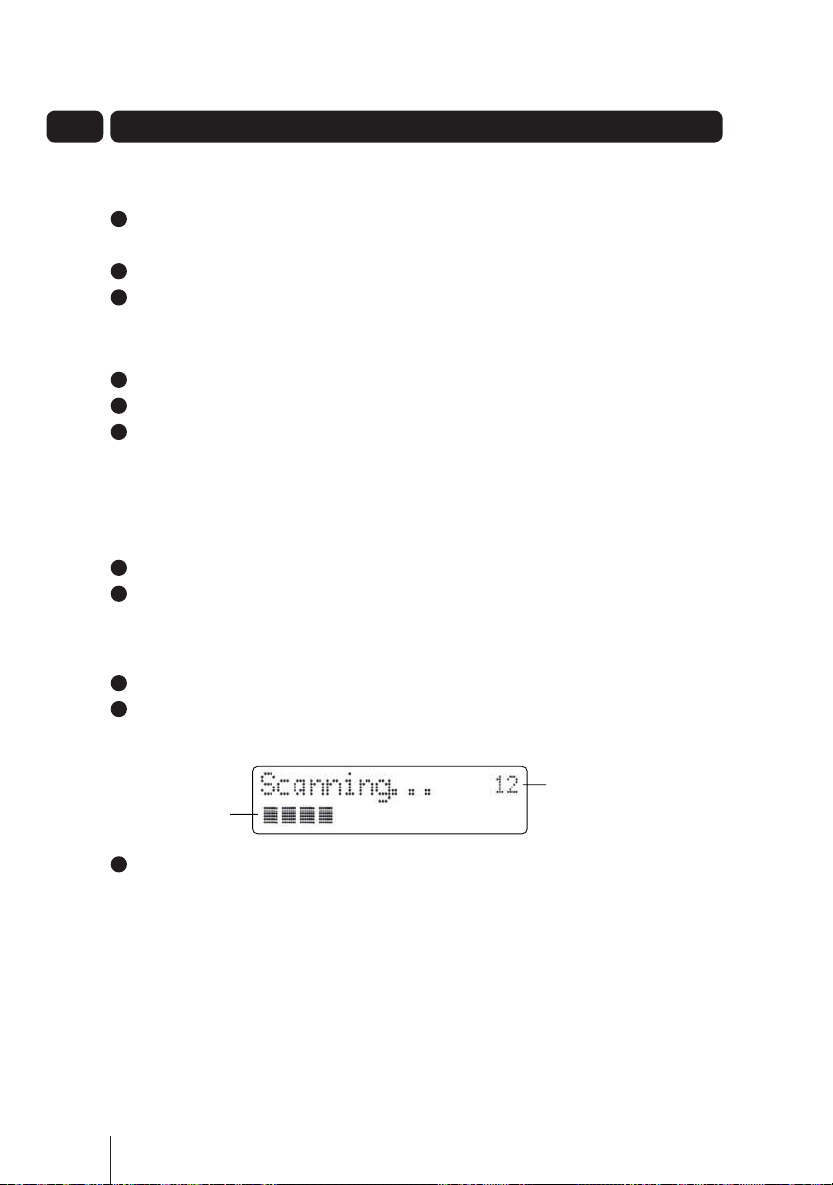

The following screen will be displayed. A bar graph indicates the progress of the

search - the number of stations found increases as the scan progresses.

When the scan is complete, the DAB Radio will then select the first available

station - stations are listed in numerical then alphabetic order. The station list is

retained in memory so the next time you switch the DAB Radio on, the station

search does not take place. If there are no stations found, check that adequate

DAB coverage exists in your area.

03Daily Use

Changing DAB Stations

DON’T FORGET!

If no new station is selected the DAB Radio will display the currently playing

station after 15 seconds.

From time to time new DAB stations may be added to the DAB station list.

If you wish to see if any new stations have been added, press the SCAN button to

activate a full scan.

Storing DAB Presets

You can preset up to 10 DAB stations for easy access as follows:

Rotate the Scroll Up/Down knob to scroll through the stations in the station list.

Press the Scroll Up/Down button to select a new station from the list.

Push the SELECT button to confirm. The radio will tune to the new station.

Tune to the station you wish to preset (see Changing DAB Stations).

Press and hold the PRESET button, preset position 1 will show in the display.

Rotate the SELECT/Scroll Up/Down button to select the required preset memory

position.

Push the SELECT button to save the current station into the specified preset

location.

Selecting a Preset Station

Press the PRESET button briefly, preset position 1 will show in the display.

Rotate the SELECT/Scroll Up/Down button to select the desired preset.

Push the SELECT button to confirm.

DON’T FORGET!

If you select a preset location that has not been programmed with a station,

"Preset empty" will be displayed.

The DAB Radio will return to the previously selected station after a few seconds.

Changing the DAB Station Information

It is possible to change the information displayed on the second line of the display

when listening to a DAB station. There are seven types of information

available as listed below with examples to the right.

Dynamic Label Segment (DLS) This is scrolling text

information supplied by the DAB station. It may

comprise information on music titles or details of the

programme and is provided by the broadcaster.

Signal Bar Shows the transmission signal level.

Program Type (PTY) This is a description of the

type of programme provided by the DAB station and

is provided by the broadcaster.

Multiplex Name This will show the multiplex that is

broadcasting the programme you are listening to.

Channel and Frequency This displays the channel

number and the transmission frequency.

Signal Error Rate If the transmission signal contains

errors the system can apply correction.

The amount of signal correction can be displayed as a

numerical value between 0 and 99. As the value

increases, you will hear the signal degrade.

To improve reception, try adjusting the position of the

antenna. Please note a signal error rate of 30 or more

will make the station un-listenable.

Signal Information This shows the digital bit-rate

and the signal mode.

Time This shows the current time and is provided by

the broadcaster so will always be accurate.

Date This displays the date and is provided by the

broadcaster.

News

BBC National DAB

11C 220.352MHz

Signal error 1

80kbps Mono

Press DISPLAY Button

BBC Radio 5 Live

DLS scrolling

BBC Radio 5 Live

Press DISPLAY Button

BBC Radio 5 Live

Press DISPLAY Button

BBC Radio 5 Live

Press DISPLAY Button

28/12/2009

12:38:33 AM

03 Daily Use

Using the MENU Control (DAB mode)

The MENU control allows you to change some of the system options on your DAB

Radio. These options are arranged in a menu structure as shown below.

BBC Radio 5 Live

RadioText

<DRC >

Press MENU Button

Rotate the “SELECT”

button clockwise

Rotate the “SELECT”

button clockwise

Rotate the “SELECT”

button clockwise

Rotate the “SELECT”

button clockwise

Rotate the “SELECT”

button clockwise

DAB

Press SELECT Button

Return to Station list

DAB

Press SELECT Button

Scanning 0

Manual tune

<5A 174.928MHz>

Rotate the “SELECT” Button to

choose radio frequency, press

SELECT Button to confirm.

Prune?

<No> Yes

Rotate the “SELECT” Button to

choose “Prune” No/Yes, press

select button to confirm

DAB

Rotate the “SELECT” Button to

choose “DRC” off / high /low,

press select button to confirm

System

<Time >

Rotate the “SELECT” Button to

choose “System” Time / Backlight /

factory reset / SW version, press

SELECT button to confirm

03Daily Use

Using the Menu

Press the MENU button to enter the menu. Rotate the SELECT button to scroll

through the options described below.

Full Scan

Press the MENU button to access the menu.

Rotate

the SELECT button until “Full scan” is displayed.

Push the SELECT button to activate a full scan for DAB stations.

Manual Tune

It is possible to manually tune to a specific channel/frequency and add this to the

station list. This function can be used to obtain the optimum reception for a specific

Channel/frequency.

Press

the MENU button to access the menu.

Rotate the SELECT button until “Manual tune” is displayed.

Push the SELECT button to select.

Rotate the SELECT button to select the desired channel/frequency.

Push the SELECT button, a rectangle will be displayed on the second line of the

display.

The position of this rectangle indicates the signal strength (the further towards the

right, the greater the signal strength)

Adjust the position of the antenna to obtain the optimum signal strength.

Push the SELECT button to confirm.

03 Daily Use
