Please read this manual first!

Dear Customer,

We hope that your product, which has been produced in modern plants

and checked under the most meticulous quality control procedures, will

provide you an effective service

For this, we recommend you to carefully read the entire manual of your

product before using it and keep it at hand for future references.

The user manual will help you use the product in a fast and safe way.

Will help you use your appliance in a fast and safe way.

Read the manual before installing and operating your product.

Follow the instructions, especially those for safety.

Keep the manual in an easily accessible place as you may need it later.

Besides, read also the other documents provided with your product.

Please note that this manual may be valid for other models as well.

Symbols and their descriptions

This instruction manual contains the following symbols:

CImportant information

or useful usage tips.

AWarning against

dangerous conditions

for life and property.

BWarning against

electric voltage.

Packaging materials

of the product are

manufactured from

recyclable materials

in accordance with our

National Environment

Regulations.

1 Important Instructions

Regarding Safety and En-

vironment

This chapter contains safety

information that will help you

avoid the risk personal injury

or property damage. Failure to

follow these instructions shall

render any product warranty

void.

Intended use

WARNING:

Keep ventilation

openings, in the

appliance enclosure or

in the built-instructure,

clear of obstruction.

WARNING:

Do not use

mechanical

devices or other

means to accelerate

the defrosting

process, other than

those recommended

by the manufacturer.

WARNING:

Do not damage the

refrigerant circuit.

WARNING:

Do not use electrical

appliances inside

the food storage

compartments of the

appliance, unless

they are of the type

recommended by the

manufacturer.

This appliance is intended to be

used in household and similar

applications such as

– staff kitchen areas in shops,

offices and other working

environments;

– farm houses and by clients

in hotels, motels and other

residential type environments;

– bed and breakfast type

environments;

– catering and similar non-retail

applications.

1.1. General Safety

 This product is not suitable to be

used, approached or entered in by

children, or persons with physical,

sensory or mental disabilities, or by

persons who lack experience and

information. Children should not

play with the product. Cleaning and

care should not be performed by

children unless they are supervised

by an adult. Failure to comply with

the instructions and uncontrolled

use may result in dangerous

situations!

 Unplug the product if you encounter

a failure during use.

 If the product malfunctions, it must

not be operated until repaired by

the authorised service provider.

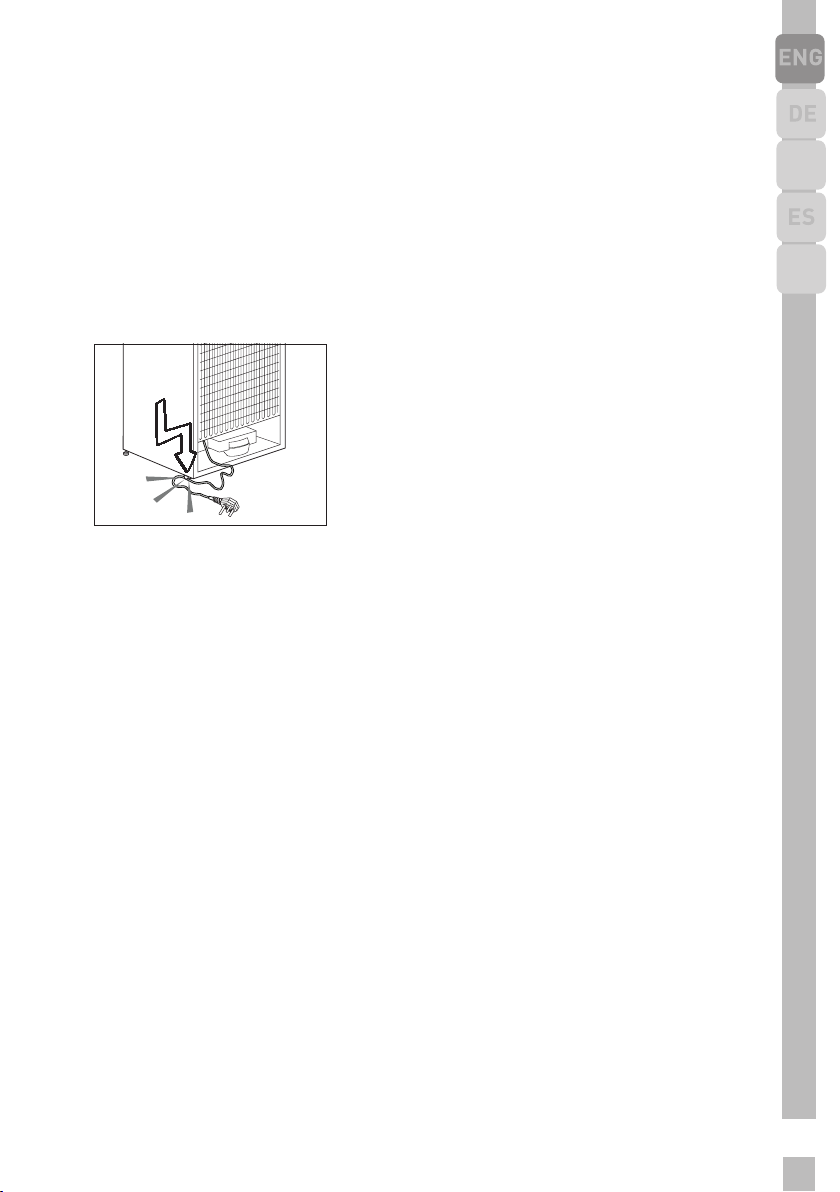

Risk of electric shock!

 Plug the product into a grounded

socket protected by a fuse that

corresponds to the value on its

nameplate. Have a qualified

electrician ground the product.

Our company cannot be held

responsible for damages resulting

from the failure to use the product

with a grounded socket pursuant to

local regulations.

 Unplug the product when not in use.

 Never wash the product by spreading

or pouring water onto it! Risk of

electric shock!

 Never touch the plug with wet hands!

 Never unplug the product by pulling

the cable. Always pull the plug by

holding the socket.

 Do not plug the refrigerator if the

wall socket is loose.

 Never connect your refrigerator to

energy saving devices. Such systems

are harmful to your product.

 Unplug the product during

installation, care, cleaning and

repairing procedures.

 Always have the Authorised

Service Provider install the

product and establish its electrical

connections. The manufacturer

cannot be held responsible for

damages caused by procedures

performed by unauthorised persons.

 Do not eat cone ice cream or

ice cubes immediately after you

take them out of the freezer

compartment! This may cause

frostbite in your mouth!

 Do not touch frozen food with wet

hands! They may stick to your hand!

 Do not put bottled or canned

liquid beverages in the freezer

compartment. They may burst!

 Never use steam or steam cleaners

to clean or defrost the refrigerator.

Steam gets into contact with the live

parts in your refrigerator, causing

short circuit or electric shock!

 Do not use mechanical devices

or other means to accelerate the

defrosting process other than those

recommended by the manufacturer.

 Never use the parts in your

refrigerator such as the door and

drawer as a means of support or

step. This may cause the product to

tip over or damage the parts of it.

 Do not damage the parts where the

refrigerant is circulating with drilling

or cutting tools. The refrigerant

that might blow out when the gas

channels of the evaporator, pipe

extensions or surface coatings are

punctured causes skin irritations and

eye injuries.

 Do not cover or block the ventilation

holes in your refrigerator with any

object.

 Place the beverage with higher

proofs tightly closed and vertically.

 Do not use gaseous sprays near the

product since there is the risk or fire

or explosion!

 Flammable items or products that

contain flammable gases (e.g. spray)

as well as explosive materials should

never be kept in the appliance.

 Do not place vessels filled with liquid

onto the product. Splashing water on

an electrical part may cause electric

chock or the risk of fire.

 Do not store items that need

precise temperature adjustment

(such as vaccines, heat-sensitive

medication, science materials etc.)

in the refrigerator.

 If you are not going to use the

product for a long time, unplug it

and remove the food in it.

 If there is a blue light on the

refrigerator, do not look at this light

with optical tools.

 Exposing the product to rain, snow,

sun or wind is dangerous in terms

of electrical safety.

 In products with mechanical control

(thermostat), wait for 5 minutes

to plug in the product again after

unplugging.

 Do not overload the refrigerator.

Objects in the refrigerator may fall

down when the door is opened,

causing injury or damage. Similar

problems may arise if any object is

placed onto the product.

 If the product has a door handle,

do not pull the handle when re-

locating the product. The handle

might be loose.

 Be careful not to jam your hand or

any other body part in the moving

parts of the refrigerator.

 Do not put your hand or any other

foreign materials into the ice

machine while it is operating.

1.1.1 Hydrocarbon

(HC) Warning

 If your product's cooling system

contains R600a:

This gas is flammable.

Therefore, pay attention not

to damage the cooling system

or the piping during use and

transportation. If damaged,

keep the product away from

potential fire sources that

may cause it to catch fire and

ventilate the room where the

product is placed.

If the product is damaged

and if you see gas leak,

please keep away from

the gas. It may cause

frostbite when it gets into

contact with the skin.

(including R134)

CIgnore this warning if the

cooling system of your

product contains R134a.

Type of gas used in the

product is stated on the

type plate which is on

the left wall inside the

refrigerator.

AWARNING:

Never throw the product

into fire for disposal.

1.1.2 For Products with a

Water Dispenser/Ice Machine

 Pressure for cold water inlet shall

be maximum 90 psi (620 kPa). If

your water pressure exceeds 80 psi

(550 kPa), use a pressure limiting

valve in your mains system. If you

do not know how to check your

water pressure, ask for the help of

a professional plumber.

 If there is a risk of water impact

in your installation, always use a

water impact protection equipment

in that installation. Please consult

professional plumbers if you are

not sure if there is water impact in

your installation.

 Do not make installation on the hot

water inlet.

 Take the necessary measures

against the freezing risk of the

hoses. The water temperature

operating range must be 0.6°C

(33°F) minimum and 38°C (100°F)

maximum.

WARNING:

Never connect the

product to a cold water

mains with a pressure

of 550 kPa (80 psi) or

above.

1.2. Intended Use

 This product has been designed for

domestic use. It is not suitable for

commercial use and it must not be

used out of its intended use.

 It must be used only for storing

food.

 The manufacturer will not take

any responsibility for damages

resulting from improper use or

transport.

 Original spare parts will be

available for 10 years after the

purchase date of the product.

1.3. Children's Safety

 If there is a lock on the door of the

product, the key should be kept out

of the reach of children.

 Do not let children play with the

product.

DANGER:

Before disposing your

old refrigerator or

freezer:

 Children may get locked

inside.

 Remove the doors.

 Leave the shelves to

prevent children from

getting inside the product

easily.

1.4. Compliance with

the WEEE Directive

and Disposing the

Waste Product:

This product conforms

to the EU WEE Directive

(2012/19 EU). This

product bears a

classification symbol

for waste electrical

and electronic equipment

(WEEE). This product has been

manufactured from high quality

parts and materials which can

be reused and are suitable for

recycling. Therefore, do not

dispose the product with normal

domestic waste or other waste

at the end of its service life.

Take it to a collection centre for

recycling electrical and electronic

equipment. Please consult

local authorities to learn about

the locations of such collection

centres.

1.5. Compliance with

the RoHS Directive:

The unit you have purchased

conforms to the EU RoHS Directive

(2011/65/EU). It does not contain

harmful or prohibited materials

specified in the Directive.

1.6. Packaging

Information

 Packaging materials of the product

have been manufactured from

recyclable materials in accordance

with our National Environment

Regulations. Do not dispose the

packaging materials with normal

domestic waste or other types of

waste. Take these materials to a

recycling point designated by local

authorities.

DANGER:

Risk of Fire or Explosion:

 This product uses

flammable refrigerant.

 Do not use mechanical

devices to defrost the

refrigerator.

 Do not use chemicals for

cleaning.

 Do not pierce the

refrigerant pipe.

 If the refrigerant pipe

is pierced, it must be

repaired only by licensed

service personnel.

 Please consult the repair/

user manual before

cleaning the product. All

safety instructions must

be followed.

 Dispose the product

according to federal or

local regulations.

2. Your Freezer

Figures in this user manual are schematic and may not match

the product exactly. If the subject parts are not included in the

product you have purchased, then those parts are valid for other

models.

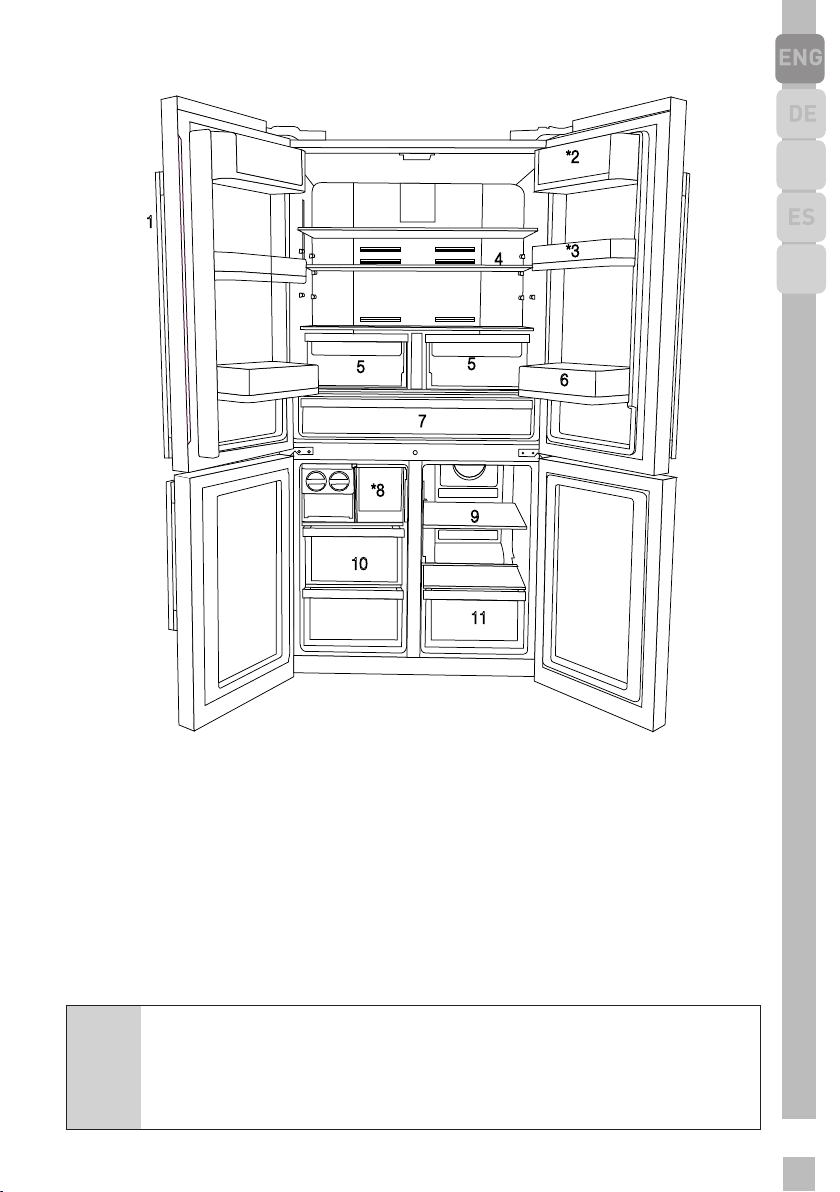

1. Control and indicator panel

2. Butter & Cheese section

3. 70 mm moving door shelf

4. Fridge compartment glass

shelf

5. Fridge compartment cris-

per

6. Gallon door shelf

7. Chiller compartment

8. Icebox drawer

9. Multizone compartment glass

shelf/cooler

10. Freezer compartment dra-

wers

11. Multizone Compartment’s

drawer

*Optional

Andere Handbücher für GQN21220X

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Grundig Kühlschrank Handbücher

Grundig

Grundig GKPN46820FX Bedienungsanleitung

Grundig

Grundig GKN 3000 Carbon Bedienungsanleitung

Grundig

Grundig GKN 27930 FXP Bedienungsanleitung

Grundig

Grundig GKN 16920 XP Bedienungsanleitung

Grundig

Grundig GKNI 15720 Bedienungsanleitung

Grundig

Grundig GKGI 15730 Bedienungsanleitung

Grundig

Grundig GKN6686MVN Bedienungsanleitung

Grundig

Grundig GRND5680 Bedienungsanleitung

Grundig

Grundig GSBS5100 Bedienungsanleitung

Grundig

Grundig GRNE 4300 Bedienungsanleitung

Grundig

Grundig GKN16910D Bedienungsanleitung

Grundig

Grundig GKPN66840LW Bedienungsanleitung

Grundig

Grundig GQN21355XN Bedienungsanleitung

Grundig

Grundig GKFED473 Montageanleitung

Grundig

Grundig GKN 26260 XPHN Bedienungsanleitung

Grundig

Grundig GKN 17830X Bedienungsanleitung

Grundig

Grundig GSBS11120X Montageanleitung

Grundig

Grundig GSBS11122X Bedienungsanleitung

Grundig

Grundig GRNE 4650 Bedienungsanleitung

Grundig

Grundig GKN 16830 Bedienungsanleitung

Grundig

Grundig GKPN 66830LXP Bedienungsanleitung

Grundig

Grundig GKN 16825 Bedienungsanleitung

Grundig

Grundig GQN21220WX Bedienungsanleitung

Grundig

Grundig GWN21230XN Bedienungsanleitung

Beliebte Kühlschrank Handbücher anderer Marken

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Bedienungsanleitung

Sharp

Sharp SJ-BA31IEXW2-EU Bedienungsanleitung

CORBERO

CORBERO CC2300MCW Bedienungsanleitung

KitchenAid

KitchenAid 2205264 Bedienungsanleitung

Stengel

Stengel KU 1101 A++ Bedienungsanleitung

NEFF

NEFF KI181 Series Bedienungsanleitung

Hoshizaki

Hoshizaki Reach-In Bedienungsanleitung

Amana

Amana ASD2524VES00 Bedienungsanleitung

BOMANN

BOMANN KGC 213 Bedienungsanleitung

Danby

Danby DAR044A1SLDD Montageanleitung

Samsung

Samsung RF323TE Bedienungsanleitung

Beko

Beko CSA31022 Bedienungsanleitung

IKEA

IKEA FROSTIG C 185 E Bedienungsanleitung

Electrolux

Electrolux ER 6821 D Bedienungsanleitung

True

True TS-28 Bedienungsanleitung

Frigidaire

Frigidaire FSC23R5DW9 Bedienungsanleitung

Beko

Beko LSP4579W Bedienungsanleitung
