Guardian Fall Protection GR11 Web SRL Bedienungsanleitung

Product Name: GR11 Web SRL

Instruction Manual

Part #: 32080; 32082; 32083; 32084

Do not throw away these instructions!

Read and understand these instructions before using equipment!

Introduction 1

Applicable Safety Standards 1

Worker Classifications 1

Safety Information 6

Product Specific Applications 2

Limitations 2 - 3

Components and Specifications 3 - 4

Maintenance, Cleaning, and Storage 5

Inspection 5

Installation and Use 4

Inspection Log 5

Labels 7

GR11

SELF-RETRACTING

LIFELINE

WEB

ANSI Z359.14-2014

& A10.32-2012

OSHA 1926 Subpart M

& 1910.140

DO NOT REMOVE LABELS

Assembled in USA

Introduction

Thank you for purchasing a Guardian Fall

Protection GR11 Web SRL. This manual must

be read and understood in its entirety,

and used as part of an employee training

program as required by OSHA or any

applicable state agency.

This and any other included instructions

must be made available to the user of

the equipment. The user must understand

how to safely and effectively use the

GR11 Web SRL, and all fall safety equipment

used in combination with the GR11 Web SRL.

User Information

Date of First Use:

Serial #:

Trainer:

User:

Applicable Safety Standards

When used according to instruction specifications, this product meets or exceeds all applicable OSHA 1926

Subpart M, OSHA 1910, ANSI Z359.14-2014, and ANSI A10.32-2012 standards for fall protection. Applicable

standards and regulations depend on the type of work being done, and also might include state-specific

regulations. Consult regulatory agencies for more information on fall protection systems and associated

components.

Worker Classifications

CAUTION

Understand the following definitions of those who

work near or who may be exposed to fall hazards.

Qualified Person: A person with an accredited degree or certification, and with extensive experience or

sufficient professional standing, who is considered proficient in planning and reviewing the conformity of fall

protection and rescue systems.

Competent Person: A highly trained and experienced person who is ASSIGNED BY THE EMPLOYER to be

responsible for all elements of a fall safety program, including, but not limited to, its regulation, management,

and application. A person who is proficient in identifying existing and predictable fall hazards, and who has

the authority to stop work in order to eliminate hazards.

Authorized Person: A person who is assigned by their employer to work around or be subject to potential or

existing fall hazards.

It is the responsibility of a Qualified or Competent person to supervise the job site and ensure all

applicable safety regulations are complied with.

Guardian Fall Protection 6305 S. 231st St., Kent, WA 98032

Product Specific Applications

Personal Fall Arrest: GR11 Web SRL may be used to support a MAXIMUM 1 PFAS for use in Fall

Arrest applications. Structure must withstand loads applied in the directions permitted by the

system of at least 5,000 lbs. Maximum 2’ free fall (note: increased deceleration distance if free fall

exists). Applicable D-ring: Dorsal.

Restraint: GR11 Web SRL may be used in Restraint applications. Restraint systems prevent

workers from reaching the leading edge of a fall hazard. Always account for fully deployed length

of lanyard/SRL. Structure must withstand loads applied in the directions permitted by the system

of at least 1,000 lbs. No free fall is permitted. Restraint systems may only be used on surfaces

with slopes up to 4/12 (vertical/horizontal). Applicable D-rings: Dorsal, Chest, Side, Shoulder.

WARNING

Use of equipment in unintended applications may result in serious

injury or death. Maximum 1 attachment per connection point.

For all applications, worker weight capacity range (including all clothing, tools, and equipment):

• Anchor at/above D-ring (24” max. deceleration): 130-310 lbs.

• Anchor at/above D-ring (84” max. deceleration): 311-420 lbs.

• Anchor below D-ring, max. 2’ (59” max. deceleration): 130-310 lbs.

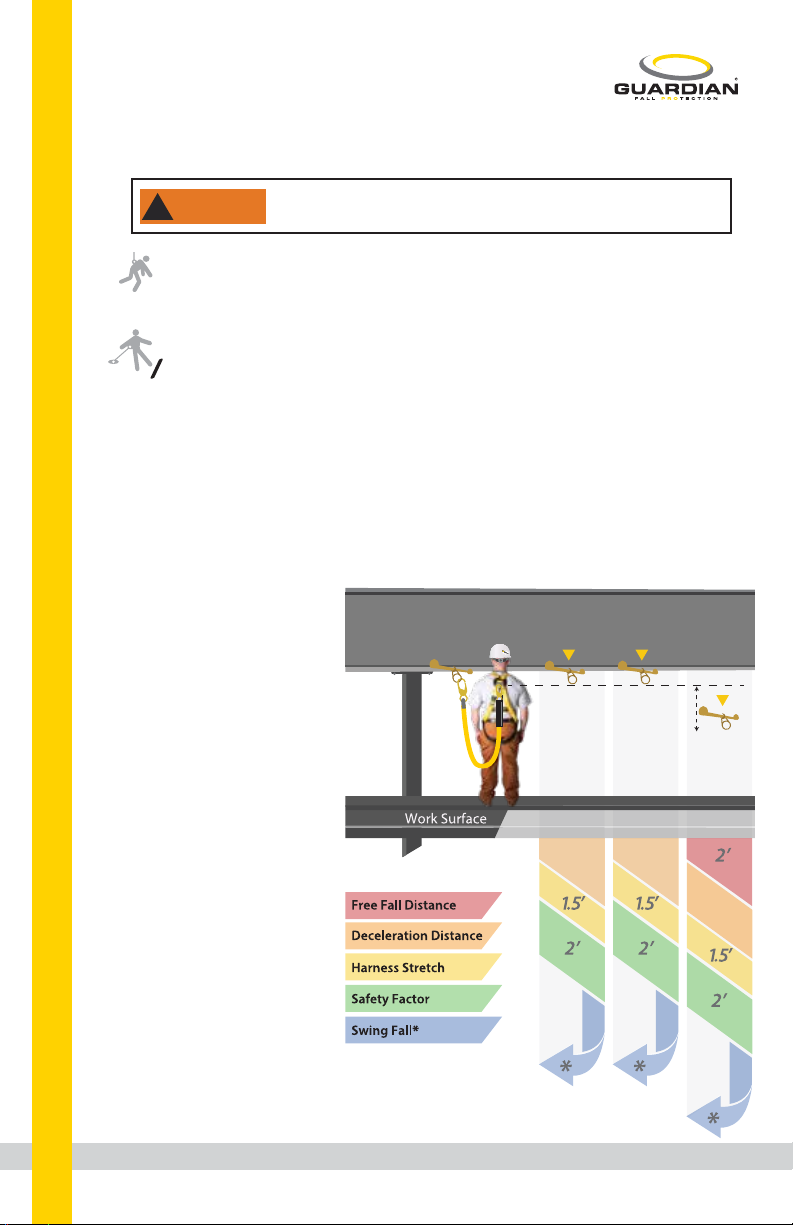

Limitations

Fall Clearance: There must be

sufficient clearance below the

anchorage connector to arrest

a fall before the user strikes the

ground or an obstruction. When

calculating fall clearance,

account for a MINIMUM 2’

safety factor, deceleration

distance, user height, length

of lanyard/SRL, harness stretch

and all other applicable factors.

Diagram shown is an example

fall clearance calculation ONLY.

Swing Falls: Prior to installation

or use, make considerations for

eliminating or minimizing all

swing fall hazards. Swing falls

occur when the anchor is not

directly above the location

where a fall occurs. Always

work as close to in line with

the anchor point as possible.

Swing falls significantly

increase the likelihood of

serious injury or death in the

event of a fall.

4.9’

7’

2’

Fall clearance calculation shown based on standing worker falling

directly in-line with anchor point. Always consider potential swing fall

and other hazards when calculating fall clearance.

Anchor point

at or above

dorsal D-ring

(130-310 lbs.)

Anchor point

below dorsal

D-ring, 2’ max.

(130-310 lbs.)

2’

max.

*Eliminate Swing Fall whenever

possible! If Swing Fall exists,

always account for additional

fall clearance.

Anchor point

at or above

dorsal D-ring

(311-420 lbs.)

Guardian Fall Protection 6305 S. 231st St., Kent, WA 98032

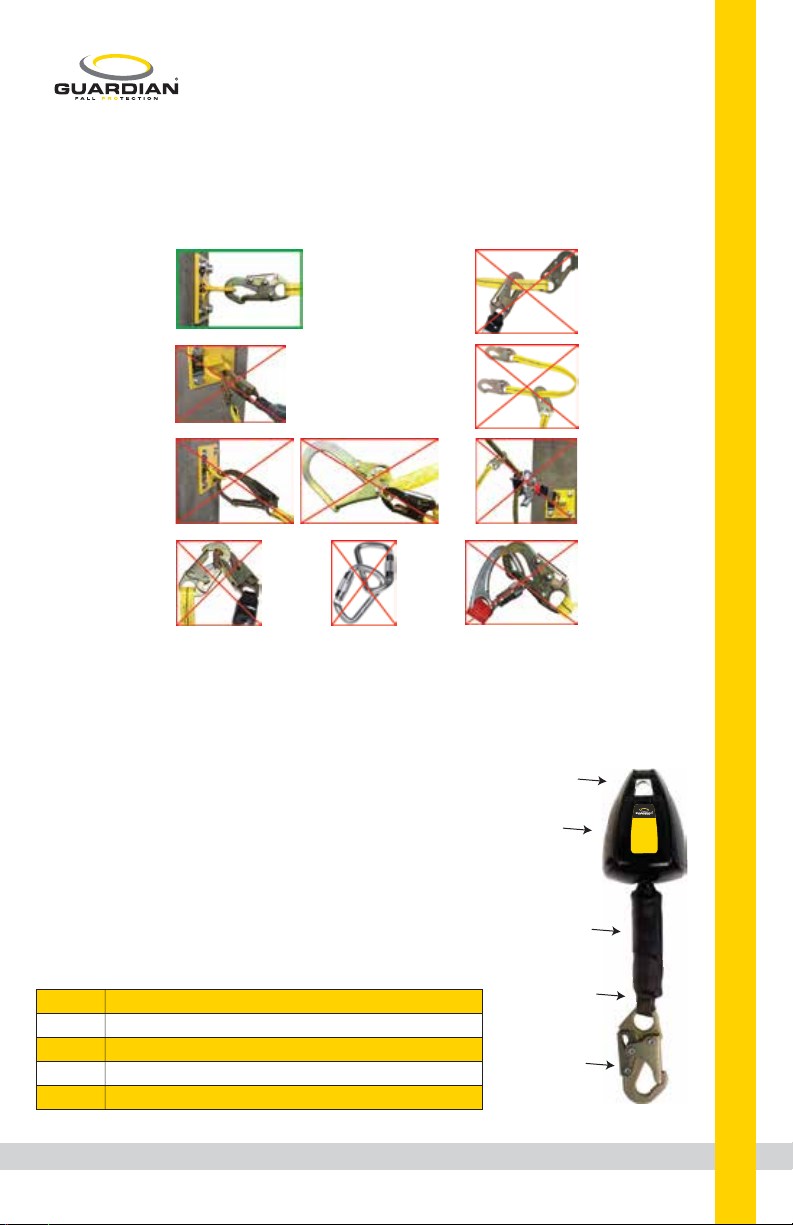

Components and Specifications

Compatibility: When making connections with GR11 Web SRL, eliminate all possibility of roll-out. Roll-out

occurs when interference between a hook and the attachment point causes the hook gate to unintentionally

open and release. All connections must be selected and deemed compatible with GR11 Web SRL by a

Competent Person. All connector gates must be self-closing and self-locking, and withstand minimum loads of

3,600 lbs. See the following for examples of compatible/incompatible connections:

Connector

closed and

locked to

D-ring. OK.

Two or more

snap hooks or

carabiners

connected to

each other. NO.

Two connectors

to same

D-ring. NO.

Connector

directly to

horizontal

lifeline. NO.

Connector

to integral

lanyard.

NO.

Connector

directly to

webbing.

NO.

Incompatible

or irregular

application,

which may

increase risk

of roll-out. NO.

Materials: stainless steel, glass-filled nylon, HMPE, and galvanized steel or aluminum.

Part # Description

32080

32082

GR11 Web 11’ Single Leg SRL w/Steel Snap Hook

GR11 Web 11’ Single Leg SRL w/Aluminum Snap Hook

GR11 Web 11’ Single Leg SRL w/Aluminum Rebar Hook

32083

32084 GR11 Web 11’ Single Leg SRL w/Swivel Steel Snap Hook

GR11

SELF-RETRACTING

LIFELINE

WEB

ANSIZ359.14-2014

&A10.32-2012

OSHA1926 Subpart M

&1910.140

DONOT REMOVE LABELS

Assembledin USA

Connection

Point

Shock Absorber

w/ Cover

Lifeline

(13/16” width)

Connector

Housing

Average arrest force: 1,350 lbs.

Maximum arrest force:1,800 lbs.

Anchor point at/above D-ring, 130-310 lb. worker capacity:

- Class A SRL.

- Maximum deceleration distance: 24”.

- Minimum fall clearance: 5’6”.

Anchor point below D-ring, max. 2’, 130-310 lb. worker capacity:

- Maximum deceleration distance: 59”.

- Minimum fall clearance: 10’5”.

Anchor point at/above D-ring, 311-420 lb. worker capacity:

- Maximum deceleration distance: 84”.

- Minimum fall clearance: 10’6”.

Guardian Fall Protection 6305 S. 231st St., Kent, WA 98032

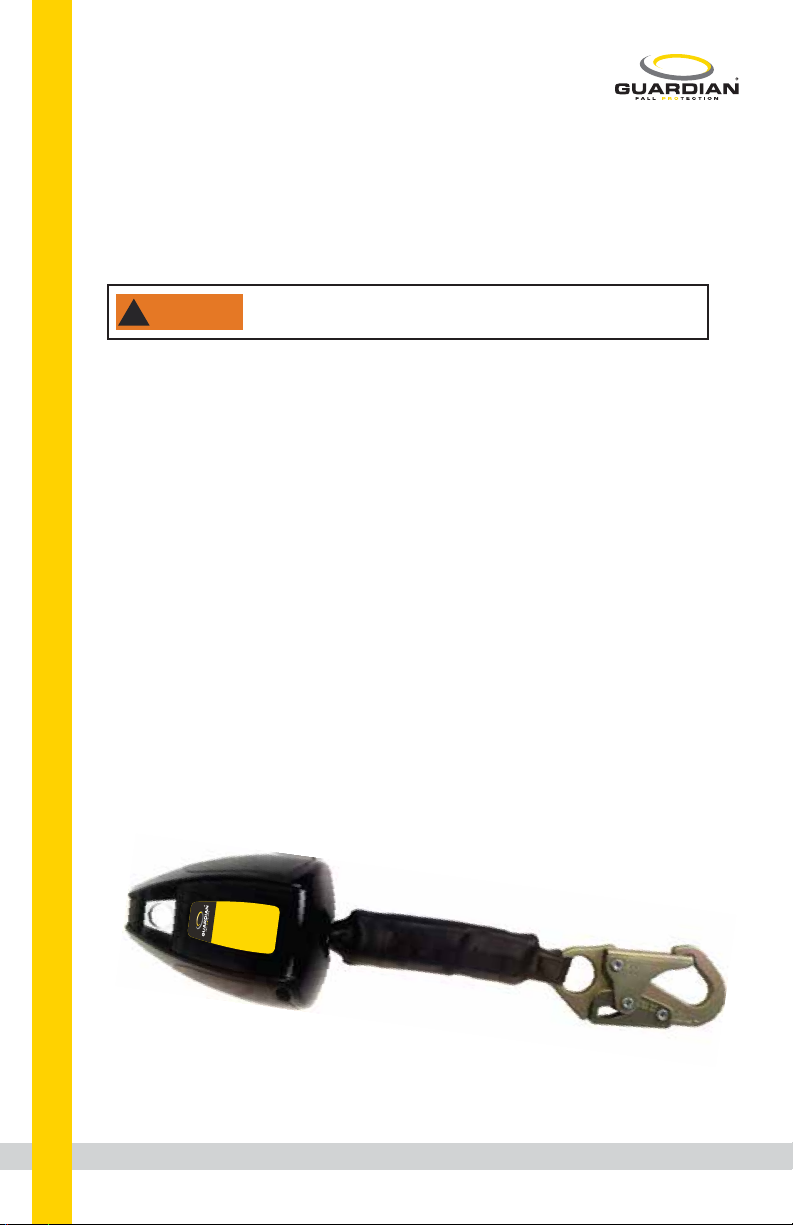

Installation and Use

• Guardian Fall Protection GR11 Web SRLs MUST NEVER be used in Leading Edge (LE) applications.

• ALWAYS avoid lifeline contact with sharp or abrasive edges and surfaces, both during use and in

event of a fall.

1. All components of the personal fall arrest system must be selected and deemed compatible with GR11 Web

SRL by a Competent Person.

2. Ensure area where work is to be performed is free of all hazards, including, but not limited to, debris, rot,

rust, sharp or abrasive edges and surfaces, and hazardous materials.

3. GR11 Web SRLs may be used either with the housing attached to the anchor point or to the harness dorsal

D-ring. Anchor point must be located no more than 2‘ below harness dorsal D-ring (from standing

working position).

*If using GR11 Web SRL with rebar hook, SRL housing must always be attached at harness dorsal D-ring. Rebar

hook must ONLY be connected to structural rebar, or other structural anchor (such as angle iron or concrete

form) deemed compatible with GR11 Web SRL by Competent Person.

4. To use GR11 Web SRL with housing at anchor point, attach to anchor point with provided carabiner, or

equivalent, and attach snap hook to applicable harness D-ring.

5. To use GR11 Web SRL with housing at harness, attach to dorsal D-ring with provided carabiner, or

equivalent, and attach snap hook to compatible anchorage connector.

WARNING

Do not remove shrink tube around shock absorber.

GR11

SELF-RETRACTING

LIFELINE

WEB

ANSI Z359.14-2014

& A10.32-2012

OSHA 1926 Subpart M

& 1910.140

DO NOT REMOVE LABELS

Assembled in USA

Guardian Fall Protection 6305 S. 231st St., Kent, WA 98032

Maintenance, Cleaning, and Storage

If GR11 Web SRL fails inspection in any way, immediately remove it from service, and contact Guardian to

inquire about its return or repair.

Cleaning after use is important for maintaining the safety and longevity of GR11 Web SRL. Remove all dirt,

corrosives, and contaminants from GR11 Web SRL before and after each use. If GR11 Web SRL cannot be

cleaned with plain water, use mild soap and water, then rinse and wipe dry. NEVER clean GR11 Web SRL with

corrosive substances.

When not in use, store equipment where it will not be affected by heat, light, excessive moisture, chemicals,

or other degrading elements.

Prior to EACH use, inspect GR11 Web SRL for deficiencies, including, but not limited to, corrosion, deformation,

pits, burrs, rough surfaces, sharp edges, cracking, rust, paint buildup, excessive heating, alteration, and

missing or illegible labels. IMMEDIATELY remove GR11 Web SRL from service if defects or damage are found, or

if exposed to forces of fall arrest.

Ensure that applicable work area is free of all damage, including, but not limited to, debris, rot, rust, decay,

cracking, and hazardous materials. Ensure that selected work area will support the application-specific

minimum loads set forth in this instruction manual. Work area MUST be stable.

At least every 12 months, a Competent Person other than the user must inspect GR11 Web SRL. Competent

Person inspections MUST be recorded in inspection log in instruction manual and on equipment

inspection grid label. The Competent Person must sign their initials in the box corresponding to the

month and year the inspection took place.

During inspection, consider all applications and hazards GR11 Web SRL has been subjected to.

Inspection

Inspection Log

If equipment fails inspection IMMEDIATELY REMOVE FROM SERVICE.

Date of First Use: __________________.

Product lifetime is indefinite, as long as it passes all pre-use and Competent Person inspections. User

must inspect prior to EACH use. Competent Person other than user must complete formal inspection at

least every 12 months. Competent Person to inspect and initial.

This inspection log must be specific to one GR11 Web SRL. Separate inspection logs must be used for

each GR11 Web SRL. All inspection records must be made visible and available to all users at all times.

Guardian Fall Protection 6305 S. 231st St., Kent, WA 98032

Safety Information

Failure to understand and comply with safety regulations may result in

serious injury or death. Regulations included herein are not all-inclusive,

are for reference only, and are not intended to replace a Competent

Person’s judgment or knowledge of federal or state standards.

WARNING

Do not alter equipment. Do not misuse equipment.

Workplace conditions, including, but not limited to, flame, corrosive chemicals, electrical shock, sharp objects,

machinery, abrasive substances, weather conditions, and uneven surfaces, must be assessed by a Competent

Person before fall protection equipment is selected.

The analysis of the workplace must anticipate where workers will be performing their duties, the routes they

will take to reach their work, and the potential and existing fall hazards they may be exposed to. Fall

protection equipment must be chosen by a Competent Person. Selections must account for all potential

hazardous workplace conditions. All fall protection equipment should be purchased new and in an unused

condition.

Fall protection systems must be selected and installed under the supervision of a Competent Person, and used

in a compliant manner. Fall protection systems must be designed in a manner compliant with all federal, state,

and safety regulations. Forces applied to anchors must be calculated by a Competent Person.

Unless explicitly stated otherwise, the maximum allowable free fall distance for lanyards must not exceed 6’.

No free fall allowed for non-LE SRLs. Class A SRLs must arrest falls within 24”; Class B SRLs must arrest falls

within 54”.

Harnesses and connectors selected must be compliant with manufacturer’s instructions, and must be of

compatible size and configuration. Snap hooks, carabiners, and other connectors must be selected and applied

in a compatible fashion. All risk of disengagement must be eliminated. All snap hooks and carabiners must be

self-locking and self-closing, and must never be connected to each other.

A pre-planned rescue procedure in the case of a fall is required. The rescue plan must be project-specific. The

rescue plan must allow for employees to rescue themselves, or provide an alternative means for their prompt

rescue. Store rescue equipment in an easily accessible and clearly marked area.

Training of Authorized Persons to correctly erect, disassemble, inspect, maintain, store, and use equipment

must be provided by a Competent Person. Training must include the ability to recognize fall hazards, minimize

the likelihood of fall hazards, and the correct use of personal fall arrest systems.

NEVER use fall protection equipment of any kind to hang, lift, support, or hoist tools or equipment, unless

explicitly certified for such use.

Equipment subjected to forces of fall arrest must immediately be removed from use.

Age, fitness, and health conditions can seriously affect the worker should a fall occur. Consult a doctor if there

is any reason to doubt a user’s ability to withstand and safely absorb fall arrest forces or perform set-up of

equipment. Pregnant women and minors must not use this equipment.

Physical harm may still occur even if fall safety equipment functions correctly. Sustained post-fall suspension

may result in serious injury or death. Use trauma relief straps to reduce the effects of suspension trauma.

Guardian Fall Protection 6305 S. 231st St., Kent, WA 98032

785366 (Rev. G)

Labels

GR11

SELF-RETRACTING

LIFELINE

WEB

ANSI Z359.14-2014

& A10.32-2012

OSHA 1926 Subpart M

& 1910.140

DO NOT REMOVE LABELS

Assembled in USA

DOM:

MM/YY

PART #:

32080

LOT #:

000000000000000

11’ SELF-RETRACTING LIFELINE

WARNING: Manufacturer's instructions supplied with product must be read prior to use. Failure

to follow instructions may result in serious injury or death. Never modify product. Not repairable.

USE: Maximum 2’ free fall. Anchor point must never be positioned more than 2’ below harness

D-ring. Free fall decreases capacity and increases deceleration distance. Avoid lifeline contact

with sharp edges both during work and in event of a fall. For use by trained users only.

Maximum one user. Ensure connection to anchorage is secured properly before use.

May be used as a component of a PFAS in HLL applications.

NOT SUITABLE FOR LEADING EDGE USE

NUNCA DEBEN USARSE EN APLICACIONES DE BORDE EXPUESTO

INSPECTION: Prior to each use, per instructions, inspect for signs of deployment, locking function

(pull sharply to test), retraction function, legibility of labels, evidence of defects, damage, or missing

parts, and condition of connectors, housing, and lifeline (inspect full length). Inspection by

Competent Person required at least every 12 months. Immediately remove from service

in event of failed inspection or if unit is subjected to a fall.

Anchor Point at/above D-ring

User Weight Range:

Max. Deceleration Dist:

Min. Fall Clearance:

Anchor Point below D-ring (2’ Max.)

User Weight Range: 130 - 310 lbs

Max. Deceleration Dist: 44”

Min. Fall Clearance: 9’2”

90951 (Rev. E)

Date of First Use:

guardianfall.com

SPECIFICATIONS:

Average Arresting

Force: 1,350 lbs.

Webbing: 11’ HMPE,

13/16” width.

Date: Initials:

INSPECTED BY:

130-310 lbs

24”

5’6”

Class A SRL

311-420 lbs

84”

10’6”

Distributed by Engineered Fall Protection | [email protected] | (314) 492-4422 | www.EngineeredFallProtection.com

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Guardian Fall Protection Sicherheitsausrüstung Handbücher

Guardian Fall Protection

Guardian Fall Protection 01520 Bedienungsanleitung

Guardian Fall Protection

Guardian Fall Protection 00260 Bedienungsanleitung

Guardian Fall Protection

Guardian Fall Protection 00484 Bedienungsanleitung

Guardian Fall Protection

Guardian Fall Protection Beamer 2000 Bedienungsanleitung

Guardian Fall Protection

Guardian Fall Protection 10920CSA Bedienungsanleitung

Guardian Fall Protection

Guardian Fall Protection Diablo 2.0 Tie-Back SRL Bedienungsanleitung

Guardian Fall Protection

Guardian Fall Protection 00691 Bedienungsanleitung

Guardian Fall Protection

Guardian Fall Protection CB-18 Anchor Bedienungsanleitung

Guardian Fall Protection

Guardian Fall Protection 11002 Bedienungsanleitung

Guardian Fall Protection

Guardian Fall Protection G-Bolt 00235 Bedienungsanleitung

Guardian Fall Protection

Guardian Fall Protection Cable LE Lanyard Bedienungsanleitung

Guardian Fall Protection

Guardian Fall Protection 15192 Bedienungsanleitung

Guardian Fall Protection

Guardian Fall Protection 61133 Bedienungsanleitung

Guardian Fall Protection

Guardian Fall Protection EcoAnchor Bedienungsanleitung

Guardian Fall Protection

Guardian Fall Protection 10947 Bedienungsanleitung

Guardian Fall Protection

Guardian Fall Protection C-Slab Grabber Bedienungsanleitung

Guardian Fall Protection

Guardian Fall Protection Armadillo Bedienungsanleitung

Guardian Fall Protection

Guardian Fall Protection 15167 Bedienungsanleitung

Guardian Fall Protection

Guardian Fall Protection 00432 Bedienungsanleitung

Guardian Fall Protection

Guardian Fall Protection Halo SRL-LE Bedienungsanleitung

Guardian Fall Protection

Guardian Fall Protection GR6 Tie-Back SRL Bedienungsanleitung

Guardian Fall Protection

Guardian Fall Protection Angel Anchor Bedienungsanleitung

Guardian Fall Protection

Guardian Fall Protection G-Lok Leitfaden

Guardian Fall Protection

Guardian Fall Protection Arc-O-Pod Bedienungsanleitung

Beliebte Sicherheitsausrüstung Handbücher anderer Marken

Innova

Innova Xtirpa Bedienungsanleitung

bolle SAFETY

bolle SAFETY B810 Bedienungsanleitung

SHENZHEN FANHAI SANJIANG ELECTRONICS

SHENZHEN FANHAI SANJIANG ELECTRONICS A9060T Bedienungsanleitung

Hiltron security

Hiltron security POWER8E Leitfaden

Hatco

Hatco B-950P Bedienungsanleitung

Sitec

Sitec TX MATIC Bedienungsanleitung

TEUFELBERGER

TEUFELBERGER GRIP 12 Bedienungsanleitung

MSA

MSA PremAire System Bedienungsanleitung

AMC

AMC 1022M Series Bedienungsanleitung

Trinity

Trinity CASS S3 Bedienungsanleitung

CMC

CMC Helitack HotSeat Bedienungsanleitung

Force

Force P-35 Bedienungsanleitung

ACM

ACM SAFETY D200 Produkthandbuch

Honeywell

Honeywell Miller H-Design DuraFlex Bedienerhandbuch

ROCK

ROCK P-451 AS Bedienungsanleitung

Power first

Power first 2XYR7A Service-Handbuch

SCHUBERTH

SCHUBERTH SHP 28-C Bedienungsanleitung

Trango

Trango CINCH Bedienungsanleitung
