GW Instek PSB-1400M Bedienungsanleitung

Multi-Range DC Power Supply

PSB-1000 Series

QUICK START GUIDE

GW INSTEK PART NO. 82SB-18000M01

ISO-9001 CERTIFIED MANUFACTURER

This manual contains proprietary information, which is

protected by copyright. All rights are reserved. No part

of this manual may be photocopied, reproduced or

translated to another language without prior written

consent of Good Will Corporation.

The information in this manual was correct at the time

of printing. However, Good Will continues to improve

its products and therefore reserves the right to change

the specifications, equipment, and maintenance

procedures at any time without notice.

Good Will Instrument Co., Ltd. No. 7-1, Jhongsing Rd., Tucheng

Dist., New Taipei City 236, Taiwan.

SAFETY INSTRUCTIONS

This section contains the basic safety symbols that may

appear on the accompanying User Manual CD or on the

instrument. For detailed safety instructions and

precautions, please see the Safety Instructions chapter

in the user manual CD.

Safety Symbols

These safety symbols may appear in the user manual or

on the instrument.

Warning

Warning: Identifies conditions or

practices that could result in injury or

loss of life.

Caution

Caution: Identifies conditions or

practices that could result in damage

to the PSB-1000 or to other properties.

DANGER High Voltage

Attention Refer to the Manual

Protective Conductor Terminal

Earth (ground) Terminal

Do not dispose electronic equipment

as unsorted municipal waste. Please

use a separate collection facility or

contact the supplier from which this

instrument was purchased.

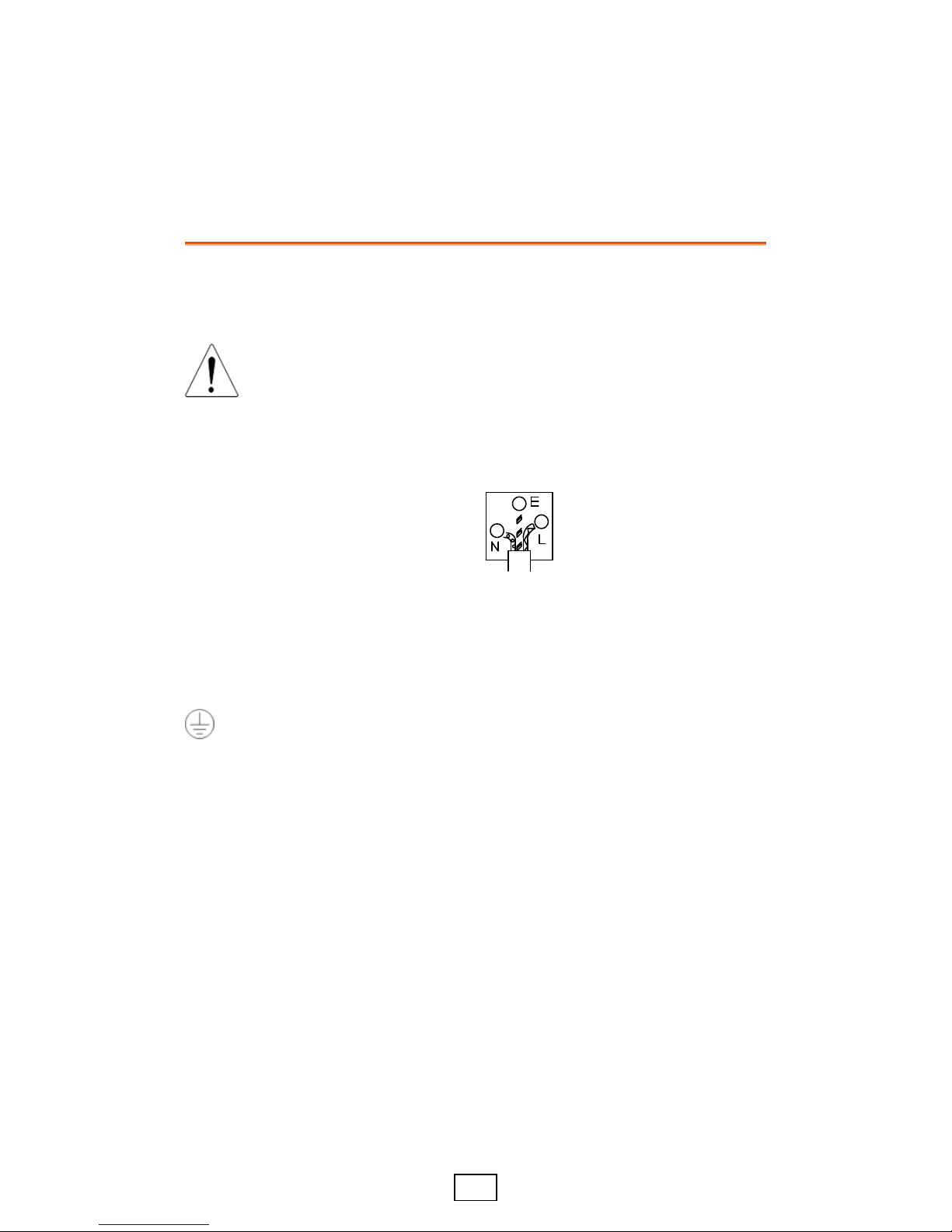

Power Cord for the United Kingdom

When using the instrument in the United Kingdom,

make sure the power cord meets the following safety

instructions.

NOTE: This lead/appliance must only be wired by

competent persons.

WARNING: THIS APPLIANCE MUST BE EARTHED

IMPORTANT: The wires in this lead are coloured in

accordance with the following code:

Green/ Yellow:

Earth

Blue:

Neutral

Brown:

Live (Phase)

As the colours of the wires in main leads may not correspond with

the coloured marking identified in your plug/appliance, proceed as

follows:

The wire which is coloured Green & Yellow must be connected to

the Earth terminal marked with either the letter E, the earth symbol

or coloured Green/Green & Yellow.

The wire which is coloured Blue must be connected to the terminal

which is marked with the letter N or coloured Blue or Black.

The wire which is coloured Brown must be connected to the terminal

marked with the letter L or P or coloured Brown or Red.

If in doubt, consult the instructions provided with the equipment or

contact the supplier.

This cable/appliance should be protected by a suitably rated and

approved HBC mains fuse: refer to the rating information on the

equipment and/or user instructions for details. As a guide, a cable of

0.75mm2should be protected by a 3A or 5A fuse. Larger conductors

would normally require 13A types, depending on the connection

method used.

Any exposed wiring from a cable, plug or connection that is engaged

in a live socket is extremely hazardous. If a cable or plug is deemed

hazardous, turn off the mains power and remove the cable, any

fuses and fuse assemblies. All hazardous wiring must be

immediately destroyed and replaced in accordance to the above

standard.

GETTING STARTED

The Getting Started chapter describes the power source

in a nutshell, including its main features and front/rear

panel introduction.

Overview

The PSB-1000 Series consists of 4 models: PSB-1400L,

PSB-1400M, PSB-1800L, and PSB-1800M. Note that

throughout the user manual, the term “PSB-1000” refers

to all the models in the PSB-1000 Series lineup, unless

stated otherwise.

Model Line Up

Model name

Output

Voltage

Output

Current

Output Power

PSB-1400L

400

PSB-1400M

160

400

PSB-1800L

800

PSB-1800M

160

800

Main Features

Performance

•Maximum output voltage of 160V

•Maximum output current of 80A

Features

•OVP, OCP and OTP protection

•Low AC input protection

•Sequence function

•Large 3.5 inch LCD panel

•100V - 240V power inlet

•Multi-range output power

•Bleeder circuit ON/OFF setting

•CV, CC priority start function

•Internal resistance setting

function

•Parallel master/slave operation

with active current sharing

•Remote sensing to compensate for

voltage drop in load leads

•Analog output programming and

monitoring

Interface

•Ethernet port

•USB host

•USB CDC

•GPIB (optional)

•External Control I/O

Accessories

Standard Accessories

Item

Part Number

User manual, programming manual

CD ROM

Power cord

Output terminal cover

PSW-009

Type A - B USB Cable

GTL-240

Continued on the next page...

Basic Accessory Kit:

M4 terminal screws and washers x2,

M8 terminal bolts, nuts and washers

x2, Analog control protection dummy

x1, analog control lock level x2, short

bar x1.

PSB-106

Optional Accessories

Item

Part Number

Analog remote control connector kit:

Socket x 1pc

Pins x 10pcs

Protection cover x 1 set

Chassis connection wire x 1

PSW-001

Simple IDC tool

PSW-002

Contact removal tool

PSW-003

Cable for 2 units of PSB-1000 units in

parallel mode connection

PSB-101

Cable for 3 units of PSB-1000 units in

parallel mode connection

PSB-102

Cable for 4 units of PSB-1000 units in

parallel mode connection

PSB-103

Cable for 2 units of PSB-1000 units in

series mode connection

PSB-104

GPIB card

PSB-105

Rack-mount adapter(JIS)

GRA-418-J

Rack-mount adapter(EIA)

GRA-418-E

Test leads: 1x red, 1x black

GTL-123

Download

Item

Description

gw_psb1k.inf

USB driver

Front Panel

0 - 160V , 10A

S S

F 1 F 2 F 3 F 4 F 5

PSB-1400M 0 - 160V / 0 - 10A , 400W

Multi-Range DC Power Supply

Main FUNC FileUtility

Voltage

Clear

Enter Lock

Output

Current

OVP

OCP

Local

CLR PROT. Unlock

: Long Push

16 14

13 12

Description

1. F1~F5 soft-keys

2. LCD display

3. Voltage, Current,

OVP/CLR PROT,

OCP keys

4. Menu keys:

Main/Local, FUNC,

Utility, File

5. Number pad

6. Scroll wheel

7. Arrow keys

8. Lock/unlock key

9. Enter key

10. Output key

11. Sense+ terminal

12. +Terminal

13. Ground terminal

14. -Terminal

15. Sense- terminal

16. USB A port

17. Power switch

Rear Panel

TRIG IN

TRIG OUT

LAN

100 240V

1100VA MAX.

47 63Hz

GPIB

SER. NO. LB

VOLT TRIG

910

7 6

543

TRIG IN

TRIG OUT

LAN

100 240V

550VA MAX.

47 63Hz

GPIB

SER. NO. LB

VOLT TRIG

PSB-1800M/L

PSB-1400M/L

Description

1. TRIG OUT

2. TRIG IN

3. Rear panel terminals

4. J1connector

5. USB B port

6. GPIB option

7. Line input

8. Fan

x1: PSB-1800M/L

x2: PSB-1400M/L

9. LAN port

10. VOLT TRIG

Status Bar Icons

Status bar

Description

Output OFF

OVP tripped

CV mode active

OCP tripped

CC mode active

OTP tripped

Output operating

at 105% rated

power (CP mode)

Remote sense fail

Power fail

Speaker enabled

GPIB installed

Speaker disabled

GPIB installed &

disabled

Panel lock on

Connected to PC

via USB

Panel lock off

Connected to LAN

Remote control

mode

USB flash drive

recognized

Note: Only the most common status bar icons are

shown here. Please see the user manual for more

information.
