Multi-Range DC Power Supply

PSW Series

USER MANUAL

ISO-9001 CERTIFIED MANUFACTURER

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

This manual contains proprietary information, which is protected by

photocopied, reproduced or translated to another language without

prior written consent of Good Will company.

The information in this manual was correct at the time of printing.

However, Good Will continues to improve products and reserves the

rights to change specification, equipment, and maintenance

procedures at any time without notice.

Good Will Instrument Co., Ltd.

No. 7-1, Jhongsing Rd., Tucheng Dist., New Taipei City 236, Taiwan.

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

SAFETY INSTRUCTIONS

Table of Contents

SAFETY INSTRUCTIONS .................................................. 5

GETTING STARTED .......................................................... 9

PSW Series Overview ........................... 10

Appearance .......................................... 15

Theory of Operation ............................. 22

OPERATION .................................................................. 35

Set Up.................................................. 37

Basic Operation ................................... 57

Parallel / Series Operation ................... 72

Test Scripts .......................................... 87

CONFIGURATION.......................................................... 98

Configuration....................................... 99

ANALOG CONTROL......................................................119

Analog Remote Control Overview ....... 120

Remote Monitoring ............................ 136

COMMUNICATION INTERFACE ....................................141

Interface Configuration ...................... 142

MAINTENANCE ............................................................157

FAQ ..............................................................................159

APPENDIX ....................................................................161

PSW Default Settings ......................... 161

Error Messages & Messages .............. 164

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

Table of Contents

LED Display Format ........................... 164

PSW Specifications ............................ 165

PSW Dimensions ............................... 180

Declaration of Conformity .................. 185

Contact information ........................... 186

INDEX ..........................................................................187

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

SAFETY INSTRUCTIONS

This chapter contains important safety

instructions that you must follow during

operation and storage. Read the following before

any operation to insure your safety and to keep

the instrument in the best possible condition.

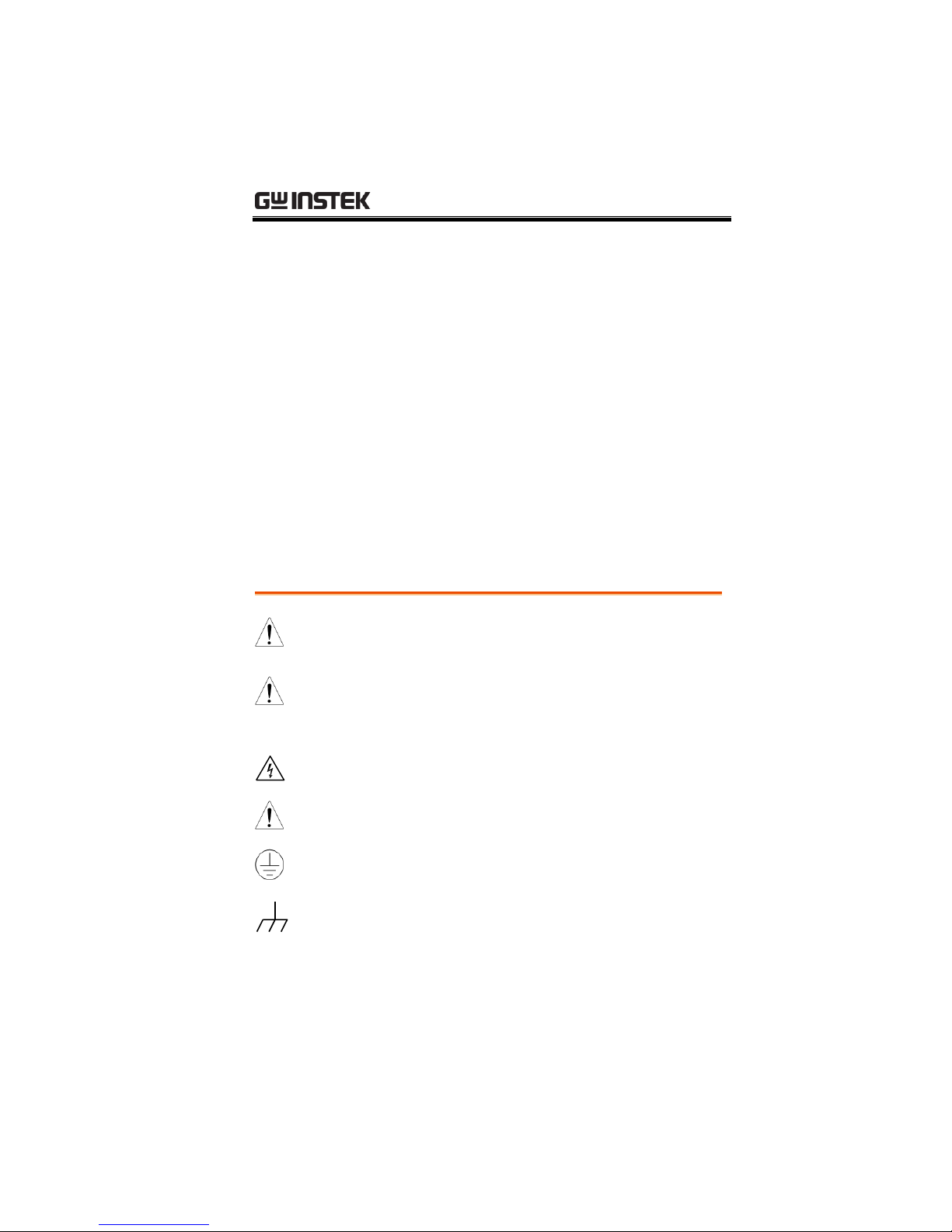

Safety Symbols

These safety symbols may appear in this manual or on the

instrument.

WARNING

Warning: Identifies conditions or practices that

could result in injury or loss of life.

CAUTION

Caution: Identifies conditions or practices that

could result in damage to the PSW or to other

properties.

DANGER High Voltage

Attention Refer to the Manual

Protective Conductor Terminal

Earth (ground) Terminal

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

PSW Series User Manual

Do not dispose electronic equipment as unsorted

municipal waste. Please use a separate collection

facility or contact the supplier from which this

instrument was purchased.

Safety Guidelines

General

Guideline

CAUTION

Do not place any heavy object on the PSW.

Avoid severe impact or rough handling that

leads to damaging the PSW.

Do not discharge static electricity to the PSW.

Use only mating connectors, not bare wires, for

the terminals.

Do not block the cooling fan opening.

Do not disassemble the PSW unless you are

qualified.

(Measurement categories) EN 61010-1:2010 and EN 61010-2-030

specify the measurement categories and their requirements as

follows. The PSW falls under category II.

Measurement category IV is for measurement performed at the

source of low-voltage installation.

Measurement category III is for measurement performed in the

building installation.

Measurement category II is for measurement performed on the

circuits directly connected to the low voltage installation.

0 is for measurements performed on circuits not directly

connected to Mains.

Power Supply

WARNING

AC Input voltage range: 85VAC~265VAC

Frequency: 47Hz~63Hz

To avoid electrical shock connect the protective

grounding conductor of the AC power cord to

an earth ground.

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

SAFETY INSTRUCTIONS

Cleaning the PSW

Disconnect the power cord before cleaning.

Use a soft cloth dampened in a solution of mild

detergent and water. Do not spray any liquid.

Do not use chemicals containing harsh material

such as benzene, toluene, xylene, and acetone.

Operation

Environment

Location: Indoor, no direct sunlight, dust free,

almost non-conductive pollution (Note below)

Relative Humidity: 20%~ 85%

Altitude: < 2000m

Temperature: 0°C to 50°C

(Pollution Degree) EN 61010-1:2010 and EN 61010-2-030 specify the

pollution degrees and their requirements as follows. The PSW falls

under degree 2.

Pollution refers to “addition of foreign matter, solid, liquid, or

gaseous (ionized gases), that may produce a reduction of dielectric

strength or surface resistivity”.

Pollution degree 1: No pollution or only dry, non-conductive

pollution occurs. The pollution has no influence.

Pollution degree 2: Normally only non-conductive pollution

occurs. Occasionally, however, a temporary conductivity caused

by condensation must be expected.

Pollution degree 3: Conductive pollution occurs, or dry, non-

conductive pollution occurs which becomes conductive due to

condensation which is expected. In such conditions, equipment

is normally protected against exposure to direct sunlight,

precipitation, and full wind pressure, but neither temperature

nor humidity is controlled.

Storage

environment

Location: Indoor

Temperature: -25°C to 70°C

Relative Humidity: <90%, no condensation

Disposal

Do not dispose this instrument as unsorted

municipal waste. Please use a separate collection

facility or contact the supplier from which this

instrument was purchased. Please make sure

discarded electrical waste is properly recycled to

reduce environmental impact.

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

PSW Series User Manual

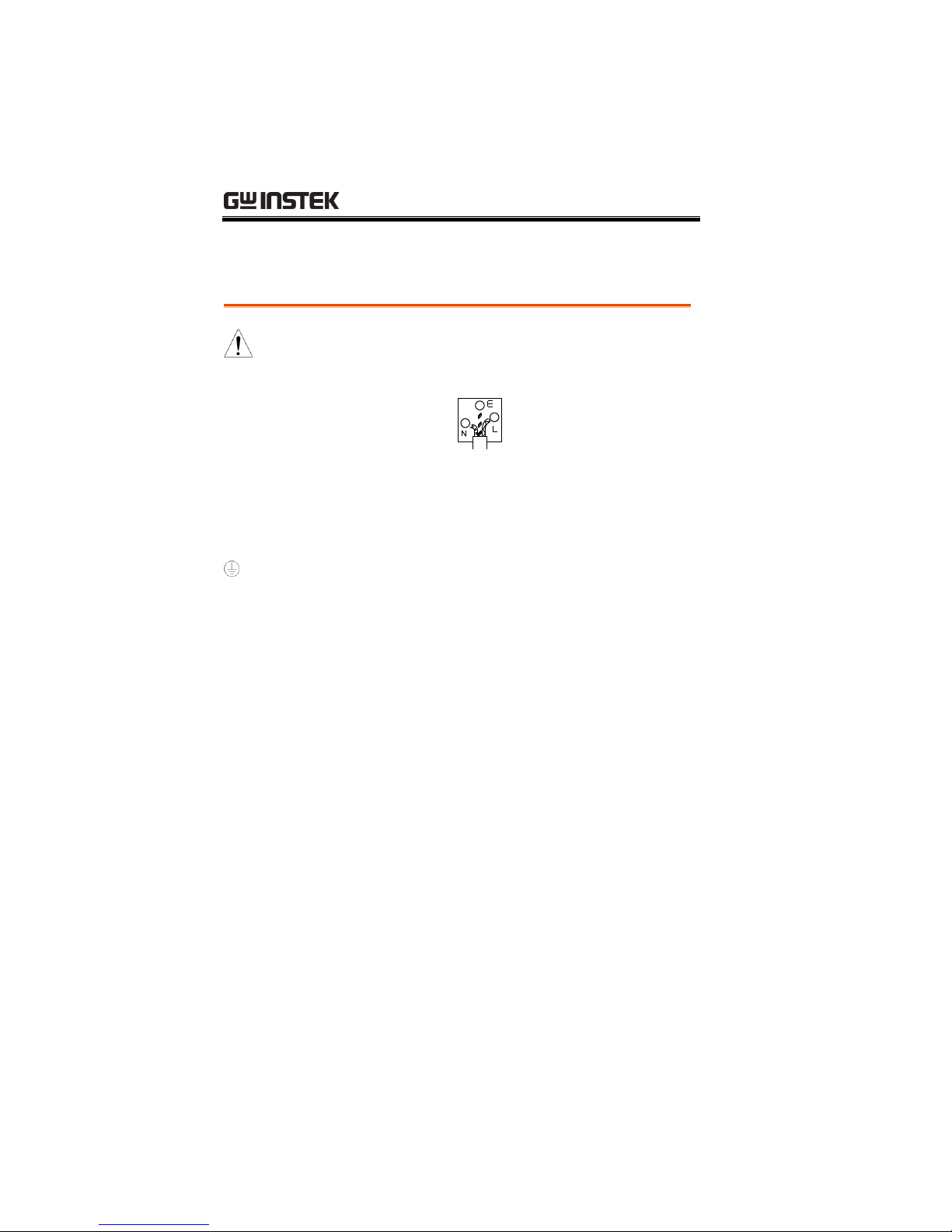

Power cord for the United Kingdom

When using the power supply in the United Kingdom, make sure

the power cord meets the following safety instructions.

NOTE: This lead/appliance must only be wired by competent persons

WARNING: THIS APPLIANCE MUST BE EARTHED

IMPORTANT: The wires in this lead are coloured in accordance with the

following code:

Green/ Yellow:

Earth

Blue:

Neutral

Brown:

Live (Phase)

As the colours of the wires in main leads may not correspond with

the coloured marking identified in your plug/appliance, proceed

as follows:

The wire which is coloured Green & Yellow must be connected to

the Earth terminal marked with either the letter E, the earth symbol

or coloured Green/Green & Yellow.

The wire which is coloured Blue must be connected to the terminal

which is marked with the letter N or coloured Blue or Black.

The wire which is coloured Brown must be connected to the

terminal marked with the letter L or P or coloured Brown or Red.

If in doubt, consult the instructions provided with the equipment

or contact the supplier.

This cable/appliance should be protected by a suitably rated and

approved HBC mains fuse: refer to the rating information on the

equipment and/or user instructions for details. As a guide, a cable

of 0.75mm2should be protected by a 3A or 5A fuse. Larger

conductors would normally require 13A types, depending on the

connection method used.

Any exposed wiring from a cable, plug or connection that is

engaged in a live socket is extremely hazardous. If a cable or plug is

deemed hazardous, turn off the mains power and remove the cable,

any fuses and fuse assemblies. All hazardous wiring must be

immediately destroyed and replaced in accordance to the above

standard.

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

GETTING STARTED

This chapter describes the power supply in a

nutshell, including its main features and front /

rear panel introduction. After going through the

overview, please read the theory of operation to

become familiar with the operating modes,

protection modes and other safety considerations.

PSW Series Overview...................................................... 10

Series lineup .................................................................................................................10

Main Features...............................................................................................................11

Accessories ...................................................................................................................12

PSW 30/80/160 Accessories ......................................................................12

PSW 250/800 Accessories...........................................................................13

Appearance.................................................................... 15

PSW Front Panel.........................................................................................................15

Rear Panel.....................................................................................................................18

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

PSW Series User Manual

PSW Series Overview

Series lineup

The PSW series consists of 15 models, divided into 3 different

model types covering 3 power capacities: Type I (360 Watt), Type II

(720 Watt) and Type III (1080 Watt).

Note

Throughout the user manual, PSW 30, PSW 80,

PSW 160, PSW 250 or PSW 800 will refer to any of

the PSW models with a maximum voltage rating of

30V, 80V, 160V, 250V or 800V, respectively.

Model name

Type

Voltage Rating

Current Rating

Power

PSW 30-36

Type I

0~30V

0~36A

360W

PSW 80-13.5

Type I

0~80V

0~13.5A

360W

PSW 160-7.2

Type I

0~160V

0~7.2A

360W

PSW 250-4.5

Type I

0~250V

0~4.5A

360W

PSW 800-1.44

Type I

0~800V

0~1.44A

360W

PSW 30-72

Type II

0~30V

0~72A

720W

PSW 80-27

Type II

0~80V

0~27A

720W

PSW 160-14.4

Type II

0~160V

0~14.4A

720W

PSW 250-9

Type II

0~250V

0~9A

720W

PSW 800-2.88

Type II

0~800V

0~2.88A

720W

PSW 30-108

Type III

0~30V

0~108A

1080W

PSW 80-40.5

Type III

0~80V

0~40.5A

1080W

PSW 160-21.6

Type III

0~160V

0~21.6A

1080W

PSW 250-13.5

Type III

0~250V

0~13.5A

1080W

PSW 800-4.32

Type III

0~800V

0~4.32A

1080W

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere GW Instek Stromversorgung Handbücher

GW Instek

GW Instek GPP-3060 Bedienungsanleitung

GW Instek

GW Instek PPH-1503 Bedienungsanleitung

GW Instek

GW Instek PSW Series Bedienungsanleitung

GW Instek

GW Instek PST Series Bedienungs- und Wartungshandbuch

GW Instek

GW Instek PSW Series Betriebsanleitung

GW Instek

GW Instek GPP-1326 Bedienungsanleitung

GW Instek

GW Instek GPD-303S Series Bedienungsanleitung

GW Instek

GW Instek PSW-Multi Series Bedienungsanleitung

GW Instek

GW Instek PRP Series Betriebsanleitung

GW Instek

GW Instek PEL-3000A Series Bedienungsanleitung

GW Instek

GW Instek SPD-3606 Bedienungsanleitung

GW Instek

GW Instek ASD Series Bedienungsanleitung

GW Instek

GW Instek PEL-500 Series Bedienungsanleitung

GW Instek

GW Instek SPD-3606 Bedienungsanleitung

GW Instek

GW Instek PFR-100MGP Bedienungsanleitung

GW Instek

GW Instek PSU Series Betriebsanleitung

GW Instek

GW Instek PFR-100L Betriebsanleitung

GW Instek

GW Instek PSH series Bedienungsanleitung

GW Instek

GW Instek PSP-603 Bedienungsanleitung

GW Instek

GW Instek PSW Series Bedienungsanleitung

GW Instek

GW Instek GPS-2303 Bedienungsanleitung

GW Instek

GW Instek PEL-300 Bedienungsanleitung

GW Instek

GW Instek PSU Series Bedienungsanleitung

GW Instek

GW Instek PEL-3000AH Series Bedienungsanleitung

Beliebte Stromversorgung Handbücher anderer Marken

Monacor

Monacor PS-12CCD Bedienungsanleitung

VOLTIMA

VOLTIMA MagicBox 15 Bedienungsanleitung

Agilent Technologies

Agilent Technologies 6032A Bedienungsanleitung

Miller

Miller Auto Deltaweld 452 Bedienungsanleitung

BCP

BCP PUOUBK Merkblatt

HC 2210 Bedienungsanleitung

Puls

Puls CT5.241 Bedienungsanleitung

OCZ

OCZ ZX1250W Bedienungsanleitung

iseg

iseg ECH 238 Bedienungsanleitung

Power

Power XXL A Series Bedienungsanleitung

Agilent Technologies

Agilent Technologies 6631B Bedienungsanleitung

Renogy

Renogy PHOENIX 300 Bedienungsanleitung

HP 6200B Service-Handbuch

Epson

Epson Stylus Scan 2500 Betriebsanleitung

Pulsar

Pulsar GREEN POWER CCTV PoE POE044816 Bedienungsanleitung

Puls

Puls MiniLine ML50.100 Bedienungsanleitung

Puls

Puls AS-Interface SLA4.100 Bedienungsanleitung

Kenwood

Kenwood PS-60 Bedienungsanleitung
