BRIO MOUNTAIN E-BIKE

INSTRUCTION MANUAL

Do not use this product without carefully reading this instruction

manual and understanding the performance of electric bicycles.

Please keep the instruction manual properly.

HELMETS

SAVE

LIVES!

Always wear a properly fitted helmet that complies

with CPSC or CE safety standards when you ride

your Gyrocopters Brio e-bike.

Correct Fitting:

Make sure your

helmet covers your

forehead.

Incorrect Fitting:

Forehead is exposed

and vulnerable to

serious injury.

2× Pedals 1× Charger 1× Feedback

Card

1× Instruction

Manual

1× Hex Key 1× 15mm

(or 0.59 inch) Spanner

Note: As we upgrade our eBikes, the one you own may be slightly diﬀerent from the one shown above.

In the Package

Battery Removal & Installment Installing the Pedals

Screw in the right pedal clockwise, and the left

counter-clockwise.

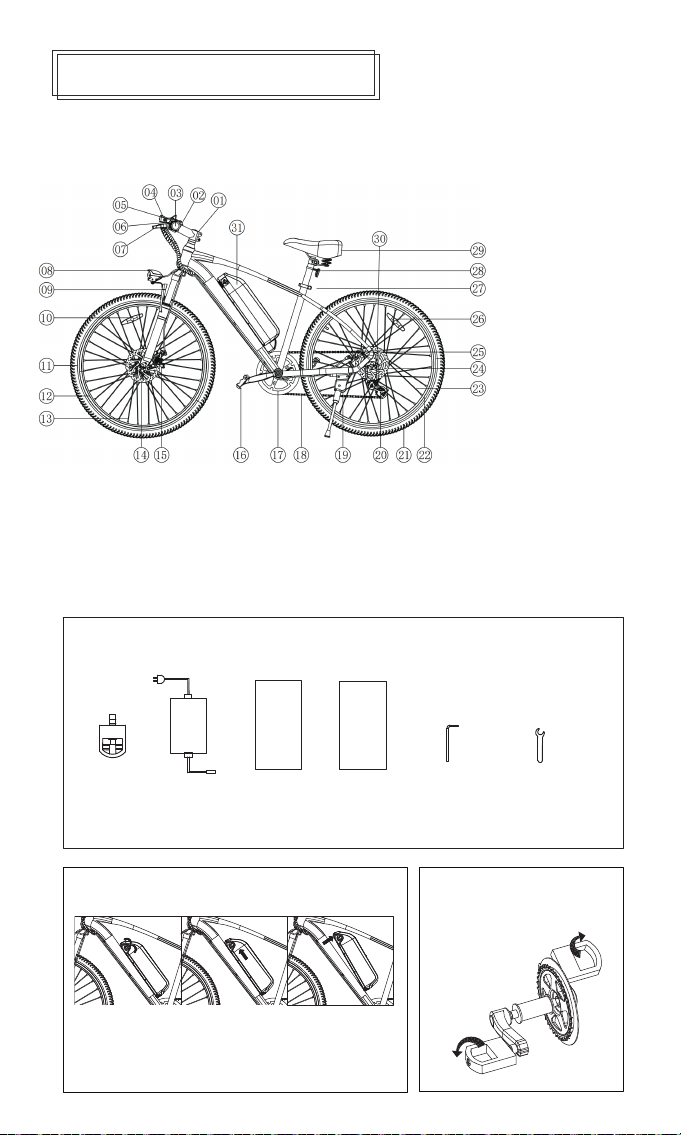

PARTS & COMPONENTS

1. Turn the key clockwise

to lock the battery. Turn

the key counterclockwise

to open the battery lock.

2. To remove the

battery, gently lift it

upwards and slide

the battery from the

tube.

3. Pull out the battery and

to install it again, open the

lock, gently slide the battery

into the tube and lock the

battery.

1.The riser

2.Acceleration handle

3.Handle grip

4.Variable speed finger

5.Battery display

6.Front reflector

7.Brake lever

8.Headlight

9.Front fork

10.Front wheel reflector

11.Tyre

12.Wheel

13.Spoke

14.Disc

15.Brake

16.Pedal

17.Chain wheel

18.Chain

19. Parking rack

20.Transmission

21.Tyre

22.Wheel

23.Spoke

24.Brake disc

25.Brake

26.Rear wheel reflector

27.Sitting clamp

28.Rear reflector

29.Seat

30.Transmission lever

31.Battery

GETTING STARTED

1. Assembling: Open the box, remove the

packaging, and remove your Gyrocopters Brio

e-Bike. Straighten the riser and fasten the latch.

Adjust the seat to your desired height, and lock the

quick release. To align the handlebar, quickly

release the latch, align it, and lock it into place.

Gently pull the brake levers a couple of times

till the brake cables are well positioned.

Switch the power on and enjoy your ride with a

helmet on.

2. Charging: Connect the DC jack of the original

charger to the charging port of your Gyrocopters

Brio e-bike and the AC plug to the mains. The

charger light turns from red to green when the

charging is complete. (Note: do not charge your

e-bike unattended. Please avoid rain and sunlight

over the charger if charging outside.)

3. Power on and off: Locate the power button on

the left handle. Press the power button to switch on

and power off. Holding the switch will also display

the battery level when turned on.

4. Light on and off. Locate the button below the

display on the right handle, and press and hold for

three seconds to switch the headlight.

5. Cruise control: After driving at a constant speed,

maintaining a certain speed, press the cruise button

to enter cruise mode. Releasethe cruise bar, or

brakeexit cruise mode.

6. Ride assistance :

a. Throttle Assist: In Throttle Assist Mode, when the

power is on, you can accelerate and start the ride

without pedaling by twisting the throttle.

b. Pedal Assist: Pedal Assist Mode, when the power

is on, and you are also pedaling, the mode provides

power for an easier and more energy-efficient ride.

7. Powercut-off brakes: When you pull the brake

levers, the controller cuts off the motor output, and

the mechanical disc brakes are engaged. Pedal

Assist Mode or Throttle Mode remains disabled as

long as the brake levers are not ultimately released.

8. Removing and Installing the Battery: Gyrocopters

Brio e-bike offers a removable battery feature. To

remove the battery, open the battery lock and push

the battery upwards along the tube. Disconnect the

battery from the controller and pull it out. To install

the battery, slide it into the tube, connect it to the

controller below, and lock it. (For battery

replacement due to damage, please contact our

official customer service.)"

Charging Port Power Switch

Left brake lever Right brake lever

Power switch

Bell

Reflective

Switch light, cruise button

Accelerator

Shifter

Handlebar

INSTALLING THE FRONT WHEEL

Turn the anchor nuts clockwise to increase clamping, and anti-clockwise to decrease.

II. How to install

1. To insert the front wheel, manually turn the anchor nuts anti-clockwise to loosen them up, and then insert the

front wheel all the way into the dropouts of the front fork.

2.To secure the front wheel, manually turn the anchor nuts clockwise. Ensure that the front wheel is located at

the very center of the front fork and that the disc brake rotor is parallel to the disc brake caliper towards the end

of the front fork with space in between. Keep some space on both sides and tighten with a spanner as

indicated below:

Correct Wrong

GEARS

Gyrocopters Brio Mountain e-bike

comes with Seven gears, which consist of:

• Rear sprocket cluster/freewheel/cassette

• Rear derailleur

• Shifter

• Control cable

• Front sprocket / countershaft sprocket

• Drive chain

The gear mechanism differs in ergonomic design, performance, and price.

A downshift is moving from high to low gear, making pedaling easier for the rider. An upshift is moving to a

higher or faster gear, which makes pedaling harder. While riding Brio e-bike, you can upshift to go faster

and downshift to go uphill. A shift is possible only when you are pedaling forward, i.e. the drive chain is

moving forward and under some tension.

CAUTION

Never shift when pedaling backward. Also, do not pedal backward after a shift. Either action may jam the

chain and cause serious damage to your Gyrocopters Brio e-bike.

Build

Performance

Features

Model

Material

Expanded size

Pedal height from ground

Wheel hub

Body color

Net Weight

Maximum Load

*Max speed

*Range in throttle mode

*Range in pedal assist mode

*Hill climbing capacity

Operating temperature

IP rating/

Battery type

Battery capacity

Battery rated voltage

Charging voltage

Charger input voltage

Charging time

Motor rated power

21.5 kg

120 kg

32km/h

40±3km

55±5KM

15 degrees

-10~45 degrees Celsius

IP54

18650 lithium-ion

10 AH

36 V

DC42V

AC100-240V

4-6H

350 W

Headlight

Speed sensor

Adjustable seat height

Braking

Yes

Front and rear disc brakes

BRIO

Aluminum alloy frame

1870*580*1110 mm

130 mm

27.5 inches

Black

SPECIFICATION

Note: *The max speed varies depending on the battery level, load, tire pressure, terrain, lubrication state of

the chain and bearings, etc. *The range of the e-bike may vary, depending on your riding behavior, ambient

temperature, load, tire pressure, terrain, etc. The specs are measured with a load weight of 75kg, leveling &

hardening road surface, and the battery completely exhausted from a full charge, uninterrupted test. Driving

habits, temperature, loading, tire pressure, road environment, and other factors will affect the mileage.

MAINTENANCE

About the charger

Charging process

●

Use only the factory designated charger and avoid charging in residential buildings. Keep it out of reach of

children.

Be careful with the charger plug to avoid damaging it and causing poor input/output. Make sure the

charger is moisture-proof and waterproof.

Do not use the charger in unstable, excessively oily or dusty, humid, or direct sunlight environments. Do

not connect other electrical appliances during lightning and maintain good ventilation.

Keep external objects out of the charger and prevent any liquid or metal from entering it to avoid short

circuits. Be aware of impacts or violent shocks.

Only open the charger if you are a professional. Do not change the plug or wire of the charger by yourself

since there is high voltage inside.

It is recommended to charge the battery after each use, or at least once every two weeks to maintain its

performance and lifespan.

Avoid charging the battery in extremely hot or cold temperatures, as it can damage the battery and reduce

its lifespan.

Do not charge the battery for longer than the recommended time specified in the user manual, as it can

cause overheating and damage to the battery.

Do not leave the battery charging unattended, especially overnight or for extended periods, as it can be a

fire hazard.

Always use the original charger provided by the manufacturer, as using a different charger can damage

the battery and may void the warranty.

About the battery (Non professionals should not dismantle it)

Additionally, it is important to note that non-professionals should not attempt to dismantle the battery.

Mixing different types of batteries and applicable voltages should be avoided. The battery should only be

charged in a well-ventilated environment and never in residential buildings, confined spaces, or in hot

weather. Any odors or excessively high temperatures during charging should be addressed immediately

by stopping the charging process and seeking maintenance.

About the motor

It's important to protect the motor outlet to prevent short circuits caused by motor line wear, which can

lead to burning of the motor. Additionally, the motor should not be immersed in water for extended periods

of time.

About the controller

Attention should be paid to protect the exposed wires of the vehicle, to avoid causing the short-circuit

burn out of the controller. Strictly prohibit contacting the controller with water.

NOTICE

Before riding, it is important to wear a helmet, gloves, kneecap, and elbow protectors for safety.

It is recommended to ride at a medium speed and to avoid pedaling when slowing down.

Riding on motorways, around pedestrians, or on steep slopes is strictly prohibited (the climbing gradient

should be less than 20 degrees). The e-bike should not be ridden by individuals exceeding the maximum

weight limit of 120KG. It should not be used in extremely hot or cold environments, or on bumpy, wet

roads.It is important to note that the e-bike should not be used by children under the age of 16, as illegal

use may result in unexpected dangers. The company does not take any responsibility for any damage to

life, personal injury, or property damage resulting from not following the instructions in this manual.

DECLARATION OF RESPONSIBILITY

The company reserves the right to amend the product type, specifications, or related information

mentioned in the manual and holds the final interpretation right.

The specific functions mentioned in this manual apply to this particular type only. Any changes or

modifications to the product type, specifications, or related information mentioned in this manual will not

be notified to the user.

No copy, modification, retransmission, dissemination, or release of the manual version shall be made in

any form without the company's written permission.

Please read the handbook carefully before using the product and operate it in accordance with the

manual. Otherwise, the company is not responsible for any damage to the product caused by improper

use or error or the loss of personal property.

For product-related information, please inquire on Gyrocopters.ca

WEIGHT AND SPEED LIMITATIONS

Speed and weight limits are set for your own safety. Please do not exceed the limits listed in

the“Specifications” section of this manual.

WARNING

Overweight exertion on the device may increase

possibility of injury or product damage.

OPERATING RANGE

The following are some of the major factors that will affect the operating range of your device.

1) Terrain:Riding distance is highest when riding on a smooth, flat surface. Riding uphill and/or

on rough terrain will reduce distance significantly.

2) Weight: A lighter user will have further range than a heavier user.

3) Ambient temperature: Please ride and store the device under recommended tempera-tures,

which will increase driving distance; battery life, and overall performance of your device.

4) Speed and Riding Style: Maintaining a moderate and consistent speed while riding produces

maximum distance. Traveling at high speeds for extended periods, frequent starts and stops, idling and

frequent acceleration or deceleration will decrease overall distance.

Do not attempt to stop suddenly as this may lead to injury or damage to your brake discs.

Please follow all local, state and federal laws in regards to recycling, handling and disposing of Lead-acid

battery

Proper use of your brake is vital to safe, efficient

stopping. To avoid misuse and potential injury, do

not apply sudden or excessive force to your brake.

Apply the brake gradually and give yourself

enough room to come to a complete stop safely.

WARNING

Seek immediate medical assistance if you are

exposed to any substance that is emitted from the

battery.

Inhaltsverzeichnis

Andere Gyrocopters Fahrrad Handbücher

Gyrocopters

Gyrocopters MOXIE Bedienungsanleitung

Beliebte Fahrrad Handbücher anderer Marken

RAMBO

RAMBO R1000X2M-FF-BFD Bedienungsanleitung

Vermeiren

Vermeiren SAFARI Bedienungsanleitung

Velec

Velec A2/36V Bedienungsanleitung

Coswheel

Coswheel A-ONE Bedienungsanleitung

Betzold

Betzold 97869 Bedienungsanleitung

Cervélo

Cervélo S3 2019 Bedienungsanleitung

Tenways

Tenways AGO X Bedienungsanleitung

Festo

Festo EGSC-BS-KF Stücklistenhandbuch

Gio Electric

Gio Electric H1 Volt Bedienungsanleitung

GOGOBEST

GOGOBEST GM30 Bedienungsanleitung

DAHON

DAHON CIAO - 2009 Bedienungsanleitung

Aprimatic

Aprimatic ONDA 500 Kurzanleitung

MV Agusta

MV Agusta Lucky Explorer GRAVEL Gebrauchsanweisung

Greyp

Greyp G6 Series Bedienungsanleitung

Babboe

Babboe Carve-E Bedienungsanleitung

Huka

Huka orthros Bedienungsanleitung

Xtracycle

Xtracycle Stoker 2021 Bedienungsanleitung

APRILIA

APRILIA DORSODURO 750 ABS 2015 Bedienungsanleitung
