OPERATION
MANUAL
Please read this operation manual
before using the air conditioner.
Model: HW-18CV03
WINDOW TYPE ROOM AIR CONDITIONER
Contents
Parts Name ................................................................................................
1
2-4
5-7
8
9
10-12
Operation Guide .......................................................................................
Maintenance .............................................................................................
Cautions ......................................................................................................
Trouble Shooting ..........................................................................................
Installation Guide ...................................................................................
Parts Name
panel
panel
Front
Air inlet(indoorside)
Air outlet(indoorside)
Air inlet(outdoorside)
Operation
HW-18CV03
1
Operation Guide

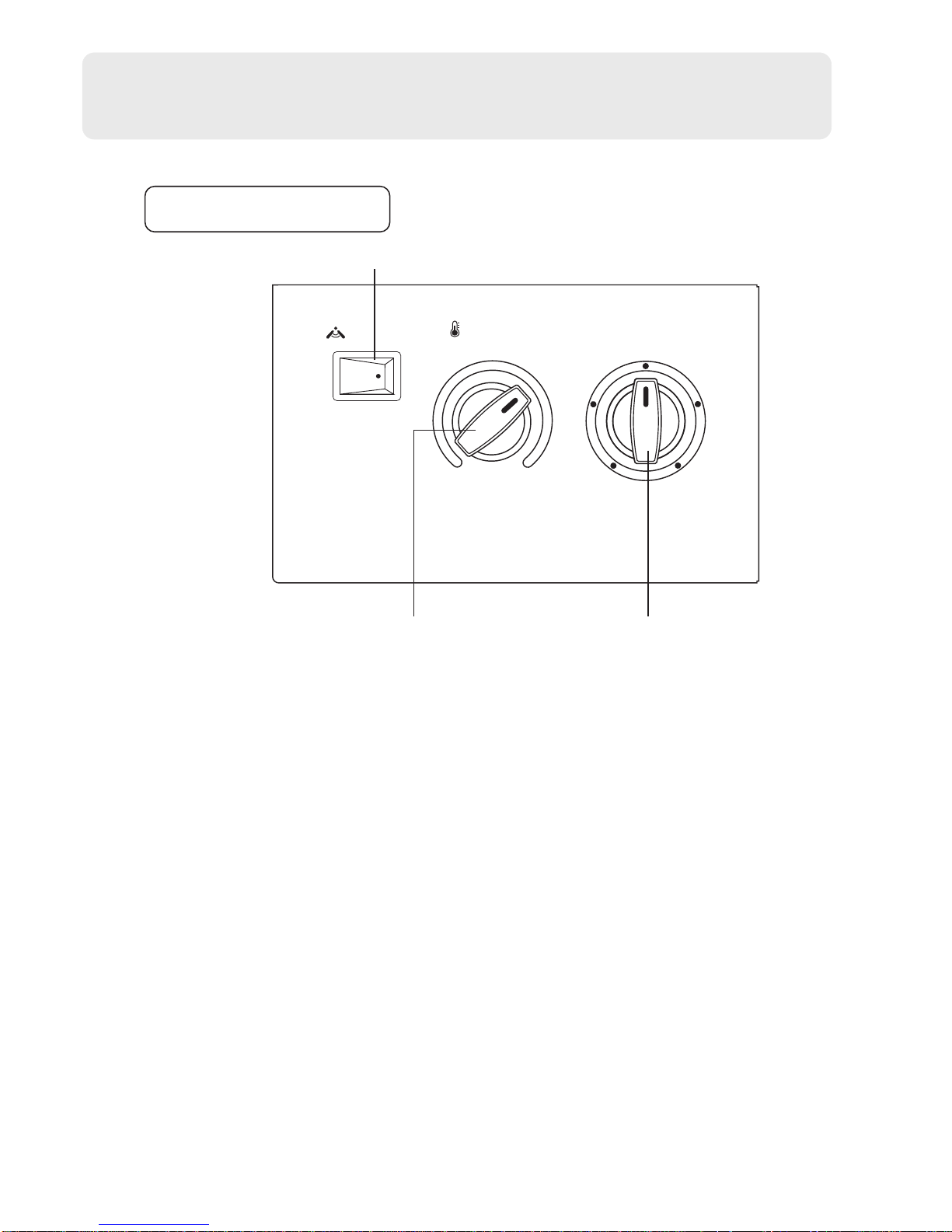

Operation panel
Mode selection
LOW
COOL HIGH
COOL
HIGH
FAN
LOW
FAN
OFF
OFF ON
Auto swing Temp. setting
MIN
COOL MAX
COOL
1
2
3
4567
8
9
10
Auto swing switch
Mode selection switchThermostat switch
2
WAIT THREE MINUTES BEFORE RESTARTING
3
Mode selection switch Mode switch controls the fan motor
speed. Cooling speed or fan speed.
<1>
<2>
<3>
<4>
<5>
When set to "HIGH FAN", fan motor runs at high
speed to blow out strong air.
When set to "LOW FAN", fan motor runs at low
speed to blow out gentle air.
When set to "HIGH COOL", air-con will start
speedy cooling, blowing out strong air.
When set to "LOW COOL", air-con will start
cooling at low speed , blowing out gentle air.
When set to "OFF", air conditioner stops
running.
When mode selection switch is shifted to "HIGH FAN" or"LOW
FAN",air-con will only blow out air without cooling. While the
airconditioner running, its mode selection shouldn't be shifted
frequently between "HIGH FAN" and "HIGH COOL", "LOW
FAN" and "LOW COOL".
Hint
Operation Guide
position.
Auto swing
ONOFF
When the switch is set to " ON ", vertical louver will swing
from side to side, delivering gentle air thus making you
feel very comfortable.
When it is set to " OFF ", vertical louver will stop at
Auto swing switch
LOW
COOL HIGH
COOL
HIGH
FAN
LOW
FAN
OFF
4
MIN
COOL MAX
COOL
1
2
3
4567
8
9
10
Operate the switch as follows: Temp. decreases
as the switch is turned from "1" to "10".
Temp. increases as the switch is turned from
"10" to "1".
Maintenance
5
NOTE: Always unplug the air conditioner before servicing or
moving it.
When dirt accumulates on air filter, air circulation will be blocked, which causes
poor cooling. It is advisable to clean air filter every two weeks for longer operation.
Removal of air filter
Air filter cleaning
1. Gently flap the dirt off the air filter.
2. Carefully wash air filter in warm water
(below 40°C). To obtain better cleaning
effect, soap water or neutral detergent
may be used.
3. Flush air filter carefully with clean water
after removing dirt. Let it dry completely.
Installation of filter
1. Replacing the air filter.
2. Push the air inlet marked with "PUSH" until you hear a click.
Washing
air filter
1. Loose the air inlet by pushing "PUSH"
at both sides of air inlet.
2. Open the air inlet.
3. Remove the air filter.
PUSH
PUSH
6

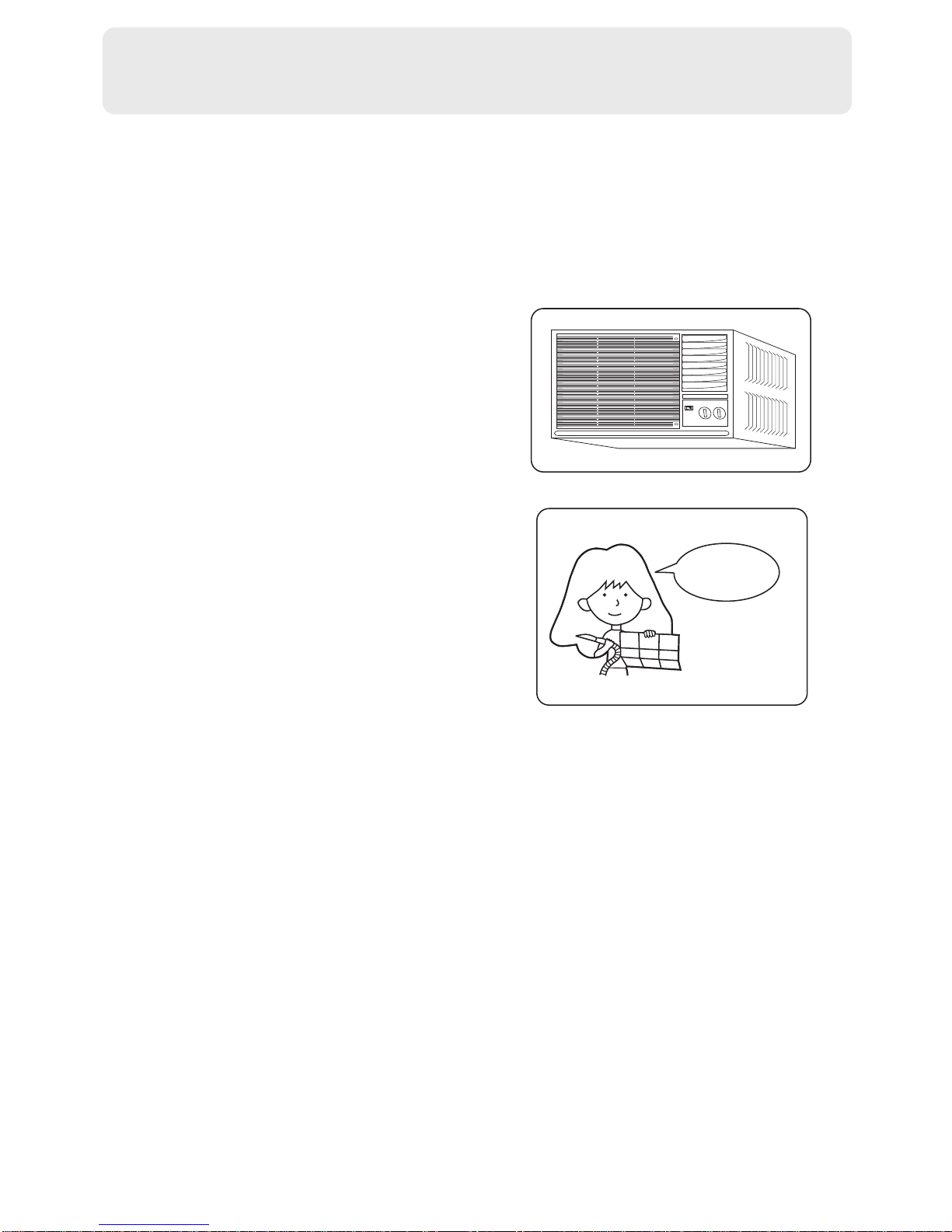

Disposal of condensate
Cautions
The drain hole on the bottom of the air conditioner will be clogged by a rubber
stopper to make the condensate in the bottom tray be spattered onto the
condensation to raise efficiency of heat exchange. If the spattering sound disturbs
you, you can adopt the method illustrated below.
Condensate runs out from the drain hole on the back of the unit.
Remove the rubber stopper from the drain hole on the bottom in order to make
the condensate run out. In this method the efficiency of air conditioner will be
slightly lowered.
In the both methods above, an extended hose (available on the market) can be
connected to the drain connecting pipe if necessary.
Power cord: Be sure to use the exclusive power cord.
Change installation place: If air-con need to be changed to
another place please contact the dealer, who sold you the unit.
1.
2.
Extended
pipe (hose)
Maintenance
7
Avoid opening door and window
unless necessary.
Use curtain or blind
Direct sunlight may reduce cooling
effect, always use window curtain.
Set temp. a little bit higher
before going to bed.
No entrance
Keep away from me
OK! enjoy a
3-min nap
Maintenance
Don't be exposed to cold air for
a long time.
Keep heat source away from
air conditioner.
After unit stops, don't restart it
until 3 min. have elapsed.
