Haier ESD 400 Series Bedienungsanleitung

Built-in Dishwasher

SERVICE MANUAL

Models

ESD400/ESD401/ESD402



Features

 Energy Star for energy consumption of USA rules

 Stainless steel Interior tub

 Electronic control

 Triple level filter system

 Three-spraying, higher cleaning ratio

 The capacity for 12 place settings

 Soil sensor

Part # DW-8888-26

Serial Number: Version:00.00

Edition: Nov.-23-2005

Built-In Dishwasher

Model: ESD400/ESD401/ESD402

Page 1 / 48

Serial Number: Version:00.00

Edition: Nov.-23-2005

Built-In Dishwasher

Model: ESD400/ESD401/ESD402

Page 2 / 48

Contents

1.Product Code Illumination and Series Introduction ............................................................2

2.Features..............................................................................................................................2

3.Safety Precaution................................................................................................................4

4.Net dimension.....................................................................................................................5

5.Installation...........................................................................................................................5

6.Parts and Features .......................................................................................................... 25

7.Control Panel................................................................................................................... 25

8. Start-Upguide.................................................................................................................. 26

9.Dishwasher Loading ........................................................................................................ 26

10. Dishwasher Use............................................................................................................ 30

11.Washing System ............................................................................................................ 36

12.Drying System................................................................................................................ 36

13.Overfill Protection Float ................................................................................................. 36

14.Washing special items and dishwasher care................................................................. 37

15. Drain Air Gap ................................................................................................................ 38

16.Storing............................................................................................................................ 38

17. Function Schedule........................................................................................................ 39

18.Maintenances Services and Trouble Shooting.............................................................. 41

19.Circuit Diagram.............................................................................................................. 46

Serial Number: Version:00.00

Edition: Nov.-23-2005

Built-In Dishwasher

Model: ESD400/ESD401/ESD402

Page 3 / 48

1.Product Code Illumination and Series Introduction

Model Identification

ESD □□ □

A B C

A: Energy Star Dishwasher

B: Series of factory design

C: Code of Color

0:White 1:Black 2:Stainless steel

Examples:

ESD400

It represents energy star dishwasher of 400 series, the color of appearance is white.

ESD401

It represents energy star dishwasher of 400 series, the color of appearance is black.

ESD402

It represents energy star dishwasher of 400 series, the color of appearance is stainless

steel.

2.Features

2.1

Energy Star for energy consumption of USA rules

2.2 Stainless steel Interior tub

2.3 Electronic control

2.4 Triple level filter system

2.5 Three-spraying, higher cleaning ratio

2.6 The capacity for 12 place settings

2.7 Soil sensor

Serial Number: Version:00.00

Edition: Nov.-23-2005

Built-In Dishwasher

Model: ESD400/ESD401/ESD402

Page 4 / 48

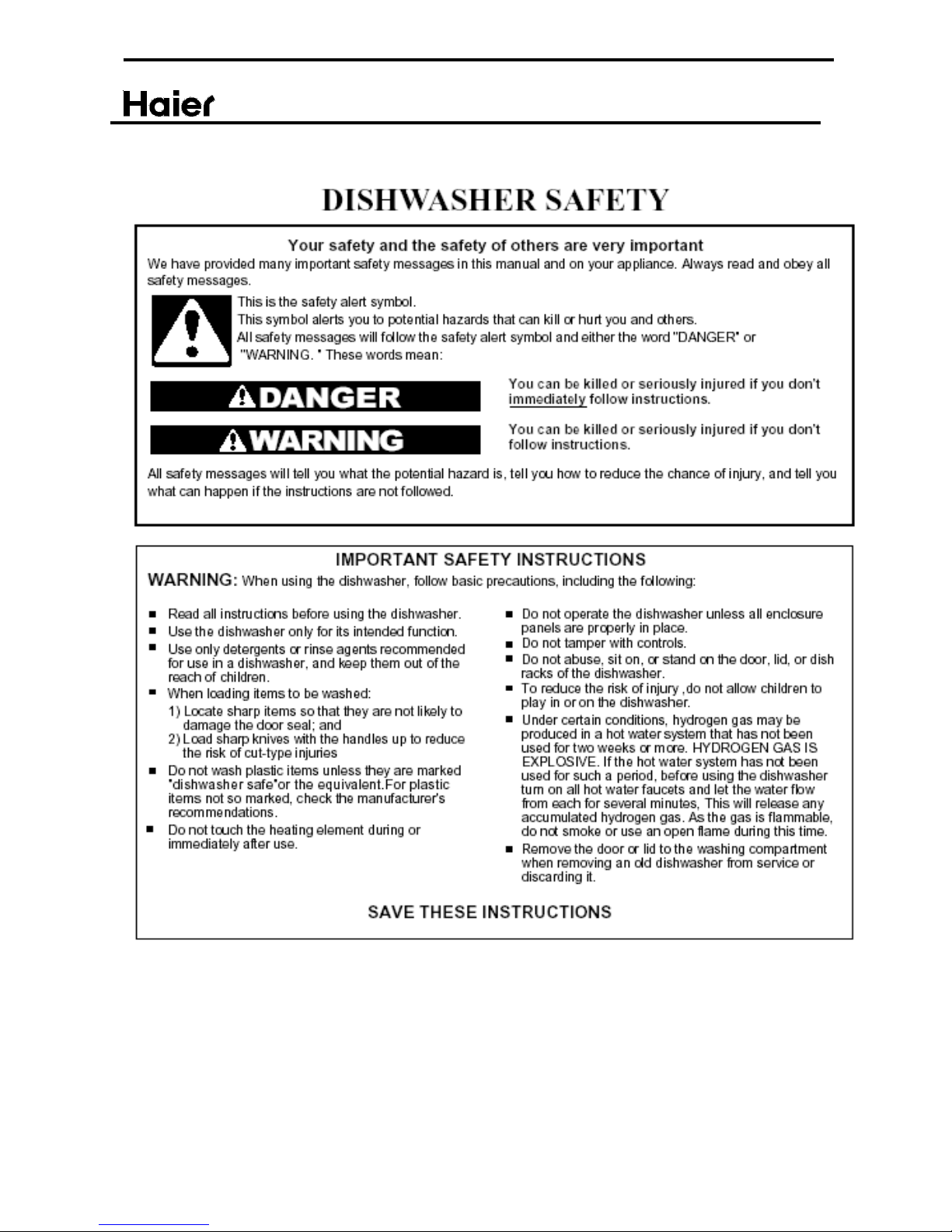

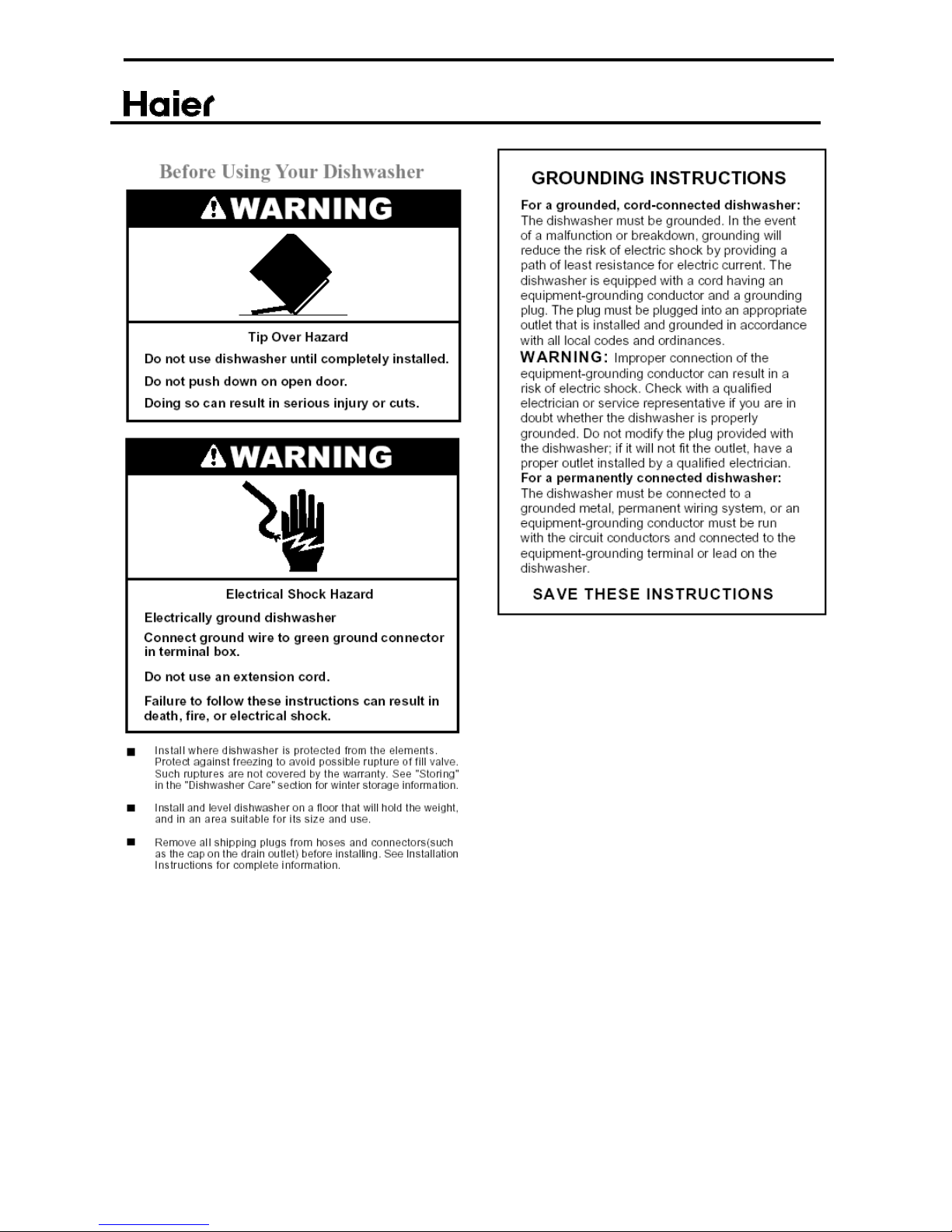

3.Safety Precaution

Serial Number: Version:00.00

Edition: Nov.-23-2005

Built-In Dishwasher

Model: ESD400/ESD401/ESD402

Page 5 / 48

4.Net dimension

Serial Number: Version:00.00

Edition: Nov.-23-2005

Built-In Dishwasher

Model: ESD400/ESD401/ESD402

Page 6 / 48

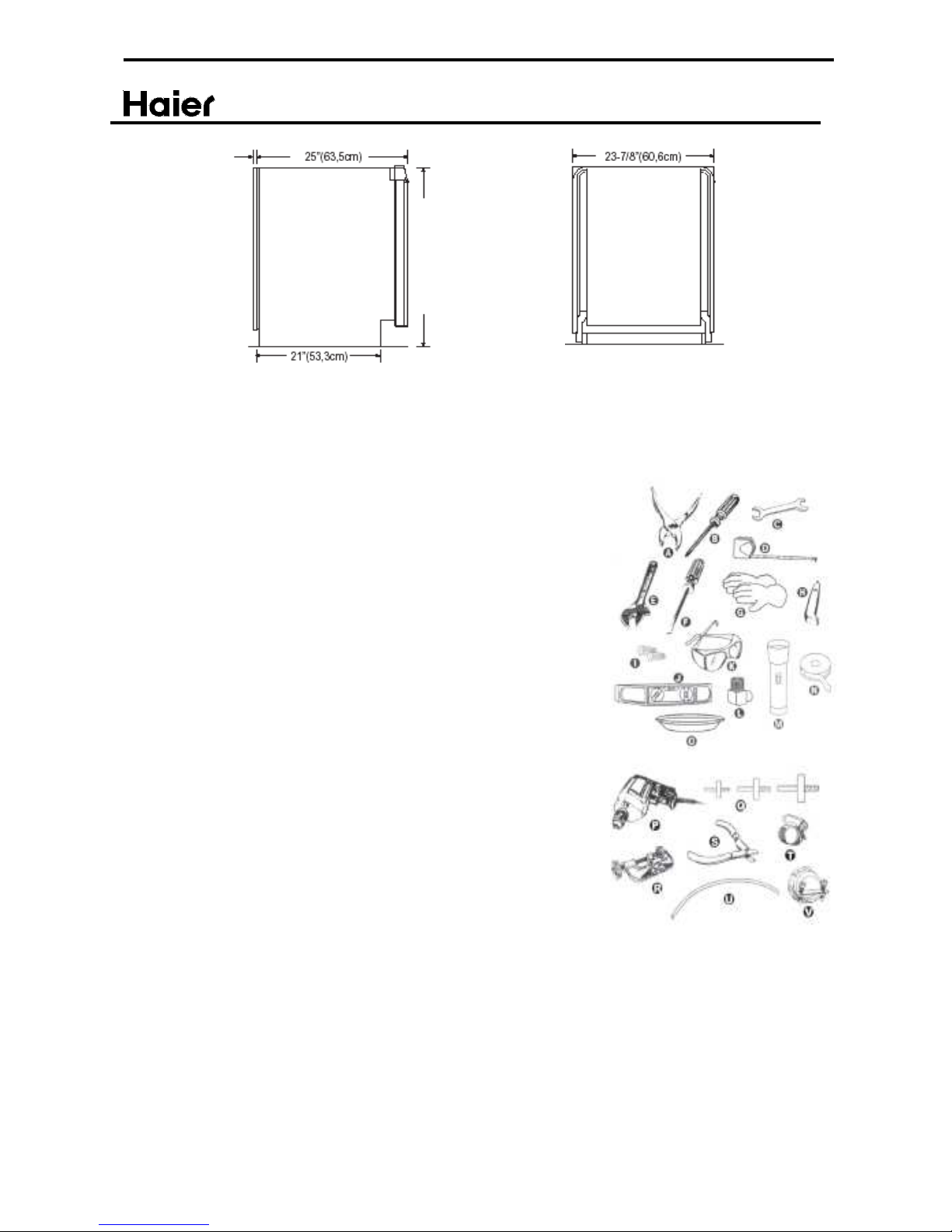

5.Installation

5.1 Tools and materials needed

3/4”(1.9 cm)

insulation-may

be compressed

33-7/8”(86cm) min.with

wheels removed

A. pliers

B. Phillips screwdriver

C. 5/8”open end wrench D. measuring tape or ruler

E. 10” adjustable wrench that opens to 1-1/8”(2.9cm)

F. flat-blade screwdriver G. gloves

H. utility knife

I. 2 twist-on wire connectors, which are the proper size to connect your household

wiring to 16

-gauge wiring in dishwasher

J. small level K. safety glasses

L. 90° bow with 3/8” N.P.T external threads on one end.(The other end must fit your water

supply line.)

M. flashlight N. Teflon® tape or pipe joint compound

O. shallow pan

P. Shim stock (if installed with built-up floor)

P. electric drill Q. 1/2”, 3/4”and 1-1/2” hole saw bits

R. small tubing cutter S. wire stripper

T. 1-1/2”-2” screw-type clamp if connecting to waste-tee U. copper tubing (3/8”

recommended) or flexible stainless steel braided fill line V. clamp connector or conduit

connector to fit a 7/8”(2.2cm) diameter hole

Serial Number: Version:00.00

Edition: Nov.-23-2005

Built-In Dishwasher

Model: ESD400/ESD401/ESD402

Page 7 / 48

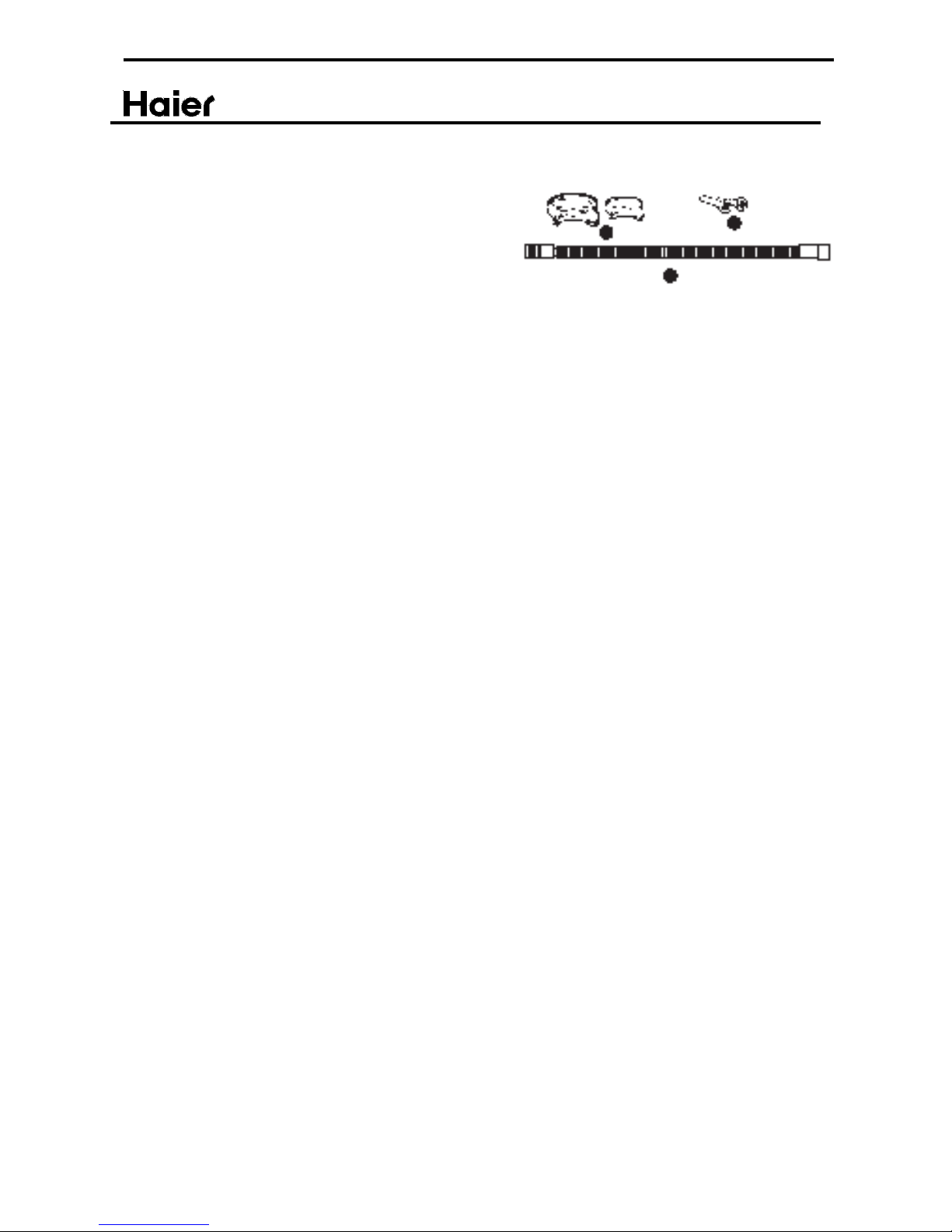

5.2 Parts supplied

2 drain hose clamps

1-large 1-small

Make sure all these parts are included. See parts list for

accessories available for your dishwasher.

B. 2 No.ST4.2 X 18 Philips-head screws

C. Drain hose

Cabinet opening

Do not run water drain lines or electrical wiring where they can interfere with or contact dishwasher motor or legs.

The location where the dishwasher will be installed must provide clearance between motor and flooring.

Do not install dishwasher over carpeted flooring.

Protect dishwasher and water lines leading to dishwasher against freezing. Damage from freezing is not

covered by the warranty.

A side panel kit is available f

rom your dealer for installing your dishwasher at end of cabinet.

Check location where dishwasher will be installed.

The location must provide:

- Easy access to water, electricity and drain.

- Convenient loading. Corner locations require a 2” (5.1cm) minimum clearance between the side of the dishwasher

door and wall or cabinet.

- Square opening for proper operation and appearance.

- Cabinet front perpendicular to floor.

- Level floor .If floor at front of opening is not level with floor at rear of opening, shims may be needed to level

dishwasher.

NOTE: Shims must be securely attached to floor to prevent their movement when dishwasher is being operated.

If dishwasher will be left unused for a period of time or in a location where it may be subject to freezing, have it

winterized

by authorized service personnel.

Make sure pipes, wires and drain hose are within the shaded area.

HELPFUL TIP:

If the floor in the dishwasher opening in uneven (example: tile flooring only part way into opening) you will needed to take special

care in measuring dimensions and in leveling dishwasher.

Serial Number: Version:00.00

Edition: Nov.-23-2005

Built-In Dishwasher

Model: ESD400/ESD401/ESD402

Page 8 / 48

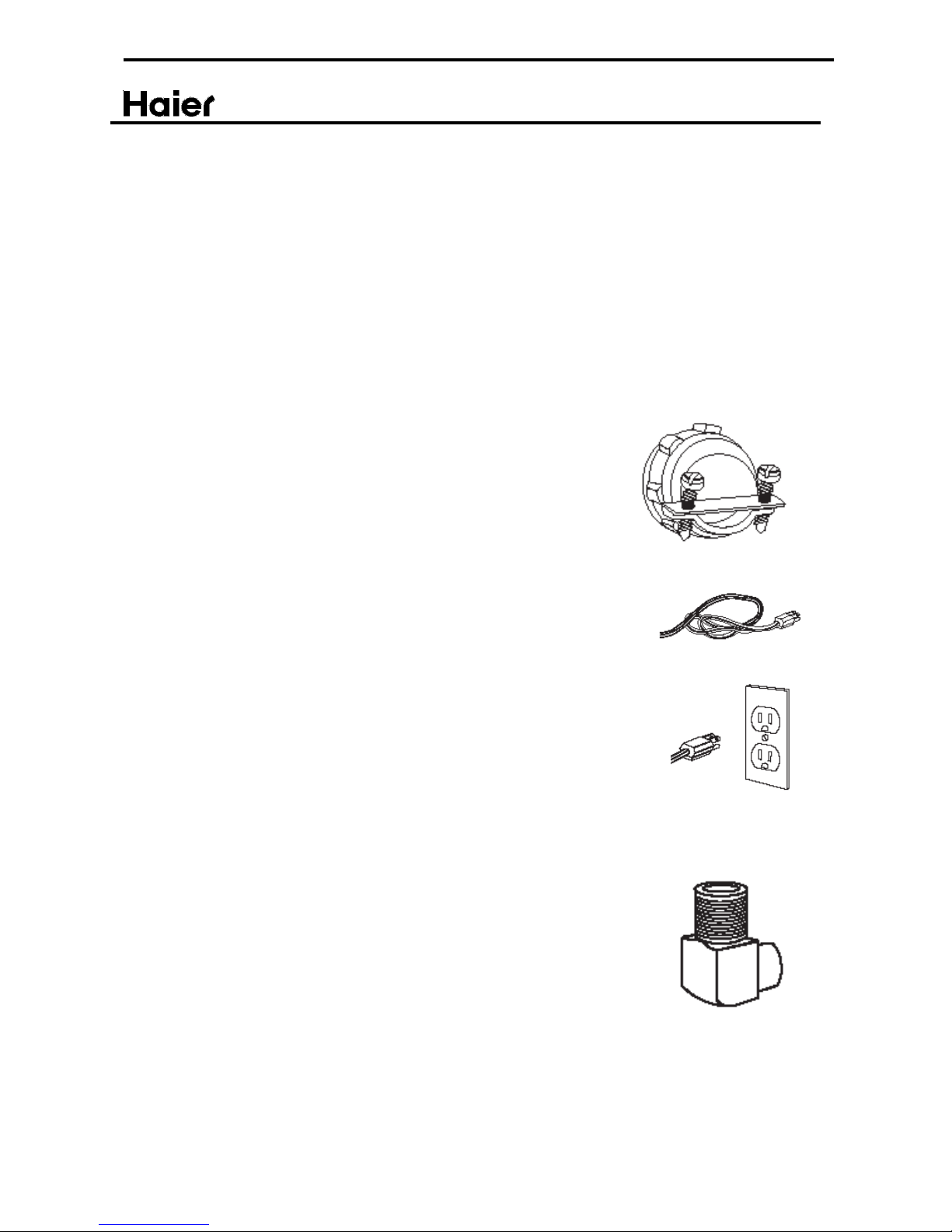

Electrical

It is the customer’s responsibility:

To contact a qualified electrician. To assure that the electrical installation is adequate and in conformance

will all national and local codes and ordinances.

You must have:

- 120-volt, 60Hz, AC-only, 15- or 20-amp.,fused electrical supply.

- COPPER WIRE ONLY.

We recommend:

- a time-delay fuse or circuit breaker.

- a separate circuit.

If direct wiring dishwasher

- Use flexible, armored or non-metallic sheathed, copper wire with grounding wire that

meets the wiring requirements for your home and local codes and ordinances.

- Use strain relief method provided with house wiring junction box or install a

U.L-listed/CSA-certified clamp connector to the house wiring junction box. If using

conduit, use a U.L-listed/CSA-certified conduit connector.

If connecting dishwasher with a power supply cord:

- Use a U.L. -listed, 16-gauge, three-conductor power supply cord that meets all local

codes and ordinances. Maximum length of the power supply cord is 6 feet (1.8m).

- a clamp connector to fit a 7/8” (2.2cm) diameter hole is required to secure power supply

cord to dishwasher terminal box.

- Power supply cord must plug into a mating three-prong, grounded outlet, located in the

cabinet next to the dishwasher opening. Outlet must meet all local codes and

ordinances.

Water

You must have:

- a hot water line with 20-120 PSI (138-862 KPa) water pressure.

- 120°F(49°C) water at dishwasher.

- 3/8”O.D.tubing with compression fitting or flexible stainless steel braided fill line (1/2”

minimum plastic tubing is optional but not recommended).

- a 90° elbow with 3/8”N.P.T. external pipe threads on one end.

Do not solder within 6”(15.2cm) from water inlet valve.

Serial Number: Version:00.00

Edition: Nov.-23-2005

Built-In Dishwasher

Model: ESD400/ESD401/ESD402

Page 9 / 48

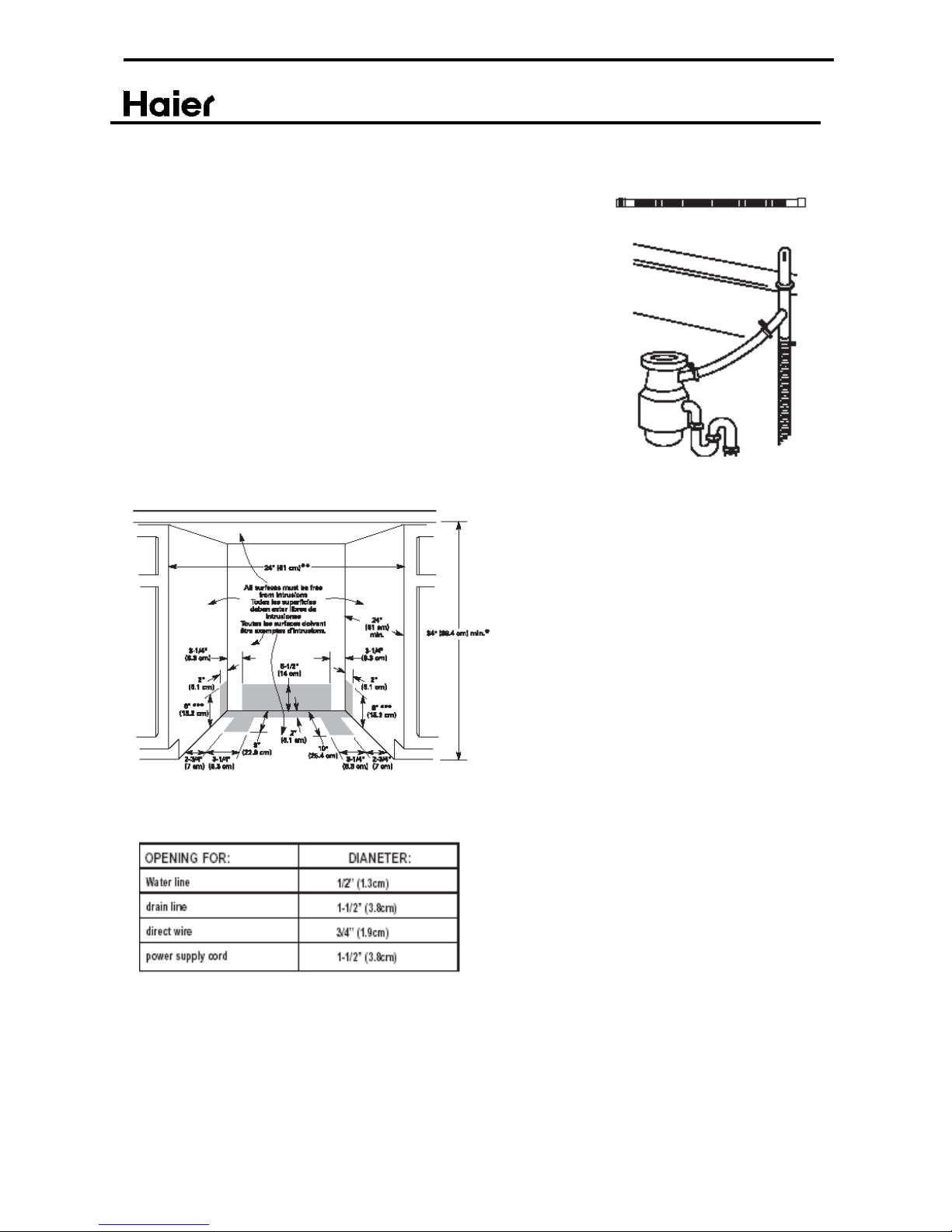

Drain

You must :

- Use the new drain hose supplied with your dishwasher. If this is not suitable, use

a new drain hose with a maximum length of 12 feet(3.7 m) that meets all current

AHAM/IAPMO test standards, is resistant to heat and detergent, and fits the drain

connector on your dishwasher.

- have a high drain loop 20 inches (50.8cm) above the subfloor or floor.

- connect drain hose to waste tee or disposer inlet above drain trap in house

plumbing and 20 inches (50.8cm) minimum above the floor.

- use an air gap if the drain hose is connected to house plumbing lower than 20

inches (50.8cm) above subfloor or floor.

- use 1/2” minimum I.D. drain line fittings.

Cut openings in shaded area of cabinet walls or floor as specified in chart:

Measured from the lowest point on the underside of

countertop. May be reduced to 33-7/8” (86cm) by

removing wheels from dishwasher.

* *

Minimum, measured from narrowest point of

opening.

* **

Maybe increased to 6-7/8”(17.5cm) if height of

opening is 34-1/2”(87.6cm)at lowest point.
