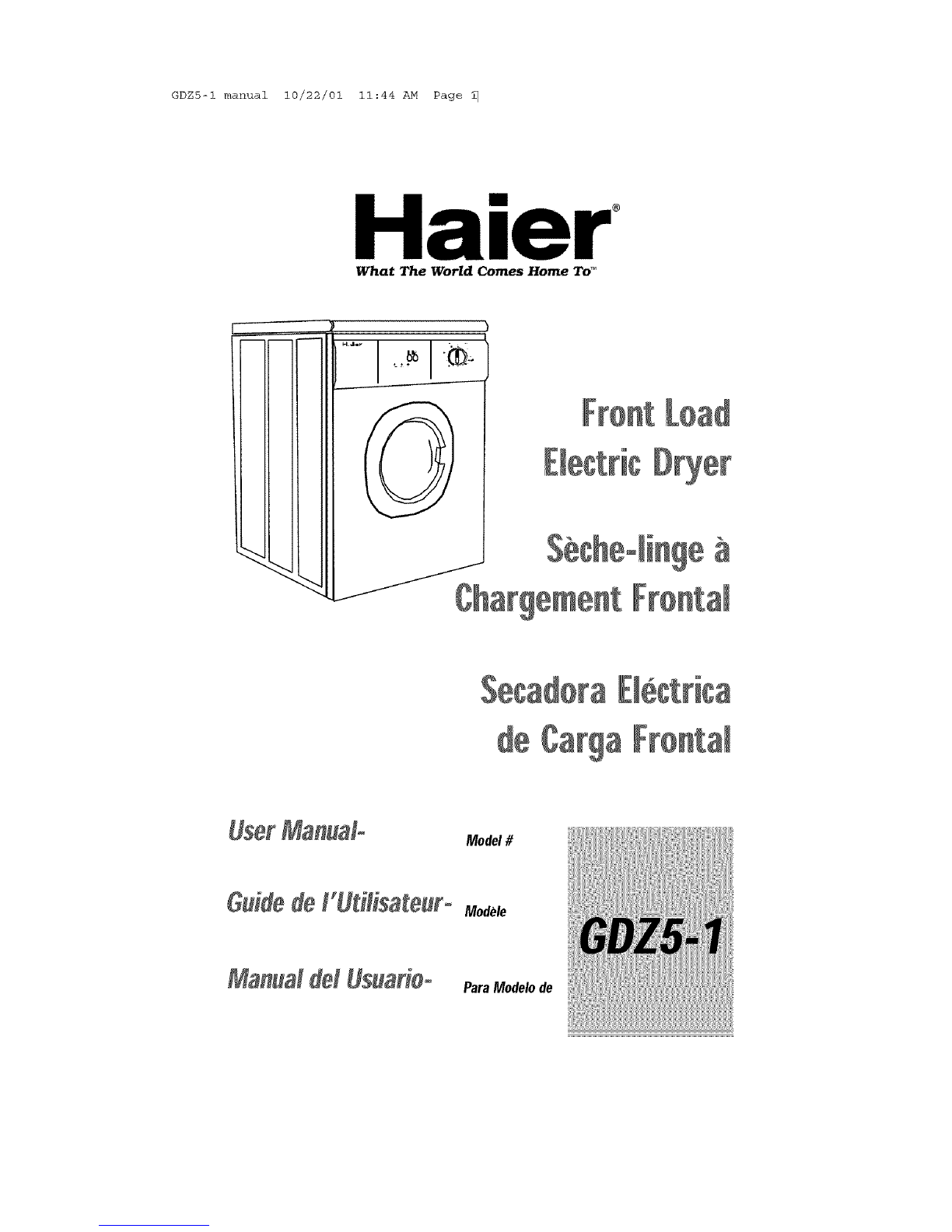

Haier GDZ5-1 Bedienungsanleitung

GDZS-I manual 10/22/01 11:44 AM Page

Haier

What The World Comes Home To _

UserManual- Model#

GuidedeI'Utilisateuro Modele

__ _ _S_ Para Modelode

GDZ5-1 manual 10/22/01 11:44 AM Page 2

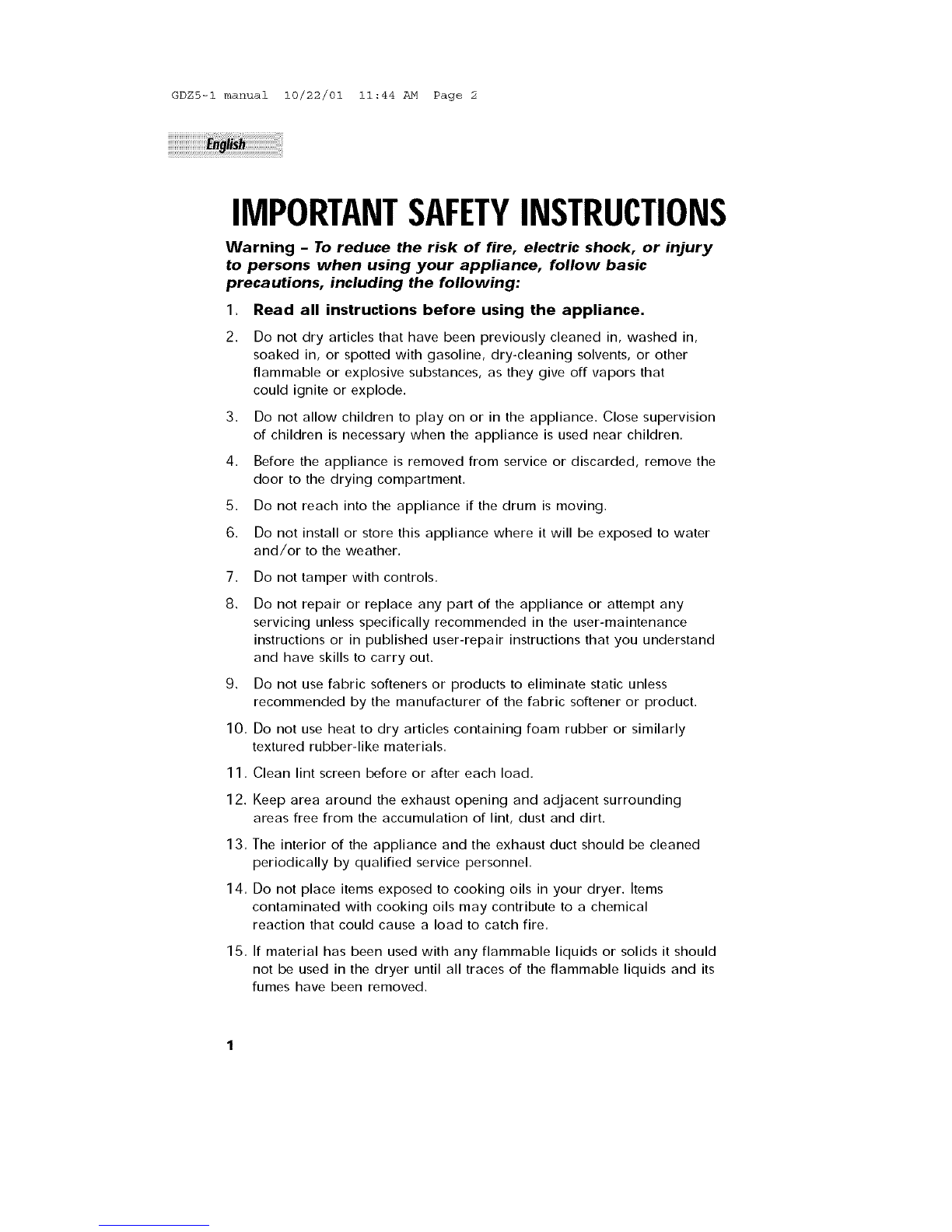

IMPORTANTSAFETYINSTRUCTIONS

Warning - To reduce the risk of fire, electric shock, or injury

to persons when using your appliance, follow basic

precautions, including the following:

1. Read all instructions before using the appliance.

2. Do not dry articles that have been previously cleaned in, washed in,

soaked in, or spotted with gasoline, dry-cleaning solvents, or other

flammable or explosive substances, as they give off vapors that

could ignite or explode.

3. Do not allow children to play on or in the appliance. Close supervision

of children is necessary when the appliance is used near children.

4. Before the appliance is removed from service or discarded, remove the

door to the drying compartment.

5. Do not reach into the appliance if the drum is moving.

6. Do not install or store this appliance where it will be exposed to water

and/or to the weather.

7. Do not tamper with controls.

8. Do not repair or replace any part of the appliance or attempt any

servicing unless specifically recommended in the user-maintenance

instructions or in published user-repair instructions that you understand

and have skills to carry out.

9. Do not use fabric softeners or products to eliminate static unless

recommended by the manufacturer of the fabric softener or product.

10. Do not use heat to dry articles containing foam rubber or similarly

textured rubber-like materials.

11. Clean lint screen before or after each load.

12. Keep area around the exhaust opening and adjacent surrounding

areas free from the accumulation of lint, dust and dirt.

13. The interior of the appliance and the exhaust duct should be cleaned

periodically by qualified service personnel.

14. Do not place items exposed to cooking oils in your dryer. Items

contaminated with cooking oils may contribute to a chemical

reaction that could cause a load to catch fire.

15. If material has been used with any flammable liquids or solids it should

not be used in the dryer until all traces of the flammable liquids and its

fumes have been removed.

GDZS-I manual 10/22/01 11:44 AM Page

16.This dryer must be properly installed in accordance with the

installation instructions before it is used. See grounding instructions

in the installation section.

17. Proper grounding must be ensured to reduce the risk of electric shock

and fire. Check with a qualified electrician or service personnel if you

are in doubt as to whether the dryer is properly grounded.

18. Use the dryer only for its intended purpose, drying clothes.

19. Always disconnect dryer from electrical supply before attempting any

service. Disconnect power cord by grasping the plug, not the cord.

20. Replace worn power cords and/or loose plugs.

21. To reduce the risk of electric shock or fire, do not use extension cords or

adapters to connect dryer to electrical power source.

SAVETHESEINSTRUCTIONS

ForFutureUse

GDZS-I manual 10/22/01 11:44 AM Page

DANGER

Risk of child entrapment. Before you throw away your old

dryer, take off the door so that children may

not easily get trapped inside.

Thank you for using our Haler

product. This easy-to-use manual will

guide you in getting the best use of

your dryer.

Remember to record the model and

serial number. They are on a label in

back of the dryer.

Model number

Serial number

Date of purchase

Staple your receipt to your manual. You will need it to obtain

warranty service.

As dry cleaning solvents, gasoline, vegetable and cooking oils are highly

hazardous materials, items soaked in or spotted with such should not be used in

the dryer, items may still contain a substantial amount of the hazardous material

after being washed. When such items are exposed to heat they could ignite. As

clothes are stacked and piled up in the dryer the heat cannot escape. Due to this,

items become hot enough to possibly ignite, Washing in hot water with extra

detergent would reduce but not eliminate the risk of fire,

GDZS-I manual 10/22/01 11:44 AM Pager6

PAGE

Safety Instructions ............................................................................ 1

OPERATING INSTRUCTIONS ............................................................ 5

Features .......................................................... .5

Operations. ......................................................................................... 11

Normal Operating Sounds, .................................................................. .1 1

Drying Tips,......................................................................................... 12

Energy Saving Tips ............................................................................. .I 3

Care and Cleaning Guide .................................. 13

Troubleshooting .............................................................................. 14

INSTALLATION INSTRUCTIONS ............................ 15

Tools and Materials Required. ............................................................... 15

Electrical Requirements ........................................... .15

Unpacking Your Dryer .......................................................................... 15

Exhaust System Connections ................................. 16

Requirements and Instructions ..................................... 16

Materials ........................................................ /17

Location of Your Dryer .......................................................................... 19

Installation in Mobile Home ................................................................. 20

Electrical Connections ................................................................... 21

Requirements and Instructions ............................................................. 21

3-Wire Cord Connections ................................................................... 22

4-Wire Cord Connections ................................................................... 23

Warranty ....................................................................................... 25

GDZS-I manual 10/22/01 11:44 AM Pag( /_

Dryer Timer:

ii=_r

• Dryer Timer: The timer will let you set the time for up to 120 minutes to

dry your clothes depending on the fabric type and load size,

• Cotton/Synthetic Dry Button Setting: In order to dry COTTON clothes

push button in its outward position This means it is on HIGH HEAT

setting In order Io dry SYNTHETIC/DEUCATE clothes push button in its

inward position This means it is on I_OW HEAT setting, This convenient

setting gives you flexibility of your desired heat setting for any cycles

o o o

_ml L I .V(__

1 Cotton Button in OUTWARD POSITION means HIGH heat

2 Synthetic Button in INWARD POSITION means LOW heat

GDZ5-1 manual 10/22/01 11:44 AM Page/'/I

Cotton Cycle: This can be either HIGH or LOW heat dry cycle

depending on what type of clothes you want to dry for up to

120 minutes,

• Synthetic Cycle: This cycle is used for synthetic fabrics where you can

use dry time up to 60 minutes at low heat setting. (Please refer to

Cotton/Synthetic Dry Button setting explanation, p.5)

• Delicate Cycle: This cycle is used for delicate fabrics where you can use

dry time up to 80 minutes. The low heat setting is preset in this cycle.

Understanding the Drying Temperature:

•In your dryer if the temperature goes over 117 Degree [/47 Degree C

the sensor will shut off the heat and the drum will stop spinning. At 99

Degree [/37 Degree C temperature the heat will come on and drum

will resume spinning.

• Each cycle ends with a cool down period. The heat automatically turns

off and load continues to tumble for 5-10 minutes. This will reduce

wrinkling of your clothes.

GDZS-I manual 10/22/01 11:44 AM Page/_

Please follow the chart below for proper cycle/time/clothes

selections.

CYCLE TYPE

Cotton Cycle

Synthetic Cycle

HEATTYPE

H_gh

Low

CLOTHES/FABRICS

For heavy/lightweight cottons and

"Tumble Dry" labeled clothes

Synthetic fabrics, Cotton knits

Synthetic Cycle High Synthetic fabrics: nylon, orlon,

Polyester etc

Delicate Cycle Low For heat sensitive clothes and for

"Tumble Dry" low and warm label

clothes, special care fabrics, wool

Note: Cotton Cycle is also known as Regular Cycle Synthetic Cycle is also

known as Permanent Press Cycle

Note: Drying time varies depending on size, dampness of load,

weight, fabric type, room temperature, humidity and type

of exhaust installation.

GDZS-I manual 10/22/01 11:44 AM Page/_ I

Start Button:

•Once you have made your selection of the cycle, time and heat setting,

you need to push start button to turn the power on, You will see the

power light comes on indicating that power is on.

oo 0

Note: The way this start button is designed that when you press the

button, it will return to outward position instead of staying in

inward position,

0 0 0

Note: If you want to add or remove clothes while dryer is on, simply by

pressing START button will stop the dryer, Open the door and

make your changes, Close the door and by pressing START button

will reset the dryer.

GDZ5-1 manual 10/22/01 11:44 AM Page/_w\

Synthetic Light:

•You must have synthetic button in its inward position in order to have the light

"ON", When cycle is about to finish and goes in cool dry at the end, you will

notice that the light will go "OFF",

Note: If the light does not come on then check the position of synthetic button,

(Please refer to Cotton/Synthetic Button setting explanation, p.5)

[_I ,IF Im m &)ri.,(m_-

m=_,

Clean Filter Light:

• When there are last 10 minutes left in the cycle, you will see that the light will

come "ON". This is a reminder to clean the filter after the cycle is finished.

00 0

Clean Filter _/=_ 'a ._ I.v,,"

Note: The light will come on automatically if the outside temperature of the exhaust

duct is higher than 117°F/47°C.
