Haier GDZ5.0-1 Bedienungsanleitung

Exhaust Type Tumble Dryer

User's manual

Model: GDZ5.0-1

Please read this manual carefully before using.

Retain it for future reference.

Contents

Names Of The Parts......................................1

Important Safety Instructions........................2

Operation Cautions........................................4

Installation Instructions.............................5

.............................6

Using Method.................................................8

Dry Time Reference Table..... ....9

Care And Cleaning.......................................11

Trouble Shooting............................................12

Packing Notes And Electrical Safety Tips.......13

Specification............................the back cover

Wall Mounting Instructions

...........................

Names Of The Parts

Drum

Exhaust shroud

Air Intake shroud

Timer selector knob

Heat selector knob

Door

Power cord Exhaust vent

Back cover

Casing

Please check if the power receptacle has good earthing

Condition before using to guarantee your safety.

The manufacturer will not take responsibility for those

Risks occurred from not obeying this manual.

Door gasket

Window

9.Do not dry articles that have been previously cleaned in, washed in, socked

in, or spotted with gasoline, dry-cleaning solvents, or other flammable or

explosive substances, as they give off vapors that could ignite or explode.

Important Safety Instructions

Warning-To reduce the risk of fire ,electric shock, or injury to

persons when using your appliance, follow basic precautions,

including the following:

1.Read all instructions before using the appliance.

2.The tumble dryer is not to be used if chemicals have been used for cleaning.

3.The tumble dryer is intended only for drying textile material washed in water.

7.For appliances with ventilation openings in the base, that a carpet must not

obstruct the openings.

4.There has to be adequate ventilation to avoid the back flow of gases into the

room from appliances burning other fuels including open fires, when operating

the tumble dryer.

5.The lint trap is to be cleaned frequently.

6.Lint is not to be allowed to accumulate around the tumble dryer.

8.Exhaust air must not be discharged into a flue which is used for exhausting

fumes from appliances burning gas or other fuels.

11. Fabric softeners or similar products should not be used in a tumble dryer to

eliminate the effects of static electricity unless this practice is specifically

recommended by the manufacturer of the fabric softener or product.

12.Do not use heat to dry articles containing foam rubber or similarly textured

rubber-like materials.

10.Do not place items exposed to cooking oils in your dryer. Items contaminated

with cooking oils may contribute to a chemical reaction that could cause a

load to catch fire.

16.Do not use or place stove, gas device, water heater, tinder or similarities close to

your dryer. Do not install or store this appliance where it will be exposed to water

and/or to the weather.

15.Keep your dryer away from combustible materials (such as gasoline) during

operation to prevent the risk of fire.

13.Do not allow children to play on, climb on or in the appliance. Close supervision

of children is necessary when the appliance is used near children.

14.Before the appliance is removed from service or discarded, remove the door to

the drying compartment.

Important Safety Instructions

18.Do not repair or replace any part of the appliance or attempt any servicing unless

specifically recommended in the user-maintenance instructions or in published

user-repair instructions that you understand and have skills to carry out.

17.Do not tamper with controls.

20.If material has been used with any flammable liquids or solids it should not be

used in the dryer until all traces of the flammable liquids and its fumes have

been removed.

19.Keep area around the exhaust opening and adjacent surrounding areas free from

the accumulation of lint, dust and dirt.

22.Do not share a receptacle with other appliances. Do not use it when a plug

loosely inserted into a receptacle.

21.This dryer shall be connected to a three-wire, single phase, 230V AC

power receptacle more than 10A, which must be reliably grounded. A leakage

protector shall be used, if possible.

23.Do not excessively bend, stretch, twist, bind power cord or put heavy stuff on

it. Keep the terminator of power cord clean. Carefully clean it with dry cloth if

dusts accumulated. If damaged, power cord or plug must be replaced by our

service agent or qualified after-sale service person to avoid the risk of danger.

24.When normally using, the power cord of dryer shall be easily plugged or

unplugged by hand. It must be unplugged during power blackout, moving, not

in use or cleaning. Do not plug or unplug the power cord with wet hands.

25.Always disconnect dryer from electrical supply before attempting any service.

Disconnect power cord by grasping the plug, not the cord.

26.Do not block the exhaust vent when dryer operating to prevent it from

overheating or other dangers.

27.Do not let your dryer operate on packing foam. Otherwise it maybe cause fire

since heat accumulation or other external factors.

29.Do not place washed wet clothes in your dryer for a long time not drying them

(which may result in water leakage).

28.Only place sufficiently dehydrated clothes into your dryer for drying to prevent

leakage and longer drying time.

30.Don't touch the intake for the high temperature during the drying cycle.

31.Do not exceed dryer rated Max. Capacity.

32.The appliance must not be installed behind a lockable door, a sliding door

or a door with a hinge on the opposite side to that of the tumble dryer.

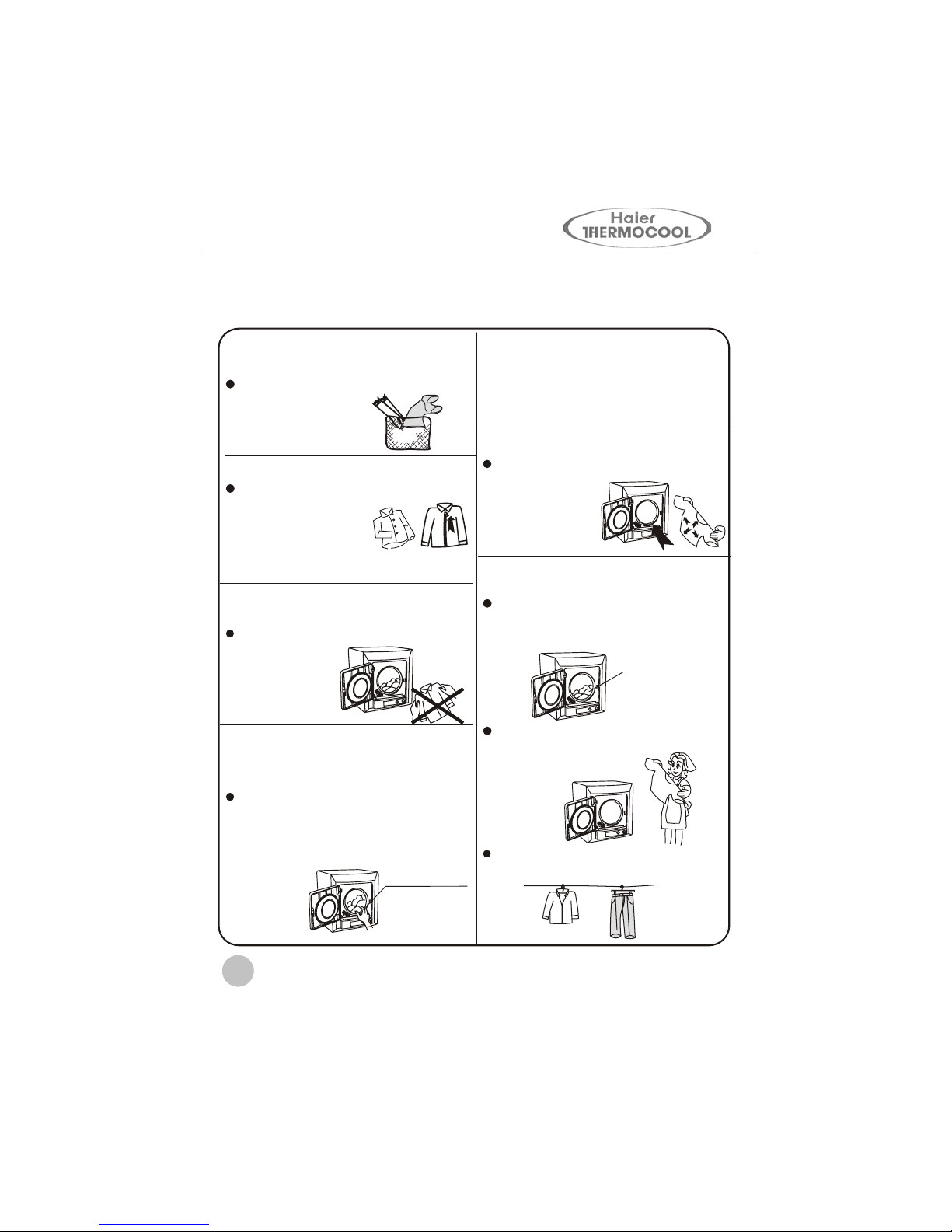

Clothes with zipper

Dry this kindof clothes withzipper

zipped or fastener

buckled and inside

out (to reducethe

impact noise between

metal and thedrum)

Clothes with ribbon or lace

should be dried in a nylon net

Put chemical fiber and/or clothes

with ribbon or lace

into a nylon net

before drying.

Do not load your dryer when

it is running.

Loading the dryer when it is running

shall be avoided

to prevent the

clothes over dried

or incompletely

dried.

Please flip clothes over manually

from time to time, if necessary,

when drying large ones.

It is not easy to flip over large clothes

(such as overcoat) in the drum, uneven

drying therefore happens sometimes.

If necessary, flip them over manually

from time to time to make them dried

completely.

Flip over clothes

Operation Cautions

Put rumpled clothes in order

Put all clothes in order after

dehydrated

before drying

them.

Remove the clothes out of your dryer

as early as possible

to reduce rumples.

Please hang the easily crumpled clothes

up with a hanger after dried

Anti-wrinkle method for clothes

crumpled easily

Decrease capacity to get good anti-

wrinkle result (the capacity shall be

4/5 of that of normal clothes).

Capacity reduced

•

Avoid to dry starched clothes in

your dryer to prevent link filter

from clogging, which may lead

to bad exhaust performance.

Soft items

Leg

Installation Instructions

For your safety and correct using your dryer, please observe all the instructions

in this manual toinstall and adjust your dryer.

Location of your dryer

Dryer should be located in a dry and well-vented place, not filled with moisture and

vapors and where rain cannot reach (like bathroom,open balcony and water faucet).

Do not locate your dryer in a place where sunlight directly shines.

Locate your dryer on horizontal solid ground, floor or a

special bracket to prevent vibration and noise. Keep a dista

nce of 10cm-15cm away from the rear wall when installing.

Do not use stove, gas etc. near your dryer to avoid dangers.

The dryer has air intake and exhaust cycles,which

needs good air-exhaust vent in the rear and well-vented

room. If used in a small space, air exchange fan or

exhaust duct can be installed at the vent to exhaust

hot wet air outdoors.

The length of exhaust duct shall not exceed 2m.

(10-15)cm

If the dryer is not used with bracket, take fixed

legs out of the accessory bag and screw them

into the assembly hole of the dryer to ensure

it be placed stable.

Install and use the fixed legs of your dryer

Wall Mounting Instructions

1. Determine the location of the dryer on the wall

and mark the bracket position.

* A minimum 50mm is needed between the top of

the dryer and the ceiling for ease of installation.

* If mounting above a washing machine, allow s

ufficient room to open the lid of the washer.

Drill & 3mm Bit

Wall Mounting Kit Includes

Wall Hanging Brackets

Hanging hook

2. Fix the wall hanging brackets(2 supplied) to the

wall securely (eg. into the stud.) Fit a timber slat

between the studs to mount the brackets onto

If the stud position is too wide. The distance

between each bracket is 155mm as per diagram.

Philips Head Screw

Driver

Expansile Screws,M5X

50mm

Helper to lift dryer

onto wall

Tools &parts

requir d

for Plaster/

wooden wall

Tools required

Description

Plastic Spacers

Exhaust pipe

3. To install the hook to the dryer, remove

screws 1, 2, 3 & 4 as indicated in Fig. 2.

4. Align bracket as shown in Fig. 3 and fasten

screws tightly.

5. Remove lower side screws and install the

spacers provided as per Fig. 2.

6. Install exhaust duct: for upwards discharge, join

sections 1 and 3, for downwards discharge, join

sections 1, 2, 2 & 3 as per Fig. 4.

7. With assistance, mount dryer on wall brackets.

See Fig. 5.

Wall Mounting Instructions

Using Method

1. Plug the power cord

The appliance shall be supplied with230V,50Hz,

connected to a special receptacle more than

10A (reliably grounded).

2. Place the dehydrated clothes in your dryer

Check the following items before putting clothes in.

They shall be loaded in such a way that 2-3 pieces

each time and not in a group to avoid tangling, which

is not easy to turn it over resulting in uneven drying

since the clothes were wrapped.

Before drying your clothes

Make sure if clothes have any special requirements and suitable for drying.

Do not dry your clothes in your dryer if the materials of which cannot be dried

in a dryer or they bear the following labels:

Carefully check the clothes to be dried and remove combustible

material such as lighter and match as well as sharp metal items

like coin, hair clip and safety pin maybe mixed with the clothes

and in pockets.

Clothes with zipper or fastener shall be put into your dryer inside

out with zipper zipped and fastener buckled.

Do not tumble dry

Hang to dry

Drip dry

Dry flat

Dry in the shade

Please put clothes into the drum. Avoid clothes being

pressed by the door due to exposure out of the port,

which will cause clothes entangle and door gasket

release and consequently poor drying effect.

Separate dark and light colored items, like you do for washing.

Check for stains that may not have been removed in washing.

Dryer heat may permanently set some stains. Properly dried clothes

will need minimum of care when removed from dryer.

For optimum results,use dryer load of similar fabric, weight and construction. Place

small items in a mesh bag prevent from tangling.Do not overload the dryer. An

average load will fill up half the drum.

Inhaltsverzeichnis

Andere Haier Trockner Handbücher

Haier

Haier Ginesis HLF103Q Bedienungsanleitung

Haier

Haier GE GFD14ESSNWW Anleitung zur Verwendung

Haier

Haier GDZ5-1 Bedienungsanleitung

Haier

Haier Ginesis HLF103Q Bedienungsanleitung

Haier

Haier HLP140E - 2.6 cu. Ft. Portable Vented Electric... Bedienungsanleitung

Haier

Haier HDY6-1 Bedienungsanleitung

Haier

Haier HDY-HMS70 Bedienungsanleitung

Haier

Haier HD80-A2939 Bedienungsanleitung

Haier

Haier T60-32 Bedienungsanleitung

Haier

Haier QFT15 Series Originalbetriebsanleitung

Haier

Haier GDZ5-1 Bedienungsanleitung

Haier

Haier HDY60M Bedienungsanleitung

Haier

Haier GDZ22-1 Bedienungsanleitung

Haier

Haier HDHP80AW1 Bedienungsanleitung

Haier

Haier HDY-M40 Bedienungsanleitung

Haier

Haier HDY-D70-E Bedienungsanleitung

Haier

Haier HDY-E60 Bedienungsanleitung

Haier

Haier HD70-A82 Bedienungsanleitung

Haier

Haier HDY5-1 Bedienungsanleitung

Haier

Haier HDV60E1 Betriebsanleitung

Haier

Haier HLF11P Bedienungsanleitung

Haier

Haier HDM8.0-61 Bedienungsanleitung

Haier

Haier CRDE350AW Bedienungsanleitung

Haier

Haier GE CleanSpeak WE04X20528 Konfigurationshandbuch

Beliebte Trockner Handbücher anderer Marken

Bosch

Bosch WTA79200GB Bedienungsanleitung

Amana

Amana W10233410A Bedienungsanleitung

Miele

Miele TWH 780 WP Bedienungsanleitung

Asko

Asko T760 Bedienungsanleitung

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Bedienungsanleitung

Bosch

Bosch Logixx 10 WTB76556GB Technisches Datenblatt

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Bedienungsanleitung

Electrolux

Electrolux EW2H328R2 Bedienungsanleitung

Beko

Beko DS8433RX1M Bedienungsanleitung

Dawlance

Dawlance Spinner DS 6000 C Bedienungsanleitung

Electrolux

Electrolux TP5080TW Bedienungsanleitung

AEG

AEG TR838P4OB Bedienungsanleitung

Indesit

Indesit IDV 75 Bedienungsanleitung

Infiniton

Infiniton SD-DG85C Bedienungsanleitung

BOMANN

BOMANN WT 5019 Bedienungsanleitung

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Bedienungsanleitung

Asko

Asko T793C Bedienungsanleitung

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Bedienungsanleitung
