Heat-Pump-Dryer

HD90-A636-E

Thank you EN

WARNING!

Risk of injury or suﬀ ocation!

Disconnect the appliance from the mains supply. Cut oﬀ the mains cable and dispose

of it. Remove the door catch to prevent children and pets to get closed in the appliance.

Legend

Warning! – Important safety information

General information and tips

Environmental information

Disposal

To protect the environment, please dispose of the

packaging materials in an environmentally friendly

manner.

Do not dispose appliances marked with this symbol

with the household waste. Return the product to your

local recycling facility or contact your municipal oﬃ ce.

The heat exchanger of the dryer contains the green-

house gas HFKW-134a. This must be disposed of

properly.

Thank you for purchasing a Haier Product.

Please read these instructions carefully before using this appliance. The instructions con-

tain important information which will help you get the best out of the appliance and ensure

safe and proper installation, use and maintenance.

Keep this manual in a convenient place so you can always refer to it for the safe and proper

use of the appliance.

If you sell the appliance, give it away, or leave it behind when you move house, make sure

you also pass this manual so that the new owner can become familiar with the appliance

and safety warnings.

EN Content

Safety information.................................................................................................................................4

Intended use............................................................................................................................................7

Product description...............................................................................................................................8

Control panel...........................................................................................................................................9

Programmes..........................................................................................................................................13

Consumption ........................................................................................................................................14

Suggestions and tips...........................................................................................................................15

Daily use..................................................................................................................................................17

Care and cleaning.................................................................................................................................21

Troubleshooting ...................................................................................................................................25

Installation..............................................................................................................................................28

Accessories ...........................................................................................................................................29

Technical data .......................................................................................................................................30

Customer Service ................................................................................................................................32

Safety information EN

WARNING!

Before ﬁ rst use

▶Make sure there is no transport damage.

▶Remove all packaging and keep out of children´s reach.

▶Handle the appliance always with at least two persons because it

is heavy.

Daily use

▶This appliance can be used by children aged from 8 years and

above and persons with reduced physical, sensory or mental ca-

pabilities or lack of experience and knowledge if they have been

given supervision or instruction concerning use of the appliance

in a safe way and understand the hazards involved.

▶Keep away children under 3 years of age from the appliance un-

less they are constantly supervised.

▶Children shall not play with the appliance.

▶Do make sure the room is dry and well ventilated. The ambient

temperature should be between 5 °C and 35 °C.

▶Do not cover any ventilation openings in the base by a carpet or

similar object.

▶Keep the area around the tumble dryer free of dust and lint.

▶Do make sure that there is only laundry inside the appliance and

no pets or children before you use it.

▶Only touch the mains plug with dry hands and do not touch or

use the appliance if you are barefoot or have wet or damp hands

or feet.

▶Only dry textiles washed in water.

▶Do make sure not to load more than nominal load.

▶Remove all items such as lighters and matches from pockets.

▶Use fabric softeners or similar products as speciﬁ ed by the

manufacturer´s packaging.

▶Do not use ore store any ﬂammable sprays or ﬂ ammable gas in

close vicinity to the appliance.

▶Do not place heavy objects or sources of heat or damp on top of

the appliance.

▶Hold the plug, not the cable, when unplugging the appliance.

▶Do not touch the rear wall and the drum during operation; they

are hot.

EN Safety information

WARNING!

Daily use

▶Do not dry following items in the appliance:

▶Items which are unwashed.

▶Items which have been contaminated with inﬂammable sub-

stances such as cooking oil, acetone, alcohol, benzine, petrol,

kerosene, spot removers, turpentine, waxes, wax removers

or other chemicals. The fumes can cause a ﬁ re or explosion.

These items must always be washed ﬁ rst by hand in hot wa-

ter with an extra amount of detergent and then be dried in the

open air before drying in the appliance.

▶Items which contain padding or ﬁllings (e.g. pillows, jackets), as

the ﬁlling can get out with the risk of igniting in the dryer.

▶Items which contain a large proportion of rubber, foam rubber

(latex foam) or rubber like materials such as shower caps, wa-

terproof textiles, rubberised articles and items of clothing and

pillows with foam rubber ﬁlling.

▶Do not drink the condensed water.

▶Do not use the appliance without the lint ﬁlter or condenser ﬁ lter

in place or with damaged ﬁlter.

▶Notice that the last part of the drying cycle occurs without heat

(cool down cycle) to ensure remaining the garments at a temper-

ature which does not damage them.

▶Do not leave the appliance unattended during run time for some

time. If a long absence is intended, the drying cycle have to be

interrupted by switching oﬀ the unit and unplugging the mains.

▶Do not switch oﬀ the appliance except drying cycle is ﬁnished,

unless all items are quickly removed and spread out that the heat

can be released.

▶Switch oﬀ the appliance after each drying programme to save

electricity and for safety.

Maintenance / cleaning

▶Make sure children are supervised if they carry out cleaning and

maintenance.

▶Disconnect the appliance from the electrical supply before un-

dertaking any routine maintenance.

Safety information EN

WARNING!

Maintenance / cleaning

▶Clean the lint ﬁlter and the condenser ﬁ lter after each pro-

gramme (see CARE AND CLEANING).

▶Do not use water spray or steam to clean the appliance.

▶Do not use industrial chemicals to clean the appliance.

▶Replace a damaged supply cord only by the manufacturer, its ser-

vice agent or similarly qualiﬁ ed persons in order to avoid a hazard.

▶Do not try to repair the appliance by yourself. In case of repair

please contact our customer service.

Installation

▶Ensure a location which allows opening the door fully. Do not in-

stall the tumble dryer behind a lockable door, a sliding door or a

door with hinges on the opposite side of the tumble dryer door

as this limits the full opening of the tumble dryer door.

▶Install the appliance in a well-ventilated, dry place.

▶Never install the appliance outdoors in a damp place, or in an area

which may be prone to water leaks such as under or near a sink

unit. In the event of a water leak cut power supply and allow the

machine to dry naturally.

▶Install or use the appliance only where the temperature is above

5 °C.

▶Do not place the appliance directly on a carpet, or close to a wall

or furniture.

▶Do not expose the appliance to any frost, heat or direct sunlight

or in the near of heat sources(e.g. stoves, heaters).

▶Make sure that the electrical information on the rating plate

agrees with the power supply. If it does not, contact an electri-

cian.

▶Do not use multi-plug adapters and extension cables.

▶Make sure not to damage the electric cable and the plug. If dam-

aged have it replaced by an electrician.

▶Use a separate earthed socket for the power supply which is easy

accessible after installation. The appliance must be earthed.

▶Only for UK: The appliance’s power cable is ﬁ tted with 3-cord

(grounding) plug that ﬁ ts a standard 3-cord (grounded) socket.

Never cut oﬀ or dismount the third pin (grounding). After the ap-

pliance is installed, the plug should be accessible.

EN Intended use

Notice

The appliance contains the ﬂ uorinated greenhouse gas HFKW-134a (GWP:1430). This

gas is hermetically sealed.

Intended use

This appliance is intended for drying items which have been washed in a water solution and

are marked on the manufacturer‘s care label as being suitable for tumble drying.

It is designed exclusively for domestic use inside the house. It is not intended for commer-

cial or industrial use. Changes or modiﬁ cations to the device are not allowed. Unintended

use may cause hazards and loss of of all warranty and liability claims.

Standards and directives

This product meets the requirements of all applicable EC directives with the correspond-

ing harmonised standards, which provide for CE marking.

Environmentally responsible use

▶Thorough drainage: Spin the laundry with the maximum spin speed.

▶Maximum load: Use the maximum ﬁ lling amount according to the programme table,

but do not overload the dryer. To take advantage of the maximum load, the laundry

which should be dried „READY to STORE“, can be ﬁ rst dried easily with „READY to

IRON“. At the programme end remove the laundry which should be ironed and dry the

remaining laundry then to end.

▶Loosen up the laundry: Shake out the laundry before putting them into the dryer.

▶Avoid excess drying: An excessive drying should be avoided. Select the right pro-

gramme and the appropriate dry level.

▶Softener unnecessary: Do not use softener when washing, because the laundry will

become ﬂ uﬀ y and soft in the dryer .

▶Cleaning of the lint ﬁ lters: Clean the lint ﬁ lters after each cycle.

▶Ventilation: Make sure the appliance is properly ventilated (see INSTALLATION).

▶Condensed water reuse: The collected condensed water can be used for the steam

iron. Before it should be poured through a ﬁ ne sieve or coﬀ ee ﬁ lter paper. Smallest

parts will be retained by the ﬁ lter.

Product description EN

VORDERANSICHT

Fig.1: appliance front Fig.2: appliance backside

Fig.3: Accessories

This drawing may be slightly diﬀ erent from the layout of the drying machine you have just

purchased.

1 Water tank

2 Rating plate

3 Service ﬂ ap

4 Control panel

5 Door

6 Ventilation slots

7 Power cord

8 Back cover

9 Drainage outlet

10 Adjustable feet

User manual

Warranty card

Accessories

Check the accessories and literature in accordance with this list.:

Drain hose

(optional) Energy labelDrying rack

EN Control panel

Fig.4: control panel

1-Maintenance indicators

The indicators light up in order to remind that the ﬁ lter must be cleaned and the water

tank must be emptied (see CARE AND CLEANING).

Meaning of icons:

1 Maintenance indicators

2 Child-lock indicator

3 Display

4 Programme selector

5 On/Oﬀ button

6 Temperature button

7 Dry Level button

8 Delay button

9 Time ±button

10 Memo button

11 Start/Pause button



Heat

Pump

HD90-A636-E



Illuminated LED Meaning

Clean the lint ﬁ lter in the ﬁ lling opening and the condenser ﬁ lter in

the base.

Empty the water tank or check it for correct positioning.

2-Child lock indicator

This option blocks all panel elements against activa-

tion. After starting a programme press simultaneously

“Temp“ +“Delay“ for about 3 seconds (ﬁ g. 5); the

child lock indicator lights up. For unlocking please press

again the two buttons.

The icon ﬂ ashes if a button will be pressed or the pro-

gramme selector will be twisted, when the child lock is

activated. The change is not running.

Notice

▶When the cycle ends or the power supply is interrupted, the function will not be can-

celled automatically.

▶We recommend to switch on this function if there are children in the household.

▶The On/Oﬀ button can be activated during function child lock is selected.

6 7 8 9 10 11

23 4 5

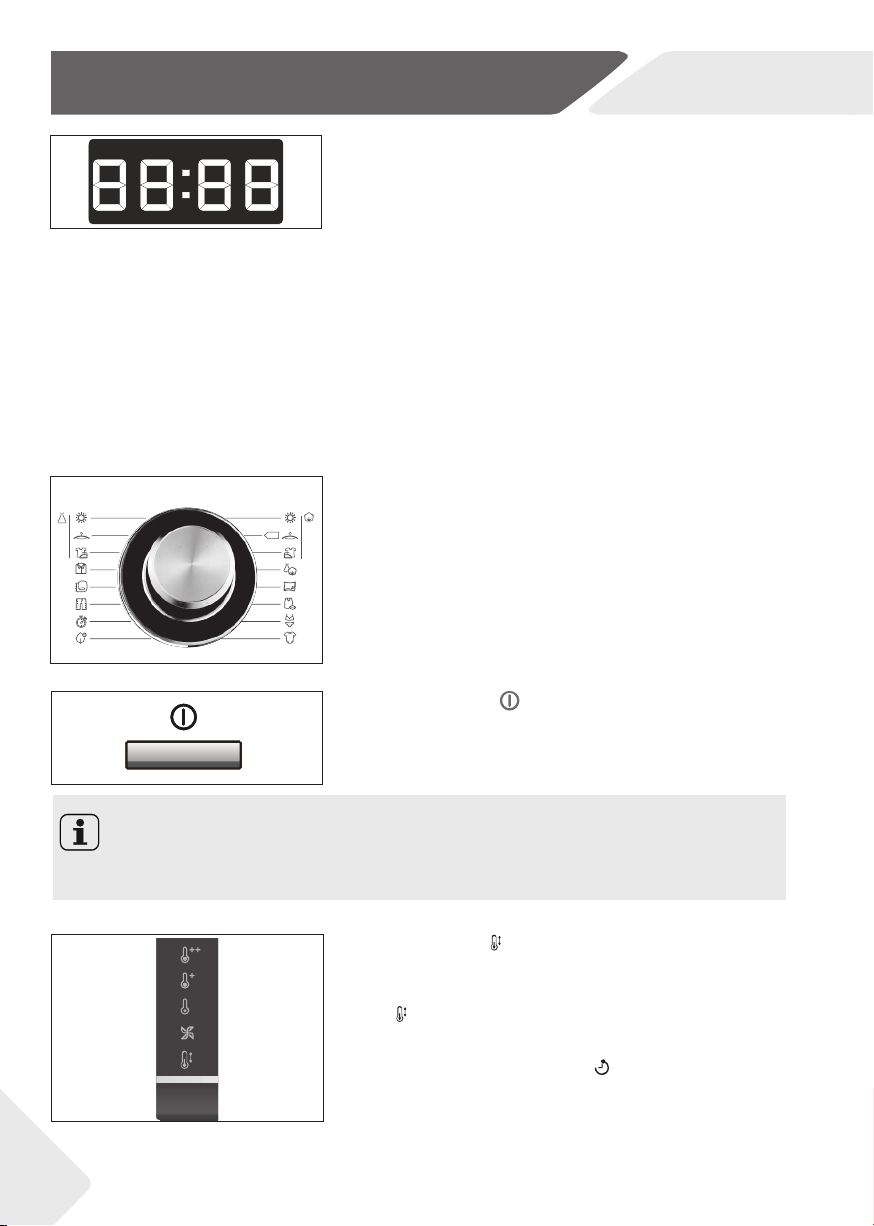

Control panel EN

5-On/Oﬀ button

Press this button to switch on or switch oﬀ the appli-

ance (ﬁ g. 8).

4-Programme selector

By turning the knob one of 16 programmes can be se-

lected (ﬁ g. 7). The default settings will be displayed.



Notice

After each switch-on, the appliance suggests the economical programme “Cotton-

Ready to store“ for drying normal wet cotton laundry.

3-Display

During any selection the display (ﬁ g.:6) shows related

information like

▶Programme cycle time

▶Programme start delay time

▶Error codes (see TROUBLESSHOOTING)

After start of an operation it displays:

▶Remaining time in hours of a delayed programme

starts, e.g. :

▶Remaining programme cycle time in hours + min-

utes, e.g.:

While running it may vary due to local conditions and

daily working load.

6-Temp. button

Touch this button (ﬁ g.9) to select the drying tempera-

ture of the programme. Press sequentially the Temp.

button until the desired symbol ﬂashes on the display.

In conjunction with the “Delay” button, the child lock

function can be switch on/oﬀ (see CHILD LOCK INDI-

CATOR).

Inhaltsverzeichnis

Sprachen:

Andere Haier Trockner Handbücher

Haier

Haier HDY60 Bedienungsanleitung

Haier

Haier HD80-01 WH HA AA Bedienungsanleitung

Haier

Haier HD80-A2939 Bedienungsanleitung

Haier

Haier HDC80E1 Bedienungsanleitung

Haier

Haier HDY6.1 HA AA Bedienungsanleitung

Haier

Haier CGDE450AW Bedienungsanleitung

Haier

Haier HDY6-1 Bedienungsanleitung

Haier

Haier HLTD500AGW Bedienungsanleitung

Haier

Haier QFT15ESSNWW Originalbetriebsanleitung

Haier

Haier GDZ13-0677 Bedienungsanleitung

Haier

Haier Ginesis HLF103Q Bedienungsanleitung

Haier

Haier HDE5000AW Bedienungsanleitung

Haier

Haier HDM8.0-61 Bedienungsanleitung

Haier

Haier HMS6-1 Bedienungsanleitung

Haier

Haier HDY6-1 Bedienungsanleitung

Haier

Haier QFT15 Series Originalbetriebsanleitung

Haier

Haier HDY60 Bedienungsanleitung

Haier

Haier HLP140E - 2.6 cu. Ft. Portable Vented Electric... Bedienungsanleitung

Haier

Haier GDZ10-0677 Bedienungsanleitung

Haier

Haier QFD15 Series Originalbetriebsanleitung

Haier

Haier GDZ5.0-1 Bedienungsanleitung

Haier

Haier BWD1600W Bedienungsanleitung

Haier

Haier HD90-A636 Bedienungsanleitung

Haier

Haier ProSoft Bedienungsanleitung

Beliebte Trockner Handbücher anderer Marken

Bosch

Bosch WTA79200GB Bedienungsanleitung

Amana

Amana W10233410A Bedienungsanleitung

Miele

Miele TWH 780 WP Bedienungsanleitung

Asko

Asko T760 Bedienungsanleitung

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Bedienungsanleitung

Bosch

Bosch Logixx 10 WTB76556GB Technisches Datenblatt

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Bedienungsanleitung

Electrolux

Electrolux EW2H328R2 Bedienungsanleitung

Beko

Beko DS8433RX1M Bedienungsanleitung

Dawlance

Dawlance Spinner DS 6000 C Bedienungsanleitung

Electrolux

Electrolux TP5080TW Bedienungsanleitung

AEG

AEG TR838P4OB Bedienungsanleitung

Indesit

Indesit IDV 75 Bedienungsanleitung

Infiniton

Infiniton SD-DG85C Bedienungsanleitung

BOMANN

BOMANN WT 5019 Bedienungsanleitung

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Bedienungsanleitung

Asko

Asko T793C Bedienungsanleitung

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Bedienungsanleitung
