Haier HLF11P Bedienungsanleitung

HeavyDuty

Towels/Cotton

Cycles

MoreDry

LessDry

Dry

Cooldown

Cyclecompleted

Extendtrumble

Customer

GDZ22-2

Louder

Softer

Off

Cycle

Signal

BulkyItems

Casual

Delicate

Off

Wrinkle

Care

Timed

Cycles

MoreTime

LessTime

AutoDry

RackDRY

TimedDry

TimeRemaining(Min)

TimeOn(Hour)

Delay

Start

On/Off

Power

Pause

Start

Temp

Level

Dryness

AirOnly(NoHeat)

High

Medium

Low

Normal

HLF11P

WARNING

Tables Of Contents

PAGE

Safety Instructions ............................................................................ 1

OPERATING INSTRUCTIONS ............................................................ 5

.......................................................... 5

Other Features................................................................................. 12

Normal Operating Sounds................................................................. 13

Tips................................................................................................. 13

Care and Cleaning Guide ............................................................... 14

Troubleshooting .............................................................................. 15

INSTALLATION INSTRUCTIONS ....................................................... 16

Tools and Materials Required.............................................................. 16

Electrical Requirements...................................................................... 16

Unpacking Your Dryer........................................................................ 16

Exhaust System Connections .......................................................... 17

Requirements and Instructions............................................................ 17

Materials ............................................................................................18

Location of Your Dryer........................................................................ 20

Installation in Mobile Home ............................................................... 21

Electrical Connections .................................................................... 22

Requirements and Instructions............................................................. 22

3-Wire Cord Connections................................................................... 23

Specification .................................................................................. 25

Understanding the Control Panel

Auto Dry cycle

Timed Dry cycle

Rack Dry cycle.................................................................................

.................................................................................

...................................................................................

...................................................................... 8

Load clothes into dryer

.................................................................. 7

Preparations before drying

4-Wire Cord Connections...................................................................

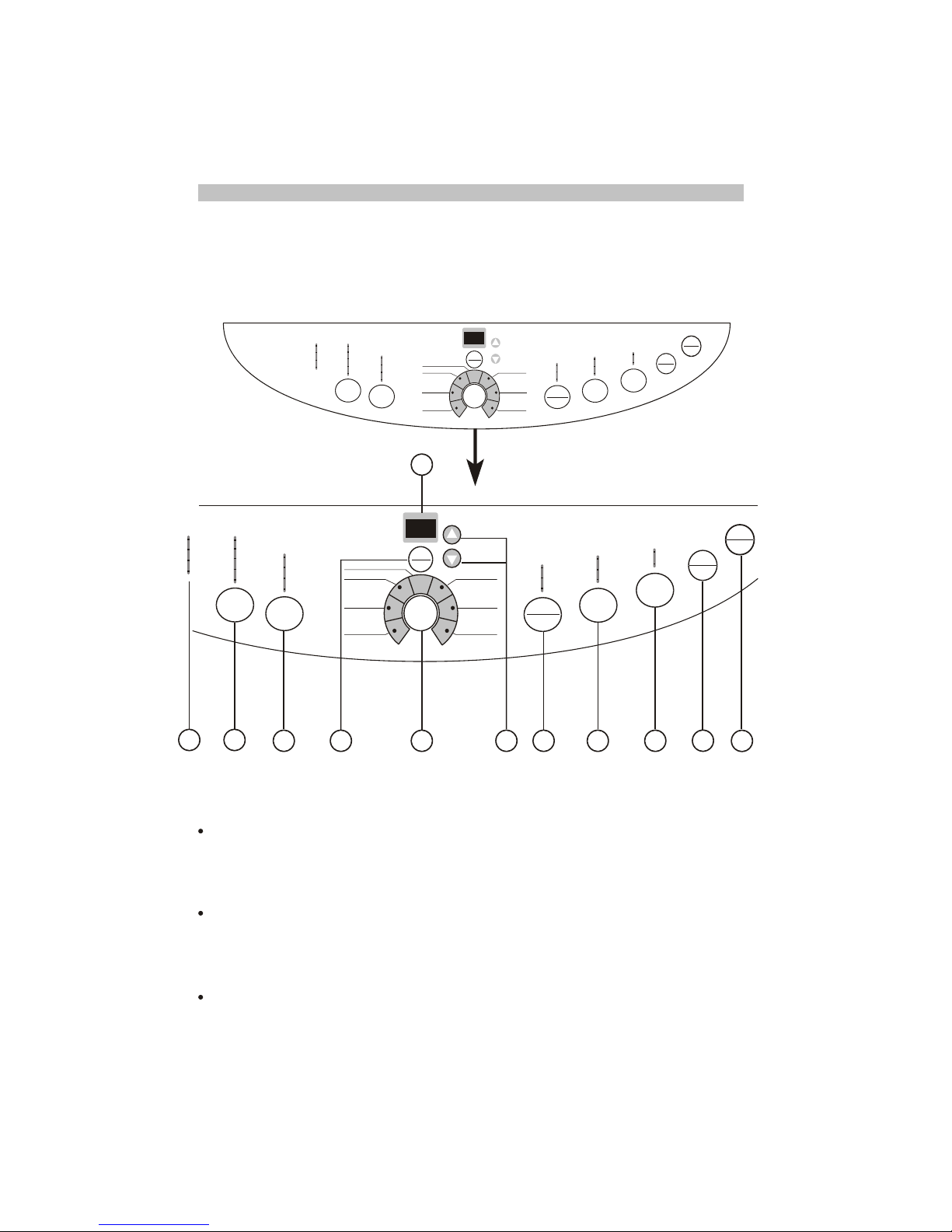

Understanding the Control Panel

OPERATING INSTRUCTIONS

9 37 6 5 4

Power On/Off Button: (1)

Start/Pause Button: (2)

Press the button once to operate the dryer. Press the button once again to turn

the dryer "OFF".

Press this button once to start the dry process. Press this button once again to

pause the activity during the dry cycle.

Heavy Duty

Towels/Cotton

Cycles

More Dry

Less Dry

Dry

Cool down

Cycle completed

Extend trumble

Customer

Louder

Softer

Off

Cycle

Signal

Bulky Items

Casual

Delicate

Off

Wrinkle

Care

Timed

Cycles

More Time

Less Time

Auto Dry

Rack Dry

Timed Dry

Time Remaining(Min)

Time On(Hour)

Delay

Start

On/Off

Power

Pause

Start

Temp

Level

Dryness

Air Only(No Heat)

High

Medium

Low Normal

Cycles

More Dry

Less Dry

Dry

Cool down

Cycle completed

Extend trumble

Customer

Off

Wrinkle

Care

More Time

Less Time

Auto Dry

Rack dry

Timed Dry

Time Remaining(Min)

Time On(Hour)

Delay

Start

On/Off

Power

Pause

Start

Temp

Level

Dryness

Air Only(No Heat)

High

Medium

Low Normal

Wrinkle Care Button: (3)

Used to select wrinkle-proof function. Automatically set as off after powering on.

This function is used together with delay start function.

Heavy Duty

Towels/Cotton Delicate

Casual

Bulky Items

Louder

Softer

Signal

Cycle

Off

Cycles

Timed

Timed/Cycles Button: (5)

Cycles Button: (7)

More Time & Less Time Button: (6)

"Cycle" button will let you select your desired dry cycles. For your convenience,

there are seven fabric care dry cycles programmed in this mode:Customer,

Normal, Heavy Duty, Towels/Cotton, Delicate, Casual and Bulky Items.

"Timed/Cycles" button will let you select your desired dry mode.

Auto Dry: automatically set "Dryness Level", "Temp", "Cycle Signal",

"Wrinkle Care" buttons status according to clothes loaded.

Timed Dry: you can set status of "Temp", "Cycle Signal" and "Wrinkle Care"

buttons and dry time with "More Time" and "Less Time" buttons by yourself.

Rack Dry: the program used to dry article like sport shoes.

Set time from 0 to 180 minute when Timed Dry or Rack Dry cycle selected.

Cycle Signal Button: (4)

Used to select buzzing volume or turn off the buzzer.

The drying program defined by user himself and stored.

Normal drying

Big clothes drying like jeans

Special drying for cotton clothes

Drying small quantity clothes

Drying underwear or clothes requiring smoothness

Drying bulky clothing

Customer

Normal

Heavy Duty

Towels/Cotton

Delicate

Casual

Bulky Items

Delay Start Button: (8)

Temp Button: (9)

This convenient feature lets you delay the start of the dry cycle between 3 to

24 hours. Press the "Delay Start" to choose the number of hours you want to

delay the start of the cycle.

If no delay, the delay start indicator is off and remaining time indicator is on.

The nixie display indicates remaining time of non-reserved program.

If setting "Delay Start" in standby status, the nixie display indicates 3 hr, which

will increase by 1 hr with each pressing (until 24 and return to 3). If keep

pressed for 1.5 s, nixie display indicated value will increase continuously.

Used to set drying temperature. There are 4 available drying temperatures:

High, Medium, Low, and Air only(no heat).

Dryness Level Button: (10)

Used to set drying time of auto-programs. If no auto-program is selected,

pressing the button is inactive and will get alarms.

Status lights: (11)

Status lights give notification of which part of the cycle the machine is in.

Understanding the Function Light Indicator:

The function "display light" indicates selected feature is "ON" or the

cycle is about to begin.

During the dry cycle, "flashing light" indicates current running program.

Rapidly flashing light indicates that the dryer is not operating properly.

Nixie display: (12)

Indicate remaining time (min) during cycle operation.

Indicate remaining reserved time (hr) during reservation.

Note: if door opened during cycle running, displays "E2" and alarms.

Group the clothes of the same kind (cotton, chemical fibres, woolen) to dry.

Dark and light colored clothes shall be separately dried. Fabrics prone to falling

lint and those prone to adhering lint shall be separately dried. Clothes prone to

falling lint shall be turned inside out before putting into the dryer.

Make sure buttons and ornaments on the clothes are high temperature resistant

and won't damage drum surface. Before loading, the clothes shall have their

zippers zipped up, buttons and hooks done up and belts tied so as to avoid

entanglement or other obstacles.

If possible, turn out the clothes pockets for uniform drying.

Check if clothes remain soiled. If yes, wash it away again, otherwise the soils after

drying may not be removed permanently.

Small articles shall be collected in a mesh bag before loading and drying, so as

to avoid entanglement and ensure easy to be taken out.

Make sure power socket is reliably grounded. The grounding terminal shall not be

connected to gas or tap water pipelines.

Make sure exhaust duct has been connected with extension pipe.

Preparations before drying

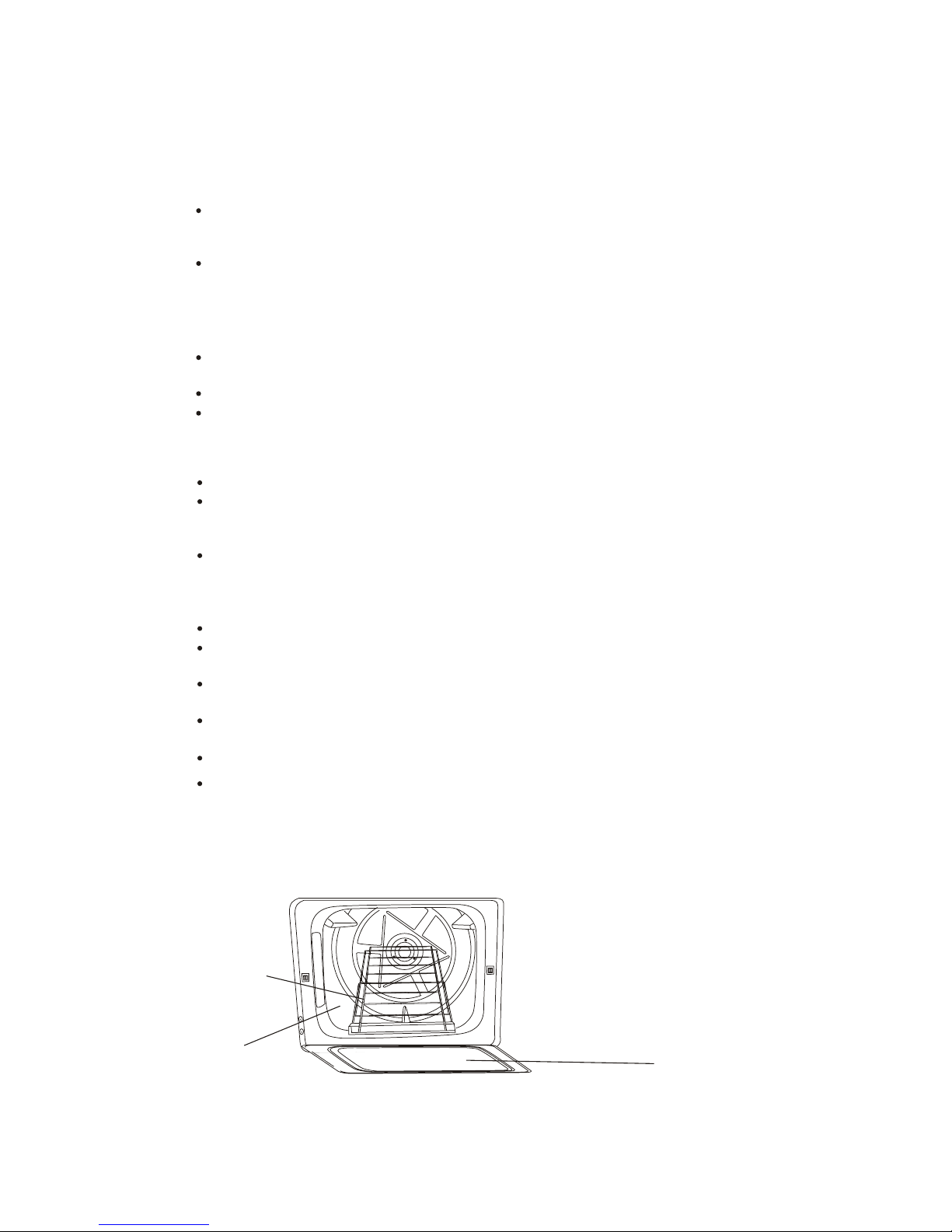

Notes: It applies to Auto Dry cycle and Timed Dry cycle. For Rack Dry cycle,

remove the lint filter and assemble the drying rack with its rear end slightly

downward inclined. The assembled status is as shown in the following figure:

Make sure lint filter is clean and then assemble it properly. If lint filter is not

in place, tumbling items could enter the exhaust system and cause damage

to the dryer.

Drum

Drying rack

Front door

Auto Dry cycle and Timed Dry cycle

Load clothes into dryer

The appropriate load shall be 1/3 ~ 1/2 of the drum volume. Avoid too much load,

for a certain space is needed to allow clothes free rotation for uniform and wrinkle-

proof drying.

When drying big articles, only 2-3 pieces shall be loaded at a time and

supplemented with middle and small articles.

For elaborate clothes or less load, two towels without lint falling may be added to

get better drying and wrinkle-proof effects.

Do not excessively dry clothes to avoid wrinkles, shrinkage, roughness, electrostatic

chargesaccumulation and more lint.

This program is designed specially for articles like sport shoes. During drying

please make sure the clothes reliably stay on the rack with no risk of entangling

the agitation blade while drum is rotating.

Rack Dry cycle

Auto Dry cycle

4 72 5

Cycles

More Dry

Less Dry

Dry

Cool down

Cycle completed

Extend trumble

Customer

Off

Wrinkle

Care

More Time

Less Time

Auto Dry

Rack dry

Timed Dry

Time Remaining(Min)

Time On(Hour)

Delay

Start

On/Off

Power

Pause

Start

Temp

Level

Dryness

Air Only(No Heat)

High

Medium

Low Normal

Heavy Duty

Towels/Cotton Delicate

Casual

Bulky Items

Louder

Softer

Signal

Cycle

Off

Cycles

Timed

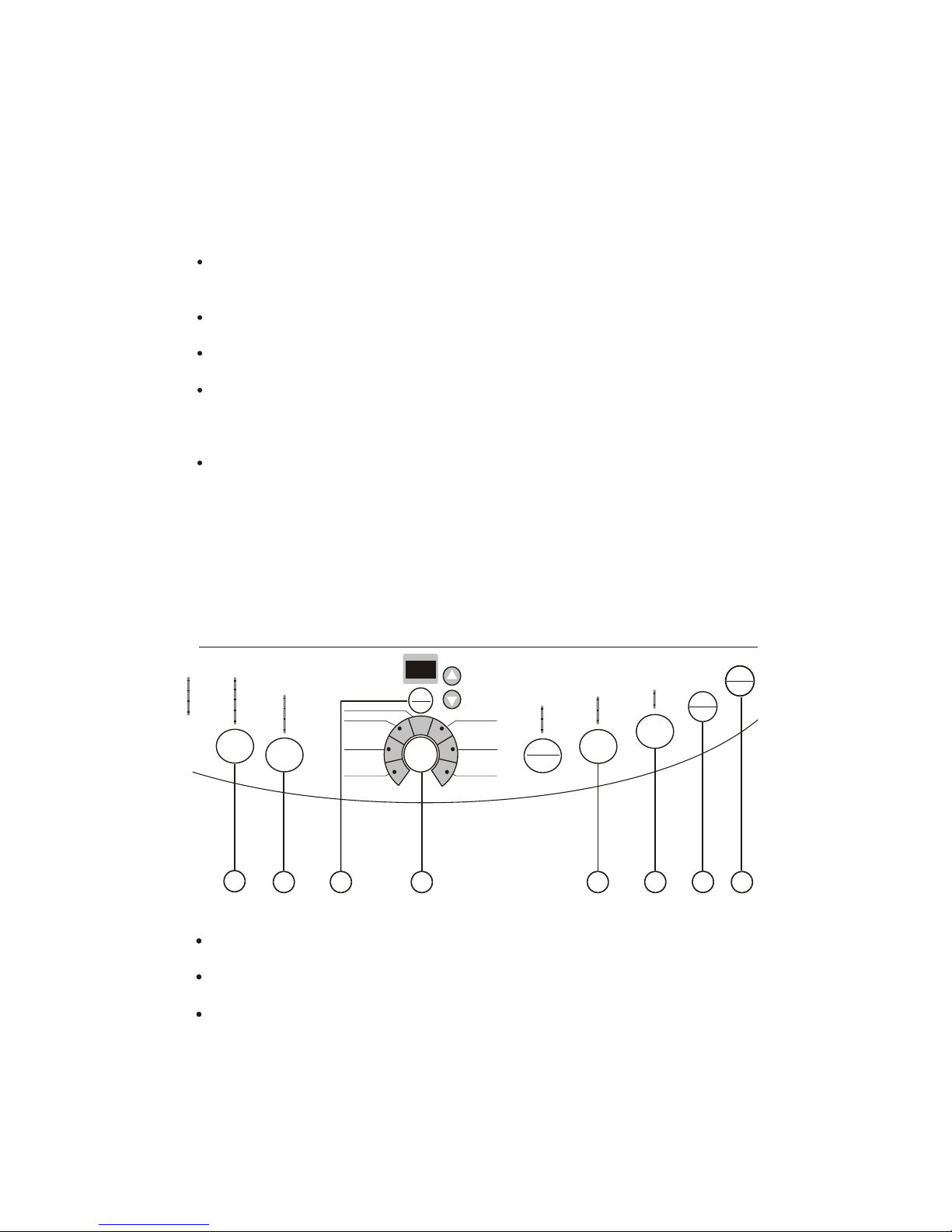

Turn on the power switch, the computer board beeps once and the dryer transfers

from off status to the initial operating status (Normal program);

If no "Start/Pause" button is pressed in 5 min after powering on, it automatically

cuts off power and returns to off status;

It returns to off status immediately upon end of a cycle;

Whatever status the computer board is (start, pause, alarm etc.), Pressing

"Power On/Off" button will stop all operations and it enters off status.

1. Press "Power On/Off" button to power on

Note: If drying rack is not in place, rolling inner tub could collid with

drying rack and causes damage to the dryer and drying rack.

Various button initial status for "Normal program"

2. Press "Cycles" button to select a suitable full automatic cycle

The Normal program will be automatically selected after powering on. If other

full automatic program is desired, press "Auto-program Selection" button

until corresponding indicator turns on.

Cycle Signal

Wrinkle Care

Cycles

Nixie display

Temp

Dryness Level

Timed/Cycles

Softer

Off

Normal

Indicate current program remaining time

High

More Dry

Auto-program

Cycles

Customer

Normal

Heavy Duty

Towels/Cotton Delicate

Casual

Bulky Items

Initial status of various buttons when setting "Auto-program Selection".

Cycles

Wrinkle Care

Cycle Signal

Delay Start

Timed/ Cycles

Temp

Dryness Level

Notes: If "Customer" is selected, various buttons will indicate previous conditions

set by the user.

Normal Heavy Duty Towels/Cotton Delicate Casual Bulky Items

To be used together with reserve function, off if reserve is disabled

Softer

Indicate current selected program remaining time

Auto Dry

High

More Dry

"Customer" function is a program designed to facilitate user's operation. It can

memorize programs defined by user himself and display the previous program

upon next application of this function.

Use details are as follows:

After powering on, press "Cycles" until "Customer" status, then set "Cycles" to

Timed Dry or Rack Dry, and set status of other buttons. Press "Start/Pause" button

or after half a minute, the program defined by user himself will be stored and

will be directly displayed upon next use.

Notes: Pressing "Dryness Level" button will be inactive during use of "Customer"

function.

Andere Handbücher für HLF11P

Inhaltsverzeichnis

Andere Haier Trockner Handbücher

Haier

Haier HDY60 HA AA Bedienungsanleitung

Haier

Haier HD90-A636-E Bedienungsanleitung

Haier

Haier GDE700AW - Genesis 6 cu. Ft. Electric Dryer Bedienungsanleitung

Haier

Haier HD90-A2979 Bedienungsanleitung

Haier

Haier GDZ3.5-1 Bedienungsanleitung

Haier

Haier HLP140E - 2.6 cu. Ft. Portable Vented Electric... Bedienungsanleitung

Haier

Haier HD70-A82 Bedienungsanleitung

Haier

Haier TCD60E Bedienungsanleitung

Haier

Haier HD70-A82 Bedienungsanleitung

Haier

Haier HLF11PC Bedienungsanleitung

Haier

Haier HD70-01 ME Bedienungsanleitung

Haier

Haier QFT15 Series Originalbetriebsanleitung

Haier

Haier HLF11E Bedienungsanleitung

Haier

Haier HD80-26A Bedienungsanleitung

Haier

Haier CGDE480BW Bedienungsanleitung

Haier

Haier HDV50E1 Verdrahtungsschema

Haier

Haier GE GFD14ESSNWW Anleitung zur Verwendung

Haier

Haier HLTD500AGW Bedienungsanleitung

Haier

Haier HD80-26A Bedienungsanleitung

Haier

Haier HDY-D70 Bedienungsanleitung

Haier

Haier HD80-A2939S Bedienungsanleitung

Haier

Haier Genesis CRDE200AW Bedienungsanleitung

Haier

Haier HDY6-1 Bedienungsanleitung

Haier

Haier QFT15ESSNWW Originalbetriebsanleitung

Beliebte Trockner Handbücher anderer Marken

Bosch

Bosch WTA79200GB Bedienungsanleitung

Amana

Amana W10233410A Bedienungsanleitung

Miele

Miele TWH 780 WP Bedienungsanleitung

Asko

Asko T760 Bedienungsanleitung

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Bedienungsanleitung

Bosch

Bosch Logixx 10 WTB76556GB Technisches Datenblatt

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Bedienungsanleitung

Electrolux

Electrolux EW2H328R2 Bedienungsanleitung

Beko

Beko DS8433RX1M Bedienungsanleitung

Dawlance

Dawlance Spinner DS 6000 C Bedienungsanleitung

Electrolux

Electrolux TP5080TW Bedienungsanleitung

AEG

AEG TR838P4OB Bedienungsanleitung

Indesit

Indesit IDV 75 Bedienungsanleitung

Infiniton

Infiniton SD-DG85C Bedienungsanleitung

BOMANN

BOMANN WT 5019 Bedienungsanleitung

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Bedienungsanleitung

Asko

Asko T793C Bedienungsanleitung

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Bedienungsanleitung
