Haier HDY-D70-E Bedienungsanleitung

MODEL

Condenser Tumber Dryer

Service Manual

Features

Double to open the door

Delay time adjustive

MANUAL CODE No.1

Drying Programs-11

LED Display

HDY-D70-E/-F

Condenser Tumber Dryer HDY-D70-E/-F

Condenser Tumber Dryer

1 Contents----------------------------------------------------------------------------------------1

2Specification----------------------------------------------------------------------------------2

3 Important safety instructions ------------------------------------------------------------4

4 Installation------------------------------------------------------------------------------------6

5 Name of the parts---------------------------------------------------------------------------9

6 Control panel--------------------------------------------------------------------------------10

7 Net dimention -------------------------------------------------------------------------------11

8 Programming guide------------------------------------------------------------------------12

9 Drying methods------------------------------------------------------------------------------13

10 Cleaning and maintenance------------------------------------------------------------14

11 Trouble shooting----------------------------------------------------------------------------16

12 Wiring circuit --------------------------------------------------------------------------------20

Condenser Tumber Dryer HDY-D70-E/-F

Notice: 12-E for HDY-D70-E

12-F for HDY-D70-F

Contents

Condenser Tumber Dryer HDY-D70-E/-F

Specification

1. Product identification

Description of appliance Dryer

Type of appliance (FS = standing, BI = built-in) FS

Supplier own brand Haier

NAEedocrabreilppuS

Commercial Brand / Model Haier/HDY-D70

2. Key-Features

Energy class C

°nsmargorP 11

gkyticapaC 7

mpr)lanoitpo/.xam(deepsyrD 45-50

Condenser ●

Vented

)A(BdlevelesioN 65

hWkdraobpucmpr008@gnitarygrenE 5.1

Residual dampness (dryer result) %±3

Sensor drying ●

LED display ●

nim).xam(emityrD 150

Dry temperatures (program-controlled) °C 70--50

Drum inter light ●

Buzzer ●

Fine adjustment to drying levels ●

Delay timer 1-18

Low heat ●

Certification's (CE / ISO 9001 / ISO 9002) ●

Approvals (VDE/GS / TÜV/GS / IMQ) VDE/GS

3. Basics data

mc)DxWxH(snoisnemidtinU 85.5x 60 x59.5

gkthgiewteN 43

zH/Vycneuqerf/egatloV 220V~240V/50Hz

A/W)ytisnetni(esufniam/rewoptupnI 2800/13

Condenser Tumber Dryer HDY-D70-E/-F

Work top / removable ●/●

Control M= electromechanical, E= electronic, F= fuzzy E

Drum S = stainless steel / Z = zinc coated Z

Door:

aesthetic (R= round, Y= big eye, Q= square) Q

mcretemaiD 36*30

Door hinging left/right Right

°nteefelbatsujd 4

4. Safety systems

Motor overheating protection MOP ●

5. Programs

°nnottoC)1 4

°nscitehtnys2 2

°nmargorpxiM)3 1

°nmargorPlaicepS)4 4

ON/OFF button ●

6. Water Outlet

Pump through hose/optional ●

Collection in container ●

7. Packing dimensions & loadability

mc)DxWxH(snoisnemidgnikcaP 885*655*635

gkthgiewssorG 45.0

scpyticapacdaolCH'04 162

SRnoitamrofnignilcicer/citsigoL.8

gkthgiewgnikcaP 2

Packing materials / Recycling symbols REzY

rg)thgiew(notraC

rg)thgiew(nerytsiloP

rg)thgiew(liofenelyteyloP

SRecivreS.9 REzY

User instruction (languages) D / F / I / GB / E / P / NL

10. Delivery Time of First Batch Available

Important Safety Instructions

To reduce the risk of fire, electrical shock, or injury to

persons when using this dryer, follow basic precautions,including

the following:

1.Read all instructions before using this dryer.

Do not dry items that have been previously cleaned in,washed in, soaked in, or

spotted

with gasoline, cleaning solvents, kerosene, waxes, etc. Do not store these

spotted with

gasoline, cleaning solvents, kerosene, waxes, etc. Do not store these items on or near the

dryer. These substances give off vapors that could ignite or explode.

Do not allow children to play on or in the dryer. Close supervision of children is necessary

when the dryer is used near children.

Before the dryer is removed from service or discarded, remove the dryer door to prevent

accidental entrapment.

5.To prevent injury, do not reach into the dryer if the drum is moving.Wait until the dryer

has stopped completely before reaching into the drum.

6.Do not install or store this appliance where it will be exposed to water and /or the weather.

7.Do not tamper with controls.

8.Do not repair or replace any part of the appliance or attempt any servicing unless specifically

recommendedin the user-maintenance instructions or in published user-repair instructions

that you understand and have skills to carry out.

To prevent fire, do not use heat to dry items containing plastic, foam rubber or similarly

textured rubber-like materials, or items containing feathers or down.

10.Do not place items exposed to cooking oils in your dryer. Items contaminated with

cooking oils may contribute to a chemical reaction that could cause a load to catch fire.

11.Clean lint screen before or after each load.

12.This dryer must be properly installed in accordance with the installation instructions before

it is used .

13.To prevent shock hazard and assure stability during operation, the

dryer must be installed

and electrically grounded by a qualified service person in accordance with local codes.

14.Always disconnect dryer from electrical supply before attempting any service.Disconnect

power cord by graspingthe plug ,not the cord.

15.The dryer must only be used for its intended purposed.

16. Do not sit on top of the dryer.

Condenser Tumber Dryer HDY-C70-E/-F

17.If the supply cord is damaged,it must be replaced by the manufacturer ,its service agent

or similarly qualified persons in order to avoid a hazard.

18.Do not operate the dryer if any parts are missing or broken.

19.Do not store or use gasoline or other flammable vapors and liquids in the vicinity of the

appliance.

20.

Keep surrounding areas free from the accumulation of lint, dust and dirt.

21.Avoid fire hazard or electrical shock. Do not use an adaptor plug or extension cord

or remove grounding prongfromelectricalpowercord. Failure to follow this warning can

cause serious injury, fire or death.

22.The appliance must not be installed behind a lockable door ,a sliding door or a door

with a hinge on the opposite side to that of the tumble dryer.

Condenser Tumber Dryer HDY-D70-E/-F

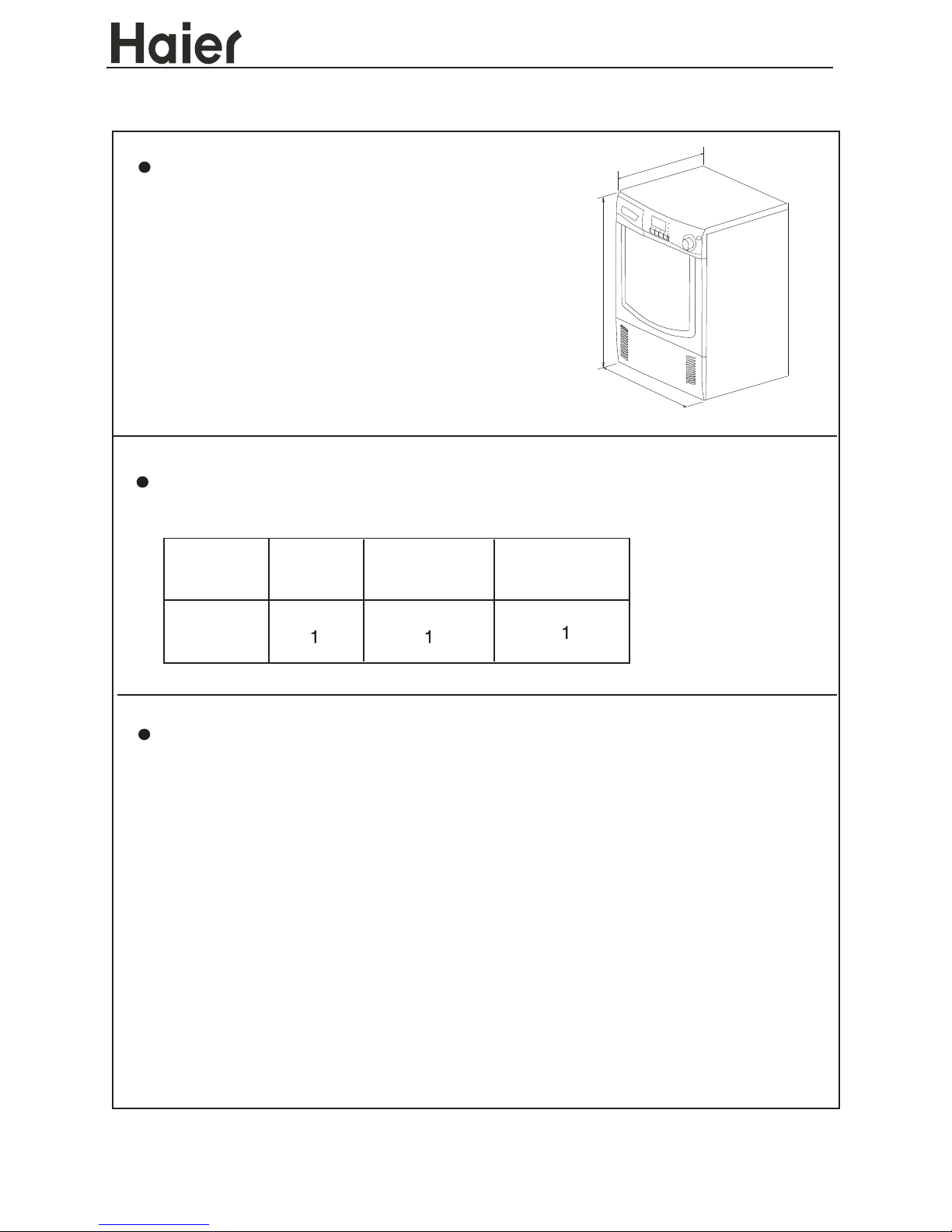

Dimensions

a = 855 mm

b = 620 mm

c = 595 mm

Weight = 43 Kg

Packing accessories

Checklist of the accessories and materials provided with the machine:

Quantity

To ensure the dryer operates normally, attention must be paid to

the following instructions;

■The dryer must be level when installed. Its bottom is equipped

with adjustable feet. Adjust these 4 feet to level the unit before

operation；

■Check whether there is any damage to the dryer during

transportation. Any damaged dryer must not be used. if the unit is

damaged, contact your dryer supplier;

■The dryer must be kept away from flammable substances；

■The surrounding environment must be dry and ventilated;

■ To allow the dryer to perform better, the ambient temperature shall

not be lower than 10

℃

nor higher than 35

℃.

Name

Owner's

manual Certificate of

Conformity Drainpipe

Condenser Tumber Dryer HDY-D70-E/-F

Installation

Column Installation

To save space, the dryer may be installed

on a prepositioned drum washing machine

using a folding frame. This dryer can be

placed with the HBF series washers by a

folding frame. For specific installation, refer

to the instructions for the installation of the

folding frame.

Change the door-opening direction

If the direction of opening the dryer's door is

not suitable to the location, its opening direction

may be changed. The detailed operating

procedures are as follows:

Screw off the 4 screws(1) fixing the door's

hinge to remove the door(5);

Remove the hinge(3) from the door and

take off the hinge cover(4) at the other side

and fix the hinge back;

Screw off the screws fixing the door

switch(6) to remove the door switch. Take

off the door switch cover(7) at the other

side and fix the door switch back;

Put the removed hinge cover(4) and

door switch cover(7) into the side opposite

to the door;

Remove the 4 corks and the door lock

cover from the front panel and put them on the other side of the

front panel;

Fix the door on the other side of the machine.

Drain switchover

During the drying of the laundry, the condensate water is automatically

collected in the box inside the machine, so that the water needs to

Condenser Tumber Dryer HDY-D70-E/-F

be removed from the box after every drying of the laundry. If your

dryer is in the vicinity of a drainage, you may allow the condensate

water being discharged directly into the drainage through the drainpipe

provided as accessory so that to avoid emptying the box for every time.

The method to connect the drainpipe is as follows:

1. Loosen the hose clip with the drain switchover joint;

2. Pull the hose off the joint;

3. Install the accessory drainpipe in place;

4. Fix the hose clip.

Note: The outlet of the drainpipe must not be higher than 1.2 m above

the floor.

Condenser Tumber Dryer HDY-D70-E/-F

Top

Program selector

Container handle

Door

Plinth

Button

Bottom plaque

Power supply cable

Earth terminal

Rear footplate

Back plate

Back cover board

Drainage outlet

Condenser Tumber Dryer HDY-D70-E/-F

Name of the parts
