Haier HDM3.5-1 Bedienungsanleitung

HDM3.5-1

Exhaust Type Tumble Dryer

Important Safeguards

To reduce the risk of fire, electric shock or injury when using electrical appliances, please follow these basic safety

precautions:

FOR YOUR SAFETY

Read all instructions carefully, even if you are

familiar with the appliance.

• This appliance is not intended for use by

children or infirm persons without supervision.

• Do not allow children to play with the appliance.

• INDOOR USE ONLY – this appliance

is not intended for outdoor use.

• Do not place naked flames, such as

candles, on the appliance.

• Keep the appliance and cord away from heat

sources such as radiators, heaters, air ducts or

direct sunlight.

• Keep all vents and openings clear. Ensure

they are not covered by newspapers,

tablecloths, curtains, etc.

• Do not run the cord under floor coverings.

Instead, arrange the cord away from traffic

areas where it will not become a trip hazard.

• Grasp the plug firmly and pull to unplug from the

power supply. Never pull on the cord.

• Do not operate the appliance if it has a damaged

cord or plug.

• If the appliance malfunctions; or has been

dropped or damaged in any way, consult a

qualified service technician.

• Do not attempt to repair, disassemble or modify

this appliance. The warranty becomes void if

repairs have been carried out by anyone other

than a qualified service technician.

• Do not place items that have been soiled with

flammable liquids inside the dryer without

washing them with detergent thoroughly first.

• Do not excessively bend, stretch, twist the

power cord or place heavy objects on it.

• Do not use an extension cord or multiple outlet

with this appliance.

• Do not install in a tight fitting cupboard.

• Do not overload the tumble dryer.

• Ensure pockets in clothing are empty so that

foreign objects do not find their way into the

drum of the tumble dryer.

• The door window may be hot after a drying

cycle. Please ensure children are kept away.

• If the tumble dryer is not wall mounted, placeon

a flat, firm and dry surface. Use the adjustable

front legs to level the dryer if needed. Do not

place it on any soft material such as foam or

plastic.

• Do not use flammable or combustible materials

such as gas, petrol, alcohol or lacquer in the

tumble dryer.

• After turning off the power supply to the tumble

dryer, wait at least 2 minutes before turning it

back on again.

• Please remove the transport packaging at the

rear of the tumble dryer, prior to use.

SAVE THESE INSTRUCTIONS

Name of Components

Operating your Dryer

Electrical Requirements

Connect the unit to a standard earthed three pin

outlet.

The power supply must be 220-240V.

Loading the Dryer

• Ensure that items do not contain combustible

materials or foreign objects (pins, coins etc.)

• Turn items with zippersinside out and fasten

buckles.

• Place items into the dryer one at a time to

ensure they are not tangled (tangled clothing

results in uneven drying). Ensure there are no

items jammed in the door before closing.

Drying Tips

• Do not add items to a load which is already

partially dry.

• Dryer heat may permanently set stains,

ensure stains are removed prior to drying.

• Separate dark and light coloured items as

you would do when washing.

• For best results load the dryer with similar

fabrics. Place small delicate items in a mesh bag

and do not overload the dryer.

• If drying large items such as a blanket, it is

recommended that from time to time you open

the dryer door, remove and shake the item,

d close the door.

place it back into the dryer an

This will ensure even drying.

• To ensure you get the most out of the

Anti-wrinkle function, do not overload the dryer,

and remove the dried items from the dryer as

soon as they have finished tumbling. Hang on

coat hangers and iron the items if desired.

• Prior to loading the dryer check thatthe items do

not have the following symbols on them.

• If they do, do not dry them in this appliance.

Do not Hang to dry Drip dry

tumble dry

Drying Time Reference Table

Dry Time

Drying Strong Soft

Capacity

Approx. 1 kg Approx.30min Approx. 55 min

Approx. 2 kg Approx.60min Approx. 110 min

Approx. 3 kg Approx. 120 min

Approx. 3.5 kg Approx. 220 min

Drying times are affected by many factors, such

as the type of material, bulkiness, how full the

dryer is etc. The above list is a guide only.

Control Panel Functions

Temperature Selector Button

Select ‘Strong’ for items that are particularly bulky or large quantities.

Select ‘Soft’ for materials like Silk, Nylon, Linen etc.

Drying Timer Dial

There are five drying combinations available: Cool, Anti-wrinkle, Warm, Hot and Air Dry.

AirDry:

This functionruns

withcoolair,primarilyto

airand freshenclothes

thathavebeenstoredfor

alongperiodoftime.

Cool

:Thisfunctioncoolstheitems

thathavejustbeendried.

Thedrumcontinuestoturnbutthe

elementisturnedoff.

Thishelpstopreventcreasing.

Off

: When the 'Drying

Timer dialisin the'Off'

positionnopoweris

suppliedtotheunit.

Whenthedialisturned

clockwisetothe

desiredprogramthe

dryerwillstart.

Anti-wrinkle

:Thisisusedfor

itemsthataredifficulttoiron

i.e:cottonshirtsandlinen.

Select'Soft ontheheat

selector buttonandsetthe

dryingtimerknobbetween30-

60minutesdependingonthe

quantity ofitemsinthedryer.

When thetimerstopsafterthe

Coolprogram,theitemswillstill

containmoisture.This will

make the ironing easier.

Warm

:Thisfunctionwilldryandcool

itemsandinmostcasesleaveitems

wrinklefree(dependingonmaterial).

Selectthe'Strong heatoptionandset

thetimerbetween60-150minutes.

OFF

irdry Cool

220

200

180 160 140 120

100

Drying time(min)

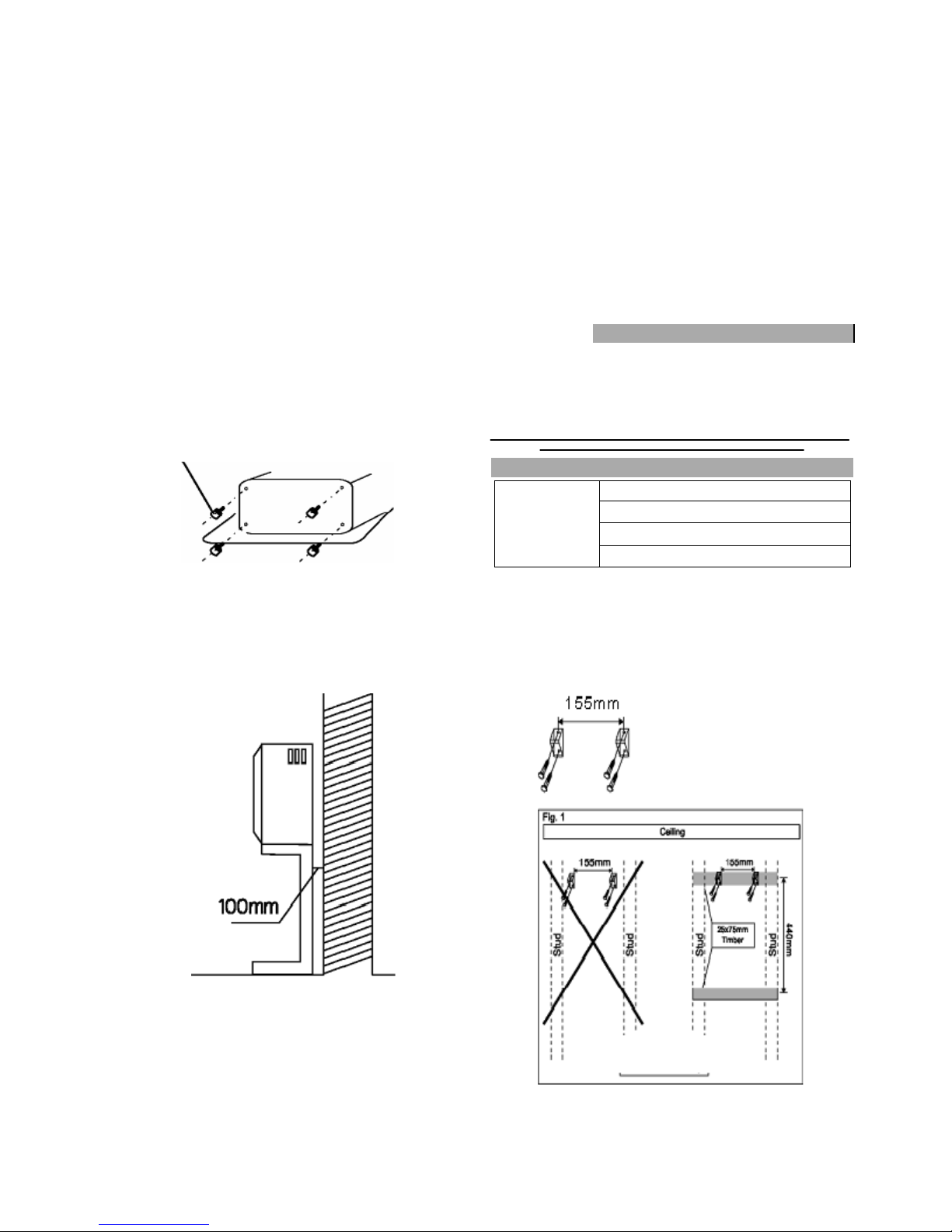

Installation Instructions

Where to place your dryer

Place the dryer in a dry, well ventilated area, away

from heat and direct sunlight.

If the dryer is notwall mounted, it must be placed on

a firm level surface. Do not place the dryer oncarpet

as this will block the intake. There should be at least

100mm between the dryer and the walls.

Fit the legs that come with the dryer to ensure

stability.

Leg

If the dryer is permanently mounted, at least

100mm between the dryer and walls is required.

Wall Mounting Instructions

1. Determine the location of the dryer on the

wall and mark the bracket position.

* A minimum 50mm is needed between the top of

the dryer and the ceiling for ease of installation.

* If mounting above a washing machine, allow

sufficient room to open the lid of the washer.

Tools Required

Drill & 3mm Bit 1

Philips Head Screw Driver 1

For Plaster/

Wooden Wall Wood Screws, 1 2g x 4

50mm Timber Screws

Wall Mounting Kit Includes

Description Wall Hanging Brackets 2

Hook 1

Plastic Spacers 2

Exhaust Duct 4 pieces

2. Fix the wallhanging brackets to thewall securely

(eg. into the stud.) If the studs are too far apart fit a

timber slat to the studs then mount the brackets

onto the slat. The distance between each bracket

is 155mm as per diagram.

Ensure brackets are

securely fastened. Fi

timber slats if necessary

Wall Mounting Instructions

3. To install the hook to the dryer, remove screws 1,

2, 3 & 4 as indicated in Fig. 2.

4. Align bracket as shown in Fig. 3 and refit

screws tightly.

5. Remove lower side screws and install the

spacers provided as per Fig. 2.

6. Install exhaust duct: for upwards discharge, join

sections 1 and 3, for downwards discharge, join

sections 1, 2, 2 & 3 as per Fig. 4.

7. With assistance, mount dryer on wall brackets.

See Fig. 5.

Maintenance

Cleaning the Lint Filter

Unplug the power cord prior to any cleaning. The lint

filter must be cleaned before and after each use.

Never use the dryer without the filter in place.

1.Removing the Filters

Insert fingers into the four holes around the exhaust

vent shroud and pull out to remove. The filter is in 3

parts: Exhaust vent shroud, lint filter and exhaust

filter (as shown in figure 1).

2.Cleaning the filter

Cleaning of the Air Intake Filter

The filter should be cleaned once a month. Hold

the upper and lower edges of the airintake shroud,

push upwards gently with your thumb to

disconnect the latch hook then pull outwards to

remove. Remove the filter from the shroud and

clean it with a soft brush and refit.

The lint filter is located

at the back of the drum.

Figure 1

Cleaning the Interior & Exterior of the Dryer

Do not use excessive water, just a damp cloth.

Separate the filters from the shroud and remove the

lint with a soft brush or vacuum cleaner. Take care

not to damage the filters. (See fig 2). Do not use solvents.

Do not use spray cleaners when cleaning the interior.

If the drum becomes stained, clean it with a damp

cloth and allow to dry before using.

Clean the cabinet with mild soap and water. Do not

use harsh or abrasive cleaners.

3. Re-installing the Filter

Reinstall in the reverse order, align the recessin the centre

of the filters with the spigot in the centre of the drum and

ensure that it is fitted firmly. (as shown in figure 3).

Figure 3

Note: The filter fixed in the bottom of the drum

should also be cleaned with a soft brush.

Troubleshooting

Review the following pages before calling for

service.

Problem Possible Cause What to do

Timer knob does not • Is the power on? • Insert the plug and turn on.

turn.

Drum does not turn. • Is the door closed? • Close the door.

• Is the power on? • Insert the plug and turn on.

• Is there power to the wall socket? • Check another appliance in the

wall socket.

Exhaust air is not hot. • Is the timer incorrectly set on cold air? • Set the timer to hot air.

The laundry has not • Are the front and back filters clogged? • Clean the filter.

dried thoroughly. • Is there too much laundry in the dryer? • Reduce the amount in the dryer.

• Have items been added whilst the dryer is • Re-dry the items again.

in operation? • Untwist the items and re-dry.

• Has the laundry become twisted whilst

drying? • Place the dryer in a well vented

• Has the dryer been placed in a small and area.

badly ventilated area?

Dryer does not start. • Is there a power failure? • Try again when there is power.

• Is the machine plugged in? • Insert the power plug firmly.

• Is the door closed? • Close the door.

• Is the timer in the OFF position? • Set the dry time.

Andere Handbücher für HDM3.5-1

Inhaltsverzeichnis

Andere Haier Trockner Handbücher

Haier

Haier HD80-79 Bedienungsanleitung

Haier

Haier HLF11E Bedienungsanleitung

Haier

Haier HDY-HMS70 Bedienungsanleitung

Haier

Haier HDV70E1 Verdrahtungsschema

Haier

Haier HD80-01 WH HA AA Bedienungsanleitung

Haier

Haier Ginesis HLF103Q Bedienungsanleitung

Haier

Haier HDY6-1 Bedienungsanleitung

Haier

Haier GE UltraFresh GFD55ESSN Anleitung zur Verwendung

Haier

Haier Ginesis HLF103Q Bedienungsanleitung

Haier

Haier HD80-A2939S Bedienungsanleitung

Haier

Haier GDZ5-1C Bedienungsanleitung

Haier

Haier HDC80E1 Bedienungsanleitung

Haier

Haier HLP140E - 2.6 cu. Ft. Portable Vented Electric... Bedienungsanleitung

Haier

Haier HD70-79 Bedienungsanleitung

Haier

Haier HDE5000AW Bedienungsanleitung

Haier

Haier GDZ5.0-1 Bedienungsanleitung

Haier

Haier HLP140E - 2.6 cu. Ft. Portable Vented Electric... Bedienungsanleitung

Haier

Haier HDY60 Bedienungsanleitung

Haier

Haier T60-32 Bedienungsanleitung

Haier

Haier HLP140E - 2.6 cu. Ft. Portable Vented Electric... Bedienungsanleitung

Haier

Haier HDV60E1 Betriebsanleitung

Haier

Haier HLF11P Bedienungsanleitung

Haier

Haier HDV40A1 Bedienungsanleitung

Haier

Haier HD80-01 WH HA AA Bedienungsanleitung

Beliebte Trockner Handbücher anderer Marken

Bosch

Bosch WTA79200GB Bedienungsanleitung

Amana

Amana W10233410A Bedienungsanleitung

Miele

Miele TWH 780 WP Bedienungsanleitung

Asko

Asko T760 Bedienungsanleitung

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Bedienungsanleitung

Bosch

Bosch Logixx 10 WTB76556GB Technisches Datenblatt

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Bedienungsanleitung

Electrolux

Electrolux EW2H328R2 Bedienungsanleitung

Beko

Beko DS8433RX1M Bedienungsanleitung

Dawlance

Dawlance Spinner DS 6000 C Bedienungsanleitung

Electrolux

Electrolux TP5080TW Bedienungsanleitung

AEG

AEG TR838P4OB Bedienungsanleitung

Indesit

Indesit IDV 75 Bedienungsanleitung

Infiniton

Infiniton SD-DG85C Bedienungsanleitung

BOMANN

BOMANN WT 5019 Bedienungsanleitung

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Bedienungsanleitung

Asko

Asko T793C Bedienungsanleitung

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Bedienungsanleitung
