Haier HL19KN1 Bedienungsanleitung

WARNING

This service information is designed for experienced repair technicians only and is not designed for use by the general public. It does

not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product. Products

powered b electricity should be serviced or repaired only by experienced professional technicians. Any attempt to service or repair the

product deal with in this service information by anyone else could result in serious injury or death.

COLOR TV

Model No. : HL19KN1

CHASSIS: MST721

2009 (Qingdao Electronics limited company)

law.

Haier

1. General Information…………...............……………………………………………………..3

1.1. General Guidelines...………………………………………………………………….. ..3

1.2. Important Notice…………………………………………………………………………..3

1.3. How To Read This Service Manual………………………………………………… .4

2. Speciflcations……………………………………………………………………………..........5

3. Location OfControls And Components…………………………………...................…......7

3.1Board Location……………………………….. ………………………………….……... .7

3.2 Main Board…………….……………………………….. ………………………………...8

3.3 Power Board……………………………….. …………………………………………...12

3.4 Lcd Panel……………………………….. …………………………………………….…13

4.Disassemble And Assemble………………………………………………………….........…14

5. Installation Instructions…………………………………………………………...................19

6. Operation Instructions…………………………………………………………….............….24

6.1 Front Panel Controls……………………………….. …………………………………....24

6.2 Back Panel Controls……………………………….. ………………………………..…...24

6.3 Universal Remote Controller……………………………….. …..……………………….26

7. Measurements And Adjustments…………………………………………………................27

8. Electrical Parts .………………………………………………………........... .............29

9. Trouble Shooting……………………………………………………………………………...40

CONTENT

Tableofconents…………………………………………………………………………..………..2

8.1Connetive Wire Photo......................................................................................................29

8.2Circuit Diagram................................................................................................................29

When servicing, observe the original lead dress. If a short circuit is found, replace all parts which

have been overheated or damaged by the short circuit.

After servicing, see to it that all the protective devices such as insulation barriers, insulation papers

shields are properly installed.

After servicing, make the following leakage current checks to prevent the customer from being

exposed to shock hazards.

1) Leakage Current Cold Check

2) Leakage Current Hot Check

3)Prevention of Electro Static Discharge(ESD)to Electrostatically Sensitive

1-2 Important notice

1-2-1. Follow the regulations and warnings

Most important thing is to list up the potential hazard or risk for the service personnel to open the

units and disassemble the units. For example, we need to describe properly how to avoid the

possibility to get electrical shock from the live power supply or charged electrical parts (even the

power is off).

This symbol indicates that high voltage is present inside. It is dangerous to

make any king of contact with any inside part of this product.

This symbol indicates that there are important operating and maintenance

instructions in the literture accompanying the appliance

1-2-2. Be careful to the electrical shock

To prevent damage which might result in electric shock or fire, do not expose this TV set to rain or

excessive moisture. This TV must not be exposed to dripping or splashing water, and objects

Filled with liquid, such as vases, must not be place on top of or above the TV

1-2-3. Electro static discharge (ESD)

Some semiconductor (solid state) devices can be damaged easily by static electricity. Such

Components commonly are called Electrostatically Sensitive (ES) Devices. The following

tech-niquesshouldbeusedtohelpreducetheincidenceofcomponentdamagecausedbyelectro

Static discharge (ESD).

1-2-4. About lead free solder (PbF)

This product is manufactured using lead-free solder as a part of a movement within the consum-er

products industry at large to be environmentally responsible. Lead-free solder must be used in the

servicing and repair of this product.

1-2-5. Use the genewing parts (specified parts)

Special parts which have purposes of fire retardant (resistors),high-quality sound (capacitors), low

noise(resistors), etc. are used.

When replacing any of components, be sure to use only manufacture's specified parts shown in

the parts list.

Safety Component

●Components identified by mark have special characteristics important for safety.

1. General Information

1-1 General Guidelines

1-2-6. Safety Check after Repairment

Confirm that the screws ,parts and wiring which were removed in order to service are put in the

original positions, or whether there are the portions which are deteriorated around the serviced

places serviced or not. Check the insulation between the antenna terminal or external metal and

the AC cord plug blades. And be sure the safety of that.

Insuration Test

1. Unplug the plug from the AC outlet.

2. Remove the antenna terminal on TV and turn on the TV.

3. Insulation resistance between the cord plug terminals and the eternal exposure metal

should be more than M ohm by using the 500V insulation resistance meter

4. If the insulation resistance is less than M ohm, the inspection repair should be required.

If you have not the 500V insulation resistance meter, use a Tester.

External exposure metal: Antenna terminal Headphone jack

1-2-7. Ordering Spare Parts

Please include the following informations when you order parts. (Particularly the Version

letter)

1. Model number and Version letter

The model number can be found on the back of each product and the Version letter can

be found at the end of the serial number.

2. Part No. and Description

You can find them in your service manual.

1-2-8. Photo used in this manual

The illustration and photos used in this Manual may not base on the final design of products, which

may differ from your products in some way.

1-3. How to read this Service Manual

1-4-1. Using Icons

Icons are used to attract the attention of the reader to specific information. The meaning of each icon is

described in the table below:

Note:

A “note” provides information that is not indispensable, but may nevertheless be valuable to the

reader, such as tips and tricks.

Caution:

A “caution” is used when there is danger that the reader, through incorrect manipulation,

may damage equipment, loose data, get an unexpected result or has to restart(part of)

a procedure.

Warning:

A “warning” is used when there is danger of personal injury.

Reference:

A “reference” guides the reader to other places in this binder or in this manual, where

he/she will find additional information on a specific topic.

2. Specification

Model HL19KN1

Screen size 18.5 inch

Aspect ratio 16:9

Brightness 400cd/m2

Contrast Ratio 800:1

Angel of view H170/V160

Color display 16.7M

OSD language English,

3D decoder NO

2D comb filter YES

DNR YES

3A ENGINE NO

Same picture split demo(SPD) NO

double picture demo (DPD) NO

AV stereo YES

Surrounding sound NO

NICAM YES

MUSIC/STANDARD/THEATRE/USE MUSIC/THEATRE/PERSONAL/VOICE

Bass, Treble YES

Balance YES

BBE NO

LIP SYNC NO

Equalizer NO

Earphone YES

Mute YES

AV input NO

DVD terminal NO

S-video jack YES

Y P

YES

Monitor out NO

D-SUB jack YES

DVI socket NO

HDMI YES

SCART jack YES

Windows Menu NO

pc automatic adjust YES

movie mode NO

Semitransparent menu YES

ZOOM NO

16:9 mode YES

ADVANCED 4:3 YES

PIP NO

POP NO

PBP NO

3A WINDOWS NO

ATS YES

Nation Select YES

Channel List NO

Input Frequency by Manual and Channel

Number Input

Lock YES

TELTEXT 10

NO. of built-in speakers 2

NO. of outer speakers No

Color display 240

NO. of preset channels 100

OSD language English

Color system PAL/SECAM

Audio system DK,BG,I, LL'

Audio output power(Built-in)(W) 1.5W×2

Audio output power(outer)(W) No

Total power input（W）60W

Voltage range（V）AC150V~AC240V

Power frequency（Hz）50~60Hz

Time of sleep timer(MINS) 240Min

Net weight(KG) 4.67

Gross weight(KG) 5.73

Net dimension(MM) 471/189/411

Packaged dimension(MM) 530/225/460

3. LOCATION OF CONTROLS AND COMPONENTS

3.1. Board Location

No. Parts number Description

ABoard MainBoard Assembly

B Board Power adaptor

Speaker

3.2.A.Board----MainBoard

3.2. 1 Function Description:

Main Board：

Process signal which incept from exterior equipment，then translate into signal that panel can display.

3.2.2 Connector definition

Main board connector

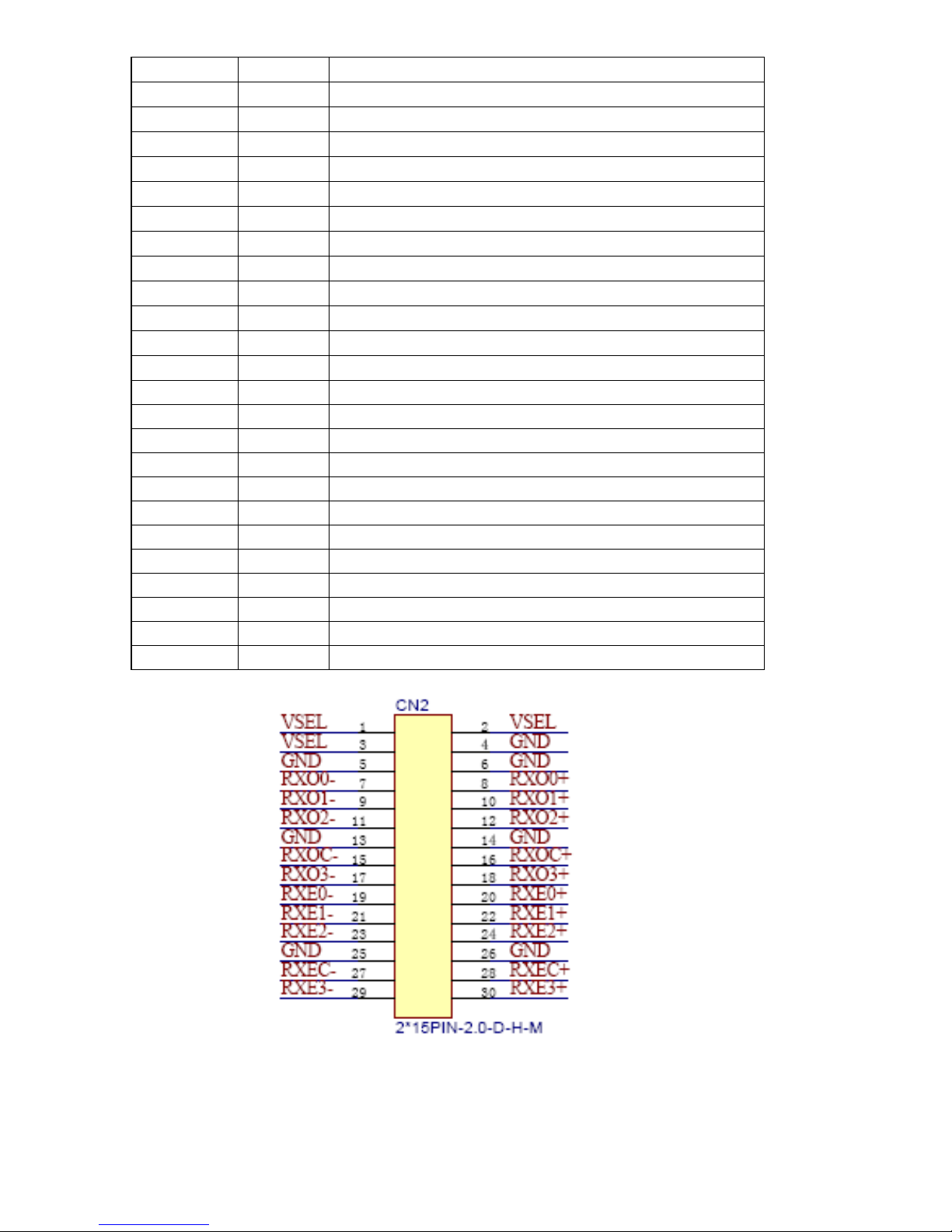

LCDS Connector (CN2)

Pin number

Signal

name Description

1 LCD-VDD Supply voltage to Panel

2 LCD-VDD Supply voltage to Panel

3 LCD-VDD Supply voltage to Panel

4 GND Ground

5 GND Ground

6 GND Ground

7 RXO0- LVDS ODD 0–Signal

8 RXO0+ LVDS ODD 0 + Signal

9 RXO1- LVDS ODD 1 - Signal

10 RXO1+ LVDS ODD 1 + Signal

11 RXO2- LVDS ODD 2 - Signal

12 RXO2+ LVDS ODD 2 + Signal

13 GND Ground

14 GND Ground

15 RXOC- LVDS ODD Clock - Signal

16 RXOC+ LVDS ODD Clock + Signal

17 RXO3- LVDS ODD 3 - Signal

18 RXO3+ LVDS ODD 3 + Signal

19 RXE0- LVDS EVEN 0 - Signal

20 RXE0+ LVDS EVEN 0 + Signal

21 RXE1- LVDS EVEN 1 - Signal

22 RXE1+ LVDS EVEN 1 + Signal

23 RXE2- LVDS EVEN 2 - Signal

24 RXE2+ LVDS EVEN 2 + Signal

25 GND Ground

26 GND Ground

27 RXEC- LVDS EVEN Clock - Signal

28 RXEC+ LVDS EVEN Clock + Signal

29 RXE3- LVDS EVEN 3 - Signal

30 RXE3+ LVDS EVEN 3 + Signal
