Haier L52A18-A Bedienungsanleitung

L52A18

1. Features

2. Safety Precautions

3. Images of Module and Circuit Boards

4. Trouble Shooting Guide

5.Signal Flowing Chart

6. Bus Control Adjustment

7. Circuit Diagram

1Display area(mm*mm) 1236(H) × 719.2(V)

2Aspect ratio 16:9

3Display pixels 1920*1080

4TV system PAL\SECAM\NTSC

5Audio system DK、BG、I、M

6NO.of preset channels 126

7OSD language Chinese/English

8Peak brightness 550cd/m2

9Contrast ratio 1000:1

10 Viewing angle 178o

11 Response time 8ms

12 Number of color 16777216

13 Number of gradations 256

14 AV stereo Yes

15 Multi-sound mode Yes

16 NICAM No

17 Mute Yes

18 Equalizer Yes(9 steps)

19 Surround Yes

20 AV input Yes（2 line）

21 AV output Yes

22 DVD terminal Yes

23 S-video jack Yes(Rear side)

24 D-SUB jack Yes

25 HDMI teminial Yes（2 line）

26 Headphone jack Yes

27 Semitransparent menu Yes

28 3A Optimize Yes

29 Channel Scan Yes

30 4:3 Aspect Ratio Yes

32 Color Temperature 3

33 Scene Mode Yes

34 Multicolor Window Yes

35 MADI Yes

36 DCDI Yes

37 CCS Yes

38 3DNR Yes

39 HD format 1080P/1200P

40 Shuttle Yes

41 Channel Swap Yes

42 Auto Sync. Yes

43 Omnipotent Lock Yes

44 Program Edit Yes

45 NO. of built-in speakers 2*3

46 Audio output power(Built-in)(W) 5W*2

47 Total power input（W）350W(max)

48 Voltage range（V）AC 150V~240V

49 Power frequency（Hz）50Hz/60Hz

50 Time of sleep timer(MINS) 180

Parameter

L52A18-AK

Basic

Audio

Jack

Function

1、Features

No. Options Functions

2、Safety Precautions

3、Images of Module and Circuit Boards

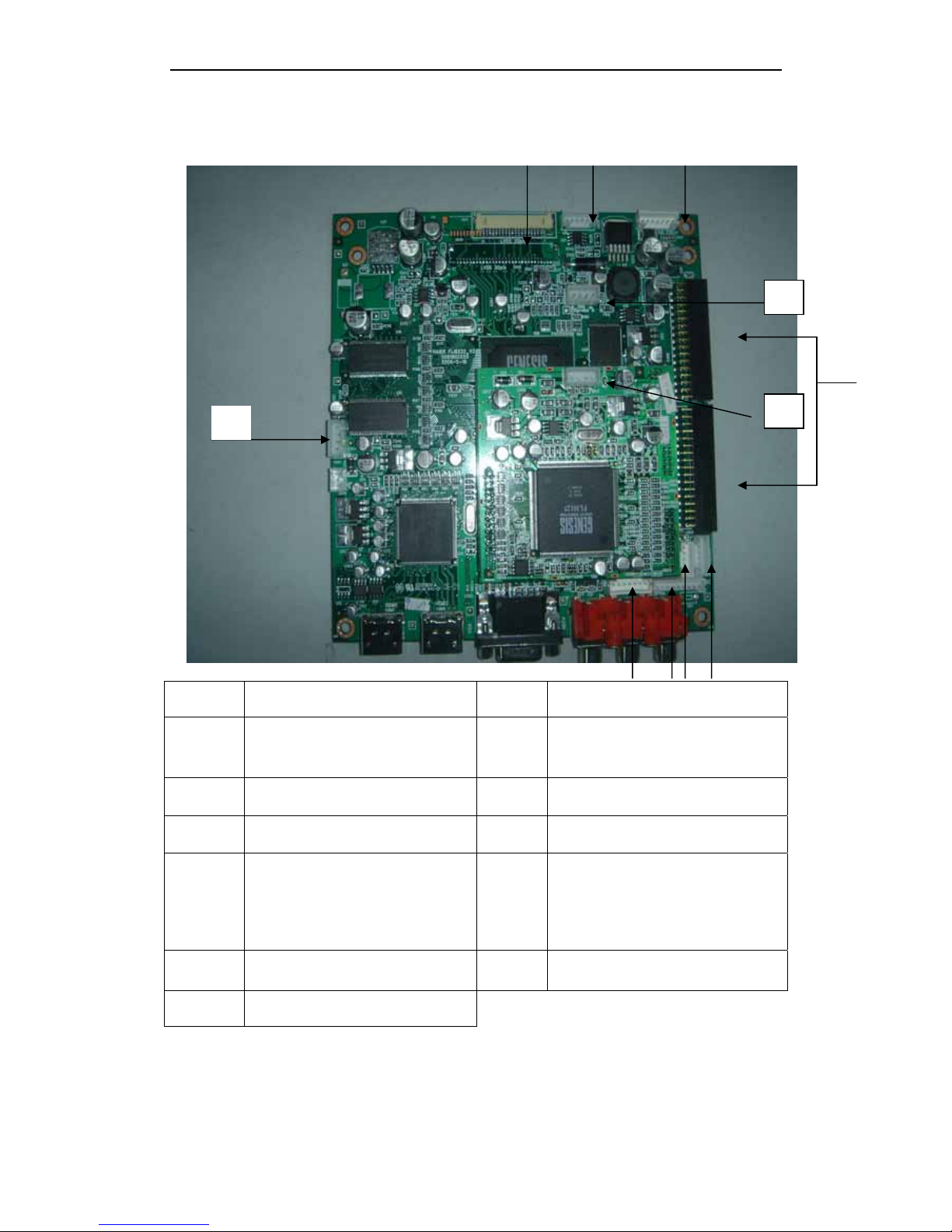

1) 、 images of Main Board

1 2 3 4

Socket

number explain Socket

number explain

1 Connector from Digital board

to USB board 2 Connector from Digital board to

ATSC board（no use on

L52A18-A）

3 Connector from Digital board

to board 4 Connector from Digital board to

Control panel

5 PIP software update interface 6 Digital board software update

interface

STANDBY 5V、power 12V

input、power ON/OFF,form left

to right is：12V、12V、GND、

GND、STB5V、GND、ON/OFF

Connector for backlight on/off

and Dimming control，form left

to right is：

GND、GND、backlight

on/off、Dimming control、12V、

12V

9 LVDS interface 10 Socket between Digital board

and Emulation board

11 I2C connector

9 8 7

2) images of Emulation board

Socket

number explain Socket

number explain

1 Audio input of USB board 2 Side AV input

3 Socket between Emulation

board and output port board 4 Socket between Digital board

and Emulation board

5 Power input of USB board,

form left to right is：GND、

GND、5V、5V 6 Speaker interface

5 6

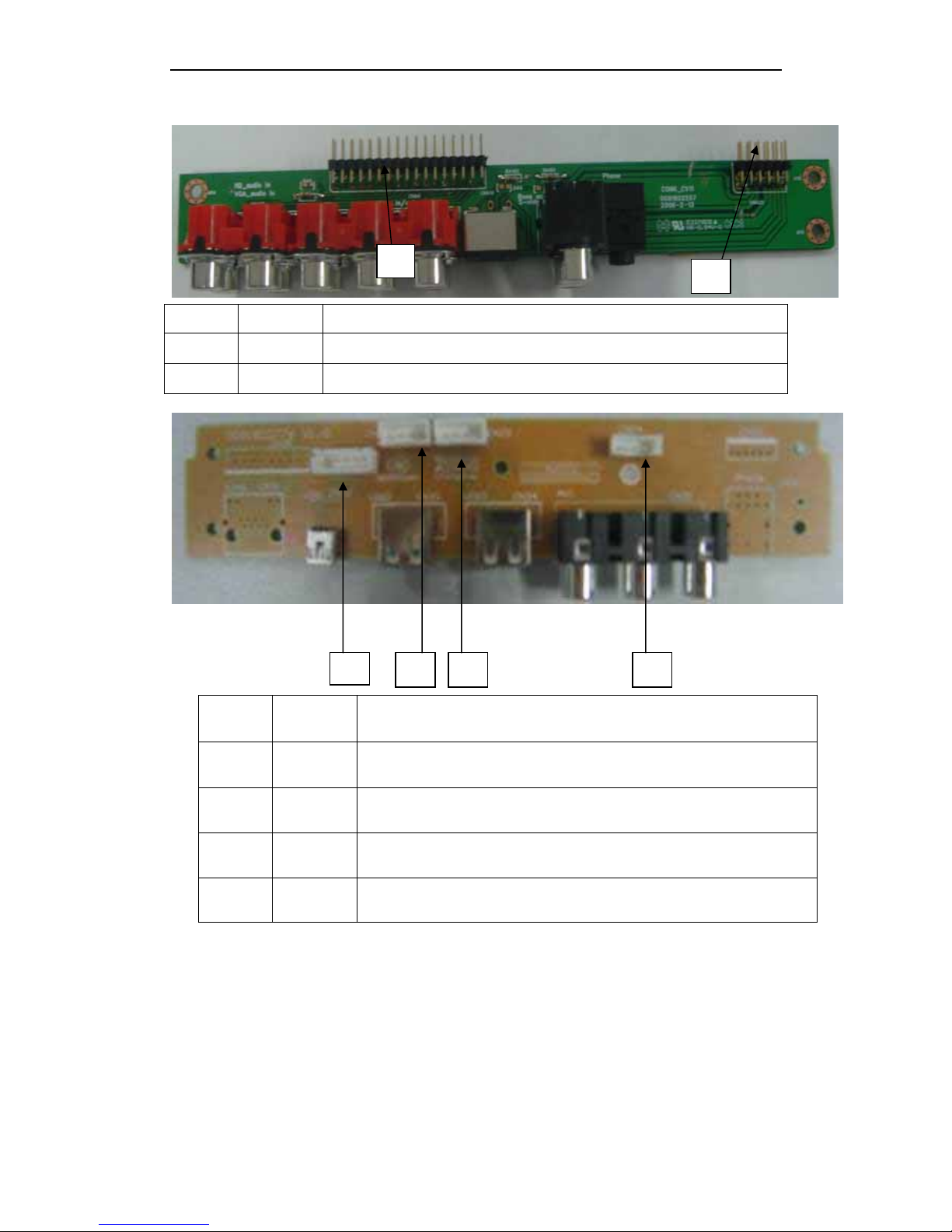

3) output port board

Number Position definition

1 CNA20 Link to CNA22 on Emulation board

2 CNA9 Link to CNA8 on Emulation board

4) Side AV board

Number Position definition

1 CN21 connect with the USB board’s connector JP12

2 CN22

connect with the HUB board’s connector CON6 or

CON9

3 CN23

connect with the HUB board’s connector CON6 or

CON9

4 CN24

connect with the Emulation board’s connector CNA2

2 1

1 2 3 4

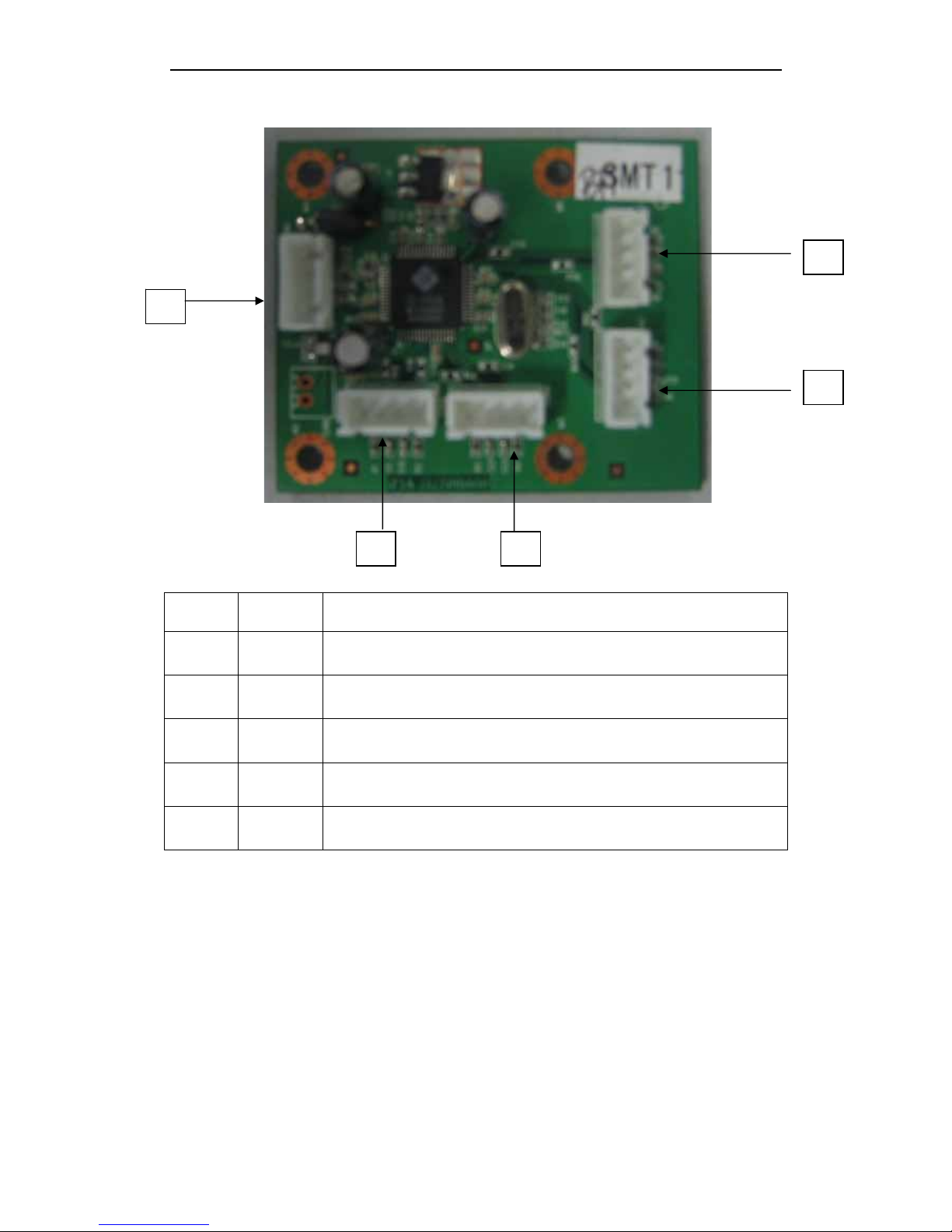

5、HUB board

Number Position definition

1 CON1 HUB signal output，be connected with the USB

board’s JP11 or JP17

2 CON8

HUB signal input，be connected with the Card trough

board or USB signal input

3 CON9

HUB signal input，be connected with the Card trough

board or USB signal input

4 CON7

HUB signal input，be connected with the Card trough

board or USB signal input

5 CON6

HUB signal input，be connected with the Card trough

board or USB signal input

6) Power supply assembly

Power supply assembly 2

Power supply assembly 1
