Pages 30 / 31

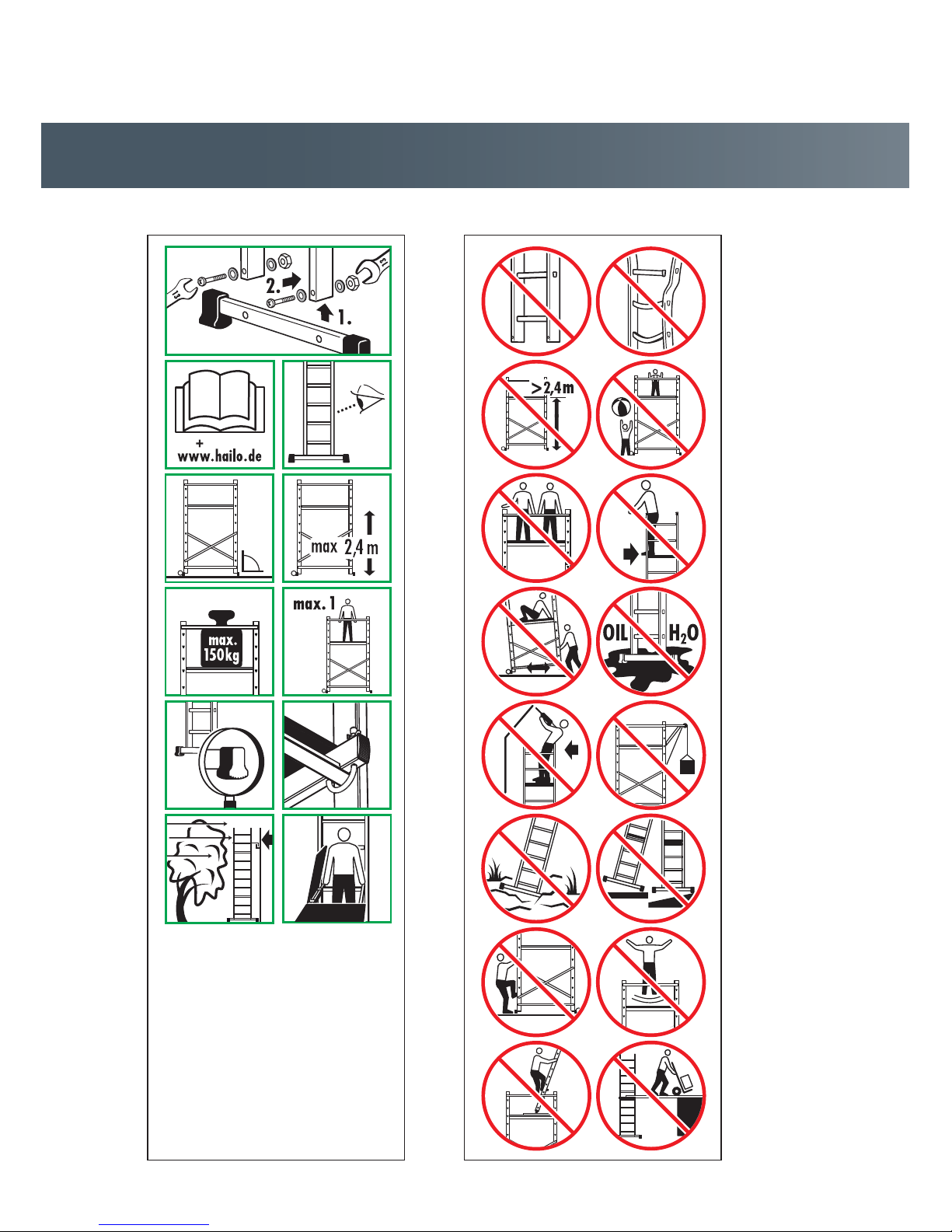

1Pictograms illustrating safety instructions

Pay particular attention to the safety instructions!

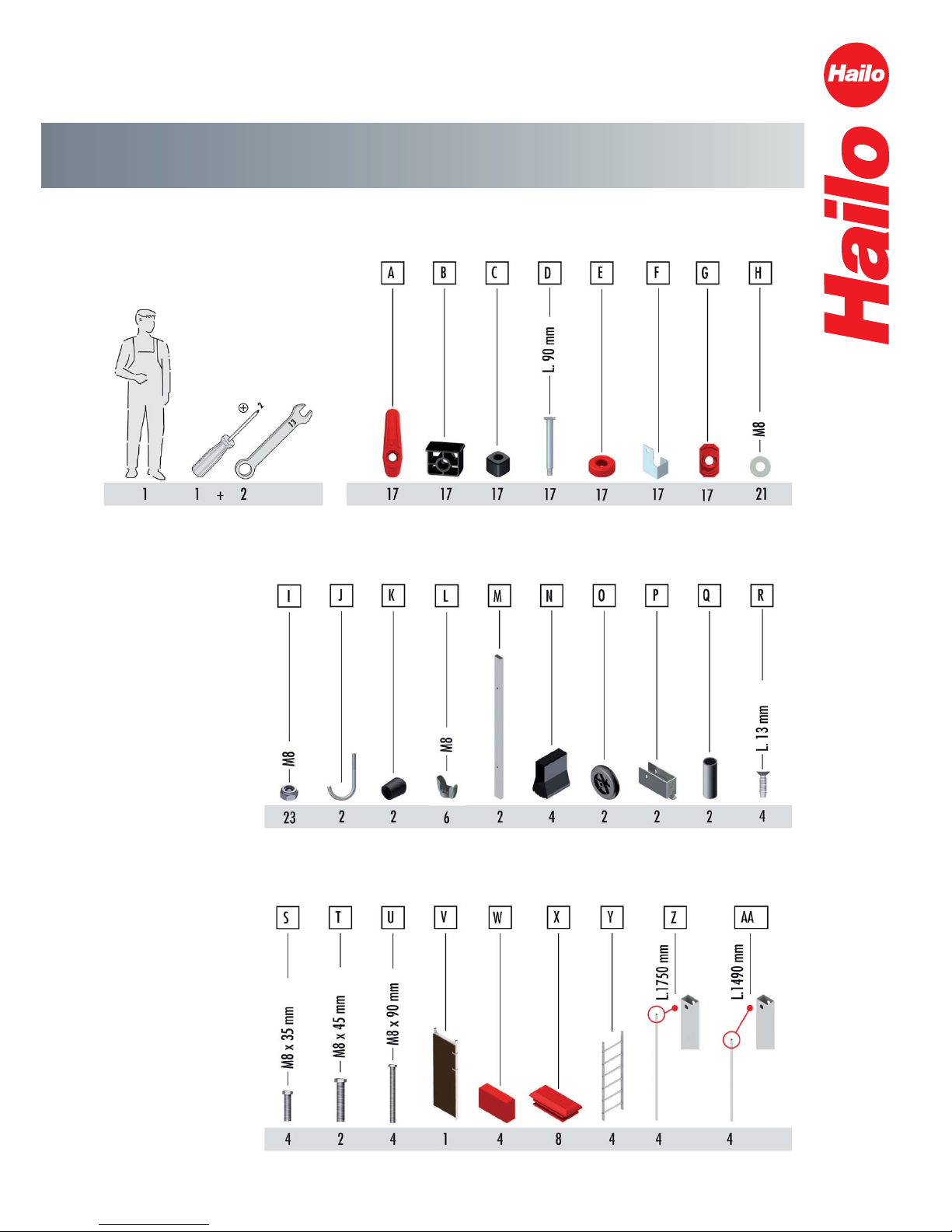

2Parts overview

Pages 32 / 33

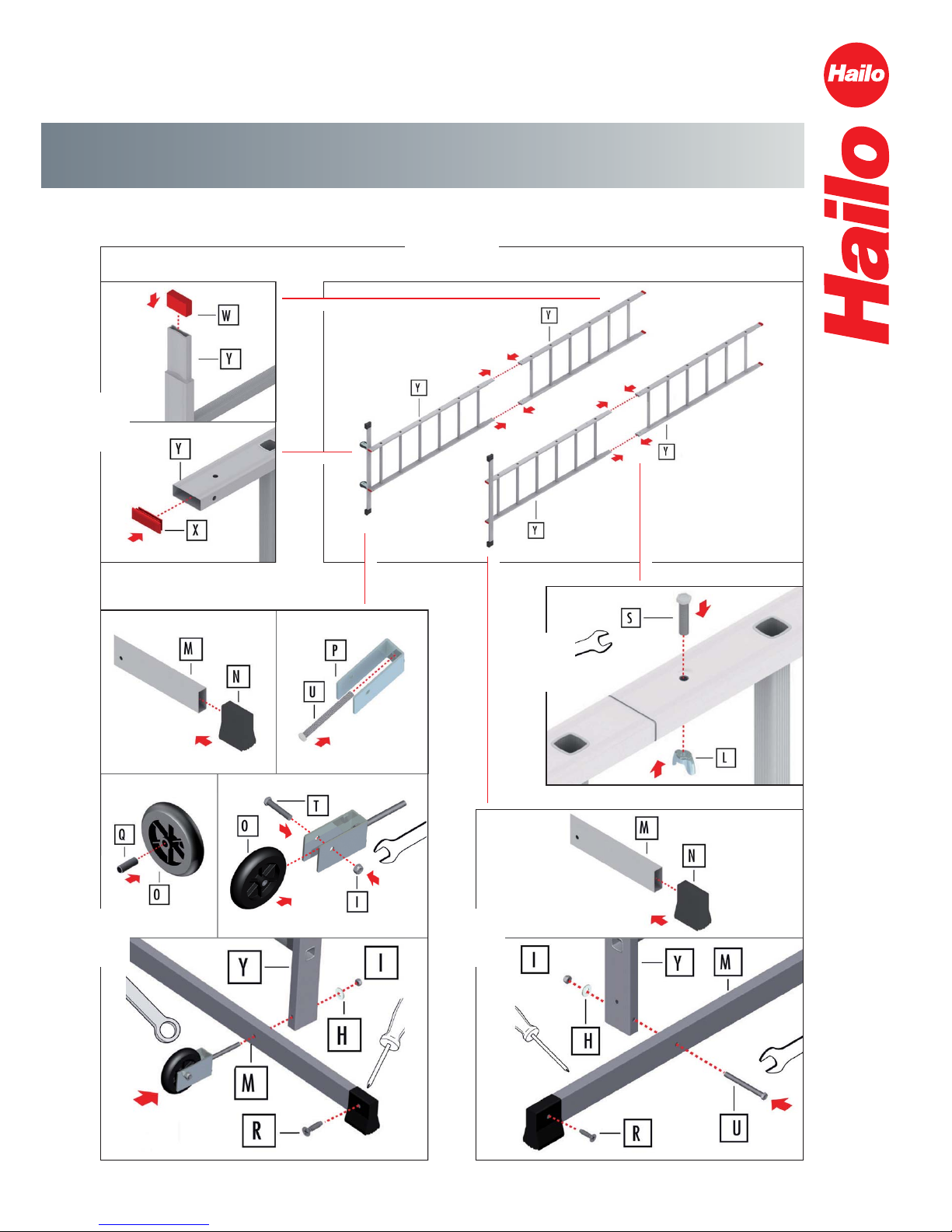

3Pre-assembly

A) Preparing the horizontal and diagonal struts

1. Pre-ﬁt two “Speed Lock” one-handed quick lock systems to

each strut.

2. Tighten the self-locking nuts to ensure that the washer is up

against the threaded bolt.

3. Then check that the quick lock functions properly.

4. Pay attention to the position where it is ﬁtted.

B) Preparing the working platform

Pre-ﬁt 2 sets of hooks to the working platform

(positioned diagonally).

C) Installation of ladder elements

1. Attach protective caps at top and bottom.

2. Fit the cross piece to ladder section [1].

3. Secure the cross piece with the set of castors to ladder section [2].

4. Insert lower ladder sections into the ladder stringers of the top

ladder sections [3] [4] and screw both elements together.

Hailo 1-2-3 500 Aluminium scaffolding (9459-551)

This aluminium scaffolding is

designed exclusively for domestic use.

Read the assembly instructions

carefully before use and keep them

in a safe place.

Dear Customer,

Congratulations on your purchase of the

Hailo 1-2-3 500 aluminium scaffolding.

We hope you enjoy using this versatile

and sturdy scaffolding unit.

This aluminium scaffolding meets the

requirements of the NF E85-200 standard.

Please read these assembly instructions

thoroughly before using the scaffold, paying

particular attention to the safety instructions

on page 30.

Please keep these assembly instructions in a

safe place.

If you have any questions or comments

about our aluminium scaffolding,

please don’t hesitate to call us.

We’d be delighted to assist.

Hailo-Werk, Rudolf Loh GmbH & Co. KG

Daimlerstraße 8, 35708 Haiger, Germany

+44 1792 701999

Email: info@hailo.de

www.hailo.de

Foreword

)NSTRUCTIONSFORASSEMBLY

The scaffold may only be used if it has been properly and fully erected as speciﬁed in these assembly instructions

and is set up in a vertical position.

The aluminium scaffolding must not be used by children.

Always use and store the scaffold out of the reach of children.

The scaffold should be put away or stored in a dry environment either stood upright or laid ﬂat.

Do not expose the scaffold to weather conditions such as rain, ice, snow, etc., for a prolonged period of time

in order to avoid incurring damage.

Problems and solutions:

s /NEORMOREPARTSAREMISSING

s /NEORMOREPARTSHAVENOTBEEN 

used when assembly has been

successfully completed.

= Check the assembly instructions

against how the scaffold was

assembled.

If necessary, contact Hailo

(see page 6).

s /NEORMOREPARTSAREDEFECTIVE

or deformed.

= Replace damaged or deformed parts

before assembling.

If necessary, contact Hailo

(see page 6).

Pages 34 / 35

4 Assembling the aluminium scaffolding

D) Assembling the horizontal struts

% Assembling the diagonal struts

1. Insert the “Speed Lock” quick lock system in the cavity inside

the rung.

2. Flip the safety hook down around the upright of the ladder.

3. Secure the “Speed Lock” quick lock system.

F) Securing the working platform

1. Insert the working platform into the rungs and secure with

both sets of hooks (max. 8 rungs from below).

2. Then stand the aluminium scaffolding up.

5Dismantling the scaffold

The multipurpose scaffold is dismantled in the reverse order.

Note: The safety hook, see Figure [X], holds the strut or

the upright in the installation position when the quick lock is

released. Swing the safety hooks away from the upright of

the ladder before removing the guard rails and the

horizontal and diagonal struts.

Pages 36 / 37

6 Technical data / Different ways to assemble the scaffold

A) B)

16x

[1]

[4]

[2]

[3]

E)D)

3.2.1.

[X]

2,40m

3,80 m

1,51 m

4,40 m

2,40 m

1,70 m

1,20 m

0,56 m

0,86 m

1,51 m

4,10 m

2,10 m

0,86 m

3,80 m

1,80 m

0,86 m

3,50 m

1,50 m

0,86 m

3,20 m

1,20 m

0,86 m 0,86 m

0,90 m

2,90 m
