Machine and Fixture Elements
Lifting Pins / Threaded Lifting Pins
Erwin Halder KG www.halder.com Page 1 of 7
Published on: 2.12.2023
Lifting Pins • self-locking, stainless steel
22350.0716
Product Description
Heavy-duty lifting element for quick and easy use, with moveable shackle and locking stud to
provide protection against unintentional unlocking. Special lifting devices, e.g. threads for ring
bolts, are no longer required on the workpiece.
Corrosion and weathering resistant, thus also suitable for outdoor application. Very solid,
precipitation-hardened pin with an extreme load capacity.
Material
Pin part
• Stainless steel 1.4542, precipitation-
hardened
Press button
• Aluminium, red anodised
Shackle
• Stainless steel 1.4571
Spring
• Stainless Steel
Assembly
Simple H11 boreholes are sufficient.
Mounting:
1. Press in the button and hold it down
2. Insert the lifting pin
3. Release the button(The button must be
back in its original position)
Dismantling:
1. Press in the button and hold it down.
2. Remove the lifting pin.
3. Release the button.
Operation
Each lifting pin contains an instruction manual
with an EC Declaration of Conformity.
More information
Accessories
As accessories, we offer matching locating
bushings for d1=8, 10, 12, 16 and 20
Further products
• Lifting Pins, self-locking
• Locating Bushings, for lifting pins
• Locating Bushings, plain, for lifting pins
• Locating Bushings with Seal, plain, for lifting
pins
• Threaded Lifting Pins, self-locking
• Threaded Lifting Pins, self-locking, for
centre holes according to DIN 332
• Threaded Lifting Pins, self-locking, with
rotatable shackle
• Threaded Lifting Pins, self-locking - INCH
• Threaded Lifting Pins, self-locking, with
rotatable shackle - INCH
Machine and Fixture Elements
Lifting Pins / Threaded Lifting Pins
Erwin Halder KG www.halder.com Page 2 of 7
Published on: 2.12.2023

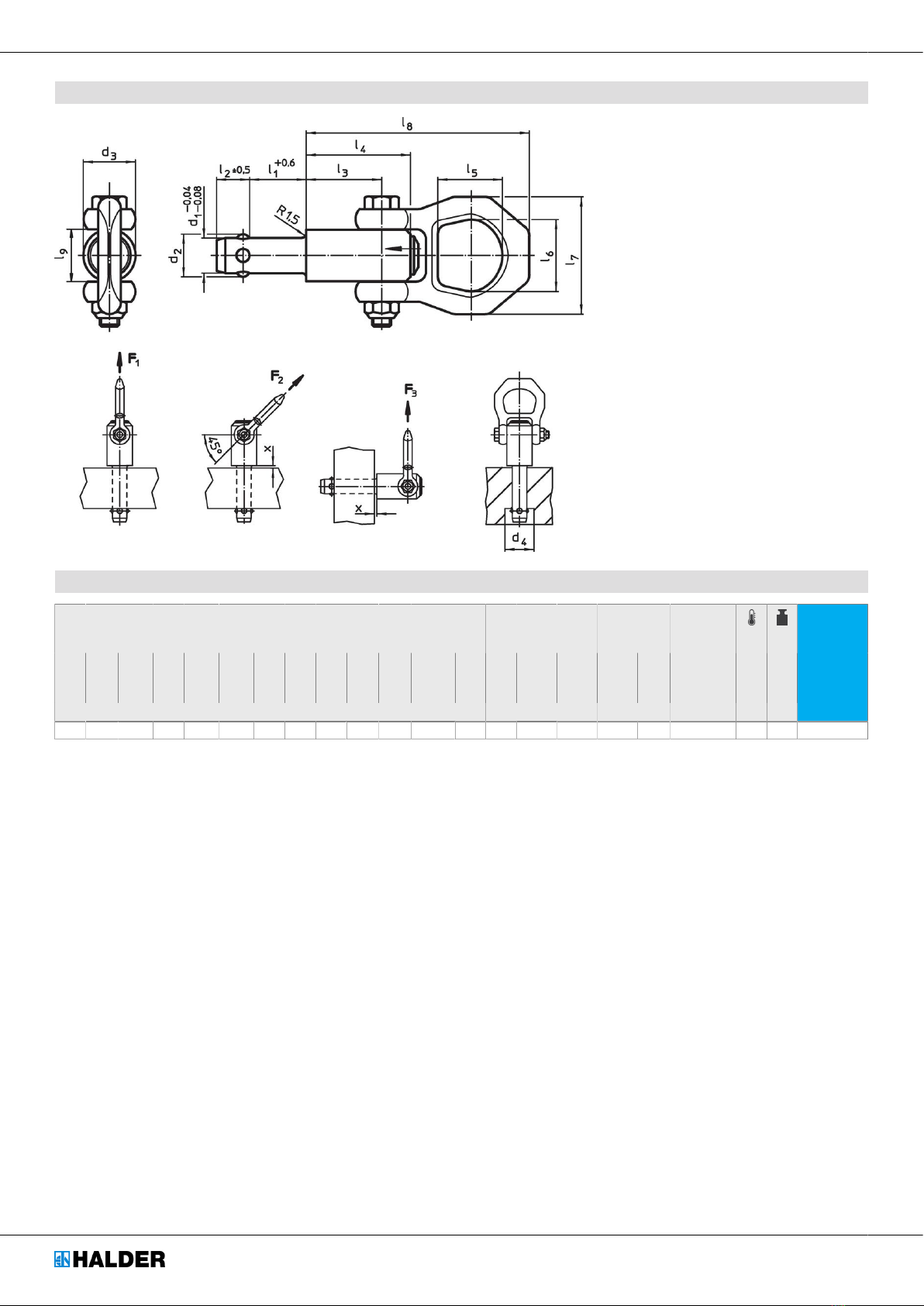

Drawing
Order information

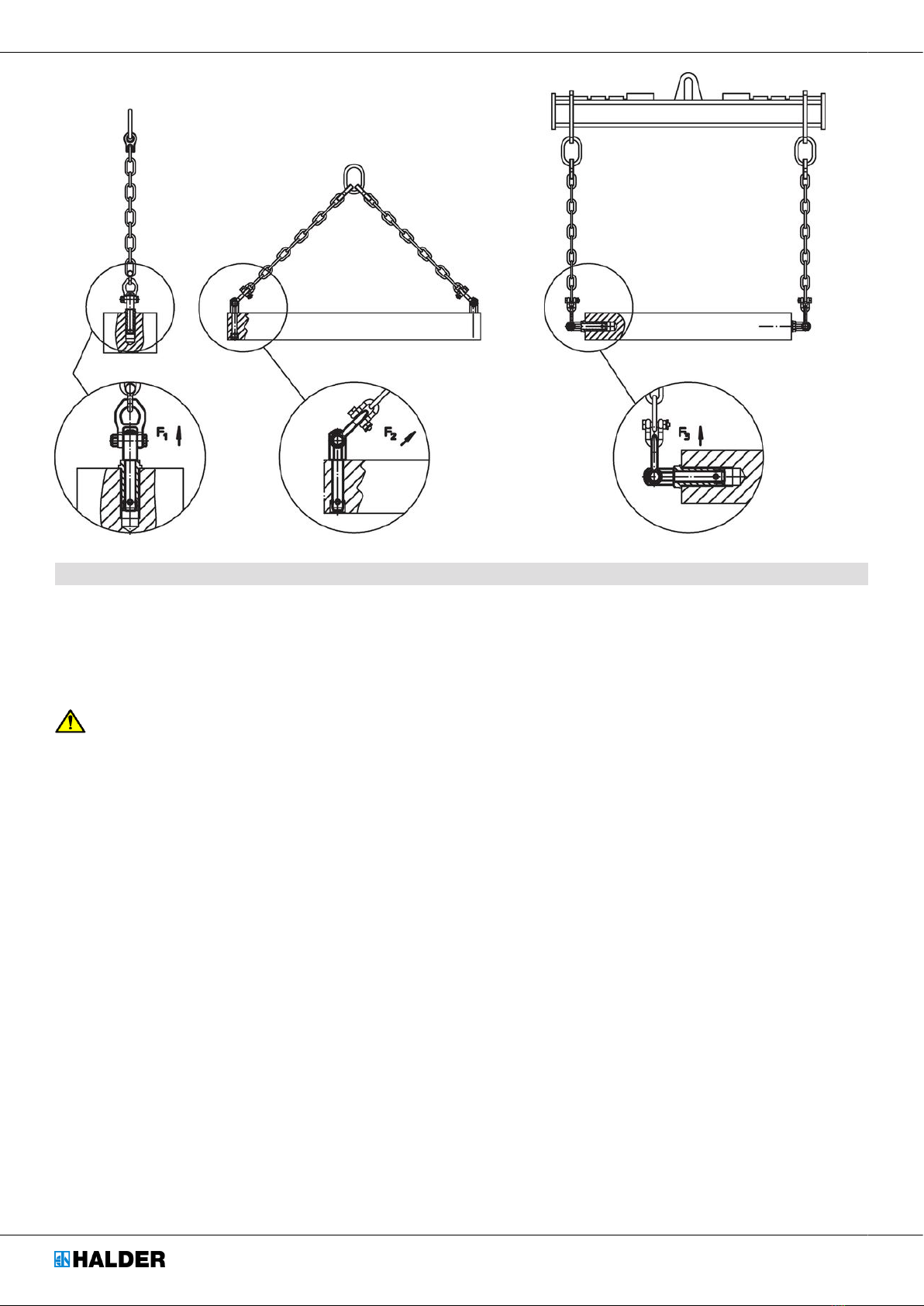

Dimensions Load capacity
according to
DIN EN 13155
d1
-0.04
-0.08
l1
+0.6
d2d3d4
min.
l2l3l4l5l6l7l8l9F1F2F3|x
min.
|x
max.
Location
hole
H11 max.
Art. No.
[mm] [kN] [mm] [mm] [°C] [g]
8.3 35 9.65 21.5 10.05 8.75 25.7 36 27 30 49 87.5 21.5 1.5 1.2 0.5 1.5 15 8.3 250 238 22350.0716
Machine and Fixture Elements
Lifting Pins / Threaded Lifting Pins
Erwin Halder KG www.halder.com Page 3 of 7
Published on: 2.12.2023

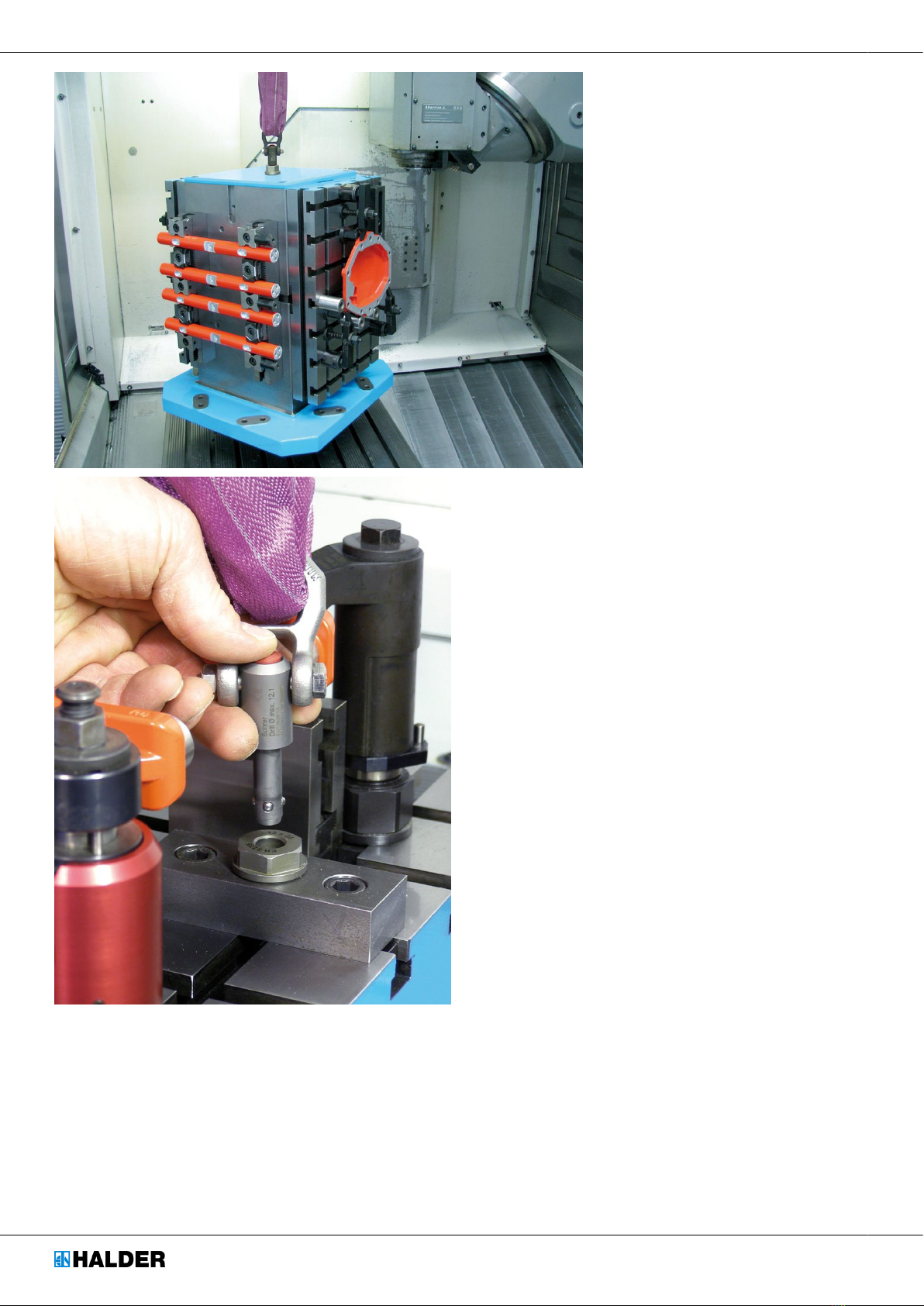

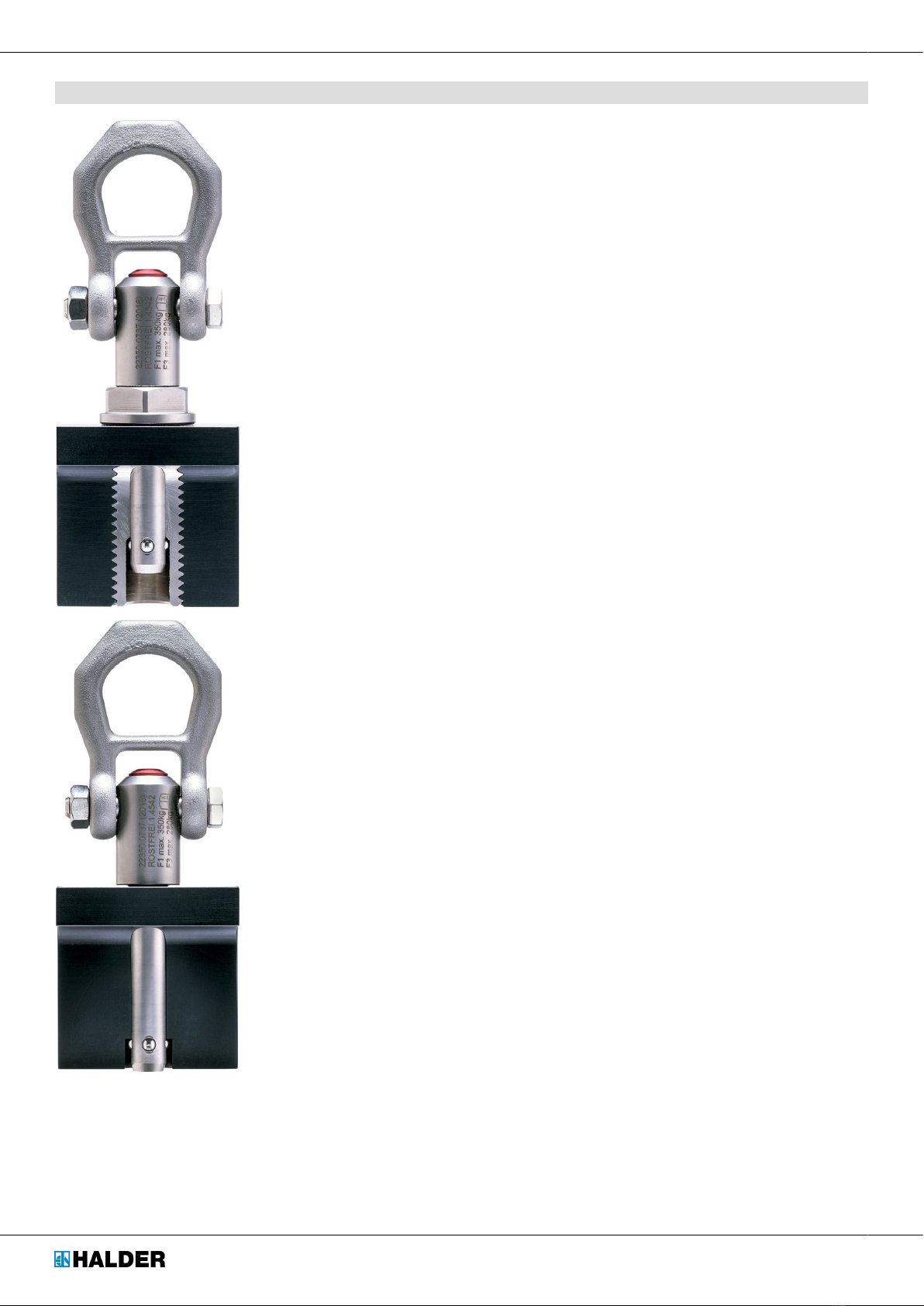

Application example
Machine and Fixture Elements
Lifting Pins / Threaded Lifting Pins
Erwin Halder KG www.halder.com Page 4 of 7
Published on: 2.12.2023

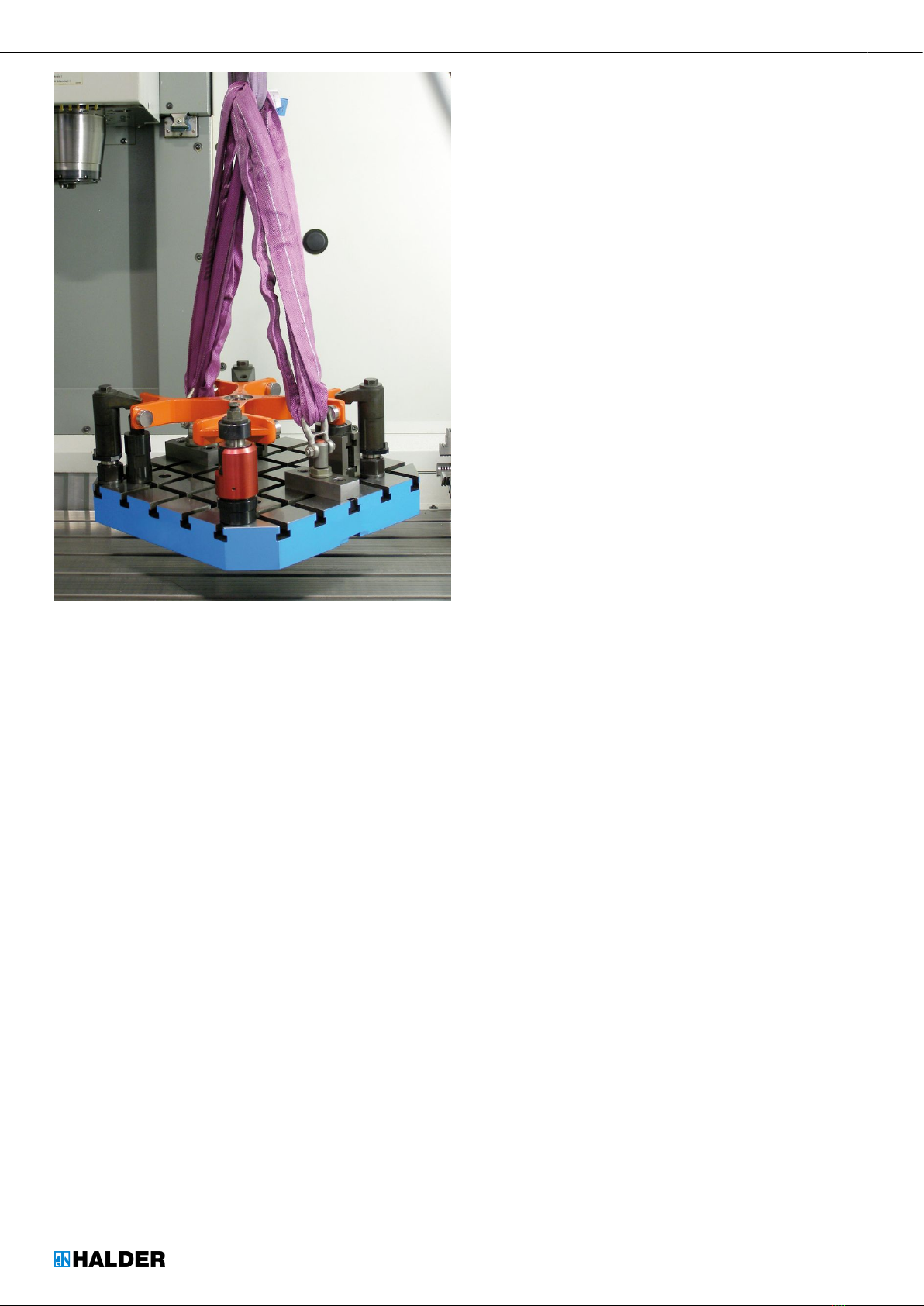

Machine and Fixture Elements
Lifting Pins / Threaded Lifting Pins
Erwin Halder KG www.halder.com Page 5 of 7
Published on: 2.12.2023
Machine and Fixture Elements
Lifting Pins / Threaded Lifting Pins
Erwin Halder KG www.halder.com Page 6 of 7
Published on: 2.12.2023
Machine and Fixture Elements
Lifting Pins / Threaded Lifting Pins
Erwin Halder KG www.halder.com Page 7 of 7
Published on: 2.12.2023
Compliance
Non-RoHS compliant
Not compliant according to Directive 2011/65/EU and Directive 2015/863.
Contains SVHC substances >0,1% w/w
Contains lead - SVHC list [REACH] as of 14.06.2023.
Contains Proposition 65 substances
Lead can cause cancer and reproductive harm from exposure
https://www.P65Warnings.ca.gov/
Free from Conflict Minerals
This product does not contain any substances designated as "conflict minerals" such as tantalum, tin, gold or tungsten from the Democratic
Republic of Congo or adjacent countries.
