HALE SAM Bedienungsanleitung

QSG P/N FSG–MNL–00209 REVISION A REFERENCE OIM MANUAL P/N FSG–MNL–00210

QUICK START GUIDE

SAM (GENERATION 2)

FOAM/CAFS ADDENDUM

HALE PRODUCTS, INC.

A Unit of IDEX Corporation

607 NW 27th Ave, Ocala, FL 34475

(800) 533.3569

(800) 520.3473 (FAX)

www.haleproducts.com

NOTICE

THIS GUIDE IS INTENDED FOR QUICK REFERENCE ONLY. DO NOT USE IT TO REPLACE REQUIRED

TRAINING, STANDARD OPERATING GUIDELINES REQUIRED BY THE AUTHORITY HAVING JURISDIC-

TION, THE OPERATION INSTALLATION MAINTENANCE MANUAL, OR APPROPRIATE QUALIFICATIONS.

FOR MORE INFO REFERENCE OIM MANUAL P/N FSG–MNL–00210 1

1. SAFETY

Firefighting is an inherently risky activity. Knowledge and training may manage that risk. This document is

not a training manual and does not provide all detailed operation. This guide serves as a quick reference for

SAM operation. AHJ (Authority Having Jurisdiction) shall provide training and guidelines for system operation.

1.1 DANGERS, WARNINGS, CAUTIONS, and NOTICES

DANGERS, WARNINGS, CAUTIONS, and NOTICES consist of two parts: A heading (that identifies possible re-

sult if disregarded) and a statement of the hazard (that provides the minimum precautions). The following

warnings and cautions are used throughout the Hale SAM manuals.

INDICATES A HAZARDOUS SITUATION, WHICH IF NOT AVOIDED WILL RESULT IN SERIOUS INJURY

OR DEATH.

INDICATES A HAZARDOUS SITUATION, WHICH IF NOT AVOIDED COULD RESULT IN SERIOUS INJURY

OR DEATH.

INDICATES A POTENTIALLY HAZARDOUS SITUATION, WHICH IF NOT AVOIDED MAY RESULT IN MI-

NOR OR MODERATE INJURY.

ADDRESSES PRACTICES NOT RELATED TO PERSONAL INJURY.

1.2 SAM General DANGER, WARNING And NOTICES

ACTIVATING A FOAM OFF BALLOON TURNS OFF THE SMARTFOAM SYSTEM, TURNING OFF FOAM

TO ALL FOAM CAPABLE DISCHARGES, HOWEVER, THE DISCHARGE(S) ARE NOT CLOSED AND CON-

TINUE TO FLOW WATER ONLY.

AHJ MUST INSURE PROPER TRAINING IS IN PLACE FOR ALL OPERATORS. THIS QUICK START GUIDE

DOES NOT REPLACE OR SUPERSEDE THE OPERATION INSTALLATION MAINTENANCE MANUAL OR

PROPER TRAINING.

ALTHOUGH SMARTFOAM AND SMARTCAFS BOTH UTILIZE THE FOAM LABEL, A FOAM LABELED DIS-

CHARGE BUBBLE DOES NOT OPERATE THE SAME WAY ON SAM FOR BOTH SYSTEMS.

DO NOT ALTER THE CAN NETWORK COMMUNICATIONS (SAE J1939 CAN BUS) OR CONNECT OTHER

DEVICES TO ANY OF THE CAFS, CAPTIUM, FOAM, OR SAM CAN BUS BACKBONE(S).

DO NOT RUN THE PRIMER FOR MORE THAN 45 SECONDS. IF PRIME IS NOT ACHIEVED IN 30 - 45

SECONDS, STOP AND LOOK FOR AIR LEAKS OR BLOCKED SUCTION HOSE.

2 FOR MORE INFO REFERENCE OIM MANUAL P/N FSG–MNL–00210

FROM THE VALVE X SCREEN (DISCHARGE VALVE CONTROL SCREEN), THE OPERATOR MAY SELECT

WATER ONLY, FOAM ONLY, OR CAFS. TO SELECT WATER ONLY, SWIPE THE PSI PRESET (RIGHT-

HAND SIDE OF THE WIDGET) TO THE TARGET. TO SELECT FOAM ONLY, SWIPE THE FOAM ONLY

PRESET TO THE TARGET. TO SELECT CAFS, SWIPE THE (WET, MED, OR DRY) CAFS PRESET TO THE

TARGET.

IF THE DISCHARGE DOES NOT ACTIVATE VERIFY THE CAFS SYSTEM PRESETS (PRESET 1 FOR CAFS,

PRESET 7 FOR FOAM ONLY ON THE SMARTCAFS DISPLAY) CONFIGURATION MATCHES THE SAM

CONFIGURATION. (SAM WILL ONLY ACTIVATE MATCHING CONFIGURATIONS – WET, MED, OR DRY.)

IF THE CONFIGURATIONS DO NOT MATCH, OPERATE SAM MANUALLY TO OPEN THE VALVE USING

THE SAM CONTROL CENTER. THEN OPERATE THE CAFS SYSTEM FROM THE SMARTCAFS DISPLAY.

KEEP ALL I/O PORT COVERS IN PLACE DURING USE TO PREVENT WATER DAMAGE.

ONLY TOUCH THE SCREEN IN ONE PLACE AT A TIME. THE TOUCHSCREENS DO NOT SUPPORT

MULTI–TOUCH.

SOME WATER ONLY OPERATIONS MAY DAMAGE THE CAFS SYSTEM IF THE CLUTCH IS ENGAGED.

REFERENCE CAFS QUICKSTART GUIDE, DISENGAGING THE COMPRESSOR CLUTCH (PAGE 10 OF

FSG-MNL-00176) TO ENSURE PROPER CAFS TURN OFF WHEN SAM INCLUDES A CAFS SYSTEM.

WHILE SAM CAN REDUCE PUMP OPERATOR WORKLOAD, IT DOES NOT TAKE THE PLACE OF THE

PUMP OPERATOR. THE PUMP OPERATOR STILL NEEDS TO CALCULATE THE REQUIRED LINE PRES-

SURE TO SUPPORT THE HOSE LAY AND NOZZLE IN USE. SAM WILL MAINTAIN THE SET PRESSURE

IN AUTO MODE.

FOR MORE INFO REFERENCE OIM MANUAL P/N FSG–MNL–00210 3

2. USING SMARTFOAM WITH SAM

SAM interfaces with either a HALE SmartFOAM or a SmartCAFS system. To utilize foam with the SAM system,

activate a foam associated Quickset from the Auto Mode Home screen or foam associated preset from the

Valve X via the Select Discharge screen. (The discharge valve control screen.)

Once the SmartFoam system is active, the SmartFoam display may be used to control the foam system as if

the apparatus did not have SAM. Reference SmartFOAM Electronic Foam Proportioning Systems Models:

Class A only – 1.7 AHP, 2.1 A Class A/B – 3.3, 5.0, 6.5 Description, Installation, and Operation Manual (P/N

FSG-MNL-00158) for detailed foam system operating instructions. Figure 1 shows the SmartFOAM default

display. While FOAM is ON all foam capable discharges flow foam when open. Additionally, all foam compati-

bility and flushing notes/recommendations apply (see FSG-MNL-00158) when using SmartFOAM with SAM.

Figure 1. SmartFOAM Display (Default)

2.3 Activating A SAM FOAM Quickset

To use SAM to activate a FOAM Quickset, perform the following.

A. Touch desired Quickset. (All foam available discharges are labeled with the word FOAM.) See

Figure 2.

Figure 2. Activating A Foam Quickset

B. Drag Quickset to target (PUSH TO PUMP or ADD LINE).

C. Release Quickset (remove finger from screen).

4 FOR MORE INFO REFERENCE OIM MANUAL P/N FSG–MNL–00210

The SmartFOAM system powers on and activates preset #1. The associated concentration of foam solution

is discharged supplying foam to all foam capable discharges. Figure 3 shows the SmartFOAM display with an

example preset 1 running and the SAM Control Center Quickset active.

Figure 3. SmartFOAM With SAM Quickset Activated

2.4 Activating A SAM FOAM Preset

To use SAM to activate FOAM on a non-Quickset discharge (a FOAM preset), perform the following.

A. Touch PUSH TO PUMP (or ADD LINE) target, to display SELECT DISCHARGE screen. See Fig-

ure 4.

Figure 4. Selecting A Foam Capable Discharge

B. Touch desired discharge (valve) bubble. (All foam available discharges are labeled with the

word FOAM.) Valve X screen displays (discharge valve control screen, see Figure 5).

Figure 5. Activating A Foam Preset

FOR MORE INFO REFERENCE OIM MANUAL P/N FSG–MNL–00210 5

C. Touch desired FOAM preset bubble. (All foam available FOAM presets are labeled with the

word FOAM and are located to the left of the widget.) See Figure 5.

D. Drag bubble to target (SET PRESSURE).

E. Release bubble (remove finger from screen).

The SmartFOAM system powers on and activates preset #1. The associated concentration of foam solution

is discharged. See example, Figure 3.

2.5 Close A Foam Discharge (With SAM)

SAM can control multiple FOAM capable discharges. If ONLY one FOAM discharge is active, and that dis-

charge is closed, FOAM is also turned off when the discharge closes. However, if multiple FOAM discharges

are active, FOAM stays on until the last FOAM discharge is closed.

To close a SmartFOAM discharge, perform the following.

A. On SCC Home screen, touch desired active FOAM discharge. Displays Valve X screen (dis-

charge valve control screen) displays. See left-hand side of Figure 6.

B. On Valve X screen (discharge valve control screen), swipe CLOSE LINE bubble to target (cen-

ter of widget). See right-hand side of Figure 6.

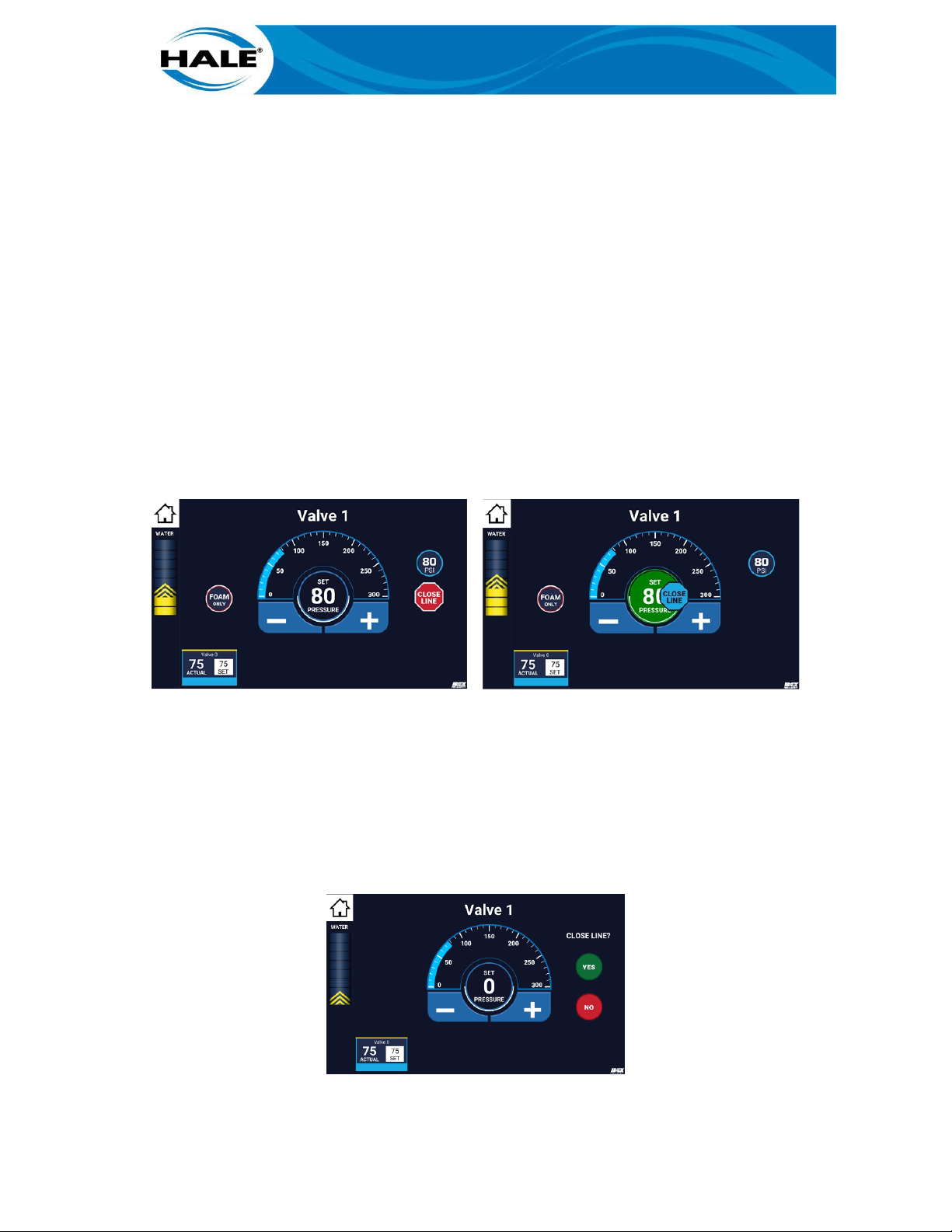

Figure 6. Closing A Foam Discharge Sequence

NOTES

The CLOSE LINE balloon activates automatically (the same as a preset would). No confirmation is

required.

If the swipe fails, times out, misses the target, or the operator only touches and releases the bal-

loon; a confirmation popup window appears (Figure 7). Touch the YES bubble to close the line or

the NO bubble to make no change.

Figure 7. Close Line Popup Confirmation

6 FOR MORE INFO REFERENCE OIM MANUAL P/N FSG–MNL–00210

Figure 8 shows the SmartFOAM display when FOAM is turned off. However, if additional FOAM discharges

are active, FOAM stays on (see Figure 3) until the last FOAM discharge is closed.

Figure 8. SmartFOAM Display With No FOAM Discharges Active

2.6 Turn Off FOAM (With SAM)

As stated above, SAM can control multiple FOAM capable discharges. No matter how many FOAM discharges

are active, activating the FOAM OFF bubble turns off FOAM to all FOAM capable discharges and any open

discharge continues flowing water ONLY.

To use SAM to turn off FOAM, perform the following.

ACTIVATING A FOAM OFF BALLOON TURNS OFF THE SMARTFOAM SYSTEM, TURNING OFF FOAM

TO ALL FOAM CAPABLE DISCHARGES, HOWEVER, THE DISCHARGE(S) REMAIN OPEN AND CON-

TINUE TO FLOW WATER ONLY.

A. On SCC Home screen, touch desired active FOAM discharge. Displays Valve X screen (dis-

charge valve control screen) displays.

B. On Valve X screen (discharge valve control screen), swipe FOAM OFF bubble to target (center

of widget).

Figure 9. Turning Foam Off

NOTES

The FOAM OFF balloon activates automatically (the same as a preset would). No confirmation is

required.

If more than one FOAM discharge is open the confirmation popup window appears. Touch the YES

bubble to close the line or the NO bubble to make no change.

FOR MORE INFO REFERENCE OIM MANUAL P/N FSG–MNL–00210 7

Figure 10. Foam Off Popup Confirmation

After confirmation, all discharges previously providing FOAM continue to provide water ONLY, until closed

individually.

3. USING SMARTCAFS WITH SAM

SAM also interfaces with a HALE SmartCAFS system. When SAM initializes, the SmartCAFS air compressor

(clutch) is engaged and remains engaged unless manually disengaged from the SmartCAFS display/control-

ler. (Reference FSG-MNL-00157, UV SmartCAFS Installation and Operation Manual.) To utilize CAFS with the

SAM system, activate a CAFS associated Quickset from the Auto Mode Home screen or CAFS associated pre-

set from the Valve X via the Select Discharge screen (discharge valve control screen). The CAFS system can

also provide traditional FOAM in addition to CAFS.

It is important to note that when operating SAM with SmartCAFS, that a CAFS (wet, med, or dry) preset (or

Quickset) activates preset #1 on the CAFS system; and that a foam only (FOAM) preset (or Quickset) acti-

vates preset #7 on the CAFS system.

Prior to activating a CAFS associated Quickset or preset, if the apparatus is equipped with an automatic or

manual dual tank (ADT or MDT) or manual single tank (MST) selector, place the selector in position to deliver

the desired foam concentrate.

Once the SmartCAFS system is active, the SmartCAFS display may be used to control the CAFS system as if

the apparatus did not have SAM. Reference FSG-MNL-00157, UV SmartCAFS Installation and Operation

Manual. Additionally, all foam compatibility and flushing notes/recommendations apply when using

SmartCAFS with SAM (see FSG-MNL-00157).

NOTE

Any discharge plumbed into the CAFS manifold prior to the air injection point will be FOAM ONLY

capable. Although this is NOT typical it is supported by SAM via the FOAM label.

ALTHOUGH SMARTFOAM AND SMARTCAFS BOTH UTILIZE THE LABEL FOAM, ON SAM A FOAM LA-

BELED DISCHARGE BALLOON DOES NOT ENABLE THE SAME PRESET ON THE SMARTFOAM AND

SMARTCAFS SYSTEMS.

3.1 Activating A CAFS Quickset

To activate a CAFS ready Quickset, perform the following.

A. If equipped, set ADT, MDT, or MST Selector to desired foam source.

B. Touch desired Quickset. (All CAFS available discharges are labeled with one of the following

words: DRY, MED, or WET.) See Figure 11.

8 FOR MORE INFO REFERENCE OIM MANUAL P/N FSG–MNL–00210

Figure 11. Activating A CAFS Quickset

C. Drag Quickset to target (PUSH TO PUMP or ADD LINE).

D. Release Quickset (remove finger from screen).

The SmartCAFS system powers on and opens air valve and activates preset #1. The associated concentra-

tion of air and foam solution is discharged.

Any operation of the CAFS system (beyond launching the preset from the SAM Control Center) must be per-

formed from the SmartCAFS Control Display, reference UV SmartCAFS Installation and Operation Manual

(P/N FSG-MNL-00157).

3.2 Activating A CAFS Preset

To activate a CAFS ready preset, perform the following.

A. If equipped, set ADT, MDT, or MST Selector to desired foam source.

B. Touch PUSH TO PUMP (or ADD LINE) target, to display SELECT DISCHARGE screen. See Fig-

ure 12.

C. Touch desired discharge (valve) bubble. (All CAFS available discharges are labeled with the

following words: CAFS FOAM.) Valve X screen (discharge valve control screen) displays. See

Figure 13.

Figure 12. Selecting A CAFS Capable Discharge

D. Touch desired CAFS preset bubble. (All CAFS available discharges are labeled with one of the

following words: DRY, MED, or WET and are located to the left of the widget.) See Figure 13.

Andere Handbücher für SAM

Andere HALE Steuerungssystem Handbücher

HALE

HALE SAM GENERATION 2 Bedienungsanleitung

Beliebte Steuerungssystem Handbücher anderer Marken

Pentair Pool Products

Pentair Pool Products Compool Bedienungsanleitung

ComfortNET

ComfortNET CTK04 Bedienungsanleitung

Fireye

Fireye InSight II 95DSS3 Bedienungsanleitung

CAME

CAME G3000 Bedienungsanleitung

Idemia

Idemia MorphoAccess VP MD Bedienungsanleitung

Axis

Axis P1445-LE-3 Bedienungsanleitung

HEIDENHAIN

HEIDENHAIN TNC 150 B Bedienungsanleitung

CNC-Step

CNC-Step High-Z T-Series Bedienungsanleitung

Doosan

Doosan DVF Series Bedienungsanleitung

Honeywell

Honeywell KAP 140 Bedienungsanleitung

Honeywell

Honeywell vk41 series Bedienungsanleitung

AirBench

AirBench FPW Installationsanleitung

Cypress

Cypress HHR-3160 Bedienungsanleitung

CAME

CAME GLT40AOS Bedienungsanleitung

Zonex

Zonex GEN II -VVT Benutzerhandbuch

Altronics

Altronics K 9650 Bedienungsanleitung

micro-trak

micro-trak RoadMaster Bedienungsanleitung

micro-trak

micro-trak Calc-An-Acre II Bedienungsanleitung
