Hamilton Multi Touch Watch Bedienungsanleitung

User manual

Handbediening

Mode d’emploi

Modalità d’uso

Bedienungsanleitung

Manuel Ham_GB_2e manuel.qnx 1.10.2001 16:22 Page 1

Replacing the battery

Type: Renata CR 1632

Care and maintenance

We recommend that you clean your watch regularly using a soft cloth and lukewarm water.

After bathing in salt water, rinse your watch with fresh water and leave it to dry completely.

Avoid exposing your watch to excessive variations in temperature or humidity, to strong

sunlight or stong magnetic fields.

• Incorrect operation of the pushers = different alarm from the normal beep

• No operation for 30 seconds = automatic deactivation of the glass

• No operation for 3 seconds in setting mode = exit setting mode

Touching action

(without pressing)

Listening / Vision

Additional information

Hand position display

Use:

Beep

Time for pressing on

the pushers

(e. g. 2 seconds)

Repetitive actions

Adjustment:

Important notes

For the best reading of the temperature, remove the watch from your wrist and

wait for approximately 15 to 30 minutes. For more information see the

explanation of the thermometer on page 22.

For correct use of the altimeter, adjust it as often as possible. For more

information see the explanation of the altimeter on page 20.

The barometer function indicates a trend. Hands superposed to the left of

midday = bad weather, at midday = stable weather, to the right of midday = good

weather. For more information, see the explanation of the barometer function

on page 9.

Your watch is waterproof to 30 m. However, no function can be operated if the

glass is in contact with a liquid.

General information on use

•Activate the glass by pressing

•When the glass is activated, a flashing

bar will appear on the digital display

•Select a function by touching the corresponding area on the glass

•Brief presses on the pushers = step by step movement of the hands or incrementation

(decrementation) on the digital display

•Long presses on the pushers = continuous movement or incrementation (decrementation)

Congratulations

Hamilton is happy that you have chosen a timepiece from our prestigious collection. Your

Khaki Field Multi-Touch watch incorporates state-of-the-art technology. It offers permanent

analog display of the time as well as varied digital display. In addition, the following

functions are available by simply touching the glass: barometer, altimeter, chronograph,

compass, alarm and thermometer.

Manuel Ham_GB_2e manuel.qnx 1.10.2001 16:22 Page 2

Activation of the glass

Using pushers and ,

bring the 2 hands precisely to

12 o'clock

Incrementation of the minute

hand (3 steps = 1 minute)

Incrementation of the hour

hand (3 steps = 1 minute)

Validation of the setting

Selecting the "Units" mode

(1) Procedure allowing the digital display to be synchronised

with the hands.

Note: it is not necessary to perform this synchronisation

operation when the digital display and the hands show

the same time.

h-m-s

date

units

(1)

(2)

Activation of the glass

Selecting the display mode

Return to h-m-s mode

(1) The "h-m-s" and "date" modes remain active.

(2) The "units" mode is a temporary setting mode.

(3) This procedure is valid when the glass

is activated for the ALTIMETER, CHRONO,

COMPASS, ALARM, THERMOMETER and BAROMETER functions.

(3)

(1)

h-m-s/date/units

(1)

SYNCHRONISATION DISPLAY MODE

Manuel Ham_GB_2e manuel.qnx 1.10.2001 16:22 Page 4

Activation of the glass

Activation of the setting

Selecting the "h-m-s" mode

(eg. 8 h 34' 20'')

Incrementation or decrementation

by one minute

Validation of the setting,

the seconds restart at zero

Validation of the setting,

the seconds continue normally

(1)

(1) Accuracy: -0.3 to +0.5 seconds / day.

(2) Pressing continuously on or allows

continuous advance of the setting.

After one complete revolution, the minute hand stops

and the hour hand advances in one hour steps.

(2)

+or -1 minute

(1) The calendar is semi-perpetual, that is the number

of days per month is predefined.

For February it is necessary to reset the date when

it is only 28 days.

Activation of the glass

Activation of the setting

Incrementation or decrementation

by one day

Validation of the setting

Selecting the "date" mode

(eg. 5 July)

+or -1 day

(1)

SETTING THE TIME SETTING THE DATE

Manuel Ham_GB_2e manuel.qnx 1.10.2001 16:22 Page 6

Activation of the glass

Activation of the setting

Validation of selections

Selecting the "Units" mode

Selecting "Celsius degree / metre"

or "Fahrenheit degree / foot"

Selecting "12" or "24" hours

(1) For more information, see the explanation of the barometer

function on page 16.

(2) The two hands indicate a tendency while the digital display

gives the absolute pressure in hectoPascal

(1 hectoPascal = 1 millibar).

After 30 seconds, the digital display returns to "h-m-s" mode.

(2)

Activation of the glass

Activation of the barometer function

SELECTING THE UNITS BAROMETER

Indication of the meteorological tendencies (1)

Manuel Ham_GB_2e manuel.qnx 1.10.2001 16:22 Page 8

1110

(1) Resolution: 1/100 of a second

Measuring range: 9 h 59' 59'' and 99/100.

(2) After 30 seconds, the hands display the time again but

the digital display remains in CHRONO mode.

After 10 h, the digital display returns to "h-m-s" mode".

Activation of the glass

Activation of the chronograph

Starting the chronograph

Stopping the chronograph

(eg. 10'' and 34/100)

Resetting the chronograph

(1)

(2)

Precise measurement of a specific duration Precise measurement of a specific duration with intermediate time

Activation of the glass

Activation of the chronograph

Starting the chronograph

Displaying the intermediate time

(eg. 48'' and 15/100)

Restarting the chronograph,

taking into account the running time

Stopping the chronograph

(eg. 2' 54'' and 88/100)

Resetting the chronograph

CHRONO CHRONO (SPLIT)

Manuel Ham_GB_2e manuel.qnx 1.10.2001 16:22 Page 10

1312

Activation of the glass

Activation of the adjustment

of the magnetic deviation

Activation of the compass

function

Setting the magnetic deviation

to the east (+) or west (-)

Validation of the setting (eg. 2°East)

(2)

(1)

(1) The minute hand points to the North. A more accurate

reading is obtained by holding the watch horizontally.

The digital display gives the set magnetic deviation.

After 30 seconds, the digital display returns to "h-m-s"

mode.

(2) For more information, see the explanation of the

magnetic deviation on page 20.

+or -1 degree

(1) When the programmed time is reached,

the alarm can be stopped by pressing one of the pushers.

Activation of the glass

Activation of the alarm function

(eg. 12h19')

Setting the time

Incrementation or decrementation

by one minute

Validation of the setting

Deactivation of the alarm

Activation of the alarm

(1)

+or -1 minute

Compass. Indication of the geographical North

COMPASS ALARM

Manuel Ham_GB_2e manuel.qnx 1.10.2001 16:22 Page 12

1514

(1) The altitude is displayed in metres or feet depending on

the units selection (see "Selecting the units" on page 8).

After 30 seconds, the hands show the time again

but the digital display remains in ALTIMETER mode.

After 10 h, the digital display returns to "h-m-s" mode

(2) The adjustment shows the altimeter setting at the value

of the actual altitude. For more information,

see the explanation of the altimeter on page 20.

Validation of the setting

(2)

Activation of the glass

Adjusting the altitude

Activation of the altimeter function

Incrementation or

decrementation (1 m or 3 ft)

(1)

+or -1 step

(1) To obtain the best reading, it is necessary to remove the watch

from your wrist and wait for approximately 15 to 30 minutes.

For more information, see the explanation of the THERMOMETER

on page 22.

(2) The temperature is displayed in degrees Celsius or in degrees

Fahrenheit depending on the units selected (see "selecting the

units" on page 8).

After 30 seconds, the hands display the time again but the digital

display remains in THERMOMETER mode.

(2)

Activation of the glass

Activation of the THERMOMETER

function

Indication of altitude in relation to sea level Indication of the temperature (1)

ALTIMETER THERMOMETER

Manuel Ham_GB_2e manuel.qnx 1.10.2001 16:22 Page 14

1716

Miscellaneous information

The program on your watch takes into consideration variations in atmospheric pressure

over the previous 8 hours to calculate the trend to be displayed, ensuring greater reliability

and precision than a "mechanical" barometer which only displays an instantaneous trend.

Furthermore, the variation in pressure caused by a rapid change in altitude is detected by

the program and compensated for automatically. It therefore has no influence on the

barometric trend.

Unit conversion: 1 hectoPascal [hPa] = 1 millibar [mb]

Technical data

Measuring range: 300 hPa to 1100 hPa

Accuracy: ±3 hPa

Resolution: 1 hPa

The digital display gives the value of absolute

atmospheric pressure in hectoPascals [hPa].

Barometers and meteorological maps indicate

the value of pressure respect to the sea level.

-1010-: Pressure in hPa

1015

1010

990

995

1000

1005

1010

1015

1020

1010

Stable weather Barometer Khaki Field Multi-Touch

Relative atm pressure Absolute atm pressure

Sea level 1013.25 hPa 1013.25 hPa

1000 m 1013.25 hPa - 900 hPa

2000 m 1013.25 hPa - 780 Pa

(D) : Depression (A) : Anticyclone

BAROMETER

Barometer function, indication of the meteorological trend

Description of the function

In this mode, your watch is transformed into a

BAROMETER. The hands superpose to indicate the

meteorological trend.

Explanations

Changes in weather are linked to variations in atmospheric

pressure.

The watch measures these variations in pressure and

indicates the meteorological trend.

When atmospheric pressure increases, the sky clears. The

hands move to the right.

This is called a "high pressure" zone or "anticyclone" (A).

When atmospheric pressure decreases, the sky clouds over.

The hands move to the left.

The is called a "low pressure" zone or "depression" (D).

The change in pressure is measured and displayed using

the hands which can assume the following 7 positions

depending on the meteorological trend:

-6' : Major drop in pressure, rapid deterioration

-4' : Moderate drop in pressure, probable deterioration

-2' : Minor drop in pressure, probable slight deterioration

12h: No notable meteorological change

+2' :

Minor increase in pressure, probable slight improvement

+4' : Moderate increase in pressure, probable improvement

+6' : Major increase in pressure, rapid improvement

12 2

GLOSSARY GLOSSARY

Manuel Ham_GB_2e manuel.qnx 1.10.2001 16:22 Page 16

1918

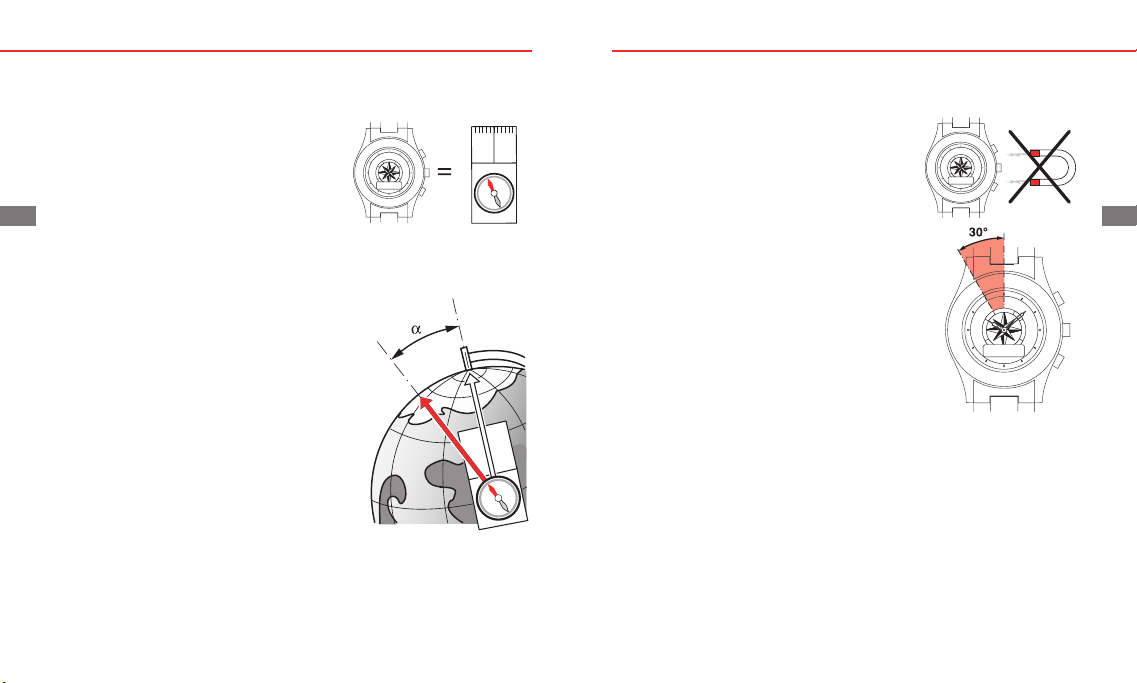

COMPASS

Compass, indication of geographical North

Description of the function

In COMPASS mode, your watchindicates the

geographical north pole, taking the magnetic

deviation into consideration.

Explanations

The vertical lines (meridians) on a globe converge toward

the geographical north pole (Ng) and indicate its direction.

The pointer on a conventional compass indicates the

direction of the magnetic north pole (Nm).

The angle (α) between these two directions is called the

magnetic deviation. The value of the magnetic deviation

therefore depends on your position on the globe.

Furthermore, the magnetic north pole is constantly

changing. The value of the magnetic deviation therefore

also depends on the date.

When the correct value (depending on place and date) of

the magnetic deviation is set (see the adjustment procedure

on page 12), the minute hand on your watch displays the

direction of the geographical North (Ng).

The values and dates of the magnetic deviation are

displayed on topographical maps or can be calculated

using special software.

Miscellaneous information

If you set the magnetic deviation to 0, your Khaki Field

Multi-touch will display the magnetic North (Nm).

The COMPASS function, as any other compass, must not

be used near a metal or magnetic object.

Thanks to its rotating glass, the watch can be oriented in

the same direction as a map. This glass is graded with the

following values:

- 30˚between a cardinal point (N,E,W,S) and the closest

points.

It is very important that you hold the watch as horizontal as

possible to obtain a true indication of North.

Technical data

Accuracy: ±8˚

Resolution: 1˚

GLOSSARY GLOSSARY

Manuel Ham_GB_2e manuel.qnx 1.10.2001 16:22 Page 18

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Hamilton Betrachten Handbücher

Hamilton

Hamilton Khaki GMT Air Race Bedienungsanleitung

Hamilton

Hamilton KHaki X-Wind Bedienungsanleitung

Hamilton

Hamilton Khaki Field Multi-Touch Bedienungsanleitung

Hamilton

Hamilton KHAKI FLIGHT TIMER Bedienungsanleitung

Hamilton

Hamilton KHAKI CHRONO WORLDTIMER Bedienungsanleitung

Hamilton

Hamilton MW028 Bedienungsanleitung

Hamilton

Hamilton 14 Bedienungsanleitung

Hamilton

Hamilton Regatta-alarm Bedienungsanleitung

Hamilton

Hamilton Regatta-alarm Bedienungsanleitung

Hamilton

Hamilton caliber 251.272 Bedienungsanleitung

Hamilton

Hamilton caliber 251.272 Bedienungsanleitung

Hamilton

Hamilton Khaki Navy Regatta Automatic Bedienungsanleitung

Hamilton

Hamilton 26 Bedienungsanleitung

Hamilton

Hamilton KHAKI AVIATION CONVERTER Bedienungsanleitung

Hamilton

Hamilton FACE 2 FACE Ii Bedienungsanleitung

Hamilton

Hamilton Khaki Automatic Frogman Bedienungsanleitung

Hamilton

Hamilton Khaki Aviation Quartz Bedienungsanleitung

Hamilton

Hamilton Khaki Navy Frogman Bedienungsanleitung

Hamilton

Hamilton R12637403 Bedienungsanleitung

Hamilton

Hamilton 280.002 Bedienungsanleitung

Hamilton

Hamilton KHaki X-Wind Bedienungsanleitung

Hamilton

Hamilton AMERICAN CLASSIC PSR Bedienungsanleitung

Hamilton

Hamilton G10.211 Gebrauchsanweisung

Hamilton

Hamilton FACE 2 FACE III LIMITED EDITION Bedienungsanleitung

Beliebte Betrachten Handbücher anderer Marken

Pandora

Pandora WATCH2 Bedienungsanleitung

Casio

Casio QW-4343 Bedienungsanleitung

Suunto

Suunto X6 Bedienungsanleitung

Seiko

Seiko N830 Bedienungsanleitung

MotionX

MotionX 365 Bedienungsanleitung

Garmin

Garmin VENU SQ 2 Bedienungsanleitung

QCY

QCY Watch GTC Bedienungsanleitung

Canyon

Canyon Cindy CNE-KW41WP Bedienungsanleitung

Esq

Esq Watches Installationsanleitung

Crane

Crane AA5-CDSM-3A Bedienungsanleitung

Timex

Timex W-214 Bedienungsanleitung

DETOMASO

DETOMASO MATERA Bedienungsanleitung

Geemarc

Geemarc Watch N Shake Bedienungsanleitung

LORUS

LORUS W590 Bedienungsanleitung

STENLILLE

STENLILLE Actío Bedienungsanleitung

Casio

Casio 5594 Bedienungsanleitung

Sinn

Sinn HUNTER'S WATCH 3. Edition Bedienungsanleitung

Slazenger

Slazenger SLZ800 Bedienungsanleitung
