HAMPTON BAY 133-715 Bedienungsanleitung

Hampton Bay Lifetime Limited Warranty

The retailer warrants the fan motor to be free from defects in workmanship and material

present at time of shipment from the factory for a lifetime after the date of purchase by the

original purchaser. The retailer also warrants that all other fan parts, excluding any glass or

plexiglass blades, to be free from defects in workmanship and material at the time of

shipment from the factory for a period of one year after the date of purchase by the original

purchaser. We agree to correct such defects without charge or at our option replace with a

comparable or superior model if the product is returned to the retailer. To obtain warranty

service, you must present a copy of the receipt as proof of purchase. All costs of removing

and reinstalling the product are your responsibility. Damage to any part such as by accident

or misuse or improper installation or by affixing any accessories, is not covered by this

warranty. Because of varying climatic conditions in the United States this warranty does

not cover any changes in brass finish, including rusting, pitting, corroding, tarnishing or

peeling. Brass finishes of this type give their longest useful life when protected from

varying weather conditions. A certain amount of wobble is normal and should not be

considered a defect. Servicing performed by unauthorized persons shall render the warranty

invalid. There is no other express warranty. The retailer hereby disclaims any and all

warranties, including but not limited to. Those of merchantability and fitness for a

particular purpose to the extent permitted by law. The duration of any implied warranty

which cannot be disclaimed is limited to the time period as specified in the express

warranty. Some states do not allow limitation on how long an implied warranty lasts, so the

above limitation may not apply to you. The retailer shall not be liable for incidental,

consequential, or special damages arising out of or in connection with product use or

performance except as may otherwise be accorded by law. Some states do not allow the

exclusion of incidental or consequential damages, so the above exclusion or limitation may

not apply to you. This warranty gives specific legal rights, and you may also have other

rights which vary from state to state. This warranty supersedes all prior warranties.

Lifetime Limited Warranty

Date Purchased

Store Purchased

Model No.

Serial No.

Vendor No.

UPC

133-715

11289

792145350279

Safety Rules........................................................................................................................................

Unpacking Your Fan .............................................................................................................................

Installing Your Fan ...............................................................................................................................

Installing the Light Kit.........................................................................................................................

Your ............................................................................................................................

Care of Your Fan ................................................................................................................................

Troubleshooting ................................................................................................................................

Specifications ...................................................................................................................................

Operating Fan

10.

11.

13.

14.

15.

Table of Contents

1. To reduce the risk of electric shock, insure electricity has

been turned off at the circuit breaker or fuse box before

beginning.

2. All wiring must be in accordance with the National Electrical

Code and local electrical codes. Electrical installation should

be performed by a qualified licensed electrician.

3. WARNING: To reduce the risk of electrical shock and fire, do

not use this fan with any solid-state fan speed control device.

4. WARNING: To reduce the risk of fire, electric shock, or

personal injury, mount to outlet box marked "Acceptable for

Fan Support of 22.7 kg (50 lbs.) Or Less" and use mounting

screws provided with the outlet box. Most outlet boxes

commonly used for the support of light fixtures are not

acceptable for fan support and may need to be replaced. Due

to the complexity of the installation of this fan, a qualified

licensed electrician is strongly recommended.

7. Avoid placing objects in the path of the blades.

8. Reverse the fan while the motor is on any speeds.

9. To avoid personal injury or damage to the fan and other items,

be cautious when working around or cleaning the fan.

10. Do not use water or detergents when cleaning the fan or fan

blades. A dry dust cloth or lightly dampened cloth will be

suitable for most cleaning.

11. After making electrical connections, spliced conductors

should be turned upward and pushed carefully up into outlet

box. The wires should be spread apart with the grounded

conductor and the equipment-grounding conductor on one

side of the outlet box.

12. Electrical diagrams are reference only. Light kits that are not

packed with the fan must be UL Listed and marked suitable

for use with the model fan you are installing. Switches must

be UL General Use Switches. Refer to the Instructions

packaged with the light kits and switches for proper assembly.

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL

INJURY, MOUNT FAN TO OUTLET BOX MARKED ACCEPTABLE FOR

FAN SUPPORT.

5. The outlet box and support structure must be securely

mounted and capable of reliably supporting a minimum of

50 pounds. Use only UL Listed outlet boxes marked FOR

FAN SUPPORT.

WARNING

TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT BEND THE

BLADE ARMS (ALSO REFERRED TO AS BRACKETS) DURING ASSEMBLY

OR AFTER INSTALLATION. DO NOT INSERT OBJECTS IN THEPATH OF

THE BLADES.

NOTE

READ AND SAVE ALL INSTRUCTIONS!

Unpacking Your Fan

Unpack your fan and check the contents. You should have the following

4. Decorative top coupling

Set of blades (5)

2. Canopy assembly

Ball/downrod assembly

cover

Decorative scroll

6. Decorative bottom coupling cover

7. Fan motor assembly

8. Set of blades arms (5)

9. Top glass shade

10. Light plate

Bottom glass shade

candelabra b

13. 60 Watt intermediate base bulb

14. Transmitter+holder+2 mounting screws

15. Balancing kit

11.

12. 15W ulbs (4)

16. Loose parts bag containing:

a. Blade attachment hardware

b. Mounting hardware

( 3 plastic wire connectors)

(16 screws, 16 fiber washers )

. Decorative scroll mounting hardware

( 9 screws)

WARNING

DO NOT INSTALL OR USE FAN

IF ANY PART IS DAMAGED OR MISSING.

CALL TOLL FREE 877-898-1881

3. Installing Your Fan

Tools Required

Phillips screwdriver, straight slot

screwdriver, adjustable wrench, step

ladder, and wire cutters.

Mounting Options

Heavy duty ceiling fan rated outlet box is

required (at least 50 lbs). Do not use

regular outlet box (metal or plastic).

Figure 1,2 and 3 are examples of

different ways to mount the outlet box.

Note: You may need a longer downrod to

maintain proper blade clearance when

installing on a steep, sloped ceiling.

Heavy duty fan brace

Provide strong support

Recessed

outlet box

Mounting bracket

opening must be

toward the top

Figure 3

Figure 2

Heavy duty

outlet box for fan

Heavy duty

outlet box for fan

Figure 1

Angled ceiling

maximum

25 angle

Installing the Decorative

Scroll Assembly

For packaging purpose, the decorative

scroll is packed disassembled, proceed

the following steps for proper decorative

scroll assembly:

Step 1 Secure the decorative scroll to the

coupling with two screws provided, repeat

the procedure with the remaining

decorative scrolls. (Figure 4)

Step. 2 Remove the screw from the

bottom of coupling, installing the

decorative coupling bottom cover onto the

coupling and securing with the screw

provided. (Figure 4)

Installing the Downrod

Step 1. Remove the hanger pin, locking

pin and set screws from the coupling that

located on the top of decorative scroll.

Step 2. Route the wires and safety cable

exiting from the decorative scroll through

the upper coupling cover, canopy cover.

Route the wires and safety cable through

the canopy and then through the

ball/downrod assembly (Figure 5).

Disassembling the canopy kit before

proceeding Step 2, see "Hanging the fan"

step 1, 2 and 3.

Step 3 Align the holes at the bottom of the

downrod with the holes in the coupling on

the top of the decorative scroll ( Figure 5 ).

Carefully insert the hanger pin through

the holes in the coupling and downrod, be

careful not to jam the pin against the

wiring inside the downrod. Insert the

locking pin through the hole in locked

position. Figure 5.

WARNING

FAILURE TO PROPERLY INSTALL

LOCKING PIN AS NOTED IN STEP 3

COULD RESULT IN FAN LOOSENING

AND POSSIBLY FALLING.

Figure 4

Screws

Decorative

scroll

Decorative

coupling

bottom

cover

Coupling

Figure 5

Canopy cover

Wires & Cable

Ball/downrod

assembly Ceiling

canopy

Locking pin

Tighten screws

firmly

Top coupling

cover

Secured pin

Coupling

Step 4 tighten two set screws firmly on the

coupling located at top of the decorative

scroll. Slip the upper coupling cover onto

the coupling, The decorative scroll

assembly is now completed.

Attaching the Fan

Motor Assembly

Step 1. Hold the fan motor assembly

under the decorative scroll assembly for

installation. (Figure 6)

Step 2. Remove the screws and secured

pin from the decorative scroll assembly,

place the decorative scroll in the top

plate of motor assembly, align the screw

holes at the bottom of decorative scroll

with holes in the top plate of fan motor

assembly and then secure with the two

screws and secured pin provided (Figure

6), Repeat the procedure for the

remaining decorative scrolls.

NOTE: Make sure the three rods are

evenly set on the plate of the motor

assembly.

Step 3. Snap together the wire

connection plug from decorative scroll

assembly and fan motor assembly.

(Figure 6)

Step 4. Remove the nut and washers

from the top plate of motor assembly and

then place the looped end of the safety

cable from the decorative scroll between

the two washers and secure with nut

provided. (Figure 6)

Figure 6

Secured pin

Locking pin

Screws and washers

Decorative

scroll

Connector Washer

Nut

Safety cable

Figure 7

Figure 9

Hanger

bracket Safety cable

Screws provided

by the outlet box

Hook

UL Listed

electrial

box

Figure 8

AC Wires

Washers

Hanger

bracket

Ceiling

mounting

plate

Ceiling

canopy

Canopy

cover

Hanging the Fan

REMEMBER to turn off the power. Follow the

steps below to hang your fan properly:

Step 1. Remove the decorative canopy bottom

cover from the canopy by turning the cover counter

clockwise. (Fig.7)

Step 2. Remove the hanger bracket from the

canopy by loosening the two screws on the bottom

of the hanging bracket a half turn from the screw

head and turning the canopy counter clockwise.

(Figure 7)

Step 3. Install the hanger bracket to the outlet box;

be sure to align the holes in the hanger bracket

with the post holes in the outlet box and secure

with screws and washers provided by the outlet box.

Step 4. Hanging the assembled fan onto the

mounting bracket, place the downrod ball into the

mounting bracket. Rotate fan until the slot of the

downrod ball locks into the tab of the mounting

bracket. (Figure 9)

Step 5. Secure the safety cable to the building

structure as shown in Fig. 9

Step 6. Connecting the wires (see making the

electrical connections)

Posts in the

outlet box

Making the Electrical

Connections

Remember to disconnect the power.

Follow the stepsbelow to connect thefan to your

household wiring. Use the wire connecting nuts

supplied with your fan. Secure the connectors

with electrical tape. Make sure there are no

loose strands or connections.

Step 1 Connect the fan supply (black) wire to

the black household supply wire as shown in

Figure 10.

Step 2. Connect the neutral fan (white) wire to

the white neutral householdwire.

Step 3 Connect the fan ground wire (green) to

the household ground wire.

Step 4 After connecting the wires, spread them

apart so that the green and white wires are on

one side of theoutlet box and theblack wires are

on the other side.

Step 5 Turn the connecting nuts upward and

push the wiring intothe outlet box.

SUPPLYCIRCUIT

Ground

Conductor

Outlet Box

Green

Ground

Lead

Ground to

Downrod

BLACK

WHITEWHITE

BLACK

GREEN

Figure 10

Finishing the

Installation

Step 1. Tuck connections neatly into ceiling

outlet box.

Step 2. Slide the canopy up to ceiling and

over the 2 screws on hanger bracket. Rotate

canopy clockwise, next, while holding the

canopy with one hand, slide the canopy

cover over the screws and rotate clockwise

until tight. Note: adjust the canopy screws

as necessary until the canopy and canopy

cover are snug. (Fig. 11)

Figure 11

Outlet box

Hanger

bracket

Canopy

cover

Screws

WARNING

Make sure the notch on the hanging

bracket properly sits in the groove in the

hanger ball before attaching the canopy to

the bracket by turning the housing until it

drops into place.

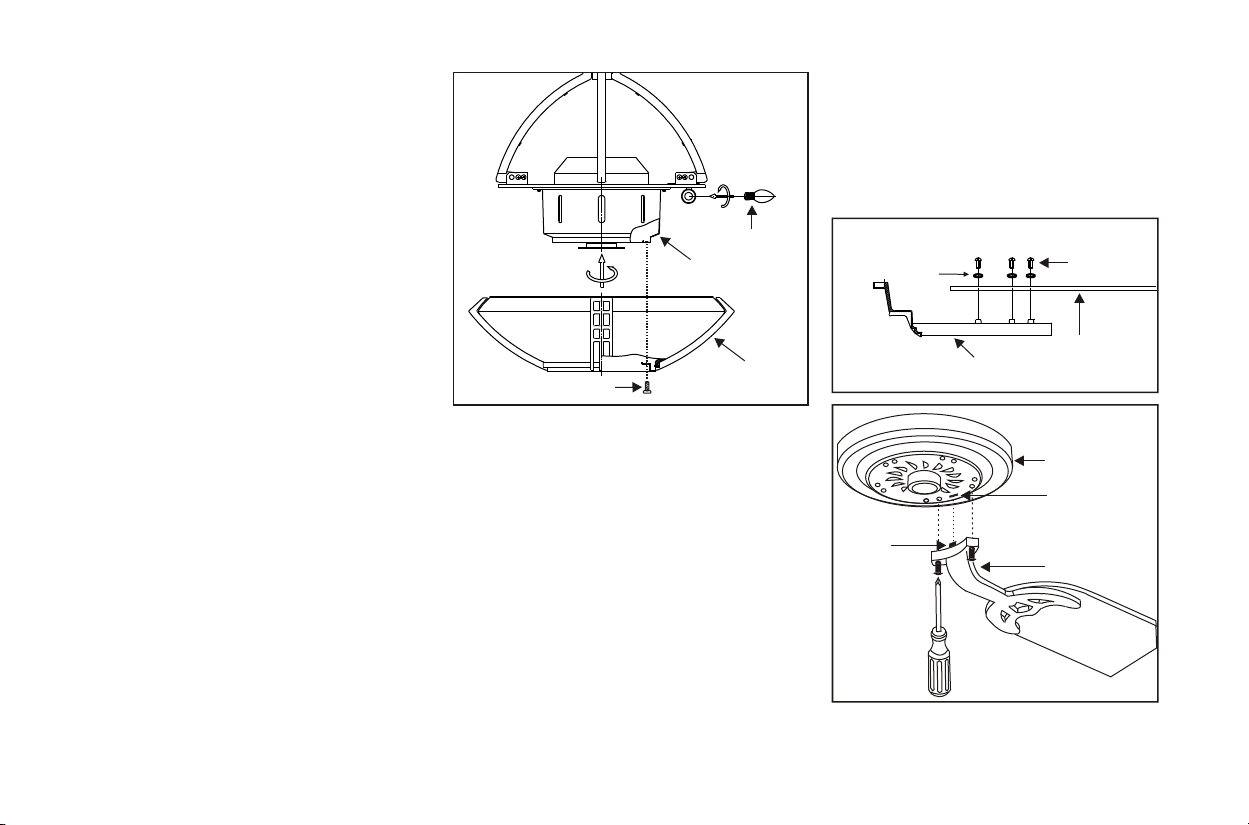

Attaching the Top Glass

Housing

Remember to disconnect the power.

Step 1. Install the light bulbs (15W,

120VAC candelabra base included). Figure

12.

Step 2. Remove 1 of the 4 screws from the

glass housing and keep it for future use.

Loosen the other 3 screws. (Do not remove).

Hold up the top glass housing to ceiling fan

assembly. Get through the three screws on

glass housing into the three key holes in

the motor assembly plate, twist clockwise

to set glass housing firmly with motor fan

assembly. Secure by tightening the 3

screws previously loosened and the one

previously removed.

Figure 12

Top glass

housing

Screws

Motor

15W light bulbs

Step 3 Fasten the blade arms to the

motor by inserting the tab from the

blade arms to the slot in the bottom

motor housing, then tighten the two

screws and washers already installed

in the blade arms. (Figure 14)

Attaching the Fan

Blades

Step 1 Attach blades to blade arms using

three screws and fiber washers as shown

in Figure 13. Start a screw into the arm,

do not tighten. Repeat for the 2 remaining

screws and washers.

Step 2 Tighten each screw securely

starting with the center screw. Make sure

the blade is straight.

Fiber

washers

Figure 13

Blade

Screws

Blade bracket

Motor

Blade arm

Slot

Tab

Figure 14

Inhaltsverzeichnis

Andere HAMPTON BAY Lüfter Handbücher

HAMPTON BAY

HAMPTON BAY Lindbrook YG336-BN Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY CALTRIS AK382HG-MBK Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY 670-787 Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY CARROLTON II Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY 286-780 Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY HAWKINS YG204-BN Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY WDF9-2 Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY 593-543 AL958-ORB Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY Moonlight Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY Renwick Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY CARROLTON II AM215-ORB Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY TITAN 52 Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY HAVANA Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY 68" Enchantment Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY Windward II 523 342 Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY BPT18-34A-5 Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY Vasner 529-751 Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY LDS-BF3001 Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY 52-RMG Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY Gazebo II Plus Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY Eastridge 640-659 Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY 178 128 Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY Lynwood Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY YG763-BN Bedienungsanleitung

Beliebte Lüfter Handbücher anderer Marken

ELTA FANS

ELTA FANS H03VV-F Bedienungsanleitung

Hunter

Hunter 20714 Gebrauchsanweisung

Emerson

Emerson CARRERA VERANDA CF542ORB00 Bedienungsanleitung

Hunter

Hunter Caraway Gebrauchsanweisung

Panasonic

Panasonic FV-15NLFS1 Bedienungsanleitung

Kompernass

Kompernass KH 1150 Bedienungsanleitung

VES

VES FALA100/12V/TR Bedienungsanleitung

Vertiv

Vertiv Liebert DCD Bedienungsanleitung

Westinghouse

Westinghouse GFP Series Bedienungsanleitung

Venmar

Venmar KUBIX HRV PLUS Series Bedienungsanleitung

Maico

Maico ECR 31 Bedienungsanleitung

Sonnenkonig

Sonnenkonig Dinky Bedienungsanleitung

S&P

S&P ECOWATT HXBR Bedienungsanleitung

Wider

Wider IMP03369BH Bedienungsanleitung

Panasonic

Panasonic F-60DHN Bedienungsanleitung

Hinkley

Hinkley HIGHLAND Bedienungsanleitung

Broan

Broan 766BN Bedienungsanleitung

Premium

Premium PFS16022 Montageanleitung
