Casselberry

52 in Ceiling Fan

Owner’s Manual

Casselberry

Ventilador de Techo de 1,32 m

Manual del Propietario

296 065

Casselberry by Hampton Bay

Table of Contents

Safety Rules . . . . . . . . . . . . . . . . . . . . 1

Unpacking Your Fan . . . . . . . . . . . . . . 2

Installing Your Fan . . . . . . . . . . . . . . . 3

Installing the Light Kit. . . . . . . . . . . . . 9

Operating Your Transmitter . . . . . . . . . . . 11

Care of Your Fan . . . . . . . . . . . . . . . . 13

Troubleshooting . . . . . . . . . . . . . . . . . 13

Specifications . . . . . . . . . . . . . . . . . . 14

Warranty Information . . . . . . . . . . . . 15

52” Casselberry

Ceiling Fan by Hampton Bay

Date Purchased

Store Purchased

UL Model No.

Serial No.

Vendor No.

UPC

Thank you for purchasing our ceiling fan. This product has been

manufactured with the highest standards of safety and quality.

296-065

718212149300

445993

Safety Rules - Read and Save These Instructions

To reduce the risk of electric shock, insure electricity has been turned off

at the circuit breaker or fuse box before beginning.

All wiring must be in accordance with the National Electrical Code

“ANSI/NFPA 70-1999” and local electrical codes. Electrical installation

should be performed by a qualified licensed electrician.

WARNING: To reduce the risk of electrical shock or fire, do not use this

fan with any solid-state fan speed control device. It will permanently

damage the electronic circuitry.

CAUTION: To reduce the risk of personal injury, use only the screws

provided with the outlet box.

The outlet box and support structure must be securely mounted and

capable of reliably supporting a minimum of 35 pounds. Use only UL

Listed outlet boxes marked “FOR FAN SUPPORT”.

The fan must be mounted with a minimum of 7 feet clearance from the

trailing edge of the blades to the floor.

Avoid placing objects in path of the blades.

To avoid personal injury or damage to the fan and other items, be

cautious when working around or cleaning the fan.

Do not use water or detergents when cleaning the fan or fan blades. A dry

dust cloth or lightly dampened cloth will be suitable for most cleaning.

After making electrical connections, spliced conductors should be turned

upward and pushed carefully up into outlet box. The wires should be

spread apart with the grounded conductor and the equipment-grounding

conductor on one side of the outlet box and ungrounded conductor on the

other side of the outlet box.

All set screws must be checked and retightened where necessary before

installation.

10.

11.

WARNING

TO REDUCE THE RISK OF PERSONALL INJURY, DO NOT BEND THE

BLADE HOLDERS (ALSO REFERRED TO AS FLANGES), WHEN

INSTALLING THE BRACKETS, BALANCING THE BLADES OR

CLEANING THE FAN. DO NOT INSERT FOREIGN OBJECTS IN–

BETWEEN ROTATING FAN BLADES.

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL

INJURY, MOUNT FAN TO OUTLET BOX MARKED ACCEPTABLE

FOR FAN SUPPORT WITH THE SCREWS PROVIDED WITH THE

OUTLET BOX.

ATTENTION

FAN INCLUDES A 190W LIMITER TO COMPLY WITH THE

DEPARTMENT OF ENERGY 2009 REGULATION. LAMPING THIS

PRODUCT OVER 190W WILL CAUSE THIS FAN TO NOT LIGHT.

PLEASE USE BULBS WITH A TOTAL WATTAGE UNDER THE 190W

REGULATION.

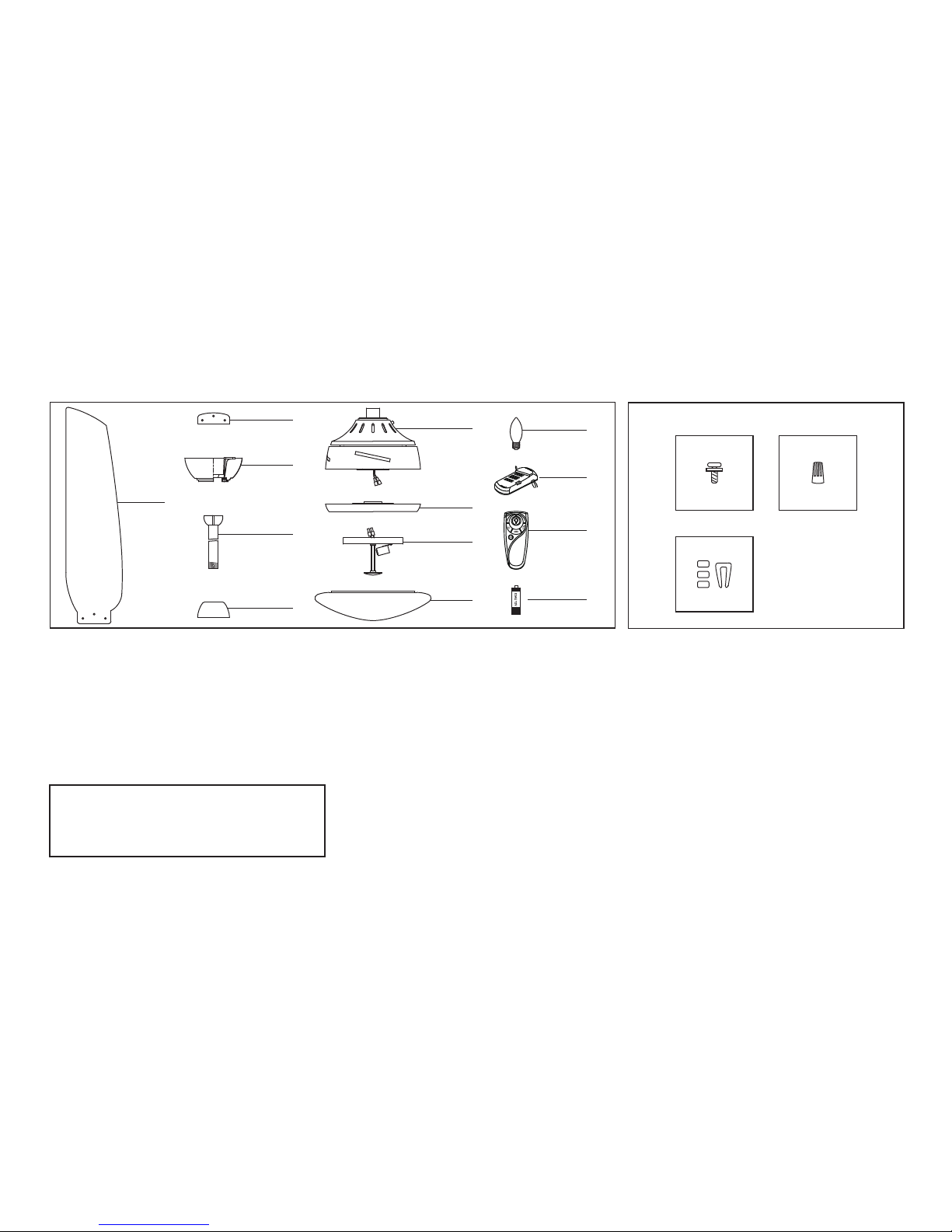

Unpacking Your Fan Unpack your fan and check the contents. You should have the following items:

Set of blades (4)

Blade support plates (4)

Canopy assembly

Ball/downrod assembly

Coupling cover

Fan motor assembly

Mounting plate

Light kit

Glass shade

40W candelabra bulbs (3)

Receiver + 6 wire nuts

Transmitter+holder+2 mounting screws

12V MN21/A23 battery

10.

11.

12.

13.

Blade Attachment Hardware

3/16"×12.3 mm Screws with Fiber

Washers (13PCs.)

Electrical Hardware

Plastic Wire Nuts (3PCs.)

Balancing Kit

WARNING

DO NOT INSTALL OR USE FAN IF ANY

PART IS DAMAGED OR MISSING.

CALL TOLL FREE 1-800-527-0998.

610

Installing Your Fan

Figures 1~3 are examples of different ways to

mount the outlet box.

If there isn't an existing UL listed mounting box,

then read the following instructions. Disconnect

the power by removing fuses or turning off circuit

breakers.

Secure the outlet box directly to the building

structure. Use appropriate fasteners and building

materials. The outlet box and its support must be

able to fully support the moving weight of the fan

(at least 35 lbs). Do not use plastic outlet boxes.

Tools Required

Mounting Options

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC

SHOCK OR PERSONAL INJURY, MOUNT FAN

ONLY TO AN OULET BOX MARKED ACCEPT-

ABLE FOR FAN SUPPORT AND USE THE

MOUNTING SCREWS PROVIDED WITH THE

OULET BOX. OUTLET BOX COMMONLY USED

FOR THE SUPPORT OF LIGHTING FIXTURE

MAY NOT BE ACCEPTABLE FOR FAN SUPPORT

AND MAY NEED TO BE REPLACED. CONSULT A

QUALIFIED ELECTRICIAN IF IN DOUBT.

Outlet Box

Figure 2

Figure 1

Note: You may need a longer downrod to

maintain proper blade clearance when installing

on a steep, sloped ceiling. The maximum angle

allowable is 18°. If the canopy touches downrod,

remove the decorative canopy bottom cover and

turn the canopy 180°before attaching the canopy

to the mounting plate.

To hang your fan where there is an existing fixture

but no ceiling joist, you may need an installation

hanger bar as shown in Figure 4 (available at any

Home Depot store).

Ceiling

Mounting

Plate

Provide Strong

Support

Recessed

Outlet Box

Figure 3

Figure 4

Phillips screwdriver, straight slot screwdriver, step

ladder and wire cutters.

REMEMBER to turn off the power. Follow the

steps below to hang your fan properly.

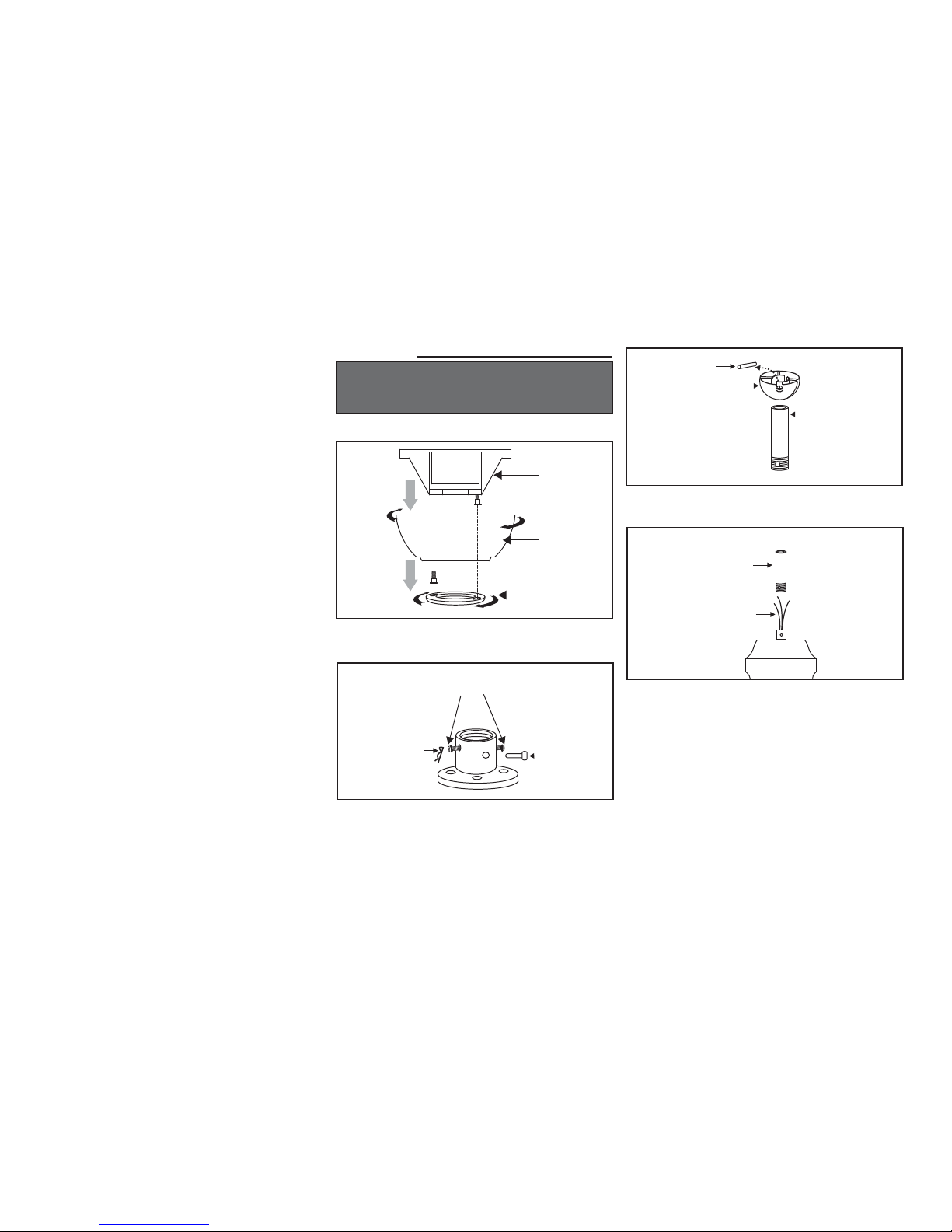

Hanging the Fan WARNING

FAILURE TO PROPERLY INSTALL COTTER PIN

AS NOTED IN STEP 5 COULD RESULT IN FAN

LOOSENING AND POSSIBLY FALLING.

Hanger Bracket

Ceiling Canopy

Canopy Cover

Figure 5

Figure 6

Figure 7

Figure 8

Downrod

Set Screws

Clevis Pin

Cotter Pin

Cross pin

Hanger ball

Downrod

Motor Wires

Remove the canopy cover from the canopy by

turning the cover counter clockwise. (Figure 5)

Remove the hanger bracket from the canopy by

removing the 1 of 2 screws from the bottom of

the hanger bracket and loosening the other one

a half turn from the screw head. Next, turn the

canopy counter clockwise to removing the

hanger bracket from the canopy. (Figure 5)

Remove the clevis pin, cotter pin and set

screws from the top of the motor assembly.

(Figure 6)

Remove hanger ball from downrod assembly

by loosening set screw, removing the cross pin,

and sliding ball off rod. (Figure 7)

Carefully feed motor wires up through the

downrod. Thread the rod into the coupling.

Next line up holes and replace cotter pin and

clevis pin. Tighten set screws. (Figure 8)

Installing Fan to

the Electrical Box

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC

SHOCK OR OTHER PERSONAL INJURY.

MOUNT FAN ONLY TO AN OUTLET BOX OR

SUPPORTING SYSTEM MARKED ACCEPTABLE

FOR FAN SUPPORT AND USE THE MOUNTING

SCREWS PROVIDED WITH THE OUTLET BOX.

Pass the 120-volt supply wires through the

center hole in the hanger bracket as shown in

Figure 10.

Install the hanger bracket on the outlet box

with the screws and washers provided with

your outlet box. (Figure 10)

Security tighten the two mounting screws.

(Figure 10)

Carefully lift the fan assembly up to the hanger

bracket and seat the hanger ball in the hanger

bracket socket. Make sure the tab on the hanger

bracket socket is properly seated in the groove

in the hanger ball (Figure 11). This will help to

balance the ceiling fan.

Slip coupling cover, canopy cover and canopy

onto downrod. Carefully reinstall hanger ball

onto rod being sure that cross pin is in correct

position, set screws are tighten and wires are not

twisted. (Figure 9)

Figure 10

UL Listed Outlet Box

Hanger Bracket

120V

Wires

Mounting

Screws (Supplied

with Electrical Box)

Tab

WARNING

THE TAB IN THE RING MUST REST IN THE

GROOVE OF THE HANGER BALL AS FIGURE 8.

FAILURE TO PROPERLY SEAT THE TAB IN THE

GROOVE COULD CAUSE DAMAGE TO WIRING.

Figure 11

Groove

Tab

Figure 9

Motor Wires

Ceiling Canopy

Canopy Bottom

Cover Tighten Screw

Firmly

Ball/Downrod

Assembly

Coupling Cover

Clevis Pin Cotter Pin

Pin in Locked

Positioon

Making the Electrical

Connections

WARNING

TO AVOID POSSIBLE ELECTRICAL SHOCK, BE

SURE ELECTRICITY IS TURNED OFF AT THE

MAIN FUSE BOX BEFORE WIRING.

If you feel you do not have enough electrical

wiring knowledge or experience, have your fan

installed by a licensed electrician.

This remote control unit is equipped with 16 code

combinations to prevent possible interference

from or to other remote units. The frequency

switches on your receiver and transmitter have

been preset at the factory. Please recheck to make

sure the switches on the transmitter and the

receiver are set to the same position, any

combination of settings will operate the fan as

long as the transmitter and receiver are set to the

same position. (Figure 12).

Insert the receiver into the hanger bracket with

the flat side of the receiver facing the ceiling as

Figure 13.

receiver. Secure the wire connections with the

plastic wire connecting nuts provided.

(Figure 14) Receiver to house supply wires

electrical connections: Connect the black (hot)

wire from the ceiling to the black wire marked

"AC in L" from he receiver. Connect the white

(neutral) wire from the ceiling to the white wire

marked "AC in N" from the receiver. Secure

the wire connections with the plastic wire

connecting nuts provided.

(Figure 14) If your outlet box has a ground

wire (green or bare copper) connect it to the fan

ground wires; otherwise connect the hanger

bracket ground wire to the hanger bracket.

Secure the wire connection with a plastic nut

provided. After connecting the wires spread

them apart so that the green and white wires are

on one side of the outlet box and black and blue

wires are on the other side. Carefully tuck the

wire connections up into the outlet box.

(Fig. 14) Motor to receiver electrical

connections: Connect the black wire from the

fan to black wire marked "TO MOTOR L".

Connect the white wire from the fan to the

white wire marked "TO MOTOR N" from the

receiver. Connect the blue wire from the fan to

the blue wire marked "For Light" from the

Figure 13

Receiver

Hanger

Bracket

Figure 12

Frequency Switch

CAUTION

DO NOT USE WITH WALL LIGHT DIMMER

SWITCH.

NOTE

FAN MUST BE INSTALLED AT A MAXIMUM

DISTANCE OF 40 FEET FROM THE TRANSMIT-

TING UNIT FOR PROPER SIGNAL TRANSMIS-

SION BETWEEN THE TRANSMITTING UNIT

AND THE FAN'S RECEIVING UNIT.

WARNING

MAKE SURE THE TAB ON THE HANGING

BRACKET PROPERLY SITS IN THE GROOVE IN

THE HANGER BALL BEFORE ATTACHING THE

CANOPY TO THE BRACKET BY TURNING THE

HOUSING UNTIL IT DROPS INTO PLACE.

Tuck connections neatly into ceiling outlet

box.

Slide the canopy up to hanger bracket and

place the key hole on the canopy over the

screw on the hanger bracket, turn canopy until

it locks in place at the narrow section of the key

holes. (Fig. 15)

Align the circular hole on canopy with the

remaining hole on the hanger bracket, secure

by tightening the two set screws. Note: Adjust

the canopy screws as necessary until the

canopy and canopy cover are snug.

Finishing the Fan

Installation

WARNING

CHECK TO SEE THAT ALL CONNECTIONS ARE

TIGHT, INCLUDING GROUND, AND THAT NO

BARE WIRE IS VISIBLE AT THE WIRE NUTS.

EXCEPT FOR THE GROUND WIRE.

Figure 15

Outlet Box

Hanger

Bracket

Screw

Canopy

Bottom Cover

ELECTRICAL DIAGRAMS ARE FOR

REFERENCE ONLY. OPTIONAL USE OF ANY

LIGHT KIT SHALL BE UL LISTED AND

MARKED SUITABLE FOR USE WITH THIS FAN.

WARNING

Figure 14

SUPPLY CIRCUIT

WHITE

BLACK

BLUE

Ground

Conductor

Outlet Box

Green

Ground

Lead

GREEN

Ground to

Downrod

BLACK BLACK

BLUE

WHITE

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere HAMPTON BAY Lüfter Handbücher

HAMPTON BAY

HAMPTON BAY Metarie 795-970 Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY 394-443 Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY 91126 Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY Moonlight Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY ALTURA 68-INCH CEILING FAN Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY PORTSMOUTH 51355 Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY Principle Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY HALWIN AK396H-BN Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY 52" Huntington III Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY SW18030 BN Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY Home Depot SKU 110348 Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY ROANOKE YG216-MWH Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY 80213 Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY San Lorenzo Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY 344-476 Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY Marlston N375B-BN Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY AM214LED-WH Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY CAPRICE SW19151R MWH Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY STONERIDGE EF600K-52 Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY Lonestar 52 Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY AG524-ORB Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY 44 in Hawkins Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY Dawson 581 645 Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY EASTVALE Bedienungsanleitung

Beliebte Lüfter Handbücher anderer Marken

ELTA FANS

ELTA FANS H03VV-F Bedienungsanleitung

Hunter

Hunter 20714 Gebrauchsanweisung

Emerson

Emerson CARRERA VERANDA CF542ORB00 Bedienungsanleitung

Hunter

Hunter Caraway Gebrauchsanweisung

Panasonic

Panasonic FV-15NLFS1 Bedienungsanleitung

Kompernass

Kompernass KH 1150 Bedienungsanleitung

VES

VES FALA100/12V/TR Bedienungsanleitung

Vertiv

Vertiv Liebert DCD Bedienungsanleitung

Westinghouse

Westinghouse GFP Series Bedienungsanleitung

Venmar

Venmar KUBIX HRV PLUS Series Bedienungsanleitung

Maico

Maico ECR 31 Bedienungsanleitung

Sonnenkonig

Sonnenkonig Dinky Bedienungsanleitung

S&P

S&P ECOWATT HXBR Bedienungsanleitung

Wider

Wider IMP03369BH Bedienungsanleitung

Panasonic

Panasonic F-60DHN Bedienungsanleitung

Hinkley

Hinkley HIGHLAND Bedienungsanleitung

Broan

Broan 766BN Bedienungsanleitung

Premium

Premium PFS16022 Montageanleitung
