Hampton Bay®

Transitional Collection

Babiberre

36" Ceiling Fan

Owner’s Manual

Babiberre

Ventilador de Techo de 36"

Manual del Propietario

116-663

792145352013

Date Purchased

Store Purchased

Model No.

Serial No.

Vendor No.

UPC

Hampton Bay Lifetime Limited Warranty

The retailer warrants the fan motor to be free from defects in workmanship and material

present at time of shipment from the factory for a lifetime after the date of purchase by the

original purchaser. The retailer also warrants that all other fan parts, excluding any glass or

plexiglass blades, to be free from defects in workmanship and material at the time of

shipment from the factory for a period of one year after the date of purchase by the original

purchaser. We agree to correct such defects without charge or at our option replace with a

comparable or superior model if the product is returned to the retailer. To obtain warranty

service, you must present a copy of the receipt as proof of purchase. All costs of removing

and reinstalling the product are your responsibility. Damage to any part such as by accident

or misuse or improper installation or by affixing any accessories, is not covered by this

warranty. Because of varying climatic conditions in the United States this warranty does

not cover any changes in brass finish, including rusting, pitting, corroding, tarnishing or

peeling. Brass finishes of this type give their longest useful life when protected from

varying weather conditions. A certain amount of wobble is normal and should not be

considered a defect. Servicing performed by unauthorized persons shall render the warranty

invalid. There is no other express warranty. The retailer hereby disclaims any and all

warranties, including but not limited to. Those of merchantability and fitness for a

particular purpose to the extent permitted by law. The duration of any implied warranty

which cannot be disclaimed is limited to the time period as specified in the express

warranty. Some states do not allow limitation on how long an implied warranty lasts, so the

above limitation may not apply to you. The retailer shall not be liable for incidental,

consequential, or special damages arising out of or in connection with product use or

performance except as may otherwise be accorded by law. Some states do not allow the

exclusion of incidental or consequential damages, so the above exclusion or limitation may

not apply to you. This warranty gives specific legal rights, and you may also have other

rights which vary from state to state. This warranty supersedes all prior warranties.

Lifetime Limited Warranty

11289

Table of Contents

Safety Rules........................................................................................................................................

Unpacking Your Fan .............................................................................................................................

Installing Your Fan ...............................................................................................................................

...............................................................................................................................

Care of Your Fan .................................................................................................................................

Troubleshooting ..................................................................................................................................

Specifications ...................................................................................................................................

Operating Your Fan

10.

1. Safety Rules

1.To reduce the risk of electric shock, insure electricity has been

turned off at the circuit breaker or fuse box before beginning.

2. All wiring must be in accordance with the National Electrical

Code and local electrical codes. Electrical installation should be

performed by a qualified licensed electrician.

3. WARNING: To reduce the risk of electrical shock and fire, do not

use this fan with any solid-state fan speed control device.

4. WARNING: To reduce the risk of personal injury, use only the two

steel screws (and lock washers) provided with the outlet box for

mounting to the outlet box. Most outlet boxes commonly used for

the support of lighting fixtures are not acceptable for fan support

and may need to be replaced, consult a qualified electrician if in

doubt.

8. Avoid placing objects in the path of the blades.

9. To avoid personal injury or damage to the fan and other items, be

cautious when working around or cleaning the fan.

10. Do not use water or detergents when cleaning the fan or fan

blades. A dry dust cloth or lightly dampened cloth will be

suitable for most cleaning.

11. After making electrical connections, spliced conductors should

be turned upward and pushed carefully up into the outlet box.

The wires should be spread apart with the grounded conductor

and the equipment-grounding conductor on one side of the outlet

box.

12. Electrical diagrams are for reference only. Light kits that are not

packed with the fan must be UL Listed and marked suitable for

use with the model fan you are installing. Switches must be UL

General Use Switches. Refer to the Instructions packaged with

the light kits and switches for proper assembly.

WARNING

TO REDUCE THE RISK OF FIRE,ELECTRIC SHOCK OR PERSONAL

INJURY, MOUNT FAN TO OUTLET BOX MARKED ACCEPTABLE FOR

FAN SUPPORT.

5. The outlet box and support structure must be securely mounted

and capable of reliably supporting a minimum of 50 pounds. Use

only UL Listed outlet boxes marked FOR FAN SUPPORT.

6. The fan must be mounted with a minimum of 7 feet clearance

from the trailing edge of the blades to the floor.

7. Do not operate the reverse switch while the fan blades are in

motion. The fan must be turned off and the blades stopped before

reversing the blades direction.

WARNING

TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT BEND THE

BLADE ARMS (ALSO REFERRED TO AS BRACKETS) DURING ASSEMBLY

OR AFTER INSTALLATION. DO NOT INSERT OBJECTS IN THE PATH OF

THE BLADES.

NOTE

READ AND SAVE ALL INSTRUCTIONS!

Unpack your fan and check the contents. You should have the following items;

1. Fan blades (5)

2. Canopy assembly

4. Coupling cover

Ball/downrod assembly

5. Fan motor assembly

6. Blade arms (5)

8. Balancing kit

Pull chain and fob

9. Loose parts bag containing:

a. Blade attachment hardware

()

b. Mounting hardware

( 3 plastic wire connectors)

16 screws

WARNING

DO NOT INSTALL OR USE FAN

IF ANY PART IS DAMAGED OR MISSING.

CALL TOLL FREE 1-877-898-1881 Unpacking Your Fan 2.

Tools Required

Phillips screwdriver, straight slot

screwdriver, adjustable wrench, step

ladder, and wire cutters.

Mounting Options

If there isn't an existing UL listed

mounting box, then read the following

instructions. Disconnect the power by

removing fuses or turning off circuit

breakers.

Secure the outlet box directly to the

building structure. Use appropriate

fasteners and building materials. The

outlet box and its support must be able

to fully support the moving weight of the

fan (at least 50 lbs). Do not use plastic

outlet boxes.

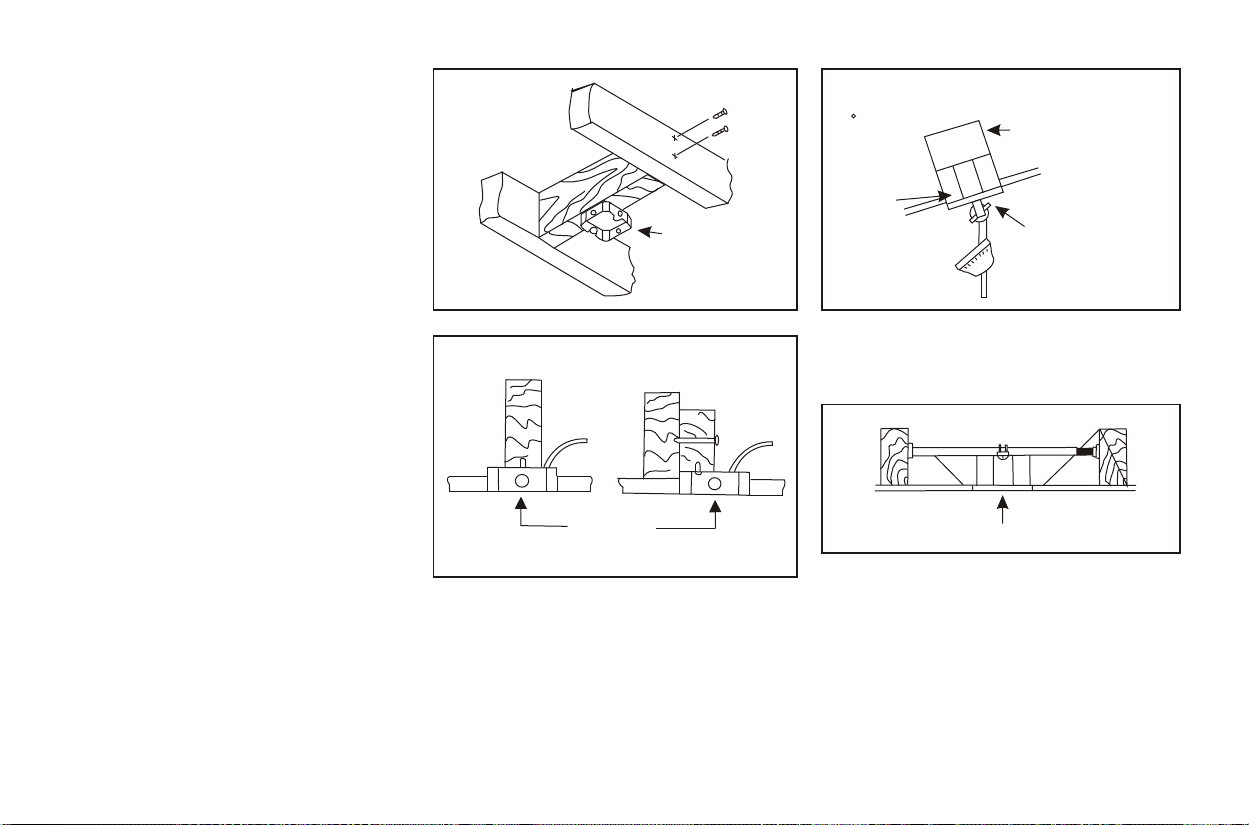

Figures 1,2 and 3 are examples of

different ways to mount the outlet box.

Note: You may need a longer downrod to

maintain proper blade clearance when

installing on a steep, sloped ceiling.

To hang your fan where there is an existing

fixture but no ceiling joist, you may need

an installation hanger bar.(Fig.3)

(available at any Home Depot store).

Outlet box

Outletbox

Figure 1

Figure 2

Figure 4

3. Installing Your Fan

Provide strong support

Recessed

outlet box

Mounting bracket

opening must be

toward the top

Figure 3

Angled ceiling

maximum

18 angle

WARNING

FAILURE TOPROPERLY INSTALL LOCKING PIN AS

NOTED IN STEP 7 COULD RESULT IN FAN

LOOSENING AND POSSIBLY FALLING.

Step 8. Tighten two set screws on top of the

fan motor firmly (Fig. 7)

Step 9. Place the downrod ball into the

hanger bracket socket. Rotate the downrod

ball until the groove of the downrod ball

lines up with the hook of the hanger bracket.

(This will help balance the fan.)

Step 7. Align the holes at the bottom of the

downrod with the holes in the collar on top

of the motor housing (Fig.7). Carefully

insert the hanger pin through the holes in

the collar and downrod. Be careful not to

jam the pin against the wiring inside the

downrod. Insert the locking pin through the

hole near the end of the hanger pin until it

snaps into its locked position, as noted in

the circle inset of Fig. 7. Mounting

screws

(supplied with

electrical box)

Hook

UL Listed

electrial

box

Figure 6 120V Wires

Washers

Figure 7

Hanger

bracket

Motor wires

Ball/downrod

assembly

Hanger pin Locking

Collar cover

Downrod

Canopy

Canopy cover

Set screws

Figure 5

Ceiling

canopy

Canopy

cover

Hanger

bracket

Hanging the Fan

REMEMBER to turn off the power. Follow

the steps below to hang your fan properly:

Step 1. Remove the decorative canopy

bottom cover from the canopy by turning

the cover counter clockwise.(Fig. 5)

Step 2. Remove the hanger bracket from

the canopy by loosening the two screws on

the bottom of the hanging bracket

from the screw head and turning the

canopy counter clockwise.(Fig. 5)

Step 3. Pass the 120-volt supply wires

through the center hole in the ceiling

hanger bracket.(Fig. 6)

Step 4. Secure the hanger bracket to the

ceiling outlet box with the screws and

washers provided with your outlet box.

Step 5. Remove the hanger pin, lock pin

and set screws from the top of the motor

assembly.

NOTE:

Step 6. Route wires exiting from the top of

the fan motor through the collar cover,

canopy cover, canopy and then through

the ball / downrod. (Fig. 7)

a half

turn

If a longer downrod is needed, take

out the screw located in the hanger ball,

lower the hanger ball and remove the pin,

remove all 3 pieces from the downrod and

assemble them onto the new longer

downrod before proceeding step 6. (The

longer downrod is available at any Home

Depot store)

5.5.

Making the Electrical

Connections

Remember to disconnect the power.

Follow the steps below to connect the fan to

your household wiring. Use the wire

connecting nuts supplied with your fan.

Secure the connectors with electrical tape.

Make sure there are no loose strands or

connections.

Step 1 Connect the fan supply (black) wire

and light supply (blue) wire to the black

household supply wire.(Fig. 8)

Step 2. Connect the neutral fan (white) wire

to the white neutral household wire.

Step 3 Connect the fan ground wire (green)

to the household ground wire.

Step 4 After connecting the wires, spread

them apart so that the green and white wires

are on one side of the outlet box and the

black and the blue wires are on the other side.

Step 5 Turn the connecting nuts upward and

push the wiring into the outlet box.

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR

OTHER PERSONAL INJURY. MOUNT FAN ONLY ON AN

OUTLET BOX OR SUPPORTING SYSTEM MARKED

ACCEPTABLE FOR FAN SUPPORT.

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK. DO

NOT USE THIS FAN WITH ANY SOLID-STATE SPEED

VARIABLE CONTROL DEVICE.

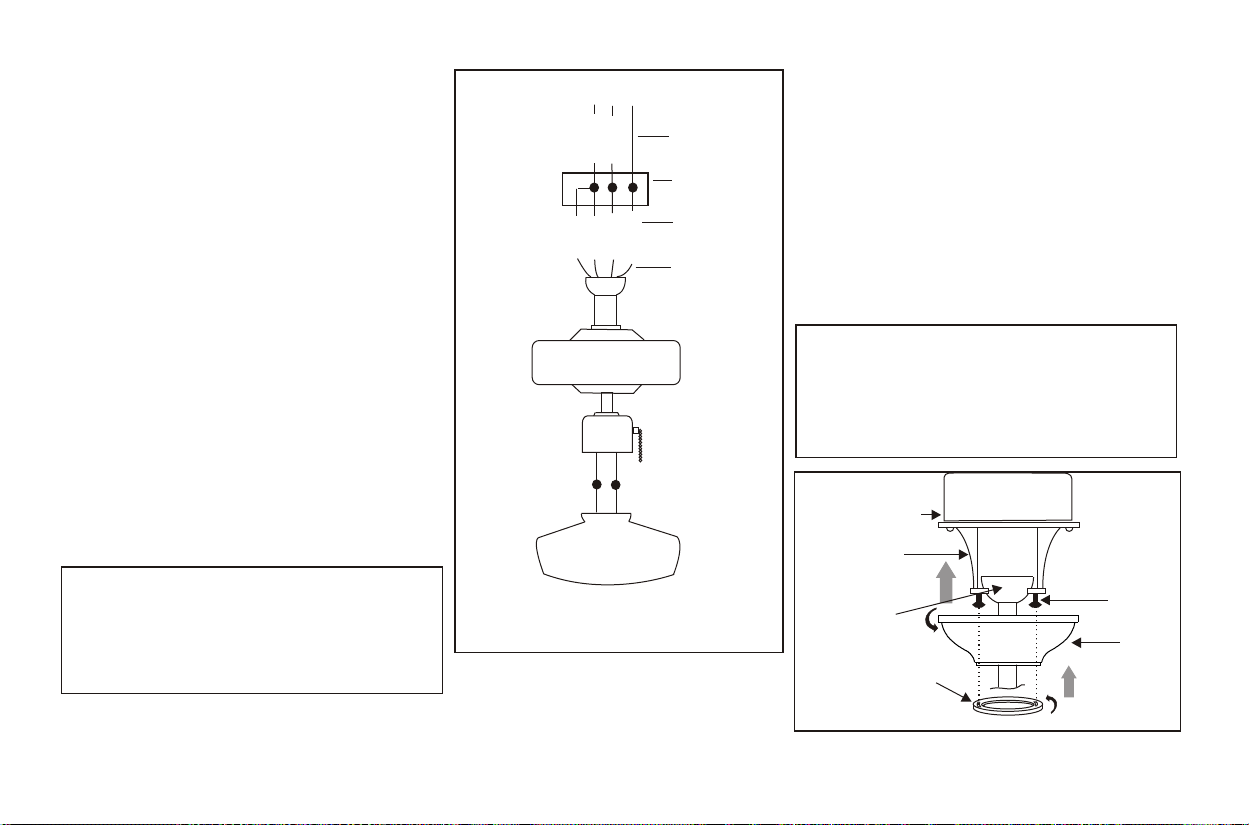

SUPPLY CIRCUIT

Ground

Conductor

Outlet Box

Green

Ground

Lead

Ground to

Downrod

BLACK

WHITEWHITE

BLACK

BLUE

GREEN

WHITE

BLUE

BLACK WHITE

Figure 8

Diagram indicates optional light kit wiring.

Figure 9

Outlet box

Hanger

bracket

Canopy

cover

Screws

Finishing the Installation

Step 1. Tuck connections neatly into ceiling

outlet box.

Step 2. Slide the canopy up to ceiling and over

the 2 screws on the hanger bracket. Rotate

canopy clockwise. Next, while holding the

canopy with one hand, slide the canopy cover

over the screws and rotate clockwise until

tight. Note: adjust the canopy screws as

necessary until the canopy and canopy cover

are snug. (Fig. 9)

WARNING

Make sure the hook on the hanging bracket

properly sits in the groove in the hanger

ball before attaching the canopy to the

bracket by turning the housing until it

drops into place.

Hanger

ball

Rubber packing

mounts

Screws

Rubber

washer

Blade

arm

Figure 11

Figure 10

Blade

Screws

Figure 12

Motor

Blade arm

Slot

Tab

Attaching the Fan Blades

Step 1 Attach blades to blade arms using

three screws and rubber washers.

Start a screw into the arm, do not

tighten. Repeat for the 2 remaining screws

and washers.

Step 2 Tighten each screw securely starting

with the center screw. Make sure the blade is

straight.

(Fig. 11)

blade

Repeat steps for the remaining

blades.

Step 3 Fasten the blade arms to the motor by

inserting the tab from the blade arms to the

slot in the bottom motor housing, then tighten

the two screws and washers already installed

in the blade arms. (Fig. 12)

WARNING

TO REDUCE THE RISK OF PERSONAL INJURY,

DO NOT BEND THE BLADE ARMS WHILE

INSTALLING, BALANCING THE BLADES, OR

CLEANING THE FAN. DO NO INSERT FOREIGN

OBJECTS BETWEEN ROTATING FAN BLADES.

CAUTION: Remove 5 rubber packing

mounts from fan motor assembly and

discard before installation. (Fig. 10)

NOTE

WAIT FOR FAN TO STOP BEFORE

CHANGING THE SETTING OF THE

SLIDE SWITCH.

Turn on the power and check the operation

of your fan. There are two pull chains

available in your fan:

1. 3-speed pull chain- it controls the fan

speed as follows: 1 pull- High, 2 pulls-

Medium, 3 pulls- Low, and 4 pulls- Off.

Speed settings for warm or cool weather

depend on factors such as the room size,

ceiling height, number of fans, and so on.

The slide switch controls directions: forward

(switch down) or reverse (switch up).

Warm weather - (Counter-Clockwise direction)

A downward airflow creates a cooling

effect.(Fig. 13) This allows you to set your air

conditioner on a higher setting without

affecting your comfort.

Cool weather-(Clockwise direction) An upward

airflow moves warm air off the ceiling

area.(Fig. 14) This allows you to set your

heating unit on a lower setting without

affecting your comfort.

Figure 13

Figure 14

7. Operating Your Fan

Inhaltsverzeichnis

Andere HAMPTON BAY Lüfter Handbücher

HAMPTON BAY

HAMPTON BAY Parker Ridge Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY RIVERWALK Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY LARGO 91882 Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY Farmington Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY 1002 275 335 Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY Tahiti Breeze Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY ABBEYWOOD Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY RENWICK 656 416 Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY ROTHLEY 51563 Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY xxx-xxx AL958-BN Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY LUXENBERG EF200P-36 Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY 53701101 Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY Middleton 42 inch Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY SCENIC 92302 Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY Noella Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY Sabitini Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY 26829 Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY Glendale 52 Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY DANETREE N243B-BN Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY Eastridge 640-659 Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY Tipton II 52" Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY PT13-13D-1 Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY Principle Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY HAVANA 48-HVA Bedienungsanleitung

Beliebte Lüfter Handbücher anderer Marken

ELTA FANS

ELTA FANS H03VV-F Bedienungsanleitung

Hunter

Hunter 20714 Gebrauchsanweisung

Emerson

Emerson CARRERA VERANDA CF542ORB00 Bedienungsanleitung

Hunter

Hunter Caraway Gebrauchsanweisung

Panasonic

Panasonic FV-15NLFS1 Bedienungsanleitung

Kompernass

Kompernass KH 1150 Bedienungsanleitung

VES

VES FALA100/12V/TR Bedienungsanleitung

Vertiv

Vertiv Liebert DCD Bedienungsanleitung

Westinghouse

Westinghouse GFP Series Bedienungsanleitung

Venmar

Venmar KUBIX HRV PLUS Series Bedienungsanleitung

Maico

Maico ECR 31 Bedienungsanleitung

Sonnenkonig

Sonnenkonig Dinky Bedienungsanleitung

S&P

S&P ECOWATT HXBR Bedienungsanleitung

Wider

Wider IMP03369BH Bedienungsanleitung

Panasonic

Panasonic F-60DHN Bedienungsanleitung

Hinkley

Hinkley HIGHLAND Bedienungsanleitung

Broan

Broan 766BN Bedienungsanleitung

Premium

Premium PFS16022 Montageanleitung
