HAMPTON BAY Florentine Bedienungsanleitung

Florentine IV

56 in Ceiling Fan

Owner’s Manual

Florentine IV

Ventilador de Techo de 1,42 m

Manual del Propietario

527-541

Florentine IV by Hampton Bay

56” Florentine IV

Ceiling Fan by Hampton Bay

Date Purchased

Store Purchased

UL Model No.

Serial No.

Vendor No.

UPC

Thank you for purchasing our ceiling fan. This product has been

manufactured with the highest standards of safety and quality.

The finish of this fan is weather resistant, but over time will

naturally weather and fade.

Table of Contents

Safety Rules . . . . . . . . . . . . . . . . . . . . 1

Unpacking Your Fan . . . . . . . . . . . . . . 2

Installing Your Fan . . . . . . . . . . . . . . . 3

Operating Your Fan . . . . . . . . . . . . . . . 9

Care of Your Fan . . . . . . . . . . . . . . . . 10

Troubleshooting . . . . . . . . . . . . . . . . . 10

Specifications . . . . . . . . . . . . . . . . . . 11

Warranty Information . . . . . . . . . . . . 12

527-541

792145354390

219032

Safety Rules - Read and Save These Instructions

To reduce the risk of electric shock, insure electricity has been turned off

at the circuit breaker or fuse box before beginning.

All wiring must be in accordance with the National Electrical Code

“ANSI/NFPA 70-1999” and local electrical codes. Electrical installation

should be performed by a qualified licensed electrician.

WARNING: To reduce the risk of electrical shock or fire, do not use this

fan with any solid-state fan speed control device. It will permanently

damage the electronic circuitry.

CAUTION: To reduce the risk of personal injury, use only the screws

provided with the outlet box.

The outlet box and support structure must be securely mounted and

capable of reliably supporting a minimum of 35 pounds. Use only UL

Listed outlet boxes marked “FOR FAN SUPPORT”.

The fan must be mounted with a minimum of 7 feet clearance from the

trailing edge of the blades to the floor.

Avoid placing objects in path of the blades.

To avoid personal injury or damage to the fan and other items, be

cautious when working around or cleaning the fan.

Do not use water or detergents when cleaning the fan or fan blades. A dry

dust cloth or lightly dampened cloth will be suitable for most cleaning.

After making electrical connections, spliced conductors should be turned

upward and pushed carefully up into outlet box. The wires should be

spread apart with the grounded conductor and the equipment-grounding

conductor on one side of the outlet box and ungrounded conductor on the

other side of the outlet box.

All set screws must be checked and retightened where necessary before

installation.

WARNING: Use only with light kit marked “Suitable for Use in Wet

Locations”.

10.

11.

12.

WARNING

TO REDUCE THE RISK OF PERSONALL INJURY, DO NOT BEND THE

BLADE ARMS (ALSO REFERRED TO AS FLANGES), WHEN

INSTALLING THE BRACKETS, BALANCING THE BLADES OR

CLEANING THE FAN. DO NOT INSERT FOREIGN OBJECTS IN –

BETWEEN ROTATING FAN BLADES.

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL

INJURY, MOUNT FAN TO OUTLET BOX MARKED ACCEPTABLE FOR

FAN SUPPORT WITH THE SCREWS PROVIDED WITH THE OUTLET

BOX.

WARNING

Unpacking Your Fan Unpack your fan and check the contents. You should have the following items:

Set of blades (3)

Canopy assembly

Ball/downrod assembly (1)

& extra downrod (1)

Coupling cover

Fan motor assembly

Blade arms (3)

4-speed wall control with 2 mounting

screws and 3 wire nuts

Mounting plate with 2 mounting screws

7A.

Blade Attachment Hardware

(13 screws, 13 nut, 13 rubber washers,

13 metal washers, Allen wrench)

Electrical Hardware

(3 plastic wire nuts)

Balance Kit

WARNING

DO NOT INSTALL OR USE FAN IF ANY

PART IS DAMAGED OR MISSING.

CALL TOLL FREE 1-877-902-5588.

Installing Your Fan

Figures 1~3 are examples of different ways to

mount the outlet box.

If there isn't an existing UL listed mounting box,

then read the following instructions. Disconnect

the power by removing fuses or turning off circuit

breakers.

Secure the outlet box directly to the building

structure. Use appropriate fasteners and building

materials. The outlet box and its support must be

able to fully support the moving weight of the fan

(at least 35 lbs). Do not use plastic outlet boxes.

Tools Required

Mounting Options

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC

SHOCK OR PERSONAL INJURY, MOUNT FAN

ONLY TO AN OULET BOX MARKED ACCEPT-

ABLE FOR FAN SUPPORT AND USE THE

MOUNTING SCREWS PROVIDED WITH THE

OULET BOX. OUTLET BOX COMMONLY USED

FOR THE SUPPORT OF LIGHTING FIXTURE

MAY NOT BE ACCEPTABLE FOR FAN SUPPORT

AND MAY NEED TO BE REPLACED. CONSULT A

QUALIFIED ELECTRICIAN IF IN DOUBT.

Outlet Box

Figure 2

Figure 1

Note: You may need a longer downrod to

maintain proper blade clearance when installing

on a steep, sloped ceiling. The maximum angle

allowable is 22°. If the canopy touches downrod,

remove the decorative canopy bottom cover and

turn the canopy 180°before attaching the canopy

to the mounting plate.

To hang your fan where there is an existing fixture

but no ceiling joist, you may need an installation

hanger bar as shown in Figure 4 (available at any

Home Depot retailer).

Ceiling

Mounting

Plate

Provide Strong

Support

Recessed

Outlet Box

Figure 3

Figure 4

Phillips screwdriver, straight slot screwdriver, step

ladder and wire cutters.

REMEMBER to turn off the power. Follow the

steps below to hang your fan properly.

Hanging the Fan WARNING

FAILURE TO PROPERLY INSTALL COTTER PIN

AS NOTED IN STEP 5 COULD RESULT IN FAN

LOOSENING AND POSSIBLY FALLING.

Tighten two set screws at top of the fan motor

collar firmly and evenly. (Fig. 6)

Remove the decorative canopy bottom cover

from the canopy by turning the cover counter

clockwise. (Figure 5)

Remove the mounting bracket from the canopy

by removing the 1 of 2 screws from the bottom

of the mounting bracket and loosening the

other one a half turn from the screw head.

Next, turn the canopy counter clockwise to

removing the canopy cover form the canopy.

(Figure 5)

Remove the clevis pin, cotter pin and set

screws from the top of the motor assembly.

(Figure 6)

Route wires exiting from the top of the fan

motor through the coupling cover, canopy

cover, canopy and then through the ball/

downrod. (Figure 6)

Align the holes at the bottom of the downrod

with the holes in the coupling on top of the

motor housing (Figure 6). Carefully insert the

clevis pin through the holes in the collar and

downrod. Be careful not to jam the clevis pin

against the wiring inside the downrod. Insert

the cotter pin through the hole near the end of

the clevis pin until it snaps into its locked

position, as noted in the circle inset of Fig. 6.

Figure 6

Motor Wires

Ball/Downrod

Assembly

Ceiling Canopy

Canopy Bottom

Cover

Pin in Locked

Positioon

Motor Collar

Coupling

Cover

Tighten Screw

Firmly

Cotter Pin

Clevis Pin

Figure 5

Ceiling

Mounting

Bracket

Ceiling Canopy

Canopy Bottom

Cover

WARNING

THE TAB IN THE RING MUST REST IN THE

GROOVE OF THE HANGER BALL AS FIGURE 8.

FAILURE TO PROPERLY SEAT THE TAB IN THE

GROOVE COULD CAUSE DAMAGE TO WIRING.

Installing Fan to

the Electrical Box

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC

SHOCK OR OTHER PERSONAL INJURY. MOUNT

FAN ONLY TO AN OUTLET BOX OR SUPPORTING

SYSTEM MARKED ACCEPTABLE FOR FAN

SUPPORT AND USE THE MOUNTING SCREWS

PROVIDED WITH THE OUTLET BOX.

Pass the 120-volt supply wires through the

center hole in the ceiling mounting bracket as

shown in Figure 7.

Install the ceiling mounting bracket on the

outlet box with the screws and washers

provided with your outlet box (Figure 7).

Security tighten the two mounting screws.

Carefully lift the fan assembly up to the ceiling

mounting bracket and seat the hanger ball in the

mounting bracket socket. Make sure the tab on

the mounting bracket socket is properly seated

in the groove in the hanger ball (Figure 8). This

will help to balance the ceiling fan.

Changing the Downrod

(Optional)

NOTE: Your fan comes with a 4" downrod

attached to the hanger ball. In addition you have

been provided with a 6" downrod to use if desired.

If you choose to use the 6" downrod, perform the

following steps:

Remove the hanger ball from the 4" downrod

by loosening the set screw at the top of the

downrod which holds the hanger ball to the

downrod.

Slide the hanger ball down the downrod and

remove the support pin.

Insert the support pin in the holes at the top of

the 6" downrod and slide the hanger ball up the

6" downrod. Make sure the support pin is

properly seated in the grooves in the top of the

hanger ball.

Tighten the set screw firmly.

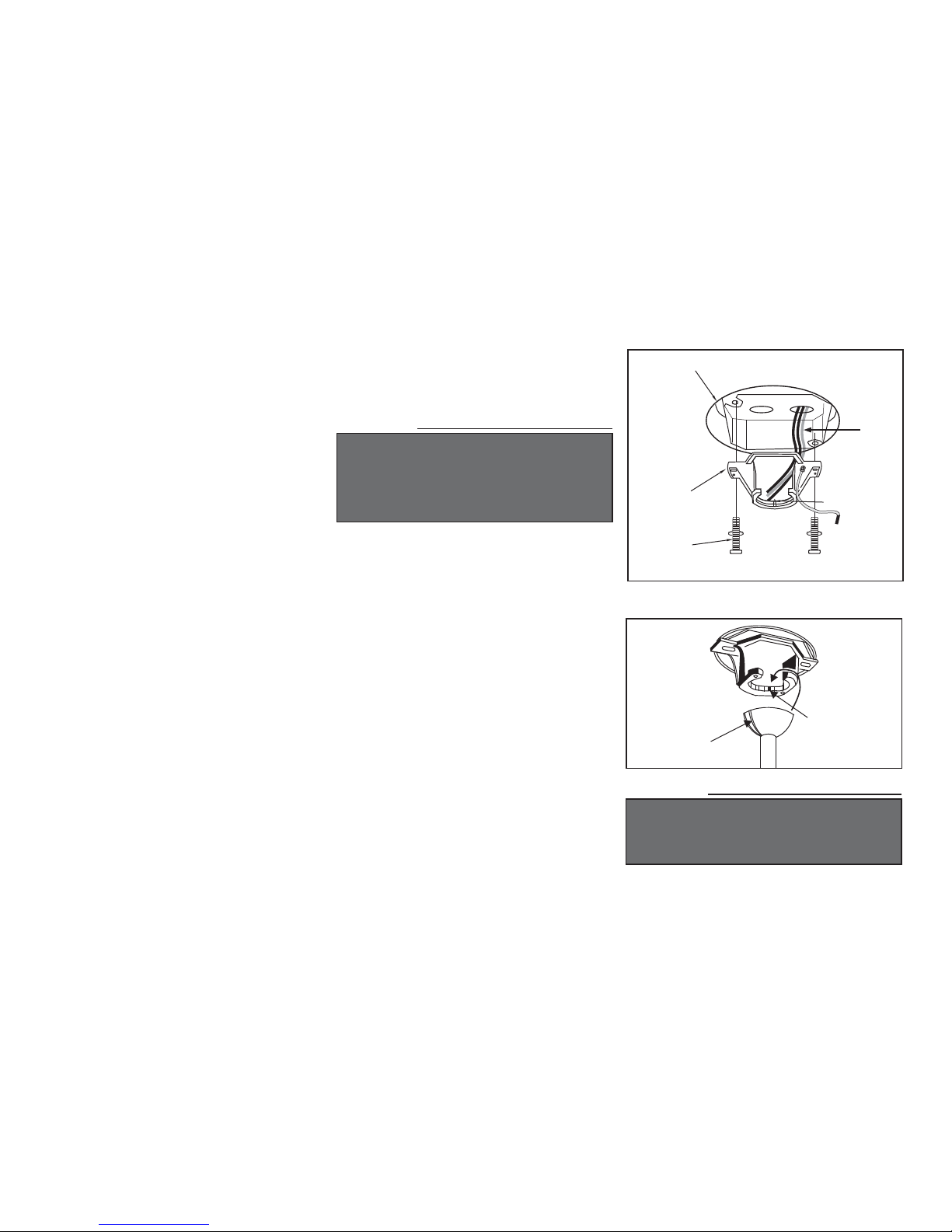

Figure 7

UL Listed Outlet Box

Ceiling Mounting

Bracket

120V

Wires

Mounting

Screws (Supplied

with Electrical Box)

Tab

Figure 8

Groove

Tab

Making the Electrical

Connections

WARNING

TO AVOID POSSIBLE ELECTRICAL SHOCK,

BE SURE ELECTRICITY IS TURNED OFF AT

THE MAIN FUSE BOX BEFORE WIRING.

Disconnect the power and remove the existing

wall plate and switch from the wall junction

box. (Figure 9).

Set switch knobs on the wall control in the 0

position.

Make wire connections (Figure 10) and secure

with wire nuts supplied.

• Black wire from fan to black wire from speed

control.

• Black wire from speed control to black wire

from the A/C supply source.

• White wire from fan to white wire from the

A/C supply source.

• Connect the fan ground wire (green) to the

household ground wire.

If your outlet box has a ground wire (green or

bare copper) connect the wall transmitter's.

ground wire to it; otherwise connect the wall

transmitter's ground wire directly to one of the

screws from the outlet box.

If you feel you do not have enough electrical

wiring knowledge or experience, have your fan

installed by a licensed electrician.

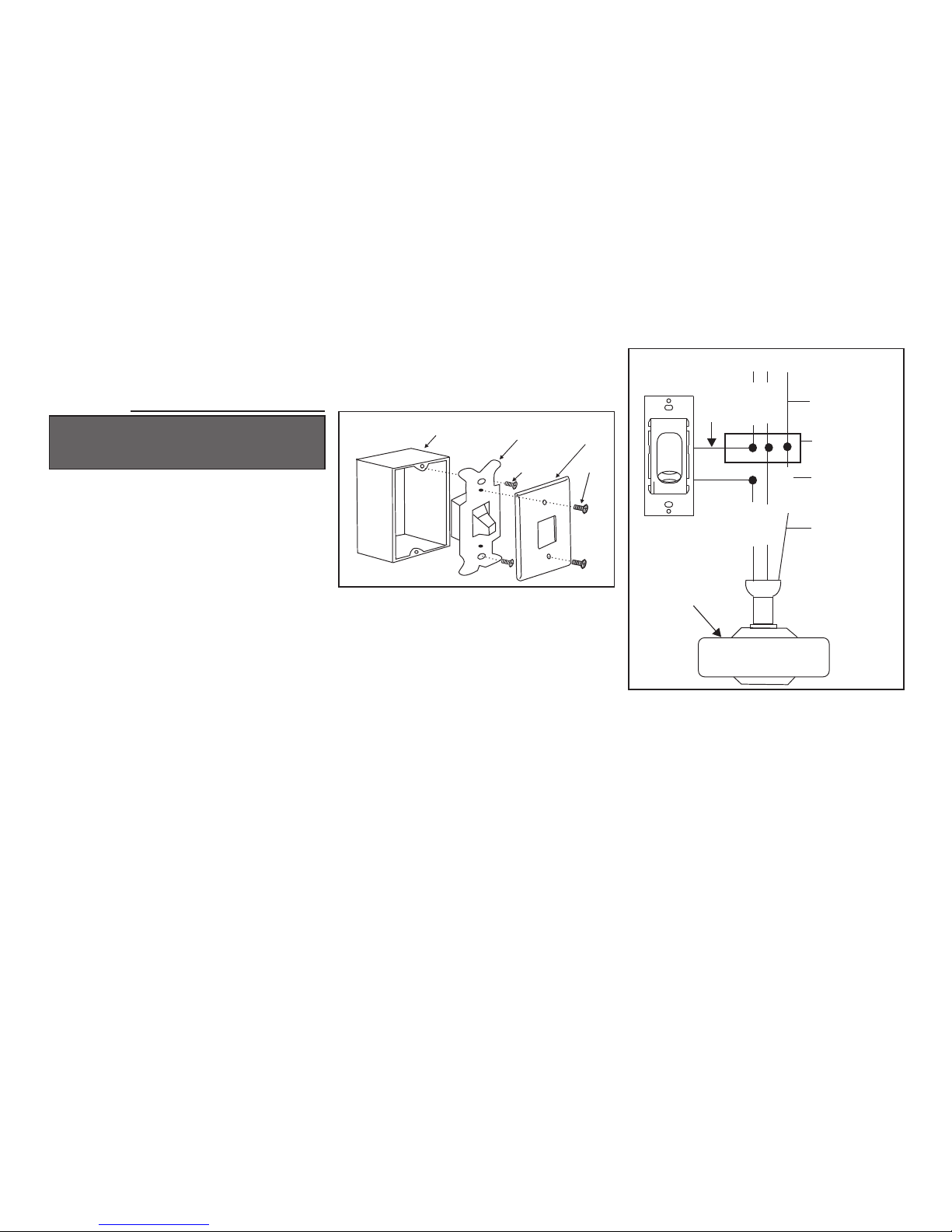

Figure 9

Switch

Outlet Box Wall Plate

Screws

Figure 10

FAN 4 SPEED

CONTROL

Fan

SUPPLY CIRCUIT

BLACK

BLACK BLACK

Ground

Conductor

Outlet Box

Green Ground

Lead

Ground to

Downrod

GREEN

WHITE WHITE

WARNING

MAKE SURE THE TAB ON THE HANGING

BRACKET PROPERLY SITS IN THE GROOVE IN

THE HANGER BALL BEFORE ATTACHING

THE CANOPY TO THE BRACKET BY TURNING

THE HOUSING UNTIL IT DROPS INTO PLACE.

(Fig. 11) Carefully tuck the wire connections

inside the junction box. Secure the wall

transmitter with the two screws provided.

Attach the wall plate over the wall transmitter

and secure with the two screws provided.

Remember to shut the power off at the circuit

breaker or fuse box.

Tuck connections neatly into ceiling outlet

box.

Slide the canopy up to mounting bracket and

place the key hole on the canopy over the

screw on the mounting bracket, turn canopy

until it locks in place at the narrow section of

the key holes. (Fig. 12)

Align the circular hole on canopy with the

remaining hole on the mounting bracket,

secure by tightening the two set screws. Note:

Adjust the canopy screws as necessary until the

canopy and canopy cover are snug.

Finishing the Fan

Installation

Installing the Wall

Transmtter

WARNING

HOOK UP IN "SERIES ONLY" DO NOT CONNECT

THE HOT AND NEUTRAL WIRES OF ELECTRIC

CIRCUIT TO THE TRANSMITTER WALL SWITCH -

DAMAGE TO THE SWITCH AND POSSIBLE FIRE

COULD OCCUR.

Figure 11

Screws

Wall Plate

Switch Outlet Box

Figure 12

Outlet Box

Ceiling

Mounting

Bracket

Screw

Canopy

Bottom Cover

Andere Handbücher für Florentine

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere HAMPTON BAY Lüfter Handbücher

HAMPTON BAY

HAMPTON BAY Torrington Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY 1000044889 AM215-BN Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY MORESCO 14411 Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY Lodge 285 313 Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY MINNA HE-12026 Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY 178 128 Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY Palisades Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY Algiers 672 099 Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY 133-715 Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY HAWKINS YG204I-TB-D Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY LARSON AL420-BN Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY 1002 275 335 Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY CYPRUS 220 635 Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY STONERIDGE 51973 Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY 593-543 AL958-ORB Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY LOWRY 52-LOWRY Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY Minuet III AG806C-EB Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY Parker Ridge Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY AK376-MBK Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY 52101 Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY Lindbrook YG336-BN Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY EF200S-52 Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY Devereaux II Bedienungsanleitung

HAMPTON BAY

HAMPTON BAY WELLSTON 51360 Bedienungsanleitung

Beliebte Lüfter Handbücher anderer Marken

ELTA FANS

ELTA FANS H03VV-F Bedienungsanleitung

Hunter

Hunter 20714 Gebrauchsanweisung

Emerson

Emerson CARRERA VERANDA CF542ORB00 Bedienungsanleitung

Hunter

Hunter Caraway Gebrauchsanweisung

Panasonic

Panasonic FV-15NLFS1 Bedienungsanleitung

Kompernass

Kompernass KH 1150 Bedienungsanleitung

VES

VES FALA100/12V/TR Bedienungsanleitung

Vertiv

Vertiv Liebert DCD Bedienungsanleitung

Westinghouse

Westinghouse GFP Series Bedienungsanleitung

Venmar

Venmar KUBIX HRV PLUS Series Bedienungsanleitung

Maico

Maico ECR 31 Bedienungsanleitung

Sonnenkonig

Sonnenkonig Dinky Bedienungsanleitung

S&P

S&P ECOWATT HXBR Bedienungsanleitung

Wider

Wider IMP03369BH Bedienungsanleitung

Panasonic

Panasonic F-60DHN Bedienungsanleitung

Hinkley

Hinkley HIGHLAND Bedienungsanleitung

Broan

Broan 766BN Bedienungsanleitung

Premium

Premium PFS16022 Montageanleitung
