HAMPTON BAY 240-236 Bedienungsanleitung

INSTRUCTIONS MANUAL

EXTERIOR LIGHT FIXTURE

Page 1

HOME DEPOT SKU# 240-236 (UPC# 046335840386)

Page 2

Thank you for purchasing this Hampton Bay Exterior Light Fixture. This

product has been manufactured with the highest standards of safety and

quality.

FEATURES:

Before returning to your local Home Depot, please call our Customer

Service Team at 1-877-527-0313 or visit www.homedepot.com. Please

reference your SKU (240-236) or UPC (046335840386).

QUESTIONS, PROBLEMS, MISSING PARTS:

1. Easy to install.

2. Handsome White finish with Frosted Ribbed glass.

3. Solid cast aluminum resists elements.

4. For energy savings this fixture has been engineered to safely use a

Self Ballasted Compact Fluorescent Lamp in place of an incandescent

lamp.

Page 3

CAUTION:

1. Before starting installation of this fixture or removal of a previous

fixture, disconnect the power by turning off the circuit breaker or by

removing the fuse at the fuse box.

2. CONSULT A QUALIFIED ELECTRICIAN IF YOU HAVE ANY

ELECTRICAL QUESTIONS. If you have any non-electrical

questions about this fixture, please call our Customer Service Team at

1-877-527-0313 or visit www.homedepot.com. Please reference your

SKU (240-236) or UPC (046335840386).

3. KEEP your receipt and these Instructions for Proof of Purchase.

TOOLS REQUIRED FOR INSTALLATION AND ASSEMBLY

(not included):

Safety

goggles

Wire

strippers

Phillips

screwdriver

Electrical

tape

Wire

cutters

Flathead

screwdriver

Light Bulb (60

watt maximum or

CFL equivalent)

PARTS INCLUDED FOR ASSEMBLY (parts are not to scale):

ASSEMBLY INSTRUCTIONS:

Page 4

1 ea Fixture Pan (#1) 1 ea Cage (#2)

1. Carefully unpack the fixture. Lay out all parts on a clean surface.

2. Before continuing Assembly, please proceed to the Installation Instructions.

3. Install an incandescent Light Bulb (#17) or a Listed SBCFL (Self-Ballasted Compact

Fluorescent Lamp [not provided]) into the socket of the Fixture Pan (#1). Do not exceed a

60 watt incandescent light bulb, or a 14 watt SBCFL.

4. Slide the the Diffuser (#18) into the Cage (#2).

5. Secure the Cage (#2) onto the Fixture Pan (#1), using the Cage Screws (#19).

1 ea Diffuser (#18)

2 ea Cage Screws (#19)

ASSEMBLY:

Page 5

2. Cage

1. Fixture

Pan

17. Light

Bulb

19. Cage

Screws

18. Diffuser

Page 6

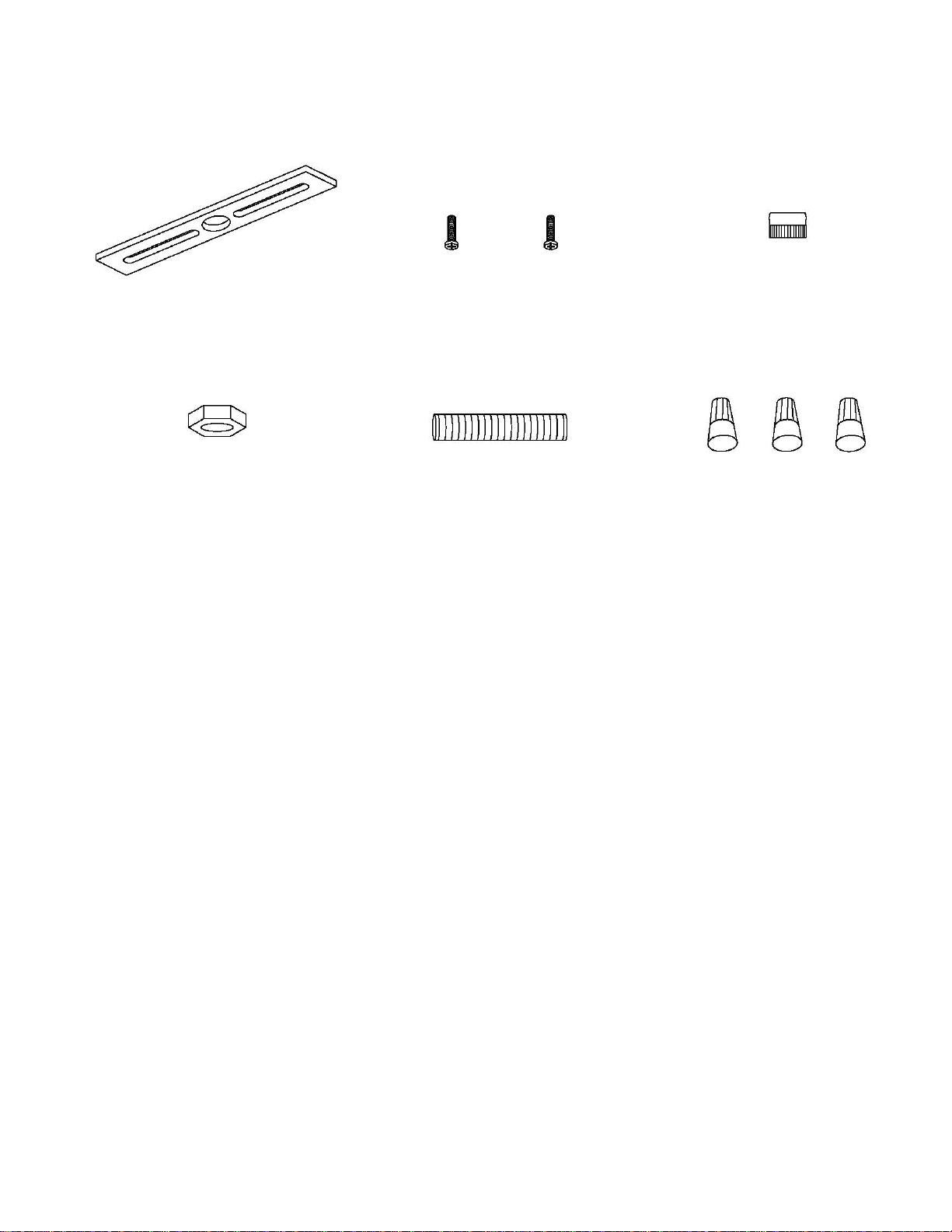

PARTS INCLUDED FOR INSTALLATION (parts are not to

scale):

INSTALLATION INSTRUCTIONS:

3 ea Wire

Nuts (#14)

2 ea Bracket Mounting

Screws (#8)

1 ea Mounting

Bracket (#7)

1 ea Nipple (#6)

2 ea Hex

Nuts (#9)

2 ea Lock

Nuts (#3)

1. Thread the Hex Nut (#9) onto the Nipple (#6). Thread the Nipple (#6) into the center hole of the

Mounting Bracket (#7). Do not tighten the Hex Nut (#9) at this time.

2. Pull the power supply wires out from the Outlet Box (#4), and mount the Mounting Bracket (#7) to the

Outlet Box (#4), using the Bracket Mounting Screws (#8).

3. Attach the Black Supply Wire (#5) to the Black Fixture Wire (#12) and the White Supply Wire (#16) to

the White Fixture Wire (#13) using Wire Nuts (#14). Connect the Fixture Ground Wire (#11) and the

Supply Ground Wire (#15) together using a Wire Nut (#14). Wrap all wire connections with electrical

tape for a more secure connection. Note: If you have electrical questions, consult your local electrical

code for approved grounding methods.

4. Carefully tuck all Wires and Wire Nuts (#14) into the Outlet Box (#4). Place the Fixture Pan (#1) over

the Outlet Box (#4), flush against the wall surface, making sure the Nipple (#6) feeds through the hole of

the Fixture Pan (#1). Adjust the Nipple (#6) so that it protrudes about ¼ inch from the surface of the

Fixture Pan (#1). Remover the Fixture Pan (#1) from the wall and tighten the Hex Nut (#9) against the

Mounting Bracket (#7). Replace the Fixture Pan (#1) over the Outlet Box (#4) and thread the Lock Nut

(#3) onto the Nipple (#6) to secure the Fixture Pan (#1) against the wall.

5. Proceed back to the Assembly Instructions.

6. Installation is complete. Turn on power at the circuit breaker or fuse box. Turn the light switch on to

activate the fixture.

Page 7

INSTALLATION:

3. Lock Nut

13. White Fixture Wire 11. Fixture Ground Wire

14. Wire Nut

16. White Supply Wire 5. Black Supply Wire

15. Supply Ground Wire

4. Outlet Box

8. Bracket Mounting Screw

9. Hex Nut

6. Nipple

12. Black Fixture Wire

1. Fixture

Pan

7. Mounting Bracket

Page 8

Possible Cause Corrective Action

1. Power is off. 1. Make sure power supply is on.

2. Faulty switch. 2. Test or replace switch.

3. Faulty wire connection. 3. Check wiring.

Fuse blows or circuit breaker

trips when light is turned on. 1. Crossed wires or power wire is grounding

out. 1. Check wire connections.

Light willnot turn on.

TROUBLESHOOTING:

PRODUCT MAINTENANCE:

1. To clean the outside of the fixture, use a dry or slightly dampened clean cloth (use clean

water, never a solvent) to wipe the surface of the fixture.

2. To clean the inside of the fixture, first disconnect power to the fixture by turning off the

circuit breaker or by removing the fuse at the fuse box. Next, use a dry or slightly

dampened clean cloth (use clean water, never a solvent) to wipe the interior surface of the

fixture.

3. Do not use any cleaners with chemicals, solvents or harsh abrasives. Use only a dry soft

cloth to dust or wipe carefully.

LIMITED WARRANTY

The manufacturer warrants this lighting fixture to be free from defects in materials and workmanship for a

period of three (3) years from date of purchase. This warranty applies only to the original consumer

purchaser and only to products used in normal use and service. If this product is found to be defective, the

manufacturer’s only obligation, and your exclusive remedy, is the repair or replacement of of the product at

the manufacturer’s discretion, provided that the product has not been damaged through misuse, abuse,

accident, modifications, alterations, neglect or mishandling. This warranty shall not apply to any product

that is found to have been improperly installed, set-up, or used in any way not in accordance with the

instructions supplied with the product. This warranty shall not apply to a failure of the product as a result of

an accident, misuse, abuse, negligence, alteration, or faulty installation, or any other failure not relating to

faulty material or workmanship. This warranty shall not apply to the finish on any portion of the product,

such as surface and/or weathering, as this is considered normal wear and tear. The manufacturer does not

warrant and specially disclaims any warranty, whether expressed or implied, of fitness for a

particular purpose, other than the warranty contained herein. The manufacturer specifically

disclaims any liability and shall not be liable for any consequential or incidental loss or damage,

including but not limited to any labor/expense costs involved in the replacement or repair of said

product.
